OPERATION MANUAL

SENSOR TUMBLE DRYER

Model:SDRY60

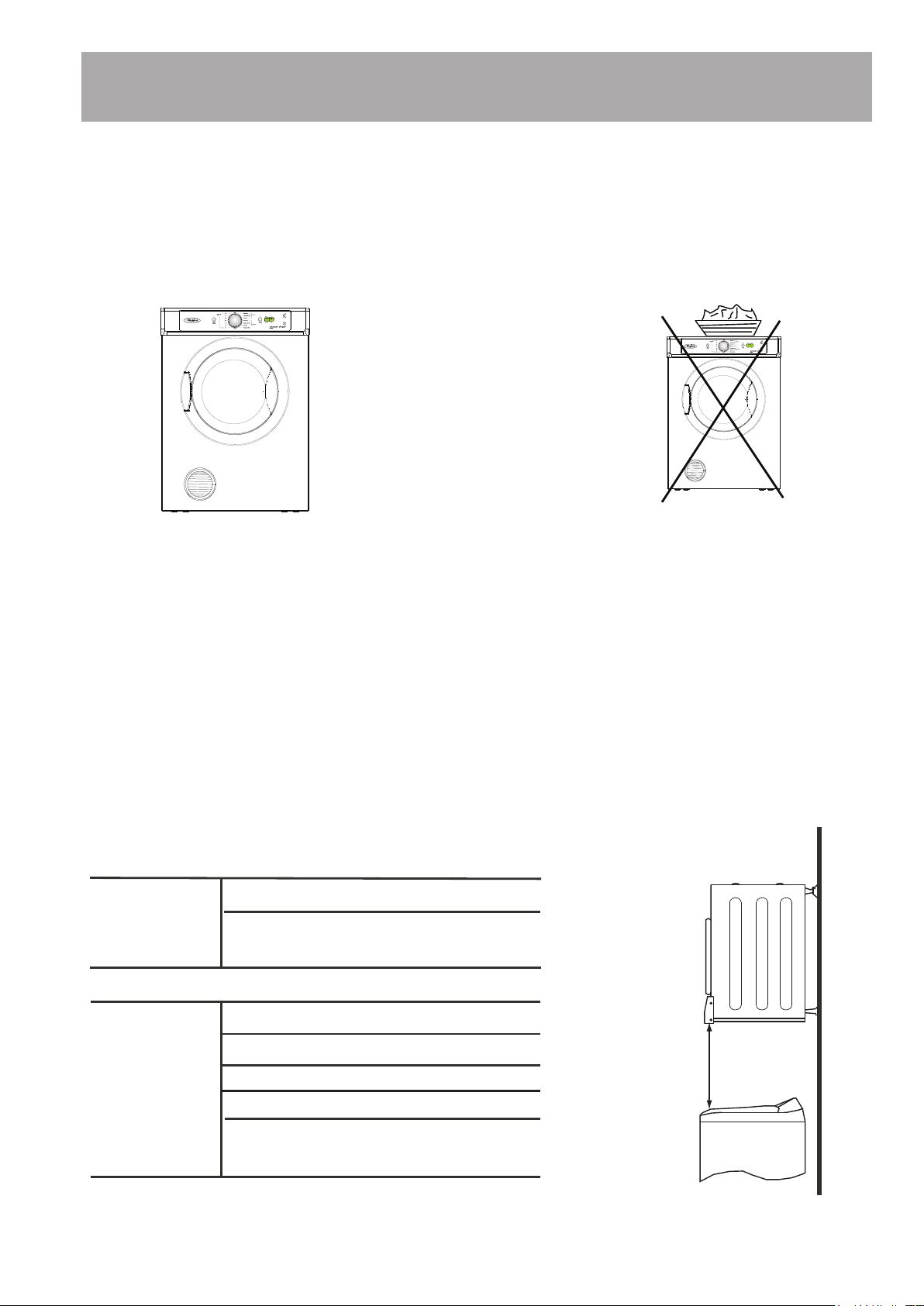

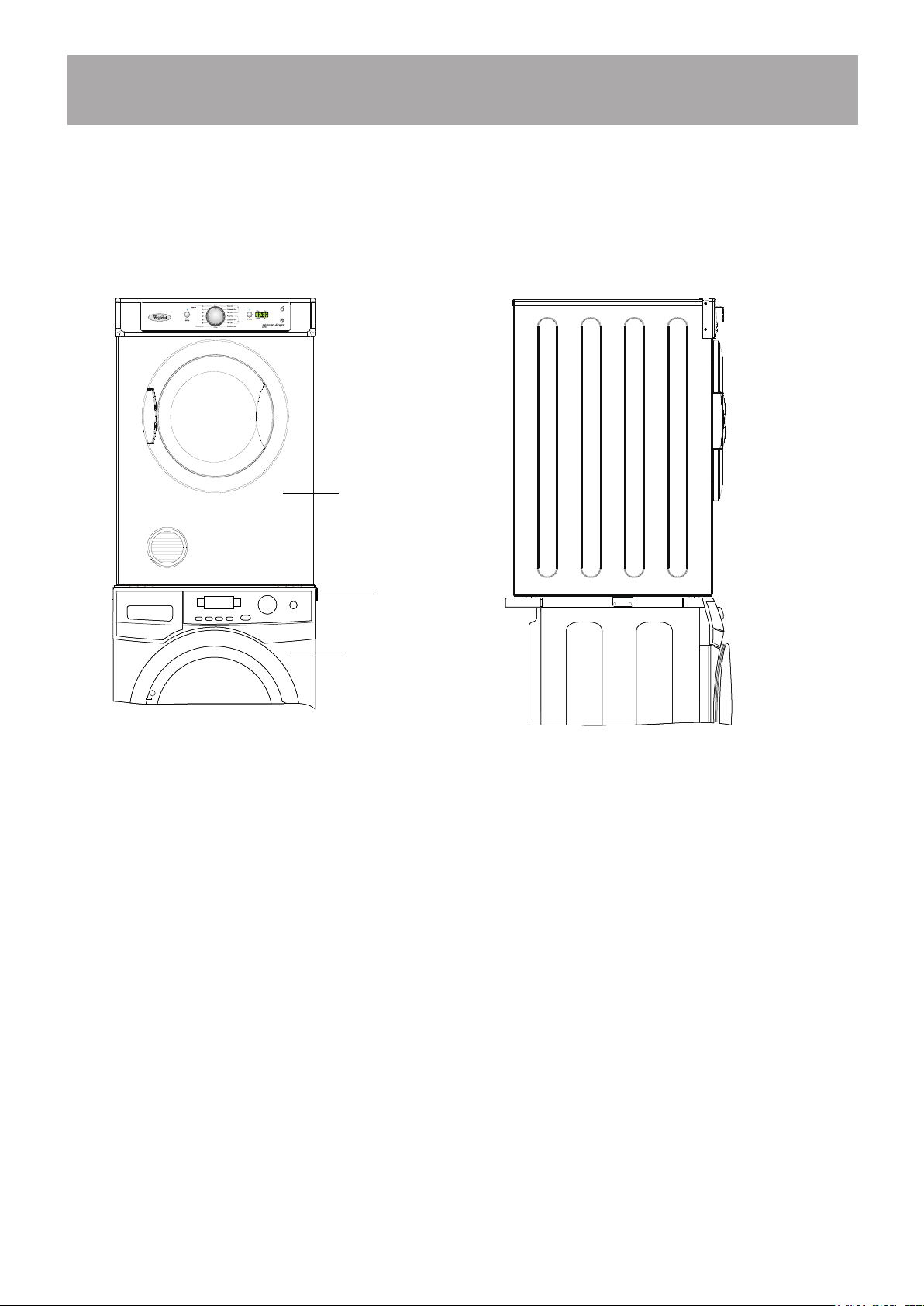

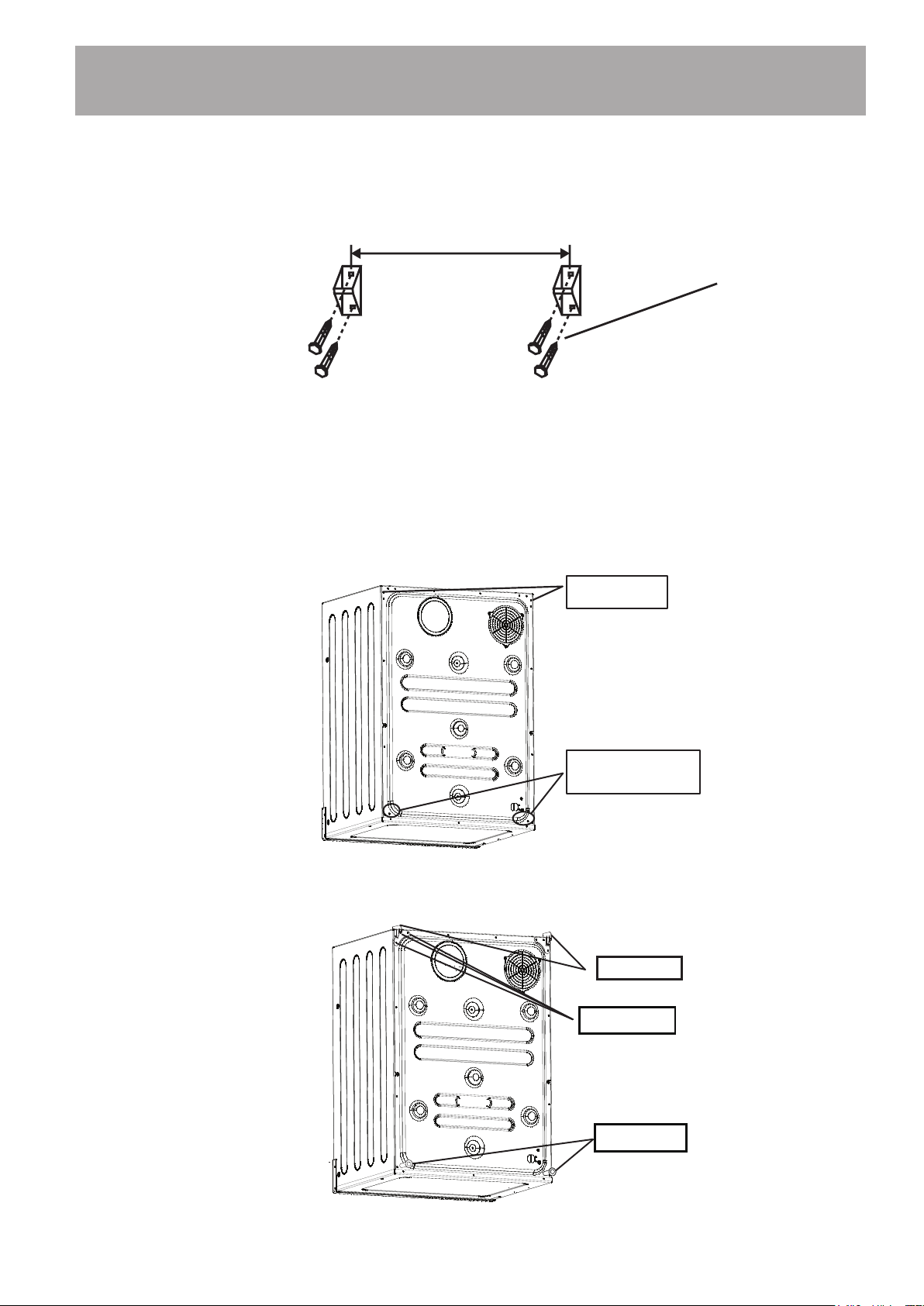

INSTALLATION INSTRUCTIONS INVERTED WALL MOUNTING STACKING INSTALLATION

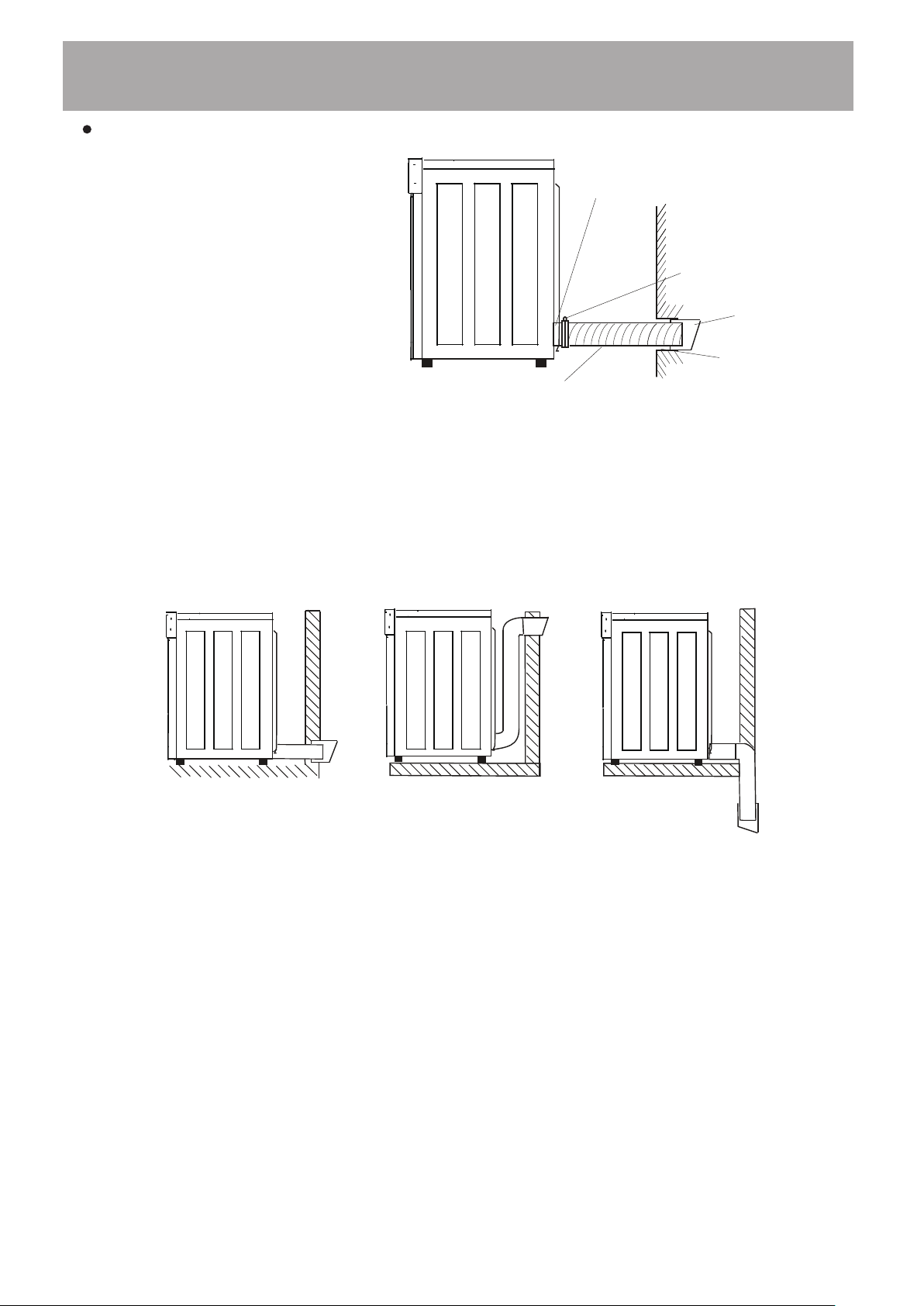

INSTALL THE FLEXIBLE HOSE

TABLE OF CONTENTS

INSTALLATION INSTRUCTIONS IDENTIFICATION OF PARTS

IMPORTANT SAFETY INSTRUCTIONS

4 5

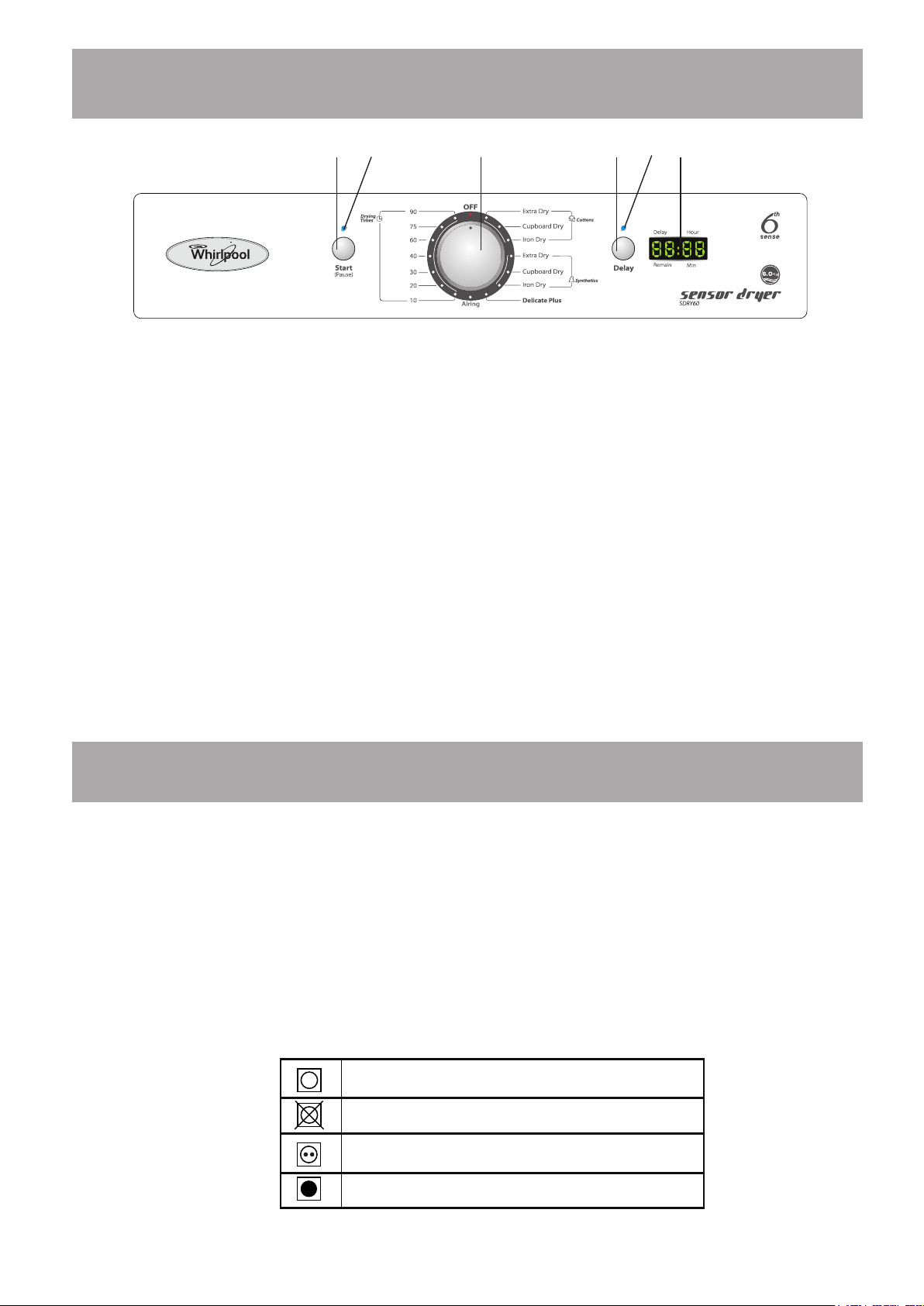

OPERATING INSTRUCTIONS CONTROL PANEL

OPERATING INSTRUCTIONS

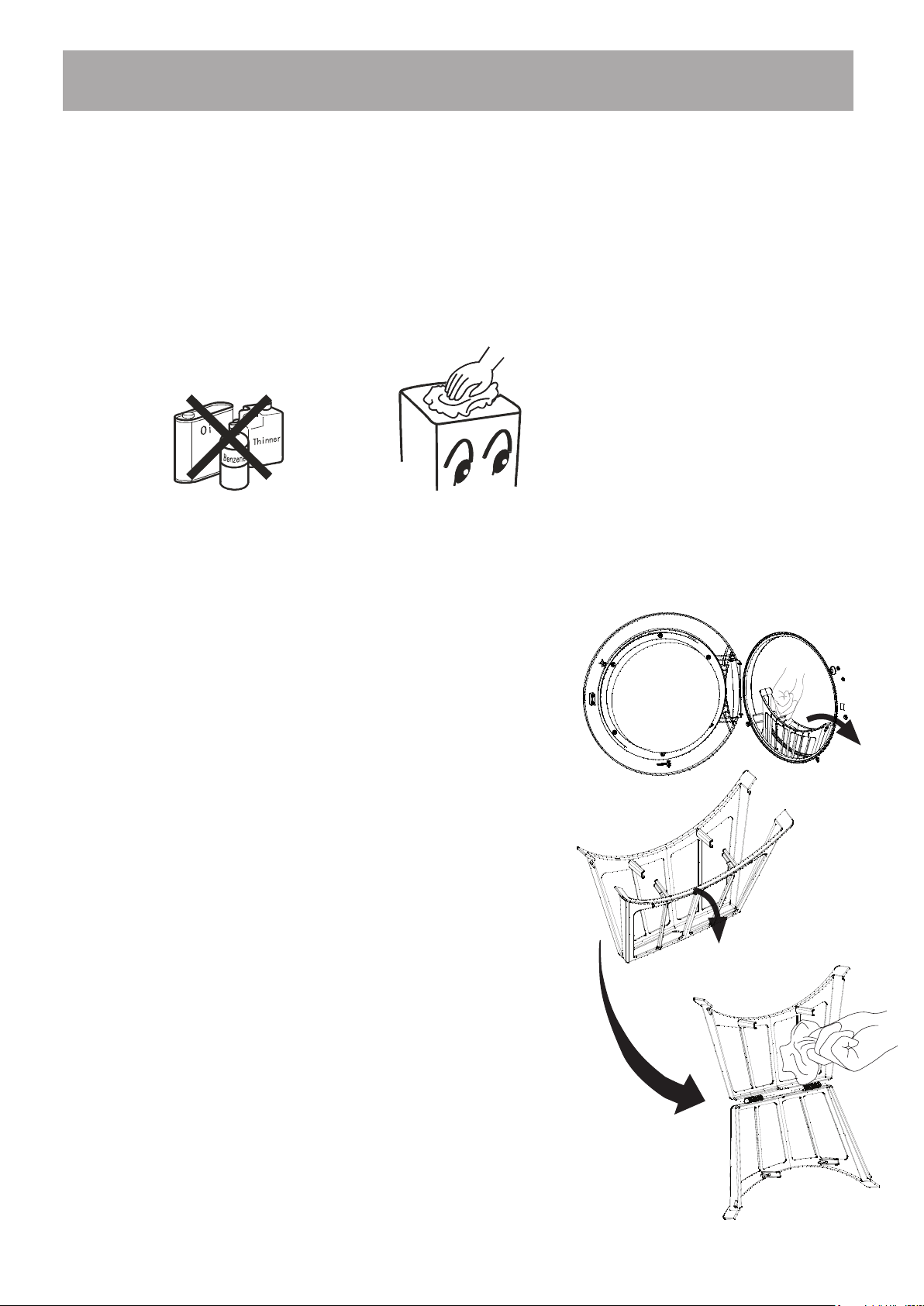

CLEANING AND MAINTENANCE

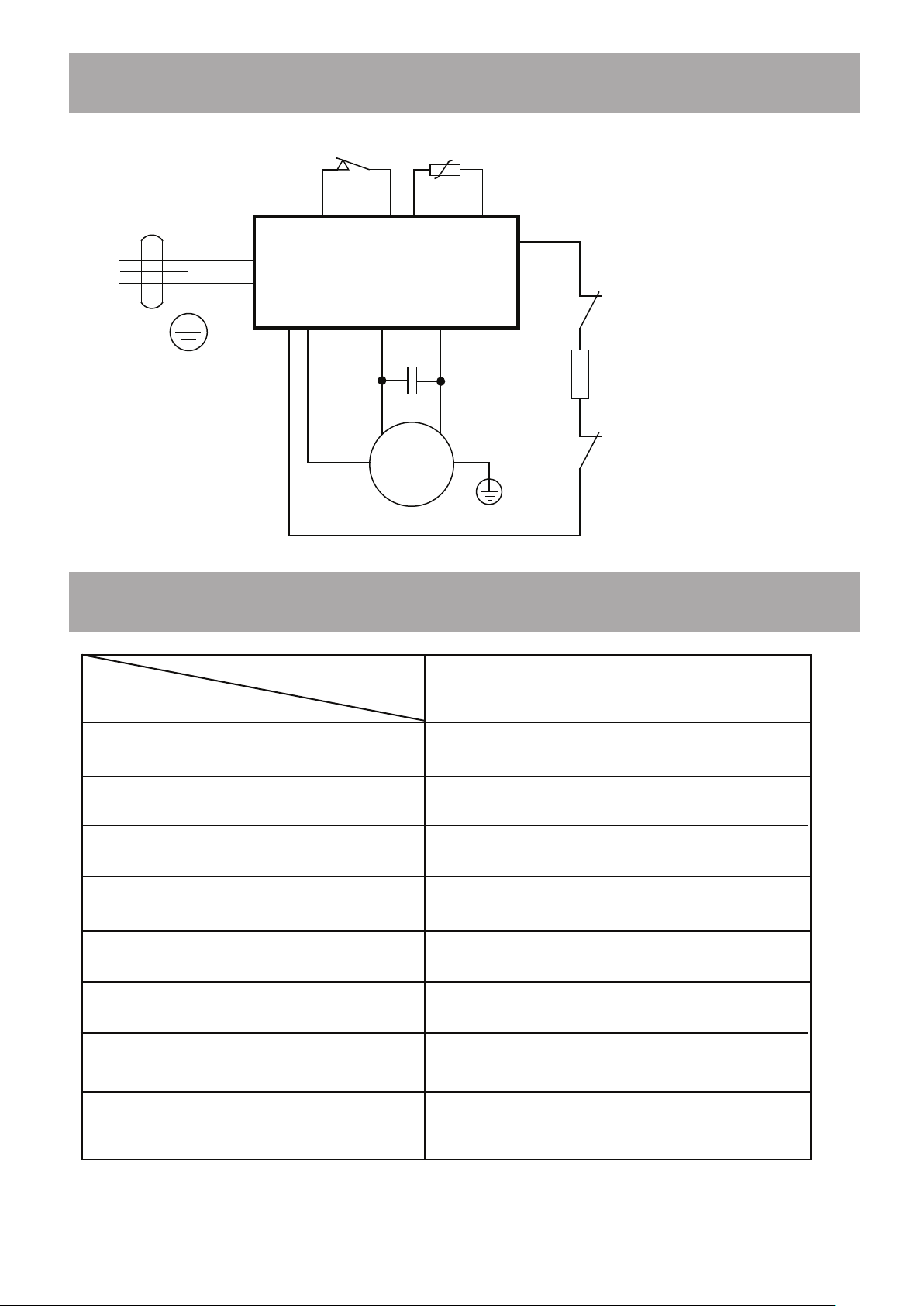

WIRING CIRCUIT

SPECIFICATIONS

TROUBLESHOOTING AND SPECIFICATIONS

TROUBLESHOOTING GUIDE

BEFORE USING THE DRYER PLEASE READ THE INSTRUCTIONS

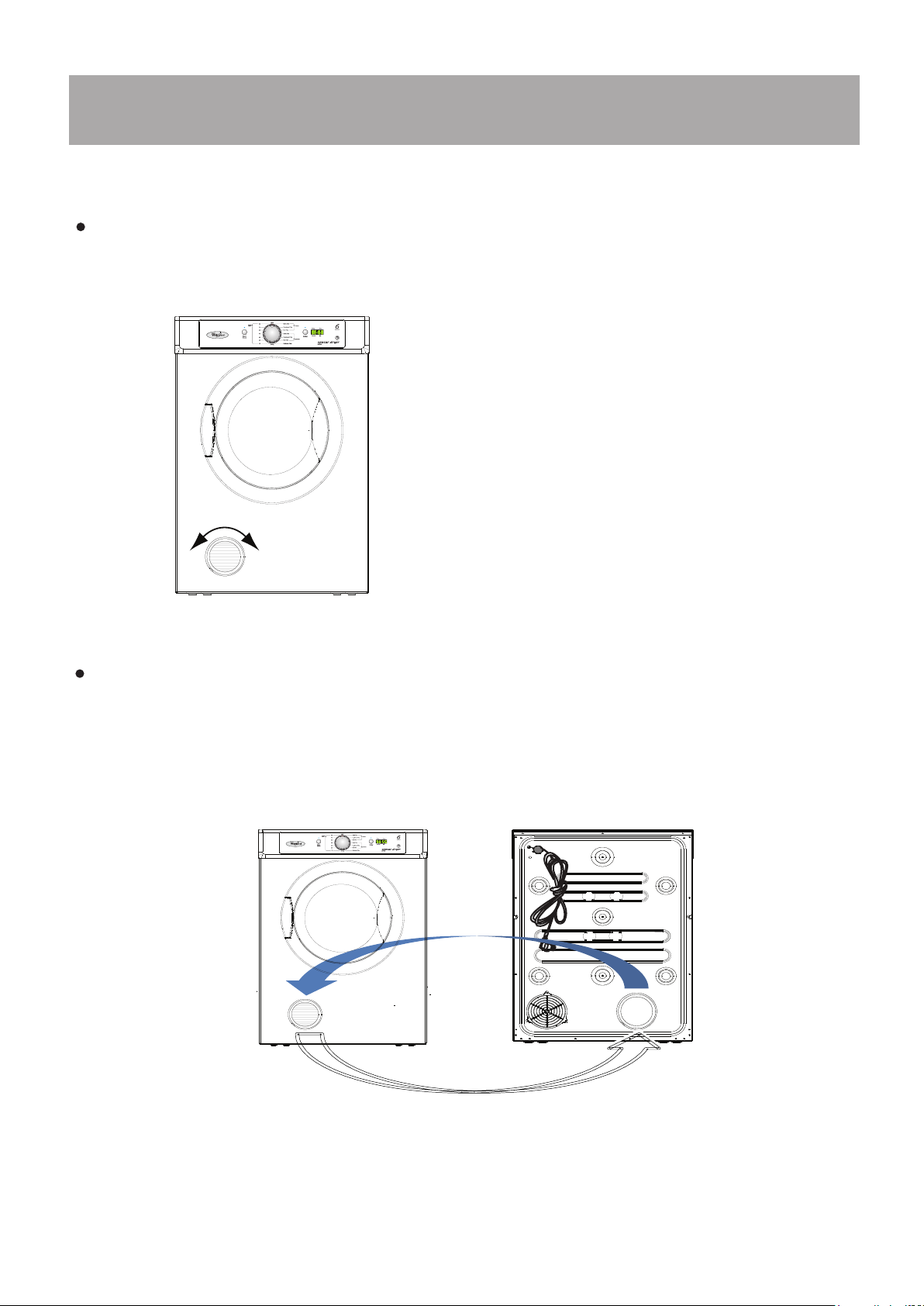

FRONT VENTING REAR VENTING

9 9

1 Read all instructions before using this dryer.

2 The interior of the dryer should be cleaned periodically by qualified service

personnel. An excessive amount of lint build up in the interior of the dryer could result in inefficient drying and pose a possible fire hazard.

3 The appliance must not be installed behind a lockable door, a sliding door or a door with

a hinge on the opposite side to that of the tumble dryer in such a way that a full opening

of the tumble dryer is restricted. 4 Attention - rear panel can be hot. 5 The tumble dryer should not be used if industrial chemicals have been used to

6 The dryer must only be used for its intended purpose. 7 Clean lint screen before or after each load. 8 This appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the

appliance by a person responsible for their safety. Young children should be

supervised to ensure that they do not play with the appliance. 9 Do not operate the dryer if any parts are missing or broken. 10 To avoid fire hazard or electrical shock do not use an adaptor plug or extension cord or remove grounding prong from electrical power cord. Failure to follow this warning can cause serious injury, fire or death. 11 To avoid fire hazard or electrical shock do not reach into the drum while the drum is

12 Do not attempt to modify or repair the controls. 13 The final part of a tumble dryer cycle occurs without heat (cool down cycle) to cool items to a temperature that ensures that they will not be damaged. Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated. 14 Do not dry items that have been previously cleaned in, washed in, soaked in, or spotted with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine,waxes and wax removers, etc. Do not store or use these items on or in the vicinity of the dryer. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire. Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and create a fire hazard. If it is unavoidable that fabrics that contain vegetable or cooking oil or have been

moving. Wait until the dryer has stopped completely before reaching into the drum.

clean the dryer.

IMPORTANT SAFETY INSTRUCTIONS

Warning - To reduce the risk of fire, electric shock, or personal injuries, the following basic precautions should be followed:

15 Do not dry unwashed items in the tumble dryer.

16 Fabric softeners, or similar products, should be used as specified by the fabric softener instructions. 17 To To prevent fire, do not use heat to dry items containing plastic, foam rubber or similarly textured rubber-like materials, or items containing feathers or down. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer. 18 This dryer must be properly installed in accordance with the installation instructions

before it is used.

19 Do not install or store this dryer where it will be exposed to water

and /or the weather. Keep surrounding areas free from the accumulation of lint, dust and dirt.

20 To prevent shock hazard and assure stability during operation, the dryer must be installed and electrically grounded by a qualified service person in accordance with local codes.

21 Do not sit on top of the dryer. 22 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 23 Always disconnect dryer from electrical supply before attempting any service.

Disconnect power cord by grasping the plug, not the cord. Do not repair or replace any part of the dryer or attempt any servicing unless specifically recommended in the user-maintenance instructions.

25 Before the dryer is removed from service or discarded, remove the dryer door to prevent accidental entrapment.

Caution, risk of fire - this is a safety symbol. Failure to follow the warnings outlined in these user instructions can cause a fire hazard.

26 Remove all objects from pockets such as lighters and matches.

contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent - this will reduce, but not eliminate, the hazard.

IMPORTANT SAFETY INSTRUCTIONS

IDENTIFICATION OF PARTS

Control panel

Service label

Door airproof strip

Door

Lint filter

Power supply cord

Top panel

Program selector

Door switch

Door latch

Exhaust grill

Model number and Serial number

Back plate

Air intake grill

Outlet cover

Warning

Read all instructions before using this dryer. This dryer has been designed for domestic use only.

SAVE THESE INSTRUCTIONS.

This diagram may be slightly different from the layout of the dryer you have just purchased due to technical improvements.

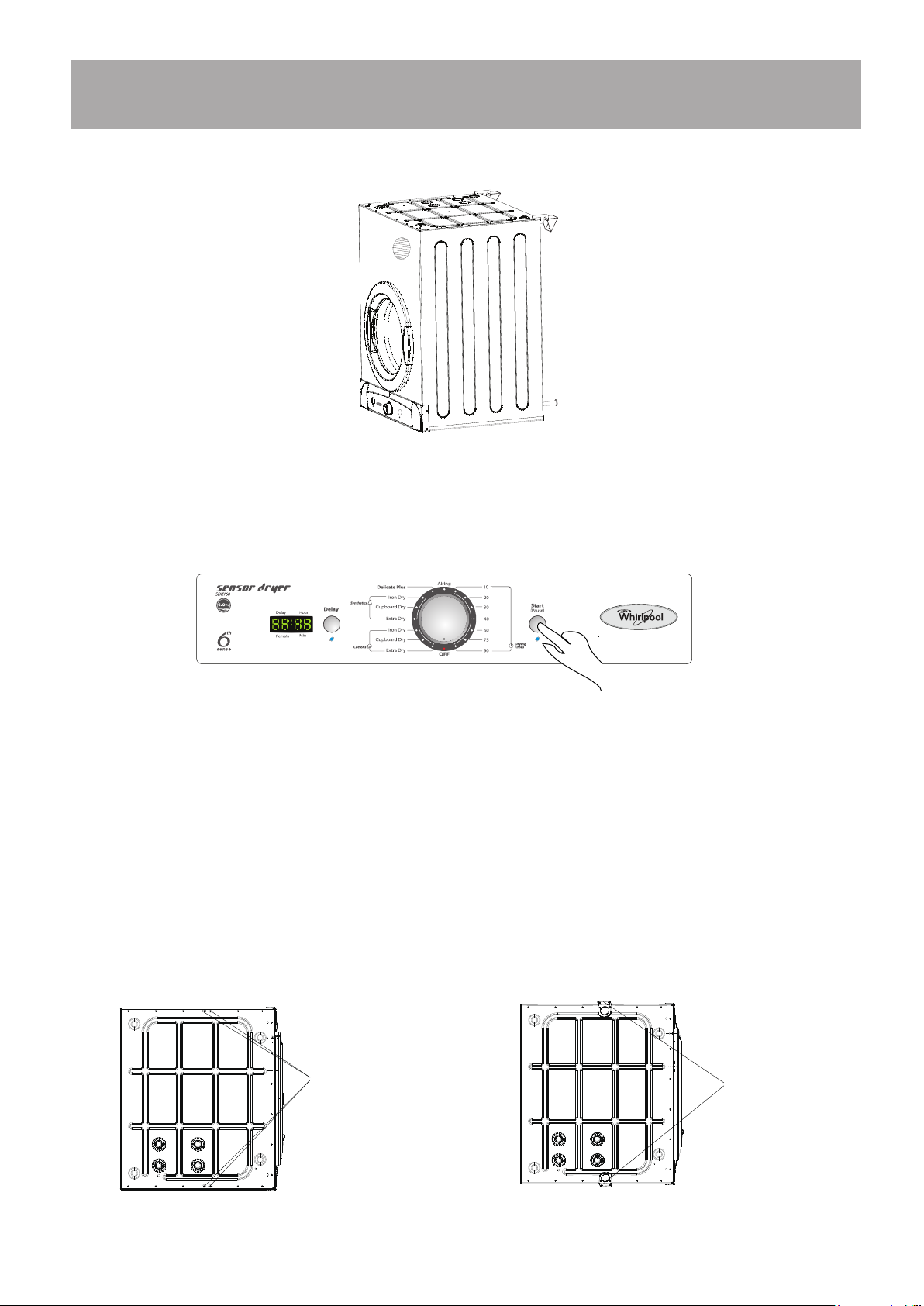

Remove the transport packaging (fig.1)

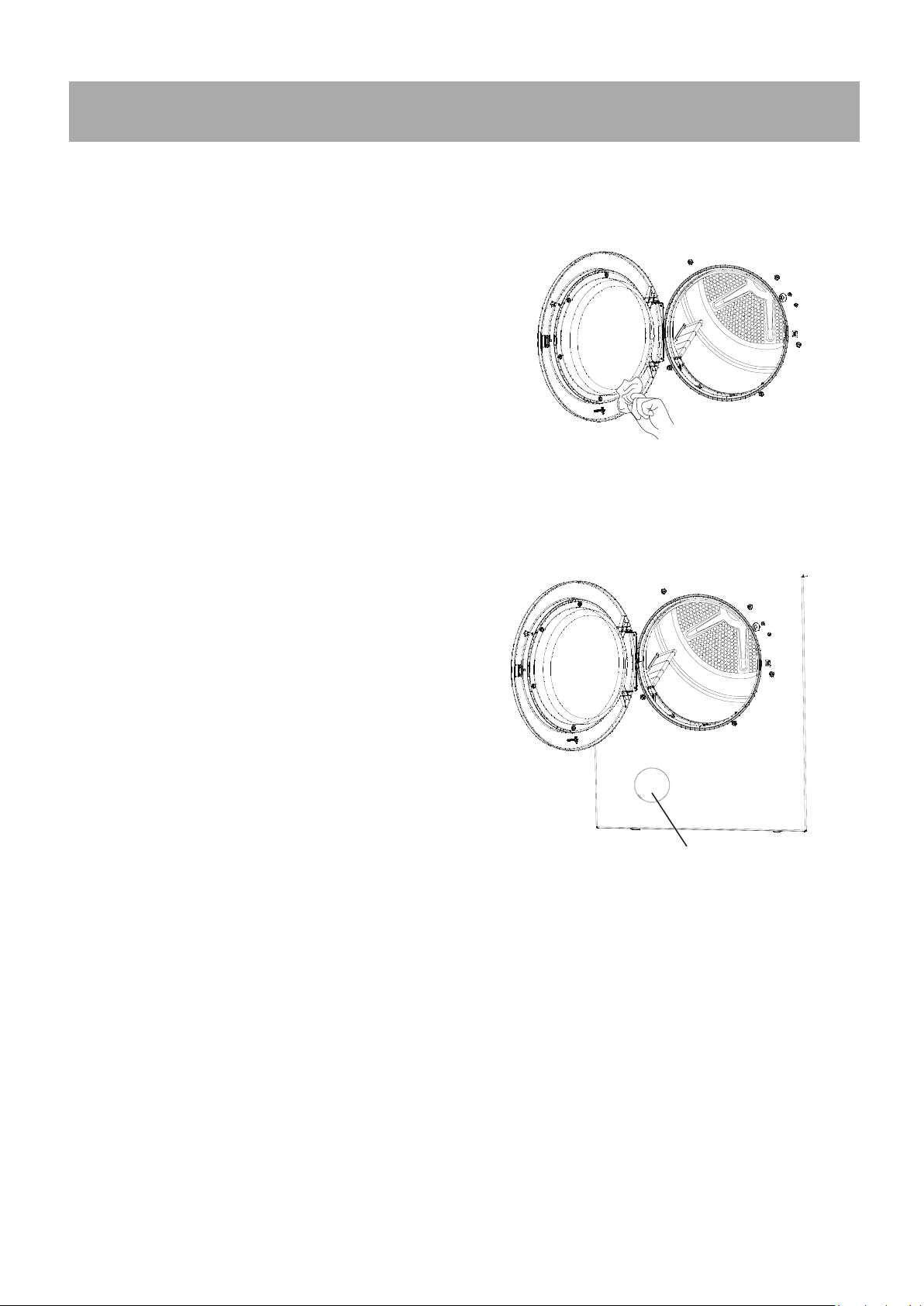

Remove the tape on the door (fig.2), the wall mounting kit and the inverted panel film attached to the inside of the drum (fig.3) before starting the dryer.

Packing accessories

Check list of the accessories and materials provided with the machine:

To ensure the dryer operates normally, attention must be paid to the

following:

1. The rear of the dryer must not have any restriction to the intake of fresh air.

fig.1

fig.2

Dimensions a=830 mm b=600 mm c=560 mm

Weight=30 kg

2. Check the dryer for any damage. If any damage is found do not operate and contact your supplier or Whirlpool Customer Service.

3. The dryer must be kept away from flammable substances.

4. The surrounding environment must be dry and ventilated.

5. For best results, the ambient temperature should be between 10 and 35 .

fig.3

Name Quantity User manual 1 Wall mounting kit 1 Inverted panel film 1 Flexible hose 1

Flexible hose clip 1 Hose connector 1

Unpacking your dryer

Stacking kit 2 Warranty card 1

INSTALLATION INSTRUCTIONS
