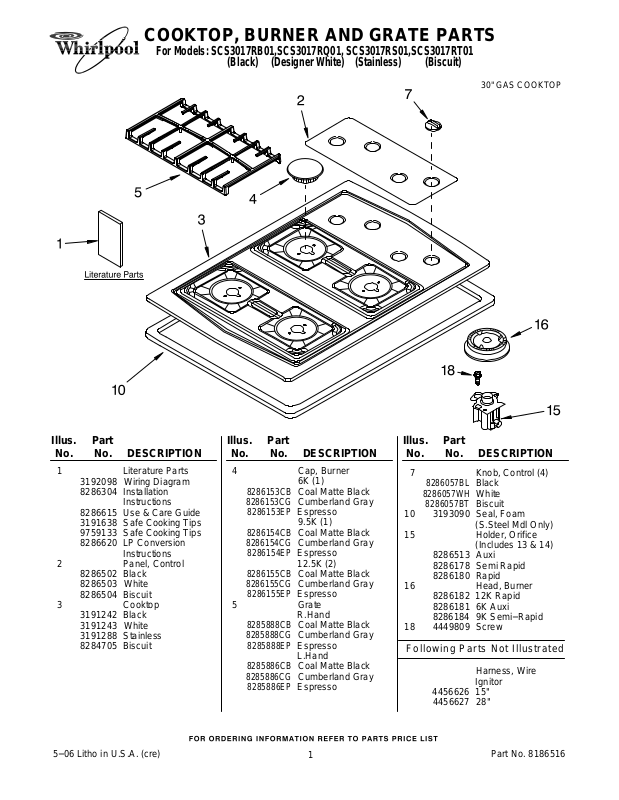

COOKTOP, BURNER AND GRATE PARTS
For Models: SCS3017RB01,SCS3017RQ01, SCS3017RS01,SCS3017RT01
(Black) (Designer White) (Stainless) (Biscuit)
30" GAS COOKTOP
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
3192098 Wiring Diagram
8286304 Installation
Instructions
8286615 Use & Care Guide
3191638 Safe Cooking Tips
9759133 Safe Cooking Tips
8286620 LP Conversion
Instructions
2 Panel, Control
8286502 Black
8286503 White
8286504 Biscuit
3 Cooktop
3191242 Black
3191243 White
3191288 Stainless
8284705 Biscuit
Illus. Part
No. No. DESCRIPTION
4 Cap, Burner
6K (1)
8286153CB
8286153CG
8286153EP
8286154CB
8286154CG
8286154EP
8286155CB
8286155CG
8286155EP
5 Grate
8285888CB
8285888CG
8285888EP
8285886CB
8285886CG
8285886EP
Coal Matte Black
Cumberland Gray
Espresso
9.5K (1)
Coal Matte Black
Cumberland Gray
Espresso
12.5K (2)
Coal Matte Black
Cumberland Gray
Espresso
R.Hand
Coal Matte Black
Cumberland Gray
Espresso
L.Hand
Coal Matte Black
Cumberland Gray
Espresso
Illus. Part
No. No. DESCRIPTION
7 Knob, Control (4)
8286057BL
8286057WH
8286057BT
10 3193090 Seal, Foam
15 Holder, Orifice
8286513 Auxi
8286178 Semi Rapid
8286180 Rapid
16 Head, Burner
8286182 12K Rapid
8286181 6K Auxi
8286184 9K Semi−Rapid
18 4449809 Screw
Black
White
Biscuit
(S.Steel Mdl Only)
(Includes 13 & 14)
Following Parts Not Illustrated
Harness, Wire
Ignitor
4456626 15"
4456627 28"
5−06 Litho in U.S.A. (cre)
1
Part No. 8186516
Page 2
BURNER BOX, GAS VALVES, AND SWITCHES
For Models: SCS3017RB01,SCS3017RQ01, SCS3017RS01,SCS3017RT01
(Black) (Designer White) (Stainless) (Biscuit)
8186516
2
Page 3
BURNER BOX, GAS VALVES, AND SWITCHES
For Models: SCS3017RB01,SCS3017RQ01, SCS3017RS01,SCS3017RT01
(Black) (Designer White) (Stainless) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 4455917 Bracket, (2)
Cooktop mounting
2 9759354 Pipe, Manifold
3 4456905 Harness & Switches
4 8522423 Spark Module
5 Valve, Burner
4456817 Large (Black)
8286559 Auxi (White)
8286560 Rapid (Purple)
6 9763116 Power Cord
7 4173634 Bushing, Cord
8 3177991 Screw, Ground
9 3186217 Bolt, Gas Valve
10 3191318 Tubing, Burner
RR & RF
11 3192491 Bracket, Manifold
12 3191320 Tubing, Burner
LR & LF
14 4456780 Box, Burner
17 8286099 Rail, Burner (2)
18 3191387 Seal, (4)
Switch Cover
19 3400093 Screw
20 3400843 Screw
21 4449809 Screw
Following Parts Not Illustrated
and Optional Parts Not Included
8286320 Gas Conversion Kit
(Natural Gas To
LP Gas)
4455918 Hardware Kit
(Mounting)
3
8186516
