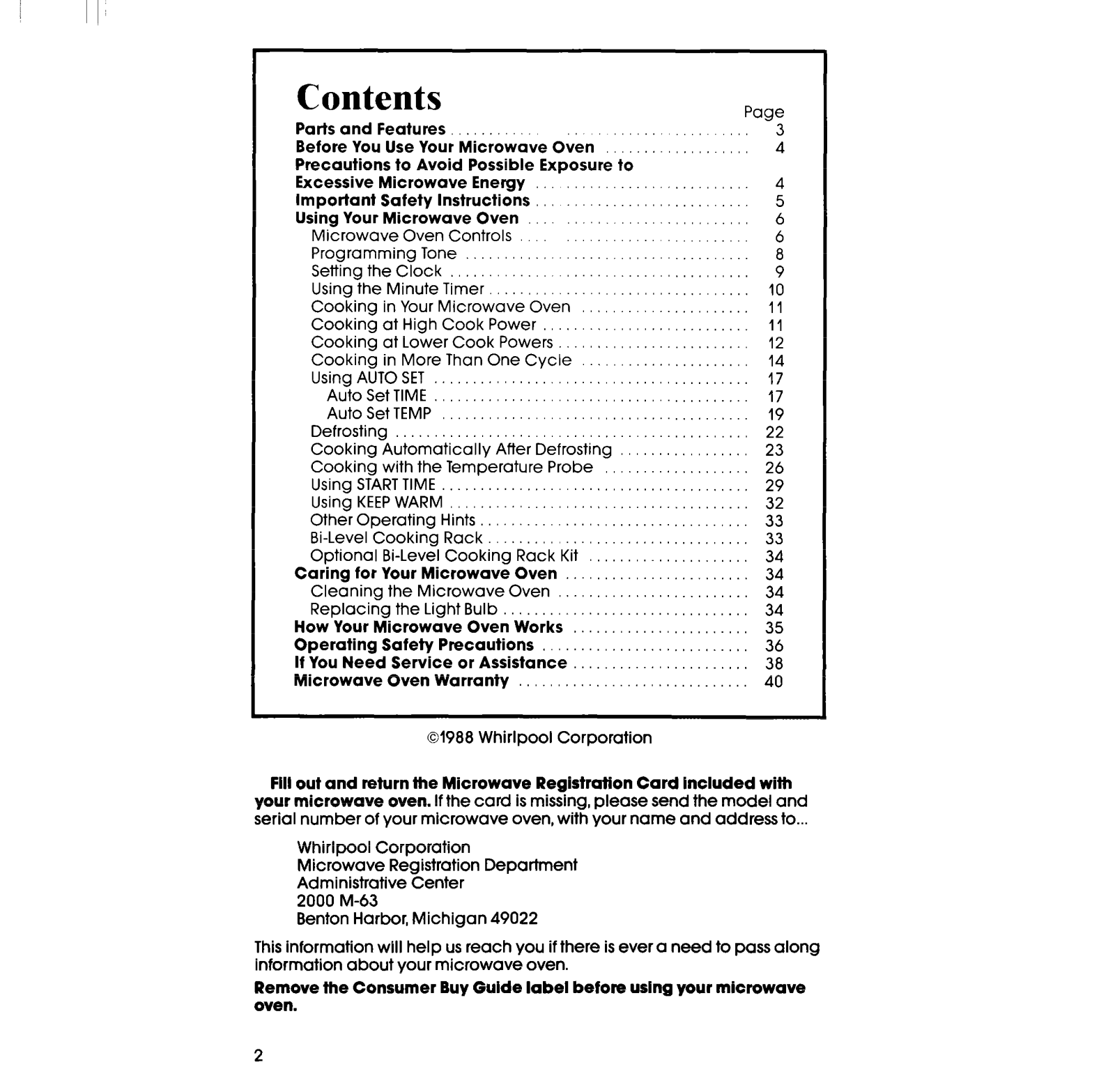

Parts and Features.
Before You Use Your Microwave Oven : :
Precautions to Avoid Possible Exposure to
Excessive Microwave Energy
Important Safety Instructions
Using Your Microwave Oven
Microwave Oven Controls
Programming Tone : : : : : : : :
Setting the Clock
Using the Minute Timer. : : : : : : : : :

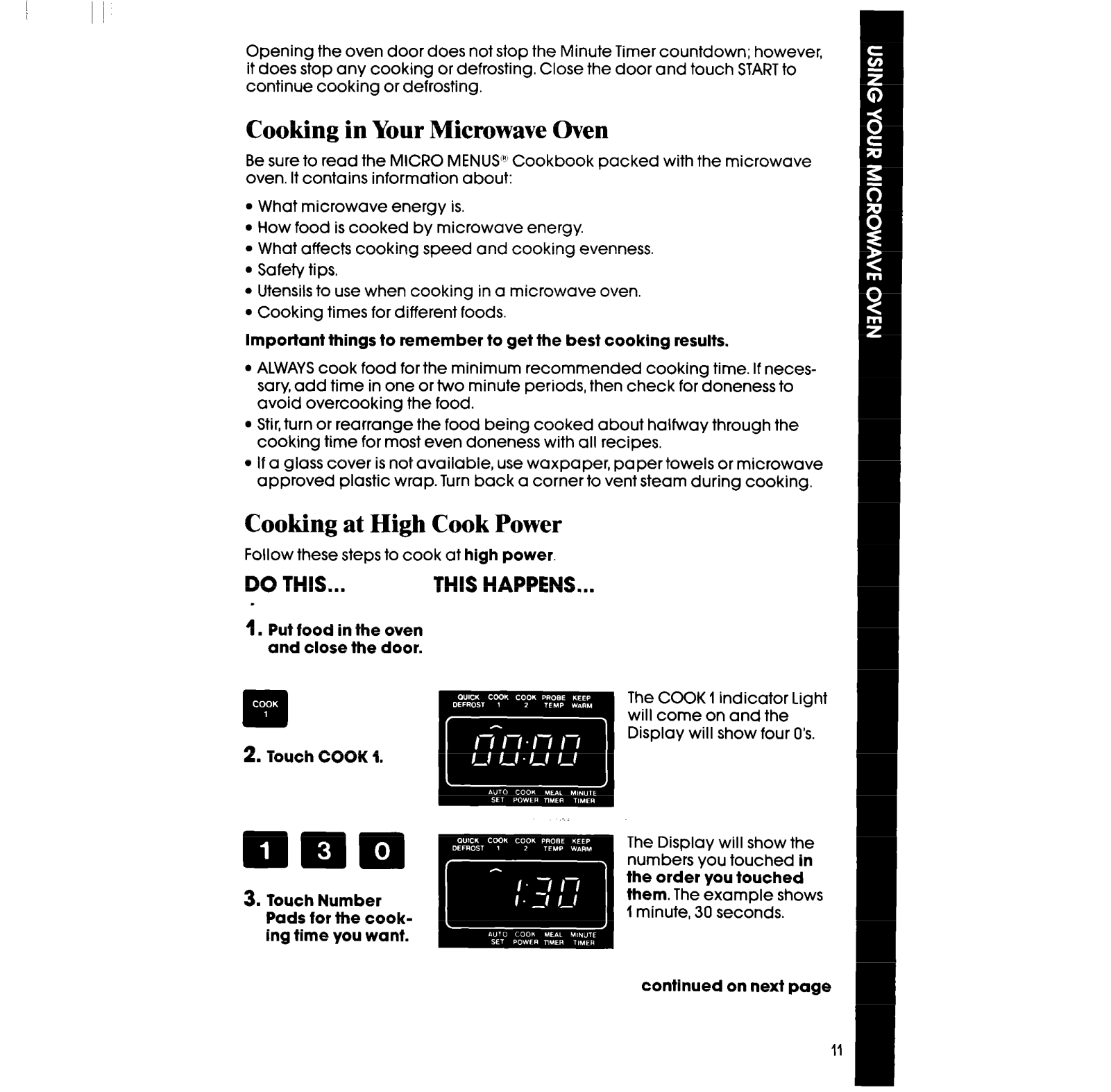

Cooking in Your Microwave Oven

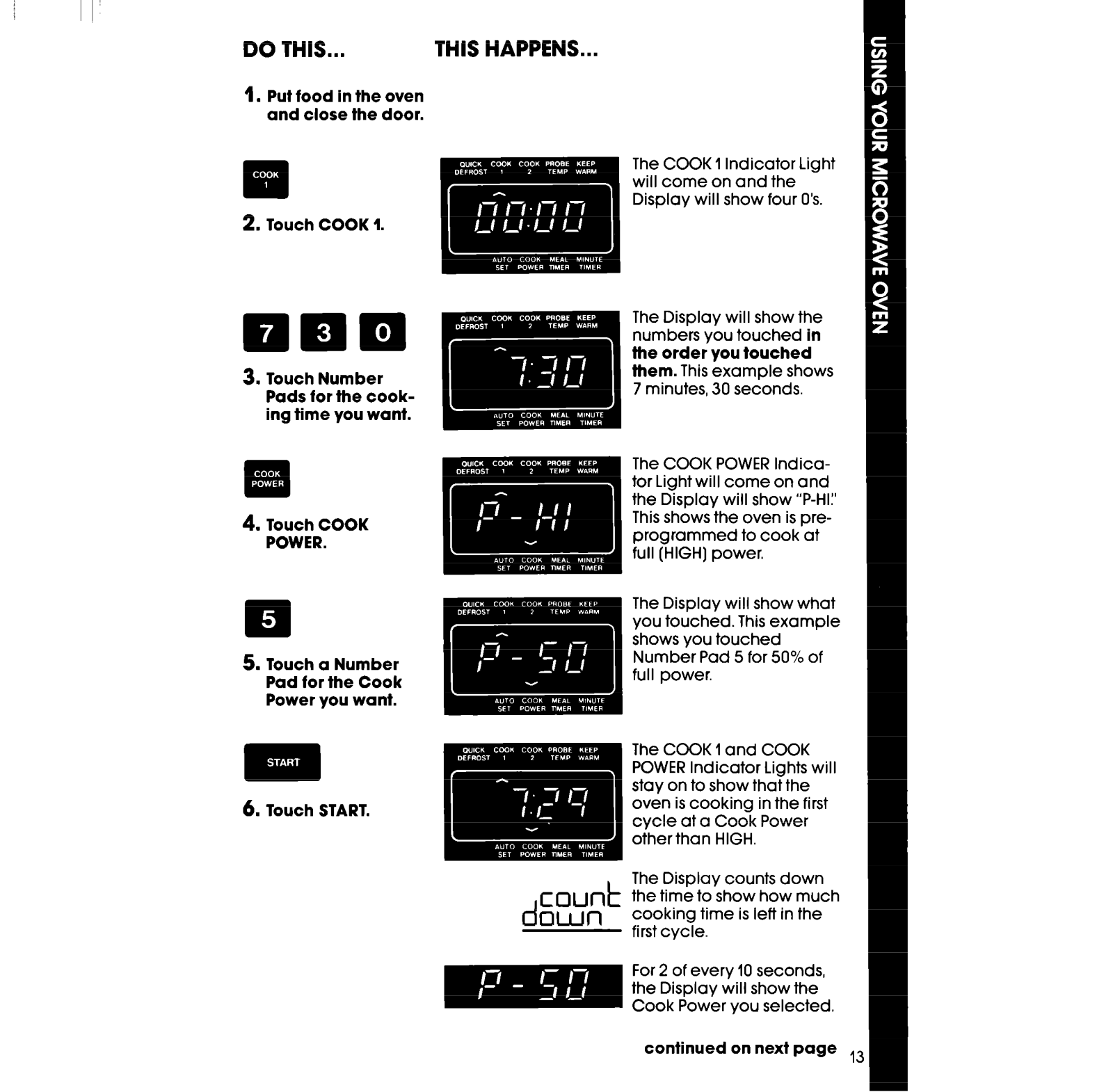

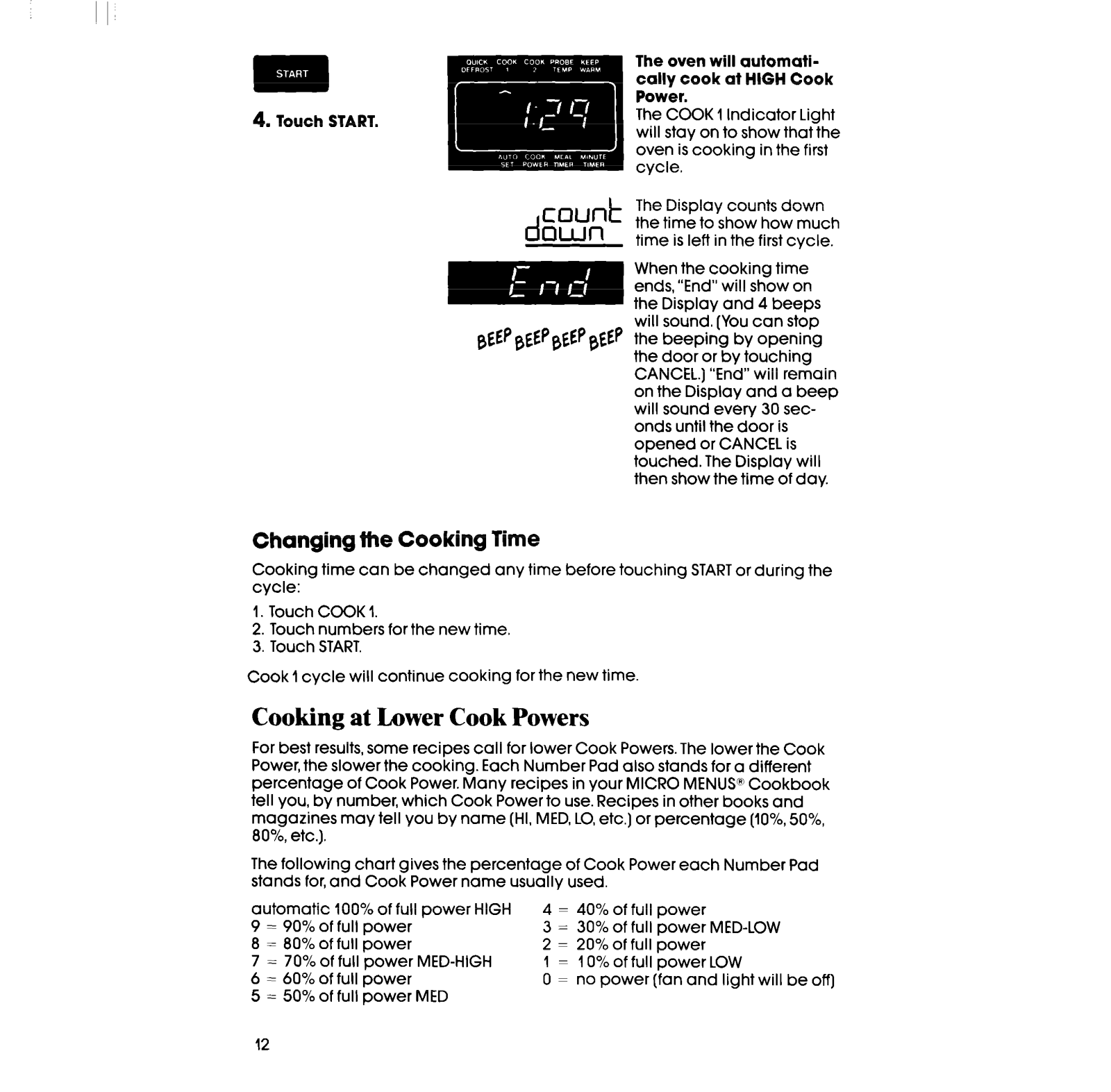

Cooking at High Cook Power
Cooking at Lower Cook Powers

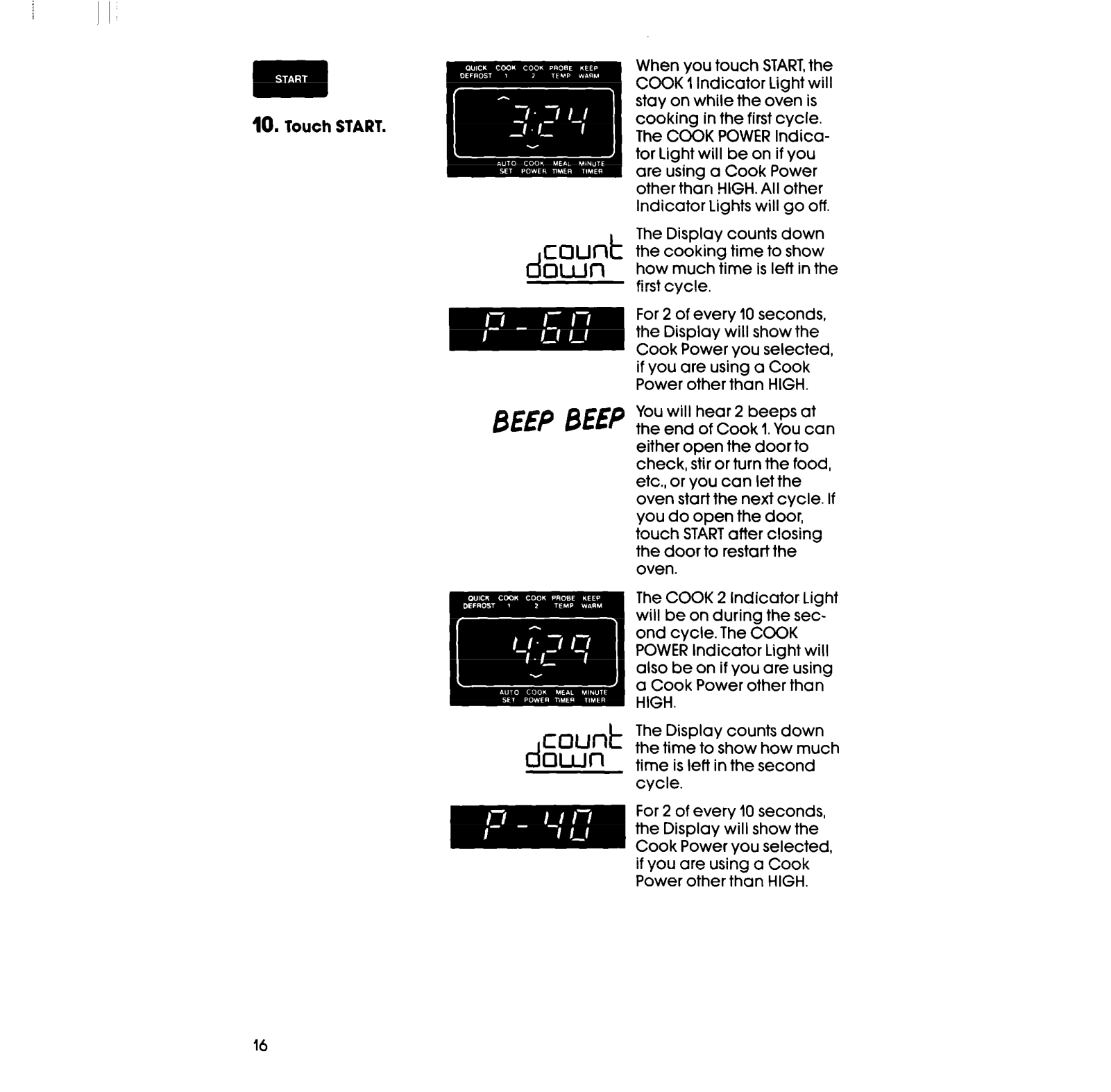

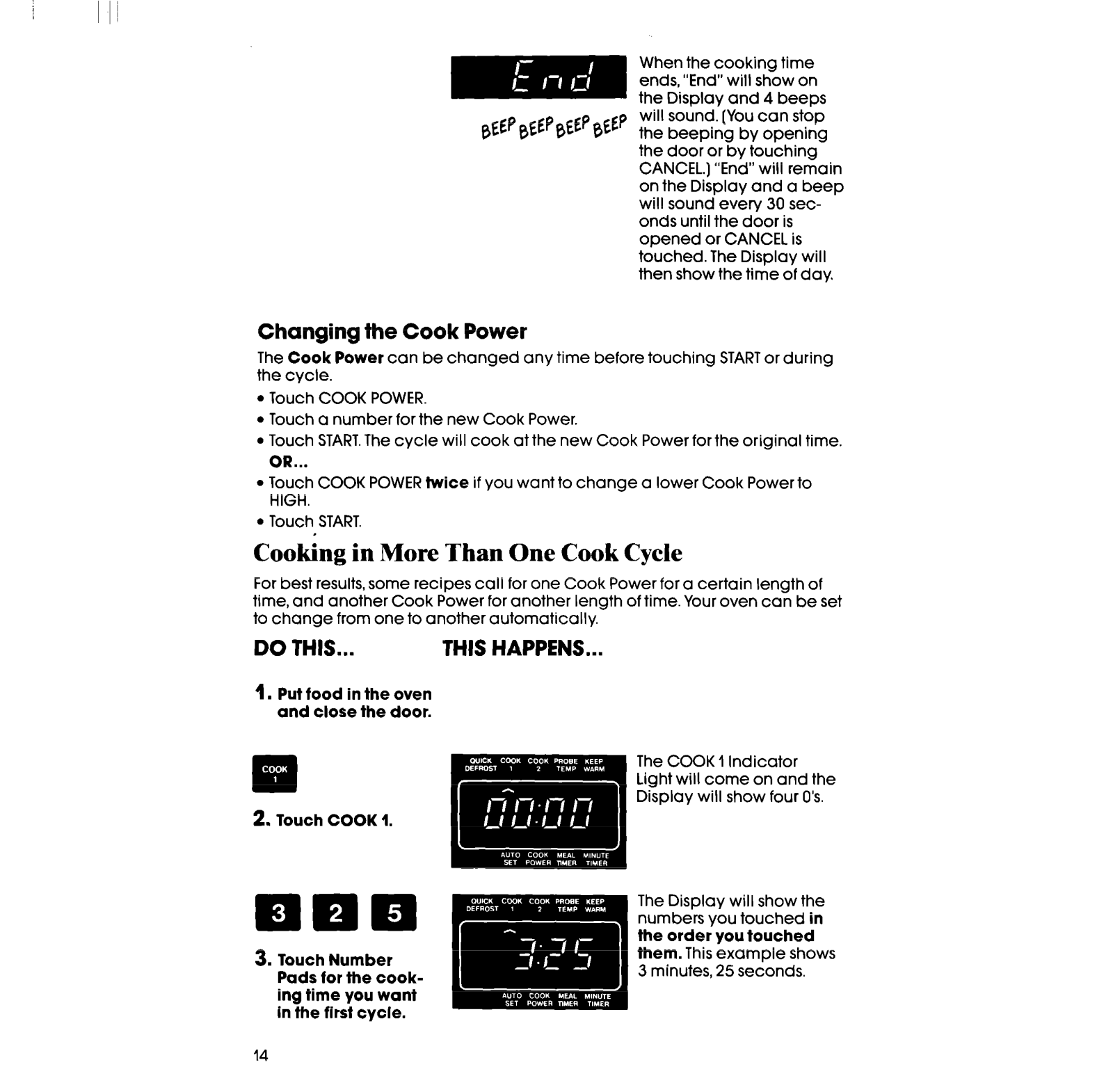

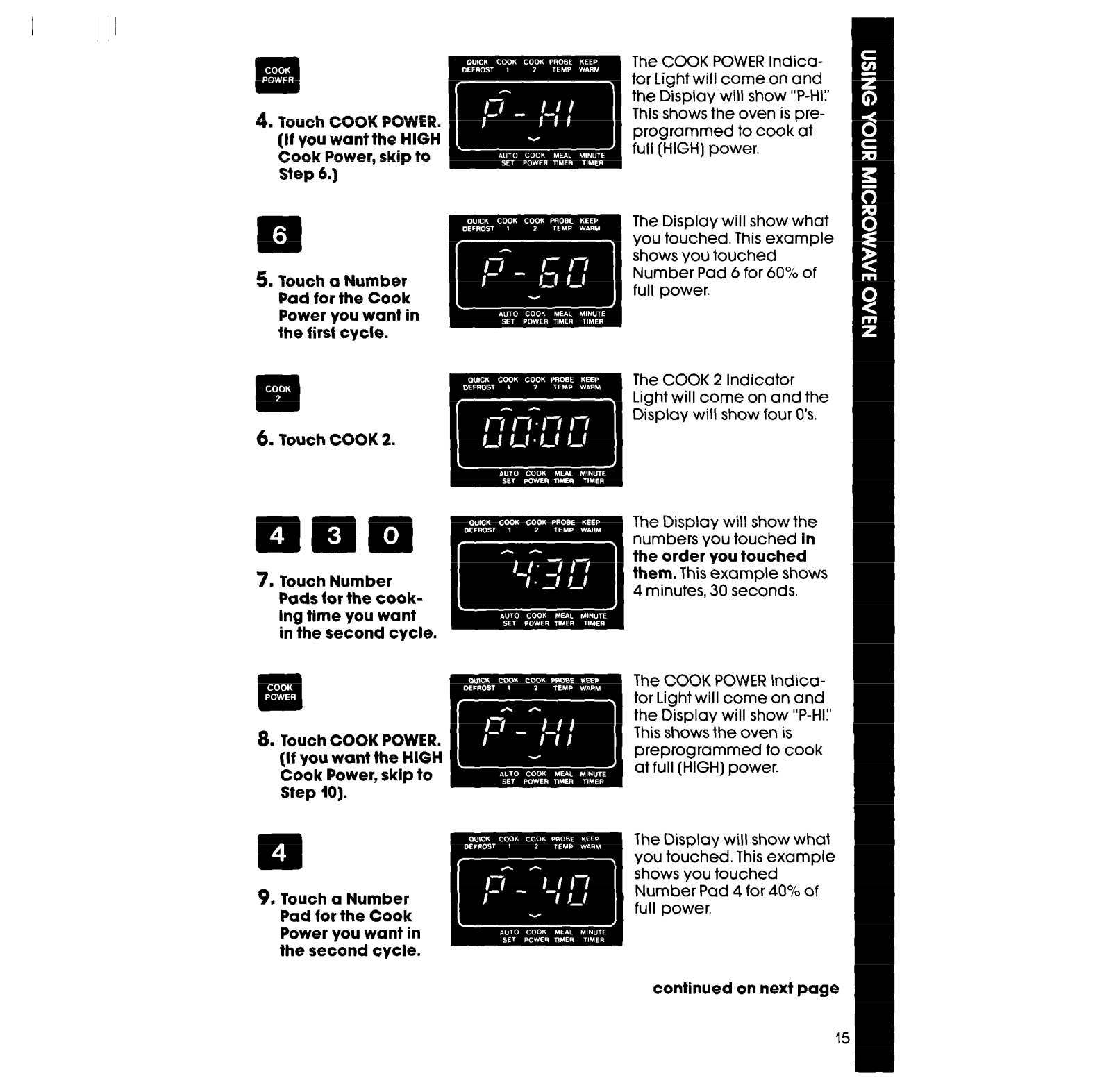

Cooking in More Than One Cycle

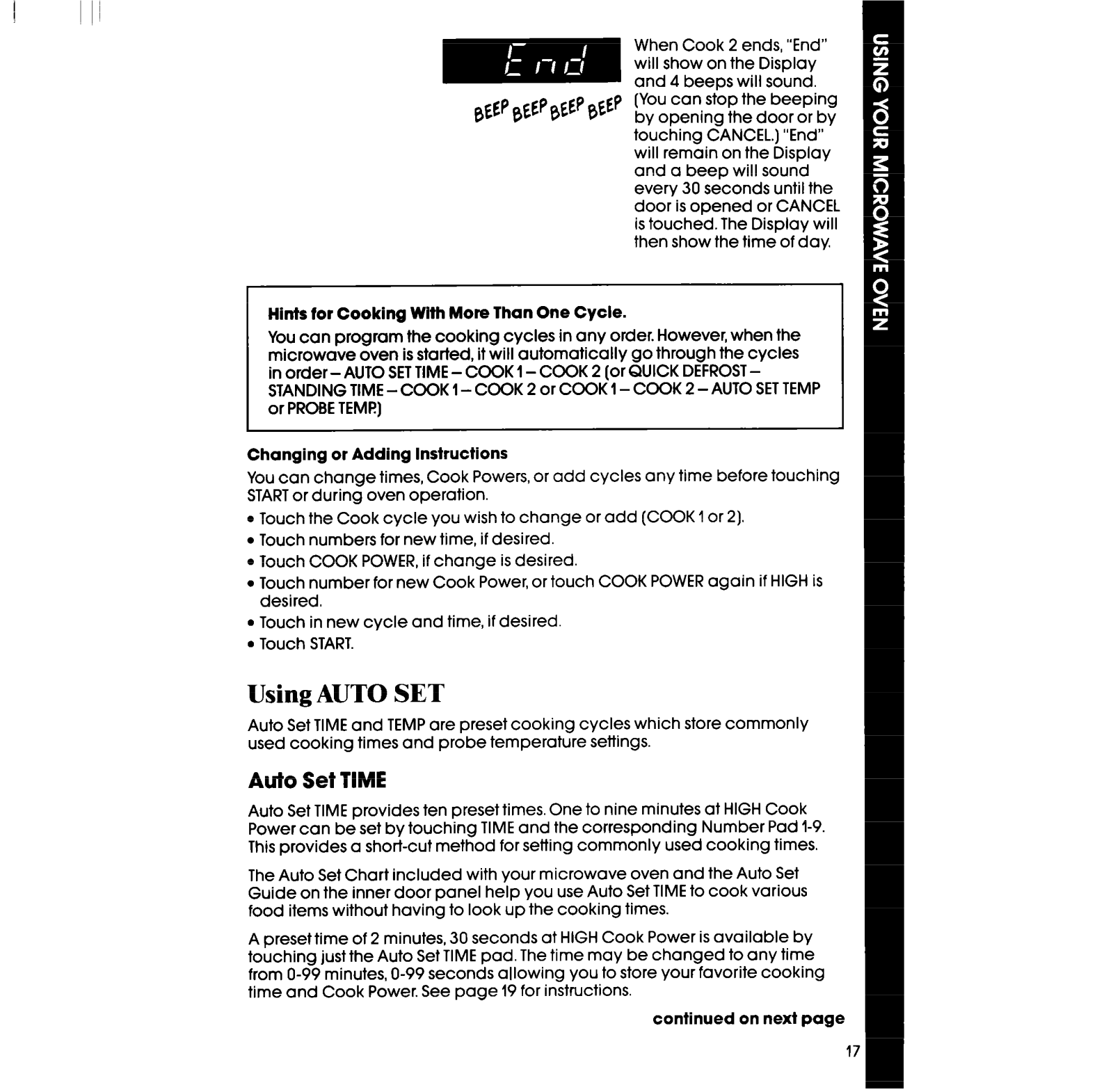

Using AUTO SET

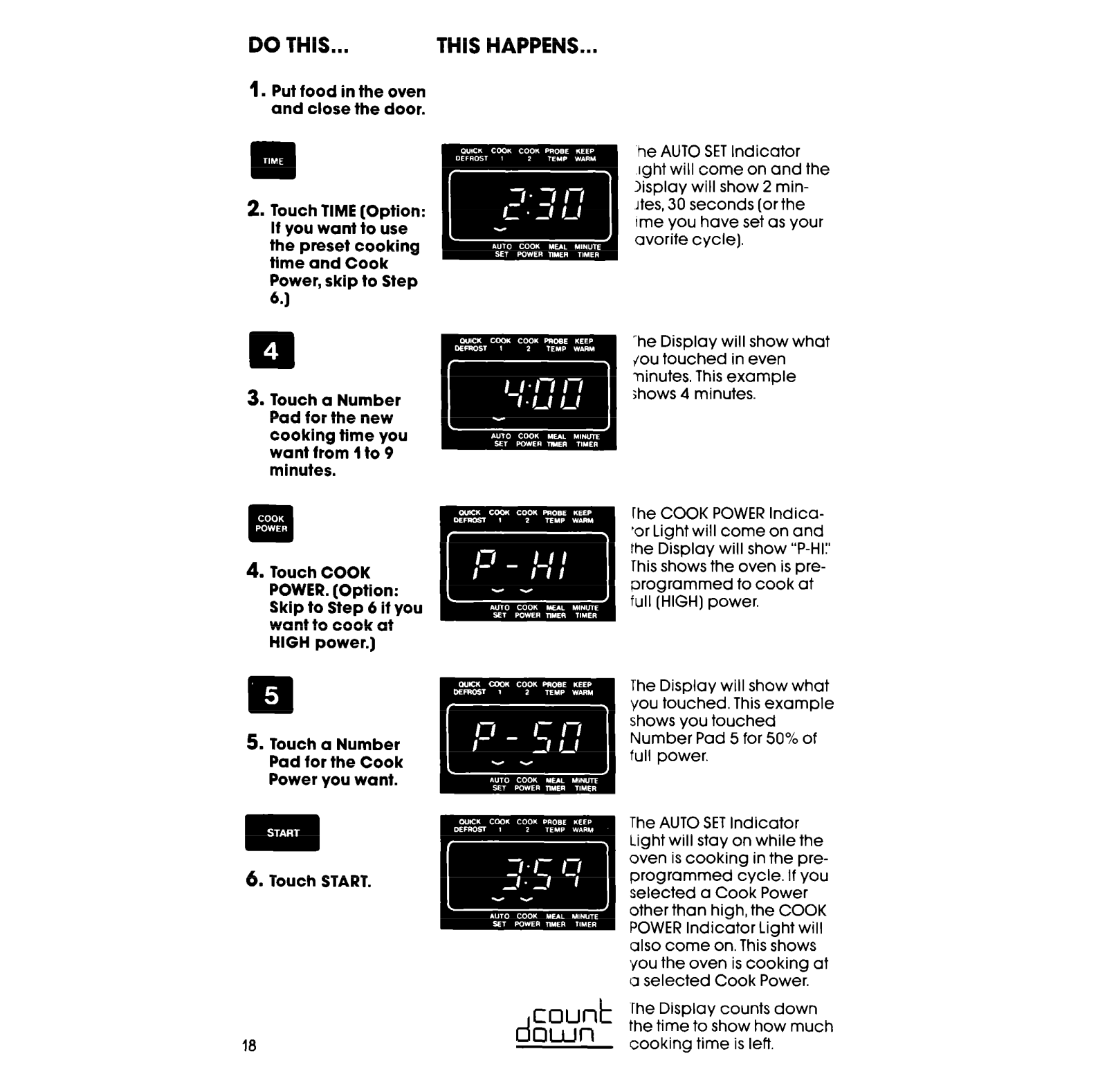

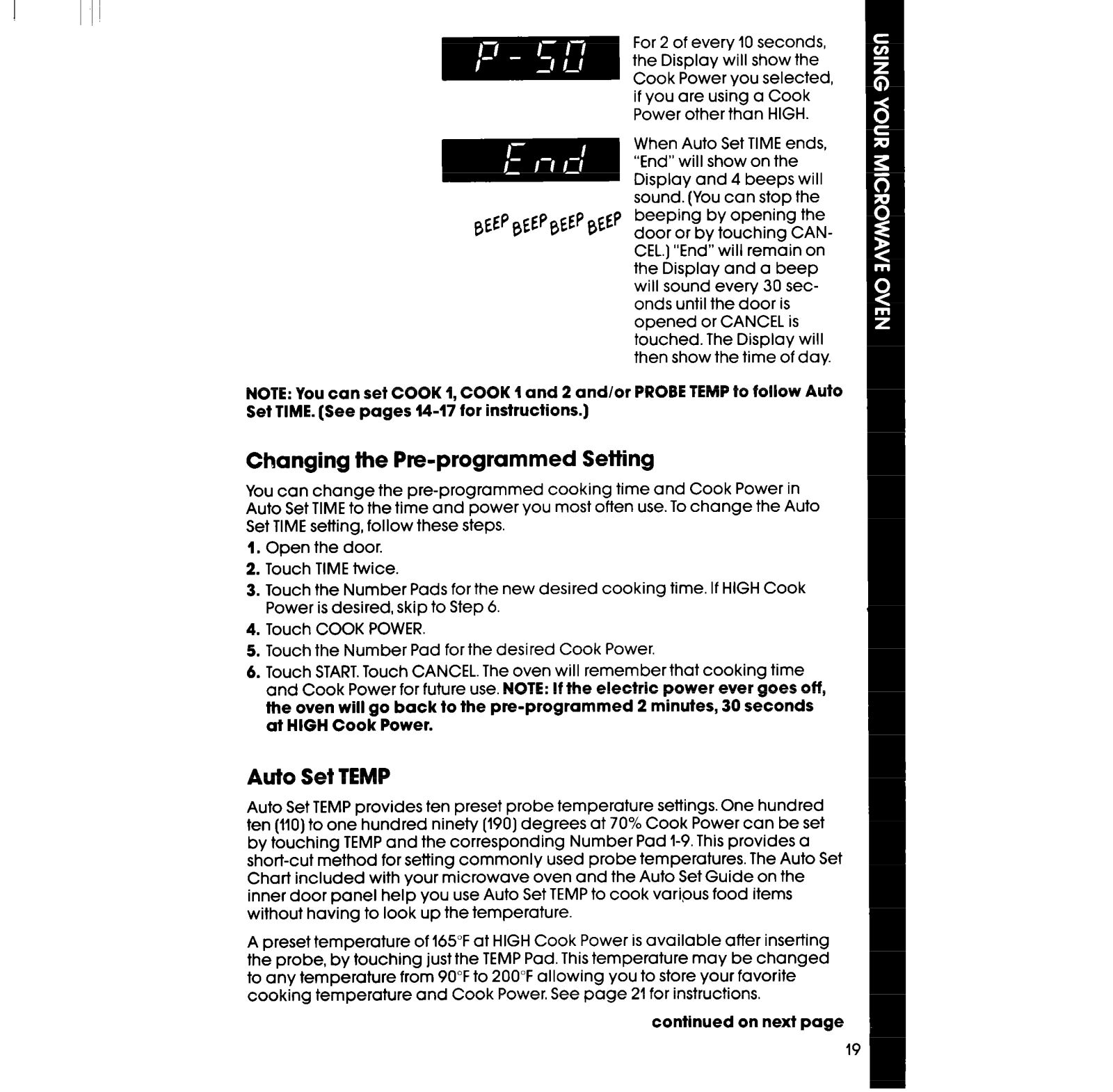

Auto Set TIME

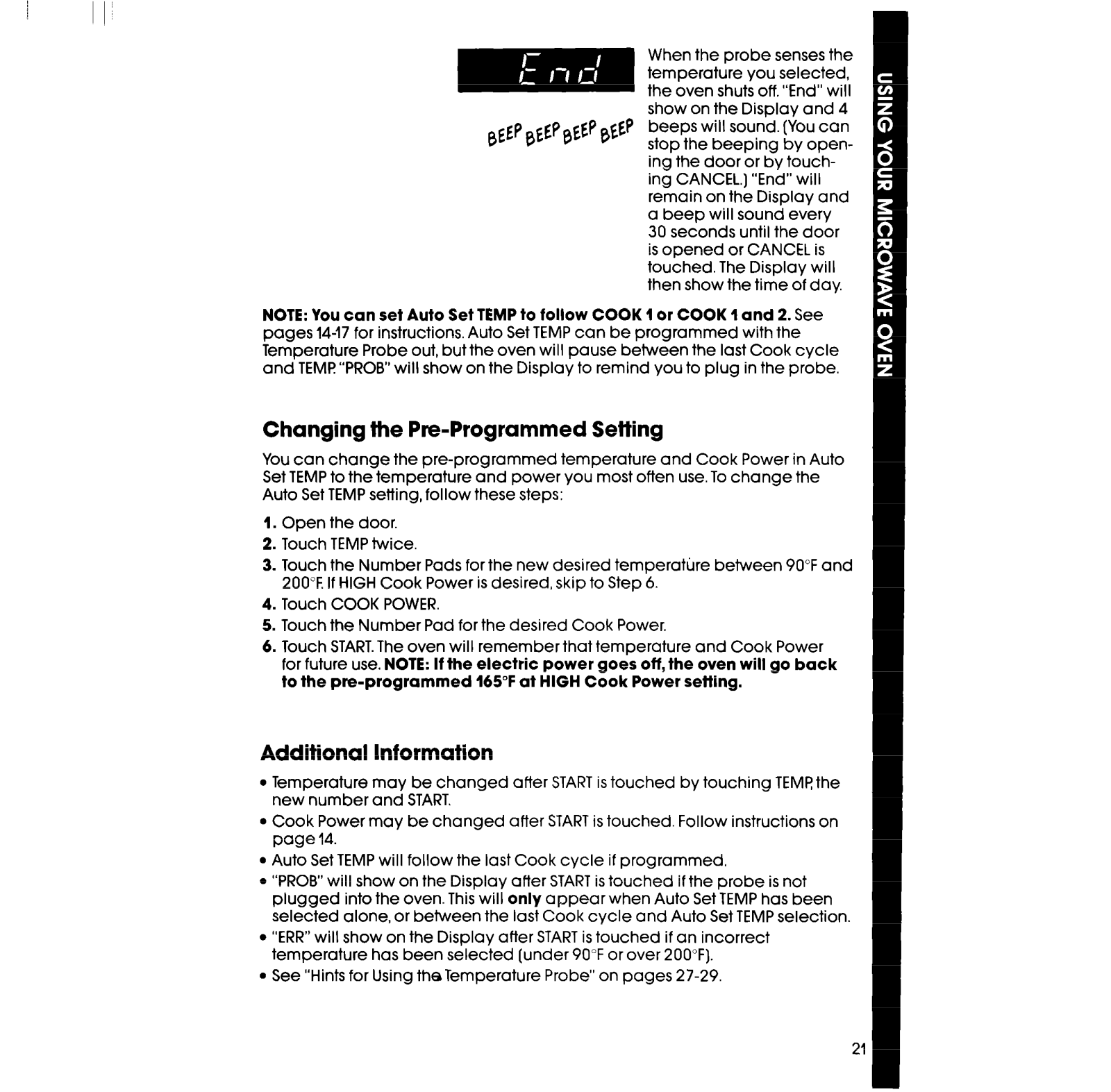

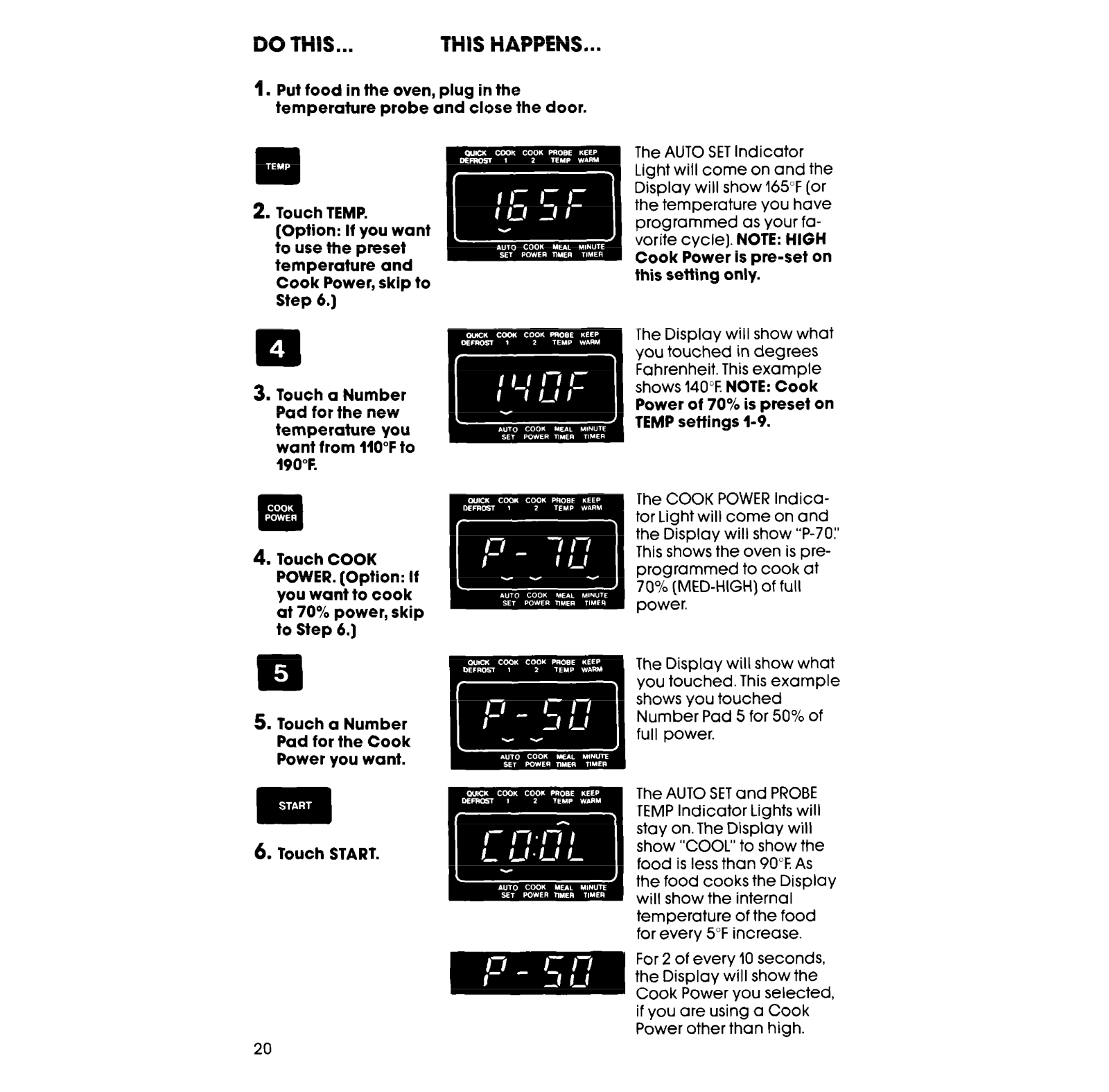

Auto Set TEMP

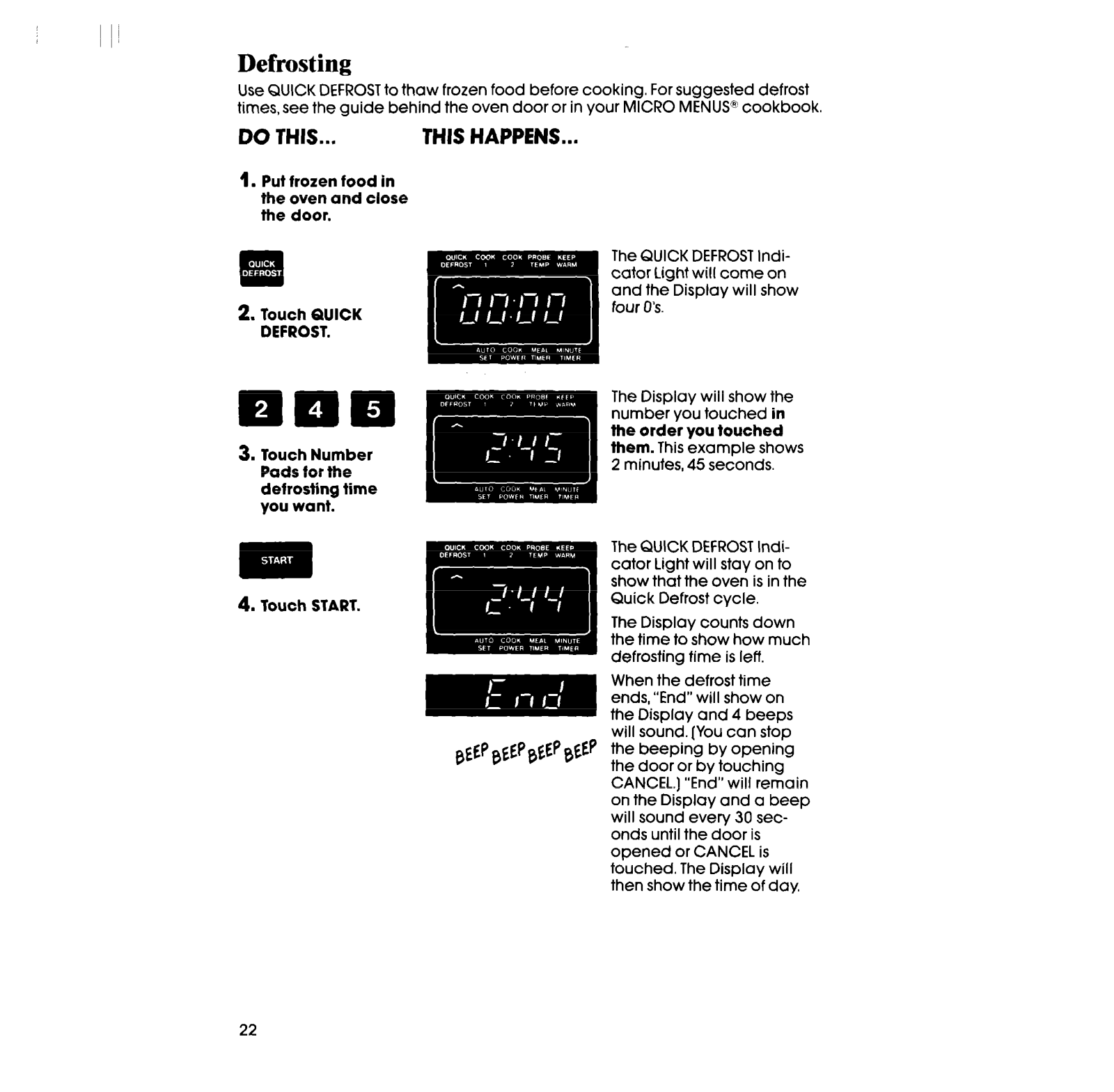

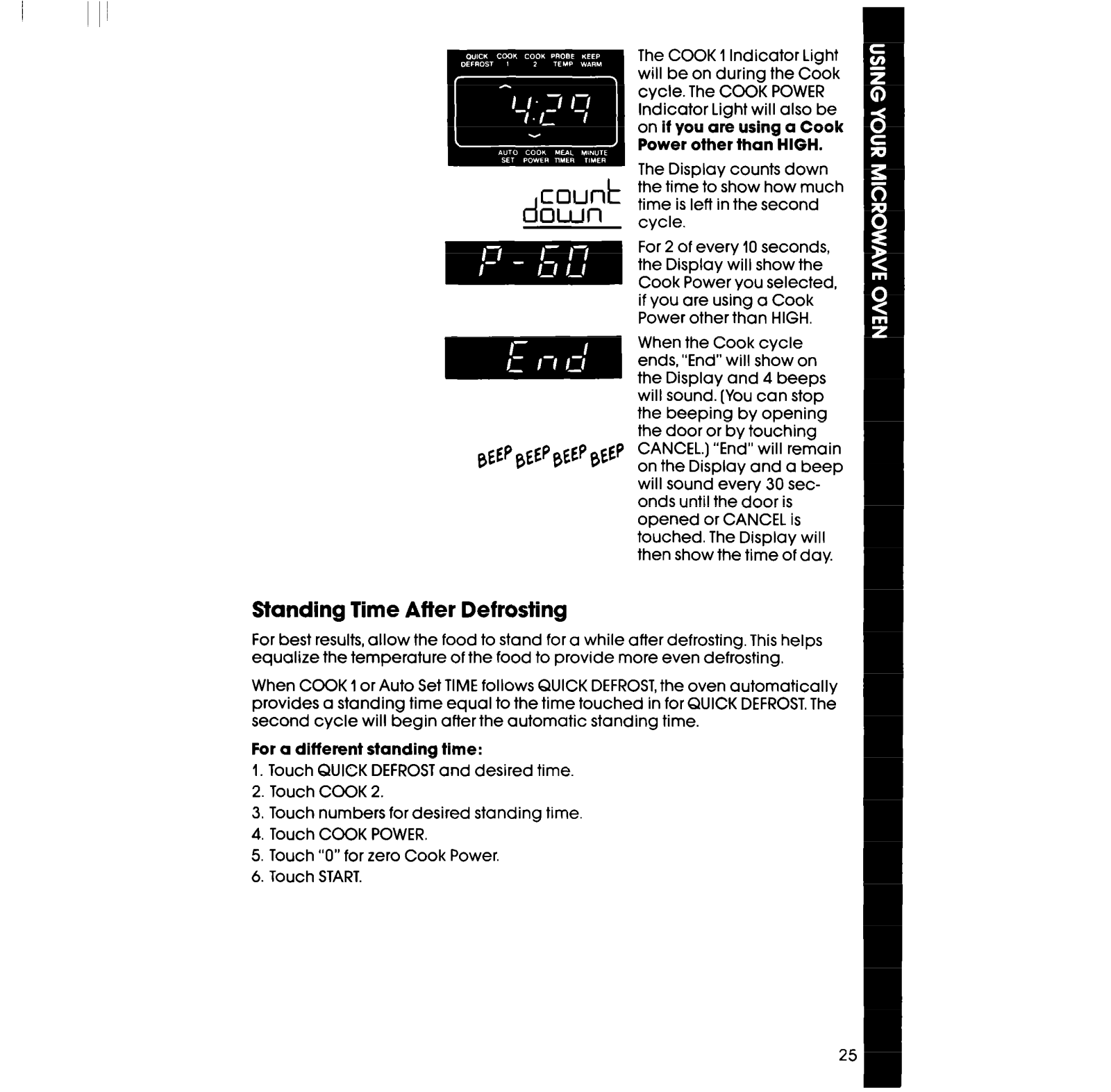

Defrosting

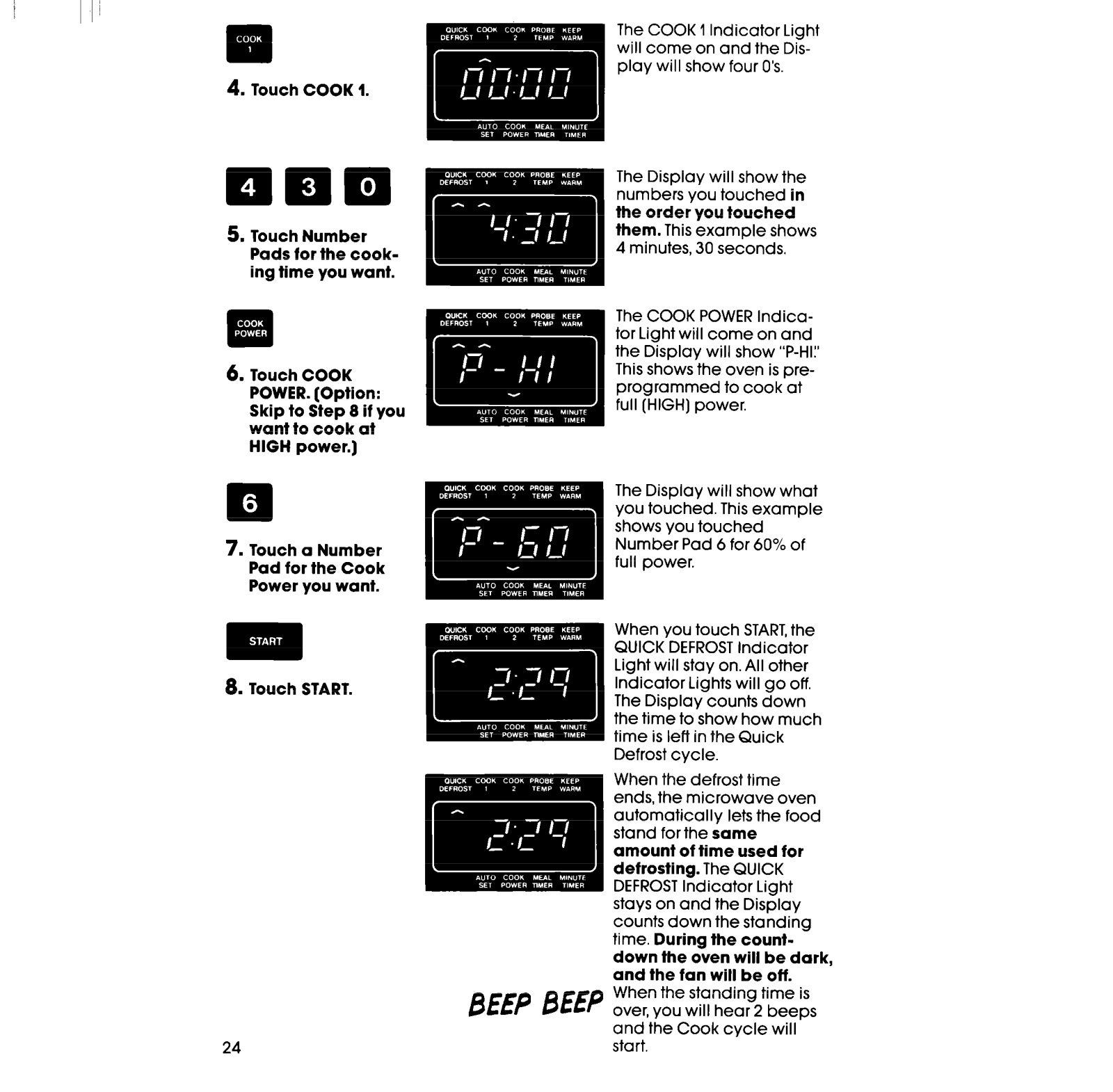

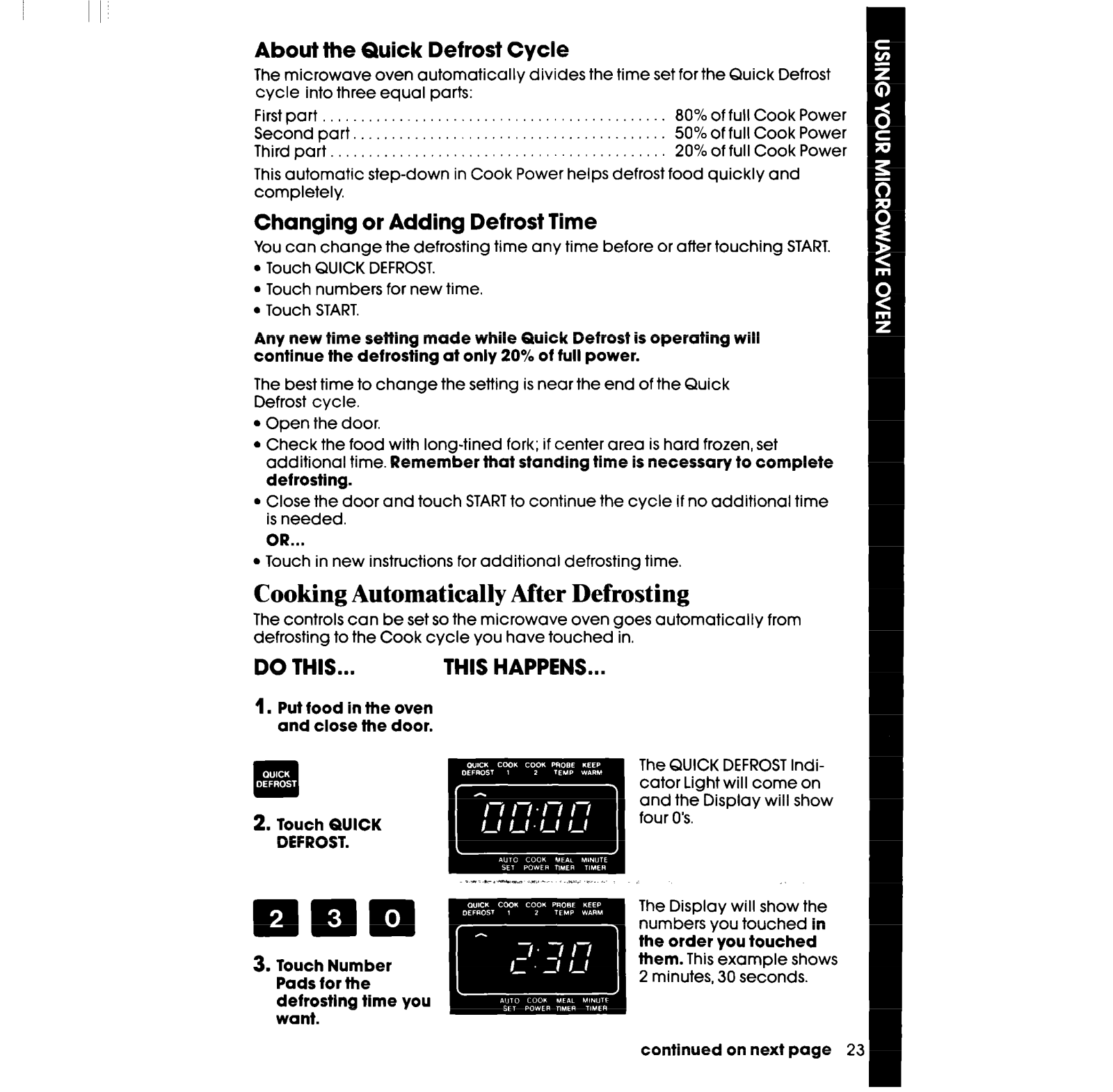

Cooking Automatically After Defrosting

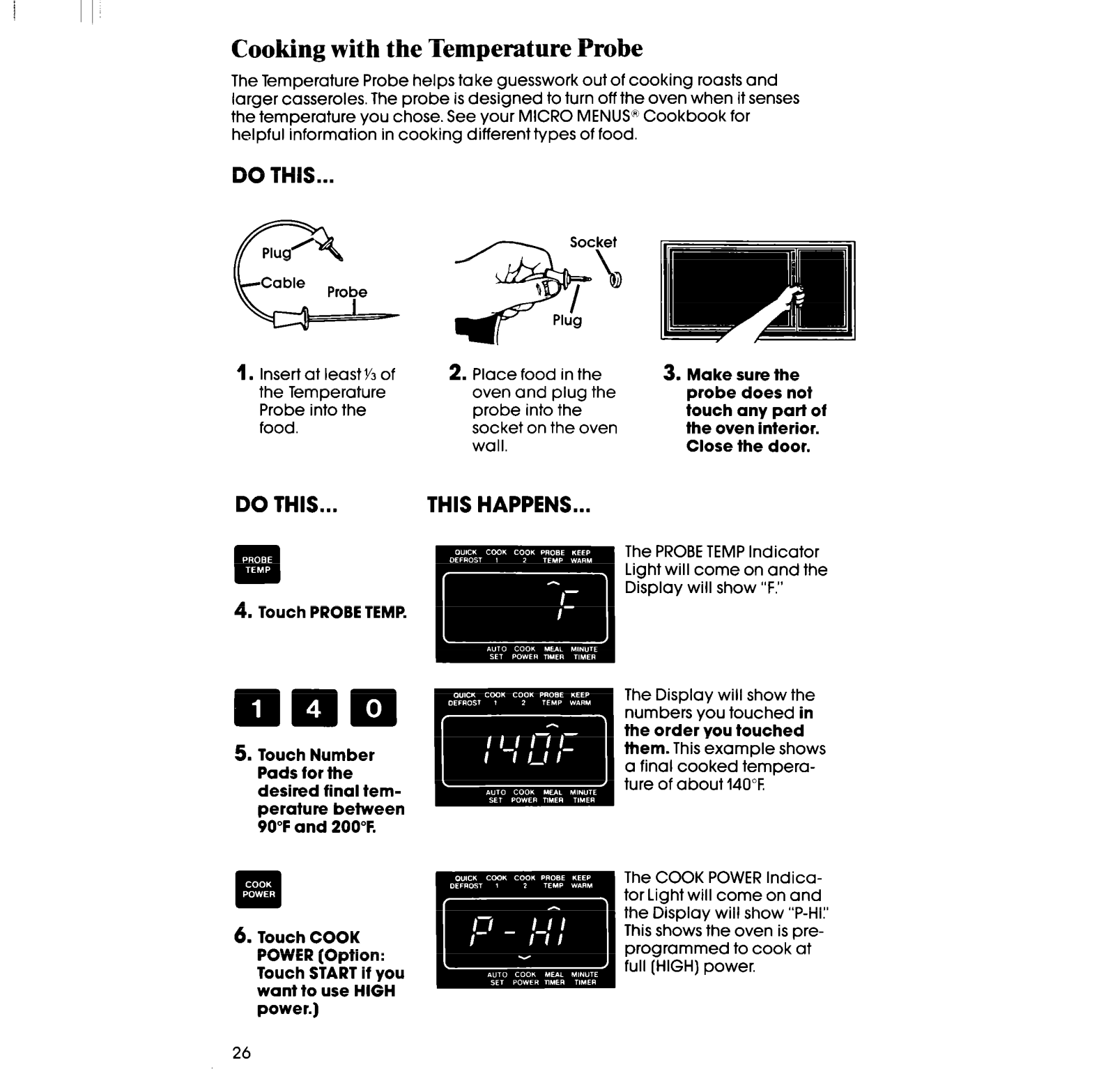

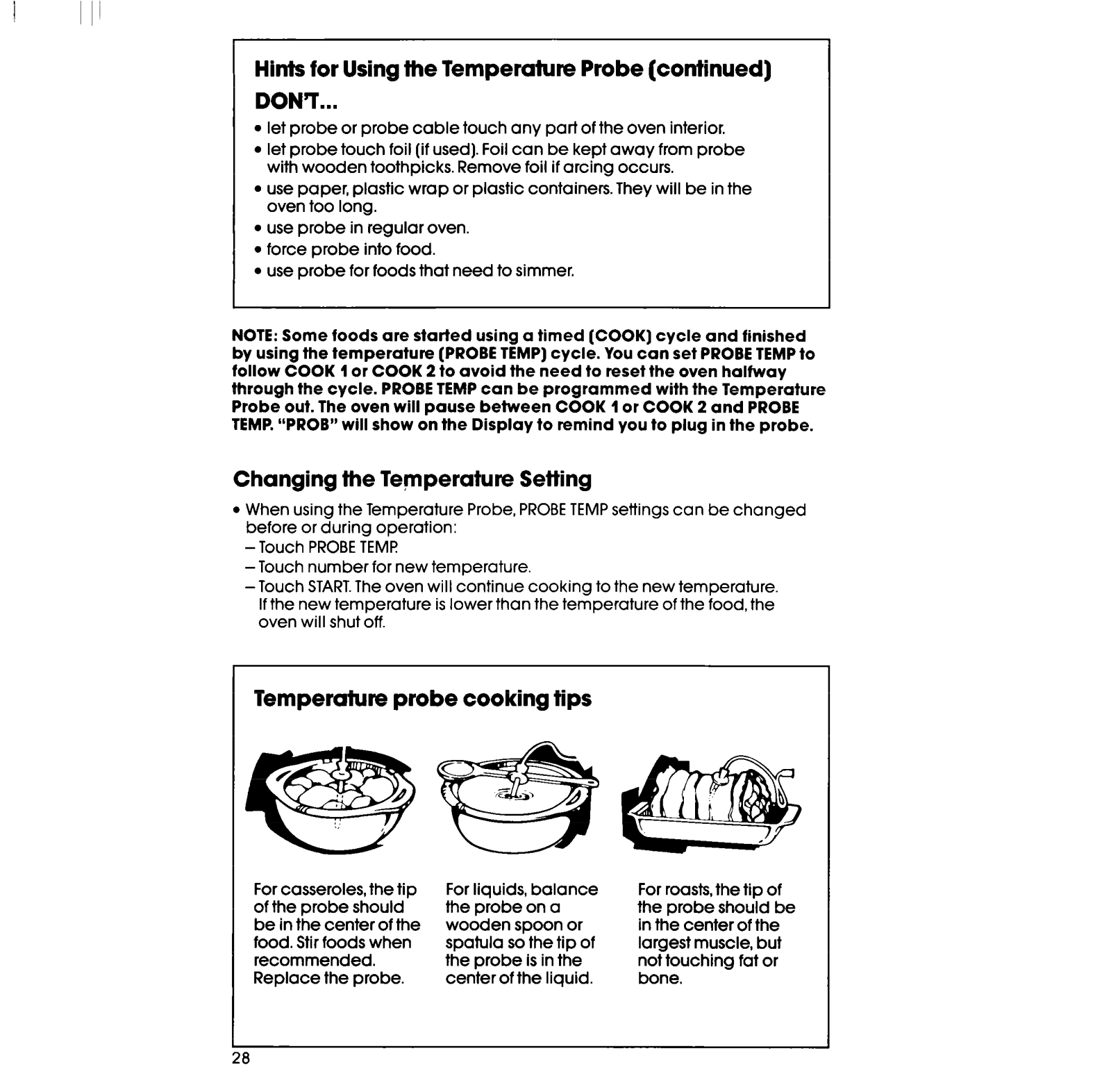

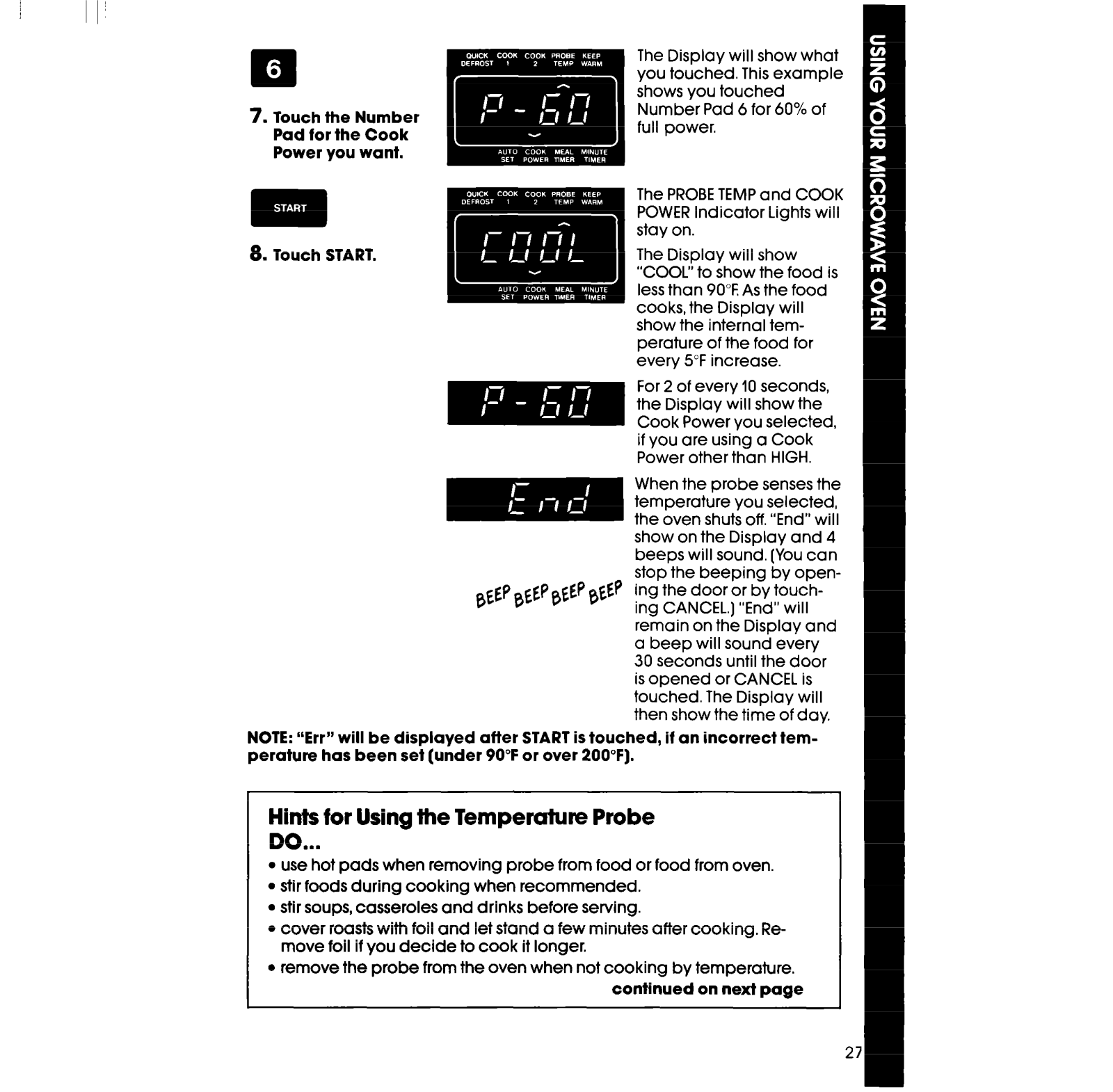

Cooking with the Temperature Probe

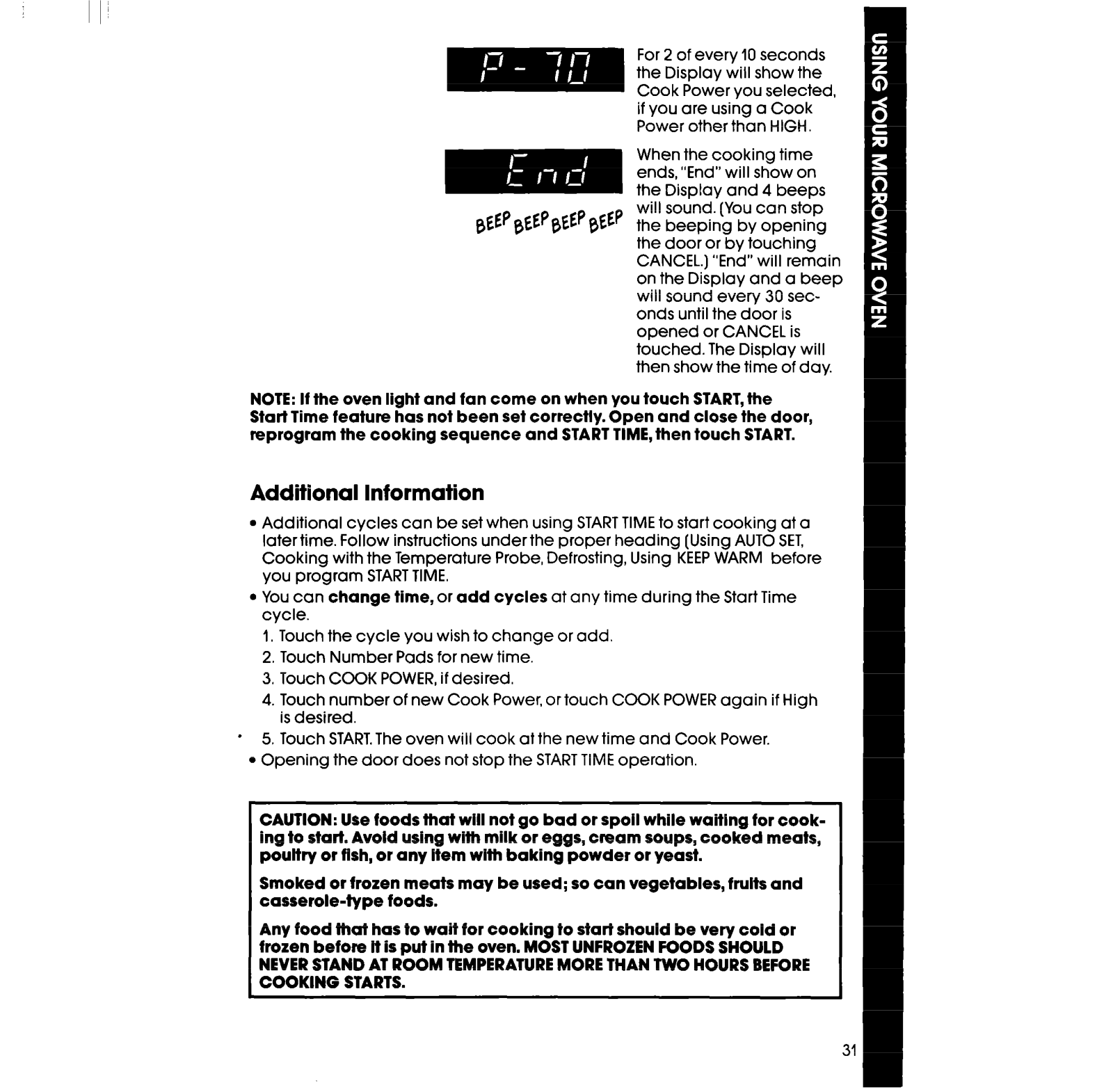

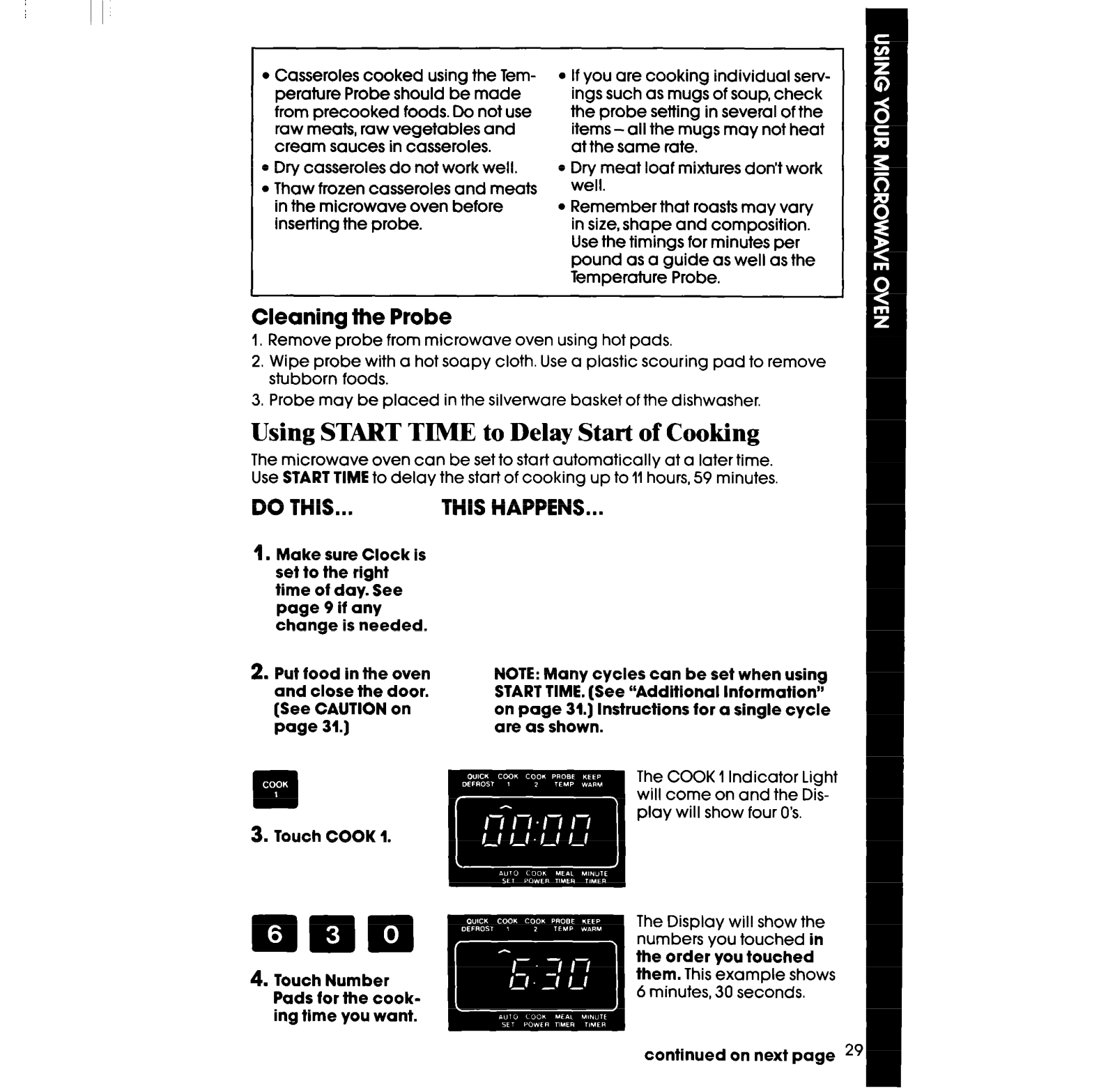

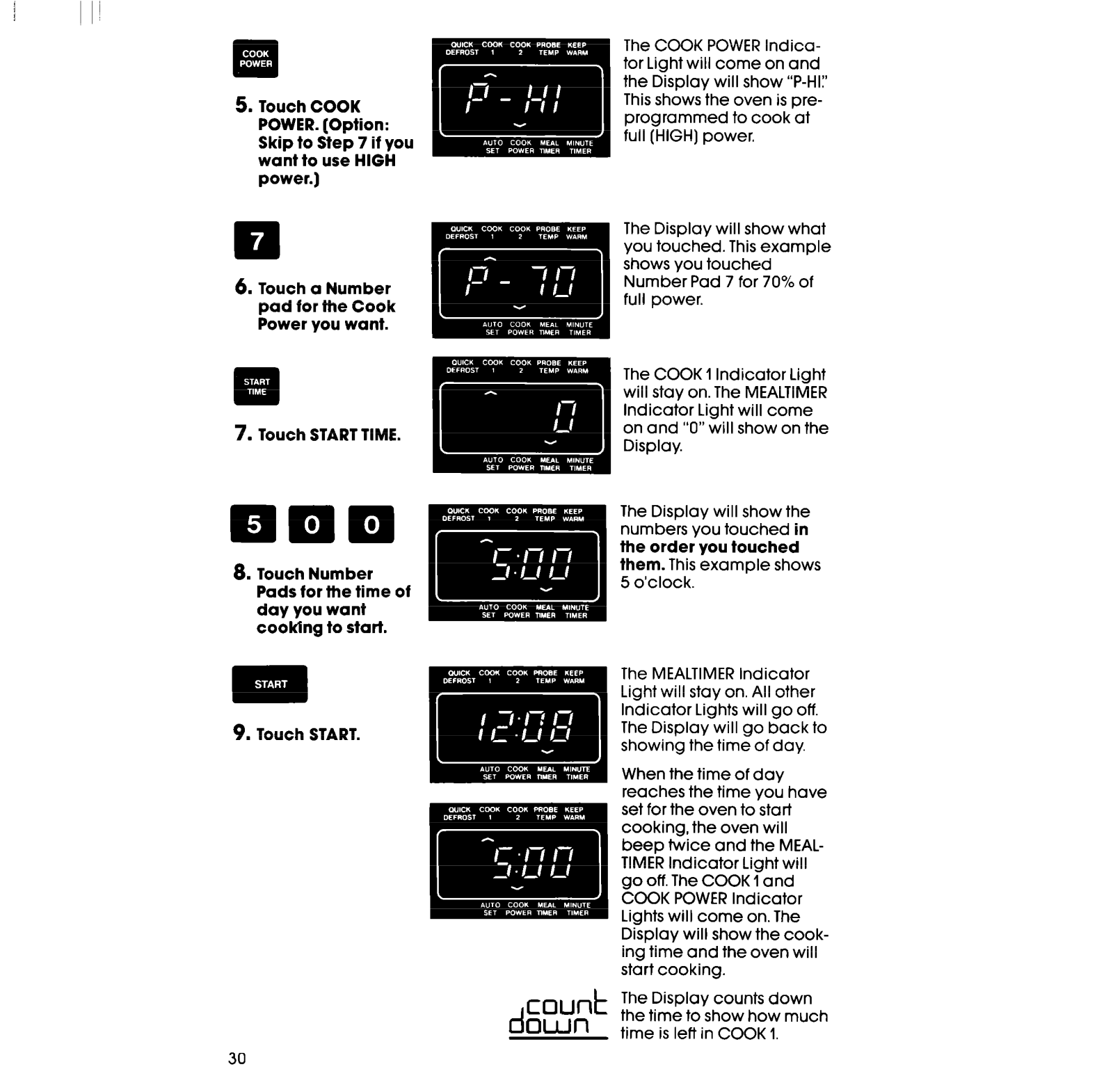

Using START TIME

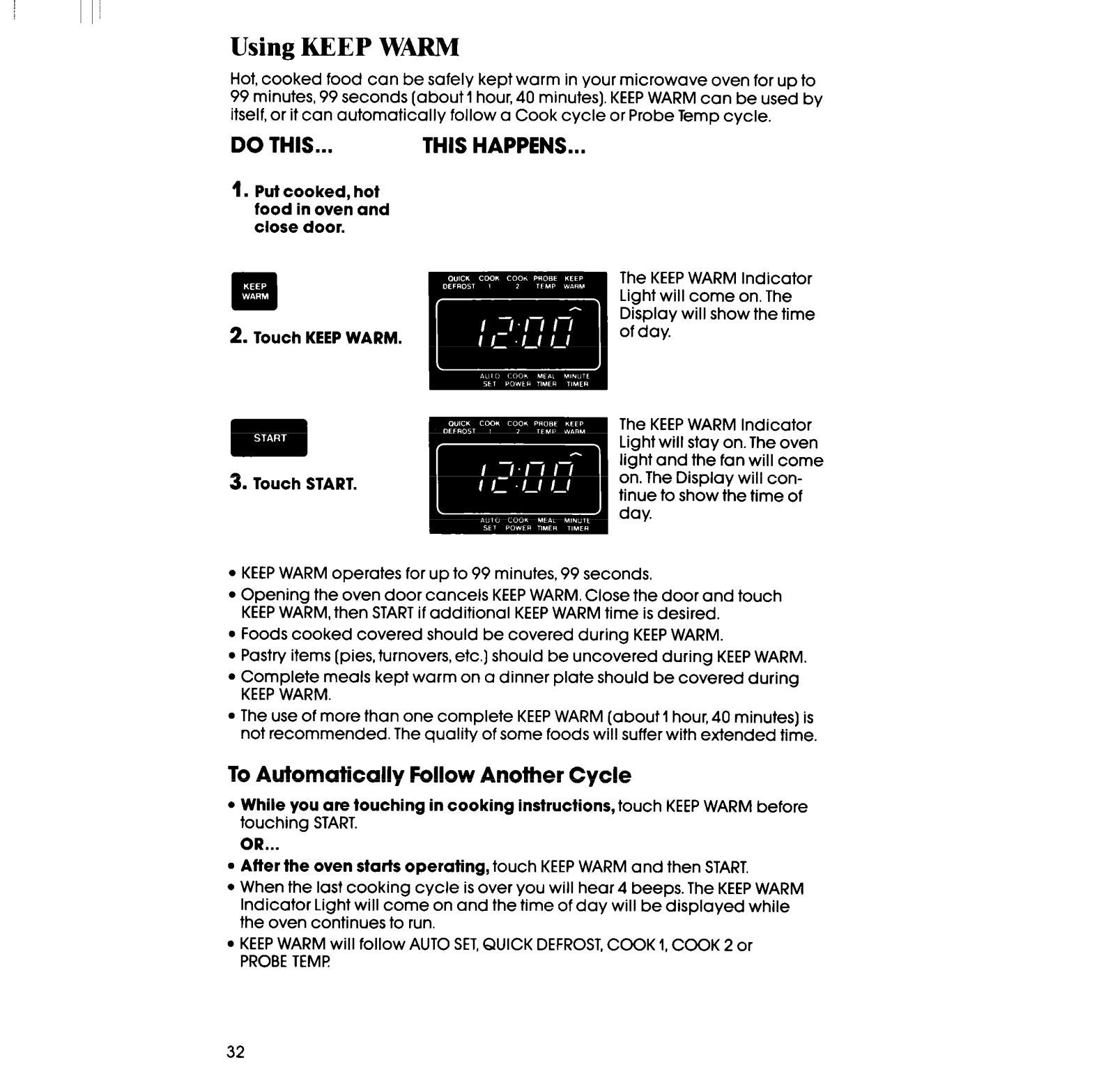

Using KEEP WARM ..., .,.

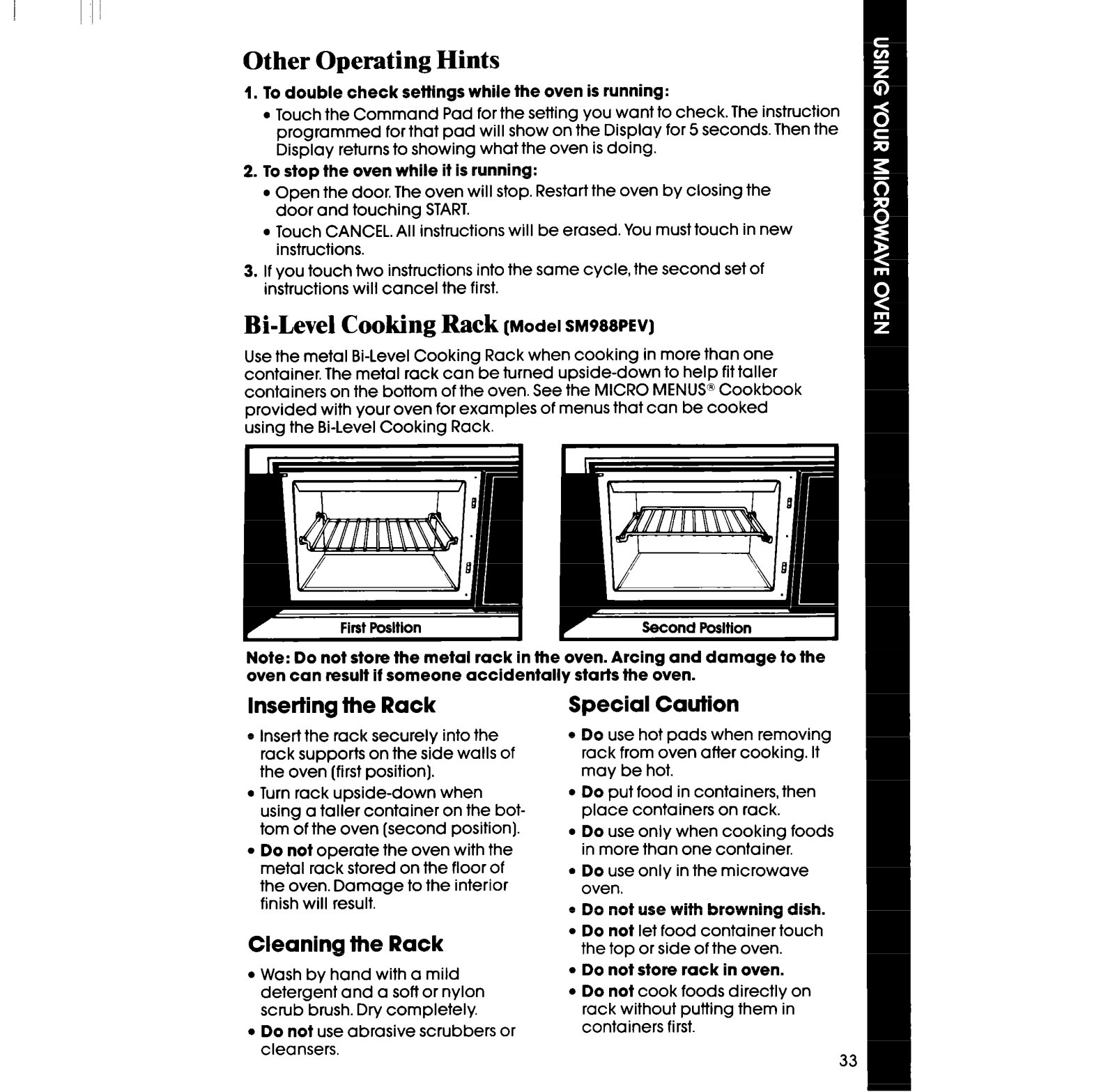

Other Operating Hints
Bi-Level Cooking Rack..
Optional Bi-Level Cooking Rack Kit

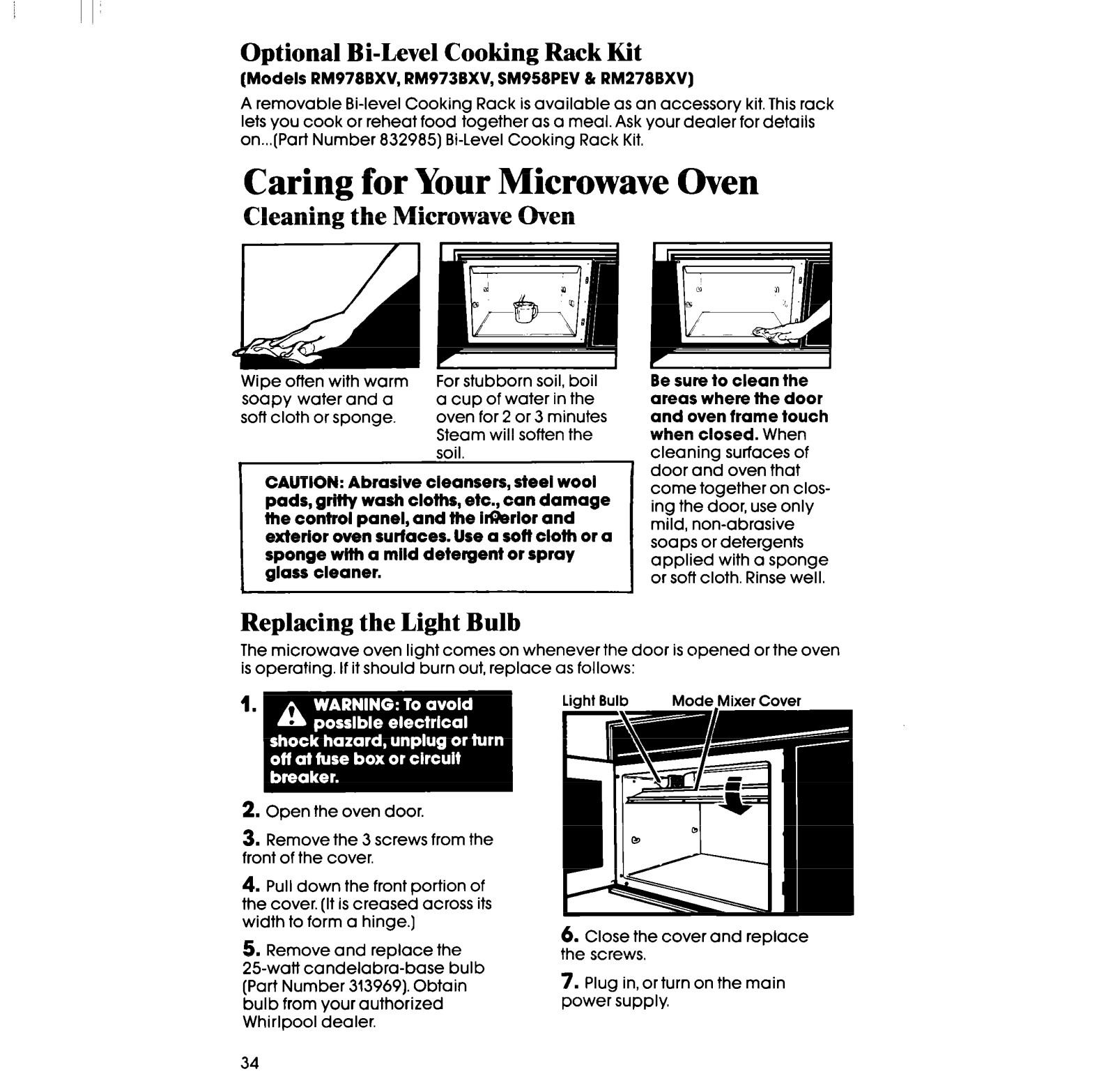

Caring for Your Microwave Oven
Cleaning the Microwave Oven
Replacing the Light Bulb

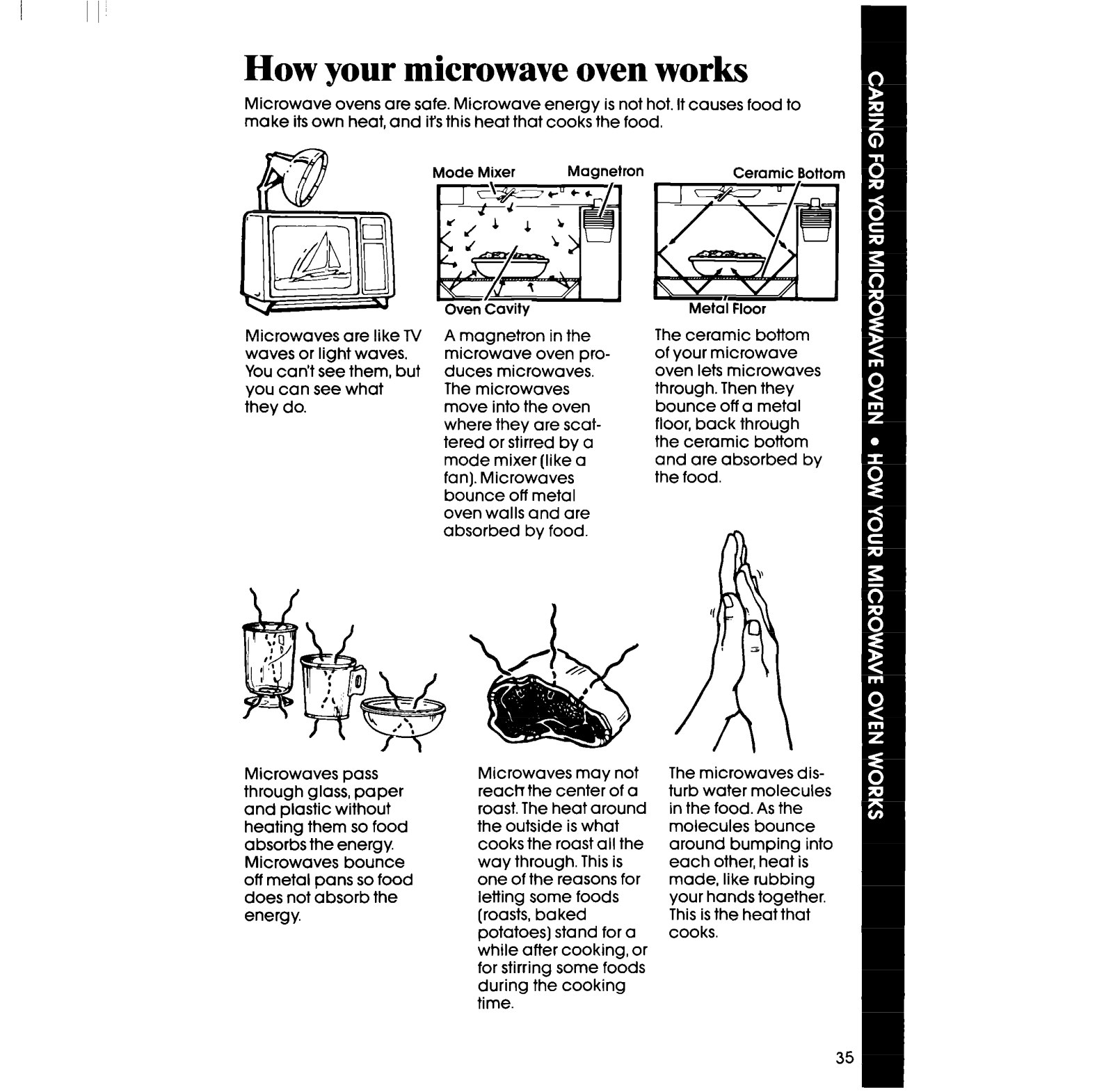

How Your Microwave Oven Works

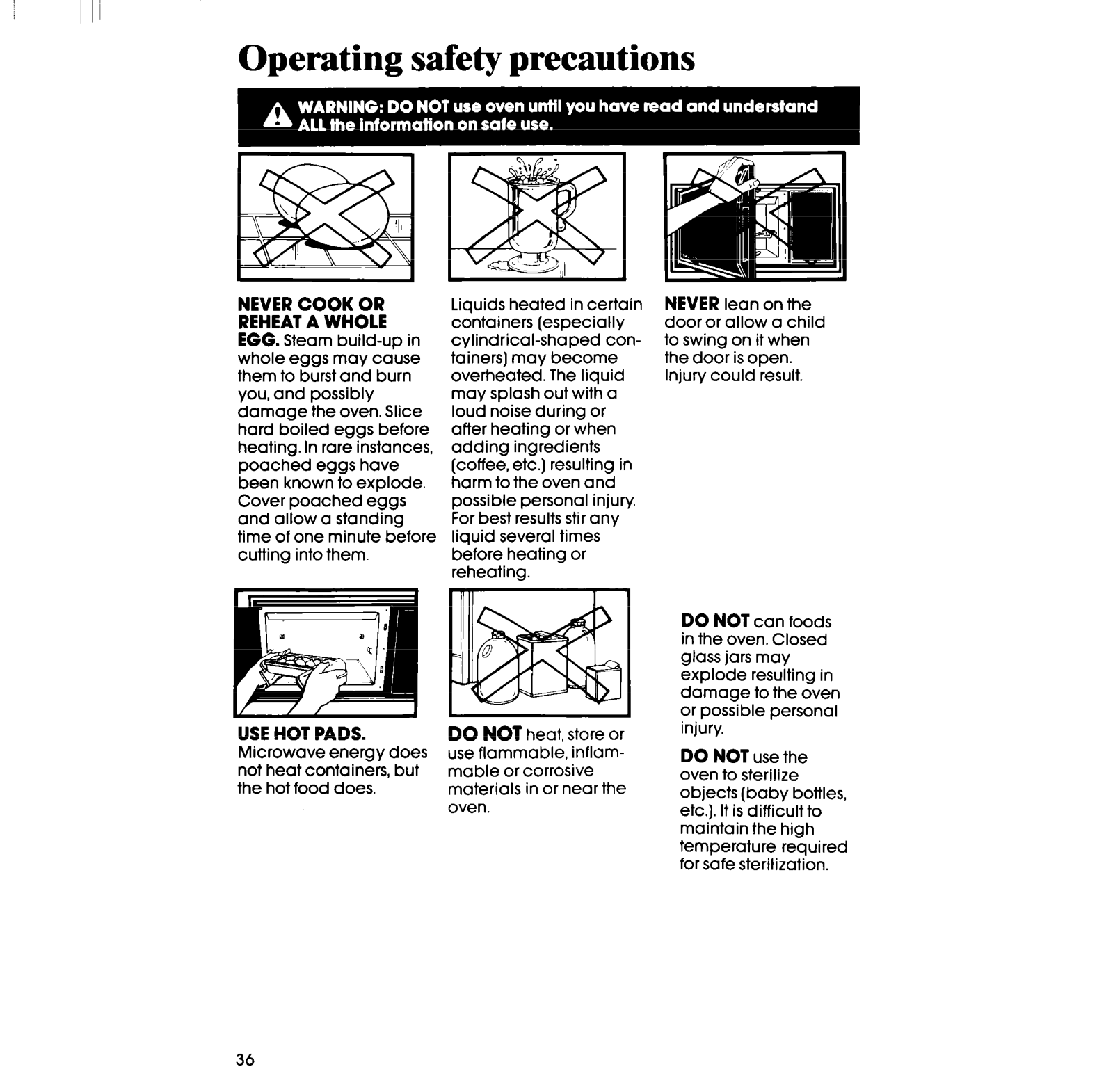

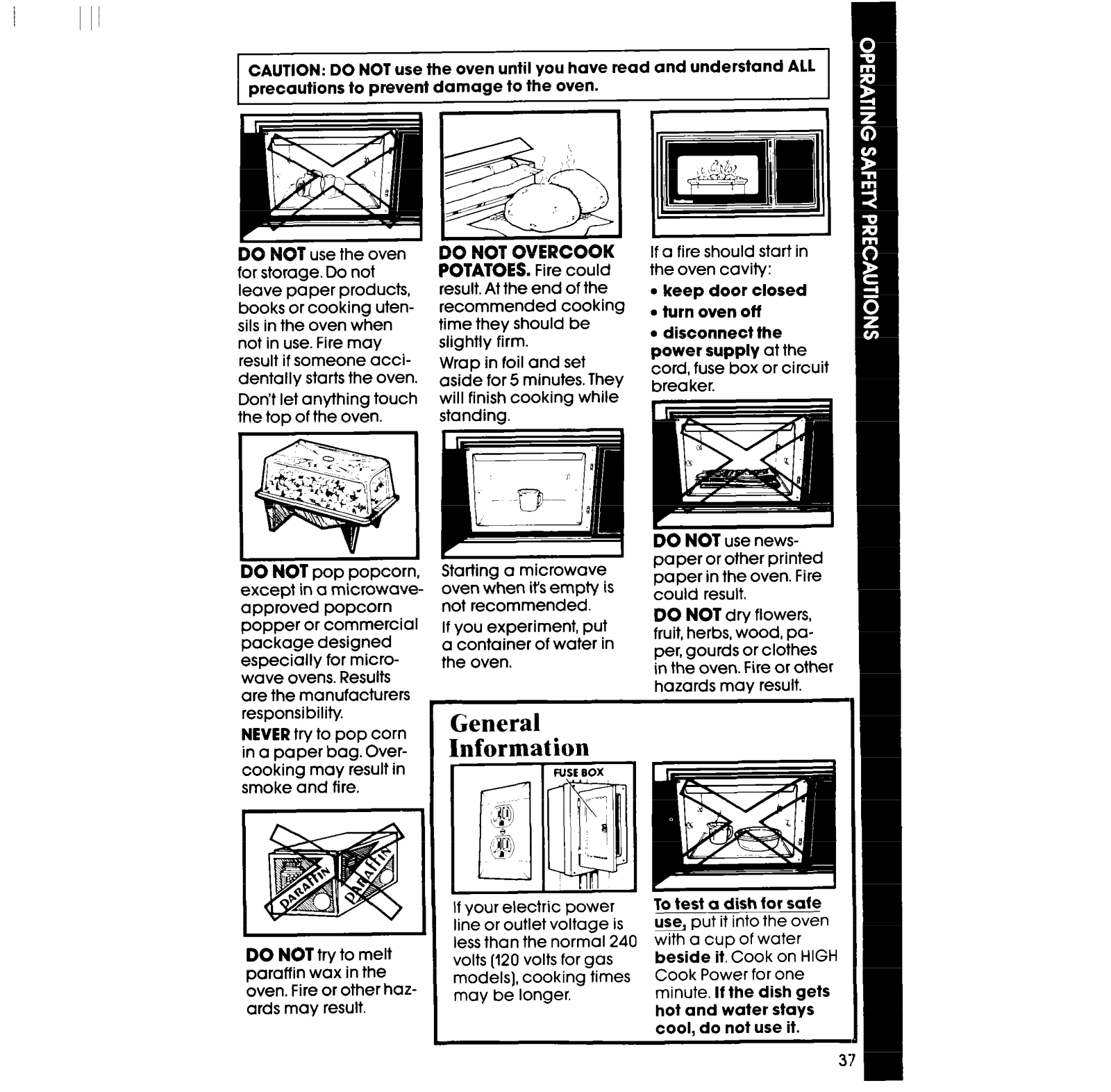

Operating Safety Precautions

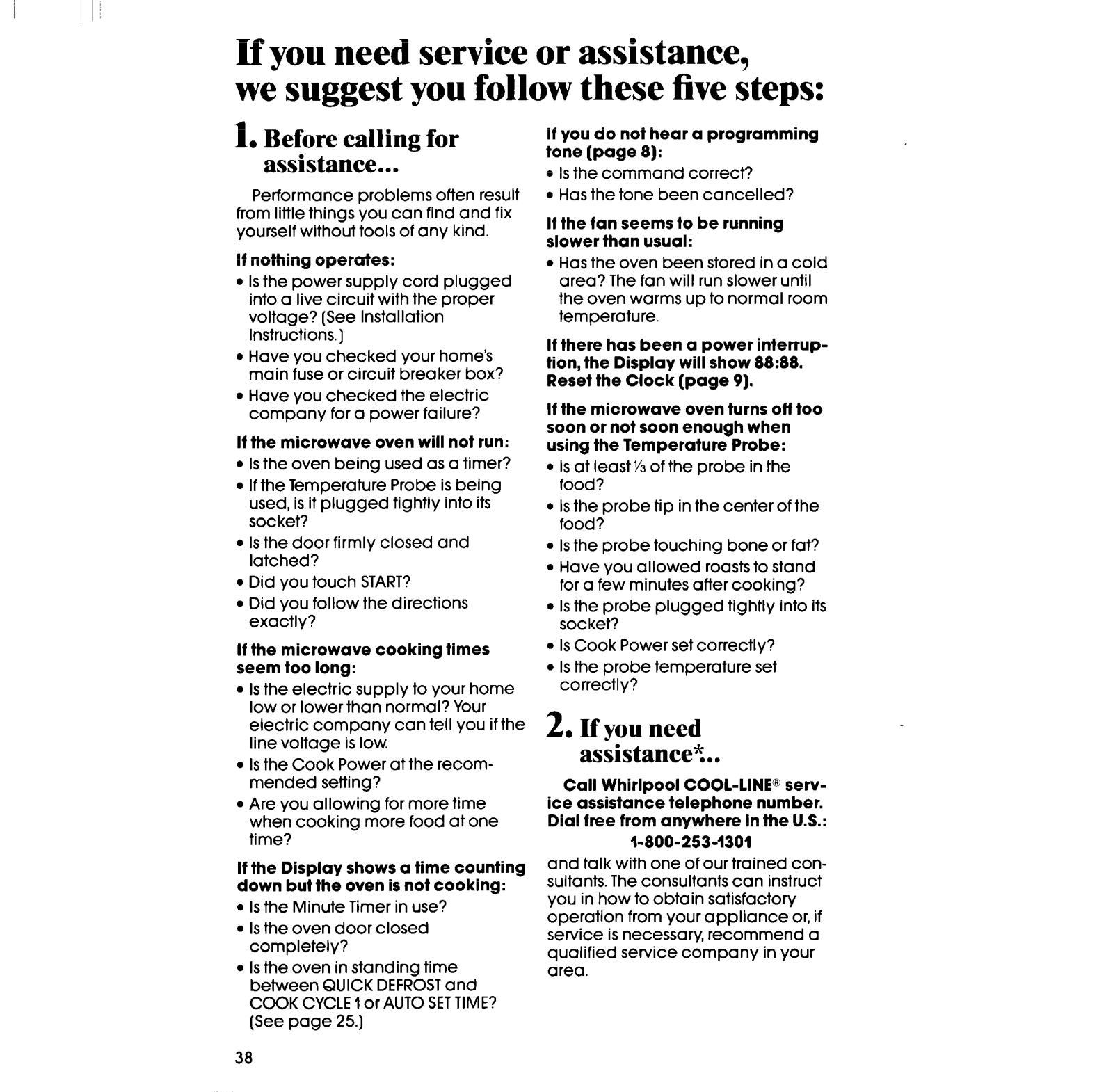

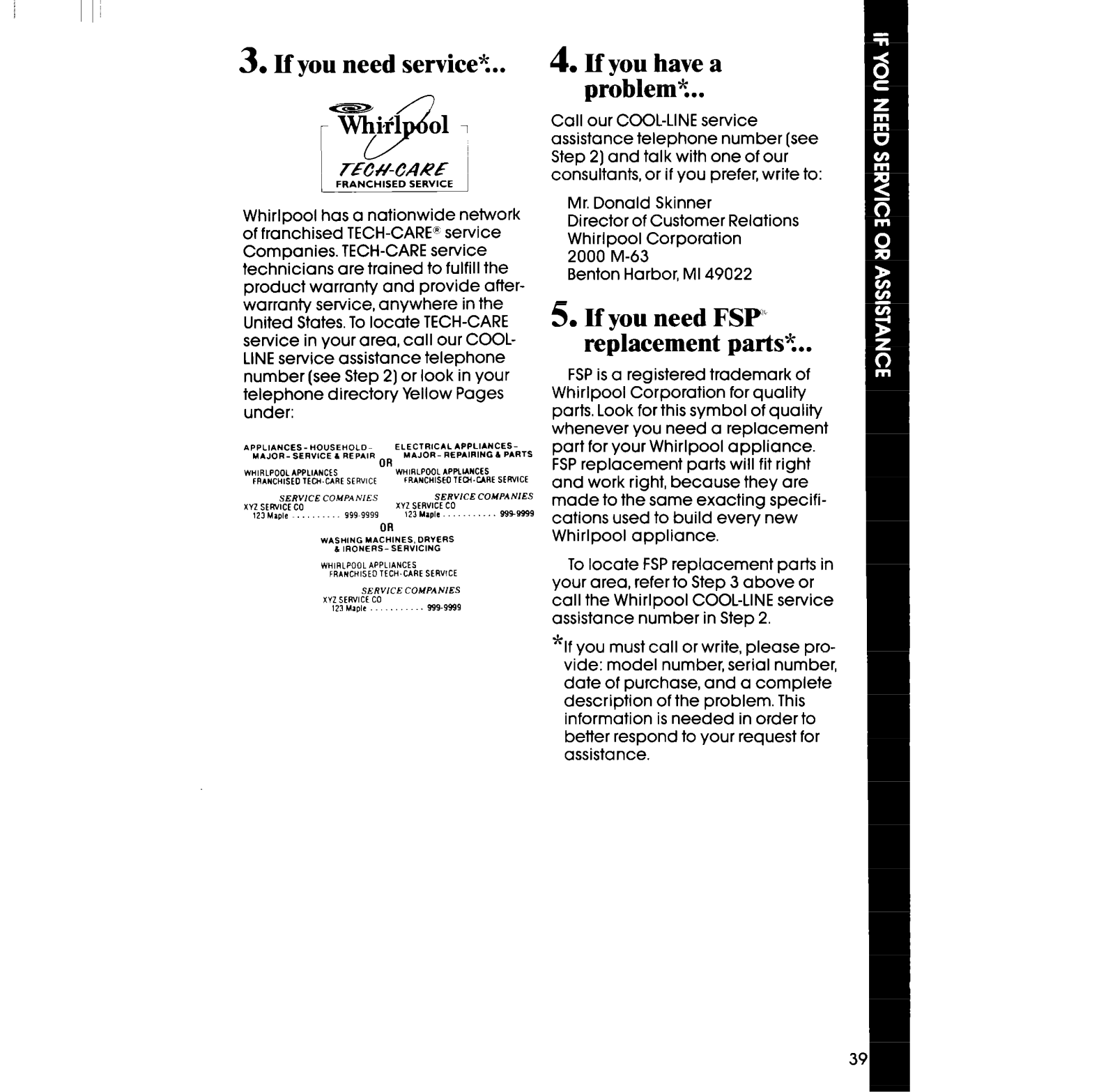

If You Need Service or Assistance

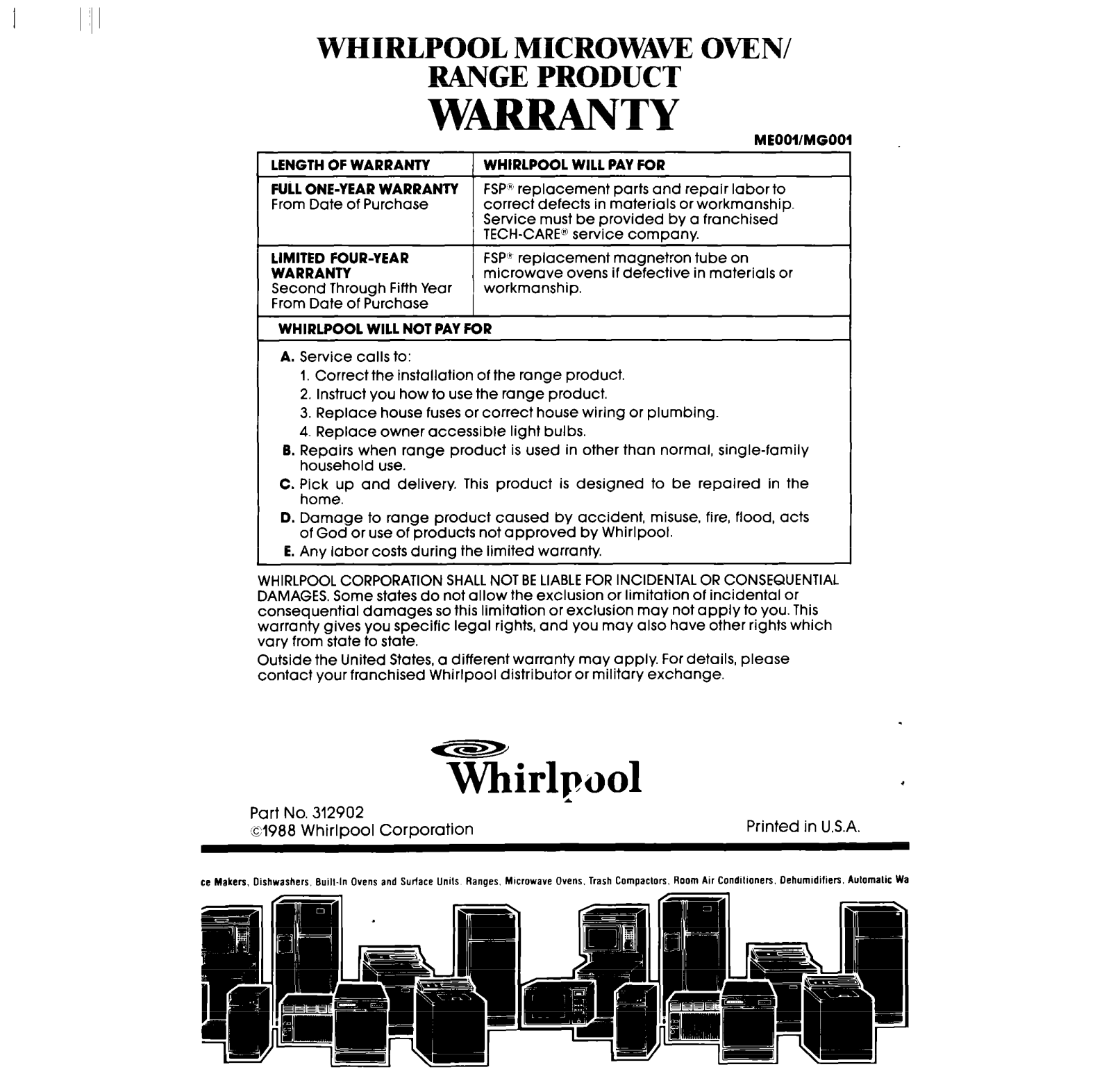

Microwave Oven Warranty
Page
3
4
01988 Whirlpool Corporation
FIN out and return the Microwave Reglstratfon Card Included with
your microwave oven. If the card is missing, please send the model and
serial number of your microwave oven, with your name and address to...
Whirlpool Corporation
Microwave Registration Department
Administrative Center
2000 M-63
Benton Harbor, Michigan 49022
This information will help us reach you if there is ever a need to pass along
information about your microwave oven.
Remove the Consumer Buy Guide label before urlng your microwave
oven.
2

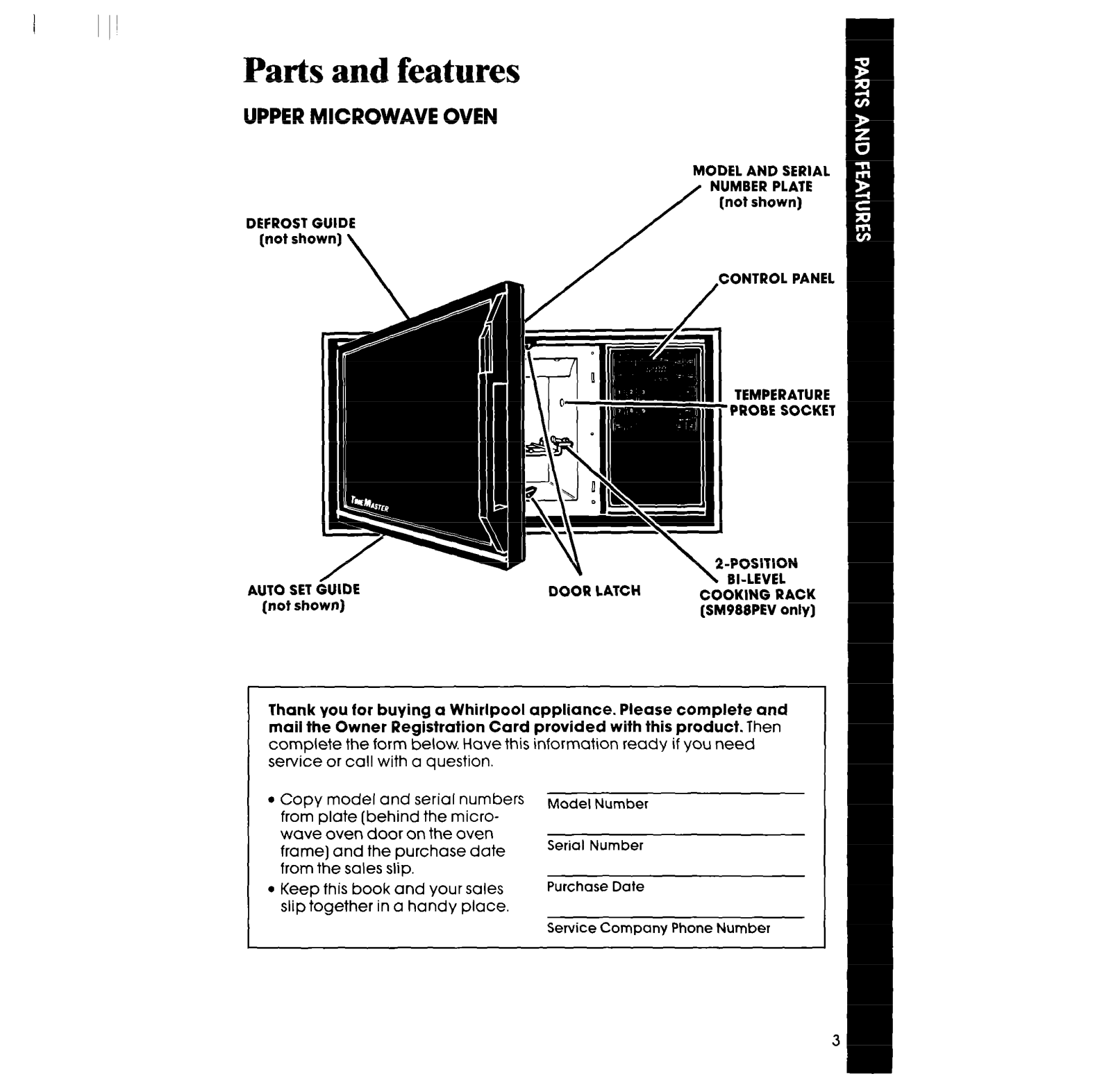

Parts and features
UPPER MICROWAVE OVEN
DEFROST GUIDE
(not shown)
\
MODEL AND SERIAL
NUMBER PLATE
(not shown)
CONTROL PANEL
/
TEMPERATURE
x PROBE SOCKET
.
AUTO SET &DE
(not shown)
Thank you for buying a Whirlpool appliance. Please complete and
mail the Owner Registration Card provided with this product. Then
complete the form below. Have this information ready if you need
service or call with a question.
l
Copy model and serial numbers
from plate (behind the microwave oven door on the oven
frame) and the purchase date
from the sales slip.
l
Keep this book and your sales
slip together in a handy place.
DOOR LATCH
Model Number
Serial Number
Purchase Date
Service Company Phone Number
\ 2-POSITION
1 El-LEVEL
COOKING RACK
(SM988PEV only)
I
I’

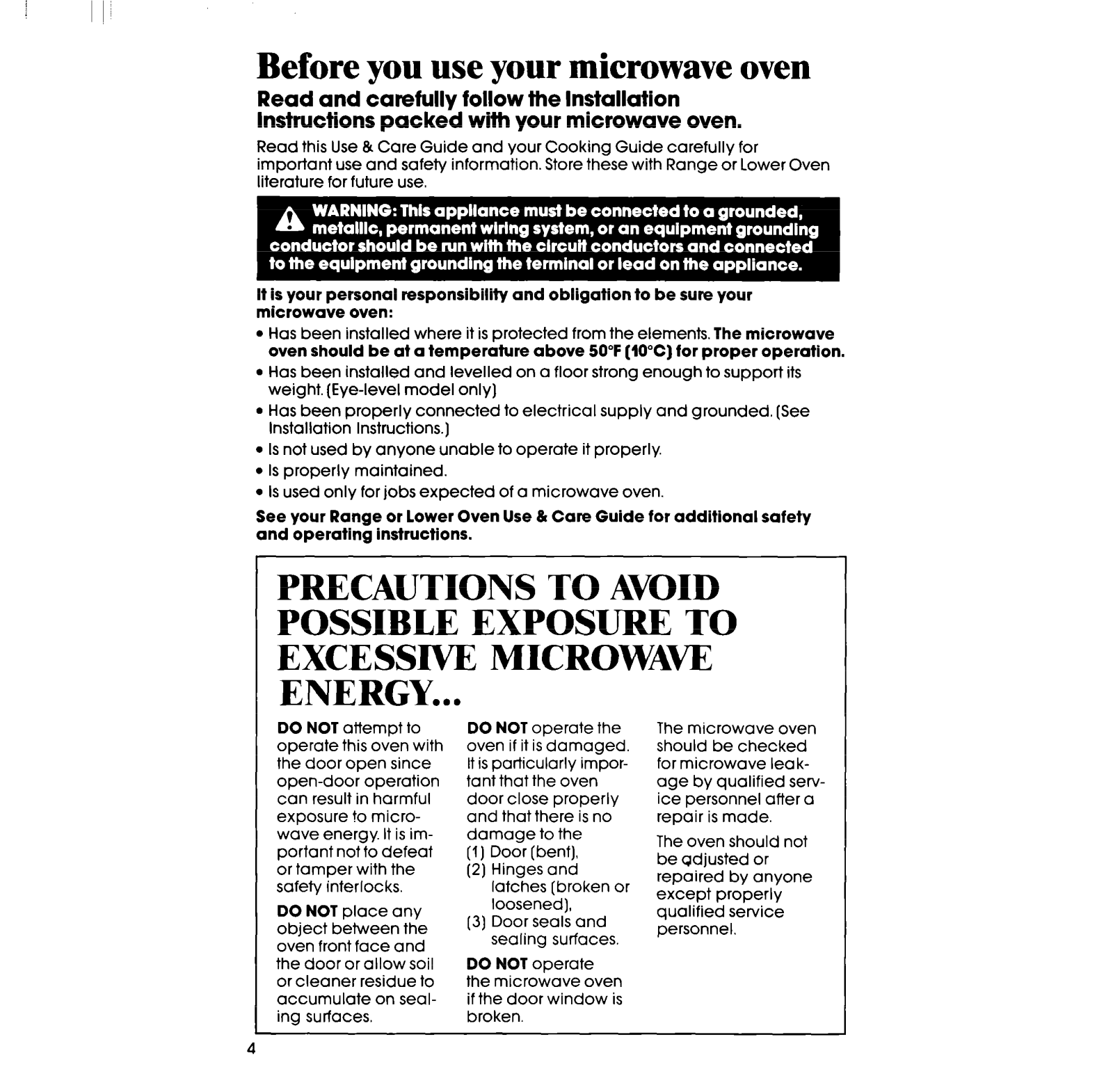

Before you use your microwave oven
Read and carefully follow the Installation
Instructions packed with your microwave oven.
Read this Use & Care Guide and your Cooking Guide carefully for
important use and safety information. Store these with Range or Lower Oven
literature for future use.
It is your personal responsibility and obligation to be sure your
microwave oven:
l
Has been installed where it is protected from the elements. The microwave
oven should be at a temperature above 50°F (10%) for proper operation.
l
Has been installed and levelled on a floor strong enough to support its
weight. (Eye-level model only)
l
Has been properly connected to electrical supply and grounded. (See
Installation Instructions.)
l
Is not used by anyone unable to operate it properly.
l
Is properly maintained.
l
Is used only for jobs expected of a microwave oven.
See your Range or lower Oven Use 81 Care Guide for additional safety
and operating instructions.
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAW
ENERGY...
DO NOT attempt to
operate this oven with
the door open since
open-door operation
can result in harmful
exposure to microwave energy. It is important not to defeat
or tamper with the
safety interlocks.
DO NOT place any
object between the
oven front face and
the door or allow soil
or cleaner residue to
accumulate on sealing surfaces.
DO NOT operate the
oven if it is damaged
It is particularly important that the oven
door close properly
and that there is no
damage to the
(1) Door (bent),
(2) Hinges and
latches [broken or
loosened),
(3) Door seals and
sealing surfaces.
DO NOT operate
the microwave oven
if the door window is
broken.
The microwave oven
should be checked
for microwave leakage by qualified service personnel after a
repair is made.
The oven should not
be adjusted or
repaired by anyone
except properly
qualified service
personnel.

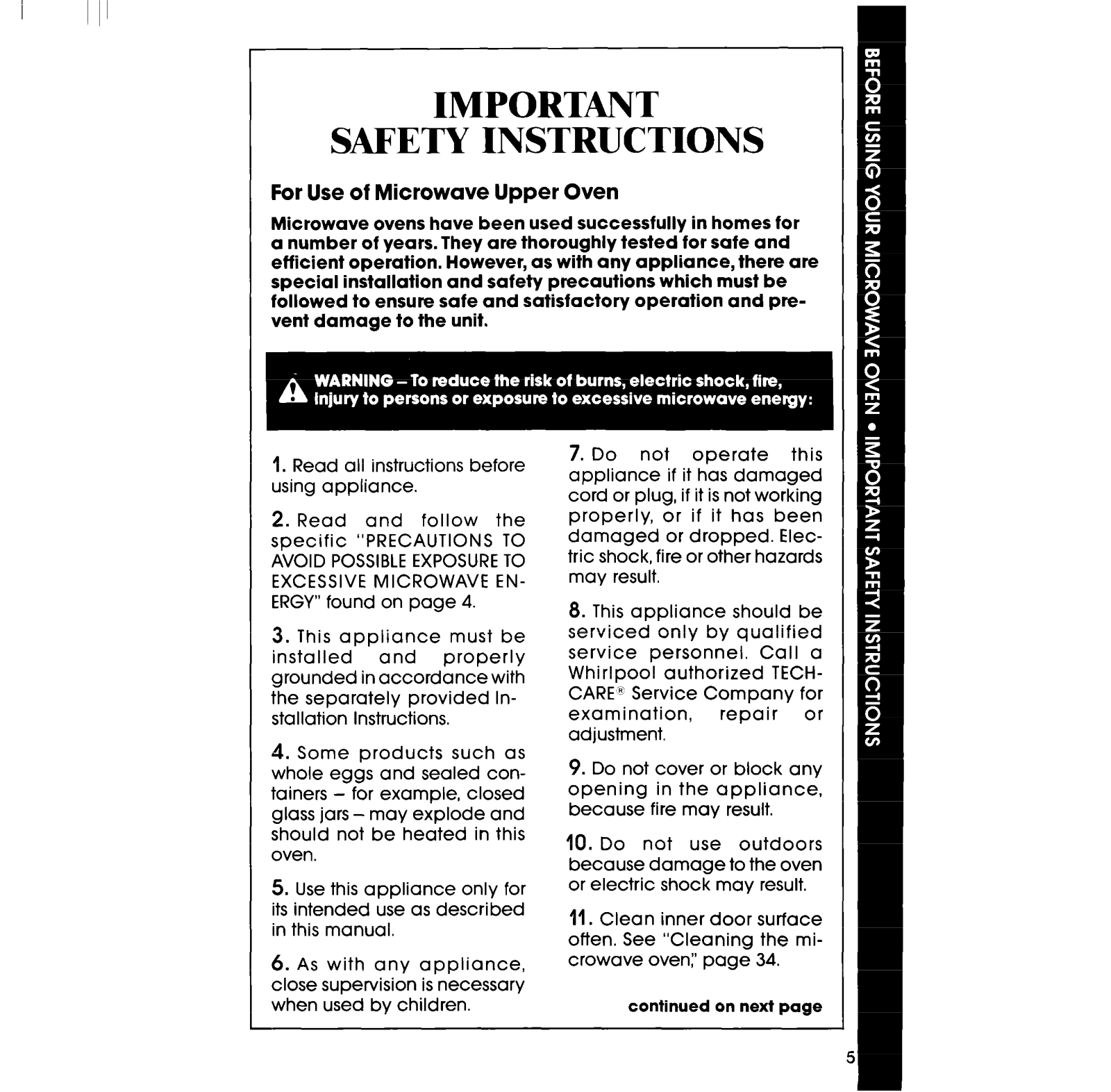

IMPORTANT
SAFETY INSTRUCTIONS
For Use of Microwave Upper Oven
Microwave ovens have been used successfully in homes for
a number of years. They are thoroughly tested for safe and
efficient operation. However, as with any appliance, there are
special installation and safety precautions which must be
followed to ensure safe and satisfactory operation and prevent damage to the unit.
1.
Read all instructions before
using appliance.
2. Read and follow the
specific “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY” found on page 4.
3. This appliance must be
installed
grounded in accordance with
the separately provided Installation Instructions.
4. Some products such as
whole eggs and sealed containers - for example, closed
glass jars - may explode and
should not be heated in this
oven.
5. Use this appliance only for
its intended use as described
in this manual.
6.
As with any appliance,
close supervision is necessary
when used by children.
and properly
7. Do not operate
appliance If It has damaiheids
cord or plug, if it is not working
properly, or if it has been
damaged or dropped. Electric shock, fire or other hazards
may result.
8.
This appliance should be
serviced only by qualified
service personnel. Call a
Whirlpool authorized TECH-
CARE!’ Service Company for
examination,
adjustment.
9. Do not cover or block any
opening in the appliance,
because fire may result.
10.
Do not use outdoors
because damage to the oven
or electric shock may result.
11.
Clean inner door surface
often. See “Cleaning the microwave oven:’ page 34.
continued on next page
repair or
E

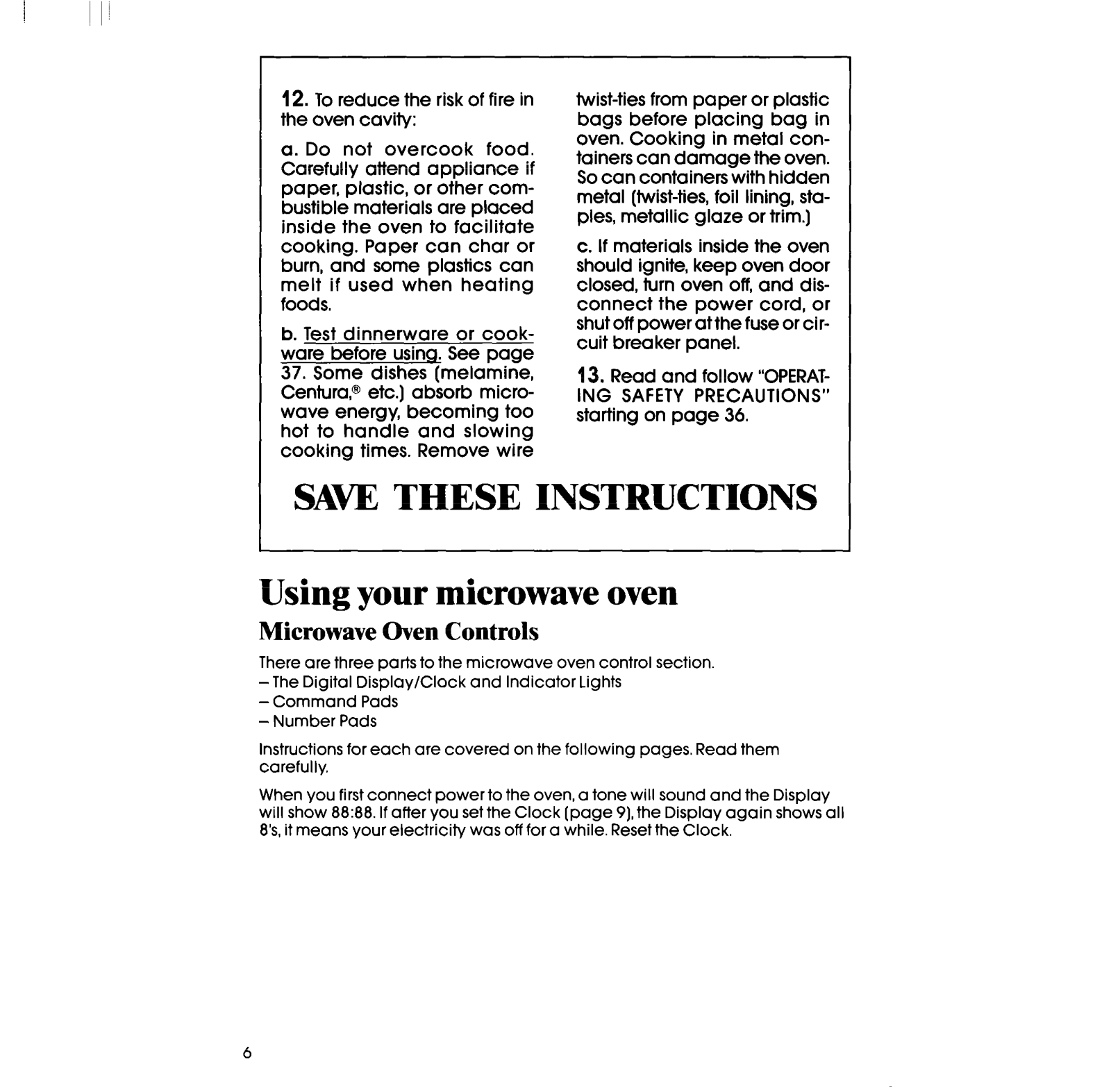

12. To reduce the risk of fire in
the oven cavity:
a. Do not overcook food. a. Do not overcot
Carefully attend appliance if
Carefully attend apt
paper, plastic, or other com-
paper, plastic, or ot
bustible materials ar bustible materials are placed
inside the oven to facilitate
inside the oven to
cooking. Paper can char or
burn, and some plastics can
melt if used when heating
foods.
b. Test dinnerware or cookware before using. See page
37. Some dishes (melamine,
Centura,@ etc.] absorb microwave energy, becoming too
hot to handle and slowing
cooking times. Remove wire
twist-ties from paper or plastic
bags before placing bag in
oven. Cooking in metal containers can damage the oven.
So can containers with hidden
metal (twist-ties, foil lining, sta-
ples, metallic glaze or trim.]
c. If materials inside the oven
should ignite, keep oven door
closed, turn oven off, and disconnect the power cord, or
shut off power at the fuse or circuit breaker panel.
13. Read and follow “OPERAT-
ING SAFETY PRECAUTIONS”
starting on page 36.
SAW THESE INSTRUCTIONS
Using your microwave oven
Microwave Oven Controls
There are three parts to the microwave oven control section.
-The Digital Display/Clock and Indicator Lights
-Command Pads
-Number Pads
Instructions for each are covered on the following pages. Read them
carefully.
When you first connect power to the oven, a tone will sound and the Display
will show 88:88. If after you set the Clock (page 91, the Display again shows all
8’s, it means your electricity was off for a while. Reset the Clock.
6
I I

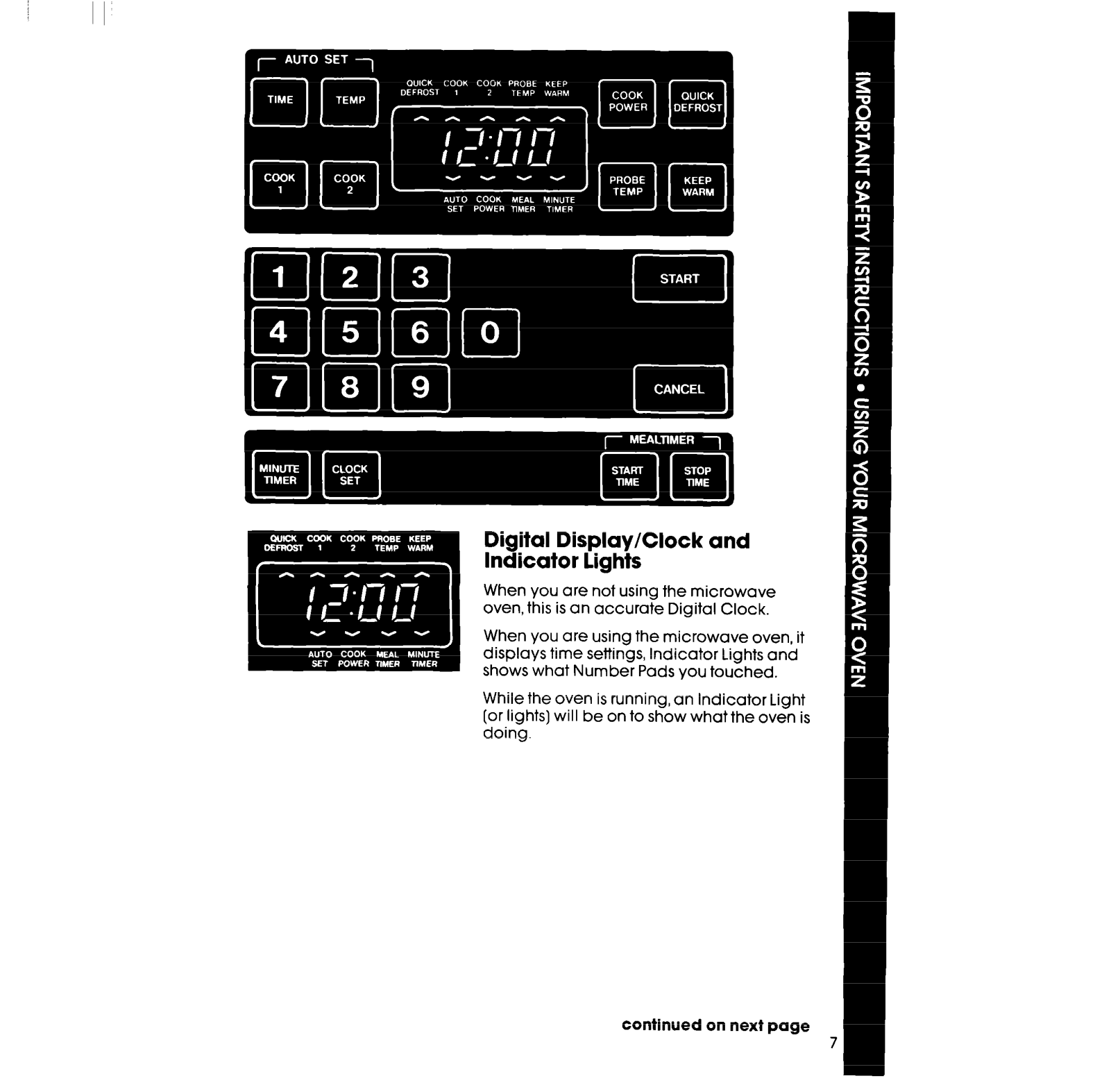

Digital Display/Clock and
Indicator lights
When you are not using the microwave
oven, this is an accurate Digital Clock.
When you are using the microwave oven, it
displays time settings, Indicator Lights and
shows what Number Pads you touched.
While the oven is running, an Indicator Light
(or lights) will be on to show what the oven is
doing.
continued on next page

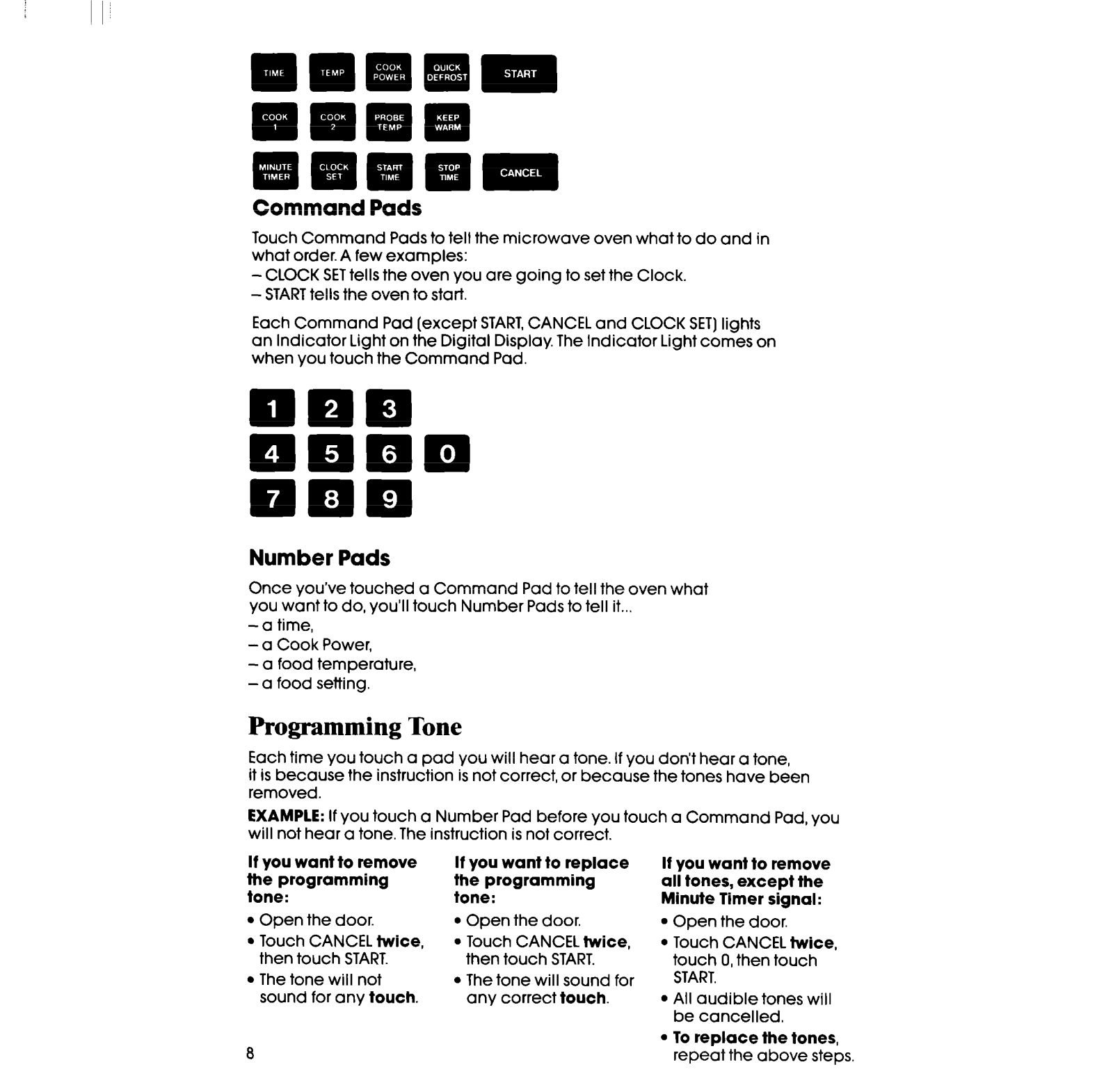

Command Pads
Touch Command Pads to tell the microwave oven what to do and in
what order. A few examples:
-CLOCK SET tells the oven you are going to set the Clock.
- START tells the oven to start.
Each Command Pad (except START, CANCEL and CLOCK SET] lights
an Indicator Light on the Digital Display. The Indicator Light comes on
when you touch the Command Pad.
Number Pads
Once you’ve touched a Command Pad to tell the oven what
you want to do, you’ll touch Number Pads to tell it...
-a time,
- a Cook Power,
- a food temperature,
-a food setting.
Programming Tone
Each time you touch a pad you will hear a tone. If you don’t hear a tone,
it is because the instruction is not correct, or because the tones have been
removed.
EXAMPLE: If you touch a Number Pad before you touch a Command Pad, you
will not hear a tone. The instruction is not correct.
If you want to remove
the programming
tone:
l
Open the door.
l
Touch CANCEL twice,
then touch START.
l
The tone will not
sound for any touch.
8
If you want to replace
the programming
tone:
l
Open the door.
l
Touch CANCEL twice,
then touch START.
l
The tone will sound for
any correct touch.
If you want to remove
all tones, except the
Minute Timer signal:
l
Open the door.
l
Touch CANCEL twice,
touch 0, then touch
START.
l
All audible tones will
be cancelled.
l
To replace the tones,
repeat the above steps,

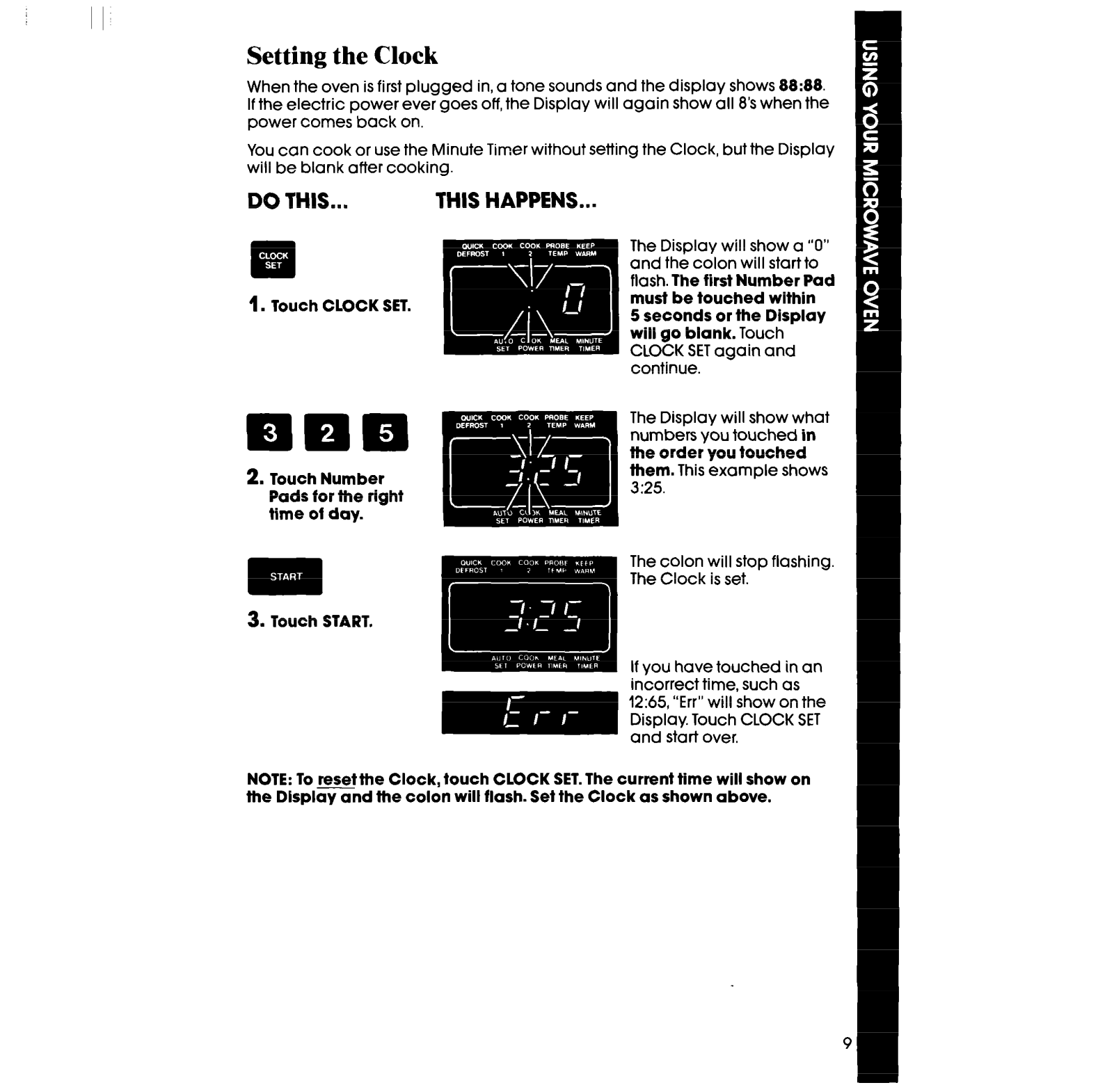

Setting the Clock
When the oven is first plugged in, a tone sounds and the display shows 88:88.
If the electric power ever goes off, the Display will again show all 8’s when the
power comes back on.
You can cook or use the Minute Timer without setting the Clock, but the Display
will be blank after cooking.
DO THIS...
.
I#
1. Touch CLOCK SET.
2. Touch Number
Pads for the right
time of day.
, .
m
3. Touch START.
THIS HAPPENS...
The Display will show a “0”
and the colon will start to
flash. The first Number Pad
must be touched within
5 seconds or the Display
will go blank. Touch
CLOCK SET again and
continue.
The Display will show what
numbers you touched in
the order you touched
them. This example shows
3:25.
The colon will stop flashing.
The Clock is set.
If you have touched in an
incorrect time, such as
12:65, “Err” will show on the
Display. Touch CLOCK SET
and start over.
NOTE: To resetthe Clock, touch CLOCK SET. The current time will show on
the Display and the colon will flash. Set the Clock as shown above.

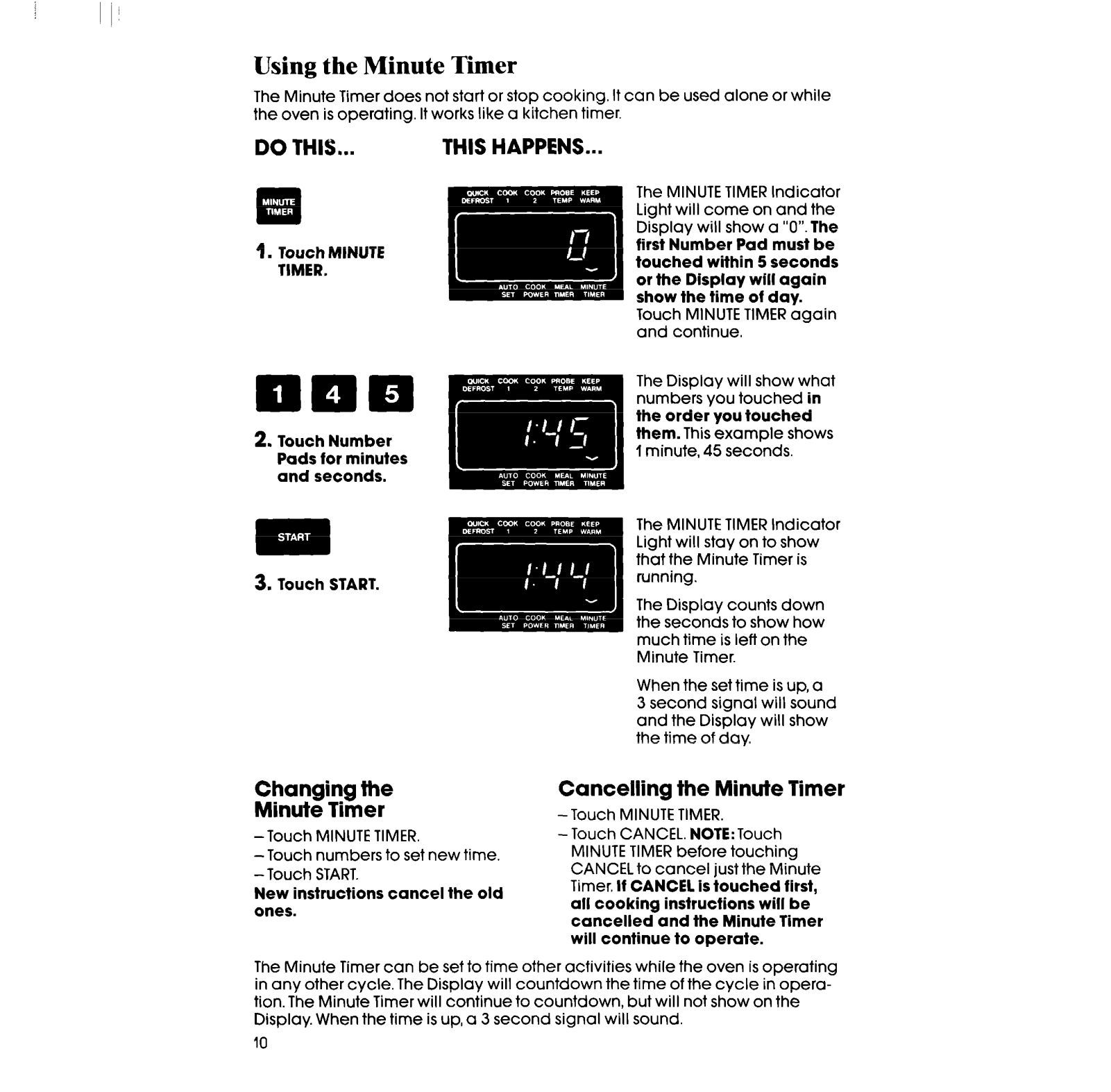

Using the Minute Timer
The Minute Timer does not start or stop cooking. It can be used alone or while
the oven is operating. It works like a kitchen timer.
DO THIS...
q
1. Touch MINUTE
TIMER.
2. Touch Number
Pads for minutes
and seconds.
3. Touch START.
THIS HAPPENS...
The MINUTE TIMER Indicator
Light will come on and the
Display will show a “0”. The
first Number Pad must be
touched within 5 seconds
or the Display will again
show the time of day.
Touch MINUTE TIMER again
and continue.
The Display will show what
numbers you touched in
the order you touched
them. This example shows
1 minute, 45 seconds.
The MINUTE TIMER Indicator
Light will stay on to show
that the Minute Timer is
running.
The Display counts down
the seconds to show how
much time is left on the
Minute Timer.
When the set time is up, a
3 second signal will sound
and the Display will show
the time of day.
Changing the
Minute Timer
-Touch MINUTE TIMER.
-Touch numbers to set new time.
-Touch START.
New instructions cancel the old
ones.
The Minute Timer can be set to time other activities while the oven is operating
in any other cycle. The Display will countdown the time of the cycle in operation. The Minute Timer will continue to countdown, but will not show on the
Display. When the time is up, a 3 second signal will sound.
IO
Cancelling the Minute Timer
-Touch MINUTE TIMER.
-Touch CANCEL. NOTE:Touch
MINUTE TIMER before touching
CANCEL to cancel just the Minute
Timer. If CANCEL is touched first,
all cooking instructions will be
cancelled and the Minute Timer
will continue to operate.
Opening the oven door does not stop the Minute Timer countdown; however,
it does stop any cooking or defrosting. Close the door and touch START to
continue cooking or defrosting.
Cooking in Your Microwave Oven
Be sure to read the MICRO MENUS”’ Cookbook packed with the microwave
oven. It contains information about:
l
What microwave energy is.
l
How food is cooked by microwave energy.
l
What affects cooking speed and cooking evenness.
l
Safety tips.
l
Utensils to use when cooking in a microwave oven.
l
Cooking times for different foods.
Important things to remember to get the best cooking results.
l
ALWAYS cook food for the minimum recommended cooking time. If neces-
sary, add time in one or two minute periods, then check for doneness to
avoid overcooking the food.
l
Stir, turn or rearrange the food being cooked about halfway through the
cooking time for most even doneness with all recipes.
l
If a glass cover is not available, use waxpaper, paper towels or microwave
approved plastic wrap. Turn back a corner to vent steam during cooking.
Cooking at High Cook Power
Follow these steps to cook at high power.
DO THIS...
1. Put food in the oven
and close the door.
2. Touch COOK 1.
3. Touch Number
Pads for the cooking time you want.
THIS HAPPENS...
The COOK 1 indicator Light
will come on and the
Display will show four 0’s.
The Display will show the
numbers you touched in
the order you touched
them. The example shows
1 minute, 30 seconds.
continued on next page
11
4.
Touch START.
The oven will automatically cook at HIGH Cook
Power.
The COOK 1 Indicator Light
will stay on to show that the
oven is cooking in the first
cycle.
count
cl
own
The Display counts down
the time to show how much
time is left in the first cycle.
When the cooking time
ends, “End” will show on
the Display and 4 beeps
will sound. [You can stop
the beeping by opening
the door or by touching
CANCEL.] “End” will remain
on the Display and a beep
will sound every 30 seconds until the door is
opened or CANCEL is
touched. The Display will
then show the time of day.
Changing the Cooking Time
Cooking time can be changed any time before touching START or during the
cycle:
1. Touch COOK 1.
2. Touch numbers for the new time.
3. Touch START.
Cook 1 cycle will continue cooking for the new time.
Cooking at Lower Cook Powers
For best results, some recipes call for lower Cook Powers. The lower the Cook
Power, the slower the cooking. Each Number Pad also stands for a different
percentage of Cook Power. Many recipes in your MICRO MENUS@ Cookbook
tell you, by number, which Cook Power to use. Recipes in other books and
magazines may tell you by name (HI, MED, LO, etc.) or percentage (IO%, 50%,
80%, etc.).
The following chart gives the percentage of Cook Power each Number Pad
stands for, and Cook Power name usually used.
automatic 100% of full power HIGH
9 = 90% of full power
8 = 80% of full power
7 = 70% of full power MED-HIGH
6 = 60% of full power
5 = 50% of full power MED
12
4 = 40% of full power
3 = 30% of full power MED-LOW
2 = 20% of full power
1 = 10% of full power LOW
0 = no power (fan and light will be off]
Loading...
+ 28 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
