30" BUILT-IN
MICROWAVE OVEN
COMBINATION
IMPORTANT
INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE HOMEOWNER.
HOMEOWNER: RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
!
aveOvens,Compactors, RoomAir Conditioners, Dehumidifiers,Automatic Washers,Clothes Dryers,Freezers,Refrigerator-Freezers,IceMakers,Dishwasl
Before you begin
Read these instructions completely and carefully.
If followed, they will simplify the installation job.
IMPORTANT:
Observe all governing codes and ordinances.
Failure to follow these instructions could lead
to fire or electrical shock hazard.

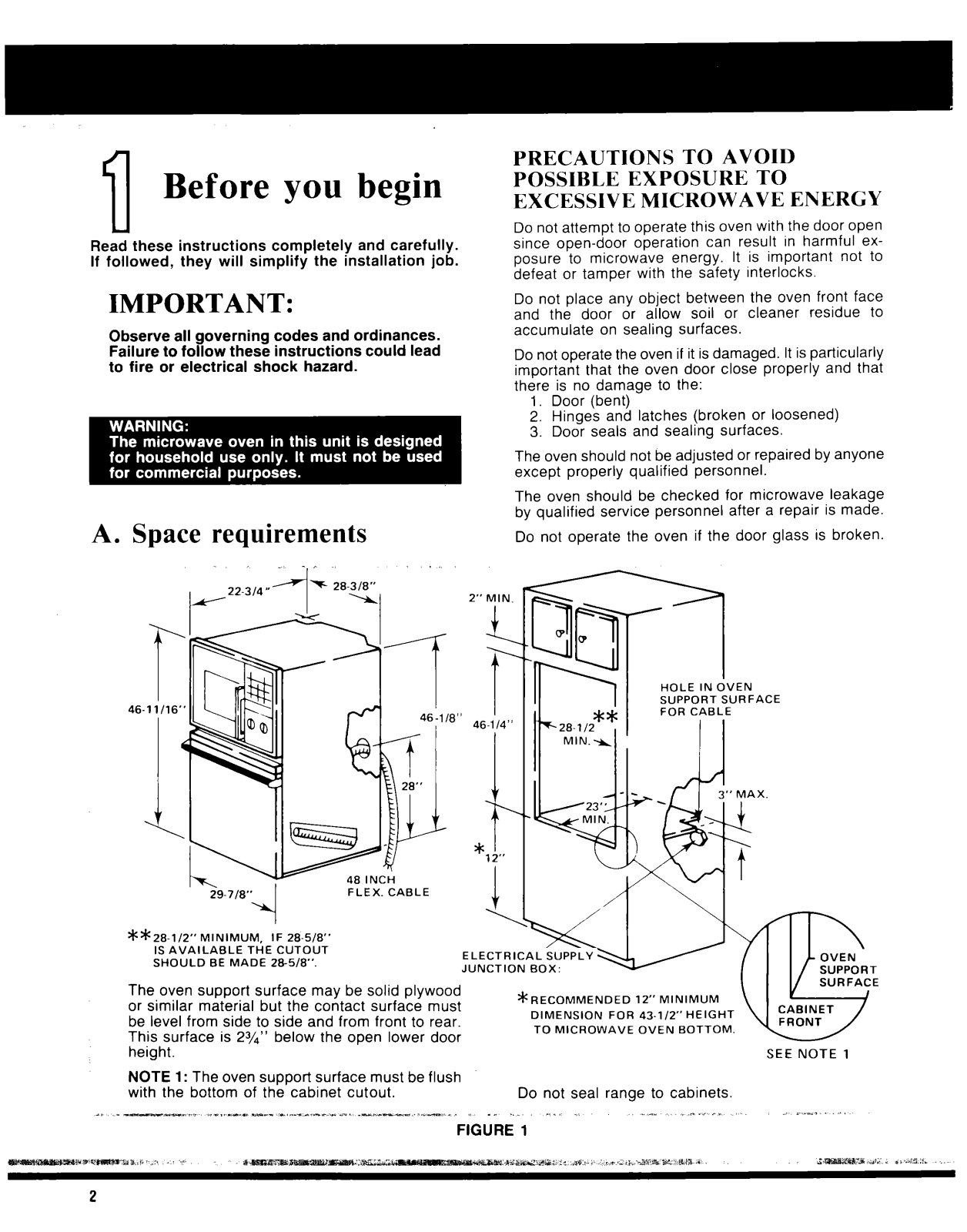

A. Space requirements
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
Do not attempt to operate this oven with the door open
since open-door operation can result in harmful ex-
posure to microwave energy. It is important not to
defeat or tamper with the safety interlocks
Do not place any object between the oven front face
and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is particularly
important that the oven door close properly and that
there is no damage to the:
1. Door (bent)
2. Hinges and latches (broken or loosened)
3. Door seals and sealing surfaces.
The oven should not be adjusted or repaired by anyone
except properly qualified personnel.
The oven should be checked for microwave leakage
by qualified service personnel after a repair is made.
Do not operate the oven if the door glass is broken.
28-3/8"
46-11/16""
48 INCH
FLEX. CABLE
29-7/8'_[
:_k:_:28-1/2"' MINIMUM, IF 28-5/8"
IS AVAILABLE THE CUTOUT
SHOULD BE MADE 28-5/8"'.
The oven support surface may be solid plywood
or similar material but the contact surface must
be level from side to side and from front to rear.
This surface is 23/4'' below the open lower door
height.
NOTE 1: The oven support surface must be flush
with the bottom of the cabinet cutout.
2"" MIN.
46-1/4"
ELECTRICAL SUPPLY
JUNCTION BOX:
:_RECOMMENDED 12" MINIMUM
DIMENSION FOR 43-1/2" HEIGHT
TO MICROWAVE OVEN BOTTOM.
Do not seal range to cabinets.
HOLE IN OVEN
SUPPORT SURFACE
FOR CABLE
t
OVEN
SUPPORT
SURFACE
CABINET
FRONT
SEE NOTE 1
FIGURE 1
B. Check microwave for
damage
Remove all packing material from the oven cavity.
When unpacking the unit, check for damage such as
misaligned door, damaged gaskets around the door,
or dents inside the oven or on the exterior. If there is
any damage, please do not operate the unit until it has
been checked by an authorized Whirlpool trained ser-
vice technician.
C. Electrical requirements
IMPORTANT:
SAVE THESE INSTRUCTIONS FOR THE
LOCAL ELECTRICAL INSPECTOR'S USE
A. This appliance must be connected to the proper
electrical voltage and frequency as specified on
nameplate. Models rated at 15 KW on 240 volts (11.25
KW on 208V) or more require a separate 50 amp cir-
cuit. Models rated less than 15KW on 240 volts (11.25
KW on 208V) require a separate 40 ampere circuit.
Fuse both sides of the line. DO NOT fuse the neutral.
A time delay fuse or circuit breaker is recommended.
Wire sizes must conform to the requirements of the Na-
tional Electrical Code and/or local codes and or-
dinances for the kilowatt rating of the range. The
nameplate is located on the front frame behind the
microwave oven door.
NOTE: Wire sizes and connections must conform with
the fuse size and rating of the appliance in accordance
with National Electrical Code and local codes and or-
dinances. Do not use an extension cord.
B. The appliance should be connected to the fused
disconnect (or circuit breaker) box through flexible ar-
mored or non-metallic sheathed cable. The flexible ar-
mored cable extending from the appliance should be
connected directly to the junction box. The junction box
should be located as shown in Figure 1 on page 2 so
that as much siack as possible remains in the cable
between the box and the appliance so that it can be
moved if servicing is necessary.
C. A suitable strain relief must be provided to attach
the flexible armored cable to the junction box.
3

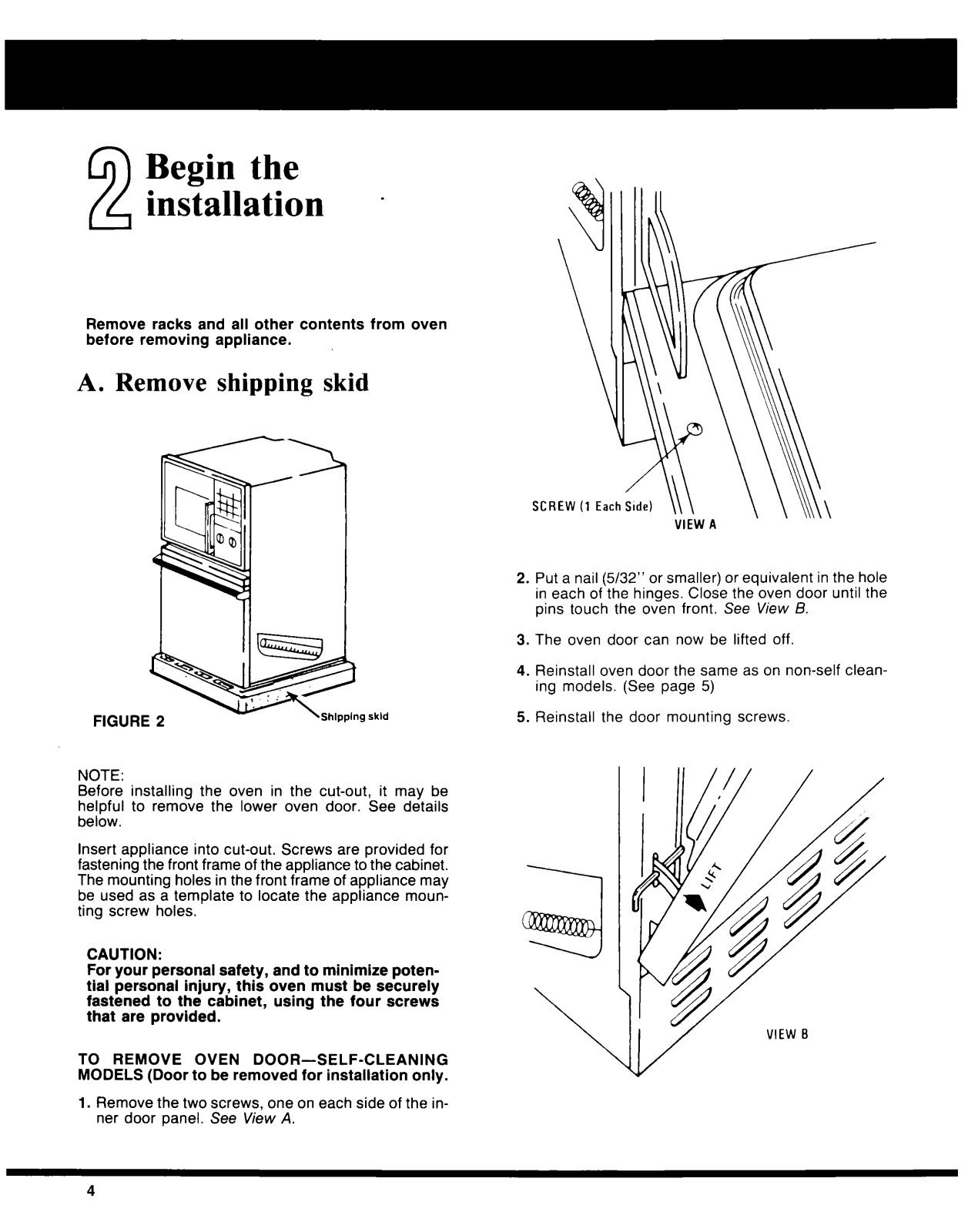

Begin the
installation
Remove racks and all other contents from oven
before removing appliance.
A. Remove shipping skid
SCREW (1 Each Side)
VIEW A
2. Put a nail (5/32" or smaller) or equivalent in the hole
in each of the hinges. Close the oven door until the
pins touch the oven front. See View B.
3. The oven door can now be lifted off.
FIGURE 2 Shipping skid
NOTE:
Before installing the oven in the cut-out, it may be
helpful to remove the lower oven door. See details
below.
Insert appliance into cut-out. Screws are provided for
fastening the front frame of the appliance to the cabinet.
The mounting holes in the front frame of appliance may
be used as a template to locate the appliance moun-
ting screw holes.
CAUTION:
For your personal safety, and to minimize poten-
tial personal injury, this oven must be securely
fastened to the cabinet, using the four screws
that are provided.
TO REMOVE OVEN DOOR--SELF-CLEANING
MODELS (Door to be removed for installation only.
1. Remove the two screws, one on each side of the in-
ner door panel. See View A.
4. Reinstall oven door the same as on non-self clean-
ing models. (See page 5)
5. Reinstall the door mounting screws.
/
VIEWB
TO REMOVE OVEN DOOR
(NON-SELF-CLEANING MODELS)
Removing the oven door may make it easier to clean
the oven. To remove the door, first open it to the first
stop (about 4 inches or 10 cm). Take hold of both
sides of the door near the top; then lift it at the same
\
angle it is in.
With the door off, you will notice how the ends of
hinges slide into slots at the bottom corners of the
door. To put the door back on, fit both corners of the
door over the ends of the hinges. Push the door
down evenly, so neither corner gets ahead of the
other. When it reaches the bottom, you can close
the door. A safety latch will hold the door open until
it is on correctly.
Pull straight wilh lhe
angle of pad-open door.
Removing the oven door:
cleaning)
Make electrical connection
GROUNDED
NEUTRAL
JUNCTION
BOX
RED
WHITE_
FROM POWER
SOURCE
Push down evenly.
(For installing and
COPPER
GROUND WIRE
BLACK
GROUNDED COLD
WATER PIPE
(REMOVE PAINT, ETC.)
TIGHTEN
NUTS FIRMLY
UNGROUNDED
NEUTRAL
JUNCTION FROM POWER
BOX _.
SOURCE
WHITE
GREEN STRAIN
WIRE RELIEF
FROM
FIGURE 3 APPLIANCE
Grounding Instructions
GROUND CLAMP
(MUST BE TIGHT
ON PIPE)
FIGURE 4
Connect the flexible armored cable that extends from
the unit to the junction box using a suitable strain relief
at the point the armored cable enters the junction box.
Then make the electrical connection as follows:
GREEN BLACK
WIRE
FROM STRAIN
FIGURE 5 APPLIANCE RELIEF
I
5
Check operation
Electrical ground is required on this appliance.
This appliance is equipped with copper lead wires.
If connection is made to aluminum house wiring, use
only special connectors which are approved for join-
ing copper and aluminum wires in accordance with the
National Electrical Code and local codes and or-
dinances. This appliance is manufactured with a white
neutral power supply wire and a frame connected green
ground wire twisted together.
If local codes permit connection of the frame
grounding conductor to the neutral (white) wire, con-
nect the green and white wire from the supply cable
of the appliance together and the neutral (white) wire
in the junction box. Connect the remaining wires from
the supply cable to the wires in the junction box. See
Figure 3.
If local codes DO NOT permit frame grounding to the
neutral, separate the white and green wires that extend
out of the end of the supply cable of the appliance. See
Figure 5. Connect the white wire from the supply cable
to the neutral wire in the junction box. Connect the
black and red wires from the supply cable, to the cor-
responding wires in the junction box. The green wire
must now be used to ground the appliance in accord-
ance with local electrical codes. Connect the green
colored copper ground wire to a grounded cold water
pipe* (see Figure 4) or to the grounded lead in the ser-
vice panel.
Do not ground to a gas supply pipe. Do not connect
to electric power supply until appliance is permanent-
ly grounded. Connect the ground wire before turning
on the power. (See Figure 4.)
A. Microwave oven
Refer to Use and Care Guide for details.
B. Oven elements
BAKE -- Set selector switch on BAKE. Turn thermostat
to 350 o BAKE. The bottom element should glow red and
indicator light should be on. The upper element should
become hot but NOT glow red.
BROIL -- Set selector switch on BROIL. Turn ther-
mostat to high. The top element should glow red and
indicator light should be on.
C. Rotisserie (ifoptional rotisserie kit is
installed)
Place straight oven rack on bottom ledge position.
Place broiler pan on oven rack.
Place special rotisserie rack on broiler pan. Position
the spit bar on this special rack.
Rotation should start when spit bar is .inserted into
receptacle in back of oven.
D. Clock
Refer to operating instructions in the Use and Care
Guide (packed in the oven).
CAUTION -- If connecting to a four-wire electrical
system (MOBILE HOME) the appliance frame
MUST NOT be connected to the neutral wire of
the four-wire electrical system. Separate the white
and green wires that extend out of the supply
cable of the appliance. Connect the white, red and
black wires from the supply cable to the cor-
responding wires in the junction box. Connect the
green wire from the supply cable to the ground
wire in the junction box. (See Figure 5.)
"Cold wa!er p_pe must have metal continuity to electrical ground and should
noL be interrupted by plastic, rubber or other electrically insulating connec-
tors (=ncluding water meter or pump) without adding a jumper w_re at those
connectors.
E. Cleaning
See the Use and Care Guide (packed in the oven) for
proper care and cleaning instructions.

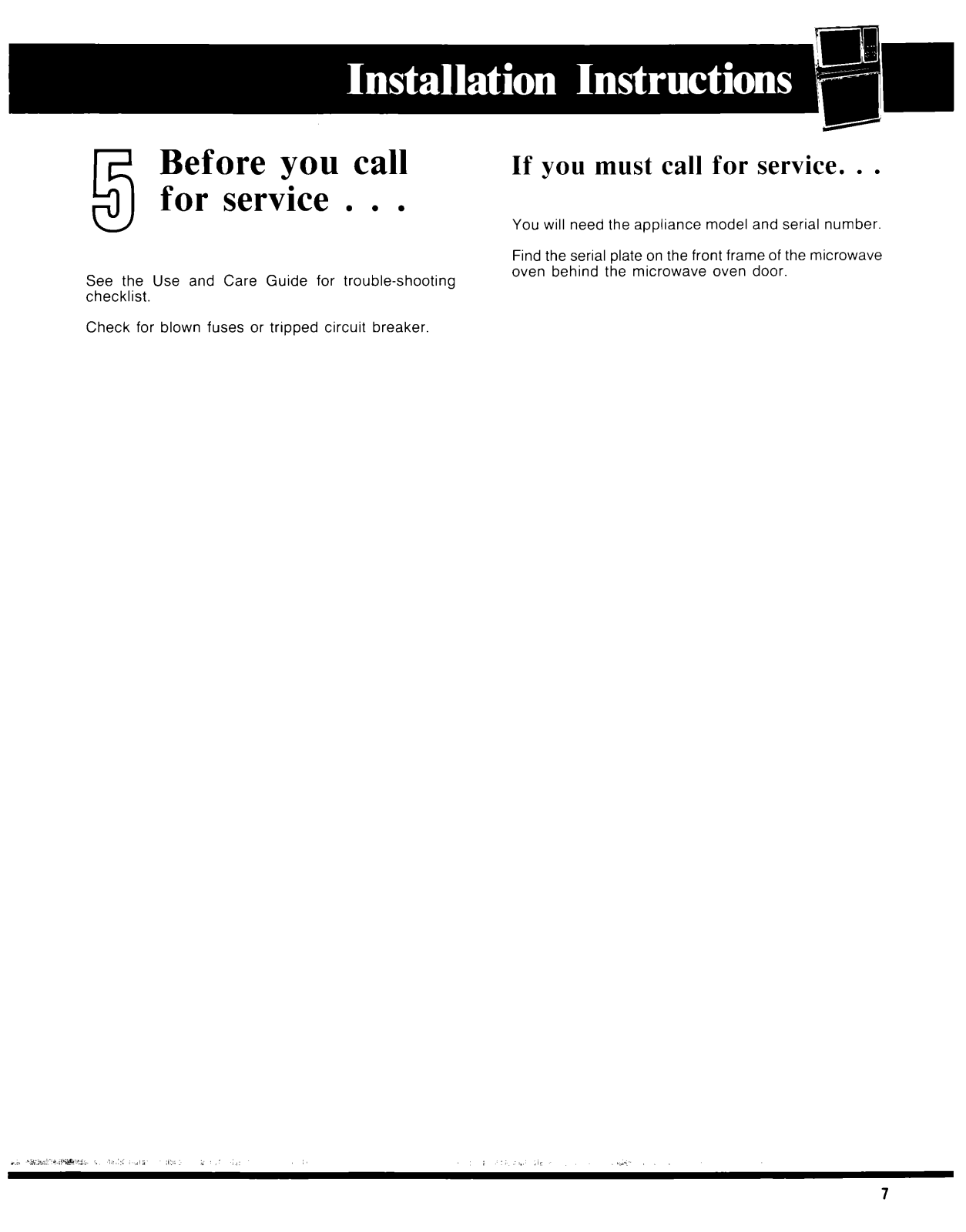

for service . . .
Before you call
See the Use and Care Guide for trouble-shooting
checklist,
Check for blown fuses or tripped circuit breaker.
If you must call for service...
You will need the appliance model and serial number.
Find the serial plate on the front frame of the microwave
oven behind the microwave oven door.
b FR.ANCHISEO SE_
Whirlpool
Making your world a little easier.
In the event your WHI RLPOQL appliance should need service, call the dealer from whom you purchased
the appliance or a WHIRLPOOL franchised TECH CARE 'E) service company. He is in the Yellow Pages of your
telephone directory listed under "'Appliances-Household-Major-Service and Repair." You can also obtain his
name and number by dialing, free, within the continental United States the Whirlpool COOL-LINE ® Service
(800) 253 1301. When calling from Michigan, dial (800) 632-2243; from Alaska or Hawaii, dial (800) 253-1121.
Dial just as you normally dial long distance. A special operator will tell you the name and number of your
nearest Whirlpool TECH-CARE service outlet. During normal working hours, Whirlpool consultants at
this same number will also answer any questions about operating or maintaining your appliance not covered
in your Use and Care Guide.
Learn the benefits of using TECH-CARE service for maintaining the quality originally built into your
WHIRLPOOL appliance.
Part No. 313724 Rev. A
Printed in U.S.A.
differs,Automatic Washers,Clothes Dryers,Freezers,Refrigerator-Freezers,Ice Makers,Dishwashers,Built-In Ovensand Surface Units, Ranges,Microw_
Loading...
