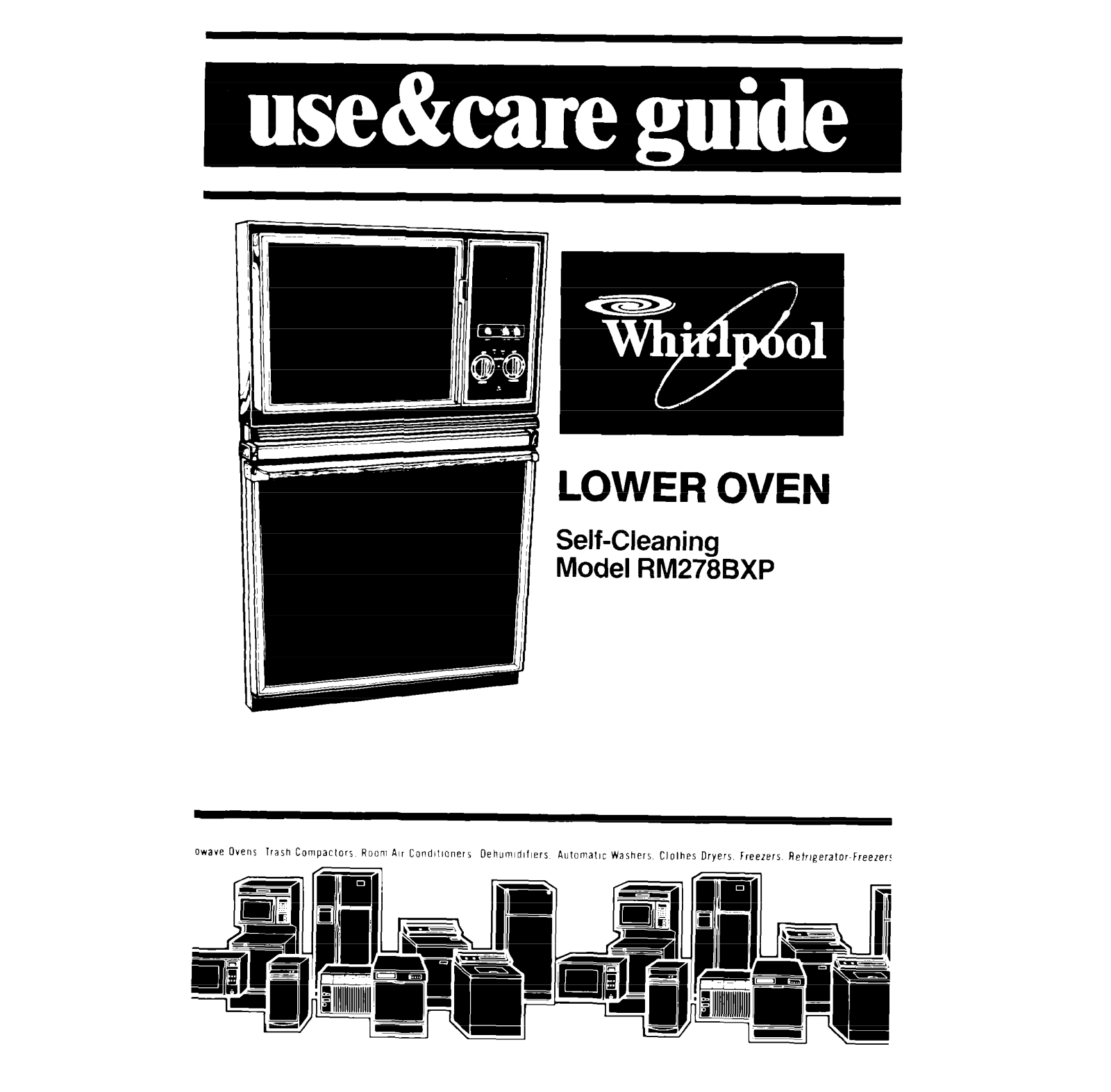

Whirlpool RM278BXP User Manual

LOWER OVEN

Self-Cleaning
Model RM278BXP

wave Ovens Trash Compaclors Roan1 AIM Candillaners Oehumidlliers Automallc Washers Clolhes Dryers Freezers Aefrieerator~Freerer!

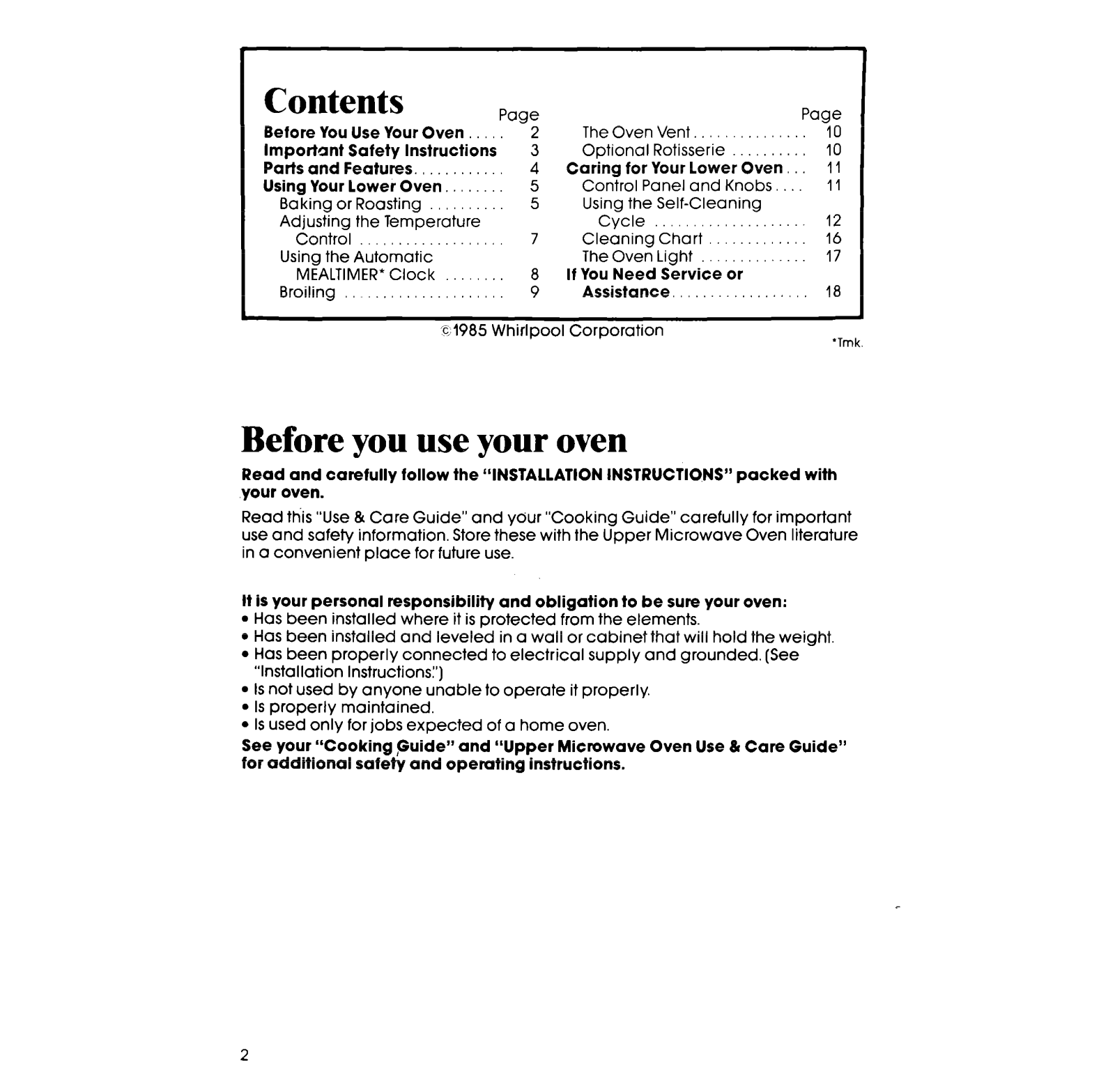

Contents

Page
Before You Use Your Oven 2
Important Safety Instructions 3
Parts and Features.
Using Your lower Oven, 5

Baking or Roasting 5

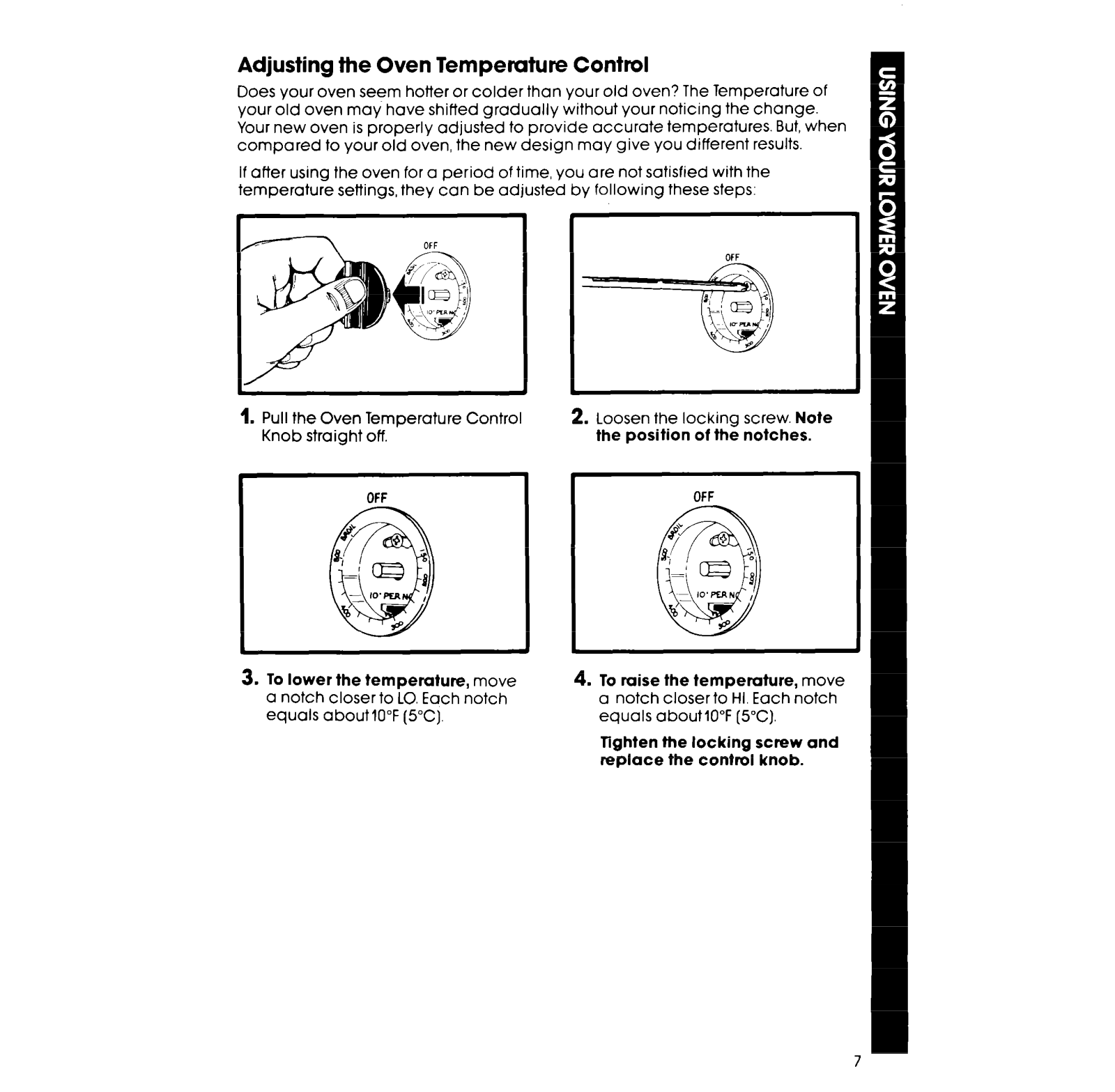

Adjusting the Temperature

Control 7

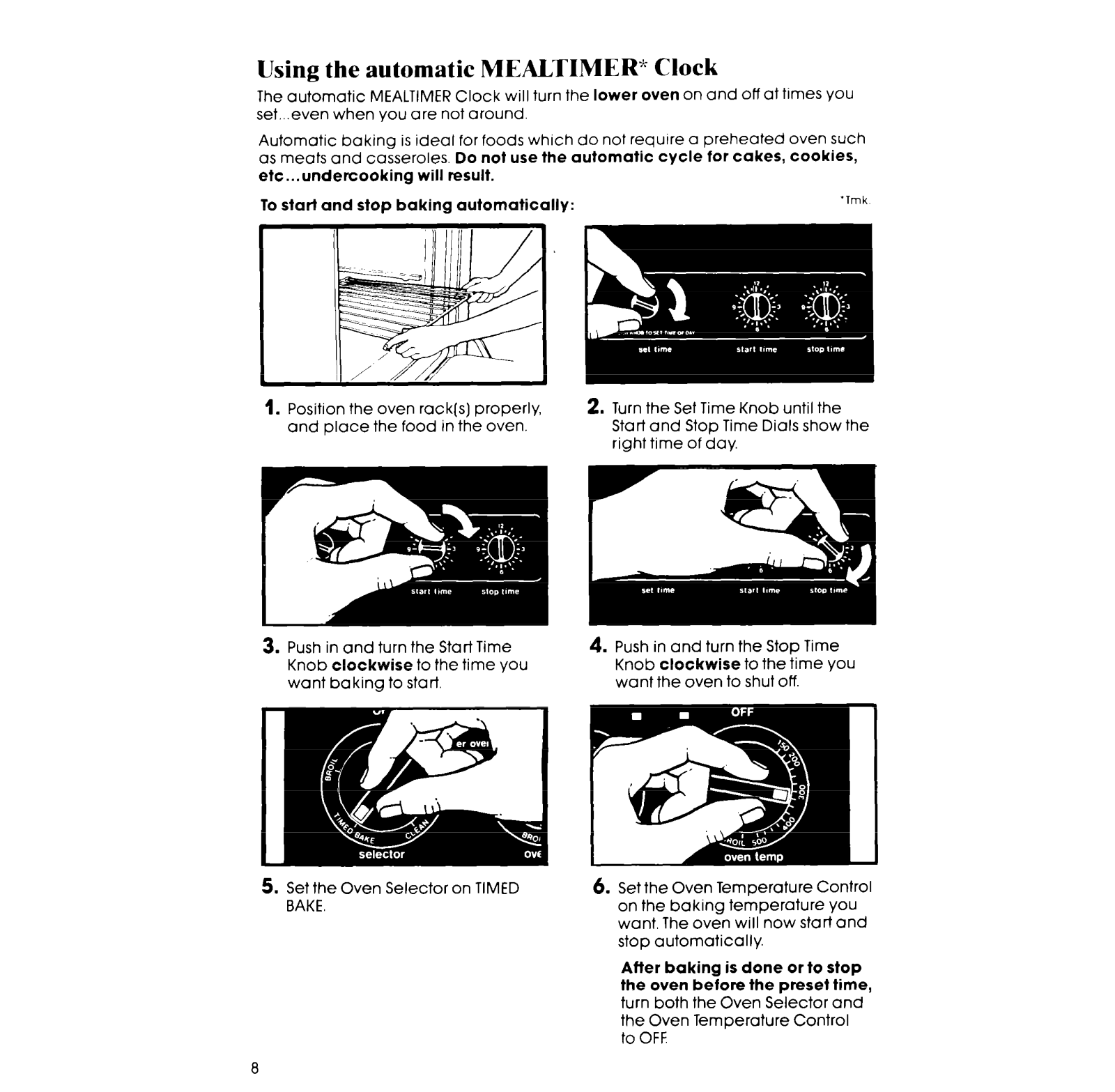

Using the Automatic

MEALTIMER’ Clock 8

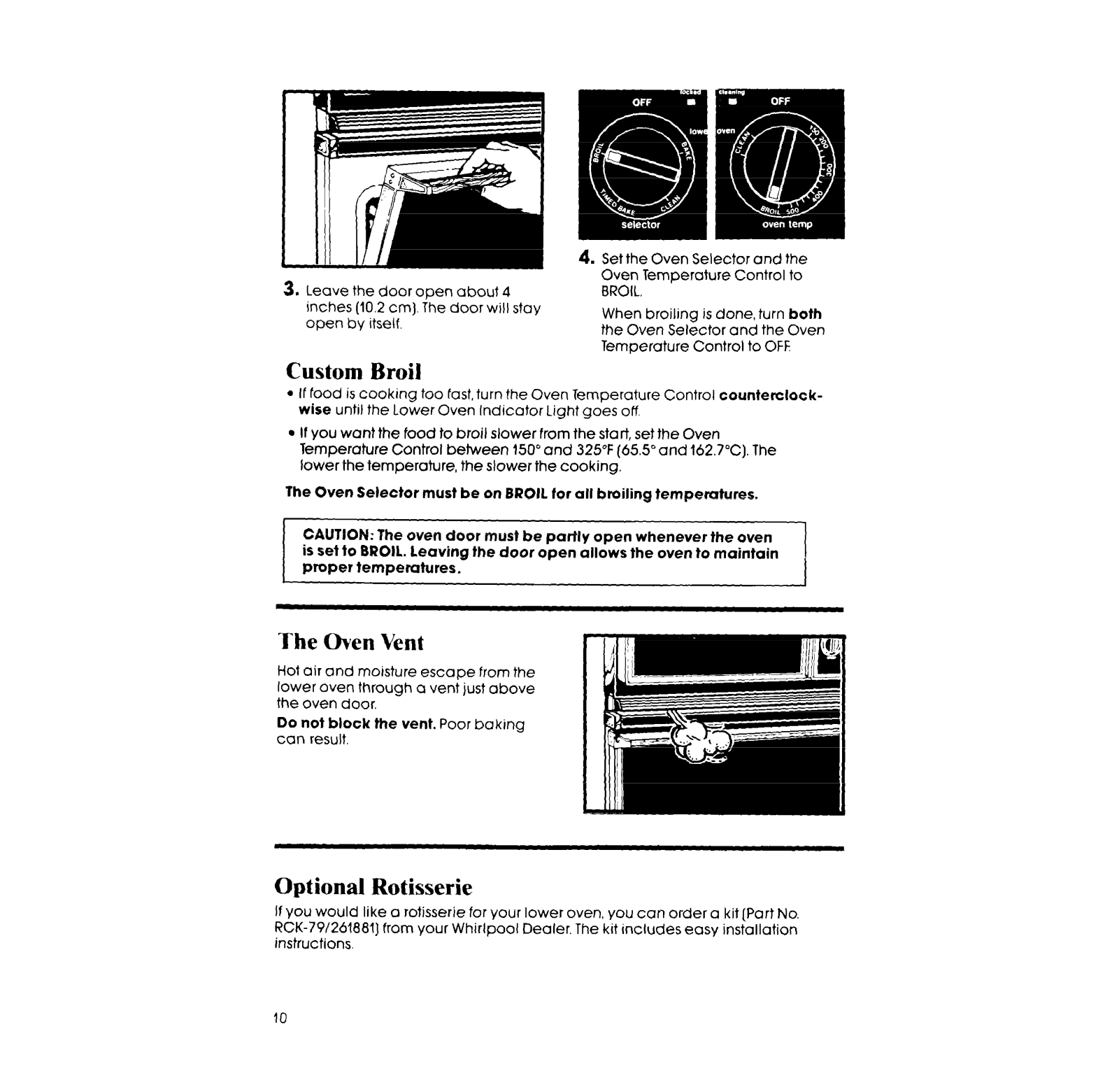

Broiling 9

The Oven Vent. 10
Optional Rotisserie 10

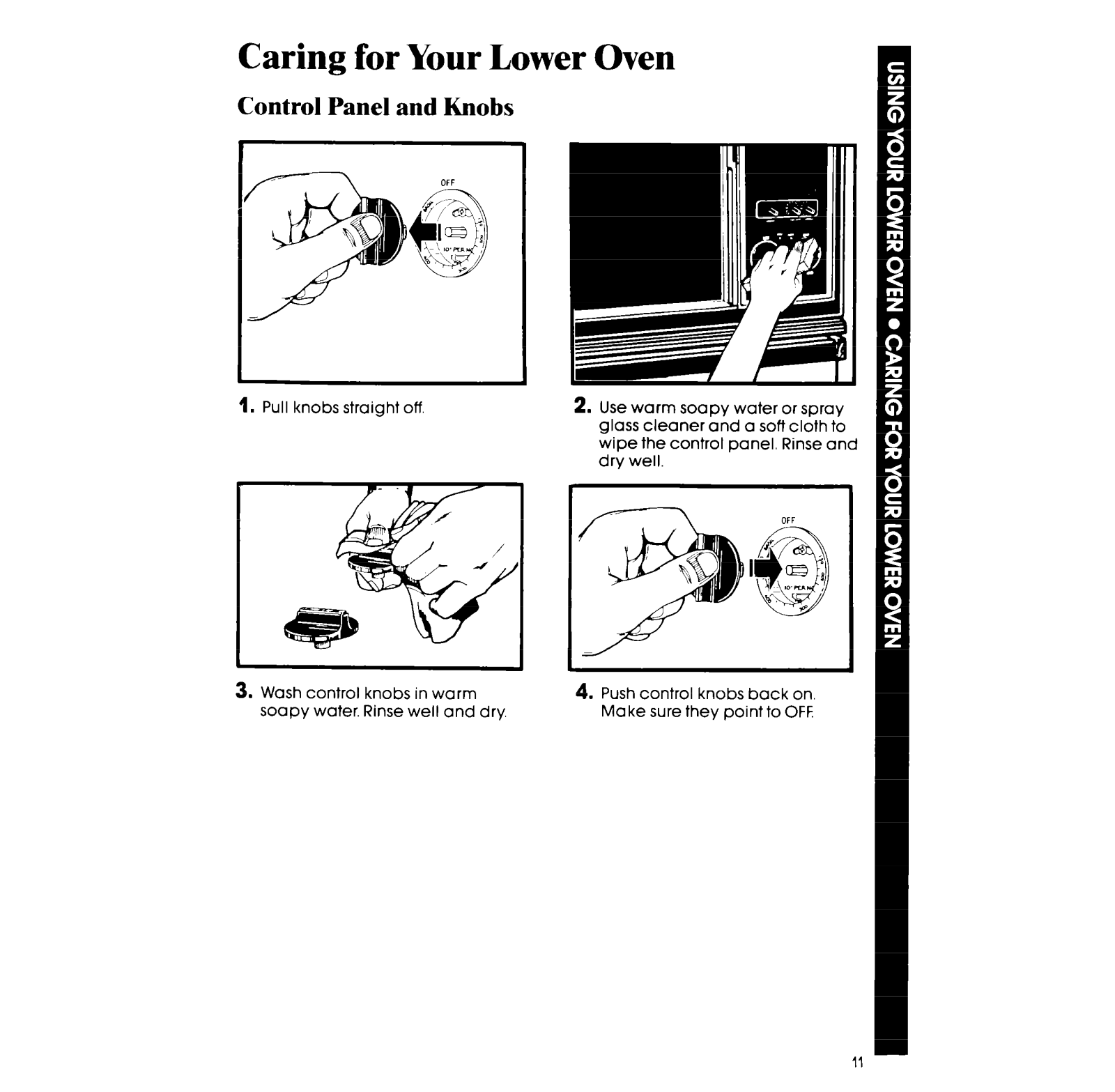

4 Caring for Your lower Oven,

Control Panel and Knobs, 11

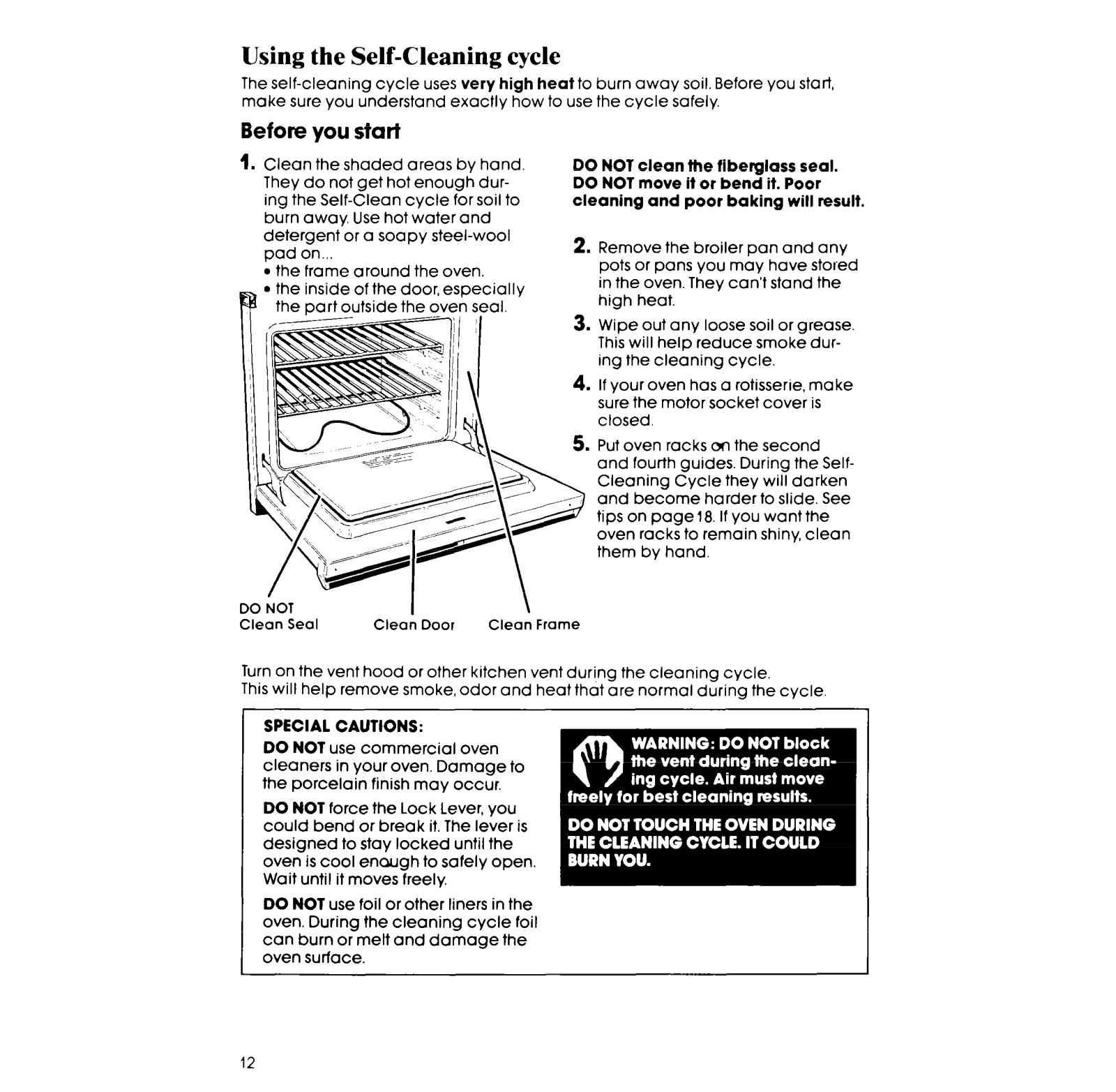

Using the Self-Cleaning

Cycle 12

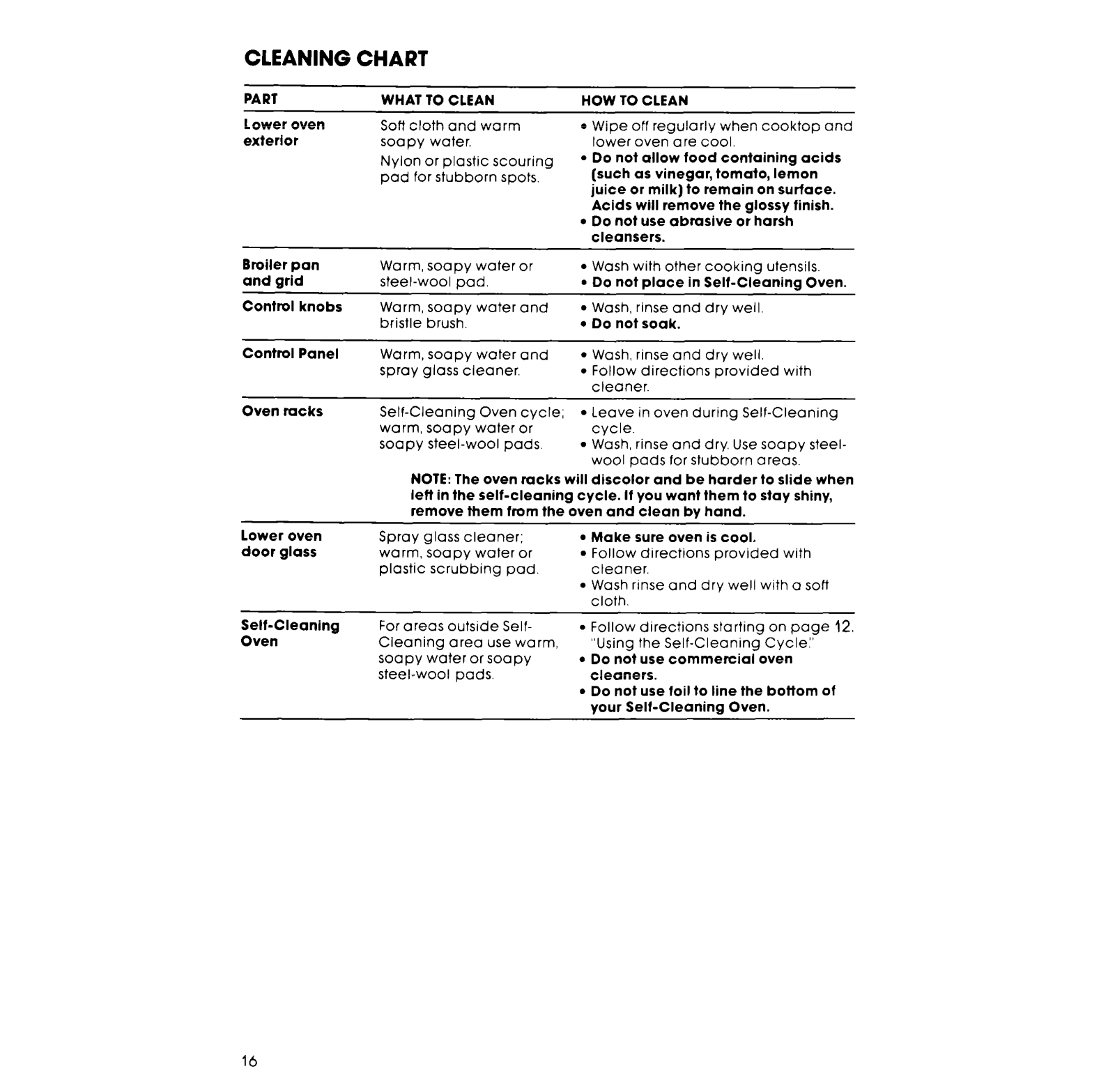

Cleaning Chart 16

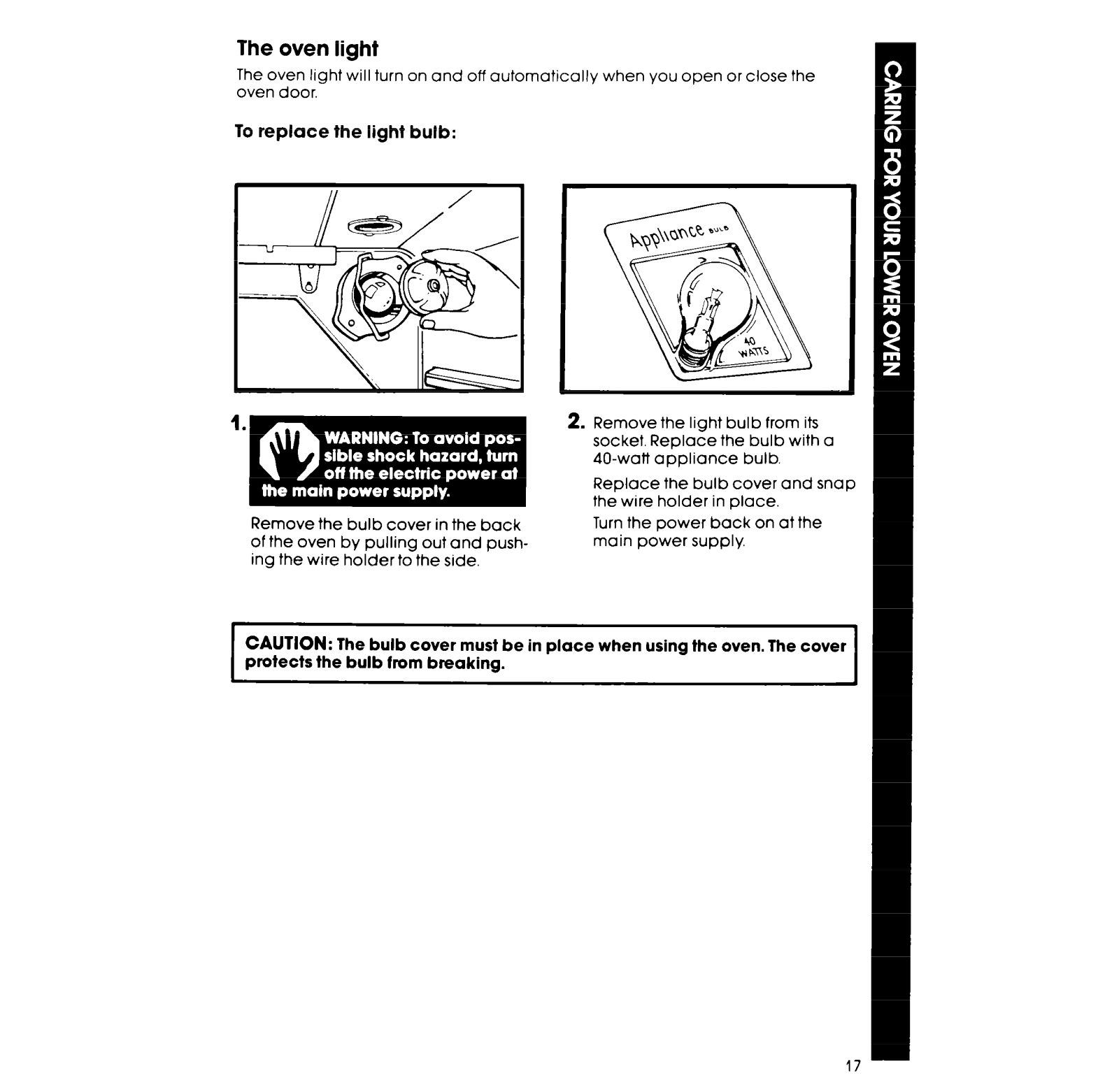

The Oven Light 17

If You Need Service or

Assistance, 18

Page

11

‘6,1985 Whirlpool Corporation

Before you use your oven

Read and carefully follow the “INSTALLATION INSTRUCTIONS” packed with

your oven.

Read this “Use & Care Guide” and your “Cooking Guide” carefully for important
use and safety information. Store these with the Upper Microwave Oven literature
in a convenient place for future use.

It is your personal responsibility and obligation to be sure your oven:

l

Has been installed where it is protected from the elements.

l

Has been installed and leveled in a wall or cabinet that will hold the weight.

l

Has been properly connected to electrical supply and grounded. (See
“Installation Instructions:‘)

l

Is not used by anyone unable to operate it properly.

l

Is properly maintained.

l

Is used only for jobs expected of a home oven.

See your “Cooking ,Guide” and “Upper Microwave Oven Use 81 Care Guide”

for additional safety and operating instructions.

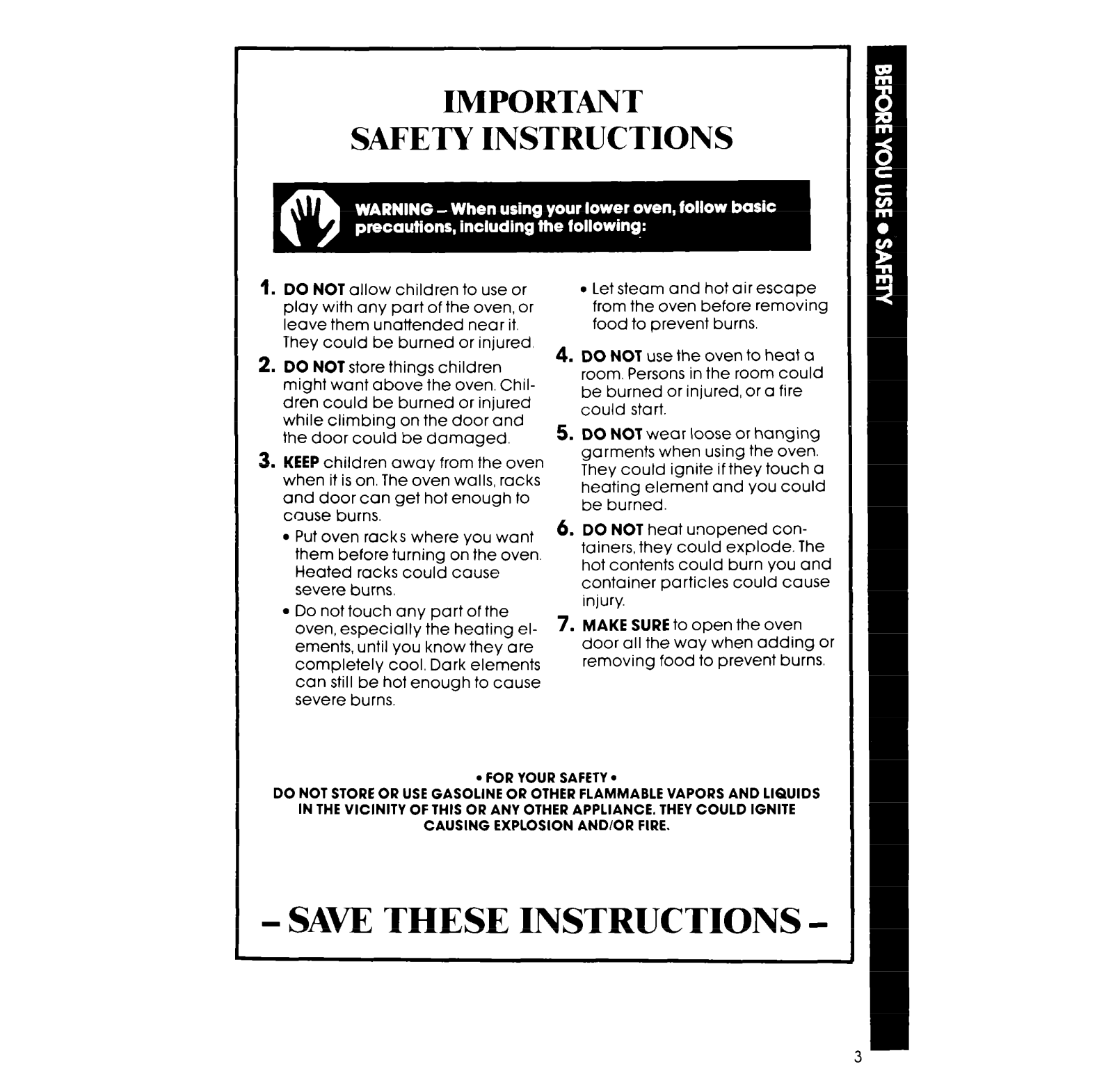

IMPORTANT

SAFETY INSTRUCTIONS

1.

DO NOT allow children to use or
play with any part of the oven, or
leave them unattended near it.

They could be burned or injured

2. DO NOT store things children
might want above the oven. Chil­dren could be burned or injured
while climbing on the door and
the door could be damaged.

3. KEEP children away from the oven
when it is on. The oven walls, racks
and door can get hot enough to
cause burns.

l

Put oven racks where you want
them before turning on the oven.
Heated racks could cause
severe burns.

l

Do not touch any part of the
oven, especially the heating el­ements, until you know they are
completely cool. Dark elements
can still be hot enough to cause
severe burns.

l

Let steam and hot air escape
from the oven before removing
food to prevent burns.

4. DO NOT use the oven to heat a
room. Persons in the room could
be burned or injured, or a fire

could start.

5. DO NOT wear loose or hanging
garments when using the oven.
They could ignite if they touch a

heating element and you could
be burned.

6. DO NOT heat unopened con­tainers, they could explode. The

hot contents could burn you and
container particles could cause

injury.

7. MAKE SURE to open the oven

door all the way when adding or

removing food to prevent burns.

l

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS

FOR YOUR SAFETY

IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THEY COULD IGNITE

CAUSING EXPLOSION AND/OR FIRE.

l

- SAW THESE INSTRUCTIONS -

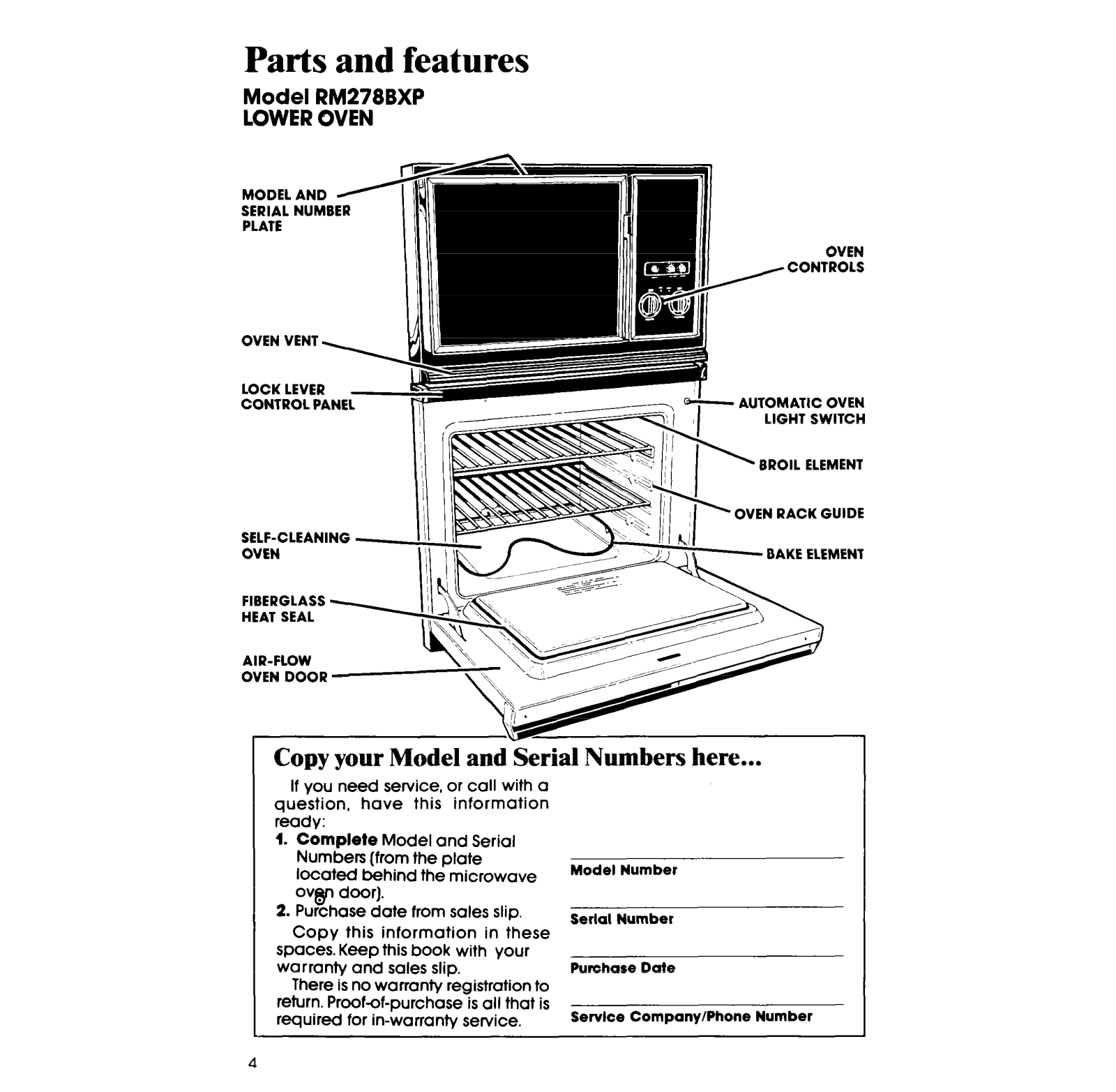

Parts and features

Model RM278BXP

LOWER OVEN

MODELAND
SERIAL NUMBER

OVEN VENT ,Ml11)1

LOCK LEVER

CONTROL PANEL- w

SELF-CLEANING
OVEN

i

’

/CONTROLS

AUTOMATIC OVEN

LIGHT SWITCH

BROIL ELEMENT

OVEN RACK GUIDE

BAKE ELEMENT

FIBERGLASS
HEAT SEAL

AIR-FLOW

OVEN DOOR

Copy your Model and Serial Numbers here...

If you need service, or call with a

question, have this information

ready:

1. Complete Model and Serial
Numbers (from the plate

located

behind the microwave

ovgn door).

2. Purchase date from sales slip.
Copy this information in these

spaces. Keep this book with your
warranty and sales slip.

There is no warrantv registration to
return. Proof-of-purchase is all that is
required for in-warranty service.

4

Model Number

Serial Number

Purchase Date

Service Company/Phone Number

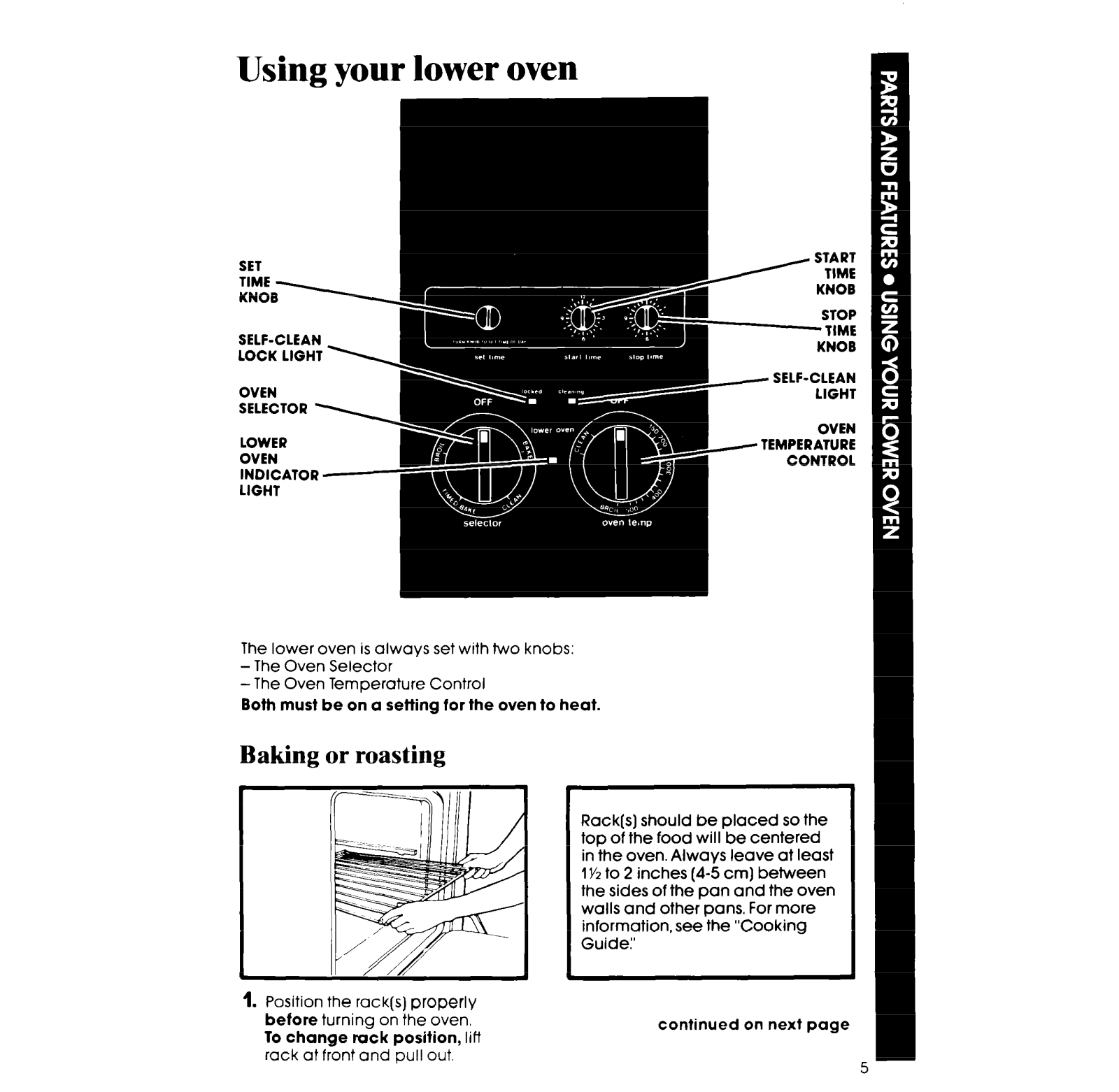

Using your lower oven

SET
LEBY

SELF-CLEAN
LOCK LIGHT

OVEN
SELECTOR -

LOWER

OVEN

INDICATOR.

LIGHT

KNOB

STOP

-TIME
KNOB

- SELF-CLEAN
LIGHT

OVEN

TEMPERATURE

CONTROL

The lower oven is always set with two knobs:

- The Oven Selector

-The Oven Temperature Control
Both must be on a setting for the oven to heat.

Baking or roasting

1.

Position the rack(s) properly
before turning on the oven.
To change rack position, lift
rack at front and pull out.

Rack(s) should be placed so the
top of the food will be centered
in the oven. Always leave at least
1 YZ to 2 inches (4-5 cm] between
the sides of the pan and the oven
walls and other pans. For more
information, see the “Cooking
Guide:’

continued on next page

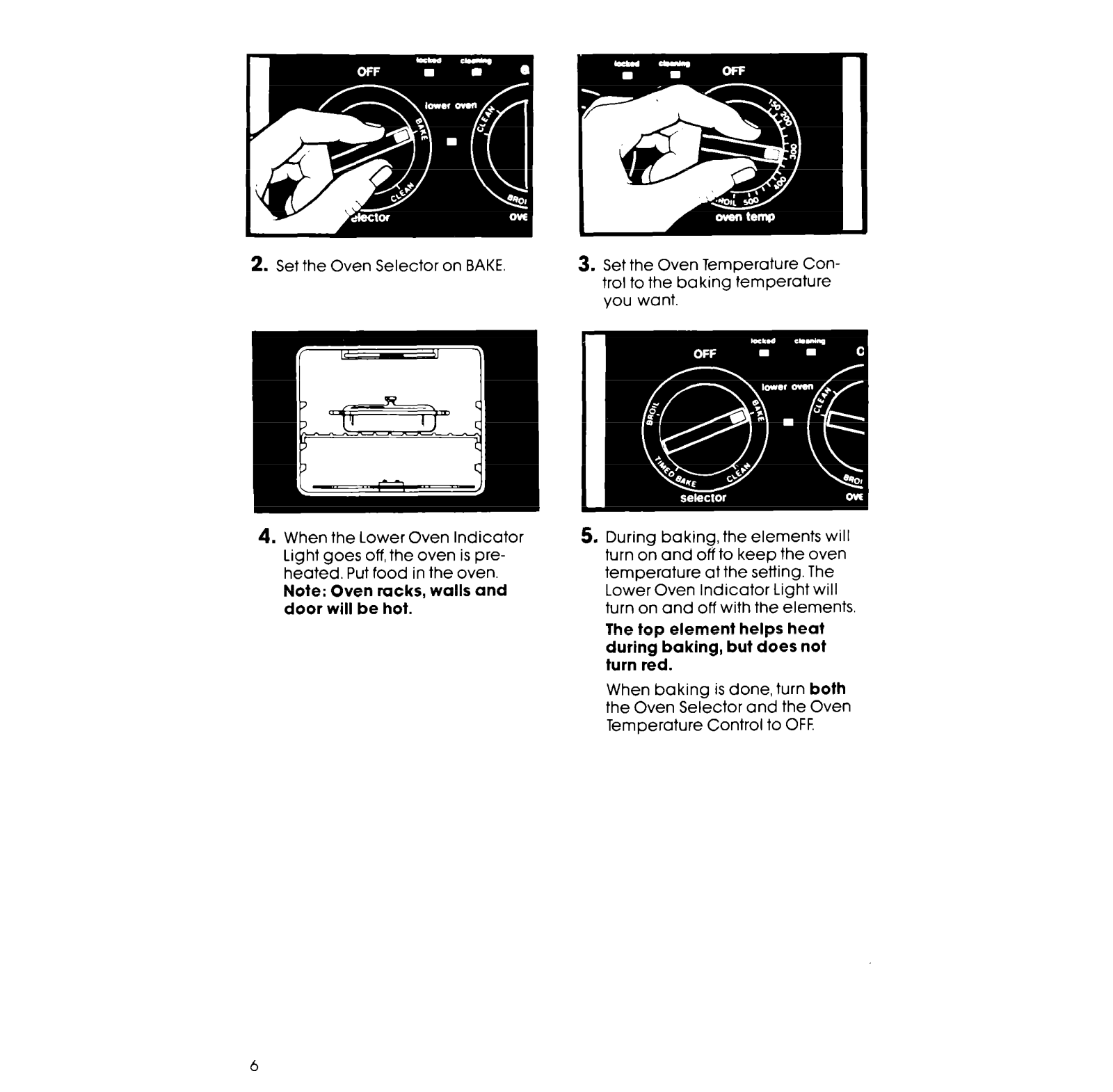

2. Set the Oven Selector on BAKE.

3. Set the Oven Temperature Con­trol to the baking temperature
you want.

4. When the Lower Oven Indicator
Light goes off, the oven is pre­heated. Put food in the oven.
Note: Oven racks, walls and
door will be hot.

5. During baking, the elements will
turn on and off to keep the oven
temperature at the setting. The
Lower Oven Indicator Light will
turn on and off with the elements.

The top element helps heat
during baking, but does not
turn red.

When baking is done, turn both
the Oven Selector and the Oven

Temperature Control to OFF.

6
