Whirlpool RF306BXP User Manual
is :*;:,-;i*t sli;n,
d~crowave Ovens. Trash Compactors. Room Air Condllmnets. Uehumldlflers. Automatic Washers. Clothes Dryers Freezers. Refrlgeralor-Fret
/
I I’

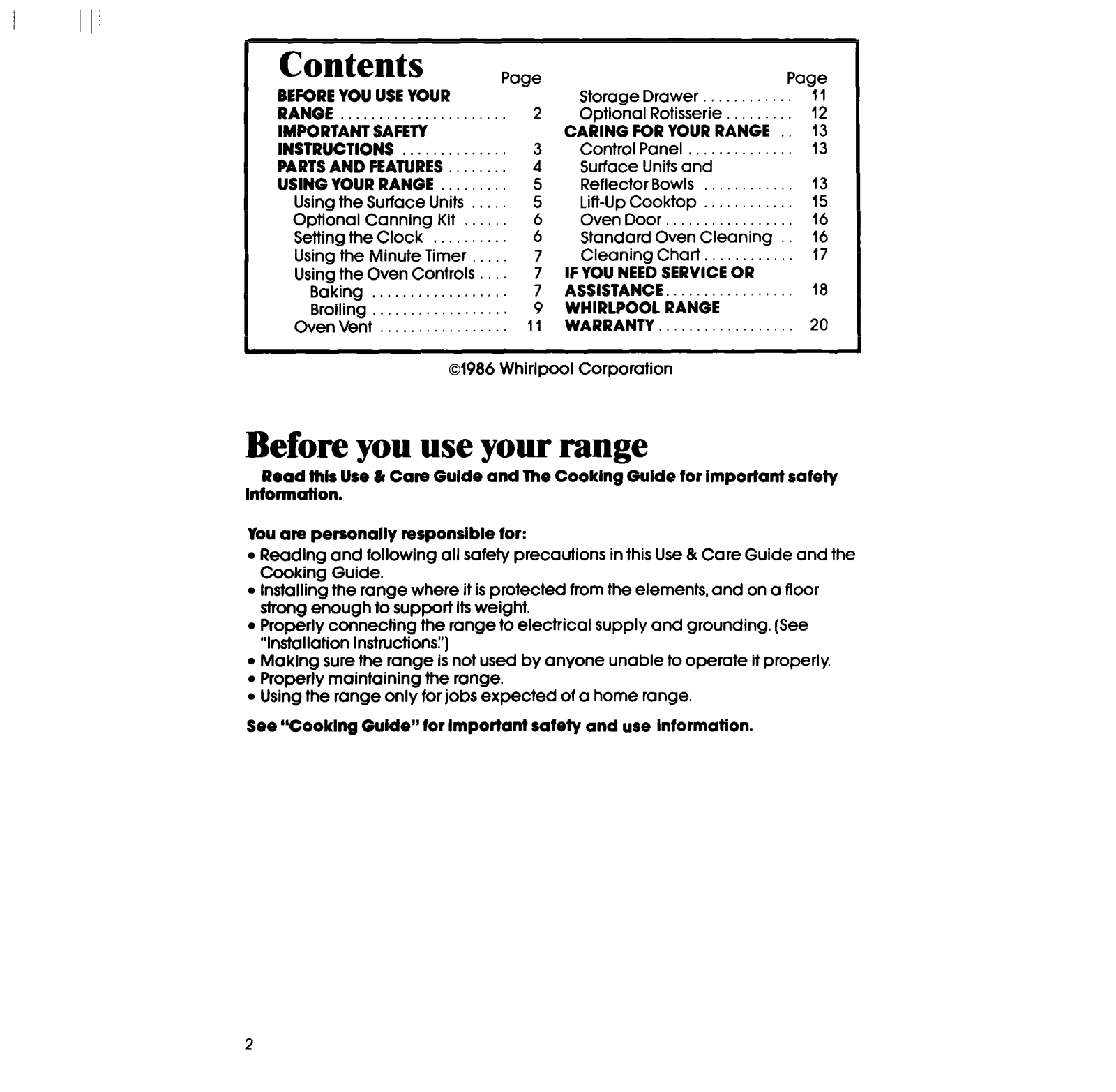

Contents
BEFORE YOU USE YOUR
RANGE . . . .
IMPORTANT SAFETY
INSTRUCTIONS . . . .
PARTS AND FEATURES
USING YOUR RANGE
Using the Surface Units .
Optional Canning Kit
Setting the Clock .
Using the Minute Timer
Using the Oven Controls
Baking . . . . ,
Broiling . . ,
Oven Vent

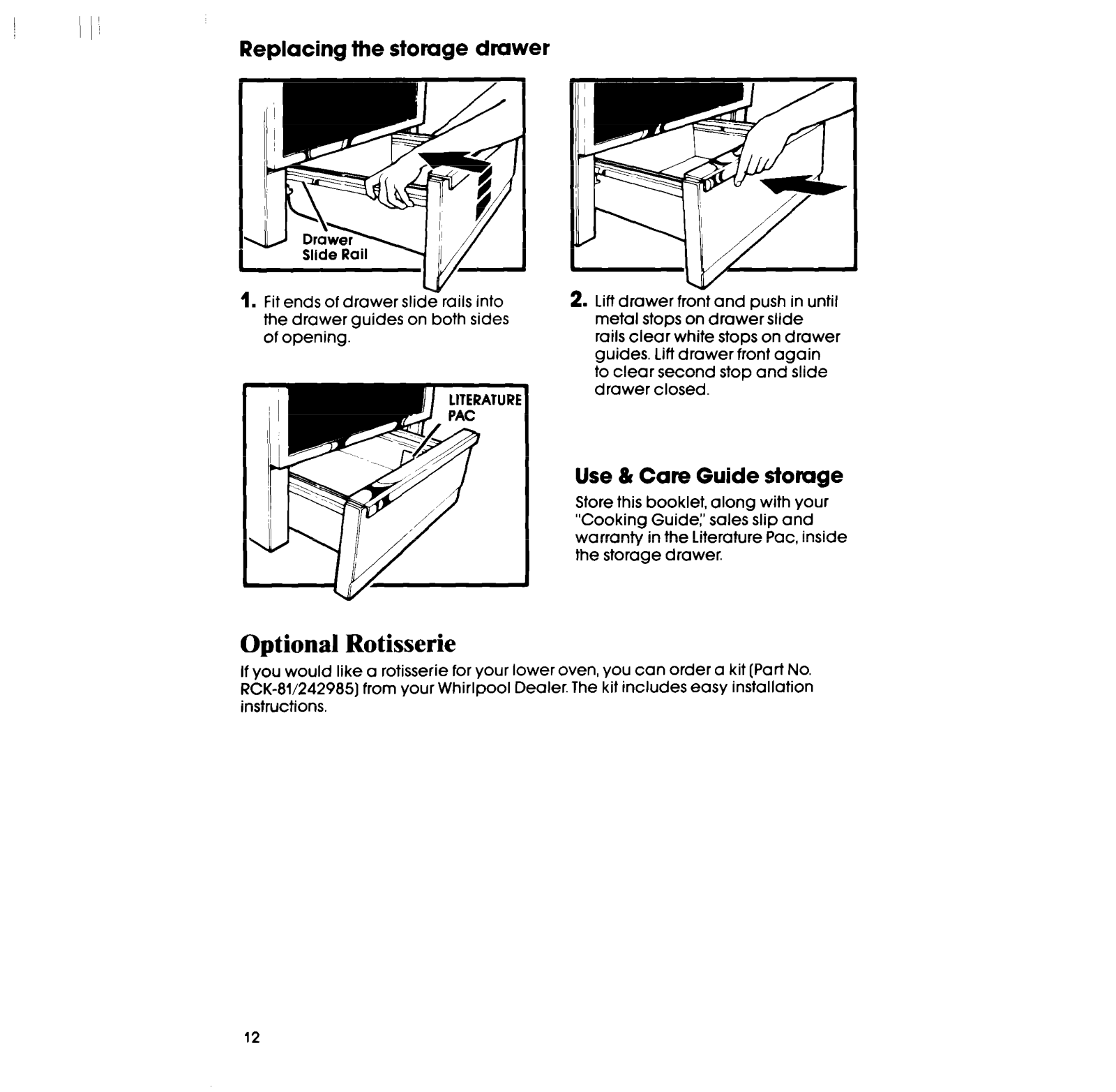

Storage Drawer 11
Optional Rotisserie.. 12
CARING FOR YOUR RANGE 13
Control Panel 13
Surface Units and
Reflector Bowls 13
Lift-Up Cooktop 15

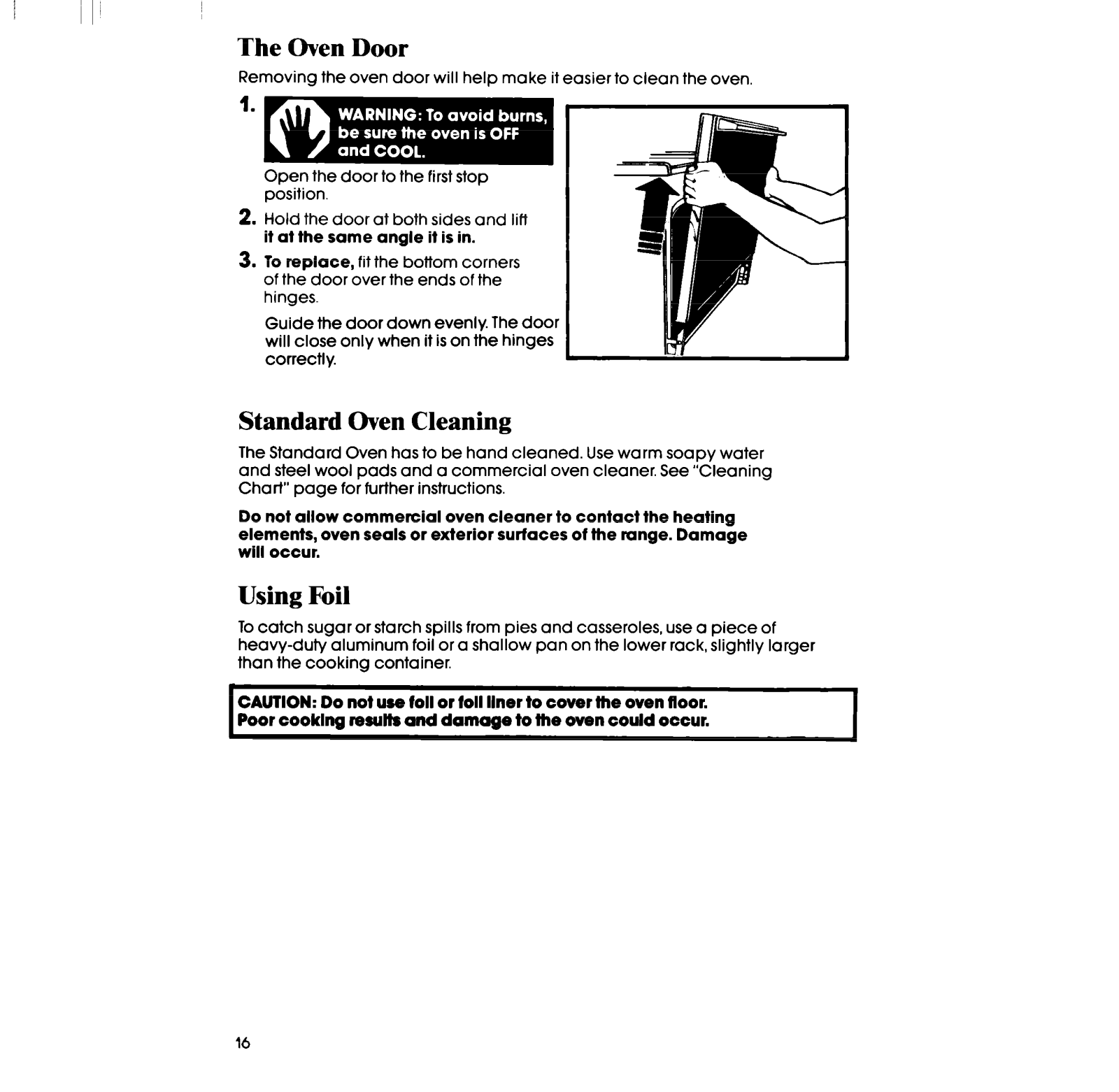

Oven Door. 16
Standard Oven Cleaning 16
Cleaning Chart. 17

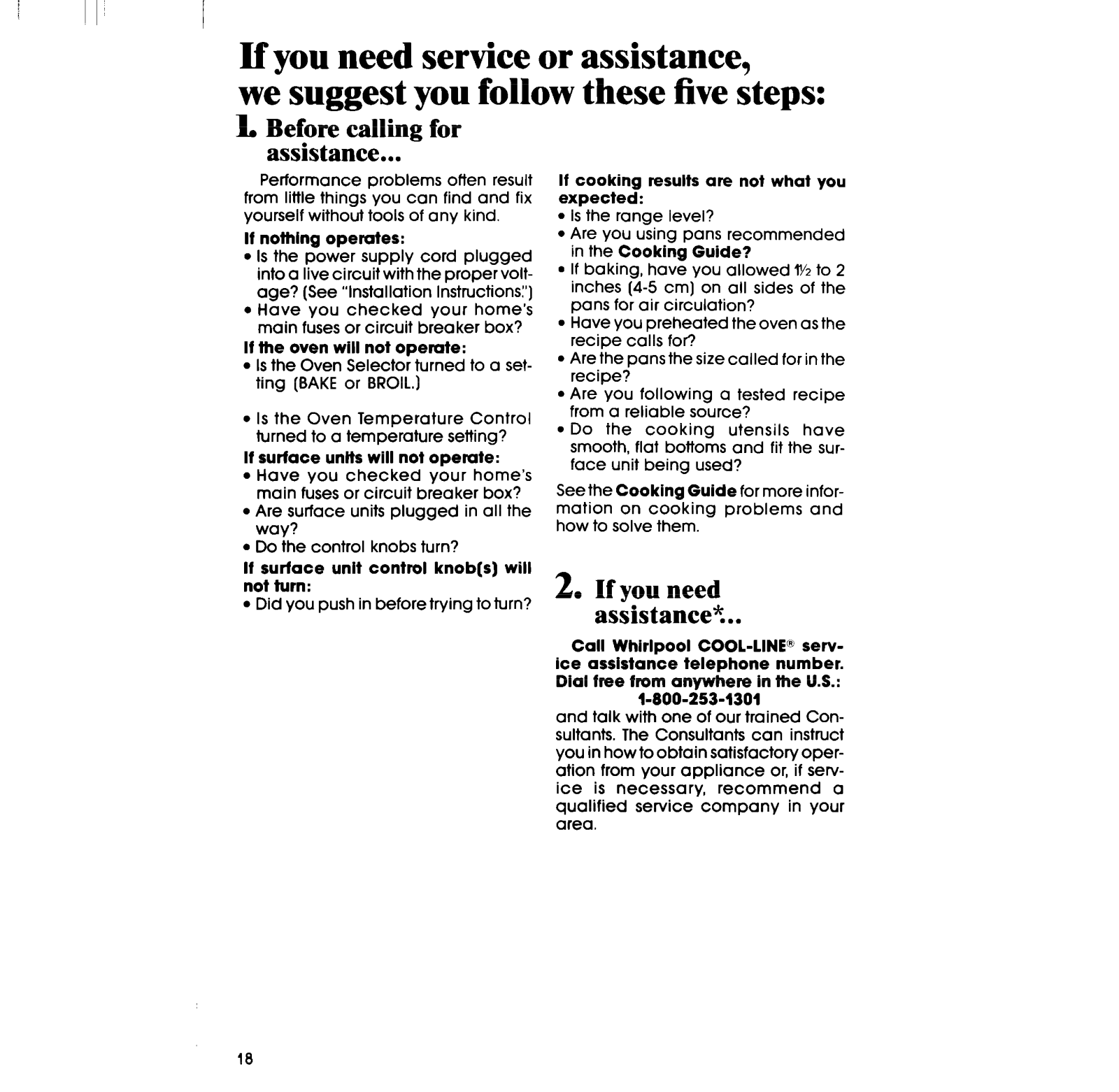

IF YOU NEED SERVICE OR
ASSISTANCE. . 1 B

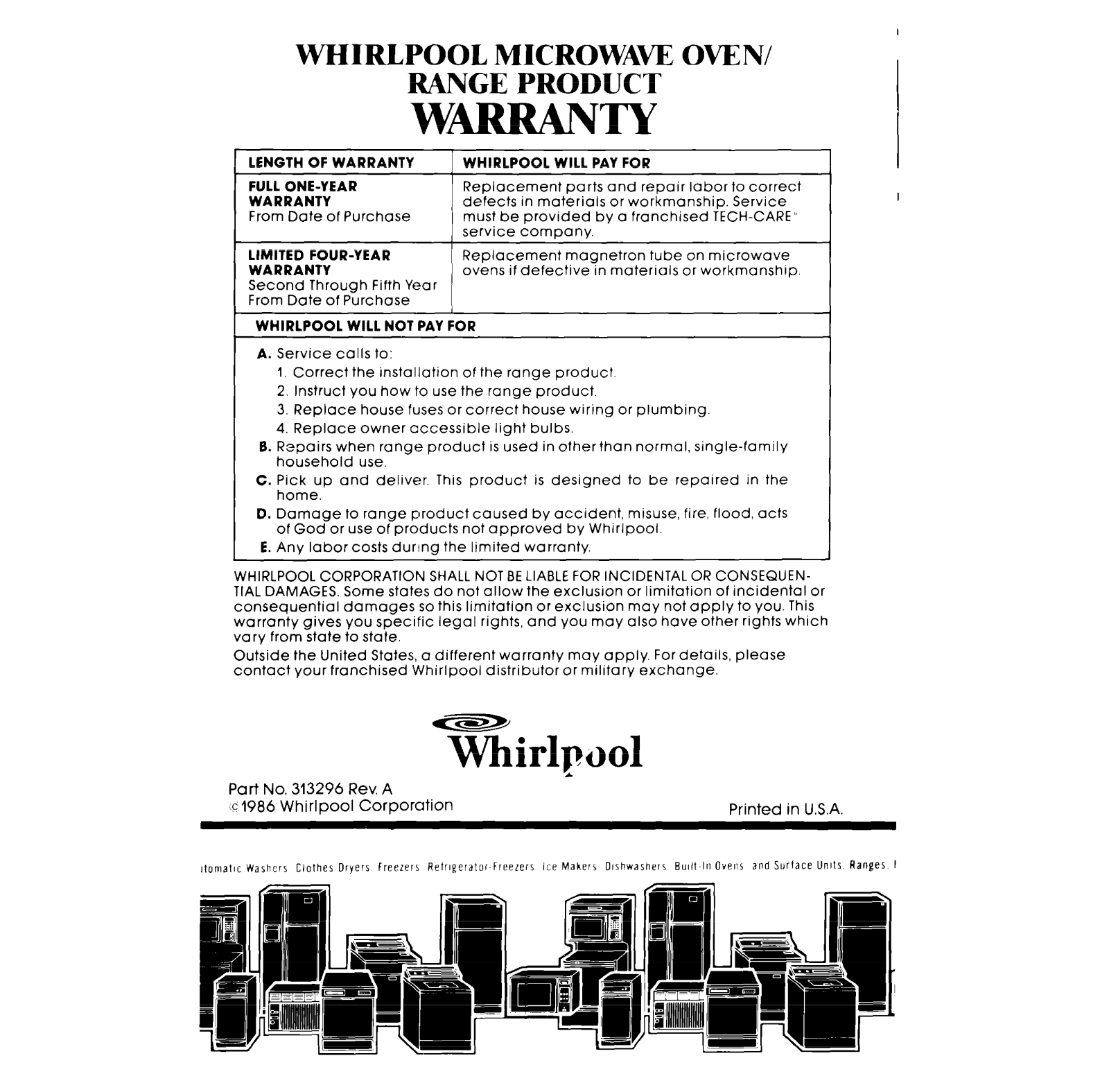

WHIRLPOOL RANGE
WARRANTY. . 20
01986 Whirlpool Corporation
Page
Before you use your range
Read thls Use & Care Guide and lhe Cooklng Gulde for Important safety
Information.
You are personally responsible for:
l
Reading and following ail safety precautions in this Use &Care Guide and the
Cooking Guide.
l
Installing me range where it is protected from the elements, and on a floor
strong enough to support its weight.
l
Properly connecting the range to electrical supply and grounding. (See
“installation instructtonsl’)
l
Making sure the range is not used by anyone unable to operate it properly.
0 Properly maintaining me range.
l
Using the range only for jobs expected of a home range.
See “CookIng Guide” for Important safety and use Information.
IMPORTANT

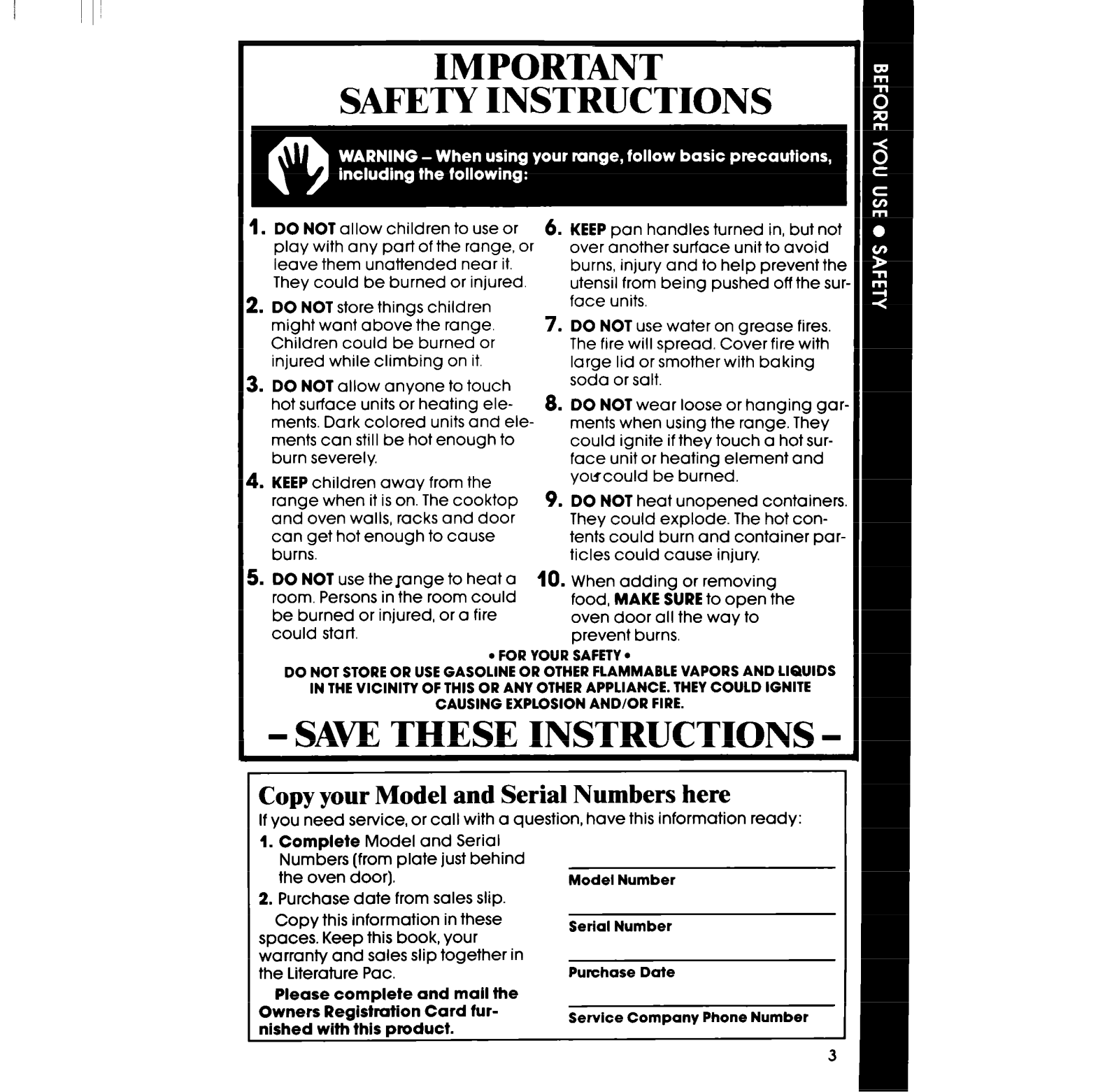

SAFETY INSTRUCTIONS
1. DO NOT allow children to use or
play with any part of the range. or
leave them unattended near it.
They could be burned or injured.
1. DO NOT store things children
might want above the range.
Children could be burned or
injured while climbing on it.
1. DO NOT allow anyone to touch
hot surface units or heating eiements. Dark colored units and eiements can still be hot enough to
burn severely.
1. KEEP children away from the
range when it is on. The cooktop
and oven walls, racks and door
can get hot enough to cause
burns.
i.
DO NOT use
room. Persons in the room could
be burned or injured, or a fire
could start
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THEY COULD IGNITE
therange to heat a
l
CAUSING EXPLOSION AND/OR FIRE.
6. KEEP pan handles turned in, but not
over another surface unit to avoid
burns, injury and to help prevent the
utensil from being pushed off the surface units.
7. DO NOT use water on grease fires.
The fire will spread. Cover fire with
large lid or smother with baking
soda or salt.
8. DO NOT wear loose or hanging gar-
ments when using the range. They
could ignite if they touch a hot surface unit or heating element and
yolrcould be burned.
9. DO NOT heat unopened containers.
They could explode. The hot contents could burn and container particies could cause injury
10. When adding or removing
food, MAKE SURE to open the
oven door ail the way to
prevent burns.
FOR YOUR SAFETY
l
- SAW THESE INSTRUCTIONS -
Copy your Model and Serial Numbers here
if you need service, or call with a question, have this information ready:
1. Complete Model and Serial
Numbers (from plate just behind
the oven door).
2. Purchase date from sales slip.
Copy this information in these
spaces. Keep this book, your
warranty anb sales slip together in
the Literature Pac.
Please complete and mall the
Owners Regiskation Card furnished with this product.
Model Number
Serial Number
Purchase Date
Service Company Phone Number

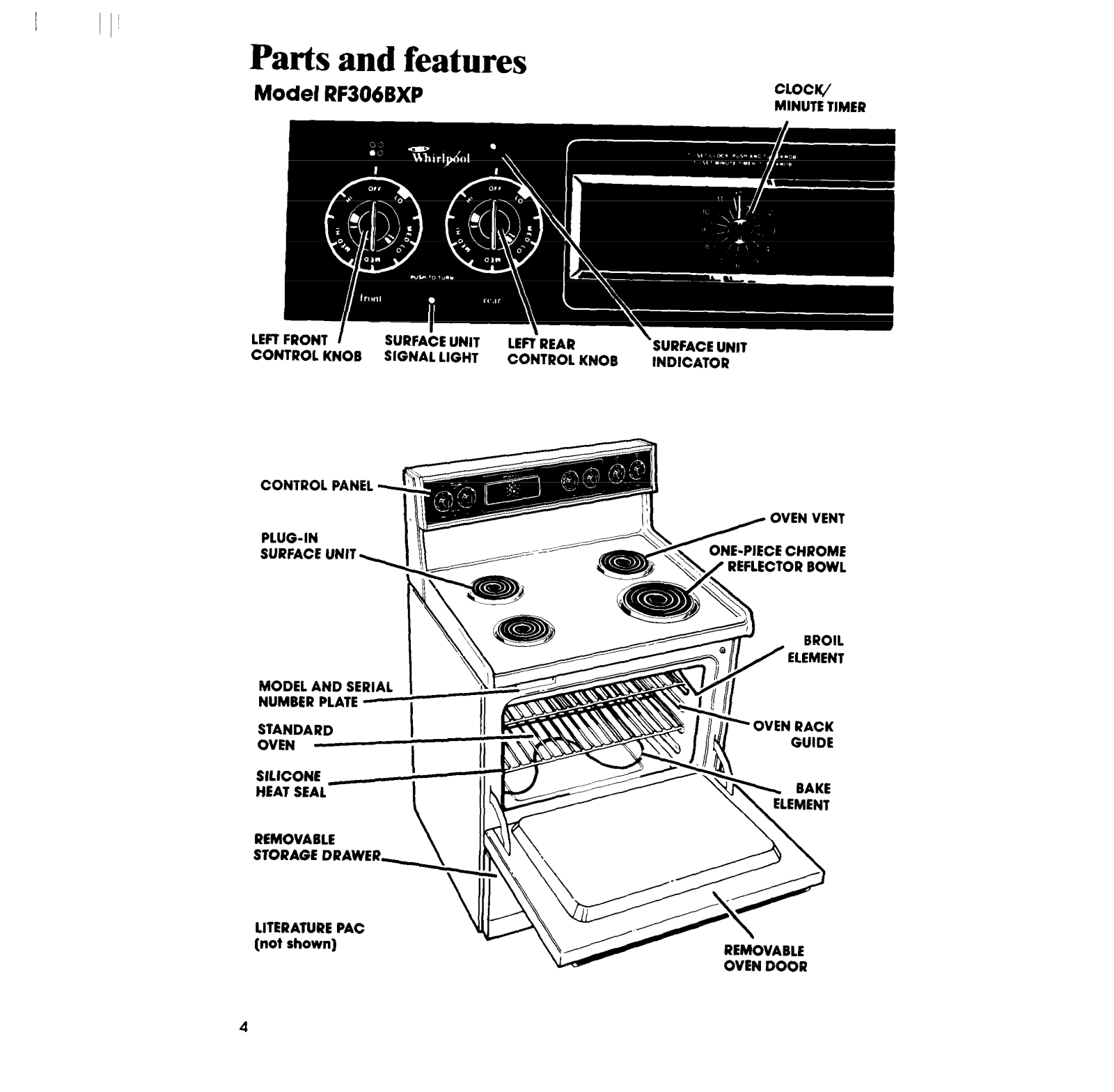

Parts and features
Model RF306BXP
LEFT
CONTROL KNOB
CONTROL PANEL
PLUG-IN
SURFACE UNIT
CLOCK/
MINUTE TIMER
OVEN VENT
-PIECE CHROME
EFLECTOR BOWL
MODEL AND SE
NUMBER PLATE
STANDARD
OVEN
SILICONE
HEAT SEAL
REMOVABLE
STORAGE DRAWER
LITERATURE PAC
[not shown)
I
I
II I
I
I I’
OVEN TEMPERATURE OVEN
CONTROL SELECTOR
OVEN SlGilAL
LIGHT
RIGHT REAR
CONTROL KNOB
RIGHT FRONT\
CONTROL KNOB

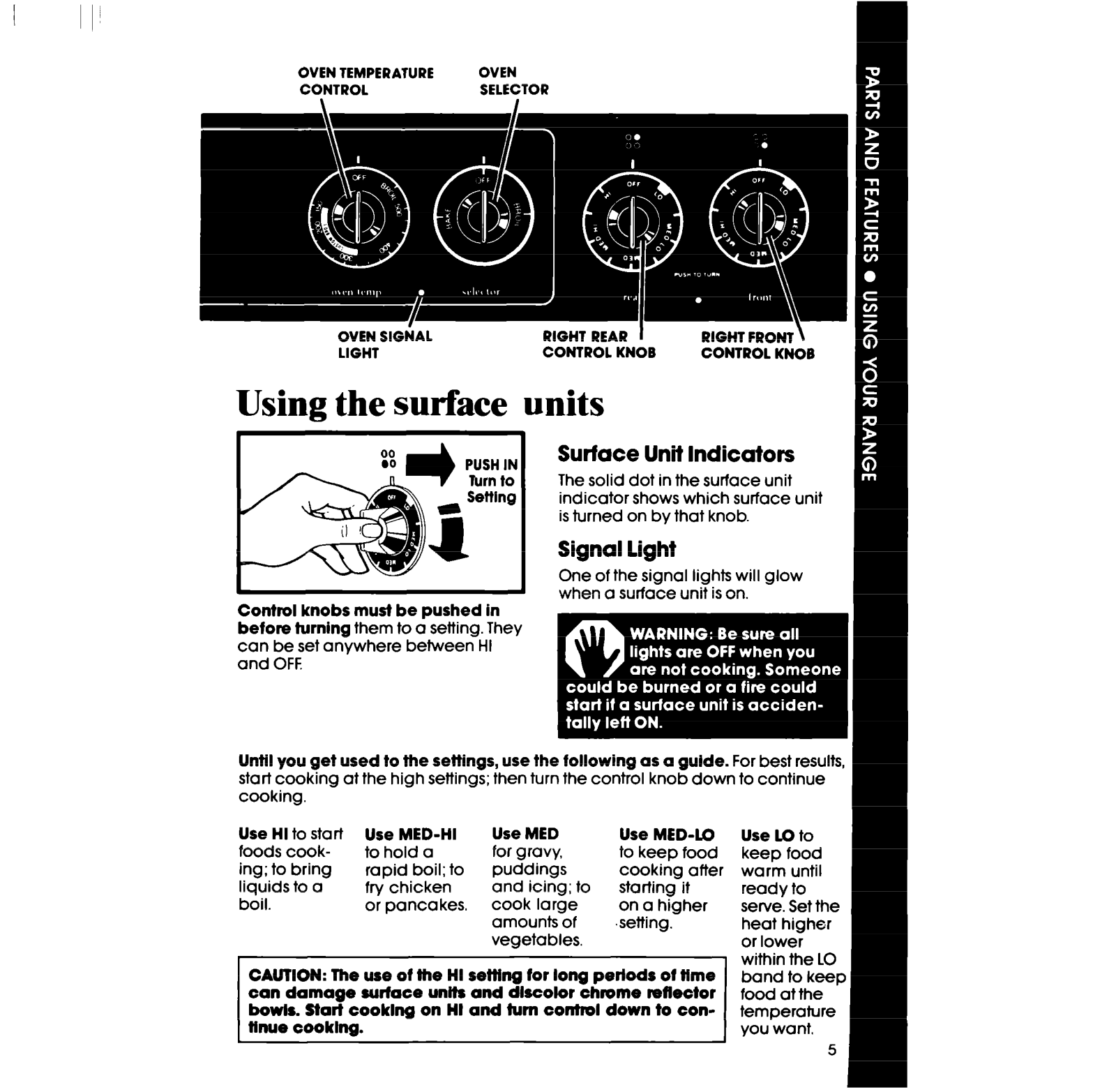

Using the surface units
Surface Unit Indicators
The solid dot in the surface unit
indicator shows which surface unit
is turned on by that knob.
Signal light
One of the signal lights will glow
Control knobs must be pushed in
before turning them to a setting. They
can be set anywhere between HI
Until you get used to the settings, use the following as a gulde. For best results,
start cooking at the high settings; then turn the control knob down to continue
cooking.
Use HI to start Use MED-HI Use MED
foods cooking; to bring
liquids to a
boil.
to hold a for gravy,
rapid boil; to
fry chicken
or pancakes.
puddings
and icing; to
cook large
amounts of
vegetables.
CAUTION: The use of the HI sefflng for long periods of tlme
can damage surface units and dlscobr chrome reflector
bowls.
tlnue cooklng.
Start
cooklng on HI
and
when a surface unit is on.
Use MED-LO
to keep food
cooking after warm until
starting it
on a higher
zietting.
turn oonhol
down to con-
Use LO to
keep food
ready to
serve. Set the
heat higher
or lower
. within the LO
band to keep
food at the
temperature
you want.
I

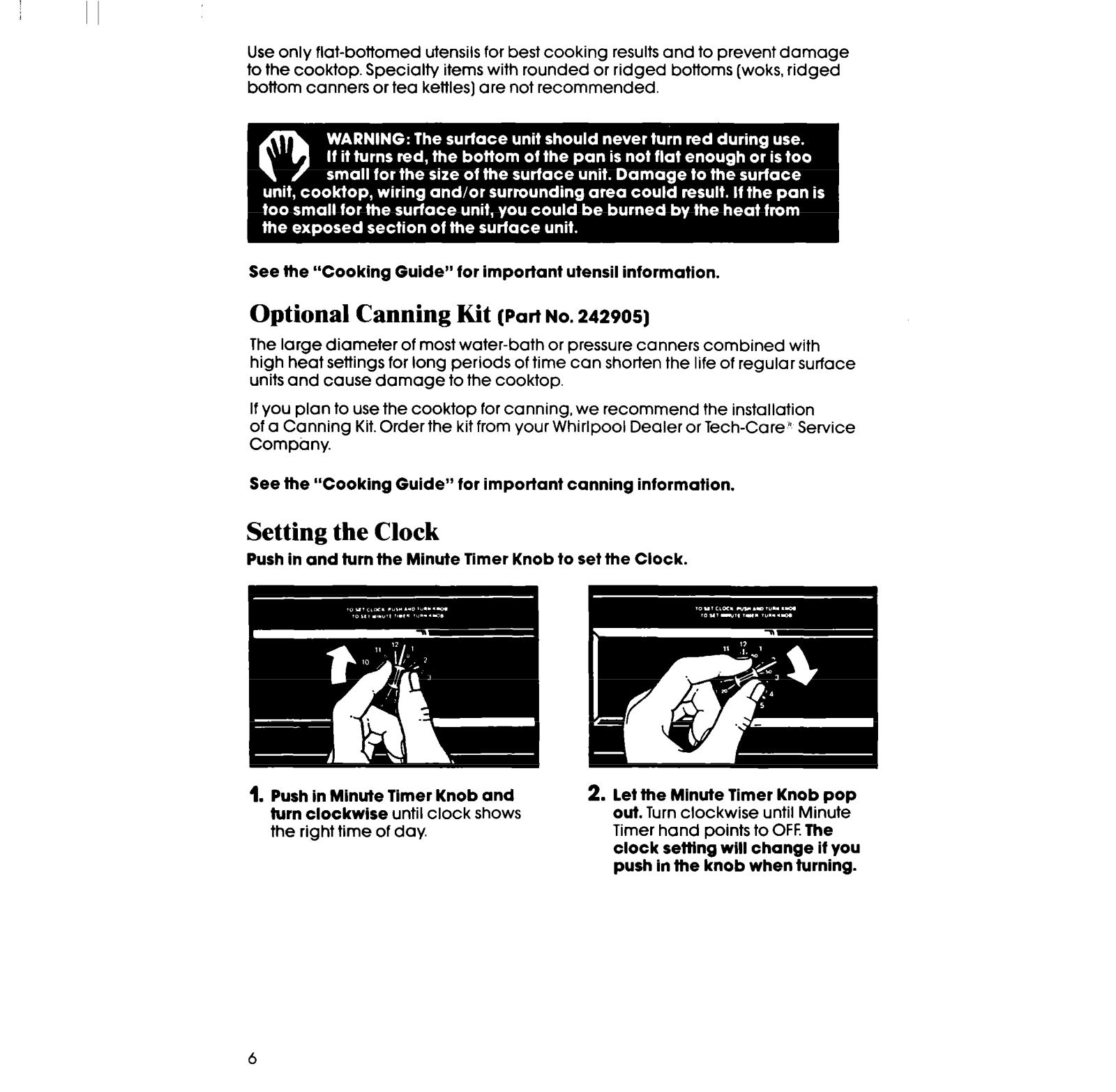

Use only flat-bottomed utensils for best cooking results and to prevent damage
to the cooktop. Specialty items with rounded or ridged bottoms (woks, ridged
bottom canners or tea kettles] are not recommended.
See the “Cooking Guide” for important utensil information.
Optional Canning Kit
The large diameter of most water-bath or pressure canners combined with
high heat settings for long periods of time can shorten the life of regular surface
units and cause damage to the cooktop.
If you plan to use the cooktop for canning, we recommend the installation
of a Canning Kit. Order the kit from your Whirlpool Dealer or Tech-Care” Service
Company.
See the “Cooking Guide” for important canning information.
(Part
NO.
242905)
Setting the Clock
Push in and turn the Minute Timer Knob to set the Clock.
1. Push in Minute Timer Knob and
turn clockwise until clock shows
the right time of day.
2. let the Minute Timer Knob pop
out. Turn clockwise until Minute
Timer hand points to OFF. The
clock setllng will change it you
push in the knob when turning.
