Page 1

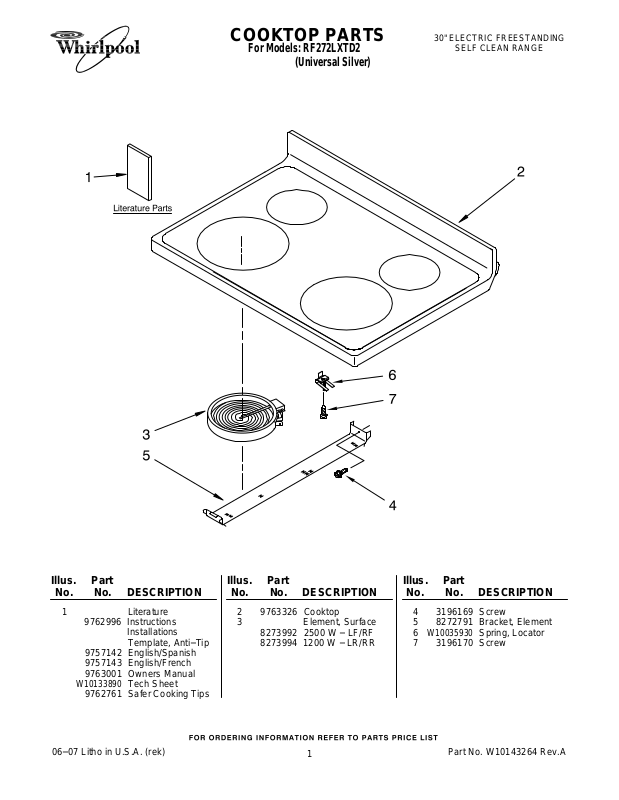

COOKTOP PARTS

For Models: RF272LXTD2

(Universal Silver)

30" ELECTRIC FREESTANDING

SELF CLEAN RANGE

Illus. Part

No. No. DESCRIPTION

1 Literature

9762996 Instructions

Installations

Template, Anti−Tip 9757142 English/Spanish 9757143 English/French 9763001 Owners Manual

W10133890

9762761 Safer Cooking Tips

06−07 Litho in U.S.A. (rek)

Tech Sheet

Illus. Part

No. No. DESCRIPTION

2 9763326 Cooktop 3 Element, Surface

8273992 2500 W − LF/RF 8273994 1200 W − LR/RR

Illus. Part

No. No. DESCRIPTION

4 3196169 Screw 5 8272791 Bracket, Element

W10035930

6 7 3196170 Screw

Part No. W10143264 Rev.A

Spring, Locator

Page 2

CONTROL PANEL PARTS

For Models: RF272LXTD2

(Universal Silver)

Illus. Part

No. No. DESCRIPTION

1 Endcap

W10009080 W10009090

2 9757609 Nameplate

W10127721

3 4 Switch, Infinite

3148954 LF/RF (Orange) 3148951 LR/RR (Silver)

Black Left Hand Black Right Hand

Panel, Control

Illus. Part

No. No. DESCRIPTION

5 Light, Indicator

8523265 Surface Unit (2) 6 3196068 Lens, Light (3) 7 Knob, Infinite (4)

9761964 Black

W10134247

8 9 Screw

3196168 Black

Shield, Heat

Illus. Part

No. No. DESCRIPTION

10 8272473 Cover, Upper 11 8273564 Clip

W10108230

12 13 3196178 Screw 14 9762078 Brkt−Mntg., EOC 15 9762095 Brkt−Mntg, Console 16 3400882 Screw

Control, Range

W10143264

Page 3

CHASSIS PARTS

For Models: RF272LXTD2

(Universal Silver)

W10143264

Page 4

CHASSIS PARTS

For Models: RF272LXTD2

(Universal Silver)

Illus. Part

No. No. DESCRIPTION

1 9760407 Brkt − Mounting 2 8273905 Support, Corner LR 3 Panel, Side (2)

8053832 Black 4 9761517 Clip, Door Mntg(2) 5 8522416 Seal, Oven Door 6 9757340 Element, Broil 7 9758541 Element, Bake 8 9761301 Screen−Catalyst 9 9757239 Rod − Dr Switch

W10114344

10 11 3196037 Foot, Front (2) 13 8054068 Tray, Insulation 14 3196576 Clip, Panel (6) 15 9760314 Rail, Base (2)

W10058460

16 17 3196548 Thermal, Fuse

Glide, Drawer Frnt

Foot, Rear (2)

Illus. Part

No. No. DESCRIPTION

18 3196172 Screw 19 3186116 Support, Oven (2) 20 3186034 Bracket, Service 21 9761958 Block, Terminal 22 8274034 Back, Main 23 9757262 Switch, Door 24 3196701 Light Socket Assy 25 311255 Bulb, Oven Light 26 9758701 Spacer − Door 27 8273902 Sensor, Oven 28 3196169 Screw 29 3196179 Screw 30 3196178 Screw 31 3400016 Screw 32 9758283 Cover, Box

W10107820

33 34

W10031780

35 3196566 Screw

Latch Asy, Rear Screw

Illus. Part

No. No. DESCRIPTION

W10078380

36 37 3196174 Screw 38 9758238 Retainer, Insul(2) 39 3196560 Screw (2) 40 9761299 Flue 41 9761013 Latch, Door 42 3195736 Support, Front (2) 43 3195987 Support, Corner RR 44 112432 Nut 45 9761490 Insulation, Foil 46 9761512 Clip, Mounting

W10067840

Rod, Latch

Screw (6)

INSULATION

8272616 Insulation, Wrap 8272612 Insulation, Back 8272613 Insulation, Vent

W10143264

Page 5

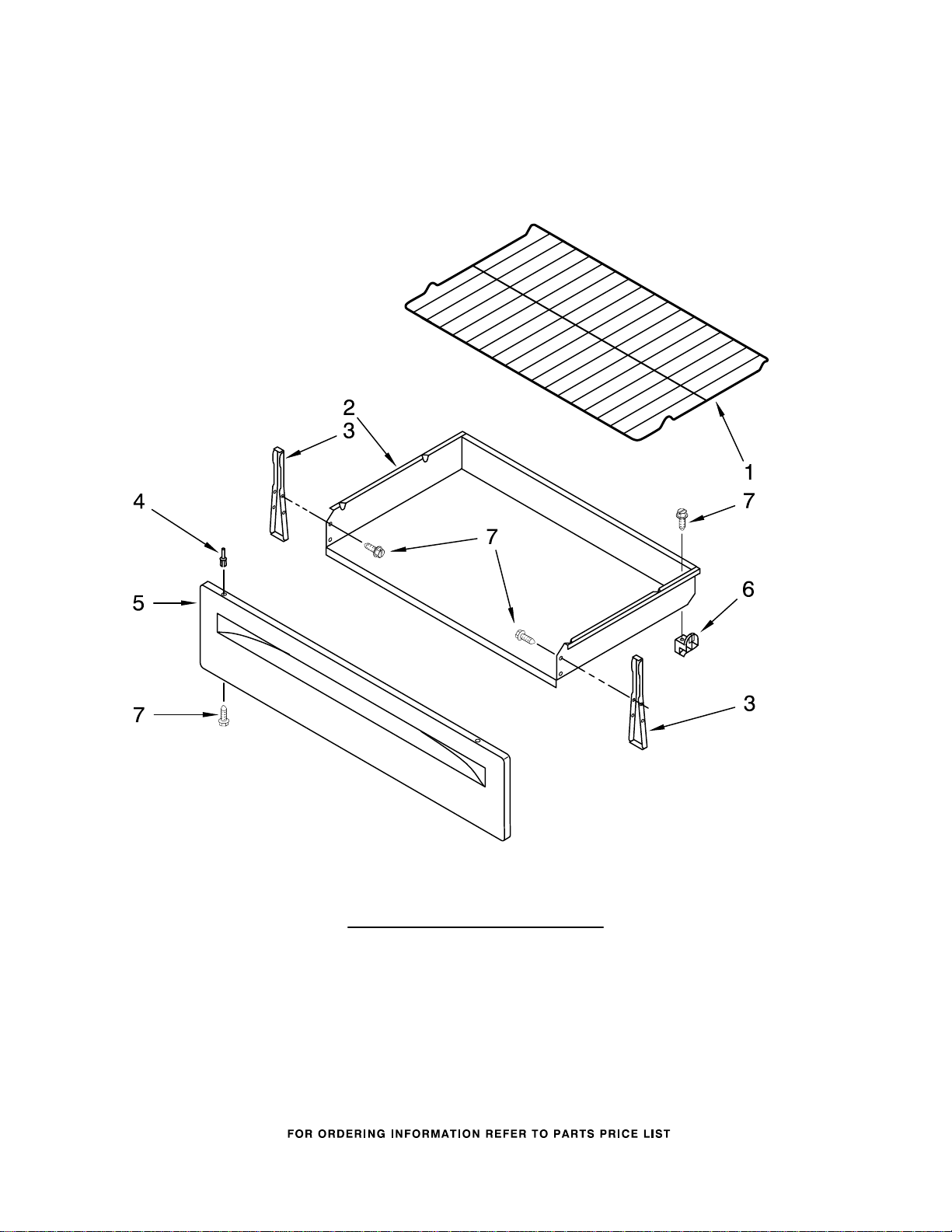

DRAWER & BROILER PARTS

For Models: RF272LXTD2

(Universal Silver)

W10143264

Illus. Part

No. No. DESCRIPTION

1 3195710 Rack, Oven (2) 2 9761031 Drawer, Storage 3 9758200 Bracket, Drawer(2) 4 Rivet, Push (2)

3196813 Black 5 9761694 Panel, Drawer Frnt 6 8053334 Glide, Drawer (2) 7 3196168 Screw

Page 6

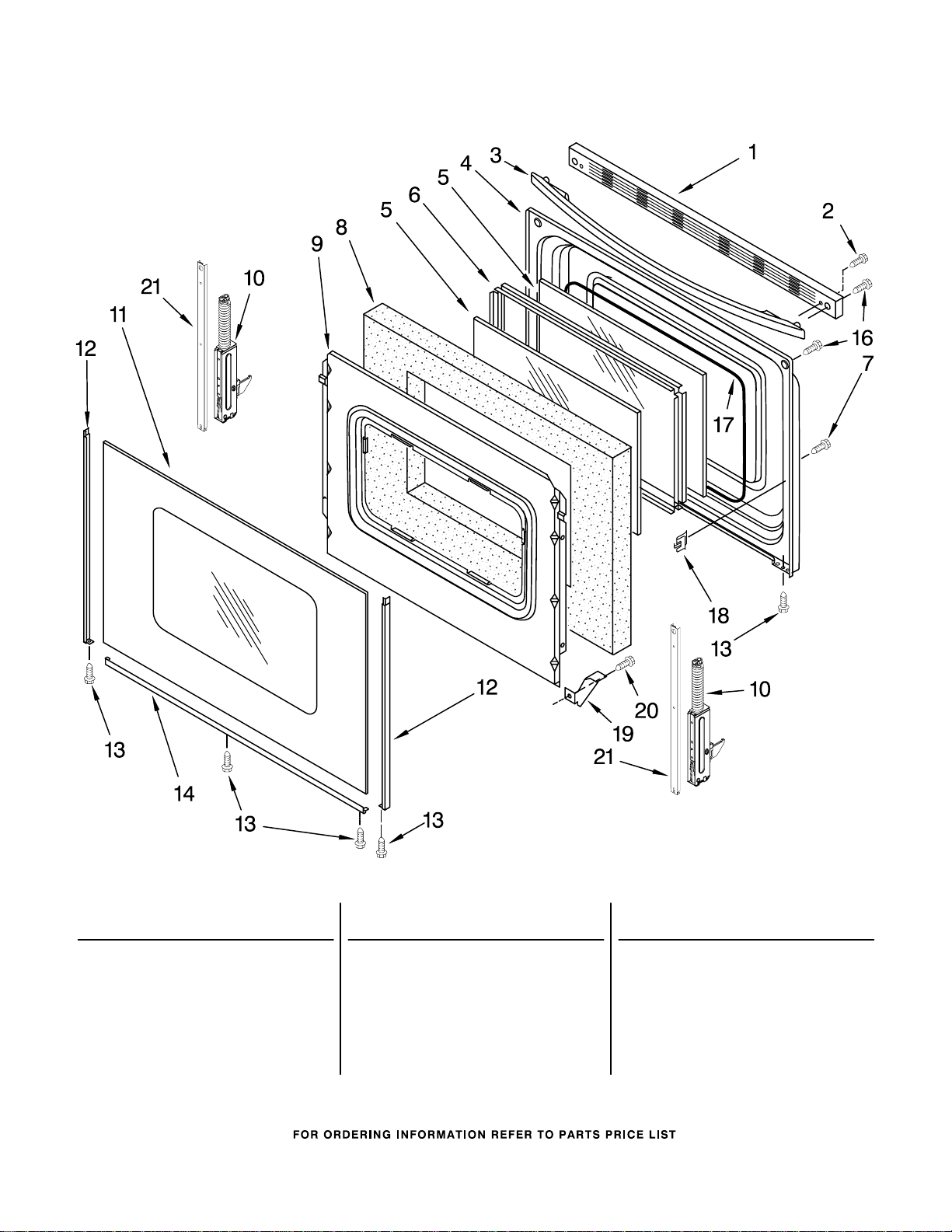

DOOR PARTS

For Models: RF272LXTD2

(Universal Silver)

Illus. Part

No. No. DESCRIPTION

1 9762394 Trim, Top 2 3196164 Screw 3 Handle, Door

9761983 Black 4 9761344 Liner, Door 5 9758162 Glass, Inner (2) 6 3186289 Frame, Glass

Illus. Part

No. No. DESCRIPTION

W10031790

7 8 8272618 Insulation, Door

9 9761357 Retainer, Insul. 10 9761496 Hinge, Door 11 9761699 Glass, Outer Door 12 Trim, Door Side

W10128571 W10128562

Screw

Black L.H. Black R.H.

Illus. Part

No. No. DESCRIPTION

13 3196160 Screw 14 8523180 Trim, Lower Door

W10031780

16 17 8522414 Seal, Window 18 3196025 Clip, Glass (6) 19 3196794 Bracket, Window(2) 20 3196165 Screw 21

W10113759

Screw

Strap, Door

W10143264

Page 7

OPTIONAL PARTS (NOT INCLUDED)

For Models: RF272LXTD2

(Universal Silver)

Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT. LENGTH

242828 Wire, Black

12 Ga. 150

242821 Wire, Blue

14 Ga. 150

242822 Wire, Brown

14 Ga. 150

242830 Wire, Brown

14 Ga. 200

242823 Wire, Green

14 Ga. 150

242824 Wire, Orange

14 Ga. 150

242825 Wire, Red

14 Ga. 150

242831 Wire, Red

14 Ga. 200

242827 Wire, Yellow

14 Ga. 150

c c c c c c c c c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

Illus. Part

No. No. DESCRIPTION

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White 72107 Almond

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY (12 oz.)

350930 White 350956 Almond 285006 Superior Black 206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut) 978883 Almond (Uncut)

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’) 3191048 Cleaner, Glass 4396923 Pan, Broiler

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

W10111790 W10111766 W10084660

8523279 Wire, Ground 3196154 Screw

W10111771

313660 Clip, Wire Ground 3196173 Screw 3196174 Screw

Harness, Wire (Cooktop Left) Harness, Wire (Cooktop Right) Harness, Wire (Sensor/Dr Switch)

Harness, Wire (Main)

(Grnd Wire / Back)
