Page 1

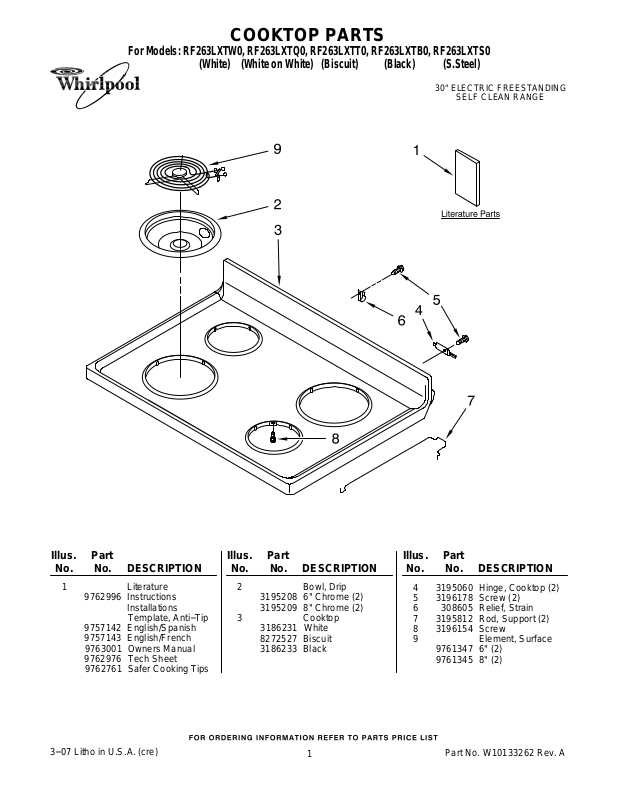

COOKTOP PARTS
For Models: RF263LXTW0, RF263LXTQ0, RF263LXTT0, RF263LXTB0, RF263LXTS0
(White) (White on White) (Biscuit) (Black) (S.Steel)
30" ELECTRIC FREESTANDING
SELF CLEAN RANGE
Illus. Part
No. No. DESCRIPTION
1 Literature
9762996 Instructions
Installations
Template, Anti−Tip
9757142 English/Spanish
9757143 English/French
9763001 Owners Manual
9762976 Tech Sheet
9762761 Safer Cooking Tips
3−07 Litho in U.S.A. (cre)
Illus. Part
No. No. DESCRIPTION
2 Bowl, Drip
3195208 6" Chrome (2)
3195209 8" Chrome (2)
3 Cooktop
3186231 White
8272527 Biscuit
3186233 Black
1
Illus. Part
No. No. DESCRIPTION
4 3195060 Hinge, Cooktop (2)
5 3196178 Screw (2)
6 308605 Relief, Strain
7 3195812 Rod, Support (2)
8 3196154 Screw
9 Element, Surface
9761347 6" (2)
9761345 8" (2)
Part No. W10133262 Rev. A
Page 2
CONTROL PANEL PARTS
For Models: RF263LXTW0, RF263LXTQ0, RF263LXTT0, RF263LXTB0, RF263LXTS0
(White) (White on White) (Biscuit) (Black) (S.Steel)
Illus. Part
No. No. DESCRIPTION
1 Endcap
W10009040
W10009050
W10009060
W10009070
W10009080
W10009090
2 9757609 Nameplate
3 Panel, Control
9762015 White
9762016 Biscuit
9762017 Black
W10117592
White Left Hand
White Right Hand
Biscuit Left Hand
Biscuit Right Hand
Black Left Hand
Black Right Hand
S.Steel
Illus. Part
No. No. DESCRIPTION
4 Switch, Infinite
3148954 LF/RR
3148952 LR/RF
5 Light, Indicator
8523265 Surface Unit (2)
6 3196068 Lens, Light (3)
7 Knob, Infinite (4)
9761962 White
9761963 Biscuit
9761964 Black
8 8053912 Shield, Heat
9 Screw
3196166 White
8281194 Biscuit
3196168 Black
2
Illus. Part
No. No. DESCRIPTION
10 8272473 Cover, Upper
11 8273564 Clip
12 Control, Range
W10114376
W10114378
W10114377
W10114379
13 3196178 Screw
14 9762078 Brkt−Mntg, EOC
15 9762095 Brkt−Mntg, Console
16 3400882 Screw
17 3196200 Clip, Spring (2)
White
Biscuit
Black
S.Steel
W10133262
Page 3
CHASSIS PARTS
For Models: RF263LXTW0, RF263LXTQ0, RF263LXTT0, RF263LXTB0, RF263LXTS0
(White) (White on White) (Biscuit) (Black) (S.Steel)
W10133262
3
Page 4
CHASSIS PARTS
For Models: RF263LXTW0, RF263LXTQ0, RF263LXTT0, RF263LXTB0, RF263LXTS0
(White) (White on White) (Biscuit) (Black) (S.Steel)
Illus. Part
No. No. DESCRIPTION
1 9760407 Brkt − Mounting
2 3186144 Box, Burner
3 Panel, Side (2)
Incl Side Foil #45
8053830 White
8272519 Biscuit
8053832 Black
W10010350
4
5 8522416 Seal, Oven Door
6 9757340 Element, Broil
7 9758541 Element, Bake
8 3195809 Bumper (2)
9 9757239 Rod − Dr Switch
10 9759785 Glide, Drawer Frnt
11 3196037 Foot, Front (2)
12 Frame, Front
13 8054068 Tray, Insulation
14 3196576 Clip, Panel (6)
15 9760314 Rail, Base (2)
W10058460
16
17 3196548 Thermal, Fuse
18 3196172 Screw
19 3186116 Support, Oven (2)
20 3186034 Bracket, Service
21 9761958 Block, Terminal
22 8274034 Back, Main
23 9757262 Switch, Door
24 3196701 Light Socket Assy
25 311255 Bulb, Oven Light
26 9758701 Spacer − Door
27 8273902 Sensor, Oven
28 3196169 Screw
29 3196179 Screw
30 3196178 Screw
31 3400016 Screw
32 9758283 Cover, Box
W10031780
34
35 3196567 Screw
36 3196168 Screw
37 3196174 Screw
38 9758238 Retainer, Insul(2)
39 3196560 Screw (2)
40 9755804 Tube, Vent
41 9761013 Latch, Door
W10078380
42
W10107820
43
44 112432 Nut
45 9761490 Insulation, Side
46 9761512 Clip, Mounting
Seal, Oven Flange
(Not Serviced)
Foot, Rear (2)
Screw
Rod, Latch
Latch Asy, Rear
INSULATION
8272616 Insulation, Wrap
8272612 Insulation, Back
4
W10133262
Page 5

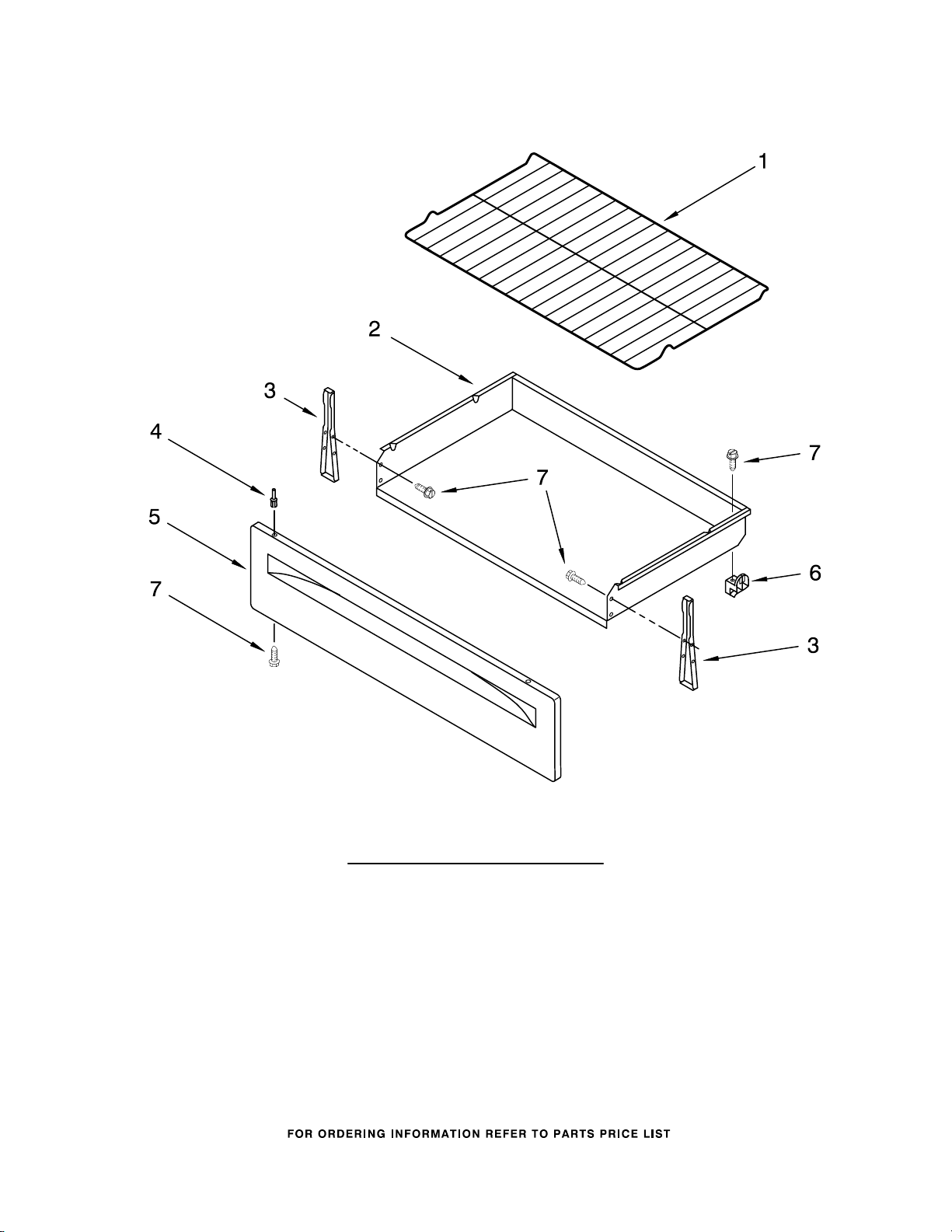

DRAWER & BROILER PARTS
For Models: RF263LXTW0, RF263LXTQ0, RF263LXTT0, RF263LXTB0, RF263LXTS0
(White) (White on White) (Biscuit) (Black) (S.Steel)
W10133262
Illus. Part
No. No. DESCRIPTION
1 3195710 Rack, Oven (2)
2 9761030 Drawer, Storage
3 9758200 Bracket, Drawer(2)
4 Rivet, Push (2)
3196814 White
3196815 Almond
3196813 Black
5 Panel, Drawer Frnt
8053339 White
8272501 Biscuit
8053341 Black
6 8053334 Glide, Drawer (2)
7 3196168 Screw
5
Page 6

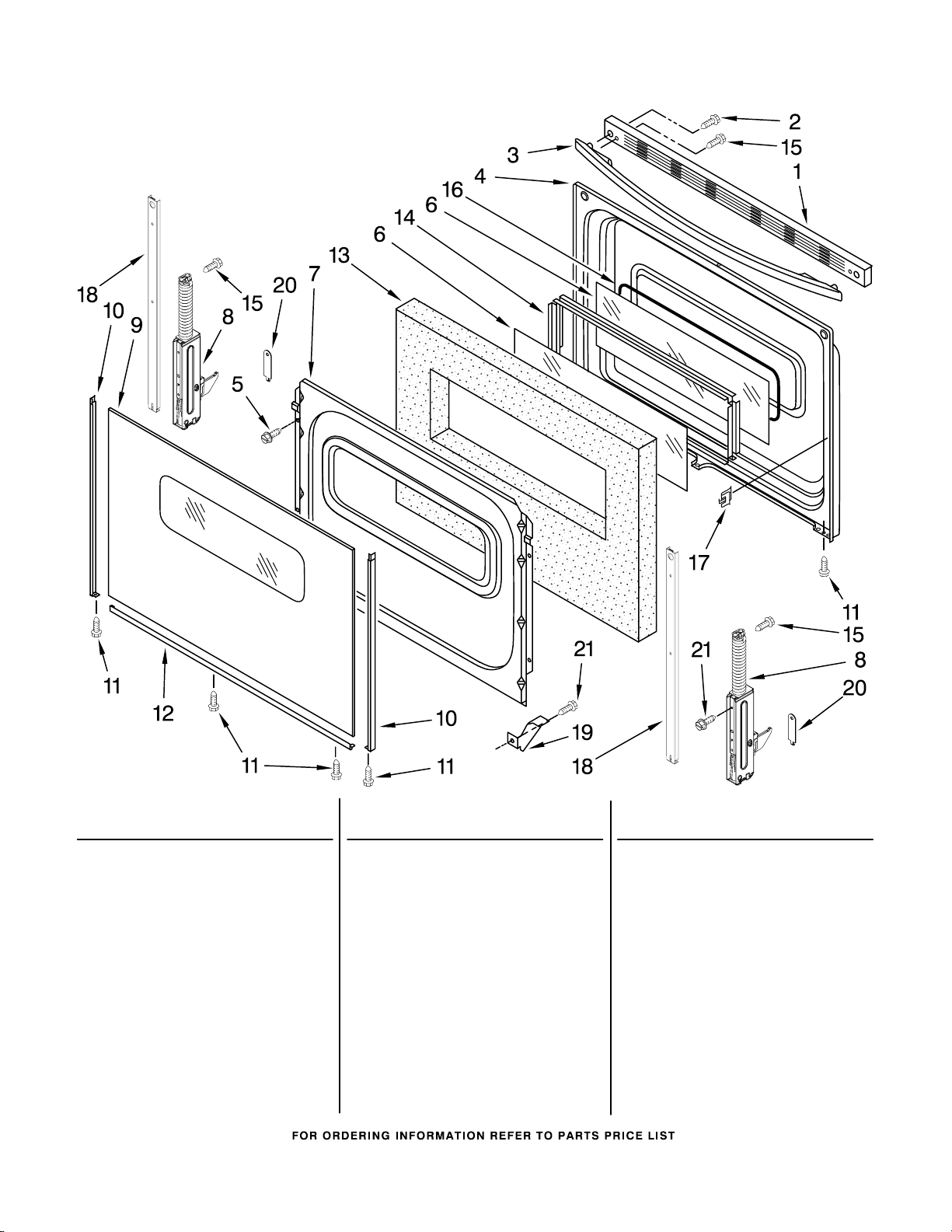

DOOR PARTS
For Models: RF263LXTW0, RF263LXTQ0, RF263LXTT0, RF263LXTB0, RF263LXTS0
(White) (White on White) (Biscuit) (Black) (S.Steel)
Illus. Part
No. No. DESCRIPTION
1 Trim, Top
9761975 White
9761976 Biscuit
9762391 Black
9762394 S.Steel
2 3196164 Screw
3 Handle, Door
9761982 White
9761984 Biscuit
9761983 Black
4 9761344 Liner, Door
W10031790
5
6 9758162 Window, Inner
7 9761357 Retainer, Insul.
8 Hinge, Door (2)
9761493 WH,BT,BL Models
9761496 S.Steel Model
Screw
Illus. Part
No. No. DESCRIPTION
9 Glass, Outer
W10075980
W10076000
W10075990
9756417 Black (Used on
10 Trim, Side
8523172 White Left Hand
8523166 White Right Hand
8523173 Biscuit Left Hand
8523167 Biscuit Right Hand
8523171 Black Left Hand
8523165 Black Right Hand
11 3196160 Screw
White
Biscuit
Black
S.Steel Model)
6
Illus. Part
No. No. DESCRIPTION
12 Trim, Lower
8523175 White
8523178 Biscuit
8523177 Black
8523180 Black (Used on
S.Steel Model)
13 8272618 Insulation
14 3186289 Frame, Window
W10031780
15
16 8522414 Seal, Window
17 3196025 Clip, Glass (6)
W10113759
18
19 3196794 Bracket, Window
20 9761517 Clip, Dr Mntg (2)
21 3196165 Screw
Screw
Strap, Door
W10133262
Page 7
OPTIONAL PARTS (NOT INCLUDED)
For Models: RF263LXTW0, RF263LXTQ0, RF263LXTT0, RF263LXTB0, RF263LXTS0
(White) (White on White) (Biscuit) (Black) (S.Steel)
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150
242821 Wire, Blue
14 Ga. 150
242822 Wire, Brown
14 Ga. 150
242830 Wire, Brown
14 Ga. 200
242823 Wire, Green
14 Ga. 150
242824 Wire, Orange
14 Ga. 150
242825 Wire, Red
14 Ga. 150
242831 Wire, Red
14 Ga. 200
242827 Wire, Yellow
14 Ga. 150
c
c
c
c
c
c
c
c
c
REFINISHING MATERIAL
799832 Kit, Porcelain
Repair (White)
242756 Touch−Up
Self−Clean(1/2 Pt)
261582 Grease
Illus. Part
No. No. DESCRIPTION
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
511873 White Porcelain
(2 Oz.)
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
4392901 Biscuit
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit(Uncut)
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
3191048 Cleaner, Glass
4396923 Pan, Broiler
ANTI−TIP KIT
W10017440
Anti−Tip Kit
WIRING HARNESS PARTS
9762428 Harness, Wire
(Sensor/Dr Switch)
9761476 Harness, Surface
Unit
311227 Wire, Ground
3196154 Screw
9762952 Harness, Wire
(Main)
313660 Clip, Wire Ground
3196173 Screw
308605 Relief, Strain
8524132 Shield, Wiring
3196174 Screw
(Grnd Wire / Back)
W10133262
7
