Page 1

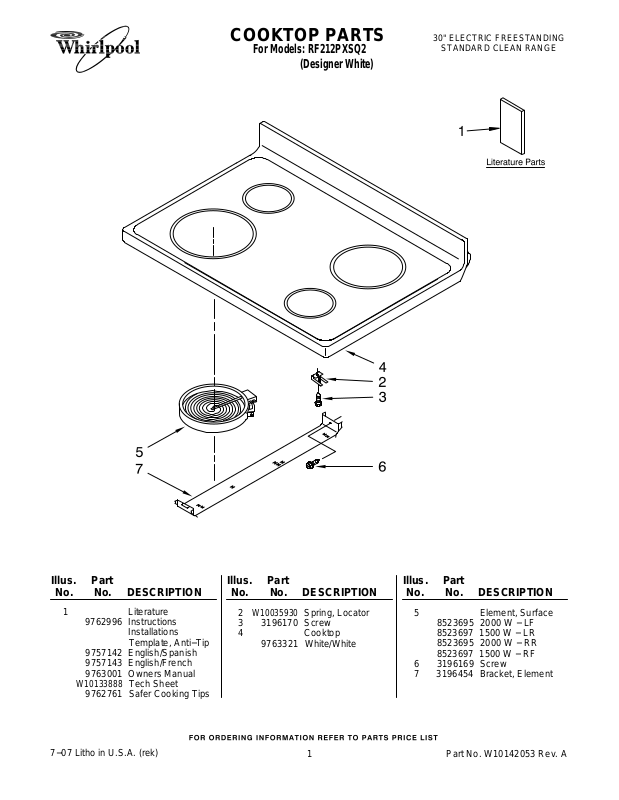

COOKTOP PARTS
For Models: RF212PXSQ2
(Designer White)
30" ELECTRIC FREESTANDING
STANDARD CLEAN RANGE
Illus. Part
No. No. DESCRIPTION
1 Literature
9762996 Instructions
Installations
Template, Anti−Tip
9757142 English/Spanish
9757143 English/French
9763001 Owners Manual
W10133888
9762761 Safer Cooking Tips
7−07 Litho in U.S.A. (rek)
Tech Sheet
Illus. Part
No. No. DESCRIPTION
W10035930
2 3 3196170 Screw 4 Cooktop
9763321 White/White
Spring, Locator
1
Illus. Part
No. No. DESCRIPTION
5 Element, Surface
8523695 2000 W − LF
8523697 1500 W − LR
8523695 2000 W − RR
8523697 1500 W − RF
6 3196169 Screw
7 3196454 Bracket, Element
Part No. W10142053 Rev. A
Page 2
CONTROL PANEL PARTS
For Models: RF212PXSQ2
(Designer White)
Illus. Part
No. No. DESCRIPTION
1 Endcap
W10009040
W10009050
2 9757609 Nameplate
3 Panel, Console
9762018 White
4 Switch, Infinite
3148953 Left Front
3148952 Left Rear
3148953 Right Rear
3148952 Right Front
White Left Hand
White Right Hand
Illus. Part
No. No. DESCRIPTION
5 Light, Indicator
8523265 Surface Unit (2)
6 3196068 Lens, Light (3)
7 Knob, Infinite (4)
9761962 White
W10134247
8
9 3196166 Screw
Shield, Heat
2
Illus. Part
No. No. DESCRIPTION
10 8272473 Cover, Upper
11 8273564 Clip
12 Control, Range
W10108280
13 3196178 Screw
14 9762078 Brkt−Mntg, EOC
15 9762095 Brkt−Mntg, Console
16 3400882 Screw
White
W10142053
Page 3
CHASSIS PARTS
For Models: RF212PXSQ2
(Designer White)
W10142053
3
Page 4
CHASSIS PARTS
For Models: RF212PXSQ2
(Designer White)
Illus. Part
No. No. DESCRIPTION
1 9760407 Brkt − Mounting
2 8273905 Support, Corner LR
3 Panel, Side (2)
8053830 White−Textured
4 112432 Nut
W10129032
5
6 9757340 Element, Broil
7 9758541 Element, Bake
8 9761517 Clip,Door Mntg(2)
9 9757239 Rod − Dr Switch
W10114344
10
11 3196037 Foot, Front (2)
W10067840
12
13 8054068 Tray, Insulation
14 3196576 Clip, Panel (6)
15 9760314 Rail, Base (2)
W10058460
16
17 3196548 Thermal, Fuse
18 3196172 Screw
19 3186116 Support, Oven (2)
20 3186034 Bracket, Service
21 9761958 Block, Terminal
22 8274034 Back, Main
23 9757262 Switch, Door
24 3196701 Light Socket Assy
25 311255 Bulb, Oven Light
26 9758701 Spacer − Door
27 8273902 Sensor, Oven
28 3196169 Screw
29 3196179 Screw
30 3196178 Screw
31 3400016 Screw
32 9758283 Cover, Box
W10031780
34
35 3196566 Screw
37 3196174 Screw
38 9761299 Flue
39 3195736 Support, Front (2)
40 3195987 Support, Corner RR
Seal, Oven Door
Glide, Drawer Frnt
Screw
Foot, Rear (2)
Screw
INSULATION
8273263 Insulation, Wrap
8272611 Insulation, Back
8272613 Insulation, Vent
4
W10142053
Page 5

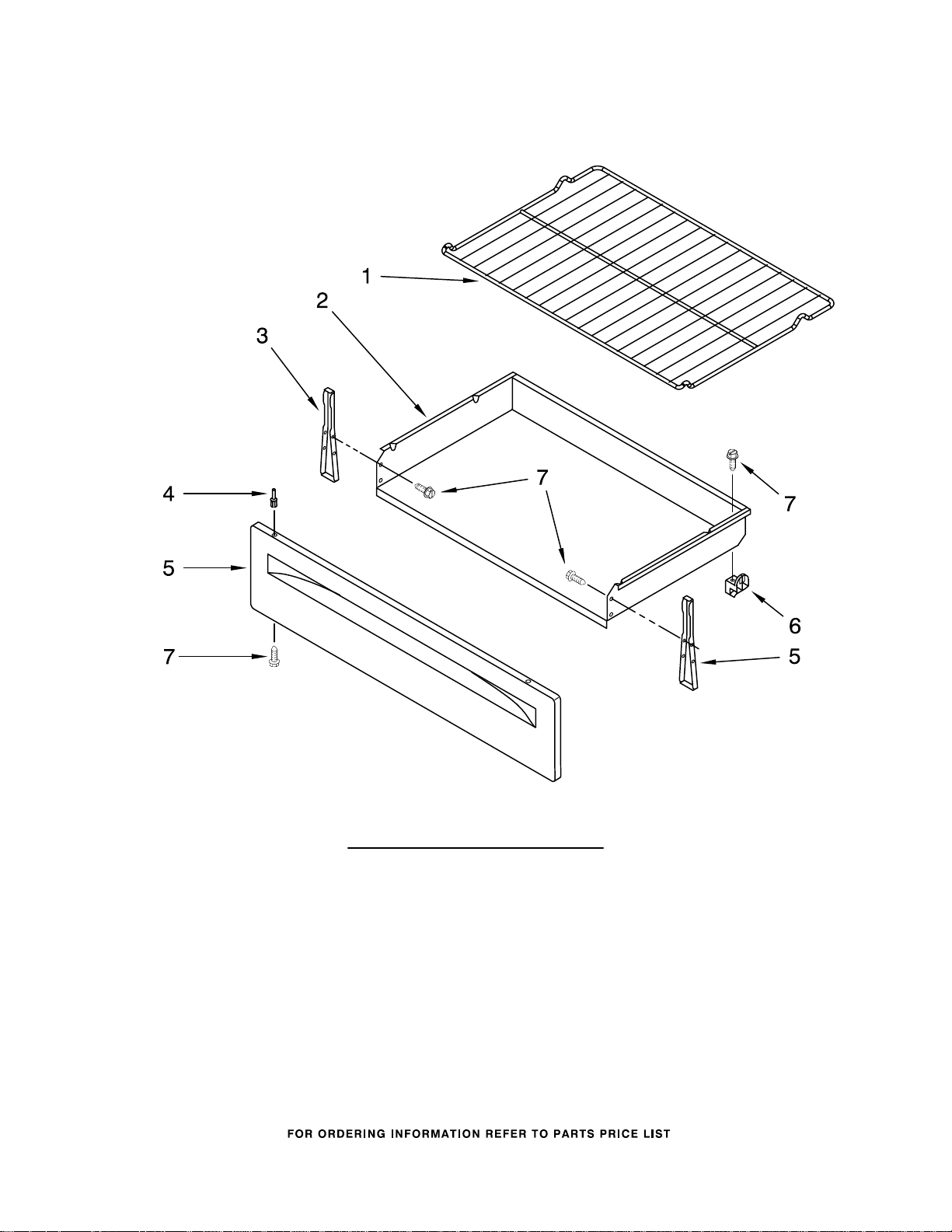

DRAWER & BROILER PARTS
For Models: RF212PXSQ2
(Designer White)
W10142053
Illus. Part
No. No. DESCRIPTION
1 3195710 Rack, Oven (2)
2 9761031 Drawer, Storage
3 9758200 Bracket, Drawer(2)
4 Rivet, Push (2)
3196814 White
5 Panel, Drawer Frnt
8053339 White
6 8053334 Glide, Drawer (2)
7 3196168 Screw
5
Page 6

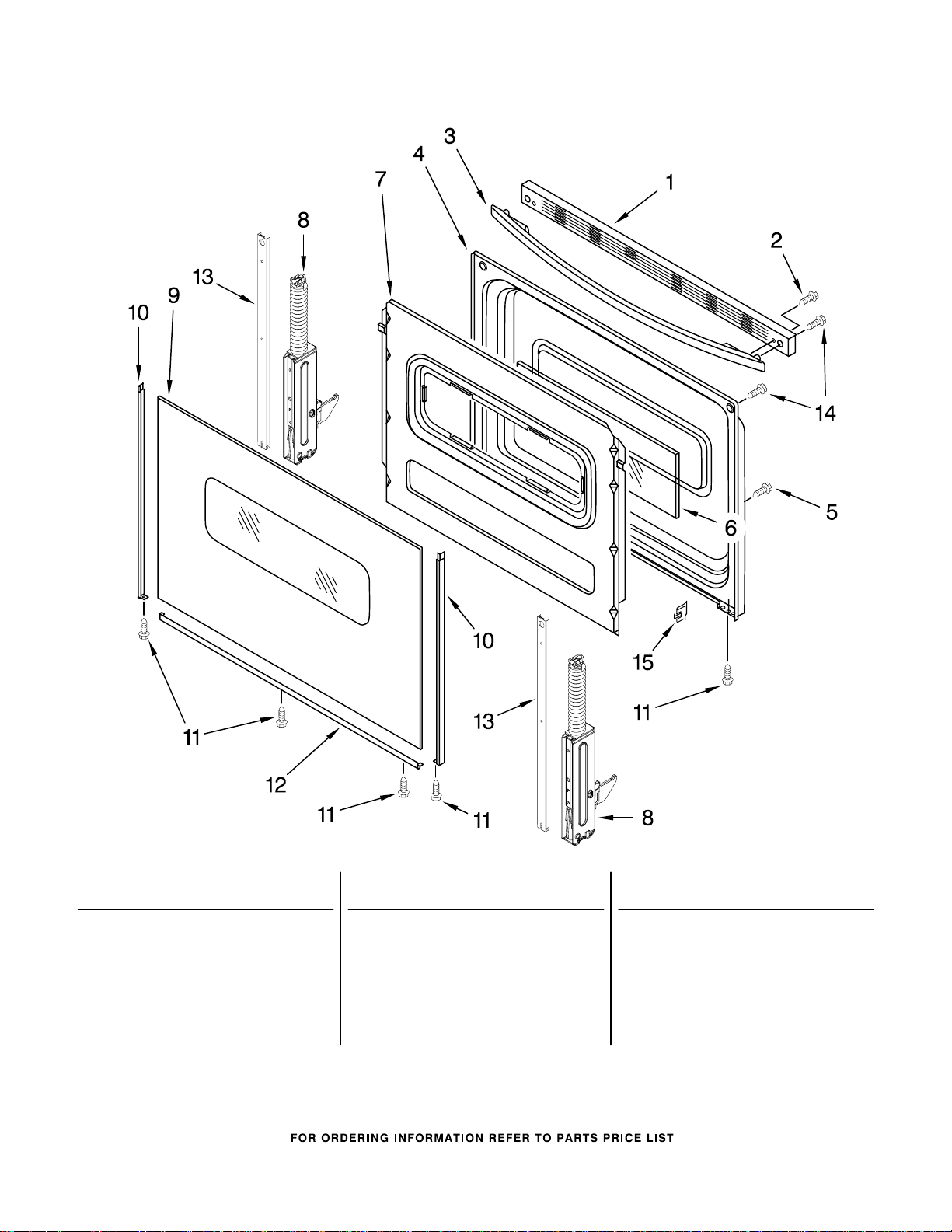

DOOR PARTS
For Models: RF212PXSQ2
(Designer White)
Illus. Part
No. No. DESCRIPTION
1 Trim, Top
9761975 White
2 3196164 Screw
3 Handle, Door
9761982 White
4 9761340 Liner, Door
W10031790
5
Screw
Illus. Part
No. No. DESCRIPTION
6 9758163 Window, Inner
7 9761500 Retainer, Insul.
8 9761494 Hinge, Door (2)
9 Glass, Outer
9762476 White
10 Trim, Side
8523172 White Left Hand
8523166 White Right Hand
6
Illus. Part
No. No. DESCRIPTION
11 3196160 Screw
12 Trim, Lower
8523175 White
W10113759
13
14
W10031780
15 3196025 Clip, Glass
Strap, Door
Screw
W10142053
Page 7
OPTIONAL PARTS (NOT INCLUDED)
For Models: RF212PXSQ2
(Designer White)
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150
242821 Wire, Blue
14 Ga. 150
242822 Wire, Brown
14 Ga. 150
242830 Wire, Brown
14 Ga. 200
242823 Wire, Green
14 Ga. 150
242824 Wire, Orange
14 Ga. 150
242825 Wire, Red
14 Ga. 150
242831 Wire, Red
14 Ga. 200
242827 Wire, Yellow
14 Ga. 150
c
c
c
c
c
c
c
c
c
REFINISHING MATERIAL
799832 Kit, Porcelain
Repair (White)
242756 Touch−Up
Self−Clean(1/2 Pt)
261582 Grease
Illus. Part
No. No. DESCRIPTION
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
72107 Almond
511873 White Porcelain
(2 Oz.)
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350956 Almond
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
978883 Almond (Uncut)
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
3191048 Cleaner, Glass
4396923 Pan, Broiler
ANTI−TIP KIT
W10017440
Anti−Tip Kit
WIRING HARNESS PARTS
W10111769
W10111770
W10083650
8523279 Wire, Ground
3196154 Screw
W10111776
313660 Clip, Wire Ground
3196173 Screw
3196174 Screw
Harness, Wire
(Cooktop Left)
Harness, Wire
(Cooktop Right)
Harness, Wire
(Sensor/Dr Switch)
Harness, Wire
(Main)
(Grnd Wire / Back)
W10142053
7
