Page 1
COOKTOP PARTS
30" ELECTRIC FREESTANDING
STANDARD CLEAN RANGE
FOR MODELS: RF111PXSQ3, RF111PXSW3
(Designer White) (White/Black)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10141166
9757142 English/Spanish
9757143 English/French
9763000 Owners Manual
W10114281
9762761 Safer Cooking Tips
5−08 Litho in U.S.A. (mo)(bay)
Instructions,
Installation
Anti−Tip Template
Sheet, Tech
Illus. Part
No. No. DESCRIPTION
2 Bowl, Drip
3195208 6" Chrome (3)
3195209 8" Chrome (1)
3 Cooktop
3186235 White
4 3195060 Hinge, Cooktop (2)
5 3196178 Screw
1
Illus. Part
No. No. DESCRIPTION
6 308605 Strain Relief
7 3195812 Rod, Support (2)
8 814399 Receptacle, Elmnt
9 3196154 Screw
10 Element, Surface
(Includes #8)
9761348 6" (3)
9761346 8" (1)
Part No. W10206582 Rev. A
Page 2
CONTROL PANEL PARTS
FOR MODELS: RF111PXSQ3, RF111PXSW3
(Designer White) (White/Black)
Illus. Part
No. No. DESCRIPTION
1 Endcap
W10009040
W10009080
W10009050
W10009090
2 9757609 Nameplate
3 Panel, Backguard
W10170675
W10170676
Left Hand−White
Left Hand−Black
Right Hand−White
Right Hand−Black
White
Black
Illus. Part
No. No. DESCRIPTION
4 Switch, Infinite
3148953 Use W/ 8" Element
3148951 Use W/ 6" Element
6 9762215 Switch, Selector
7
W10182322
8 8523266 Indicator, 250V
9 8273564 Clip
10 3196200 Clip, Spring (2)
11 Knob, Infinite (4)
9761962 White
9761964 Black
Brkt−Mntg Console
2
Illus. Part
No. No. DESCRIPTION
12 3149360 Switch, Rocker
13 3196068 Lens, Indicator
14 Knob, Thermostat
9762526 White
9762524 Black
15 8053912 Shield, Heat
16 8523265 Indicator, 125V
17 8272473 Cover, Upper Rear
18 3196166 Screw
19 3196178 Screw
20 3400882 Bolt
W10206582
Page 3
CHASSIS PARTS
FOR MODELS: RF111PXSQ3, RF111PXSW3
(Designer White) (White/Black)
W10206582
3
Page 4
CHASSIS PARTS
FOR MODELS: RF111PXSQ3, RF111PXSW3
(Designer White) (White/Black)
Illus. Part
No. No. DESCRIPTION
1 3169143 Vent Tube
2 3186144 Box, Burner
3 Panel, Side (2)
8053830 White−Textured
4 9760407 Brkt−Mounting
W10129032
5
6 9757340 Element, Broil
7 9758541 Element, Bake
W10181986
8
W10114344
9
10 3196037 Foot, Front (2)
W10067840
11
12 8054068 Tray, Insulation
13 3196576 Clip, Panel (6)
14 9760314 Rail, Base (2)
W10058460
15
16 3195809 Bumper, Side (2)
17 3186116 Support, Oven (2)
18 3186034 Bracket, Service
19 9761958 Block, Terminal
20 8274034 Back, Main
21 3196567 Screw
22 3196168 Screw
23 3196174 Screw
24 3196169 Screw
25 3196179 Screw
26 3196178 Screw
27 3400016 Screw
W10031780
28
29 3196701 Light Socket Assy
30 311255 Bulb, Oven Light
31 112432 Nut
32 9758283 Cover, Box
Seal, Oven Door
Sensor
Glide, Drawer Frnt
Screw
Foot, Rear (2)
Screw
INSULATION
8273263 Insulation, Wrap
8272611 Insulation, Back
4
W10206582
Page 5
DRAWER & BROILER PARTS
FOR MODELS: RF111PXSQ3, RF111PXSW3
(Designer White) (White/Black)
W10206582
Illus. Part
No. No. DESCRIPTION
1
W10138079
2 9761031 Drawer, Storage
W10174396
3
4 Rivet, Push (2)
3196814 White
5 Panel, Drawer Frnt
8053339 White
6 8053334 Glide, Drawer (2)
7 3196168 Screw
Rack, Oven (2)
Bracket, Drawer(2)
5
Page 6

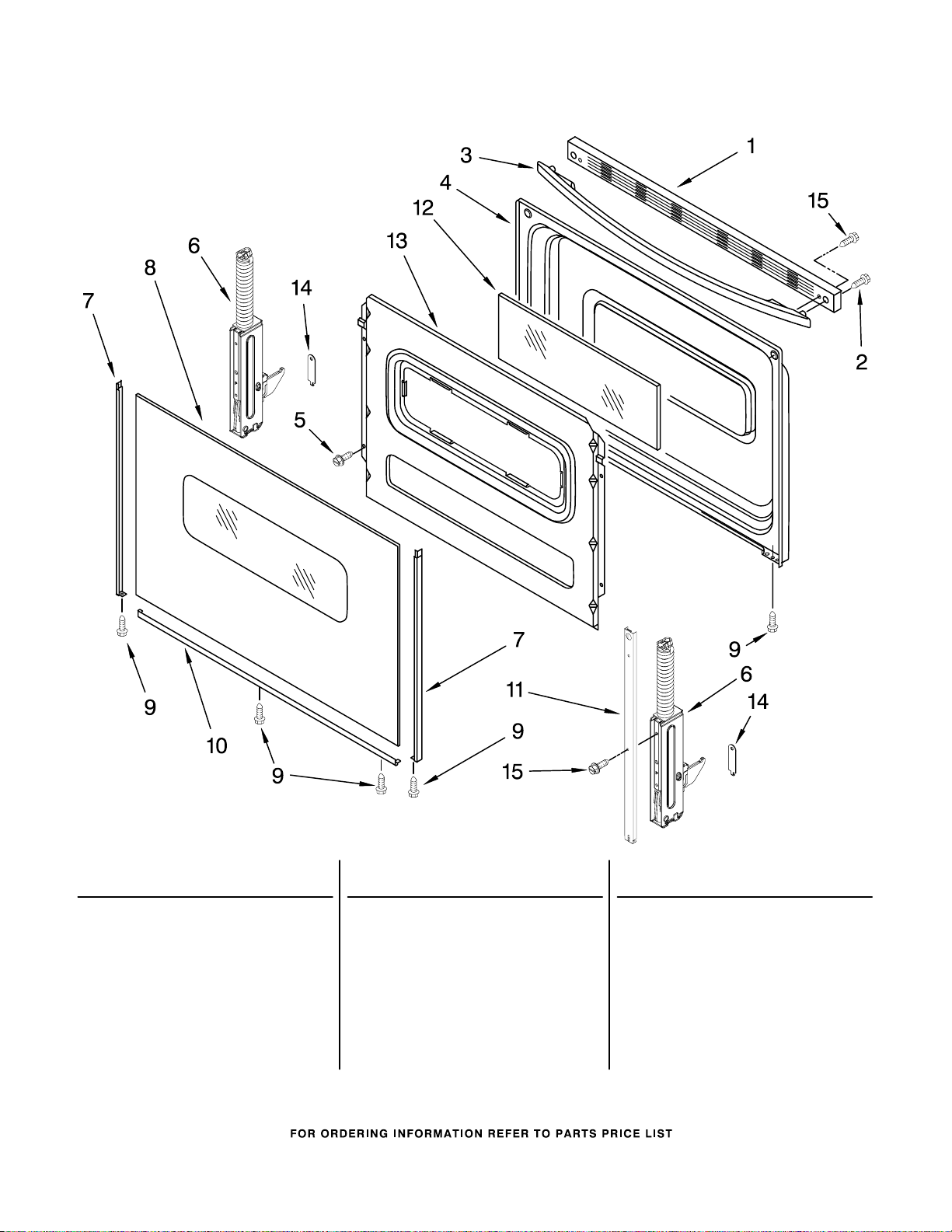

DOOR PARTS
FOR MODELS: RF111PXSQ3, RF111PXSW3
(Designer White) (White/Black)
Illus. Part
No. No. DESCRIPTION
1 Trim, Top
W10144869
W10144870
2 3196164 Screw
3 Handle, Door
W10118384
W10118385
4 9761340 Liner, Door
W10031790
5
6 9761494 Hinge, Door (2)
White
Black
White
Black
Screw
Illus. Part
No. No. DESCRIPTION
7 Trim, Door (2)
8523172 Left Hand−White
8523171 Left Hand−Black
8523166 Right Hand−White
8523165 Right Hand−Black
8 Glass, Door
9762476 White
9762477 Black
6
Illus. Part
No. No. DESCRIPTION
9 3196160 Screw
10 Trim, Lower
8523175 White
8523177 Black
W10113759
11
12 9758163 Window, Inner
13 9761500 Retainer, Insul.
14 9761517 Clip,Dr Mntg (2)
W10031780
15
Strap, Door
Screw
W10206582
Page 7
OPTIONAL PARTS (NOT INCLUDED)
FOR MODELS: RF111PXSQ3, RF111PXSW3
(Designer White) (White/Black)
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150
242821 Wire, Blue
14 Ga. 150
242822 Wire, Brown
14 Ga. 150
242830 Wire, Brown
14 Ga. 200
242823 Wire, Green
14 Ga. 150
242824 Wire, Orange
14 Ga. 150
242825 Wire, Red
14 Ga. 150
242831 Wire, Red
14 Ga. 200
242827 Wire, Yellow
14 Ga. 150
c
c
c
c
c
c
c
c
c
Illus. Part
No. No. DESCRIPTION
REFINISHING MATERIAL
799832 Kit, Porcelain
Repair (White)
242756 Touch−Up
Self−Clean(1/2 Pt)
261582 Grease
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
511873 White Porcelain
(2 Oz.)
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
4392901 Biscuit
285006 Superior Black
206922 Primer (White)
Illus. Part
No. No. DESCRIPTION
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit
(Uncut)
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
3184478 Cleaner, Glass
ANTI−TIP KIT
W10017440
Anti−Tip Kit
WIRING HARNESS PARTS
9761476 Harness, Cooktop
W10113075
313660 Clip, Ground Wire
311227 Wire, Ground
3196154 Screw, Grnd−Cktop
3196174 Screw, Grnd−Back
3196173 Screw, Ground
Harness, Oven
W10206582
7
