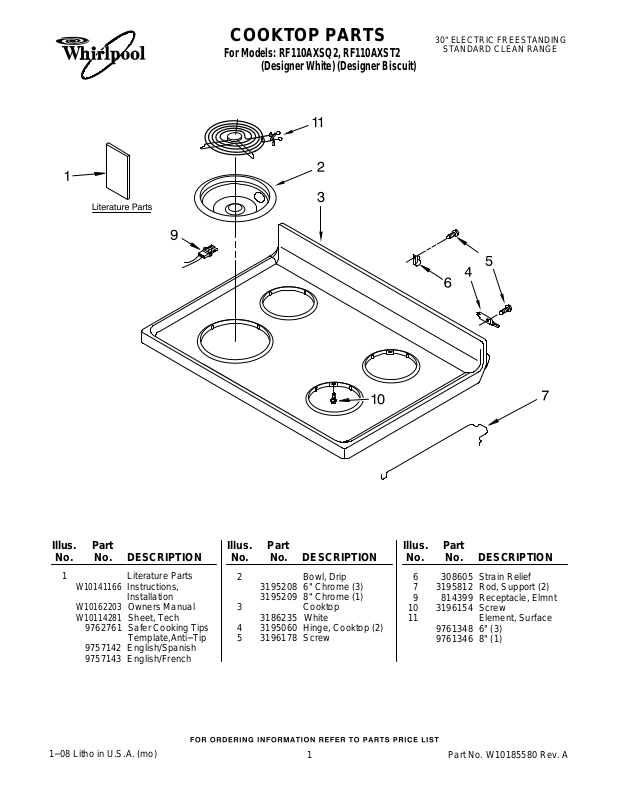

Page 1
COOKTOP PARTS
For Models: RF110AXSQ2, RF110AXST2
30" ELECTRIC FREESTANDING
STANDARD CLEAN RANGE
(Designer White) (Designer Biscuit)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10141166
W10162203
W10114281
9762761 Safer Cooking Tips
9757142 English/Spanish
9757143 English/French
1−08 Litho in U.S.A. (mo)
Instructions,
Installation
Owners Manual
Sheet, Tech
Template,Anti−Tip
Illus. Part
No. No. DESCRIPTION
2 Bowl, Drip
3195208 6" Chrome (3)
3195209 8" Chrome (1)
3 Cooktop
3186235 White
4 3195060 Hinge, Cooktop (2)
5 3196178 Screw
1
Illus. Part
No. No. DESCRIPTION
6 308605 Strain Relief
7 3195812 Rod, Support (2)
9 814399 Receptacle, Elmnt
10 3196154 Screw
11 Element, Surface
9761348 6" (3)
9761346 8" (1)
Part No. W10185580 Rev. A
Page 2
CONTROL PANEL PARTS
For Models: RF110AXSQ2, RF110AXST2
(Designer White) (Designer Biscuit)
Illus. Part
No. No. DESCRIPTION
1 Endcap
W10009040
W10009050
2 9757609 Nameplate
3 Panel, Backguard
9762010 White
4 Switch, Infinite
3148953 Use W/ 8" Element
3148951 Use W/ 6" Element
Left Hand White
Right Hand White
Illus. Part
No. No. DESCRIPTION
5 8523265 Indicator, 125V
6 9762215 Cntrl−Elec ROC60
7 9762095 Brkt−Mntg,Console
8 8523266 Indicator, 250V
9 3196166 Screw
10 3196200 Clip, Spring (2)
11 Knob (4)
9761962 White
2
Illus. Part
No. No. DESCRIPTION
12 3196068 Lens, Ind. (2)
13 Knob, Thermostat
9762526 White
14 8053912 Shield, Heat
15 8272473 Cover, Upper Rear
16 3196178 Screw
17 3400882 Screw
18 8273564 Clip
W10185580
Page 3
CHASSIS PARTS
For Models: RF110AXSQ2, RF110AXST2
(Designer White) (Designer Biscuit)
W10185580
3
Page 4
CHASSIS PARTS
For Models: RF110AXSQ2, RF110AXST2
(Designer White) (Designer Biscuit)
Illus. Part
No. No. DESCRIPTION
1 3169143 Vent Tube
2 3186144 Box, Burner
3 Panel, Side (2)
8053830 White−Textured
W10129032
4
5 9757340 Element, Broil
6 9758541 Element, Bake
W10031780
7
8 9760407 Brkt, Mounting
W10114344
9
10 3196037 Foot, Front (2)
12 8054068 Tray, Insulation
13 3196576 Clip, Panel (6)
14 9760314 Rail, Base (2)
W10058460
15
16 3195809 Bumper, Side (2)
17 3186116 Support, Oven (2)
18 3186034 Bracket, Service
19 9761958 Block, Terminal
112432 Nut (3)
20 8274034 Back, Main
21 9758283 Cover, Box
22 3196567 Screw
23 3196168 Screw
24 3196174 Screw
25 3196165 Screw
26 3196179 Screw
27 3196178 Screw
28 3400016 Screw
W10131826
29
30 3196169 Screw
Seal, Oven Door
Screw
Glide, Drawer Frnt
Foot, Rear (2)
Sensor
INSULATION
8273263 Insulation, Wrap
8272611 Insulation, Back
4
W10185580

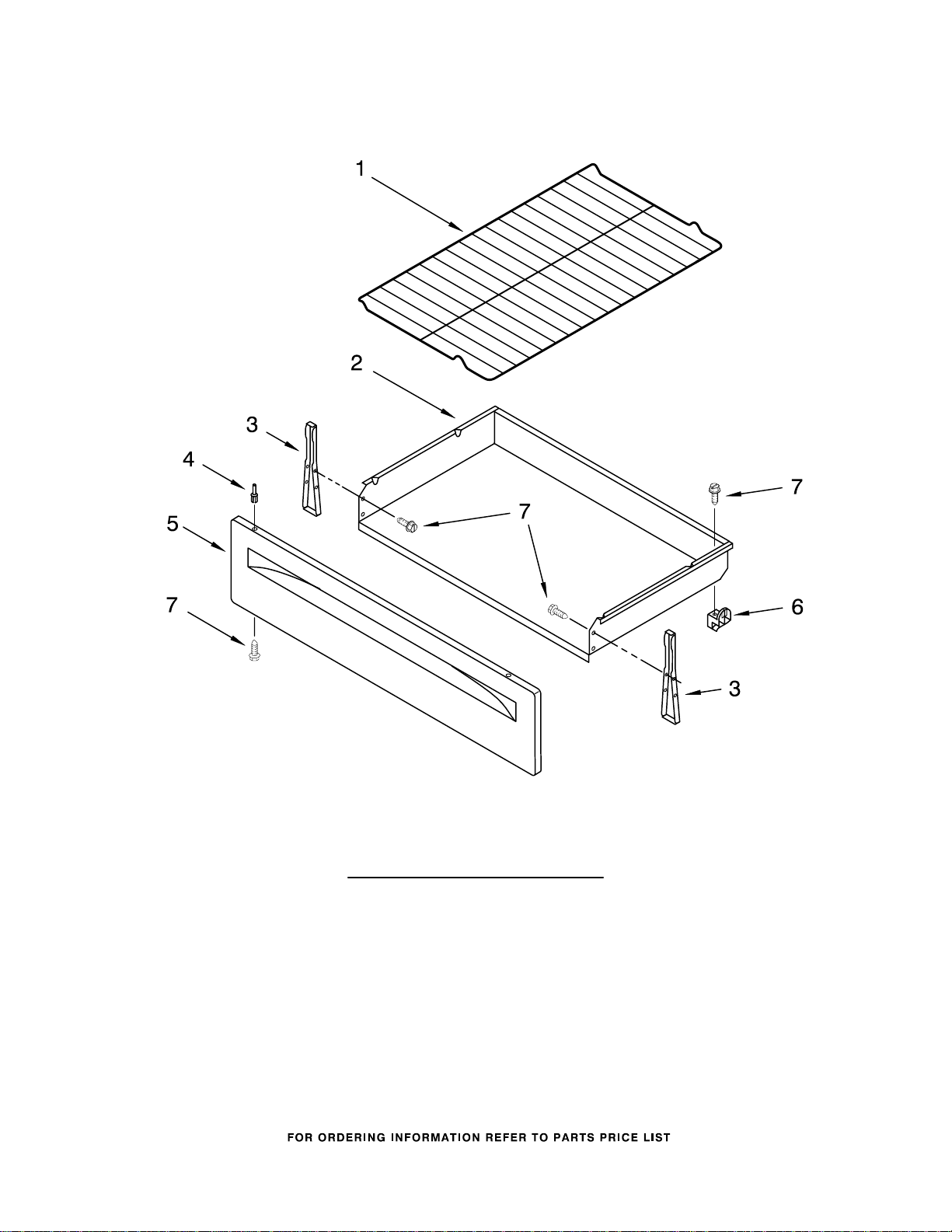

Page 5
DRAWER & BROILER PARTS
For Models: RF110AXSQ2, RF110AXST2
(Designer White) (Designer Biscuit)
W10185580
Illus. Part
No. No. DESCRIPTION
1
W10138079
2 9761031 Drawer, Storage
3 9758200 Bracket, Drawer(2)
4 Rivet, Push (2)
3196814 White
5 Panel, Drawer Frnt
8053339 White
6 8053334 Glide, Drawer (2)
7 3196168 Screw
Rack, Oven (2)
5

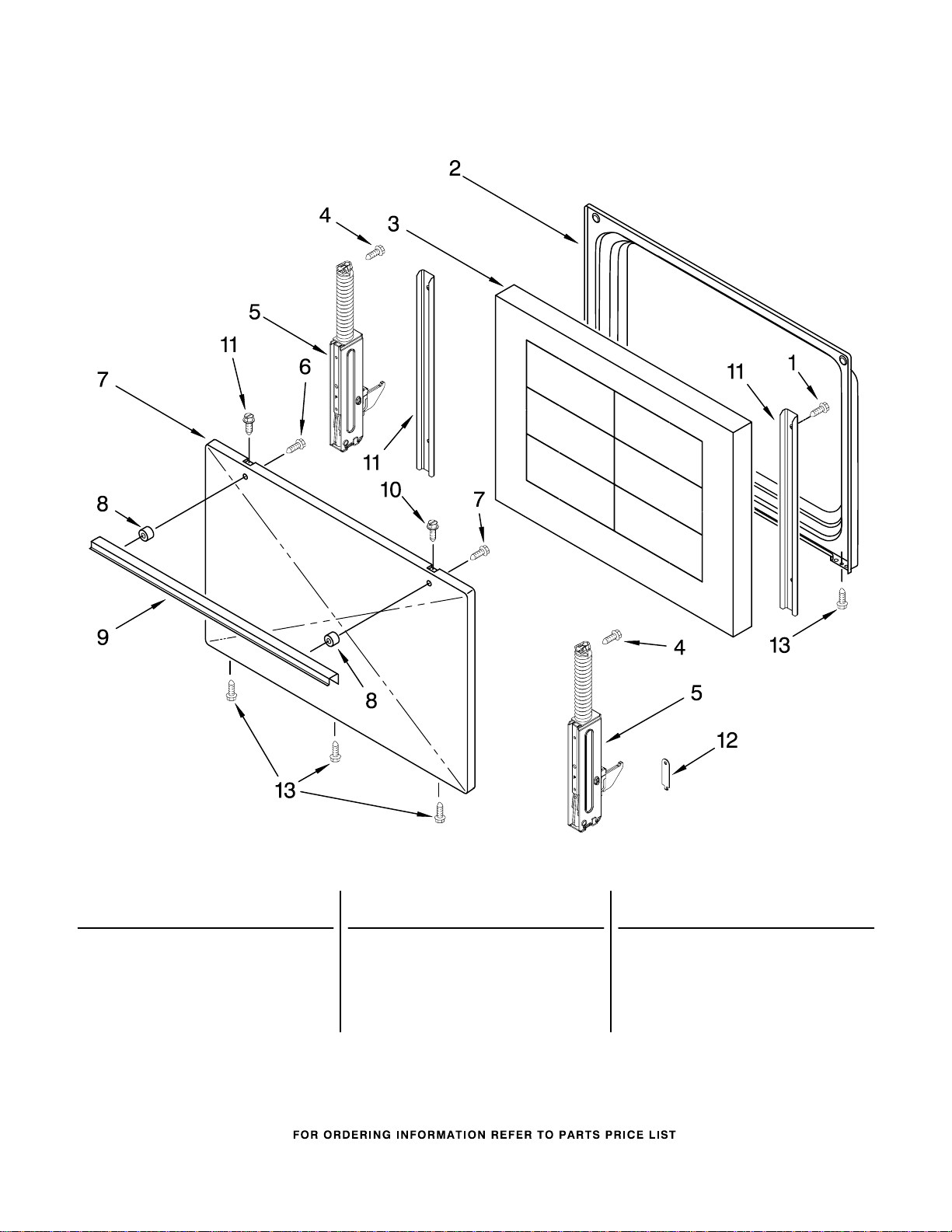

Page 6
DOOR PARTS
For Models: RF110AXSQ2, RF110AXST2
(Designer White) (Designer Biscuit)
Illus. Part
No. No. DESCRIPTION
1
W10031790
2 9761342 Liner
3 8272618 Insulation, Door
W10031780
4
5 9761495 Hinge (2)
6 3196163 Screw
Screw
Screw
Illus. Part
No. No. DESCRIPTION
7 Panel, Steel
3195560 White
8 Spacer, Handle
3196143 White
9 Handle, Oven Door
3195263 White
6
Illus. Part
No. No. DESCRIPTION
10 Screw, Top
3196558 White
11 9761503 Brkt−Door
12 9761517 Clip−Door, Mntg
13 3196165 Screw
W10185580
Page 7
OPTIONAL PARTS
For Models: RF110AXSQ2, RF110AXST2
(Designer White) (Designer Biscuit)
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150
8316781 Wire, Black
14 Ga. 150
242821 Wire, Blue
14 Ga. 150
242822 Wire, Brown
14 Ga. 150
242830 Wire, Brown
14 Ga. 200
242823 Wire, Green
14 Ga. 150
242824 Wire, Orange
14 Ga. 150
242825 Wire, Red
14 Ga. 150
242831 Wire, Red
14 Ga. 200
242827 Wire, Yellow
14 Ga. 150
c
c
c
c
c
c
c
c
c
c
Illus. Part
No. No. DESCRIPTION
REFINISHING MATERIAL
799832 Kit, Porcelain
Repair (White)
242756 Touch−Up
Self−Clean(1/2 Pt)
261582 Grease
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
511873 White Porcelain
(2 Oz.)
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
4392901 Biscuit
285006 Superior Black
206922 Primer (White)
Illus. Part
No. No. DESCRIPTION
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Almond (Uncut)
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
3184478 Cleaner, Glass
4396923 Pan−Broiler
ANTI−TIP KIT
W10017440
Anti−Tip Kit
WIRING HARNESS PARTS
W10113076
9761476 Harness, Cooktop
3196154 Screw, Grnd−Cktop
3196174 Screw, Grnd−Back
311227 Wire, Ground
313660 Clip, Ground Wire
3196173 Screw, Ground
Harness, Main
W10185580
7
