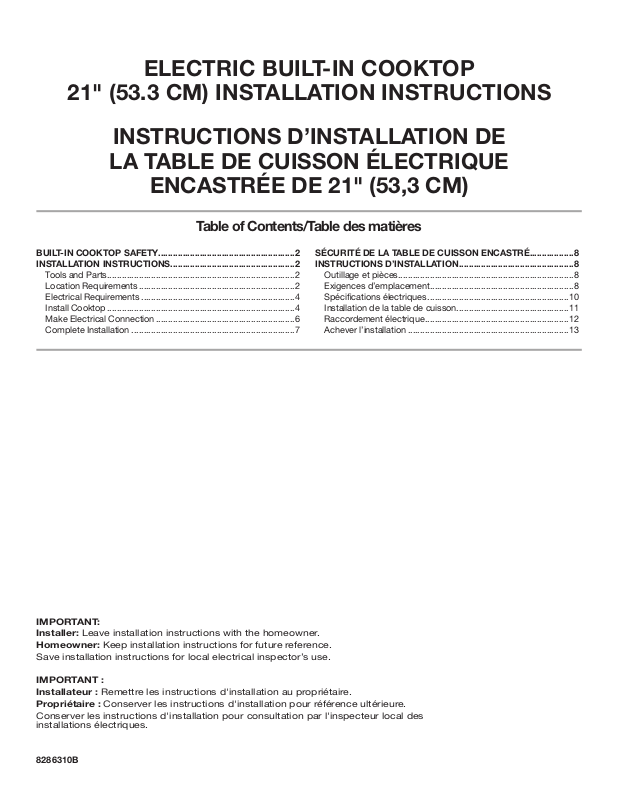

Page 1
ELECTRIC BUILT-IN COOKTOP
21" (53.3 CM) INSTALLATION INSTRUCTIONS
INSTRUCTIONS D’INSTALLATION DE
LA TABLE DE CUISSON ÉLECTRIQUE
ENCASTRÉE DE 21" (53,3 CM)
Table of Contents/Table des matières
BUILT-IN COOKTOP SAFETY........................................................2
INSTALLATION INSTRUCTIONS ...................................................2
Tools and Parts .............................................................................2
Location Requirements ................................................................2
Electrical Requirements ...............................................................4
Install Cooktop .............................................................................4
Make Electrical Connection .........................................................6
Complete Installation ...................................................................7
SÉCURITÉ DE LA TABLE DE CUISSON ENCASTRÉ..................8
INSTRUCTIONS D’INSTALLATION ...............................................8
Outillage et pièces ........................................................................8
Exigences d’emplacement ...........................................................8
Spécications électriques ..........................................................10
Installation de la table de cuisson ..............................................11
Raccordement électrique ...........................................................12
Achever l’installation ..................................................................13
IMPORTANT:
Installer: Leave installation instructions with the homeowner.
Homeowner: Keep installation instructions for future reference.
Save installation instructions for local electrical inspector’s use.
IMPORTANT :
Installateur : Remettre les instructions d'installation au propriétaire.
Propriétaire : Conserver les instructions d'installation pour référence ultérieure.
Conserver les instructions d'installation pour consultation par l'inspecteur local des
installations électriques.
8286310B
Page 2
BUILT-IN COOKTOP SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don't immediately
DANGER
WARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
follow instructions.
You
can be killed or seriously injured if you don't
instructions.
follow
INSTALLATION INSTRUCTIONS
Tools and Parts
Gather the required tools and parts before starting installation.
Tools needed
■ Tape measure
■ Flat-blade screwdriver
Parts supplied
■ Clamp brackets (2)
■ 2½" (6.4 cm) clamping Screws (2)
Parts needed
■ A UL listed or CSA approved conduit connector
■ UL listed wire nuts
Check local codes. Check existing electrical supply. See
“Electrical Requirements.”
All electrical connections should be made by a licensed,
qualied electrical installer.
■ Marker or pencil
■ Pliers
Location Requirements
Make sure you have everything needed for correct installation. It
is the responsibility of the installer to comply with the installation
clearances specied in these instructions.
IMPORTANT: Observe all governing codes and ordinances.
When installing cooktop, use minimum dimensions given.
■ To eliminate the risk of burns or re by reaching over the
heated surface units, cabinet storage space located above
the surface units should be avoided. If cabinet storage is to
be provided, the risk can be reduced by installing a range
hood that projects horizontally a minimum of 5" (12.7 cm)
beyond the bottom of the cabinets.
■ The cooktop must be a specied cooktop that is approved
to be installed either alone or over an undercounter builtin oven. Check the cooktop burner box for an approved
installation label. If you do not nd this label, contact your
dealer to conrm that your cooktop is approved.
■ Ovens approved for this type of installation will have an
approval label located on the top of the oven. If you do
not nd this label, contact your dealer to conrm that your
oven is approved. Refer to oven manufacturer’s Installation
Instructions for approval for built-in undercounter use and
proper cutout dimensions.
■ When installing cooktop over an undercounter built-in oven,
do not fasten cooktop to countertop with clamps. This
will make the cooktop easier to remove if future servicing
becomes necessary.
■ The cooktop should be installed away from strong draft
areas, such as windows, doors, fans or strong heating vents.
The cooktop should be located for convenient use in the
kitchen.
■ Use the countertop opening dimensions that are given
with these Installation Instructions. Given dimensions are
minimum clearances and provide 0" (0 cm) clearance.
■ Grounded electrical supply is required. See “Electrical
Requirements” section.
2
Page 3
Product Dimensions
D
back edge
rear
rear
counter
B
C
A
A. 16¹⁄₂" (41.9 cm)
B. 21" (53.3 cm)
C. 18" (47.7 cm) overall
D. 2⁷⁄₈" (7.3 cm)
Installation Clearances
A
D
C
B
L
K
F
E
G
H
H
J
A. 21" (53.3 cm) on 21" (53.3 cm) models
B. Combustible area above countertop (shown by dashed box above)
C. 30" (76.2 cm) minimum clearance between top of cooktop
platform and bottom of unprotected wood or metal cabinet (24"
[61 cm] minimum clearance if bottom of wood or metal cabinet is
protected by not less than ¼" [0.6 cm] ame retardant millboard
covered with not less than No. 28 MSG sheet steel,
0.015" [0.04 cm] stainless steel or 0.024" [0.06 cm] aluminum or
0.020" [0.05 cm] copper)
D. 13" (33 cm) recommended upper cabinet depth
E. 3" (7.6 cm)
F. 15½" (34.4 cm) on 21" (53.3 cm) models
G. 18" (45.7 cm) minimum clearance from upper cabinet to
countertop within minimum horizontal clearances to cooktop
H. Junction box or outlet; 12" (30.5 cm) minimum from bottom of
countertop; 10" (25.4 cm) from right side of cabinet
I. 185⁄8" (33.7 cm) on 21" (53.3 cm) models
J. 1" (2.5 cm) minimum distance to nearest left and right side
K. 15⁄16" (3.4 cm) max. counter thickness on 21" (53.3 cm) models.
L. 1" (2.5 cm) minimum clearance between back wall and countertop
combustible surface above cooktop
See following illustration
I
NOTES: After making the countertop cutout, some installations
may require notching down the base cabinet side walls to clear
the burner box. To avoid this modication, use a base cabinet
with sidewalls wider than the cutout.
If cabinet has a drawer, a 3" (7.6 cm) depth clearance from the
countertop to the top of the drawer (or other obstruction) in base
cabinet is required.
When installing a hood above this cooktop, follow the installation
instructions included with the hood itself.
of cabinet or
wall under
top
of cutout
B
A
A. 11/16" (1.7 cm) min.
B. 15/16" (3.4 cm) max.
3
Page 4
Electrical Requirements
WARNING
A
B
C
D
E
Install Cooktop
WARNING
Excessive Weight Hazard
Use two or more people to move and install cooktop.
Failure to do so can result in back or other injury.
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper wire.
Electrically ground cooktop.
Failure to follow these instructions can result in death,
fire, or electrical shock.
If codes permit and a separate ground wire is used, it is
recommended that a qualied electrical installer determine that
the ground path and wire gauge are in accordance with local
codes.
Do not ground to a gas pipe.
Check with a qualied electrical installer if you are not sure the
cooktop is properly grounded.
Do not have a fuse in the neutral or ground circuit.
Make sure that the electrical connection and wire size are
adequate and in conformance with the National Electrical Code,
ANSI/NFPA 70-latest edition or CSA Standards C22.1-94,
Canadian Electrical Code, Part 1 and C22.2 No. O-M91-latest
edition, and all local codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
One Batterymarch Park
Quincy, MA 02269
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
Before You Make the Electrical Connection:
To properly install your cooktop, you must determine the type of
electrical connection you will be using and follow the instructions
provided for it here.
■ A 4-wire or 3-wire, single phase, 240 V, 60 Hz, AC only
electrical supply is required on a separate, 40 A circuit, fused
on both sides of the line.
■ The cooktop should be connected directly to the junction
box through exible, armored or nonmetallic sheathed,
copper cable. The exible, armored cable extending from the
fuse box or circuit breaker box should be connected directly
to the junction box.
■ Locate the junction box to allow as much slack as possible
between the junction box and the cooktop so that the
cooktop can be moved if servicing becomes necessary in
the future.
■ Do not cut the conduit. Use the length of conduit provided.
■ A UL listed or CSA approved conduit connector must be
provided at each end of the power supply cable (at the
cooktop and at the junction box). A listed conduit connector
is already provided at the cooktop.
■ If the house has aluminum wiring, connect the aluminum
wiring to the copper wire by using special connectors
designed and UL listed for joining copper to aluminum.
Follow the electrical connector manufacturer’s recommended
procedure. Aluminum/copper connection must conform with
local codes and industry accepted wiring practices.
1. Remove the shipping materials and tape from the cooktop.
Remove the hardware package from inside the literature bag.
2. Using 2 or more people, place the cooktop upside down on
a protective surface.

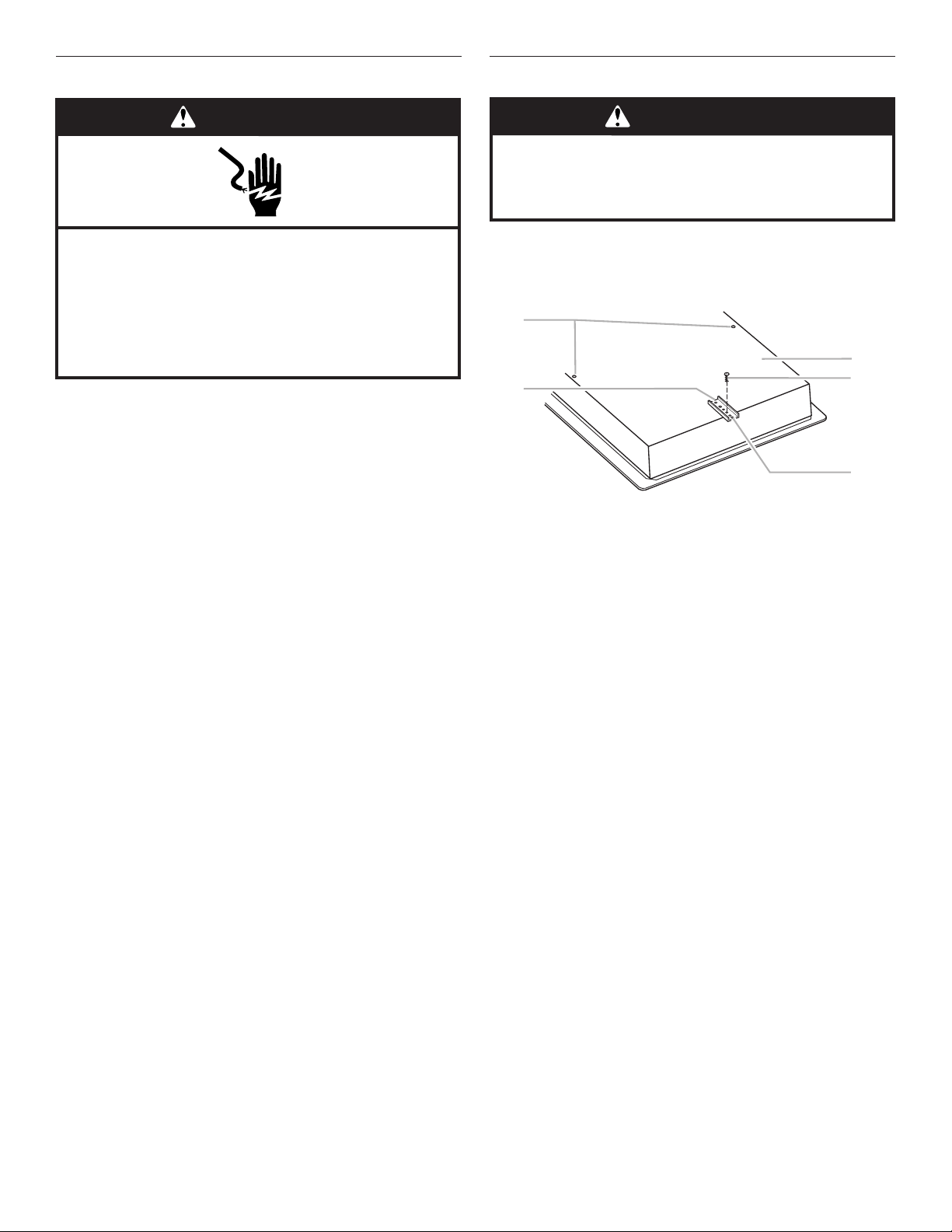

A. Attachment screw holes for optional front and back
location
B. Clamp bracket (end locations recommended)
C. Burner box bottom
D. Attachment screw
E. Attachment screw location (recommended)
3. Two clamp brackets are provided to clamp the cooktop to
the countertop. Install the clamp brackets on each end of the
burner box bottom. If cabinet construction does not provide
clearance for installing brackets at the burner box ends,
install the brackets on the front and back of the burner box
bottom.
NOTE: For lift top models, the brackets may be installed
before or after the cooktop is placed into the cutout.
However, installing the brackets after is not recommended
for lift top models.
4
Page 5

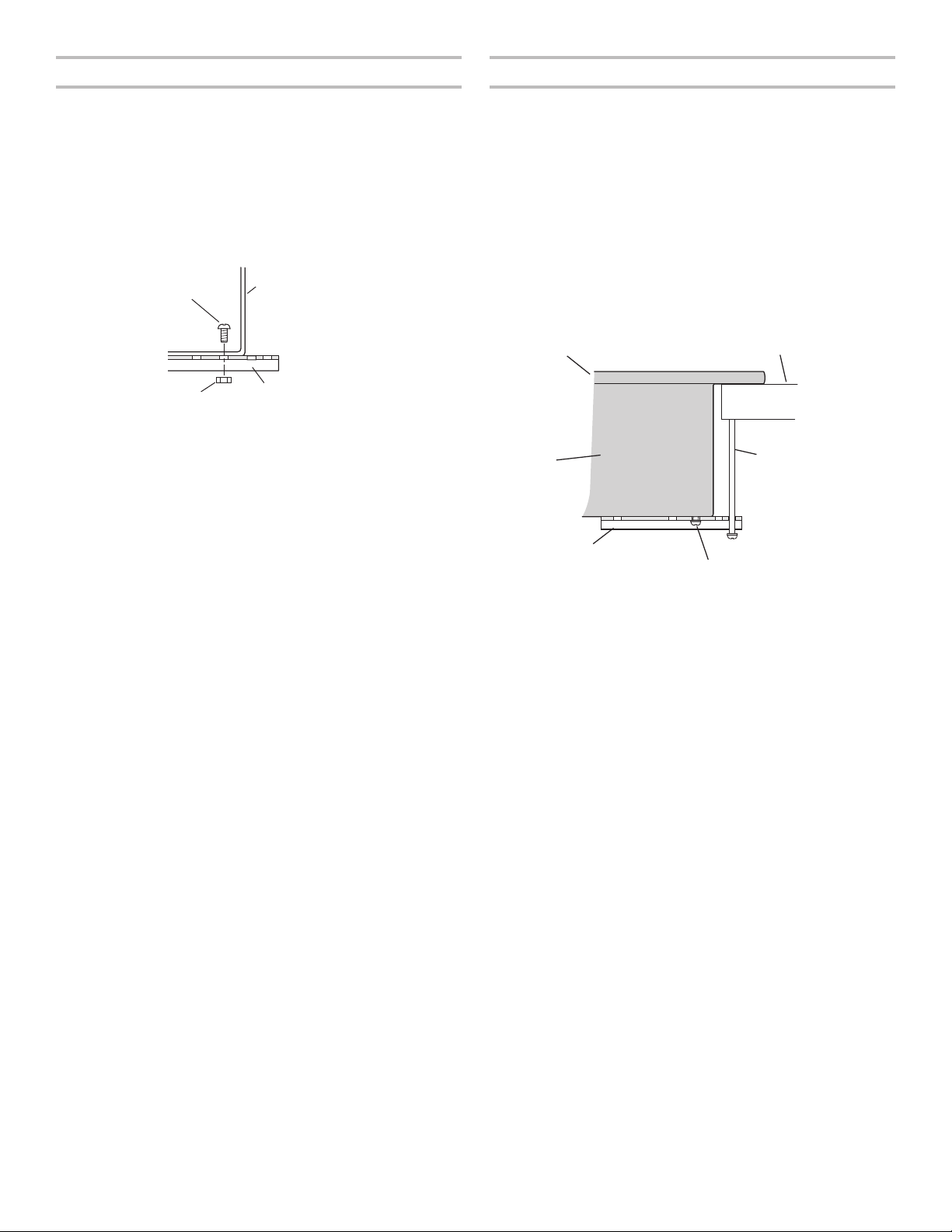

Installing Brackets Before Placing Cooktop in Cutout
F
Installing Brackets After Placing Cooktop in Cutout
Standard Models
1. Remove elements and burner bowls, and place the cooktop
on a protective surface.
2. Remove the attachment screws for the bracket locations
selected from the bottom of the burner box.
3. Use the bracket mounting holes that will allow the clamp
screws to contact the countertop bottom. Attach the
brackets as shown then rotate brackets so that they do not
extend beyond edge of burner box.
B
A
D
A. Nut
B. Screw
C. Burner box
D. Bracket
C
4. Tighten screws enough to hold brackets in place when the
cooktop is put into the cutout.
5. Turn the cooktop right side up. Gently place it into the
cutout.
IMPORTANT: Check that the front edge of the cooktop is
parallel to the front edge of the countertop. If repositioning
is needed, lift entire cooktop up from cutout to prevent
scratching the countertop.
6. Loosen the screws. Rotate the brackets so that they extend
beyond the edge of the burner box. Securely tighten the
screws.
Lift Top Models
1. Place the cooktop right side up on the protective surface.
2. Remove the 2 Phillips round-head screws and hex nuts from
the envelope.
3. Lift top and install round-head screws through the burner
box and brackets so that the screw head is inside the burner
box. Attach the hex nuts against the clamp brackets.
4. Tighten hex nuts enough to hold brackets in place when
cooktop is put into the cutout.
IMPORTANT: Check that the front edge of the cooktop is
parallel to the front edge of the countertop. If repositioning
is needed, lift entire cooktop up from cutout to prevent
scratching the countertop.
5. Loosen the screws. Rotate the brackets so that they extend
beyond the edge of the burner box. Securely tighten the
screws .
NOTE: This method is not recommended for lift top models.
1. Gently place the cooktop into the cutout.
IMPORTANT: Check that the front edge of the cooktop is
parallel to the front edge of the countertop. If repositioning
is needed, lift entire cooktop up from cutout to prevent
scratching the countertop.
2. Remove the attachment screws from the selected bracket
locations on the bottom of the burner box.
3. Attach the brackets as shown so that they are beyond the
edge of the burner box and the clamp screws will contact
the countertop bottom. Tighten screws securely.
1
4. Place the 2
2
⁄
” (6.4 cm) clamping screws into the brackets.
Use a screwdriver to tighten the screws against the
countertop. Do Not Overtighten.
A
B
C
E
D
A. Cooktop
B. Countertop
C. 2½” (6.4 cm)
clamping screw
5. Make electrical connection. See “Make Electrical Connection
section.”
D. Attachment screw
E. Bracket
F. Burner box
5
Page 6

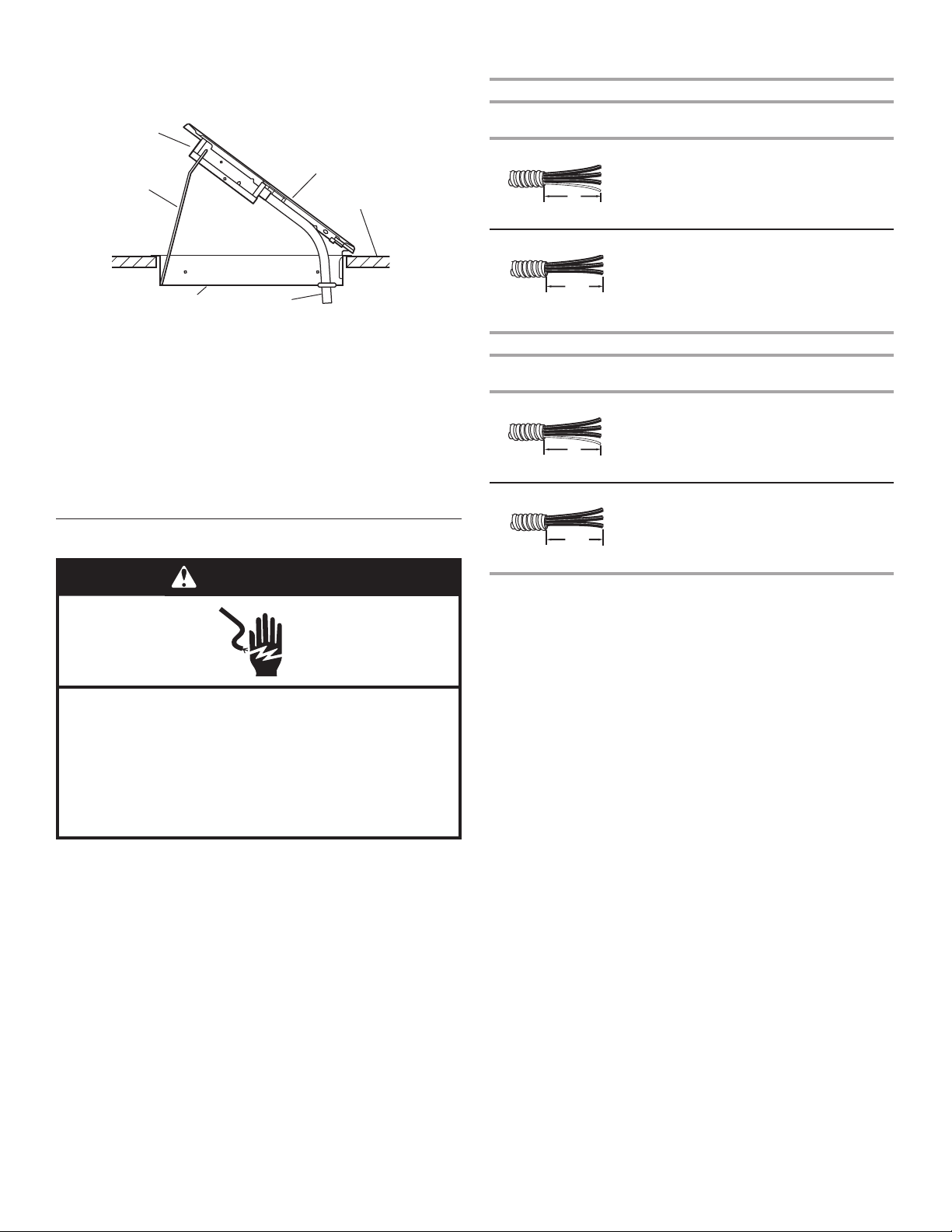

For Lift Top models only:
(12.7 cm)
(8.9 cm)
(12.7 cm)
(8.9 cm)
1. Raise cooktop. This will ensure that enough slack is left after
electrical connection to properly operate the lift top feature
of the cooktop.
A
B
F
C
Electrical Connection Options
For cooktops with a 4-wire cable:
If your home has: And you will be
connecting to:
4-wire direct A fused disconnect
or circuit breaker
box
5"
Go to Section:
4-Wire Cable from
Power Supply to
4-Wire Cable from
Cooktop
E
A. Switch box and cover
B. Cooktop
C. Countertop
D
D. Conduit
E. Burner box
F. Support rod
2. If installing the cooktop over a lower built-in oven, check that
the cooktop lift top feature operates after oven installlation is
complete.
3. Reinstall the elements and burner bowls. Turn on the power
supply.
4. Depending on your model, push in and turn each control
knob to the”HI” position or touch “ON” and turn each
control knob to the “HI” position. Check the operation of the
cooktop elements and indicator lights.
Make Electrical Connection
WARNING
3-wire direct A fused disconnect
or circuit breaker
box
3¹⁄₂"
For cooktops with a 3-wire cable:
If your home has: And you will be
connecting to:
4-wire direct A fused disconnect
or circuit breaker
box
5"
3-wire direct A fused disconnect
or circuit breaker
box
3¹⁄₂"
3-Wire Cable from
Power Supply to
4-Wire Cable from
Cooktop
Go to Section:
4-Wire Cable from
Power Supply to
3-Wire Cable from
Cooktop
3-Wire Cable from
Power Supply to
3-Wire Cable from
Cooktop
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper wire.
Electrically ground cooktop.
Failure to follow these instructions can result in death,
fire, or electrical shock.
This cooktop is manufactured with a frame connected, green or bare
ground wire. Connect the cooktop cable to the junction box through the
UL listed or CSA approved conduit connector.
6
Page 7

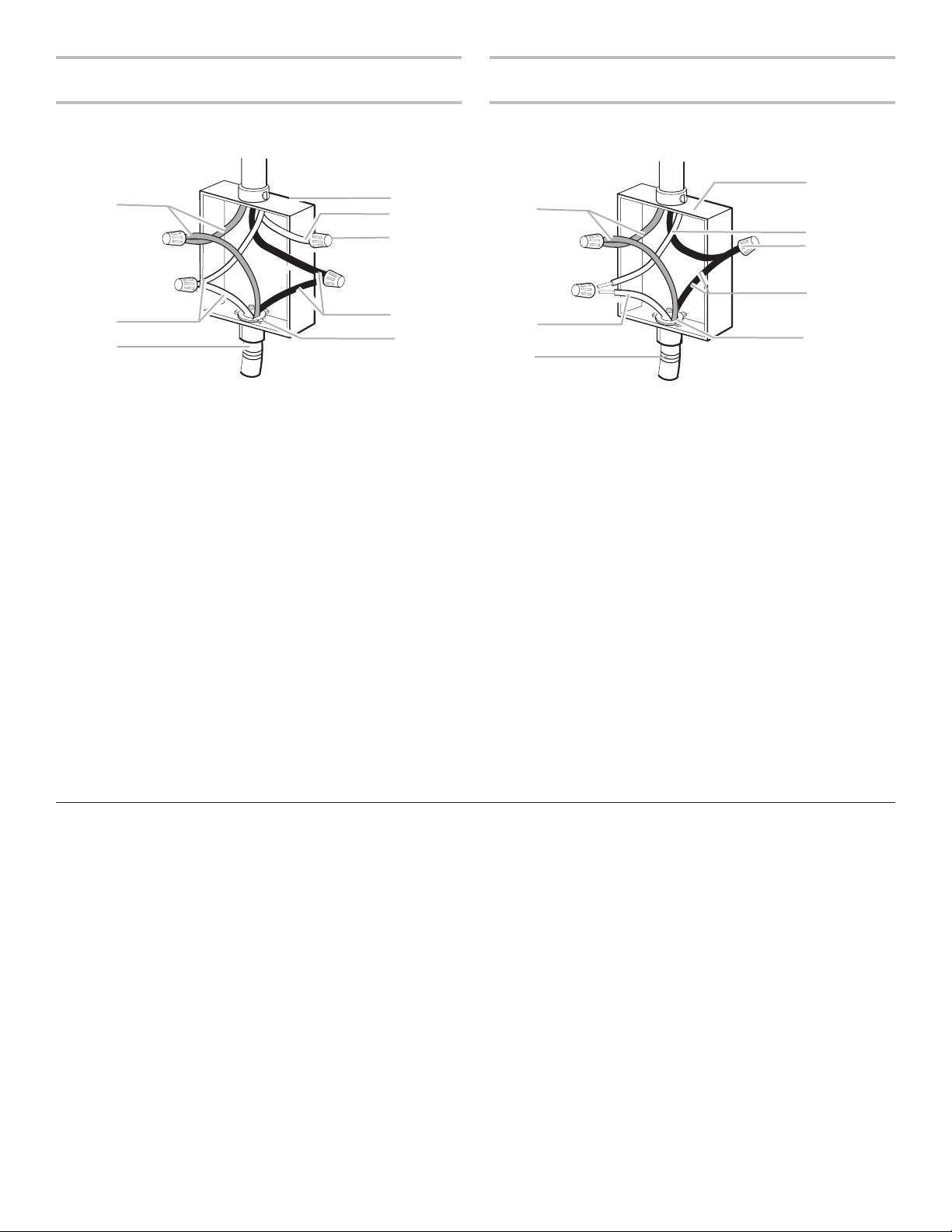

4-Wire Cable from Power Supply to 3-Wire Cable
B
C
D
H
G
G
C
D
H
from Cooktop
3-Wire Cable from Power Supply to 3-Wire Cable
from Cooktop
IMPORTANT: Use the 4-wire cable from power supply where
local codes do not permit connecting the frame-ground
conductor to the neutral (white) junction box wire:
A
E
F
A. Red wires
B. Green or bare ground wire
(from cooktop)
C. 3-Wire cable from cooktop
D. Junction box
E. White wire (from power
supply)
F. UL listed wire nut
G. Black wires
H. UL listed or CSA approved
conduit connector
1. Disconnect power
2. Remove junction box cover if present.
3. Connect the exible cable conduit from the cooktop to the
junction box using a UL listed or CSA approved conduit
connector.
4. Tighten screws on conduit connector, if present.
5. Connect the two black wires together using the UL listed
wire nuts.
6. Connect the two red wires together using the UL listed wire
nuts.
7. Connect the green or bare ground wire from the cooktop
cable to the green or bare ground wire (in the junction box)
using the UL listed wire nuts.
8. Put a UL listed wire nut on the end of the white wire.
NOTE: Do not connect the bare ground wire to the neutral
(white) wire in the junction box.
9. Install junction box cover.
10. Reconnect power.
IMPORTANT: Use the 3-wire cable from power supply where
local codes permit connecting the frame-ground conductor to
the neutral (white) junction box wire:
A
E
F
B
A. Junction box
B. Red wires
C. White wire (from power
supply)
D. Green or bare ground wire
(from cooktop)
E. 3-Wire cable from cooktop
F. Black wires
G. UL listed wire nut
H. UL listed or CSA approved
conduit connector
1. Disconnect power
2. Remove junction box cover, if present.
3. Connect the exible cable conduit from the cooktop to the
junction box using a UL listed or CSA approved conduit
connector.
4. Tighten screws on conduit connector if present.
5. Connect the two black wires together using the UL listed
wire nuts.
6. Connect the two red wires together using the UL listed wire
nuts.
7. Connect the green or bare cooktop cable wires to the white
(neutral) wire in the junction box using the UL listed wire
nuts.
8. Install junction box cover.
9. Reconnect power.
Complete Installation
1. Check that all parts are now installed. If there is an extra
part, go back through the steps to see which step was
skipped.
2. Dispose of/recycle all packaging materials.
3. Use a mild solution of liquid household cleaner and warm
water to remove waxy residue caused by protective
shipping material. Dry thoroughly with a soft cloth. For more
information, see the “Cooktop Care” section of the Use and
Care Guide.
4. Read “Cooktop Use” in the cooktop Use and Care Guide.
NOTE: If the cooktop does not work after turning on the power,
check that a circuit breaker has not tripped or a household fuse
has not blown. See “Troubleshooting” section in the Use and
Care Guide for further information.
If you need Assistance or Service:
Please reference the “Assistance or Service” section of the Use
and Care Guide or contact the dealer from whom you purchased
your cooktop.
7
Page 8
8286310B
©2018 All rights reserved. Used under license in Canada.
Tous droits réservés. Utilisé sous licence au Canada.
11/18
Loading...
