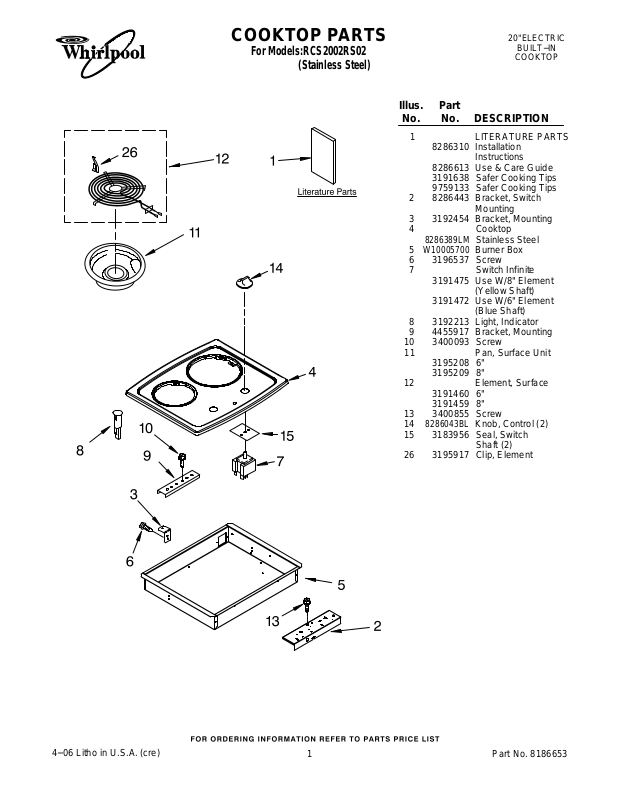

COOKTOP PARTS
For Models:RCS2002RS02
(Stainless Steel)
20"ELECTRIC
BUILT−IN
COOKTOP
Illus. Part
No. No. DESCRIPTION
1 LITERATURE PARTS
8286310 Installation
Instructions
8286613 Use & Care Guide
3191638 Safer Cooking Tips
9759133 Safer Cooking Tips
2 8286443 Bracket, Switch
Mounting
3 3192454 Bracket, Mounting
4 Cooktop
8286389LM
W10005700
5
6 3196537 Screw
7 Switch Infinite
3191475 Use W/8" Element
3191472 Use W/6" Element
8 3192213 Light, Indicator
9 4455917 Bracket, Mounting
10 3400093 Screw
11 Pan, Surface Unit
3195208 6"
3195209 8"
12 Element, Surface
3191460 6"
3191459 8"
13 3400855 Screw
8286043BL
14
15 3183956 Seal, Switch
26 3195917 Clip, Element
Stainless Steel
Burner Box
(Yellow Shaft)
(Blue Shaft)
Knob, Control (2)
Shaft (2)
4−06 Litho in U.S.A. (cre)
1
Part No. 8186653
OPTIONAL PARTS
For Models:RCS2002RS02
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
FOLLOWING PARTS
NOT ILLUSTRATED
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150
242820 Wire, Black
14 Ga. 150
242821 Wire, Blue
14 Ga. 150
242822 Wire, Brown
14 Ga. 150
242830 Wire, Brown
14 Ga. 200
242823 Wire, Green
14 Ga. 150
242824 Wire, Orange
14 Ga. 150
242829 Wire, Red
12 Ga. 150
242825 Wire, Red
14 Ga. 150
242831 Wire, Red
14 Ga. 200
242826 Wire, White
14 Ga. 150
242827 Wire, Yellow
14 Ga. 150
242832 Wire, Yellow
14 Ga. 200
C
C
C
C
C
C
C
C
C
C
C
C
C
WIRING HARNESS PARTS
Wiring Harness Parts
8286437 Harness, Wiring
(Main)
3177991 Screw
W10005710
3196160 Screw (3)
3196160 Screw
313438 Clip
W10005720
3400843 Screw
4454384 Ground Wire
3400015 Screw
4455805 Grommet, Harness
Bracket, Harness
Cover
Cord, Power
2
8186653
