Page 1

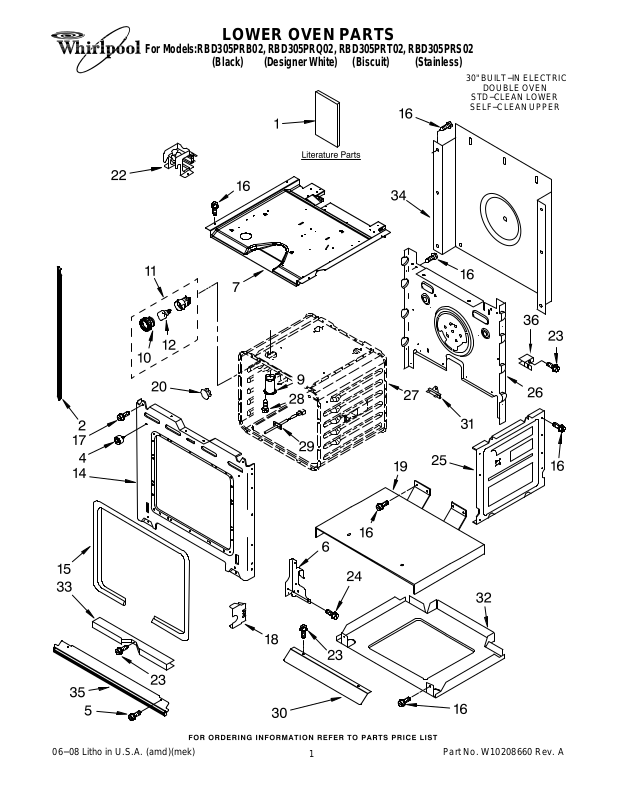

LOWER OVEN PARTS
For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02
(Black) (Designer White) (Biscuit) (Stainless)
30" BUILT−IN ELECTRIC
DOUBLE OVEN
STD−CLEAN LOWER
SELF−CLEAN UPPER
06−08 Litho in U.S.A. (amd)(mek)
1
Part No. W10208660 Rev. A
Page 2
LOWER OVEN PARTS
For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02
(Black) (Designer White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8303647 Installation
Instructions
W10162170
8302068 Tech Sheet
9762761 English
W10065852
2 Trim, Side
W10136098
W10136100
W10136102
W10166949
W10136099
W10136101
W10136103
W10166948
4
W10105790
5 Screw
3400832 Black
3400805 Zinc
Use & Care Guide
Safer Cooking Tips
French
Right
Black
White
Biscuit
Stainless
Left
Black
White
Biscuit
Stainless
Bumper, Door
Illus. Part
No. No. DESCRIPTION
6 Receiver, Hinge
4455606 Right
4455605 Left
7 8303099 Top Chassis
9 4452159 Tube, Vent
W10067870
10
11
W10009930
12 4452166 Bulb, Light
W10130368
14
15 4450493 Gasket, Door
16 4449809 Screw
17 4449040 Screw
18 4452152 Bracket, Bottom
19 4451478 Support, Insulation
20 4450935 Plug, Door
22 4451664 Assembly, Fan &
23 4449154 Screw
24 4449743 Screw
25 4455641 Side, Chassis
W10161110
26
Lens, Light
Assembly, Light
Frame, Front
Vent Mounting
Bracket
Back, Chassis
Illus. Part
No. No. DESCRIPTION
27 Liner, Oven
(Not serviceable)
28 3196176 Screw
W10131825
29
30 9760677 Deflector, Vent
31 4451354 Fuse, Thermal
32 9759713 Base, Chassis
33 4448933 Retainer, Gasket
34 4451747 Cover, Back
35 Trim, Bottom
8303583 Black
8303584 White
8303585 Biscuit
8303582 Stainless
36 4449845 Support, Bracket
Sensor
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back
2
W10208660
Page 3
UPPER OVEN PARTS
For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02
(Black) (Designer White) (Biscuit) (Stainless)
W10208660
3
Page 4
UPPER OVEN PARTS
For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02
(Black) (Designer White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Receiver, Hinge
4455606 Right
4455605 Left
2 4448444 Grommet, Mounting
Rail
W10105790
4
5 4449743 Screw
6 3196176 Screw
7 8303099 Top Chassis
9 4452158 Tube, Vent
W10067870
10
11
W10009930
12 4452166 Bulb, Light
W10130368
14
15 4455382 Gasket, Door
16 4449809 Screw
17 4449040 Screw
19 4451478 Support, Insulation
21 Rail, Side
8302793 Right
8302794 Left
23 4449154 Screw
24 9760888 Assembly, Latch
25 4455641 Side, Chassis
26 4452233 Back, Chassis
27 Liner, Oven
W10131825
28
29 4452267 Vent, Center
30 9759243 Thermostat
31 4448933 Retainer, Gasket
32 4451747 Cover, Back
33 4449845 Support, Bracket
Bumper, Door
Lens, Light
Assembly, Light
Frame, Front
(Not serviceable)
Sensor
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back
4
W10208660
Page 5
LOWER OVEN DOOR PARTS
For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02
(Black) (Designer White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8303700 Liner, Door
2 4449259 Glass, Inner
3 9759743 Retainer, Glass
4 Hinge, Door
9760565 Right
9760566 Left
(SS Model Only)
9760567 Right
9760568 Left
W10208660
Illus. Part
No. No. DESCRIPTION
5 Assembly, Door
Glass
8303330 Black
8303339 White
8303342 Biscuit
8303314 Stainless
6 Door Handle
8302813 Black
8302814 White
8302815 Biscuit
5
Illus. Part
No. No. DESCRIPTION
W10136473
7
8 Retainer, Door
8303389BL
8303389WH
8303389BT
9 4451040 Screw
10 8303878 Seal, Door
11 4451432 Retainer, Clip
12 4448520 Bumper, Door
Bracket, Handle
Black
White
Biscuit
Page 6
UPPER OVEN DOOR PARTS
For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02
(Black) (Designer White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8303700 Liner, Door
2 Hinge, Door
9760571 Right
9760572 Left
(SS Model Only)
9760573 Right
9760574 Left
3 4449259 Glass, Inner
4 4451722 Insulation, Door
5 4457132 Retainer, Glass
6 4448520 Bumper, Door
7 9759225 Glass, Inner
Illus. Part
No. No. DESCRIPTION
11 3400832 Screw
12 Assembly, Door
Glass
8303330 Black
8303339 White
8303342 Biscuit
8303314 Stainless
13 Door Handle
8302813 Black
8302814 White
8302815 Biscuit
W10136473
14
Bracket, Handle
6
Illus. Part
No. No. DESCRIPTION
15 9759229 Bracket(2nd Glass)
16 9759230 Bracket(3rd Glass)
17 8303811 Nameplate
18 Retainer, Door
8303389BL
8303389WH
8303389BT
19 4457103 Shield, Heat
20 4451040 Screw
21 8303878 Seal, Door
22 4457114 Shield, Heat (Btm)
23 4451432 Retainer, Clip
24 9759228 Glass, Inner
Black
White
Biscuit
W10208660
Page 7

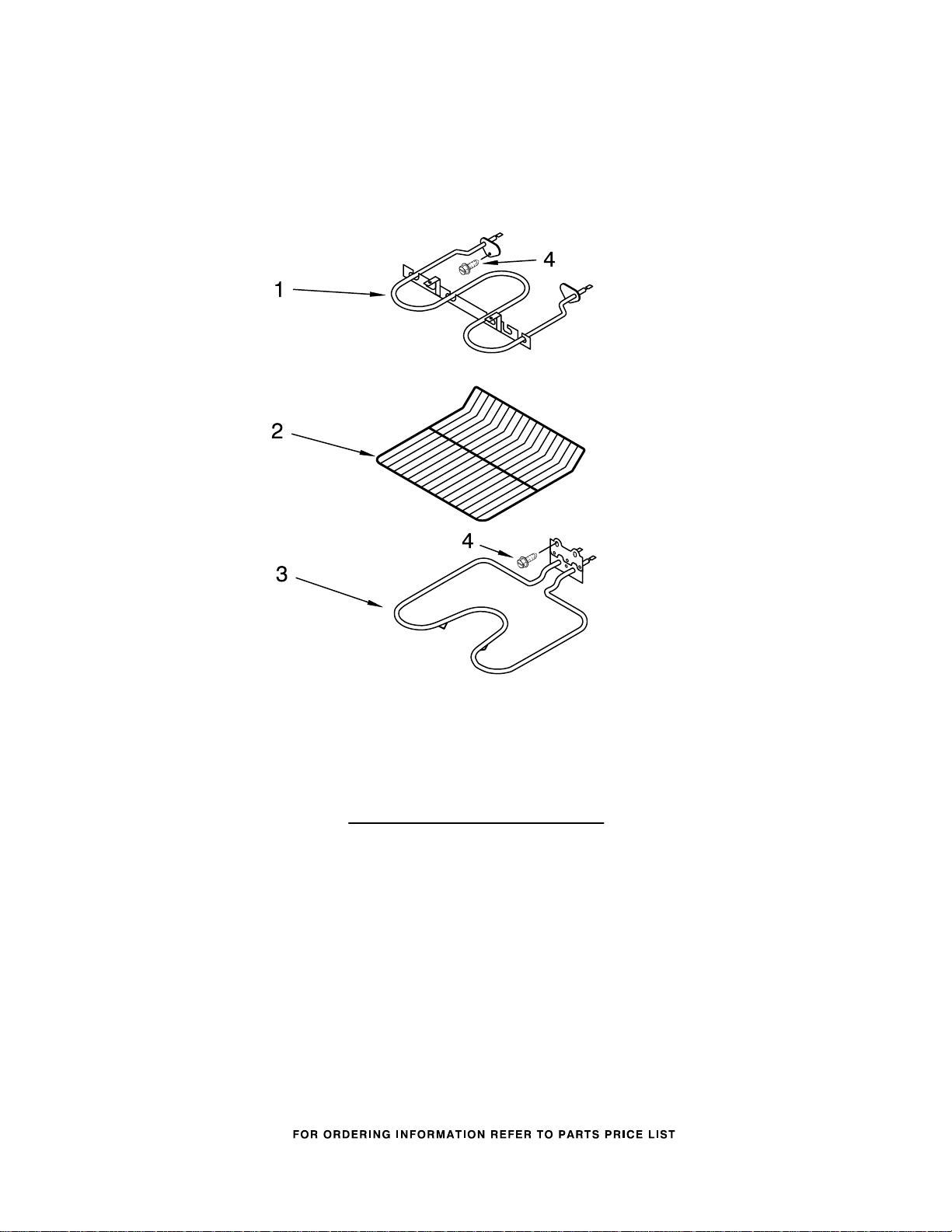

INTERNAL OVEN PARTS
For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02
(Black) (Designer White) (Biscuit) (Stainless)
W10208660
Illus. Part
No. No. DESCRIPTION
1 9760771 Element, Broil
2 4448717 Rack, Oven
3 9760766 Element,
Conventional Bake
4 4449154 Screw
7
Page 8
CONTROL PANEL PARTS
For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02
(Black) (Designer White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Control Panel
8302848 Black
8302849 White
8302850 Biscuit
2 Membrane Switch
8304275 Black
8304276 White
8304277 Biscuit
3 8303883 Microcomputer
W10153086
4
5 8301848 Board, Latch
6 4449745 Screw
W10166944
7
Backer, Control
Panel
Trim, Control
Panel (Stainless
Model Only)
8
W10208660
Page 9
TOP VENTING PARTS
For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02
(Black) (Designer White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 4451759 Vent, Exhaust
2 Blower
4457289 65mm (Upper)
W10016550
3 4451758 Foam, Block
4 4455178 Elbow, Vent Top
5 4455177 Elbow, Vent Bottom
6 4449809 Screw
W10208660
45mm (Lower)
Illus. Part
No. No. DESCRIPTION
7 4449040 Screw
8 3400080 Screw
9 4450038 Screw
11 4449868 Block, Terminal
13 8303497 Vent, Control
Panel
14 Side, Control Top
4451597 Right
4451598 Left
9
Illus. Part
No. No. DESCRIPTION
15 9759135 Back, Control
16 4450551 Cover, Top Rear
17 4448664 Clamp
18 4452367 Cover, Top Front
19 4454943 Plate, Fan
20 8302143 Suppressor
21 9760587 Transformer
Page 10
OPTIONAL PARTS
For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02
(Black) (Designer White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
Illus. Part
No. No. DESCRIPTION
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242827 Wire (14 Ga.
150 c Yellow)
Illus. Part
No. No. DESCRIPTION
WIRING HARNESS PARTS
8302154 Harness, Main
4452400 Lead, Ground
Strap
4450953 Conduit, Double
4450800 Screw
98997 Clip
4448664 Clamp
4449809 Screw
7103P027−60
4454835 Tie, Cable
4451761 Support, Wiring
4454842 Tie, Cable
Nut, Terminal
Block
Miscellaneous
4448950 Screw, Install.
10
W10208660
