Whirlpool RBD245PR User Manual
B.29" (73.7
a
o
a
r
PRODUCT MODEL SERIES OVERALL DIMENSIONS
CABINET OPENING DIMENSIONS
RBD245PR
RBS245PR
Electrical: Oven must be connected to the
proper electrical voltage and frequency as
specified on the model/serial number rating plate.
(The model/serial number rating plate is located on
the oven door or on the oven frame.) Models rated
from 7.3 to 9.6 kW at 240 volts (5.5 to 7.2 kW at
208 volts) require a separate 40-amp circuit.
Models rated at 7.2 kW and below at 240 volts
(5.4 kW and below at 208 volts) require a separate
30-amp circuit.
A time-delay fuse or circuit breaker is
recommended. Connect directly to the fused
disconnect (or circuit breaker box) through
flexible, armored or nonmetallic sheathed, copper
cable (with grounding wire).
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 8303871A
02-22-07

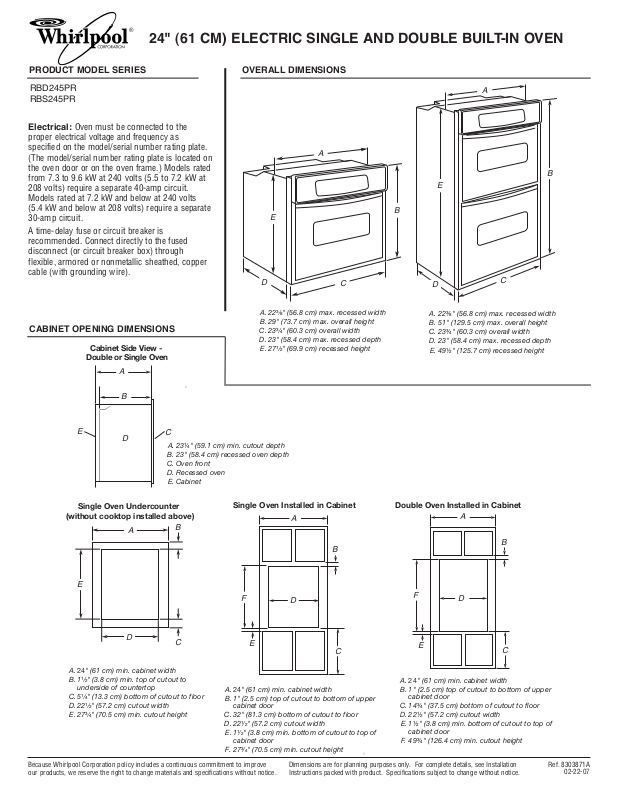

24" (61 CM) ELECTRIC SINGLE AND DOUBLE BUILT-IN OVEN
®
Cabinet Side View -
Double or Single Oven
A
A
E
D
A. 22³⁄₈ " (56.8 cm) max. recessed width
B. 29" (73.7 cm) max. overall height
C. 23³⁄₄ " (60.3 cm) overall width
D. 23" (58.4 cm) max. recessed depth
cm) m
E. 27 ¹⁄₂ " (69.9 cm) recessed height
C. 23³⁄₄ " (60.3 cm)
D. 23" (58.4 cm) m
E. 27 ¹⁄₂ " (69.9 cm)
C
A
B
E
B
D
A. 22³⁄₈ " (56.8 cm) max. recessed width
B. 51" (129.5 cm) max. overall height
C. 23³⁄₄ " (60.3 cm) overall width
D. 23" (58.4 cm) max. recessed depth
E. 49 ¹⁄₂ " (125.7 cm) recessed height
C
B
E
D
Single Oven Undercounter
(without cooktop installed above)
A
C
A. 23 ¹⁄₄ " (59.1 cm) min. cutout depth
B. 23" (58.4 cm) recessed oven depth
C. Oven front
D. Recessed oven
E. Cabinet
Single Oven Installed in Cabinet
B
E
F
D
A. 24" (61 cm) min. cabinet width
B. 1 ¹⁄₂ " (3.8 cm) min. top of cutout to
underside of countertop
C. 5 ¹⁄₄ " (13.3 cm) bottom of cutout to floor
D. 22¹⁄₂ " (57.2 cm) cutout width
E. 27 ³⁄₄ " (70.5 cm) min. cutout height
C
E
A. 24" (61 cm) min. cabinet width
B. 1" (2.5 cm) top of cutout to bottom of upper
cabinet door
C. 32" (81.3 cm) bottom of cutout to floor
D. 22¹⁄₂ " (57.2 cm) cutout width
E. 1 ¹⁄₂ " (3.8 cm) min. bottom of cutout to top of
cabinet door
F. 2 7 ³⁄₄ " (70.5 cm) min. cutout height
Double Oven Installed in Cabinet
A
B
D
C
F
E
A. 24" (61 cm) min. cabinet width
B. 1" (2.5 cm) top of cutout to bottom of upper
cabinet door
C. 14 ³⁄₄ " (37.5 cm) bottom of cutout to floor
D. 22¹⁄₂ " (57.2 cm) cutout width
E. 1 ¹⁄₂ " (3.8 cm) min. bottom of cutout to top of
cabinet door
F. 49 ³⁄₄ " (126.4 cm) min. cutout height
A
B
D
C
