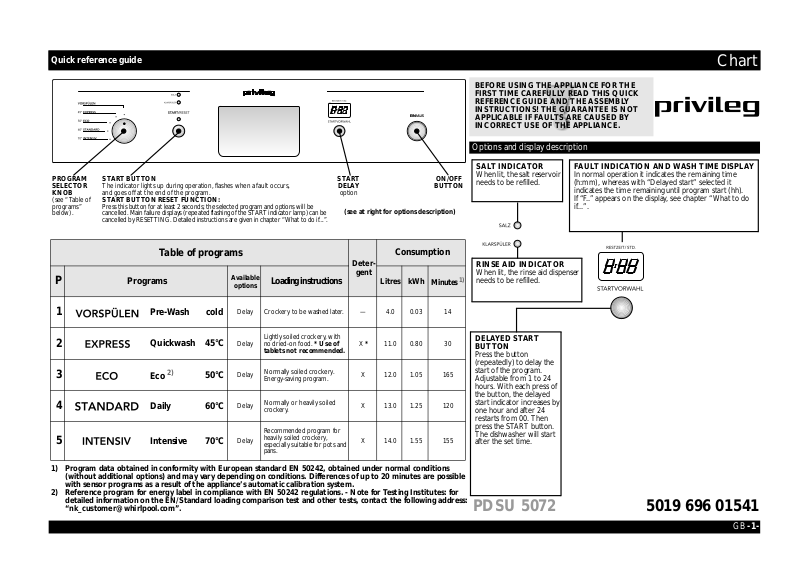

Whirlpool PDSU 5072 W, PDSU 5072 A PROGRAM CHART

Quick reference guide

PROGRAM SELECTOR KNOB

(see “Table of programs” below).

START BUTTON

The indicator lights up during operation, flashes when a fault occurs, and goes off at the end of the program.

START BUTTON RESET FUNCTION:

Press this button for at least 2 seconds; the selected program and options will be cancelled. Main failure displays (repeated flashing of the START indicator lamp) can be cancelled by RESETTING. Detailed instructions are given in chapter “What to do if...”.

START DELAY

option

(see at right for options description)

ON/OFF

BUTTON

BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY READ THIS QUICK REFERENCE GUIDE AND THE ASSEMBLY INSTRUCTIONS! THE GUARANTEE IS NOT APPLICABLE IF FAULTS ARE CAUSED BY INCORRECT USE OF THE APPLIANCE.

Options and display description

SALT INDICATOR

When lit, the salt reservoir needs to be refilled.

FAULT INDICATION AND WASH TIME DISPLAY

In normal operation it indicates the remaining time (h:mm), whereas with “Delayed start” selected it indicates the time remaining until program start (hh). If “F..” appears on the display, see chapter “What to do if...”.

Chart

Table of programs

Deter-

gent

X*11.0 0.80 30

50°C

Available

options

Loading instructions

Delay Crockery to be washed later. — 4.0 0.03 14

Lightly soiled crockery, with

Delay

no dried-on food.

tablets not recommended.

Normally soiled crockery.

Delay

Energy-saving program.

Normally or heavily soiled

Delay

crockery.

Recommended program for heavily soiled crockery ,

Delay

especially suitable for pots and pans.

* Use of

1) Program data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programs as a result of the appliance’s automatic calibration system.

2) Reference program for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the EN/Standard loading comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.

Programs

Pre-Wash cold

Quickwash 45°C

Eco

Daily 60°C

Intensive 70°C

Consumption

Litres kWh

X 12.0 1.05 165

X 13.0 1.25 120

X 14.0 1.55 155

Minutes

RINSE AID INDICATOR

When lit, the rinse aid dispenser

needs to be refilled.

DELAYED START BUTTON

Press the button (repeatedly) to delay the start of the program. Adjustable from 1 to 24 hours. With each press of the button, the delayed start indicator increases by one hour and after 24 restarts from 00. Then press the START button. The dishwasher will start after the set time.

5019 696 01541PDSU 5072

-1-

How to set detergent type: powder/gel/tablet (if option is available)

First time use

In order to always ensure the best cleaning results, you NEED to set: DETERGENT type and WATER HARDNESS.

1- salt reservoir 2- rinse aid dispenser 3- detergent dispenser 4- racks system 5,6,7,8- available functions on the panel 9- filters 10- spray arms

Select 3rd program (see Table of progr ams - page

Press START button for 7 seconds

3a.

Check your detergent type...

Detergent

types

Powder or gel

(factory setting)

Tablet 2 in 1

Tablet 3 in 1

Tablet All in 1

For models without “detergent type” option, the salt and rinse aid indicators will be lit when tablets are used.

How to set water hardness

Switch on the appliance

* only before the first wash or if the water hardness has been changed

Ask your water supply company what the

German

degrees °dH

0 - 5 0 - 9 0 - 6.3 Soft 1 1x

6 - 10 10 - 18 7 - 12.6 Medium 2 2x 11 - 15 19 - 27 13.3 - 18.9 Average 3 3x 16 - 21 28 - 37 19.6 - 25.9 Medium-hard 4 4x 22 - 28 38 - 50 26.6 - 35 Hard 5 5x 29 - 35 51 - 63 35.7 - 44.1 Very hard 6 6x

36 - 60 64 - 107 44.8 - 74.9

French

degrees °fH

English

degrees °eH

- Select the 2nd program “P2” - consult the table of programs.

- Press the START button for at least 5 seconds until the START indicator lamp flashes.

- The water hardness setting is shown on the display (if present) or the START button flashes.

- With each successive touc h of the START button the setting increases and when it reaches 7 it returns to 1 again.

- The appliance must be switched off to memorise the new setting.

water hardness

is...2....enter this value on your

dishwasher

Water

hardness

Extremely

hard

Dishwasher

with display:

insert value in

the display

7 7x

3b.

...and set it on your dishwasher

using the START button

(as per table below)

Dishwasher models

model without

display

3h 6h 9h

Dishwasher

without

display: count

START button

led flashes

model with display

Suggestions for detergent use

Gel or Powder

(rinse aid and

salt)

go to step 1

(see “Daily

check”)

Remember to use salt and rinse aid when needed (as indicated below)

no symbol add salt add rinse aid

add salt

salt

Tablets

rinse aid

Water hardness level is factory set for medium hard water (a number “4” is shown on the display or the START indicator lamp flashes 4 times).

if extra salt is needed go to

step 1

(see “Daily

check”)

Even if you use tablets which include salt, you must still add salt since such detergents are not effective enough at softening hard water.

Switch off and switch on again to save setting

-2-

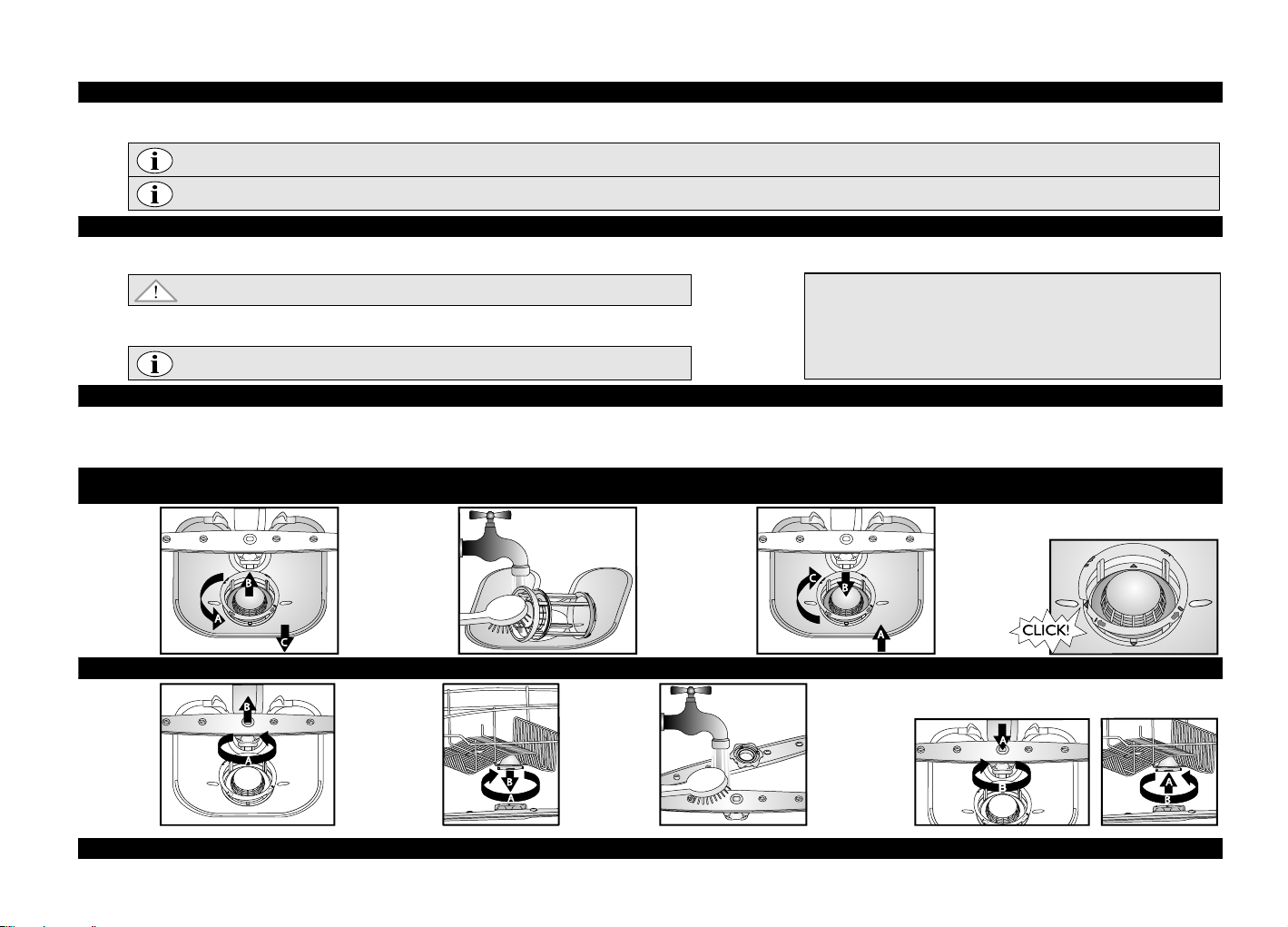

Filling the salt reservoir -

Dissolve limescale (not necessary if water hardness level is set to “soft”!)

Daily check

The salt level indicator lamp may remain lit for the duration of several wash cycles. If the water hardness level falls within category (soft),

Adding rinse aid

(not necessary when you use tablets). How to adjust the rinse aid dosage regulator

Rinse aid indicator (depending on model)

Only use rinse aids recommended for use in domestic dishwashers. If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly d ry : incr e a s e the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid

setting will not improve the situation. Detergents with rinse aid incorporated may be effective only with longer programs. In the case of shorter programs, detergent residue may be a problem (if necessary , use powder detergent). Detergents with rinse aid incorporated tend to form

excess suds.

Adding detergent -

Visual indicator (depending on model). Unscrew cap.

Visual indicator

If required, open the cover B (press right button).

salt is required.

The indicator lamp on the control panel lights up when RINSE AID NEEDS TO BE ADDED.

Immediately

Fill the salt reservoir with water before the first wash only.

Salt indicator

(depending on

the model)

Add rinse aid to the max. line ~150 ml

wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.

The indicator lamp on the control panel lights up when SALT NEEDS TO BE ADDED.

Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations

Tablet / gel / powder

Use only one tablet per one

Open the cover A (press left button).

Only fill the detergent dispenser prior to starting a wash program.

cycle, only placed in detergent dispenser.

All types of tablets can be used, but for 2 in 1 type adding of salt is mandatory.

Add salt

(never add detergent!). min. 1.5 kg

max. 2 kg

orange: OK. clear: NEEDS TO BE ADDED

The rinse aid dosage can be adjusted to the detergent used. The lower the setting, the less rinse aid is dispensed (factory setting: position 4). Press the button to open the cover B. Using a coin or similar object, turn the arrow to the desired setting. After adjusting the rinse aid setting, shut the cover again.

dark: OK. clear: NEEDS TO BE ADDED

By pressing dedicated ribs shut the cover.

Visual indicator (depending on model). Screw on the cap. Salt residues around cap need to be removed.

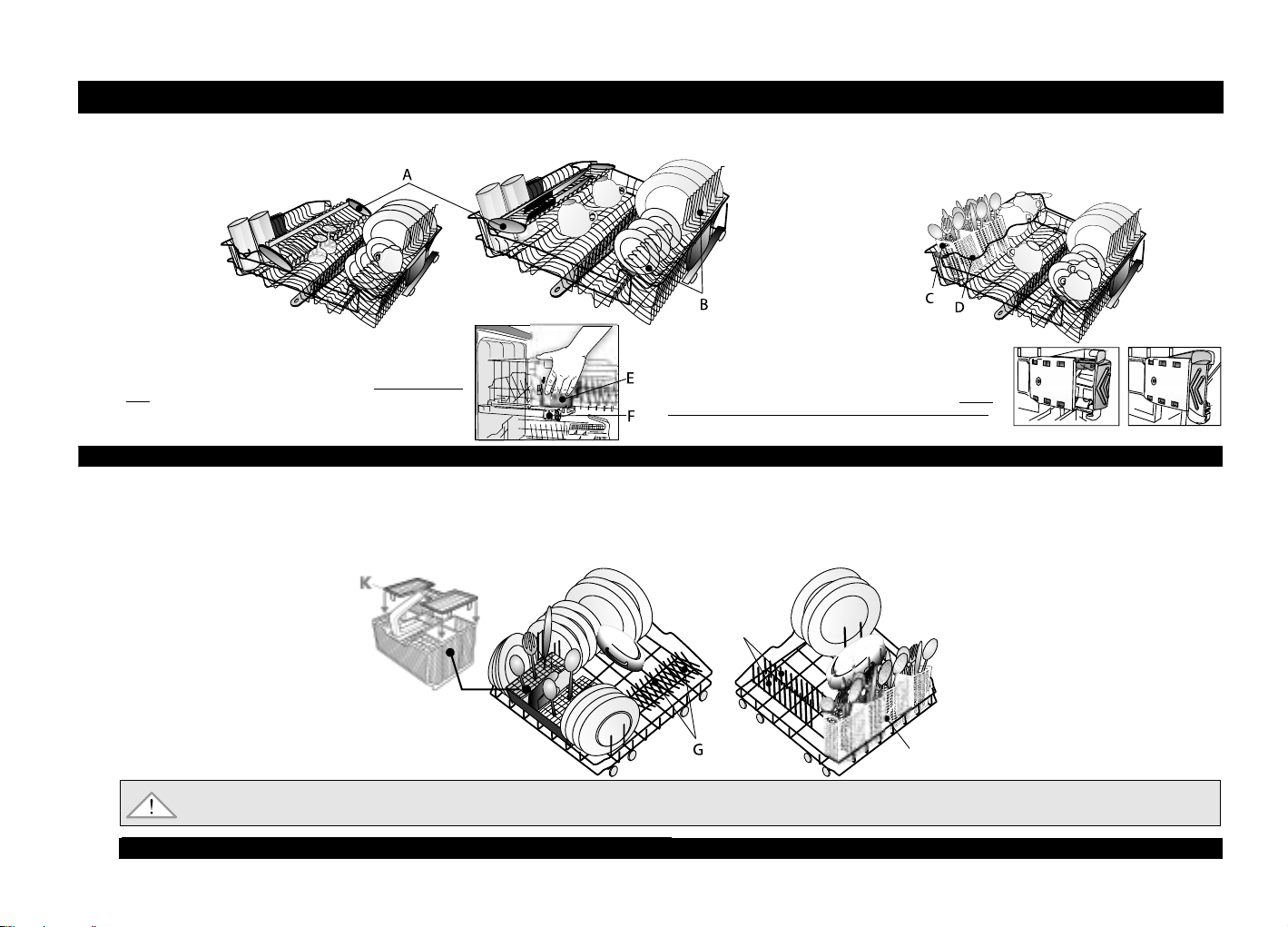

Daily use

-3-
