Whirlpool MW-SL/60, MWC-SL/60, MW-SL/60 BL, MW-SL/60-C, MWC-SL/60-C INSTALLATION

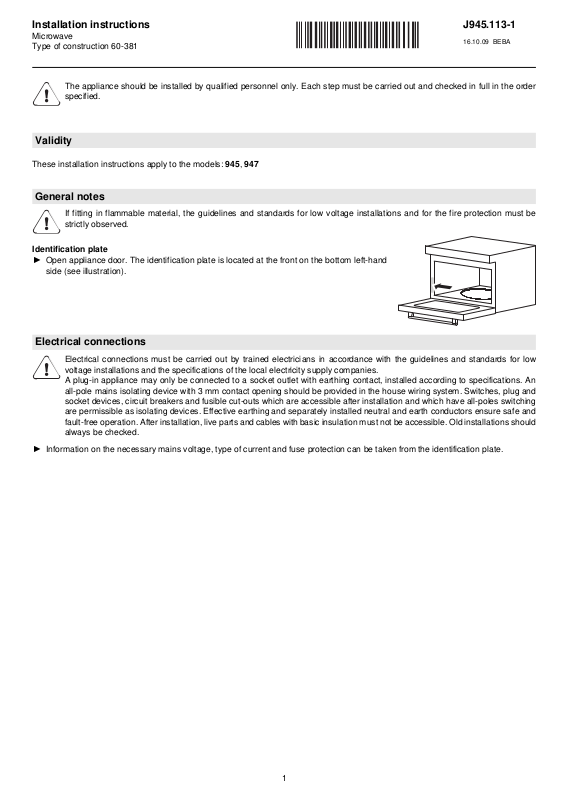

Installation instructions
Microwave
Type of construction 60-381
The appliance should be installed by qualified personnel only. Each step must be carried out and checked in full in the order
specified.
Validity
These installation instructions apply to the models: 945, 947
General notes
If fitting in flammable material, the guidelines and standards for low voltage installations and for the fire protection must be
strictly observed.
Identification plate
A Open appliance door. The identification plate is located at the front on the bottom left-hand
side (see illustration).
J945.113-1
16.10.09 BEBA
Electrical connections
Electrical connections must be carried out by trained electricians in accordance with the guidelines and standards for low
voltage installations and the specifications of the local electricity supply companies.
A plug-in appliance may only be connected to a socket outlet with earthing contact, installed according to specifications. An
all-pole mains isolating device with 3 mm contact opening should be provided in the house wiring system. Switches, plug and
socket devices, circuit breakers and fusible cut-outs which are accessible after installation and which have all-poles switching
are permissible as isolating devices. Effective earthing and separately installed neutral and earth conductors ensure safe and
fault-free operation. After installation, live parts and cables with basic insulation must not be accessible. Old installations should
always be checked.
A Information on the necessary mains voltage, type of current and fuse protection can be taken from the identification plate.
1
Installation instructions
Microwave
Type of construction 60-381
Installation
It is not possible to install the appliance above an extractor oven because of the extraction pipes that lead upwards.
Installing
597
J945.113-1
16.10.09 BEBA
Detail X
X
545
20
~85˚
378
1. Place appliance in front of the niche and insert the mains plug.
2. Carefully slide appliance into the niche until it is flush with the front of the cabinets, ensuring that the mains cable is not pinched.
3. Open appliance door and fasten the sides from the front with the 4 enclosed screws S.
~45
300
S
445
(470)
S
374
min. 550
560–568
600
=
=
374
378
50
Niche
Appliance
Installing with a oven in the same niche
If a oven is installed in the same niche (above or below the appliance), you should use bracket set 60 W to support the upper
appliance.
Below the oven Above the oven
EURO 594
SMS 1143
EURO 974
EURO 380
SMS 762
SMS 381
50
560–568
W
min. 550
EURO 374
SMS 1143
EURO 974
EURO 600
2
SMS 381
SMS 762
50
W
560–568
min. 550
4619-694-78231
