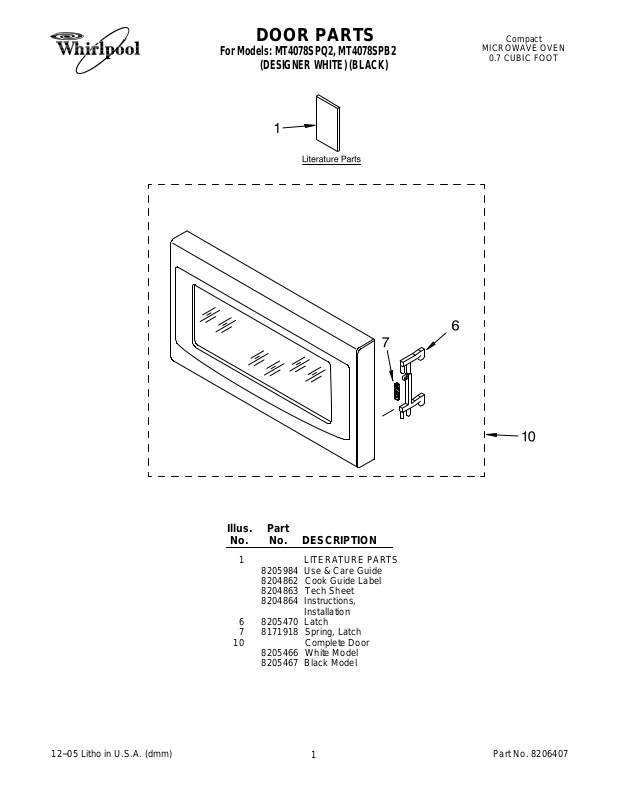

DOOR PARTS
For Models: MT4078SPQ2, MT4078SPB2
(DESIGNER WHITE) (BLACK)
Compact
MICROWAVE OVEN
0.7 CUBIC FOOT
12−05 Litho in U.S.A. (dmm)
Illus. Part
No. No. DESCRIPTION
1 LITERATURE PARTS
8205984 Use & Care Guide
8204862 Cook Guide Label
8204863 Tech Sheet
8204864 Instructions,
Installation
6 8205470 Latch
7 8171918 Spring, Latch
10 Complete Door
8205466 White Model
8205467 Black Model
1
Part No. 8206407
Page 2
CONTROL PANEL PARTS
For Models: MT4078SPQ2, MT4078SPB2
(DESIGNER WHITE) (BLACK)
Illus. Part
No. No. DESCRIPTION
4 Key Membrane
8205468 White Model
8205469 Black Model
5 Control Panel
8205471 White Model
8205472 Black Model
6 8205473 Microcomputer
10 4358883 Screw
2
8206407
Page 3

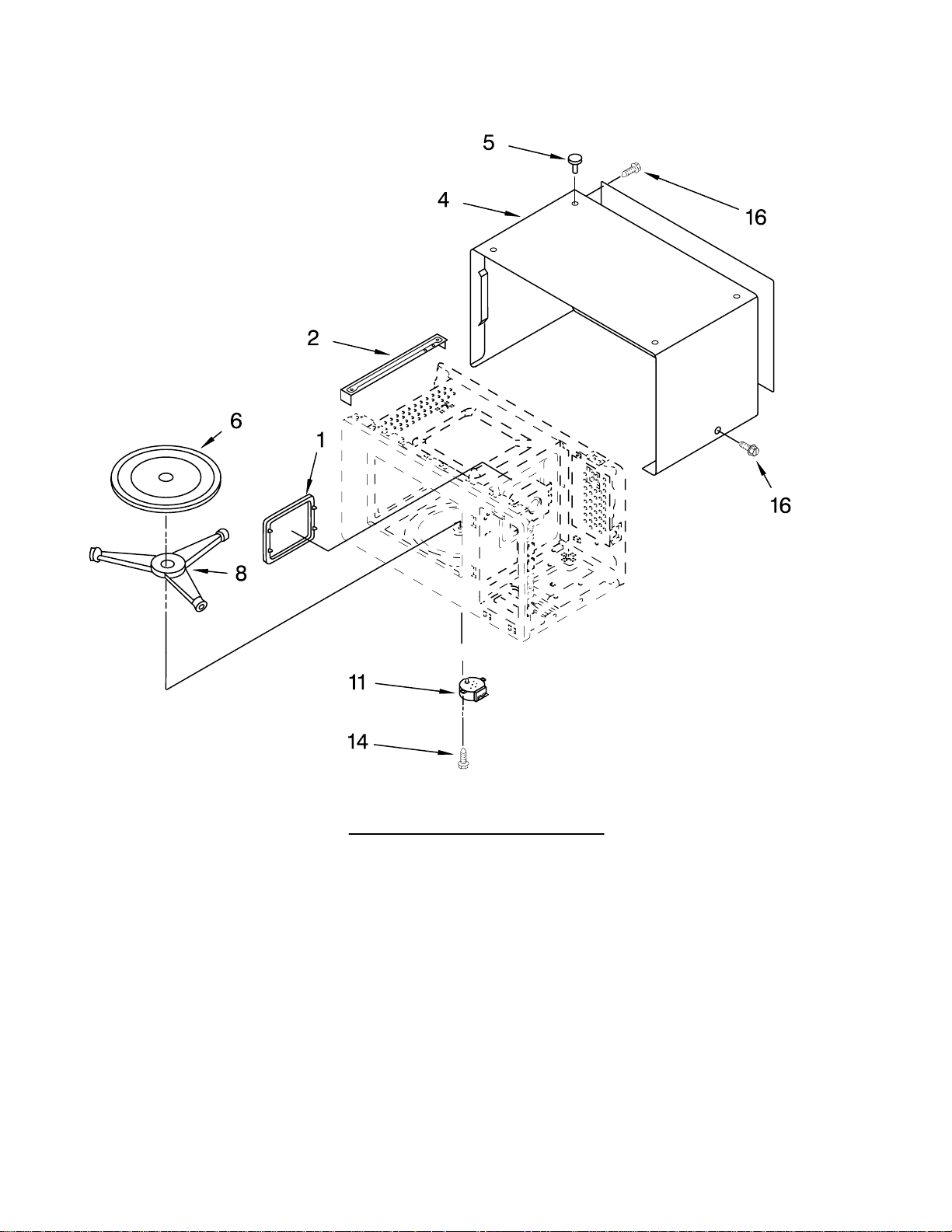

OVEN CAVITY PARTS
For Models: MT4078SPQ2, MT4078SPB2
(DESIGNER WHITE) (BLACK)
8206407
Illus. Part
No. No. DESCRIPTION
1 8205492 Canopy
2 8205476 UTC Bracket
4 Outer Case
8205474 White Model
8205475 Black Model
5 Mounting Cap
4158748 White Model (4)
4358857 Black Model (4)
6 8205098 Tray, Glass
8 8205099 Turntable Support
11 8184375 Motor, Synchronous
14 4358188 Screw
16 4358192 Screw
3
Page 4

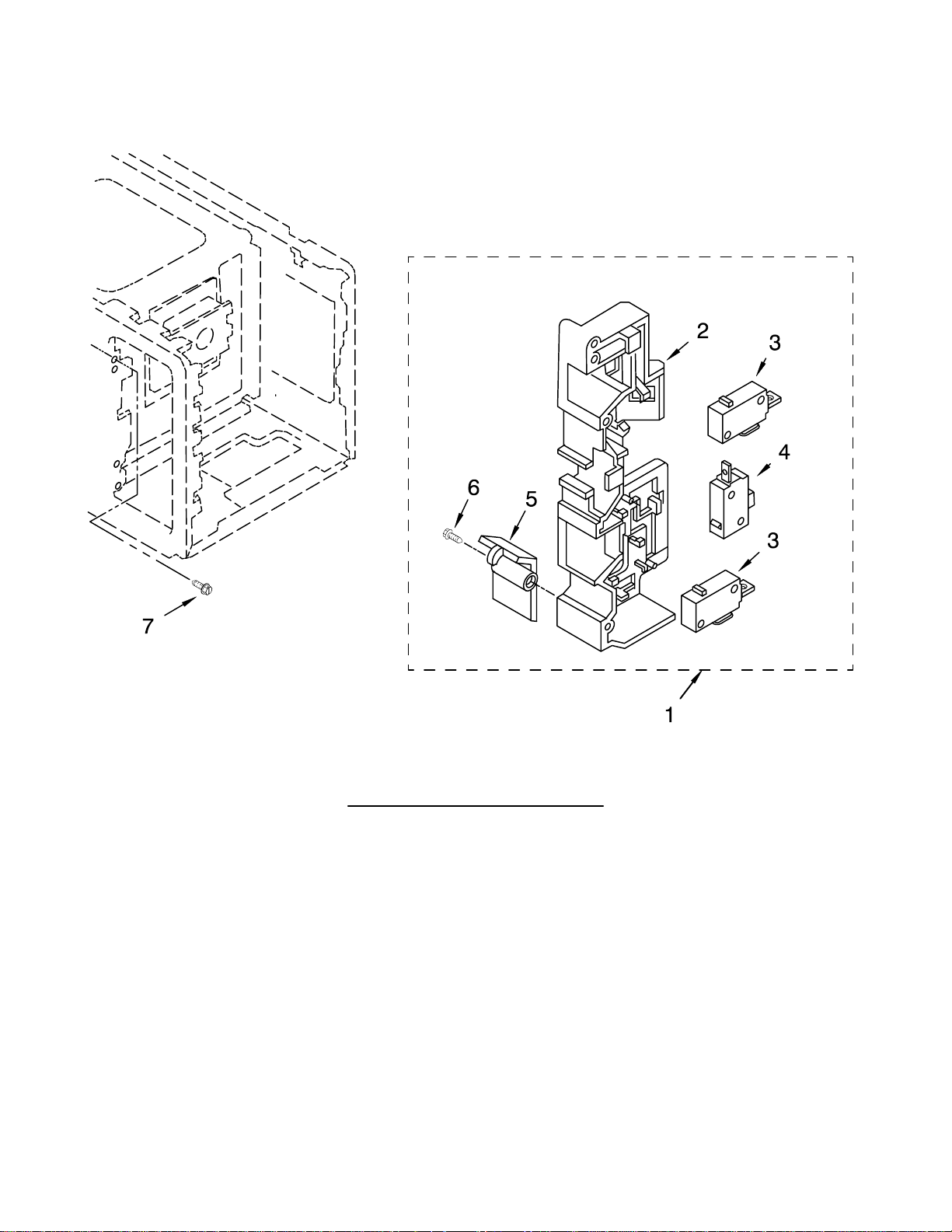

LATCH BOARD PARTS
For Models: MT4078SPQ2, MT4078SPB2
(DESIGNER WHITE) (BLACK)
Illus. Part
No. No. DESCRIPTION
1 Latch Board Assembly
(Non−Serviceable)
2 8205477 Latch Board
4358381 Screw
3 8184285 Switch Micro
Primary
4 8184286 Switch, Micro
Monitor
5 8205478 Lever
6 4358271 Screw
7 4358271 Screw
4
8206407
Page 5

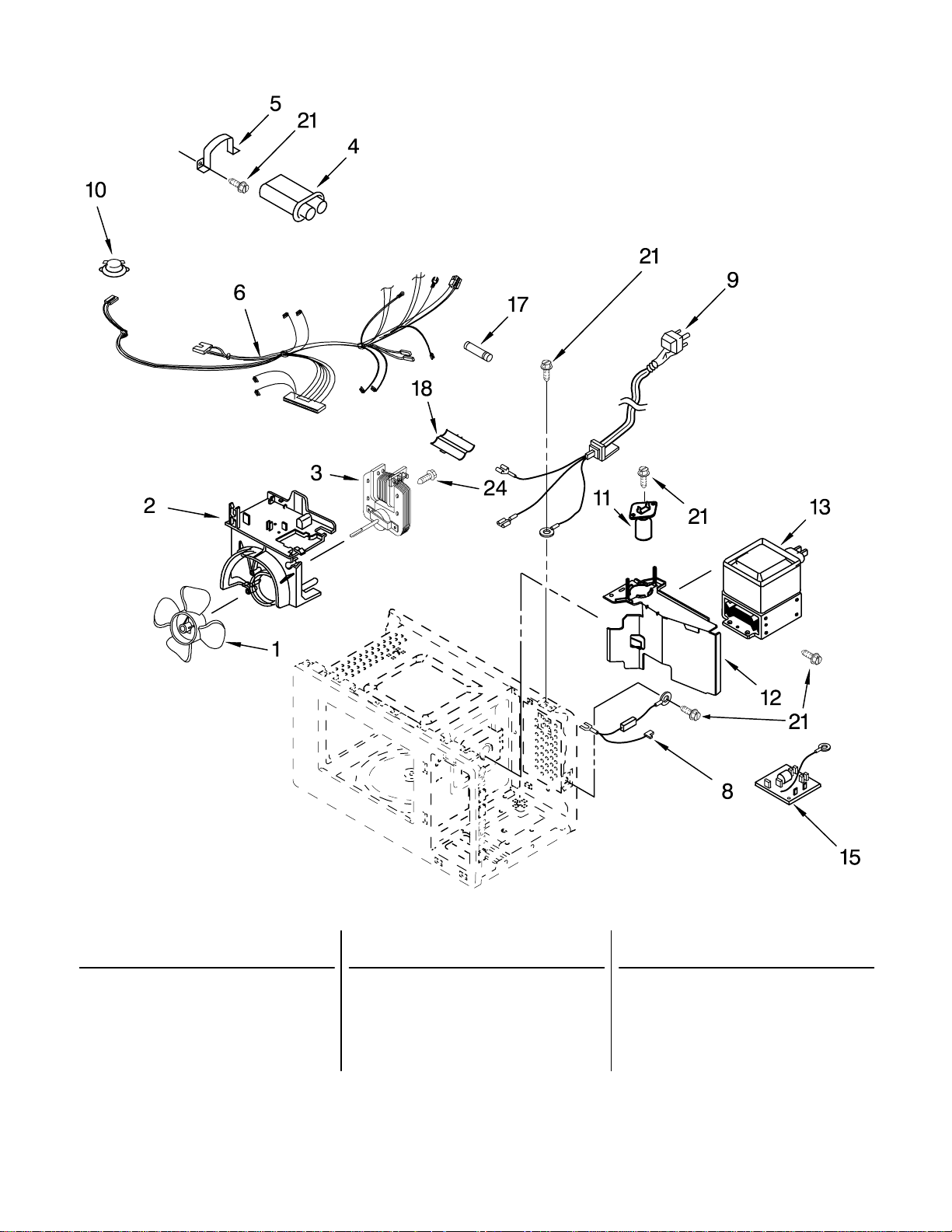

OVEN INTERIOR PARTS
For Models: MT4078SPQ2, MT4078SPB2
(DESIGNER WHITE) (BLACK)
Illus. Part
No. No. DESCRIPTION
1 8184292 Blade, Fan
2 8205482 Guide, Suction
3 8205488 Motor, Fan
4 8184377 H.V. Capacitor
5 8205479 H.V.C Bracket
6 8206272 Leadwire Assembly
8206407
Illus. Part
No. No. DESCRIPTION
8 8205489 H.V. Diode Cable
9 8206271 Power Cord
10 8185274 Thermostat
11 4359165 Lamp, Baseless
12 8205484 Duct, air
13 8205486 Magnetron
5
Illus. Part
No. No. DESCRIPTION
15 8206269 Noise Filter
17 4358704 Fuse
18 8205483 Cap
21 4358489 Screw
24 4358190 Screw
Page 6

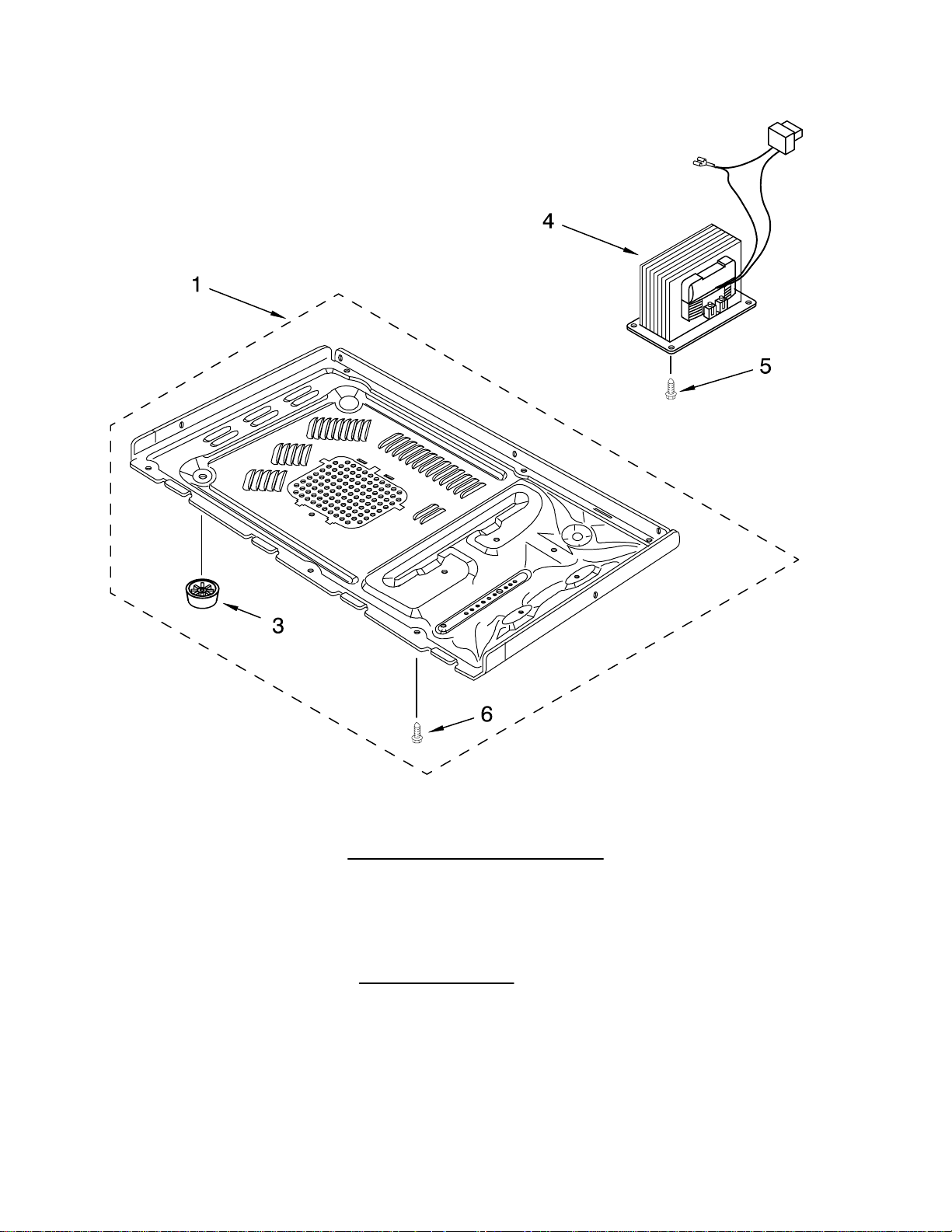

BASE PLATE PARTS
For Models: MT4078SPQ2, MT4078SPB2
(DESIGNER WHITE) (BLACK)
Illus. Part
No. No. DESCRIPTION
1 8205491 Base Plate Assy
3 8184385 Cap
4 8205485 Transformer
5 4358489 Screw
6 4358192 Screw
ACCESSORY PARTS
4359914 UTC Kit
Trim Kit
MK1074XHQ
MK1074XHB
White
Black
6
8206407
