INSTALLATION

BEFORE INSTALLING THE REFRIGERATOR
ELECTRICAL CONNECTION
LEVELLING YOUR REFRIGERATOR

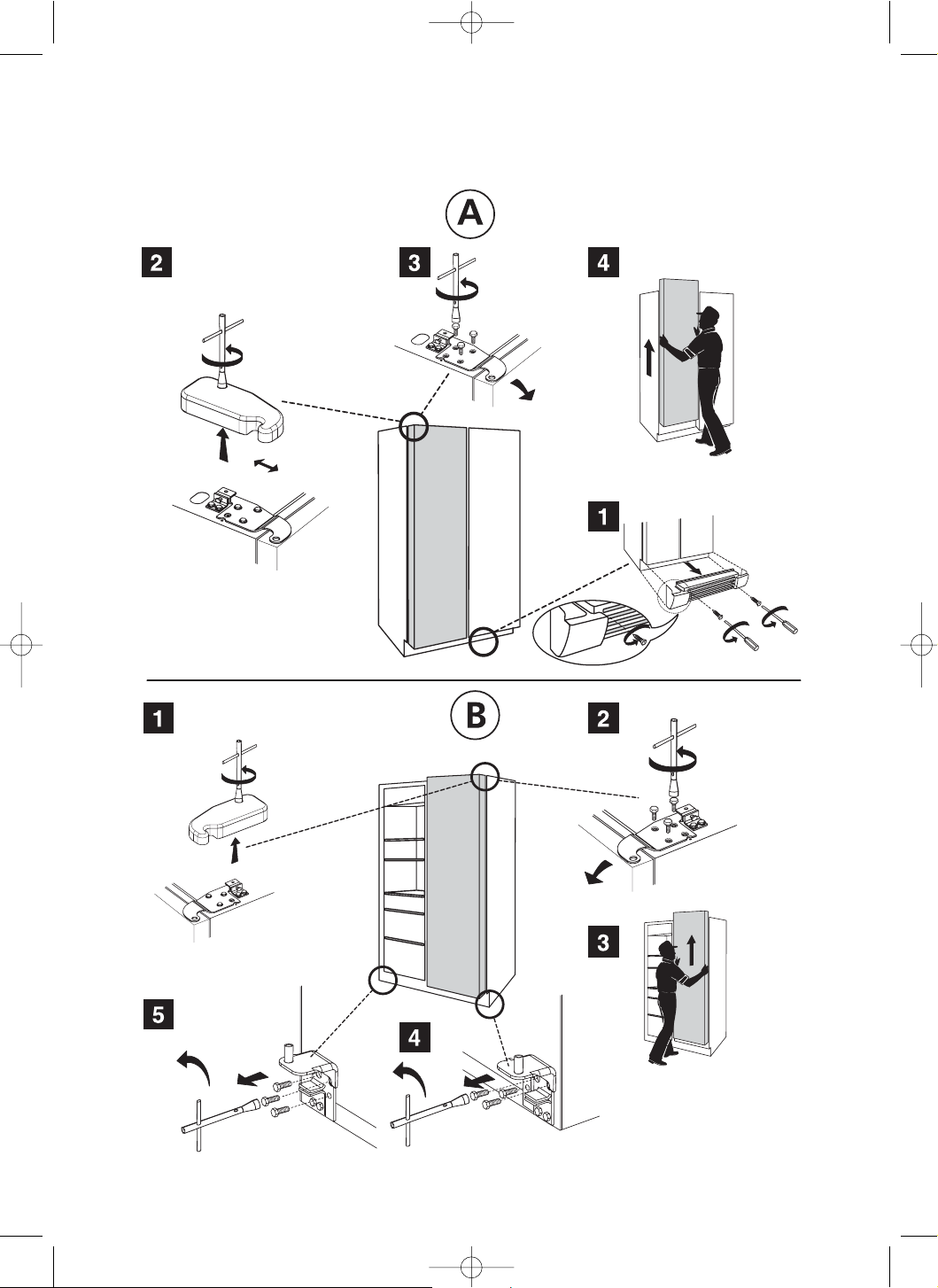

REMOVING THE FREEZER DOOR (A)
REMOVING THE REFRIGERATOR DOOR (B)
MOUNTING THE FREEZER DOOR (C)
MOUNTING THE REFRIGERATOR DOOR (D)
HORIZONTAL ALIGNMENT OF FREEZER

AND REFRIGERATOR DOORS (E)
VERTICAL ALIGNMENT OF FREEZER AND

REFRIGERATOR DOORS (F)

SbS_Inst_102_00319_GB 11-05-2007 8:28 Pagina 3

4

Regulations require that the appliance is earthed. The
manufacturer declines all liability for injury to persons or animals
and for damage to property resulting from failure to observe the
prescriptions.
Make sure that the installation and the electrical connection are
carried out by a qualified technician according to the
manufacturer’s instructions and local safety regulations.
If your new appliance is provided with a plug with no earth wire,
connect your green/yellow earth wire (A) to the earth screw
located on the appliance (B) (see figure).
Ensure that the voltage indicated on the appliance data plate
corresponds to the mains voltage.
The plug of the appliance must be easily accessible even after
installation so that the appliance can be unplugged if necessary. If
this is not possible, connect the appliance to the mains supply by
means of a two-pole switch with minimum break distance
between contacts of 3 mm, fitted at an easily accessible point.
If the power supply cable plug and socket are not of the same
type, replace the socket.
Do not use extension leads or adapters.
After installation, make sure that the appliance is not standing on
the power supply cable.
Disconnect the appliance from the power supply by unplugging it.
Do not pull the power supply cable.

ELECTRICAL CONNECTION

Your new appliance is a FULL NO FROST model
exclusively for domestic use, i.e. both refrigerator
and freezer compartments are provided with an
automatic defrosting function.
This manual contains indications and warnings for
correct and safe installation of the appliance - read
it carefully before starting installation operations.
The model you have purchased may differ slightly
with respect to some descriptions in this manual,
since this manual covers several models.
Keep this manual for future consultation. If you sell
the appliance give it to the new buyer.

Install the appliance in a dry and well-ventilated
place.
Avoid locations in direct sunlight or near a source
of heat (oven, heating, etc.). If this cannot be
avoided, install the appliance respecting the
following minimum distances:

Coal or paraffin stoves: 30 cm

Electric and/or gas stoves:3 cm
To allow product handling and sufficient air
circulation, leave at least 1 cm clearance at the
sides, above the appliance, and between the rear
panel and the wall.

BEFORE INSTALLING THE REFRIGERATOR
