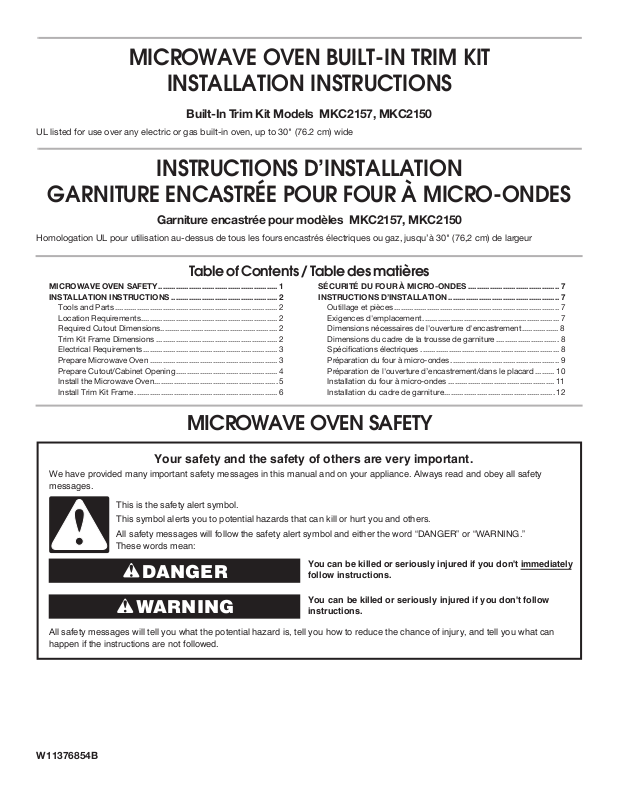

MICROWAVE OVEN BUILT-IN TRIM KIT
INSTALLATION INSTRUCTIONS
Built-In Trim Kit Models MKC2157, MKC2150
UL listed for use over any electric or gas built-in oven, up to 30" (76.2 cm) wide
INSTRUCTIONS D’INSTALLATION
GARNITURE ENCASTRÉE POUR F
OUR À MICRO-ONDES
Garniture encastrée pour modèles MKC2157, MKC2150
Table of Contents / Table des matières
MICROWAVE OVEN SAFETY....................................................... 1
INSTALLATION INSTRUCTIONS ................................................. 2
Tools and Parts....................
Location Requirements............................................................... 2
Required Cutout Dimensions...................................................... 2
Trim Kit Frame Dimensions ........................................................ 2
Electrical Requirements.............................................................. 3
Prepare Microwave Oven ........................................................... 3
Prepare Cutout/Cabinet Openi
Install the Microwave Oven......................................................... 5
Install Trim Kit Frame.................................................................. 6
....................................................... 2
ng............................................... 4
SÉCURITÉ DU FOUR À MICRO-ONDES .......................................... 7
INSTRUCTIONS D’INSTALLATION ................................................... 7
Outillage et pièces .........................................................................
Exigences d'emplacement............................................................... 7
Dimensions nécessaires de
Dimensions du cadre de la trousse de garniture............................. 8
Spécifications électriques ................................................................ 8
Préparation du four à micro-ondes.................................................. 9
Préparation de l'ouverture d’encastrement/dans le
Installation du four à micro-ondes ................................................. 11
Installation du cadre de garniture................................................... 12
l'ouverture d'encastrement................. 8
placard ......... 10
MICROWAVE OVEN SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
... 7
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don't immediately
DANGER
WARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
W11376854B
follow instructions.
You
can be killed or seriously injured if you don't
instructions.
follow
INSTALLATION INSTRUCTIONS
B
B
D
C
A
E
A
B
CD
(48.6 cm)
Tools and Parts
Tools Needed
Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.
Measuring tape Pencil Phillips screwdriver
Parts Supplied (not shown to scale
Rear duct Bottom duct Rails (2)
Short screws (19)
Trim kit frame
(16 + 3 extra)
Drill 7/64" drill bit
Long wood screws
(6 - painted) (4 + 2 extra)
Required Cutout Dimensions
For minimum depth requirements, see chart.
7"
(17.8 cm)
17" (43.2 cm)
min.
17¹⁄₈" (43.5 cm)
max.
3"
(7.6 cm
)
A. Trim kit frame overhang B. Cutout for lower oven C. Recommended region for receptacle
D. Cutout centerline
Receptacle Location Minimum Depth
Within recommended region
Outside recommended region
23¹⁄₈" (58.7 cm)
location (no less than 7" [17.8 cm] to the right of cutout centerline)
20" (50.8 cm) with flush receptacle; 22" (55.9 cm) with non-flush receptacle
22" (55.9 cm) with flush receptacle; 24" (61.0 cm) with non-flush receptacle
1¹⁄₁₆"
(2.7 cm)
1¹⁄₁₆"
(2.7 cm)
Location Requirements
The microwave oven may be installed over a built-in oven. If installing over a built-in oven, make sure there is a minimum of 3" (7.6 cm) between the top of the lower oven cutout and the microwave oven cutout floor.
The microwave oven may also be installed in a cabinet by itself (without a built-in oven below). The minimum distance from the
floor to the cutout floor is 36" (91.4 cm).
Make sure the surrounding cabinetry has clearance to open and close freely. Allow a clearance of at least 1⁹⁄₁₆" (4.0 cm) below the cutout floor (3" [7.6 cm] for installation above a built-in oven), and a clearance of at least 2" (5.1 cm) above the cutout opening
2"
(5.1 cm)
1⁹⁄₁₆"
(4.0 cm)
36"
(91.4 cm)
A. Upper cabinet B. Microwave oven cutout C. Lower oven cutout
D. Lower cabinets
E. Floor
.
2"
(5.1 cm)
3"
(7.6 cm)
NOTES:
Depth requirements depend upon receptacle and its location within or outside of recommended region. See illustration and chart above.
Height dimension is critical: 17" (43.2 cm) minimum, 17¹⁄₈" (43.5 cm) maximum.
Width measurement has ±1/16" (2 mm) tolerance. 3" (7.6 cm) minimum dimension is from lower oven cutout
ceiling to microwave oven cutout floor. Trim kit frame extends 1¹⁄₁₆" (2.7 cm) above and below the
cutout opening.
Trim Kit Frame Dimensions
26⁷⁄₈" (68.2 cm)**
³⁄₄" (75.6 cm)**
29
22³⁄₄" (57.8 cm)
19¹⁄₈"
2¹⁄₁₆" (5.2 cm)*
3¹⁄₂" (8.9 cm)**
3⁷⁄₁₆"
(8.7 cm)
*
12¹⁄₄
"
(31.1 cm
1³⁄₁₆" (3.0 cm)
)
2
*27" (68.6 cm) trim kit
**30" (76.2 cm) trim kit
Electrical Requirements
A B C
D E
Prepare Microwave Oven
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.
Observe all governing codes and ordinances.
Required:
A 120 V, 60 Hz, AC only, 15 A or 20 A electrical supply with a fuse or circuit breaker.
Recommended:
A time-delay fuse or time-delay circuit breaker. A separate circuit serving only this microwave oven.
Attach Rails
1. Unplug microwave oven before proceeding with installation.
2. Remove any loose items inside microwave oven.
3. Gently turn microwave oven onto its top, with the door facing
forward (toward installer).
4. Align the two rails on the microwave oven bottom, as shown, making sure the flanges are forward and pointing up.
GROUNDING INSTRUCTIONS
For all cord connected appliances:
The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
WARNING: Improper use of the grounding plug can
result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded.
Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven.
SAVE THESE INSTRUCTIONS
A. Rails (2) B. Microwave oven bottom C. Short screws (4)
5. Secure the rails to the microwave oven bottom using four short screws.
D. Flanges
E. Door
Attach Rear Duct
1. Gently return microwave oven to its upright position.
2. Align the rear duct with the back of microwave oven, as
shown.
3
3. Slide two tabs into the slots on the right side of the back of
A B
A B C
A B C
A
B
C
DE
A B
microwave oven.
A. Rear duct tabs B. Slots
4. Use two short screws to secure top of rear duct to the back of
microwave oven, as shown.
Prepare Cutout/Cabinet Opening
1. On the cutout floor, find and mark the centerline.
2. Place the bottom duct in the opening, with the flange resting
against the bottom front facing of the opening.
A. Short screws (2) B. Rear duct C. Back of microwave oven
5. Use three short screws to secure back of rear duct to the back
of microwave oven, as shown.
A. Cutout floor B. Centerline C. Bottom duct
D. Bottom duct flange
E. Front facing
3. Align the center arrows on the bottom duct with the centerline drawn in Step 1 above.
A. Bottom duct B. Center arrows, aligned with centerline
A. Short screws (3) B. Rear duct C. Back of microwave oven
4
