MAX 24
www.whirlpool.com
1
INSTALLATION
PRIOR TO CONNECTING
Check that the voltage on the rating plate
corresponds to the voltage in your home.
Do not remove the microwave inlet
protection plates located on the side of the
oven cavity wall. They prevent grease & food
particles from entering the microwave inlet
channels.
Place the oven on a stable, even
surface that is strong enough to
hold the oven and the food
utensils you put in it. Use
care when handling.
Position the oven at a distance from other
heating sources. The cooling air, which is
taken in by the oven, must not exceed 35°C
temperature. For suffi cient ventilation there
must be a space of at least 8-cm above the
oven. Ensure that the space underneath,
above and around the oven is empty to allow
for proper airfl ow. The oven can operate in an
ambient temperature ranging from +5°C to
+35°C.
Ensure that the appliance is not damaged.
Check that the oven door closes fi rmly against
the door support and that the internal door
seal is not damaged. Empty the oven and clean
the interior with a soft, damp cloth.
Do not operate this appliance if it has
a damaged mains cord or plug, if it is not
working properly, or if it has been damaged
or dropped. Do not immerse the mains cord
or plug in water. Keep the cord away from hot
surfaces. Electrical shock, fi re or other hazards
may result.
AFTER CONNECTING
The oven can be operated only if the oven
door is fi rmly closed.
Poor television reception
and radio interference
may result if the oven
is located close to a TV,
radio or aerial.
The manufacturers are not liable for any
problems caused by the user’s failure to
observe these instructions.
2
The earthing of this appliance is compulsory.
The manufacturer will accept no responsibility
for injury to persons, animals or damage to
objects arising from the non-observance of this
requirement.
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Do not heat, or use fl ammable materials
in or near the oven. Fumes can create a fi re
hazard or explosion.
Do not use corrosive chemicals or vapors in
this appliance. This type of oven is specifi cally
designed to heat or cook food. It is not
designed for industrial or laboratory use.
Do not use your microwave oven for drying
textiles, paper, spices, herbs, wood, fl owers,
fruit or other combustible materials. Fire could
result.
If material inside / outside the oven should
ignite or smoke is observed, keep oven door
closed and turn the oven off . Disconnect the
power cord or shut off power at the fuse or
circuit breaker panel.
Do not over-cook food. Fire could result.
Do not leave the oven unattended, especially
when using paper, plastic or other combustible
materials in the cooking process. Paper can
char or burn and some plastics can melt if used
when heating foods.
WARNING!
Only allow children to use the oven with adult
supervision after adequate instructions have
been given so that the child is able to use the
oven in a safe way and understands the hazards
of improper use.
The appliance is not intended for use by
young children or infi rm persons
without supervision. Young
children should be supervised
to ensure that they do not play
with the appliance.
If your oven has a combination
mode, children should only use the oven under
adult supervision due to the temperatures
generated.
WARNING!
Do not use your microwave oven
for heating anything in airtight
sealed containers. The pressure
increases and may cause
damage when opening or may explode.
WARNING!
The door seals and the door seal areas must
be regularly inspected for damage. If these
areas are damaged the appliance should not be
operated until it has been repaired by a trained
service technician.
EGGS
Do not use your microwave oven
for cooking or reheating whole
eggs with or without shell
since they may explode even after
microwave heating has ended.
3
PRECAUTIONS
GENERAL
This appliance is designed for domestic use
only!
The appliance should not be operated without
food in the oven when using microwaves.
Operation in this manner is likely to damage the
appliance.
The ventilation openings on
the oven must not be covered.
Blocking the air intake or
exhaust vents may cause
damage to the oven and poor
cooking results.
If you practice operating the oven, put a
glass of water inside. The water will absorb the
microwave energy and the oven will not be
damaged.
Do not store or use this appliance outdoors.
Do not use this product near a kitchen sink, in
a wet basement, or near a swimming pool, or
similar.
Do not use the cavity for any storage
purposes.
Remove wire twist-ties from paper
or plastic bags before placing bag in
the oven.
DEEP-FRYING
Do not use your microwave oven for
deep-frying, because the
oil temperature cannot be
controlled.
LIQUIDS
E.g. beverages or water in your microwave
oven, overheating the liquid
beyond boiling point can occur
without evidence of bubbling.
This could result in a sudden
boil over of the hot liquid.
To prevent this possibility the following steps
should be taken:
1. Avoid using straight-sided containers with
narrow necks.
2. Stir the liquid before placing the container
in the oven and let the teaspoon remain
in the container.
3. After heating, allow standing for a short
time, stirring again before carefully
removing the container from the oven.
CAREFUL
Always refer to a microwave cookbook for
details. Especially, if cooking or reheating food
that contains alcohol.
After heating baby food or liquids
in a baby bottle or in a
baby food jar, always stir
and check the temperature
before serving. This will ensure that the heat
is evenly distributed and the risk of scalding
or burns can be avoided.
Ensure the Lid and the Teat is removed
before heating!
Use hot pads or oven mitts to prevent burns,
when touching containers, oven parts, and pan
after cooking.
4

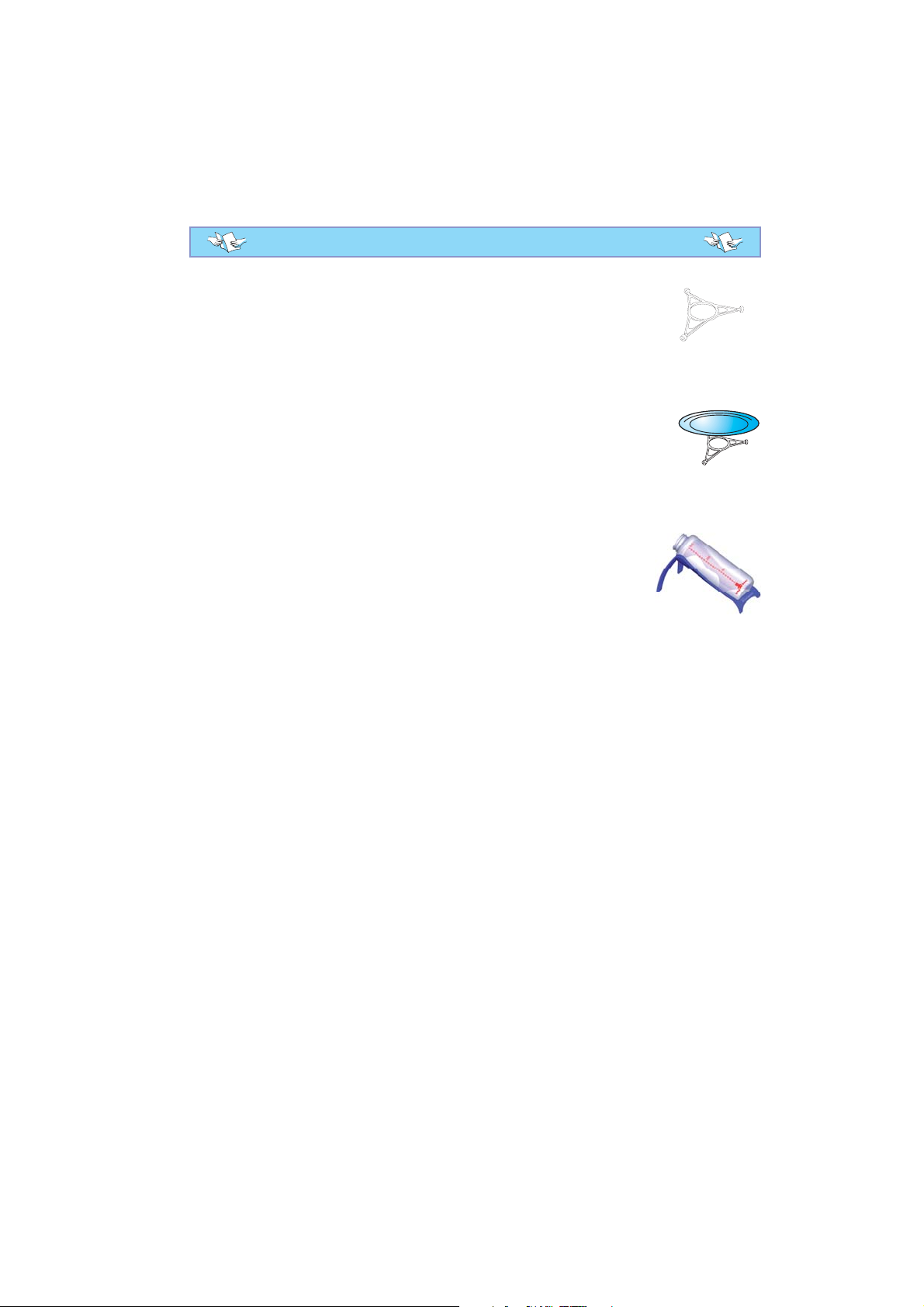

ACCESSORIES
GENERAL
There are a number of accessories available
on the market. Before you buy, ensure they are
suitable for microwave use.
Ensure that the utensils you use are oven
proof and allow microwaves to pass through
them before cooking.
When you put food and accessories in the
microwave oven, ensure that they do not come
in contact with the interior of the oven. This is
especially important with accessories made
of metal or metal parts.
If accessories containing metal comes in
contact with the oven interior, while the oven
is in operation, sparking can occur and the
oven could be damaged.
Always ensure that the turntable is able to
turn freely before starting the oven.
TURNTABLE SUPPORT
Use the turntable support
under the Glass turntable. Never
put any other utensils on the
turntable support.
* Fit the turntable support in the oven.
GLASS TURNTABLE
Use the Glass turntable with all cooking
methods. It collects the dripping
juices and food particles that
otherwise would stain and soil
the interior of the oven.
* Place the Glass turntable on the turntable
support.
BABY BOTTLE HOLDER
Use the Baby bottle
Holder when heating baby
food in bottles that are too
tall to stand-alone in the
oven. Please see also, the
chapter ”Precautions”, for more information
about heating baby food.
(Not available in the UK and Ireland).
5

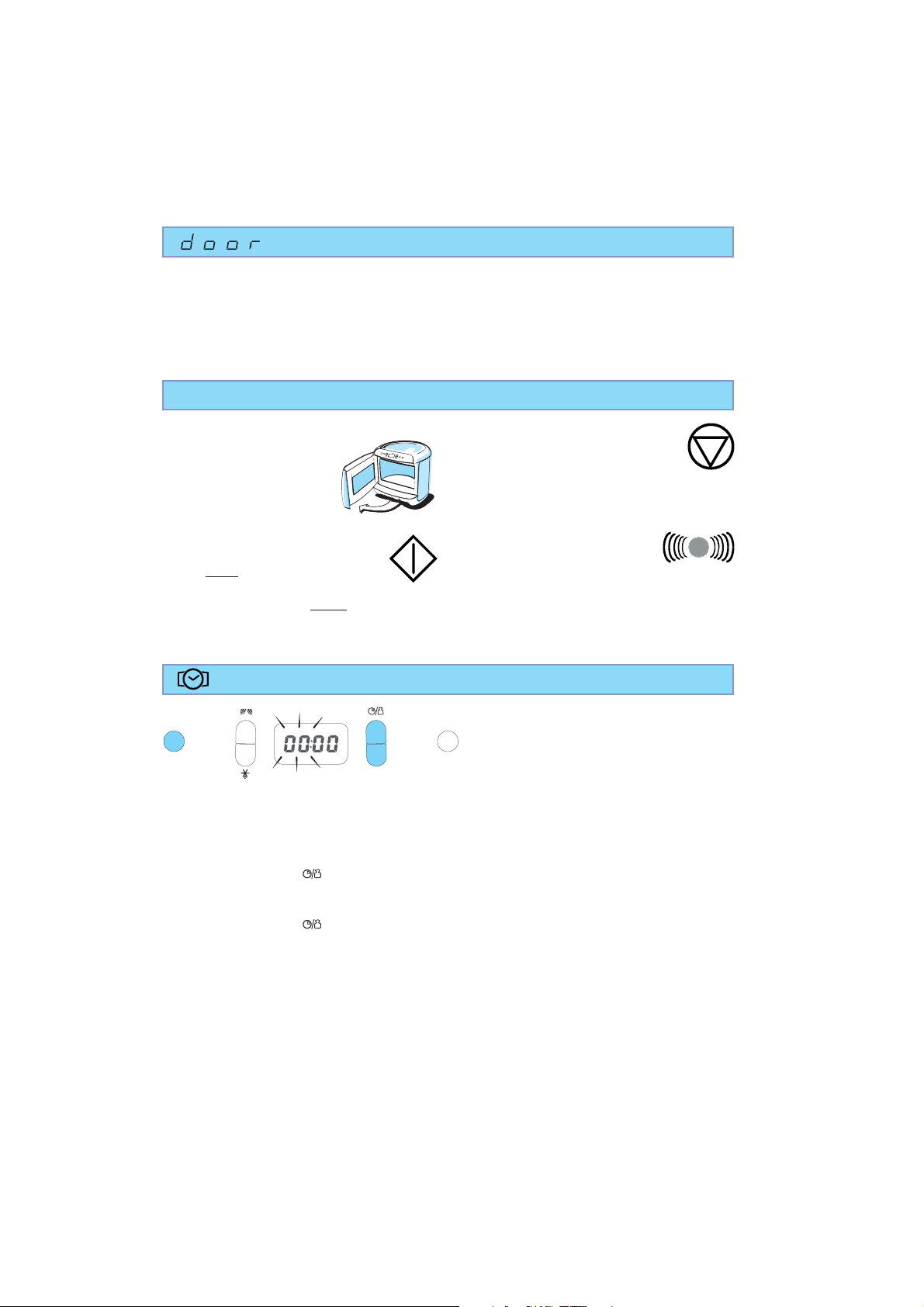

START PROTECTION / CHILD LOCK
This automatic safety function is activated
one minute after the oven has returned to
“stand by mode“. (The oven is in “stand by”
when the 24-hour clock is displayed or if the
clock has not been set, when the display is
blank).
TO PAUSE OR STOP COOKING
To pause cooking:
The cooking can be paused to
check, turn or stir the food
by opening the door. The
setting will be maintained for
5 minutes.
To continue cooking:
Close the door and press the Start
button ONCE. The cooking is resumed
from where it was paused.
Pressing the Start button TWICE will increase
the time by 30 seconds.
HOW TO USE THE CLOCK
The door must be opened and closed e.g.
putting food into it, before the safety lock is
released. Else the display will show “door“.
If you don’t want to continue
cooking:
Remove the food, close the door and
press the STOP button
A beep will signal once a minute
for 5 minutes when the cooking is
fi nished. Press the STOP button or
open the door to cancel the signal.
Note: The oven will only hold the settings for
30 seconds if the door is opened and then
closed after the cooking is fi nished.
1
3
2
4
5
1. Press the Stop button (3 seconds) until the
left-hand digit (hour’s) fl icker.
2. Press the +/- buttons ( ) to set the hours.
3. Press the Stop button again. (The two right
hand digits (minutes) fl icker).
4. Press the +/- buttons ( ) to set the minutes.
5. Press the Stop button again.
The clock is set and in operation.
6
Note: When the appliance is fi rst plugged in or
after a power failure, the display is blank. If the
clock is not set, the display will remain blank
until the cooking time is set.

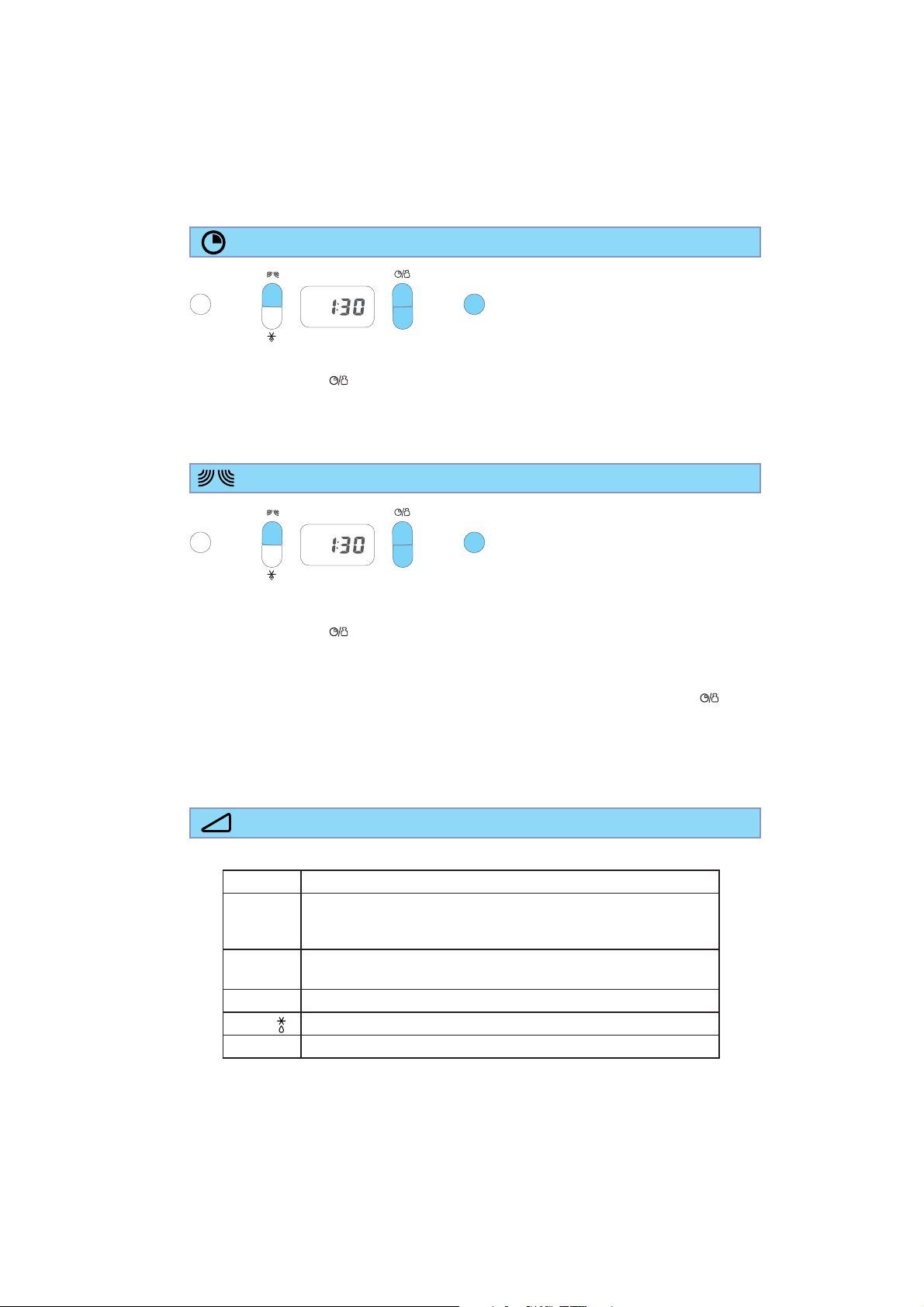

HOW TO USE THE TIMER
Use this function when you need a kitchen
2
1
timer to measure exact time for various
purposes such as cooking eggs, pasta or
letting the dough rise before baking etc.
3
1. Press the +/- buttons ( ) to set the desired
length of the timer.
2. Press the power button repeatedly to set the
power to 0 W.
3. Press the Start button.
HOW TO USE THE MICROWAVES
2
1. Press the +/- buttons ( ) to set the time.
2. Press the power button repeatedly to set the
power.
3. Press the Start button.
1
CHOOSING POWER LEVEL
An acoustic signal will be heard when the timer
has fi nished to count down.
Use this function for normal cooking
and reheating, such as vegetables, fi sh,
potatoes and meat.
3
Once the cooking process has been started:
The time can easily be increased in 30-second
steps by pressing the Start button. Each press
increases the time with 30 seconds. You may
also alter the time by pressing the +/- ( )
buttons to increase or decrease the time.
Pressing the power button may also change
the power level. The fi rst press will show you
the current power level. Press the power
button repeatedly to change power level.
MICROWAVES
Power Suggested use:
Reheating of beverages, water, clear soups, coff ee, tea or other food
750 W
500 W
350 W Simmering stews, melting butter.
160 W Defrosting. Softening butter, cheeses and ice cream.
0 W When using the Timer only.
with a high water content. If the food contains egg or cream choose a
lower power. Cooking of vegetables, fi sh, meat etc.
More careful cooking e.g. high protein sauces, cheese and egg dishes
and to fi nish cooking casseroles.
7
HOW TO USE THE JET DEFROST
Use this function for defrosting Meat, Fish
2
1
& Poultry ONLY. Jet Defrost should only
be used if the net weight is between 100
- 1200g.
3
1. Press the Jet Defrost button.
2. Press the +/- buttons ( ) to set the weight
of the food.
3. Press the Start button.
Midway through the defrosting process the

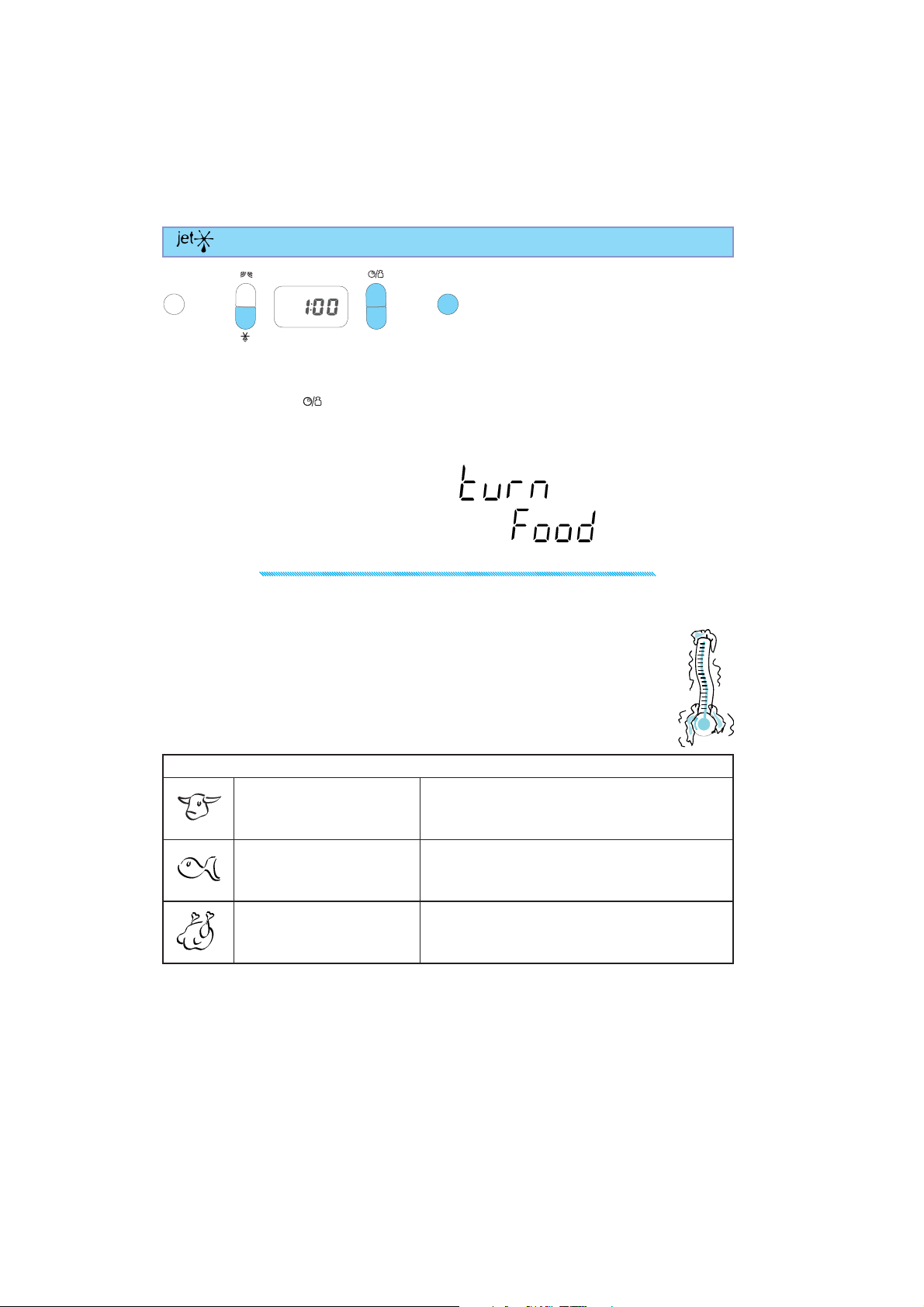

oven stops and prompts you to “TURN” food.
— Open the door.
— Turn the food.
— Close the door and restart by pressing the
Jet Start button.
The oven needs to know the net weight of the food.
If the weight is lesser or greater than
recommended weight:
Follow the procedure for “How to cook and
reheat with microwaves” and choose 160 W
when defrosting.
RECOMMENDED WEIGHTS
MEAT (100g - 1200g) Minced meat, cutlets, steaks, roasts.
Note: the oven continues automatically after
2 min if the food hasn’t been turned. The
defrosting time will be longer in this case.
If the food is warmer than deepfreeze temperature (-18°C), choose
lower weight of the food.
If the food is colder than deepfreeze temperature (-18°C), choose
higher weight of the food.
FISH (100 - 1200g) Whole, steaks or fi llets.
POULTRY (100g - 1200g) Chicken whole, pieces or fi llets.
8
HOW TO USE THE MANUAL DEFROST

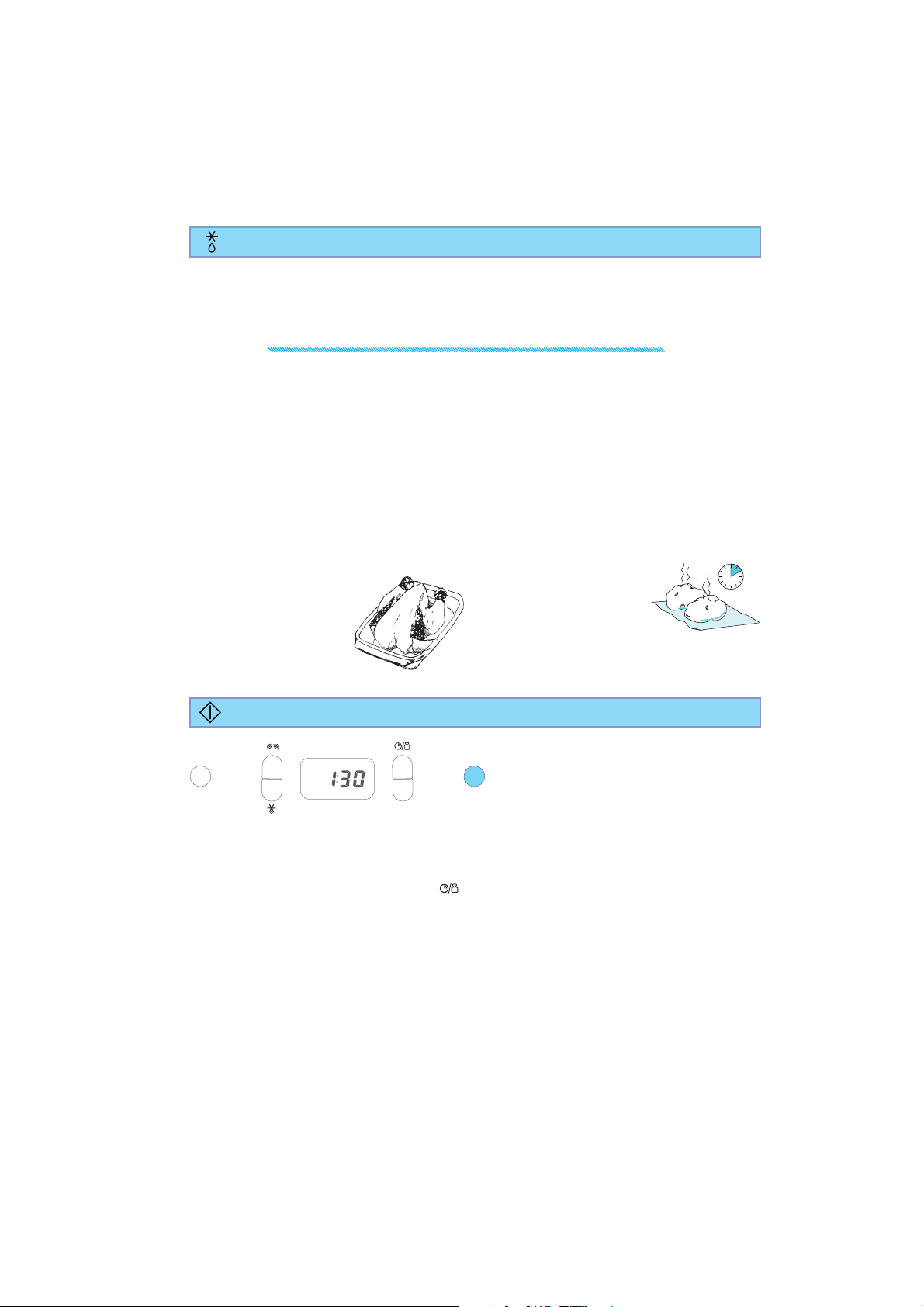

Follow the procedure for ”How to use the
microwaves” and choose Power Level 160 W
when defrosting manually.
GENERAL HINTS:
Frozen food in plastic bags, plastic fi lms or
cardboard packages can be placed directly in
the oven as long as the package has no metal
parts (e.g. metal twist ties).
The shape of the package alters the
defrosting time. Shallow packets defrost more
quickly than a deep block.
Separate pieces as they begin to defrost.
Individual slices defrost more easily.
Shield areas of food with small
pieces of aluminium foil if
they start to become warm
(e.g. chicken legs and wing
tips).
HOW TO USE THE JET START
Check and inspect the food regularly.
Experience will give you the times needed for
various amounts.
Turn large joints halfway through the
defrosting process.
Boiled food, stews and meat sauces defrost
better if stirred during defrosting time.
When defrosting it is better to under-thaw
the food slightly and allow the process to fi nish
during standing time.
Standing time after defrosting
always improves the result since
the temperature will then
be evenly distributed
throughout the food.
This function is used for quick reheating
of foods with a high water content such as
clear soups, coff ee or tea.
Press the Jet Start button to automatically start with full microwave power level and the
cooking time set to 30 seconds. Each additional press increases the time with 30 seconds. You
may also alter the time by pressing the +/- ( ) buttons to increase or decrease the time after the
function has started.
9
MAINTENANCE & CLEANING
Cleaning is the only maintenance normally
required. It must be carried out with the
microwave oven disconnected.
Failure to maintain the oven in a clean
condition could lead to deterioration of
the surface that could adversely aff ect the
life of the appliance and possibly result in a
hazardous situation.
Do not use metal scouring
pads on the inside of the
oven cavity. They will
scratch the surface.
At regular intervals, especially if spillovers
have occurred, remove the turntable, the
turntable support and wipe the base of the
oven clean.
This oven is designed to operate with the
turntable in place.
Do not operate the microwave oven when the
turntable has been removed for cleaning.
Use a mild detergent, water and a soft cloth
to clean the interior surfaces, front and rear of
the door and the door opening.
Do not allow grease or food particles to build
up around the door.
For stubborn stains, boil a cup of water in the
oven for 2 or 3 minutes. Steam will soften the
marks.
Adding some lemon juice to a cup of water,
placing this on the turntable and boiling for
a few minutes can eliminate odors inside
the oven.
Abrasive cleansers, steel-wool pads, gritty
washcloths, etc. can damage the control panel,
and the interior and exterior oven surfaces.
Use a sponge with a mild detergent or a paper
towel with spray glass cleaner. Apply spray glass
cleaner to a paper towel.
Do not spray directly on the oven.

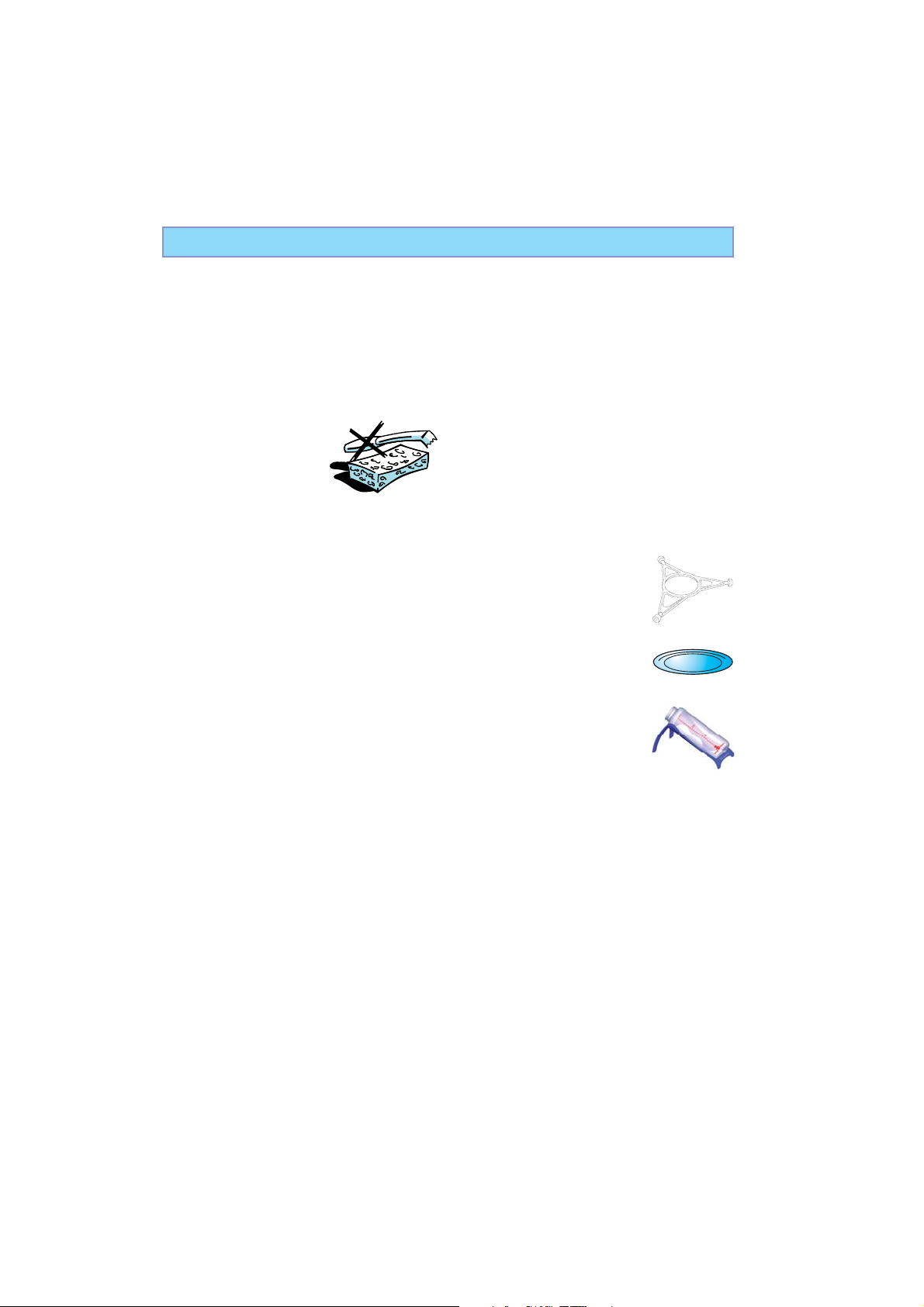

DISHWASHER SAFE:
Turntable support.
Glass turntable.
Baby Bottle Holder
(Not available in the UK and
Ireland).
10
TROUBLE SHOOTING GUIDE
If the oven does not work, do not make a
service call until you have made the following
checks:
* The Turntable and turntable support is in
place.
* The Plug is properly inserted in the wall
socket.
* The Door is properly closed.
* Check your Fuses and ensure that there is
power available.
* Check that the oven has ample ventilation.
* Wait for ten minutes and then try to operate
the oven once more.
* Open and then close the door before you try
again.
This is to avoid unnecessary calls for which
you will be charged.
When calling for Service, please give the serial
number and type number of the oven (see
Service label). Consult your warranty booklet
for further advice.
Important:
If the mains cord needs replacing it should be
replaced by the original mains
cord, which is available via our
service organization. The mains
cord may only be replaced by a
trained service technician.
WARNING!
Service only to be carried out
by a trained service technician.
It is hazardous for anyone other
than a trained person to carry
out any service or repair operation,
which involves the removal of any cover, which
gives protection against exposure to microwave
energy.
Do not remove any cover.
11
ENVIRONMENTAL HINTS
The packing box may be fully recycled
as confi rmed by the recycling symbol.
Follow local disposal regulations.
Keep potentially hazardous
packaging (plastic bags, polystyrene
etc.) out of the reach of children.
This appliance is marked according to the
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE). By
ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product.
The symbol on the product,
or on the documents
accompanying the product,
indicates that this appliance may
not be treated as household
waste. Instead it shall be
handed over to the applicable
collection point for the
recycling of electrical and
electronic equipment.
Disposal must be carried out in accordance
with local environmental regulations for waste
disposal.
For more detailed information about
treatment, recovery and recycling of this
product, please contact your local city offi ce,
your household waste disposal service or the
shop where you purchased the product.
Before scrapping, cut off the mains cord so
that the appliance cannot be connected to the
mains.
TECHNICAL DATA
In accordance with IEC 60705.
The International Electrotechnical Commission, SC. 59H, has developed a standard for comparative
testing of heating performance of diff erent microwave ovens. We recommend the following for
this oven:
Test Amount Approx. time Power level Container
12.3.1 750 g 9 ½ min 750 W Pyrex 3.220
12.3.2 475 g 5 min 750 W Pyrex 3.827
12.3.3 900 g 15 min 750 W Pyrex 3.838
13.3 500 g 2 ½ min Jet defrost
Model MAX 24
Supply voltage 230 V/50 Hz
Rated Power Input 1300 W
Fuse 10 A (UK 13 A)
MW output power 750 W
H x W x D
Outer dimensions: 374 x 392 x 370
Oven compartment: 149 x 290 x 290
12
'"
hirlpool Sweden AB
W
Loading...
