CONTENTS
BEFORE USING THE WASHING MACHINE
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
DESCRIPTION OF THE WASHING MACHINE
DOOR
CHILD SAFETY
BEFORE THE FIRST WASH CYCLE
PREPARATION OF THE WASHING
DETERGENTS AND ADDITIVES
REMOVING THE FILTER/DRAINING
RESIDUAL WATER
CARE AND MAINTENANCE
TROUBLESHOOTING GUIDE
AFTER-SALES SERVICE
ACCESSORIES
TRANSPORT/HANDLING
ELECTRICAL CONNECTION
Black process 45.0° 100.0 LPI
90102750GB.fm Page 2 Friday, April 27, 2007 3:22 PM
BEFORE USING THE WASHING MACHINE
Use only new hoses to connect the washing
1.Removing the packaging and inspection
After unpacking, make sure that the washing
•
machine is undamaged. If in doubt, do not use the
washing machine. Contact After-Sales Service or
your local retailer.
Check that the accessories and supplied parts are
•
all present.
Keep the packaging materials (plastic bags,
•
polystyrene parts, etc.) out of reach of children,
as they are potentially dangerous.
If the appliance was exposed to the cold prior to
•
delivery, keep it at room temperature for a few
hours before operating.
2.Remove the transport bolts
The washing machine is fitted with transport
•
bolts to avoid any possible damage to the interior
during transport. Before using the machine, it is
imperative that the transport bolts are removed.
After their removal, cover the openings with the
•
4 enclosed plastic caps.
3.Install the washing machine
Remove the protective film from the control panel
•
(if available on your model).
Move the appliance without lifting it by the worktop.
•
Install the appliance on a solid and level floor
•
surface, preferably in a corner of the room.
Make sure that all four feet are stable and resting
•
on the floor and then check that the washing
machine is perfectly level (use a spirit level).
In case of wooden or so-called “floating floors”
•
(for instance certain parquet or laminate floors),
place the appliance on a 60 x 60 cm sheet of
plywood at least 3 cm in thickness which is
secured to the floor.
4.Water inlet
Connect the water supply inlet hose in
•
accordance with the regulations of your local
water company.
Water inlet: Cold water only
•
(if no other information on
your programme chart)
Water tap: 3/4” threaded hose
•
connector
Water pressure
•
(flow pressure): 100-1000 kPa (1-10 bar).
•
machine to the water supply. Used hoses must
not be used and should be discarded.
5.Drain
Connect the drain hose to the siphon or hook it
•
over the edge of a sink by means of the “U” bend
supplied.
If the washing machine is connected to an
•
integrated drainage system, ensure the latter is
equipped with a vent to avoid simultaneous
loading and draining of water (siphoning effect).
6.Electrical connection
Electrical connections must be carried out by a
•
qualified technician in compliance with the
manufacturer’s instructions and current standard
safety regulations.
Data regarding voltage, power consumption and
•
protection requirements is given on the inside of
the door.
The appliance must be connected to the mains by
•
means of a socket with an earth connection in
accordance with current regulations. The
washing machine must be earthed by law. The
manufacturer declines all liability for damage to
property or injury to persons or animals, deriving
directly or indirectly from failure to observe the
directions.
Do not use extension leads or multiple sockets.
•
Before any maintenance on the washing machine
•
disconnect it from the mains supply.
After installation, access to the mains plug or to
•
disconnection from mains supply must be
ensured at all times via a double-pole switch.
Do not operate the washing machine if it has
•
been damaged during transport. Inform the
After-Sales Service.
Mains cable replacement is only to be carried out
•
by After-Sales Service.
The appliance must only be used in the
•
household for the prescribed uses.
Minimum housing dimensions:
Width: 600 mm
Height: 850 mm
Depth: 600 mm
Black process 45.0° 100.0 LPI
GB 2
90102750GB.fm Page 3 Friday, April 27, 2007 3:22 PM
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
Do not leave the appliance plugged in when not
1.Packaging
The packaging material is entirely recyclable, and
•
marked with the recycling symbol . Adhere
to current local regulations when disposing of
packaging material.
2.Disposing of packaging and scrapping
old washing machines
The washing machine is built from reusable
•
materials. It must be disposed of in compliance
with current local waste disposal regulations.
Before scrapping, remove all detergent residues
•
and cut off the power cable so that the washing
machine is made unusable.
This appliance is marked according to the
•
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product.
The symbol on the product, or on the
documents accompanying the product, indicates
that this appliance may not be treated as
household waste. Instead it shall be handed over
to the applicable collection point for the recycling
of electrical and electronic equipment.
Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
For more detailed information about treatment,
recovery and recycling of this product, please
contact your local city office, your household
waste disposal service or the shop where you
purchased the product.
3.Safety instructions
The washing machine is appropriate for indoor
•
use only.
Do not store flammable fluids near the appliance.
•
If you want to place a dryer on top of your
•
washing machine, first contact our After-Sales
Service or your specialist dealer to verify if this is
possible. Placing a dryer on your washing
machine is only admitted by using an appropriate
stacking kit available through our After-Sales
Service or your specialist dealer.
•
in use.
Turn off the tap when not in use.
•
Before any cleaning and maintenance switch off
•
the machine or disconnect it from the mains.
Never open the door forcibly or use it as a step.
•
Children must not be allowed to play with the
•
washing machine or to climb into the drum (see
also the following page chapter “Child Safety”).
If necessary, the power cable may be replaced
•
with an identical one obtained from our AfterSales Service. The power cable must only be
replaced by a qualified technician.
4.Energy saving tips
Achieve the best use of energy, water, detergent
•
and time by using the recommended maximum
load size.
Do not exceed the detergent dosages indicated
•
in the manufacturer’s instructions.
The Eco-Ball - a special system in the outlet - will
•
prevent detergent loss from the drum to avoid
detergent loss into the environment.
Use “Prewash” for heavily soiled laundry only!
•
Save detergent, time, water and energy
consumption by not selecting “Prewash” for
slight to normally soiled laundry.
Pretreat stains with stain remover or soak dried-
•
in stains in water before washing to reduce the
necessity of a hot wash programme.
Save energy by using a 60° C instead of a 95° C
•
wash programme or a 40°C instead of a 60°C
wash programme.
Save energy and time by selecting a high spin
•
speed to reduce the water content in laundry
before using a tumble dryer (for machines with
adjustable spin speed).
5.EC Declaration of Conformity
The appliance conforms to the following
•
European Standards:
73/23/EEC Low voltage directive
89/336/EEC Electromagnetic Compatibility Directive
93/68/EC CE Marking Directive .
GB 3
Black process 45.0° 100.0 LPI
90102750GB.fm Page 4 Friday, April 27, 2007 3:22 PM
DESCRIPTION OF THE WASHING MACHINE
1
3
7
8
Worktop
1.
Control panel
2.
Detergent dispenser
3.
Service plate (inside the door)
4.
Door
5.
Child safety device (if provided, inside the door)
6.
Pump access behind plinth or cover (depending on the model)
7.
Adjustable feet
8.
2
3
4
5
6
8
1
2
4
5
6
7
DOOR
To open the door, hold the door handle, press the inside handle (if available on your model) and pull the
door. Close the door by pressing it without excessive force until it clicks shut.
CHILD SAFETY
To protect the appliance against improper use, turn the
plastic screw on the interior of the door by using a coin.
Slot vertical: the door will not lock.
•
Slot horizontal - normal position: the door can be locked
•
again.
BEFORE THE FIRST WASH CYCLE
To remove any residual water used in testing by the manufacturer, we recommend that you carry out a
short wash cycle without laundry.
Open the tap.
1.
Close the door.
2.
Pour a little detergent (about 30 ml) into the main wash chamber of the detergent dispenser.
3.
Select and start a short programme (see separate “Programme Chart”).
4.
GB 4
Black process 45.0° 100.0 LPI
90102750GB.fm Page 5 Friday, April 27, 2007 3:22 PM
PREPARATION OF THE WASHING
1.Sort the laundry according to...
• Type of fabric / care label symbol
Cottons, mixed fibres, easy care/synthetics,
wool, handwash items.
• Colour
Separate coloured and white items. Wash new
coloured articles separately.
•Loading
Wash items of different sizes in the same load to
improve washing efficiency and distribution in the
drum.
• Delicates
Wash small items (e.g. nylon stockings, belts etc.)
and items with hooks (e.g. bras) in a cloth bag or
pillow case with zip. Always remove curtain rings
or wash curtains with the rings inside a cotton bag.
2.Empty all pockets
Coins, safety pins etc. can damage your laundry
as well as the appliance drum and tub.
3.Fasteners
Close zips and fasten buttons or hooks; loose
belts or ribbons should be tied together.
Stain removal
Blood, milk, eggs etc. are generally removed by
•
the automatic enzyme phase of the programme.
To remove red wine, coffee, tea, grass and fruit
•
stains etc. add a stain remover to the main wash
chamber of the detergent dispenser.
Pre-treat heavily-soiled areas with stain remover
•
if necessary.
Dyeing and bleaching
Only use dyes and bleaches that are suitable for
•
washing machines.
Follow the Manufacturer’s instructions.
•
Plastic and rubber parts of the washing machine
•
can be stained by dyes or bleaches.
Loading the laundry
Open the door.
1.
Load the articles one at a time loosely into the
2.
drum, without overfilling. Observe the load sizes
given in the quick reference guide.
overloading the machine will result in
Note:
unsatisfactory washing results and creased laundry.
Close the door.
3.
DETERGENTS AND ADDITIVES
Do not use liquid detergent for the main wash
Keep detergents and additives in a safe,
dry place out of the reach of children!
The choice of detergent depends on:
Type of fabric (cottons, easy care/synthetics,
•
delicate items, wool).
Use only specific detergents for washing
Note:
wool.
Colour.
•
The wash temperature.
•
Degree and type of soiling.
•
Remarks:
Any whitish residues on dark fabrics are caused
•
by insoluble compounds used in modern
phosphate-free powder detergents. If this
occurs, shake or brush out the fabric or use liquid
detergents.
Use only detergents and additives specifically
•
produced for domestic washing machines.
When using descaling agents, dyes or bleaches
•
for the pre-wash, make sure that they are
suitable for use in domestic washing machines.
Descalers could contain products which could
damage your washing machine.
Do not use any solvents (e.g. turpentine,
•
benzine). Do not machine wash fabrics that have
been treated with solvents or flammable liquids.
•
when having activated the “prewash” option (if
available on your model).
Do not use liquid detergent when activating the
•
“Start Delay” function (if available on your
washing machine).
Dosage
Follow the dosage recommendations on the
detergent pack. They depend on:
degree and type of soiling
•
size of wash
•
full load: follow the detergent manufacturer’s
instructions;
half load: 3/4 the amount used for a full load;
Minimum load (about 1 kg):
1/2 the amount used for a full load
water hardness in your area (ask for information
•
from your water company). Soft water requires
less detergent than hard water (refer to the water
hardness table in the operating instructions).
Notes:
Too much detergent can result in excess foam
formation, which reduces washing efficiency.
If the washing machine detects too much foam, it
may prevent spinning.
Insufficient detergent may result in grey laundry in time
and also calcifies the heating system, drum and hoses.
Black process 45.0° 100.0 LPI
GB 5
A
90102750GB.fm Page 6 Friday, April 27, 2007 3:22 PM
Where to put detergent and additives
The detergent drawer has three chambers (fig. “A”).
Prewash Chamber
Detergent for the prewash
•
Main Wash Chamber
Detergent for the main wash
•
Stain remover
•
Water softener
•
Softener Chamber
Fabric softener
•
Liquid starch
•
Pour additives only up to the “MAX” mark.
Using chlorine bleach
Wash your laundry in the desired programme (Cotton, Synthetics),
•
adding an appropriate amount of chlorine bleach to the SOFTENER
chamber (close the detergent dispenser carefully).
Immediately after end of programme, start the “Rinse and Spin”
•
programme to eliminate any residual bleach smell; if you want,
you can add softener.
Never put both chlorine bleach and softener into the softener
chamber at the same time.
Using starch
Select the “Rinse and Spin” programme and check that the spin
•
speed is adjusted to not more than 800 rpm.
Start the programme, pull out the detergent dispenser so that you
•
can see approximately 3 cm of the softener chamber.
Pour the starch solution prepared into the softener chamber
•
while the water is running into the detergent dispenser.
A
Hooks
B
3
Separator
()
Separator
}
Guide
Rails
2
1
How to position the separator in the main wash
chamber for powder or liquid detergent
For use with powder detergent: place the separator in the higher
position.
Lift the separator until its top can be reclined. Place its hooks on the
upper end of the back guide rails and slightly push the separator
down to fix it (fig. “B” and “C”).
A gap should remain between the separator and the bottom of the main
wash chamber, if the separator has been correctly installed (fig. “B” and
“C”).
For use with liquid detergent: place the separator in the lower position.
Secure the separator in the chamber using the front guide rails.
Position the separator so that it touches the bottom of the main
wash chamber (fig. “D”).
GB 6
Black process 45.0° 100.0 LPI
C
D
90102750GB.fm Page 7 Friday, April 27, 2007 3:22 PM
REMOVING THE FILTER/DRAINING
RESIDUAL WATER
We recommend that you check and clean the filter
regularly, at least two or three times a year.
Especially:
If the appliance is not draining properly or if it fails to
•
perform spin cycles.
If the “Clean filter” indication lights up:
•
IMPORTANT: make sure the water has cooled
before draining the appliance.
Stop the appliance and unplug it.
1.
Remove the plinth or open the cover (depending on
2.
the model) by using the separator of the detergent
dispenser (fig. A/B).
Place a container beneath it. If your washing machine
3.
has the filter situated behind the plinth (see pictures
“A” and “C”), use a broad and very flat container with
a maximum height of 2 cm.
Open the filter but do not remove it completely.
4.
Slowly turn the filter counterclockwise (fig. C) until the
water begins to drain out.
Wait until all the water has drained.
5.
Now unscrew the filter completely and remove it.
6.
Tilt the appliance forwards carefully to allow the water
7.
to flow out.
Clean the filter and the filter chamber.
8.
Check that the pump rotor moves freely.
9.
Re-insert the filter and screw it in clockwise as far as it
10.
will go.
Pour about 1 litre of water into the detergent drawer
11.
to reactivate the “Eco system”. Check that the filter is
inserted properly and securely.
Reinstall the plinth or the cover, depending on the
12.
model.
Plug in the appliance again.
13.
Select a programme and start it.
14.
A
B
C
Black process 45.0° 100.0 LPI
GB 7
90102750GB.fm Page 8 Friday, April 27, 2007 3:22 PM
CARE AND MAINTENANCE
Appliance exterior and control panel
Can be washed down with a soft, damp cloth.
•
A little neutral detergent (non abrasive) can also
•
be used.
Dry with a soft cloth.
•
Appliance interior
After each washing, leave the door open for some
•
time to allow the inside of the appliance to dry.
If you never or seldom wash your laundry at
•
95°C, we recommend to occasionally run a 95°C
programme without laundry, adding a small
amount of detergent, to keep the interior of the
appliance clean.
Door seal
Clean with a damp cloth when necessary.
•
Check the condition of the door seal periodically.
•
Filter
Check and clean the filter regularly, at least two
•
or three times a year (see “Removing The Filter/
Draining Residual Water”).
Water supply hose(s)
Check the hose(s) regularly for brittleness and
•
cracks.
Regularly check and clean the mesh filter inside
•
the inlet hose (see “Cleaning the mesh filter in
the water supply hose(s)”).
Do not use flammable fluids for cleaning the appliance.
Detergent dispenser
Clean the dispenser drawer and the dispenser compartment
regularly, at least three or four times a year, to prevent
detergent build-up:
Press the release lever in the main wash chamber downward and
1.
remove the dispenser drawer from the dispenser compartment.
Remove the cover grid from the softener chamber. Remove the
2.
separator from the main wash chamber by pulling it upward (see
dark arrows).
Wash all the parts under running water.
3.
Clean the dispenser compartment with a damp cloth.
4.
Refit the separator and the cover grid in the dispenser drawer
5.
and push the drawer back into the dispenser compartment.
Black process 45.0° 100.0 LPI
GB 8
A
B
Safety valve
inspection
window
C
90102750GB.fm Page 9 Friday, April 27, 2007 3:22 PM
Water supply hose(s)
If a supply hose shows a damage, replace it by a new hose of the
same type, available through our After-Sales Service or your
specialist dealer.
If your supply hose has a transparent hose coating (fig. “C”),
periodically check the colour of the transparent coating. If the
coating begins to turn red, this is an indication that the hose may
have a leak and should be replaced. Contact our After-Sales Service
team or specialist dealer to obtain a replacement hose.
Cleaning the mesh filter in the water supply hose(s)
Close the tap and loosen the inlet hose on the tap.
1.
Clean the internal mesh filter and screw the water inlet hose back
2.
onto the tap.
Now unscrew the inlet hose on the rear of the washing machine.
3.
Pull off the mesh filter from the washing machine connection
4.
with universal pliers and clean it.
Refit the mesh filter and screw the inlet hose on again.
5.
Turn on the tap and ensure that the connections are completely
6.
water-tight.
GB 9
Black process 45.0° 100.0 LPI
90102750GB.fm Page 10 Friday, April 27, 2007 3:22 PM
TROUBLESHOOTING GUIDE
Your washing machine is equipped with various automatic safety functions. These enable faults to be
detected in good time and the safety system can react appropriately. These faults are frequently so minor
that they can be removed within a few minutes.
Problem Causes, Solutions, Tips
Appliance does not start,
no indicator lamps are on
Appliance does not start
although “Start/Pause”
has been pressed
Appliance stops during the
programme, and the
“Start/Pause” light flashes
Detergent dispenser
contains residues from
detergent and/or additives
Appliance vibrates during
spin cycle
Final spin results are poor
Programme time initially
displayed is lengthened /
shortened by a period of
time (only for appliances
having a display which
indicates the remaining
programme time)
Plug is not properly inserted in socket.
•
Socket or fuse does not function correctly (use a table lamp or similar
•
appliance to test it).
the “On/Off” button has not been pressed (if available on your model).
•
Door is not properly closed (see also “Child Safety”).
•
The “Lock buttons” feature has been activated (if available on your
•
model). To unlock the buttons, push the temperature and the spin speed
button simultaneously and hold them at least for 3 seconds. The key
symbol on the display disappears and the programme can be started.
“Rinse hold” option is activated (if available on your model) and
•
(Anticrease) lights up in the programme sequence indicator terminate “Rinse hold” by pressing
starting “Drain” programme.
Programme has been changed - reselect desired programme and press
•
“Start/Pause”
Programme has been interrupted and eventually door has been opened -
•
close door and restart programme by pressing
The appliance’s safety system has been activated (see “Description of red
•
indications”).
Water tap is not opened or water inlet hose is kinked (“Water tap closed”
•
indication lights up).
Separator in main wash chamber is not correctly installed or not adapted
•
to use of powder and liquid detergent (see “Detergents And Additives”).
Water entering is not enough; the mesh filters of the water supply could
•
be blocked (see “Care And Maintenance”).
Transport bolts have not been removed;
•
is imperative that the transport bolts are removed.
Appliance is not level / not standing firmly on all four feet (see separate
•
“Installation Guide”).
The appliance has an imbalance detection and correction system. If
individual heavy items are loaded (e.g. bathrobes), this system may reduce
the spin speed automatically or even interrupt the spin completely in order
to protect the washing machine.
Heavy item(s) prevented spinning; add smaller articles of laundry and
•
repeat spin cycle.
Excessive foam formation prevented spinning; select and start “Rinse &
•
Spin” programme. Avoid excessive detergent dosing (see “Detergents
And Additives”).
“Variable spin” button (if available on your model) has been set to a low
•
spin speed, or “No spin” option (if available on your model) has been
activated.
Normal capacity of the appliance to adapt to factors that can have an effect
on the wash programme time, e.g.: Excess of foam formation, load
imbalance due to heavy items of laundry, prolonged heating time resulting
from reduced inlet water temperature.
Due to such influences, the programme time is recalculated and updated if
necessary.
animation appears during such update periods.
.
On certain displays (depending on the model), an
“Start/Pause”
before using the machine, it
or by choosing and
“Start/Pause”
.
Black process 45.0° 100.0 LPI
GB 10
90102750GB.fm Page 11 Friday, April 27, 2007 3:22 PM
Description of red indications
Red indication
lights up
(if fitted on your
machine)
Red indication
on display
(if fitted on your
machine)
“Water tap closed” ---
“Clean pump” ---
Description
Causes
Solutions
Appliance has no or insufficient water supply. The
“Start/Pause”
light flashes.
Check whether:
Water tap is fully open and water supply pressure
•
is sufficient.
Kinks are present in the water inlet hose.
•
Mesh filter of water supply hose is blocked (see
•
“Care And Maintenance”.
The water hose is frozen up.
•
The safety valve inspection window of your water
•
supply hose is red (provided your appliance has a
water supply hose as shown on picture
“B”
- see
previous chapter “Care And Maintenance”);
replace the hose by a new one available through
our After-Sales Service or your specialist dealer.
After problem has been removed, restart
programme by pressing
“Start/Pause”
. If the fault
occurs again, contact our After-Sales Service (see
next chapter).
Waste water is not pumped out. The appliance
stops in the corresponding programme step; unplug
it and check whether:
Kinks are present in the drain hose.
•
Filter or pump is blocked (see chapter “Removing
•
The Filter/Draining Residual Water”;
make sure
the water has cooled before draining the
appliance).
The drain hose is frozen up.
•
After problem has been removed, select and start
the “Drain” programme or push the “Reset” button
for at least 3 seconds; afterwards restart the desired
programme. If the fault occurs again, contact our
After-Sales-Service (see next chapter).
Black process 45.0° 100.0 LPI
GB 11
90102750GB.fm Page 12 Friday, April 27, 2007 3:22 PM
Red indication
lights up
(if fitted on your
machine)
“Service”
Indication on
time display
(if fitted on your
machine)
from “F02” to “F35”
(except “F09”)
“Electrical module fault”
Select and start the “Drain” programme or push the
Description
Causes
Solutions
“Reset” button for at least 3 seconds.
“F09” “Water level too high” (after programme
cancellation or false operating). Switch off the
appliance (by pressing the “On/Off” button or by
turning the programme selector to the “Off/O”
position - depending on the model) and then switch
it on again, select the programme “Drain” and start
within 15 sec.
“FA” “Waterstop fault”
Switch off the appliance (by pressing the “On/Off”
button or by turning the programme selector to the
“Off/O” position - depending on the model), pull
out mains plug and turn the water tap off. Tilt the
appliance forward carefully to allow collected water
to flow out from the bottom. Then:
Plug in the appliance again.
•
Turn the water tap on (if water immediately flows
•
into the appliance without the appliance being
started, there is a failure; turn off the tap and notify
the After-Sales Service).
Select and start the desired programme again.
•
Black process 45.0° 100.0 LPI
“Fod” “Overfoaming”
Too much foam interrupted the wash programme.
Select and start the “Rinse & Spin” programme.
•
Afterwards select and start the desired
•
programme again, using less detergent.
If any of the faults described above persist, unplug
the appliance, turn off the water tap and contact our
After-Sales Service (see next chapter).
GB 12
90102750GB.fm Page 13 Friday, April 27, 2007 3:22 PM
AFTER-SALES SERVICE
Before contacting After-Sales Service:
Try to remedy the problem yourself (see
1.
“Troubleshooting Guide”).
Restart the programme to check whether the
2.
problem has solved itself.
If the washing machine continues to function
3.
incorrectly, call our After-Sales Service.
ACCESSORIES
For some models, you can obtain via our AfterSales Service or your specialist dealer:
•a Pedestal Drawer
beneath your washing machine. It raises your
machine to allow for more comfortable loading
and unloading, as you now no longer need to
bend as far to access the unit. Furthermore, it
offers a great space-management tool and
storage solution.
•a Stacking Kit
your dryer on top of your washing machine and
thus effectively save space.
which can be installed
by means of which you can fix
Specify:
The nature of the problem.
•
The washing machine model.
•

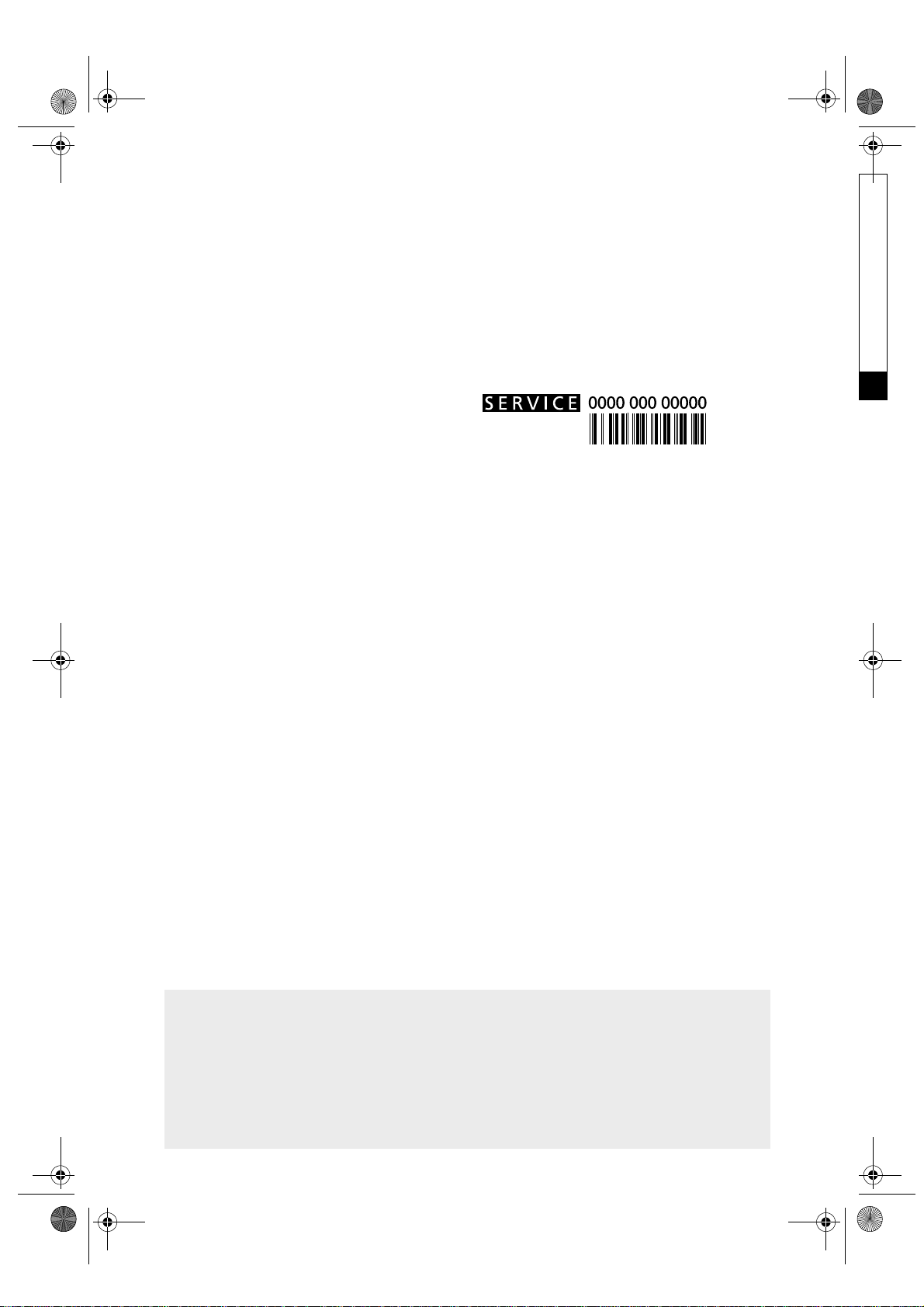

The service code (number after the word
•
SERVICE).
The After-Sales Service sticker can be found
inside the door.
Your full address.
•
Your telephone number and area code.
•
After-Sales Service phone numbers and
addresses are given on the guarantee card.
Alternatively, consult the dealer where you
purchased the appliance.
Certain models are able to be installed under your
kitchen worktop; in that case, please contact our
After-Sales Service (see above). Be aware that:
the appliance MUST be installed under a
•
continuous worktop.
according to the legal safety regulations, the
•
installation of the appliance MUST be carried out
by an authorized technician or by our After-Sales
Service.
the appliance MUST be installed using the
•
intermediate cover panel of the
which can be obtained from specialist dealers or
our After-Sales Service.
UBS Base Set
TRANSPORT/HANDLING
Never lift the appliance by the worktop when transporting.
Pull out the mains plug.
1.
Turn off the tap.
2.
Check that machine door and detergent dispenser are properly closed.
3.
Disconnect the inlet and drain hoses.
4.
Eliminate all water from the hoses and from the appliance (see “Removing The Filter/Draining
5.
Residual Water”).
Fit the transport bolts (obligatory).
6.
Black process 45.0° 100.0 LPI
GB 13
90102750GB.fm Page 14 Friday, April 27, 2007 3:22 PM
ELECTRICAL CONNECTION
For Great Britain only
Warning - this appliance must be earthed
Fuse replacement
If the mains lead of this appliance is fitted with a
BS 1363A 13amp fused plug, to change a fuse in this type
of plug use an A.S.T.A. approved fuse to BS 1362 type and
proceed as follows:
Remove the fuse cover (A) and fuse (B).
1.
Fit replacement 13A fuse into fuse cover.
2.
Refit both into plug.
3.
Important:
The fuse cover must be refitted when changing a fuse and
if the fuse cover is lost the plug must not be used until a
correct replacement is fitted.
Correct replacement are identified by the colour insert or
the colour embossed in words on the base of the plug.
Replacement fuse covers are available from your local
electrical store.
For the Republic of Ireland only
The information given in respect of Great Britain will
frequently apply, but a third type of plug and socket is also
used, the 2-pin, side earth type.
Socket outlet / plug (valid for both countries)
If the fitted plug is not suitable for your socket outlet,
Please contact After-Sales service for further instruction.
Please do not attempt to change plug yourself. This
procedure needs to be carried out by a qualified technician
in compliance with the manufactures instructions and
current standard safety regulations.
Black process 45.0° 100.0 LPI
GB 14
Loading...
