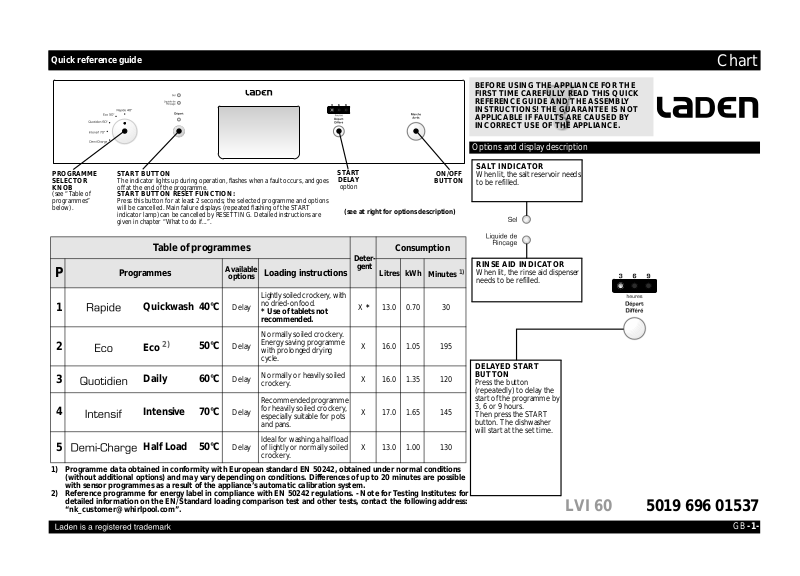

Whirlpool LVI 60 IX PROGRAM CHART

r

Quick reference guide

PROGRAMME
SELECTOR
KNOB

(see “Table of
programmes”
below).

START BUTTON

The indicator lights up during operation, flashes when a fault occurs, and goes
off at the end of the programme.

START BUTTON RESET FUNCTION:

Press this button for at least 2 seconds; the selected programme and options
will be cancelled. Main failure displays (repeated flashing of the START
indicator lamp) can be cancelled by RESETTING. Detailed instructions are
given in chapter “What to do if...”.

START
DELAY

option

(see at right for options description)

ON/OFF

BUTTON

BEFORE USING THE APPLIANCE FOR THE
FIRST TIME CAREFULLY READ THIS QUICK
REFERENCE GUIDE AND THE ASSEMBLY
INSTRUCTIONS! THE GUARANTEE IS NOT
APPLICABLE IF FAULTS ARE CAUSED BY
INCORRECT USE OF THE APPLIANCE.

Options and display description

SALT INDICATOR

When lit, the salt reservoir needs
to be refilled.

Chart

Table of programmes

Deter-

gent

X * 13.0 0.70 30

50°C

Available

options

Delay

Delay

Delay

Delay

Delay

Loading instructions

Lightly soiled crockery , with
no dried-on food.

* Use of tablets not
recommended.

Normally soiled crockery.
Energy saving programme
with prolonged drying
cycle.

Normally or heavily soiled
crockery.

Recommended programme
for heavily soiled crockery,
especially suitable for pots
and pans.

Ideal for washing a half load
of lightly or normally soiled
crockery.

P

1

2

3

4

5

1) Programme data obtained in conformity with European standard EN 50242, obtained under normal conditions
(without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible
with sensor programmes as a result of the appliance’s automatic calibration system.

2) Reference programme for energy label in complian ce with EN 50242 regul ations. - No te for Testing Institutes: fo
detailed information on the EN/Standard loading comparison test and other tests, contact the following address:
“[e-mail]”.

Programmes

Quickwash 40°C

Eco

Daily 60°C

Intensive 70°C

Half Load 50°C

2)

Consumption

Litres kWh

X 16.0 1.05 195

X 16.0 1.35 120

X 17.0 1.65 145

X 13.0 1.00 130

Minutes

RINSE AID INDICATOR

1)

When lit, the rinse aid dispenser
needs to be refilled.

DELAYED START
BUTTON

Press the button
(repeatedly) to delay the
start of the programme by
3, 6 or 9 hours.
Then press the START
button. The dishwasher
will start at the set time.

5019 696 01537LVI 60

GB

-1-

How to set detergent type: powder/gel/tablet (if option is available)

First time use

In order to always ensure the best cleaning
results, you NEED to set:
DETERGENT type and WATER HARDNESS.

1- salt reservoir
2- rinse aid dispenser
3- detergent dispenser
4- racks system
5,6,7,8- available functions on the panel
9- filters
10- spray arms

1.

Select 3rd programme
(see Table of programmes

- page 1)

2.

Press START button
for 7 seconds

3a.

For models without “detergent type” option, the salt and rinse aid indicators will be lit when tablets are used.

How to set water hardness

Switch on the appliance

* only before the first wash or if
the water hardness has been
changed

1.

Ask your water supply company what

water hardness

the

French

degrees °fH

0 - 9 Soft 1 1x
10 - 18 Medium 2 2x
19 - 27 Average 3 3x
28 - 37 Medium-hard 4 4x
38 - 50 Hard 5 5x
51 - 63 Very hard 6 6x

64 - 107 Extremely hard 7 7x

is...

Water

hardness

- Select the 2nd programme “P2” - consult the table of programmes.

- Press the START button for at least 5 seconds until the START indicator lamp flashes.

- The water hardness setting is shown on the display (if present) or the START button flashes.

- With each successive touch of the START button the setting increases and when it reaches 7 it returns to 1 again.

- The appliance must be switched off to memorise the new setting.

2.

...enter this value on your dishwasher

Dishwasher with

display: insert value

in the display

Check your
detergent type...

Detergent

types

Powder or gel

(factory setting)

Tablet 2 in 1

Tablet 3 in 1

Tablet All in 1

Dishwasher without

display: count

START button led

flashes

3b.

...and set it on your dishwasher

using the START button

(as per table below)

Dishwasher models

model without

display

3h 6h 9h

Gel or Powder

(rinse aid and salt)

(see “Daily check”)

model with display

Suggestions for detergent use

go to step 1

4.

Remember to use salt and rinse
aid when needed (as indicated
below)

no symbol add salt add rinse aid

add salt

salt

Tablets

rinse aid

rinse aid

Water hardness level is factory set for
medium hard water (a number “4” is
shown on the display or the START
indicator lamp flashes 4 times).

if extra salt is

needed go to step 1

(see “Daily check”)

Even if you use tablets which include salt,
you must still add salt since such
detergents are not effective enough at
softening hard water.

5.

Switch off and switch on
again to save setting

GB

-2-

1

Filling the salt reservoir -

Dissolve limescale (not necessary if water hardness level is set to “soft”!)

Daily check

The salt level indicator lamp may remain lit for the duration of several wash cycles. If the
water hardness level falls within category (soft),

Adding rinse aid

(not necessary when you use tablets). How to adjust the rinse aid dosage regulator

2

Rinse aid indicator (depending on model)

Only use rinse aids recommended for use in domestic dishwashers.
If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly d ry : incr e a s e the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid

setting will not improve the situation.
Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend

to form excess suds.

Adding detergent -

3

S

E

L

Visual indicator
(depending
on model).
Unscrew cap.

Visual
indicator

If required,
open the cover
B (press right
button).

no

salt is required.

The indicator lamp on the control panel lights up when RINSE AID NEEDS TO BE
ADDED.

Immediately

Fill the salt
reservoir with
water before the
first wash only.

S

E

L

Salt indicator

(depending on

the model)

Add rinse aid
to the max.
line ~150 ml

wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.

The indicator lamp on the control panel lights
up when SALT NEEDS TO BE ADDED.

Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations

Tablet / gel / powder

Use only one tablet per one

Open the cover A
(press left button).

Only fill the
detergent dispenser
prior to starting a
wash programme.

cycle, only placed in detergent
dispenser.

All types of tablets can be
used, but for 2 in 1 type
adding of salt is mandatory.

S

Add salt

(never add
detergent!).
min. 1.5 kg

S

max. 2 kg

E

L

orange: OK. clear: NEEDS TO BE ADDED

The rinse aid dosage can be adjusted to the
detergent used. The lower the setting,
the less rinse aid is dispensed
(factory setting: position 4).
Press the button to open the cover B. Using a
coin or similar object, turn the arrow to the
desired setting. After adjusting the rinse aid
setting, shut the cover again.

dark: OK. clear: NEEDS TO BE ADDED

By pressing
dedicated ribs
shut the cover.

E

L

Visual indicator (depending
on model). Screw on the cap.
Salt residues around cap
need to be removed.

Daily use

GB

-3-
