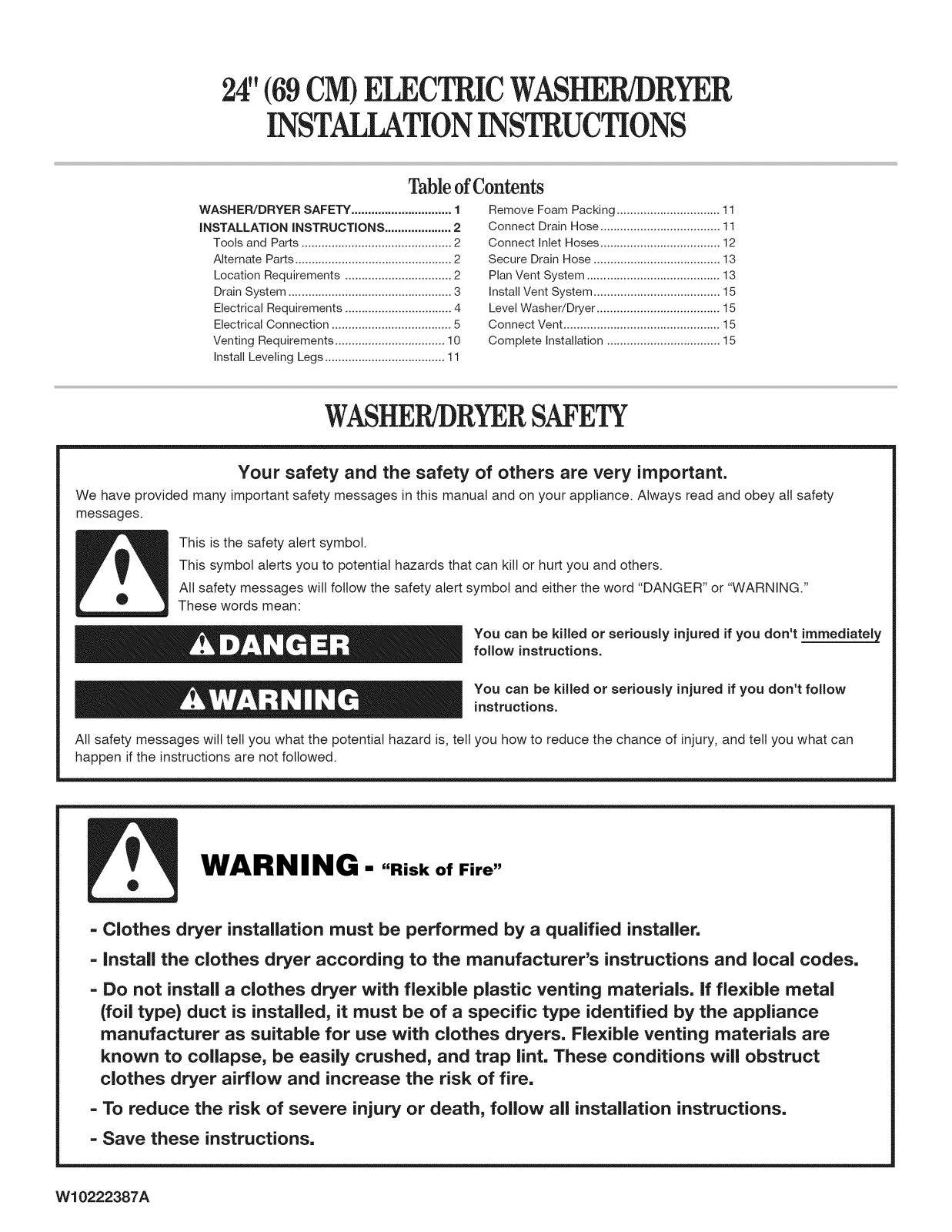

Whirlpool LTE5243DQA, LTE5243DQ9, LTE5243DQ8 Installation Guide

24"(69CM)ELECTRICWASHER/DRYER

INSTALLATIONINSTRUCTIONS

_ble of Contents

WASHER/DRYER SAFETY .............................. 1

iNSTALLATiON iNSTRUCTiONS .................... 2

Tools and Parts ............................................. 2

Alternate Parts ............................................... 2

Location Requirements ................................ 2

Drain System ................................................. 3

Electrical Requirements ................................ 4

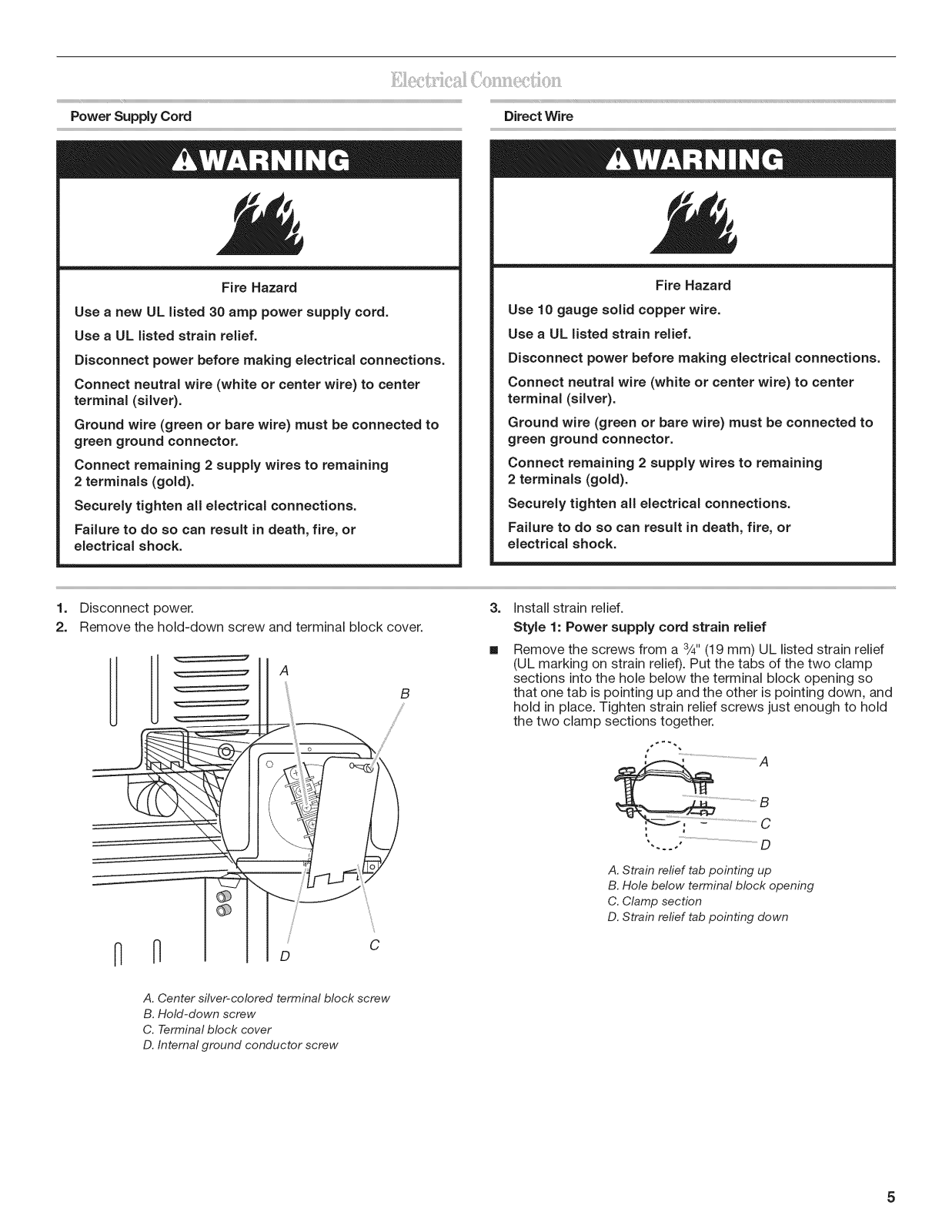

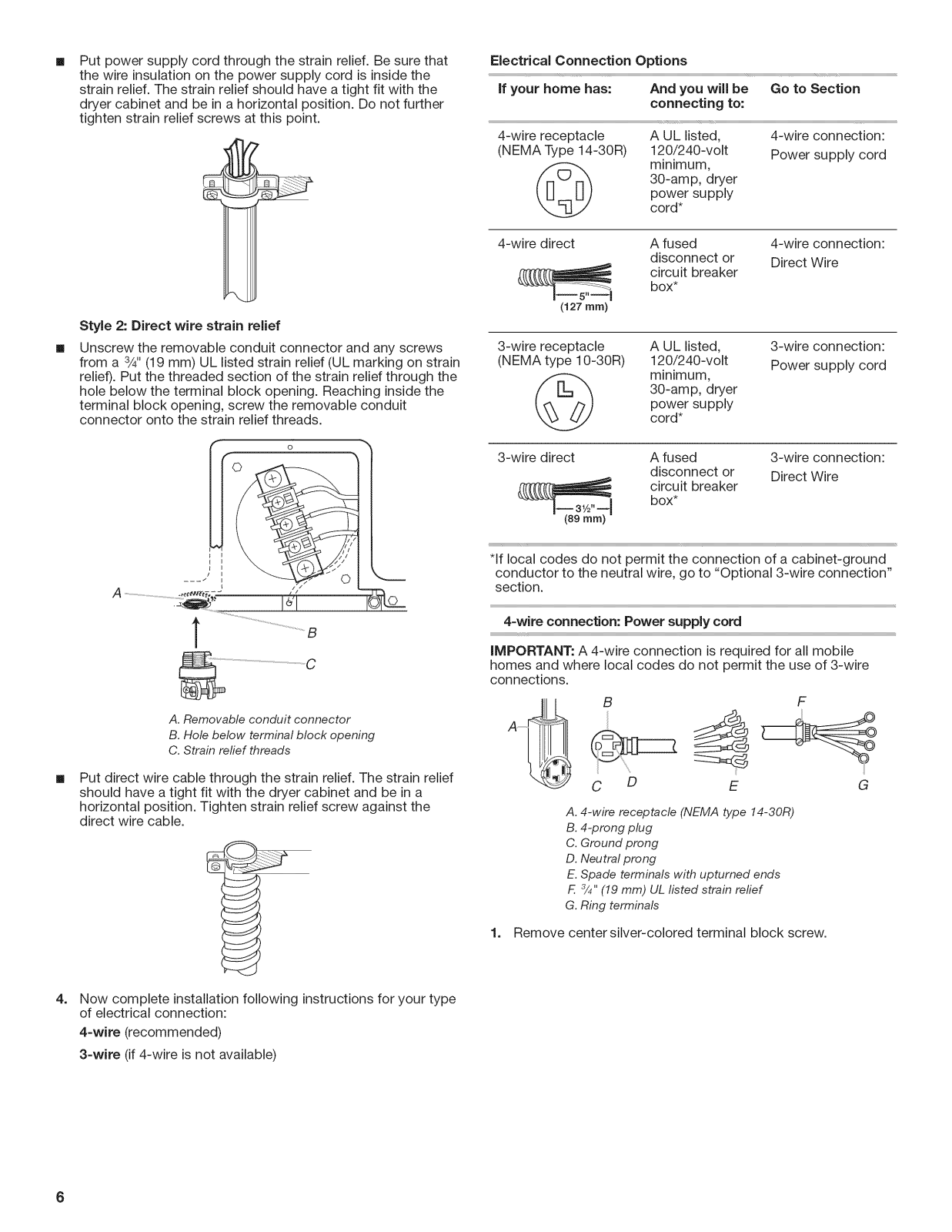

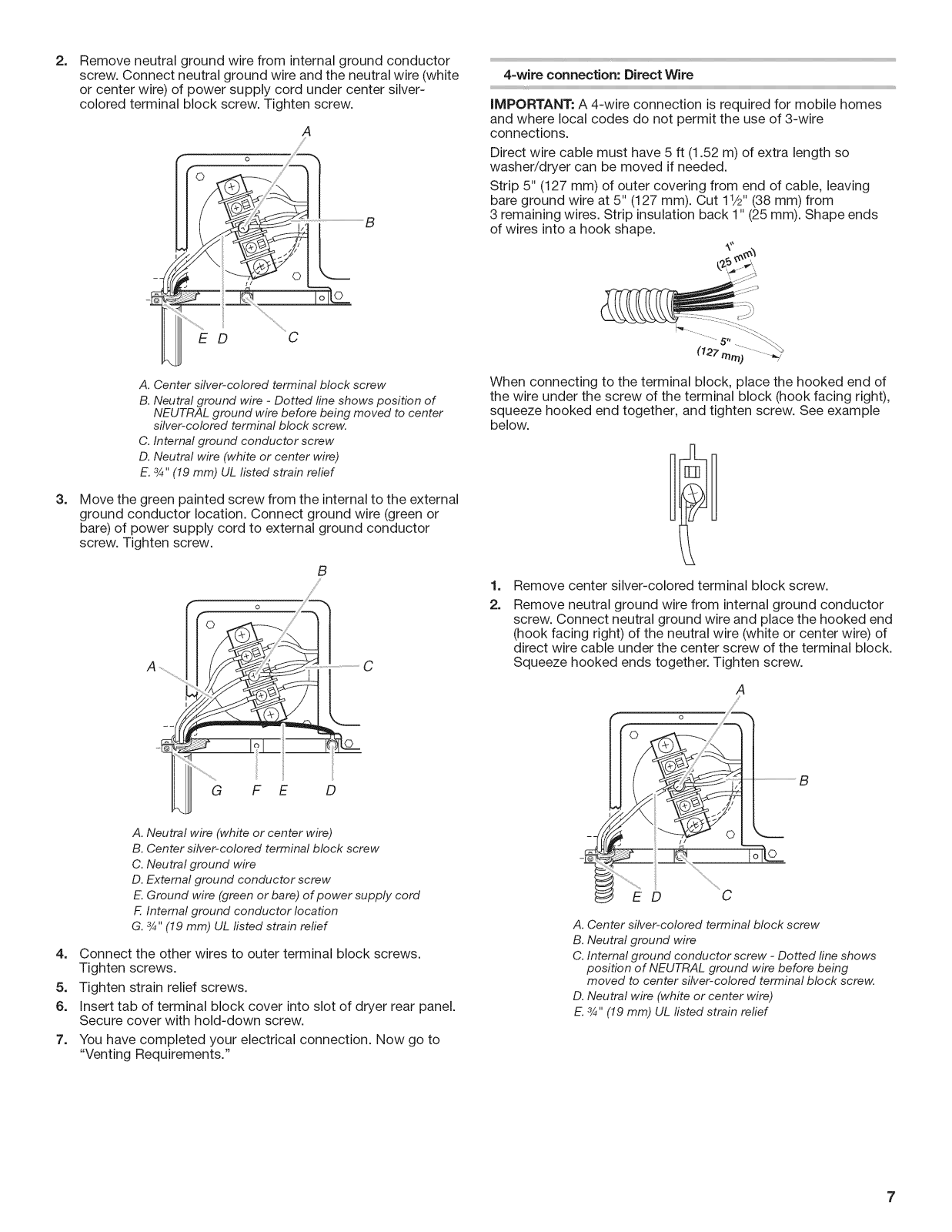

Electrical Connection .................................... 5

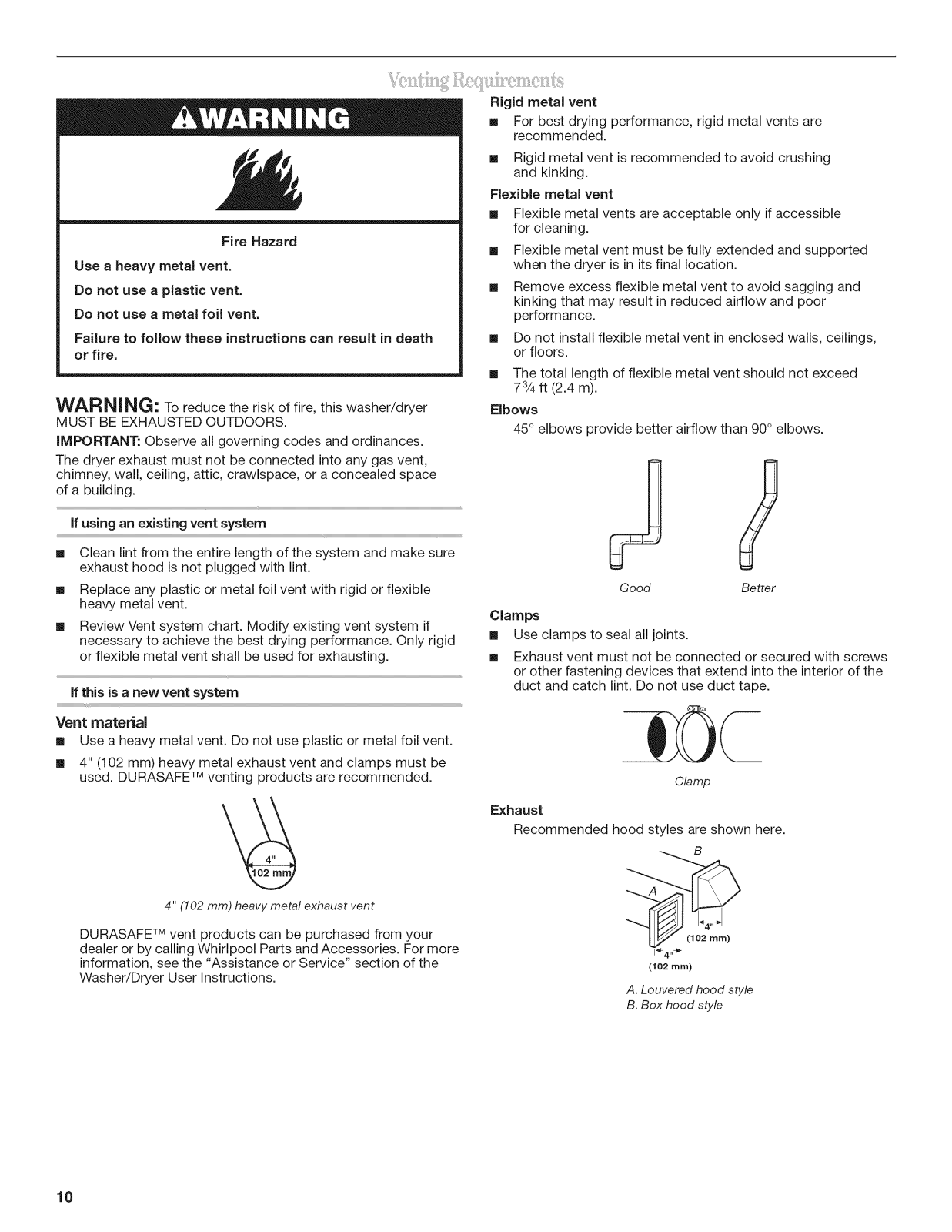

Venting Requirements ................................. 10

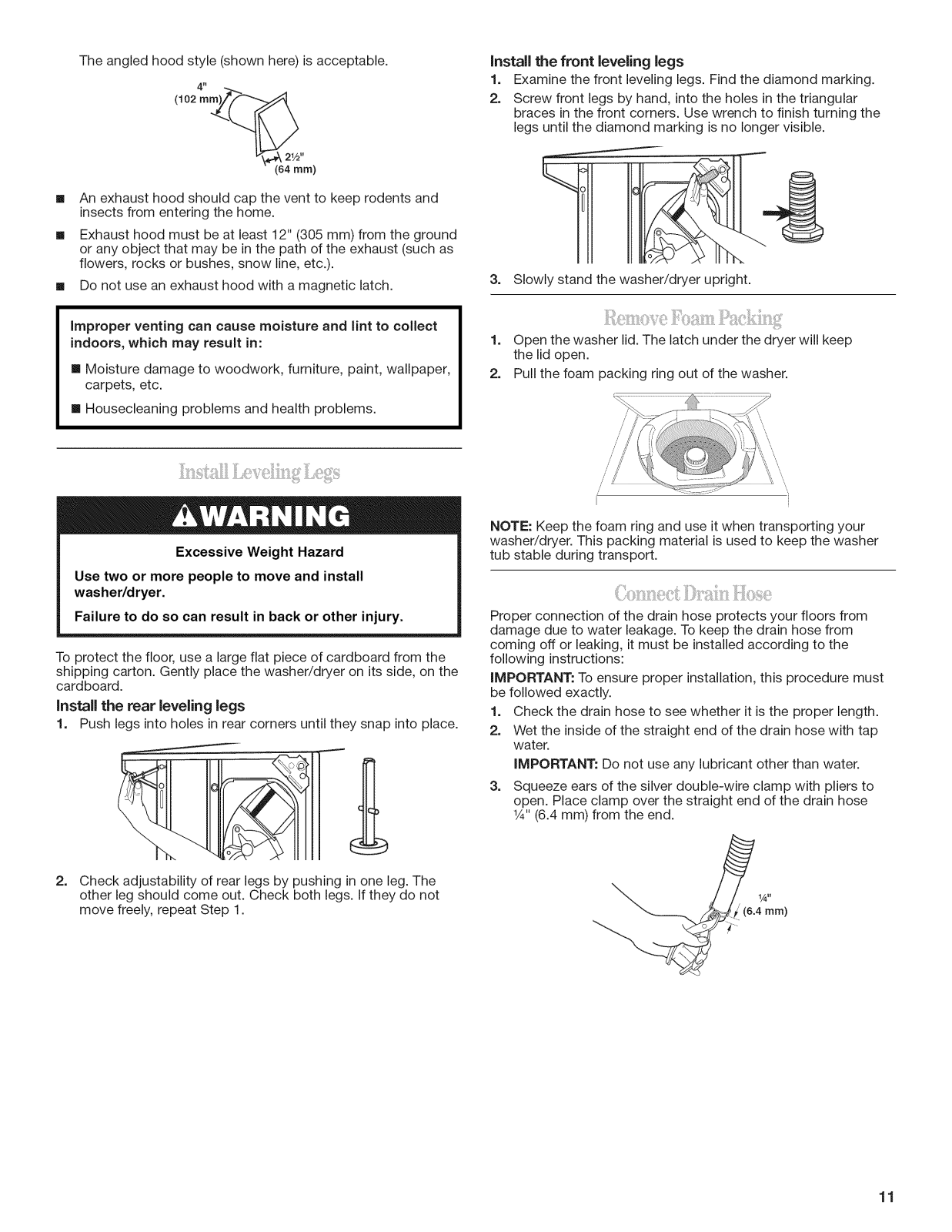

Install Leveling Legs .................................... 11

WASHER RYER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.
This symbol alerts you to potential hazards that can kilt or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

Remove Foam Packing ............................... 11

Connect Drain Hose .................................... 11

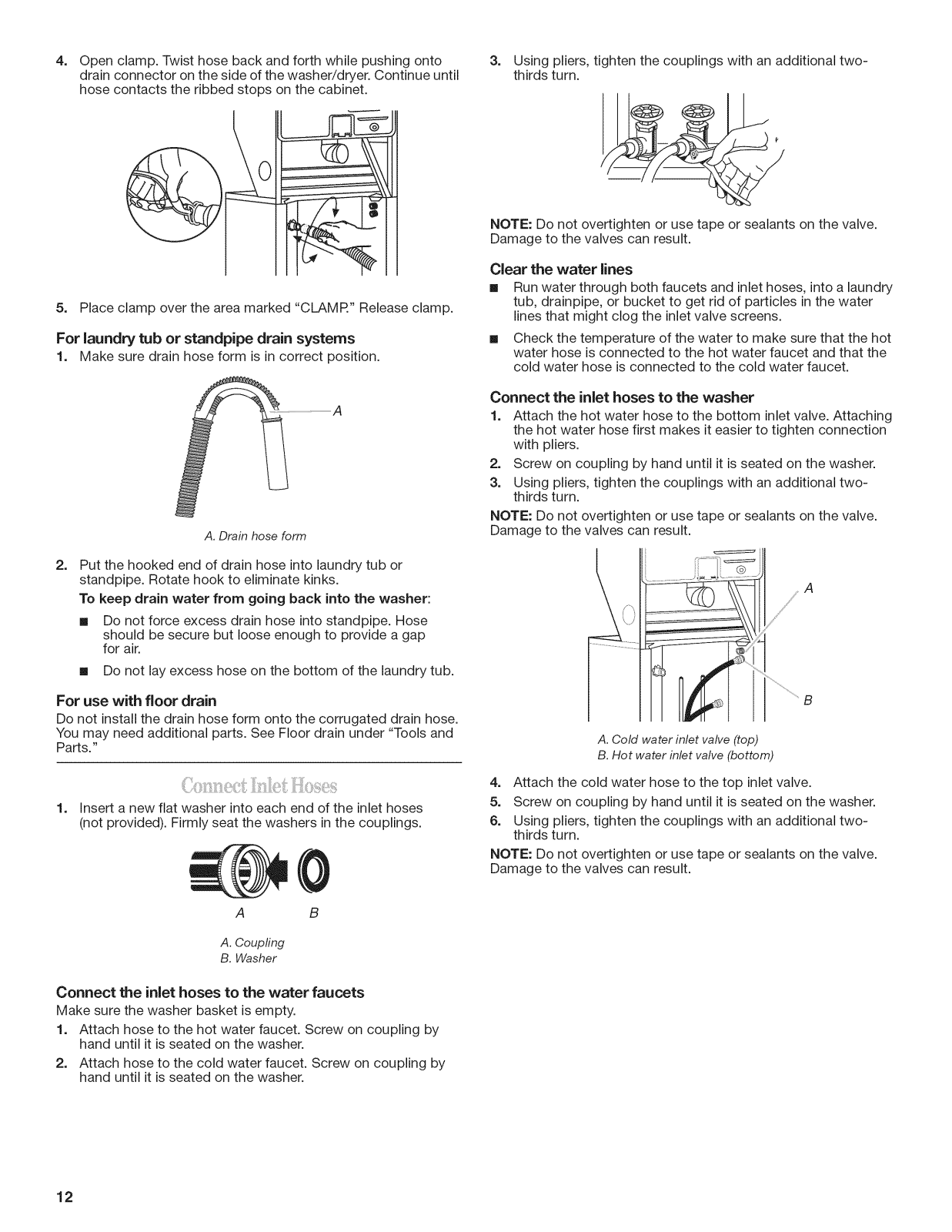

Connect Inlet Hoses .................................... 12

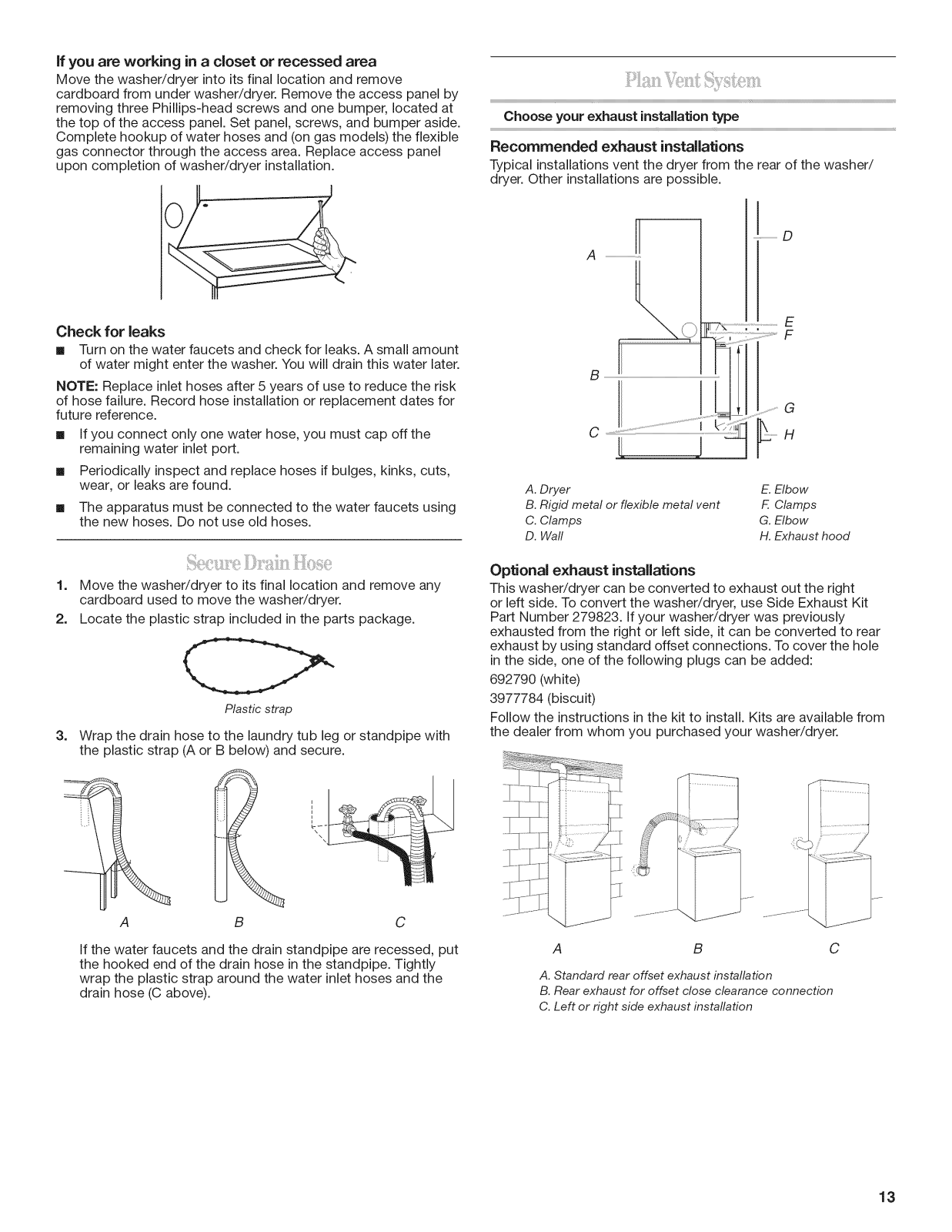

Secure Drain Hose ...................................... 13

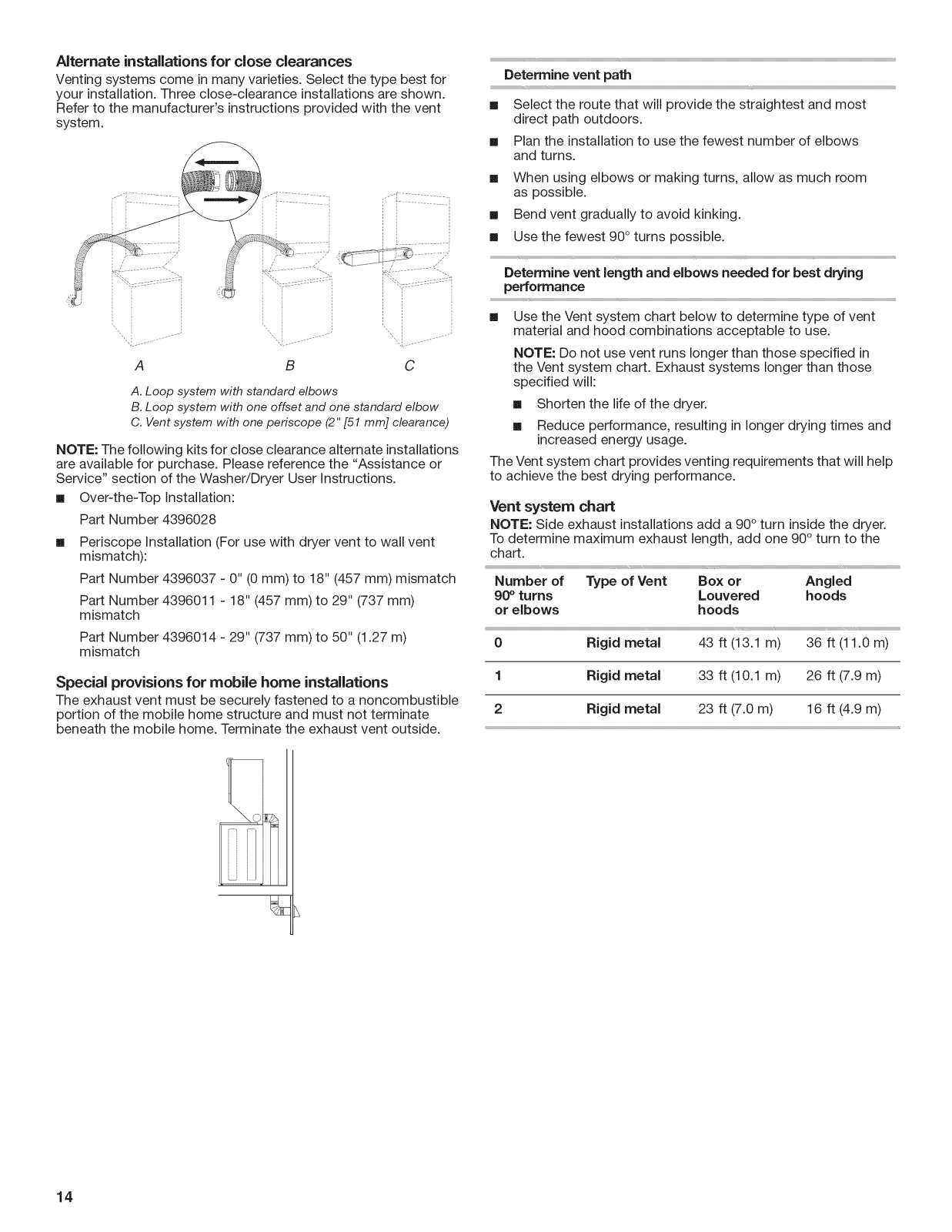

Plan Vent System ........................................ 13

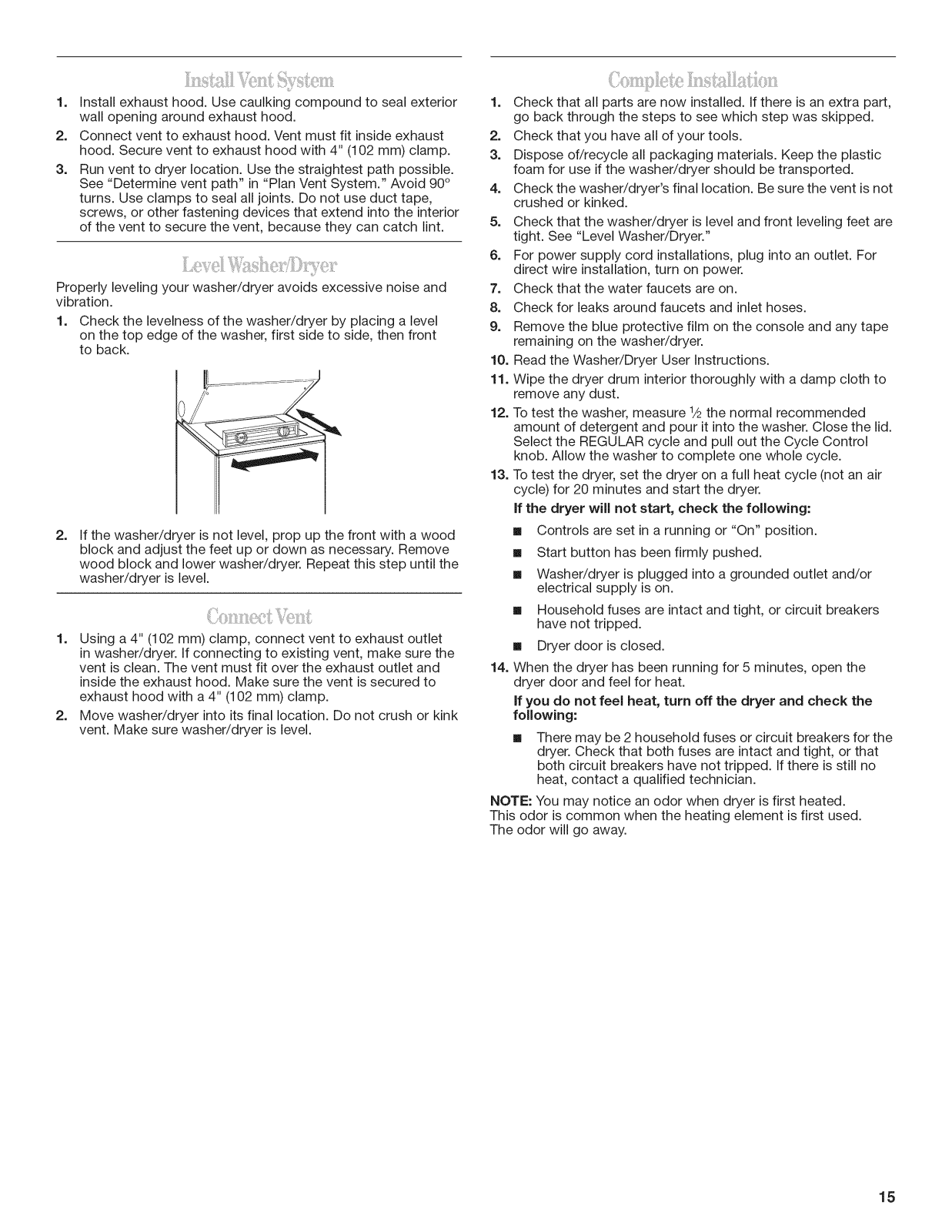

Install Vent System ...................................... 15

Level Washer/Dryer ..................................... 15

Connect Vent ............................................... 15

Complete Installation .................................. 15

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow
instructions.

All safety messages wilt tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.

WARNING - "RiskofFire"

- Clothes dryer installation must be performed by a qualified installer.

- install the clothes dryer according to the manufacturer's instructions and local codes.

- Do not install a clothes dryer with flexible plastic venting materials, if flexible metal
(foil type) duct is installed, it must be of a specific type identified by the appliance

manufacturer as suitable for use with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint. These conditions will obstruct

clothes dryer airflow and increase the risk of fire.

- To reduce the risk of severe injury or death, follow all installation instructions.

- Save these instructions.

W10222387A

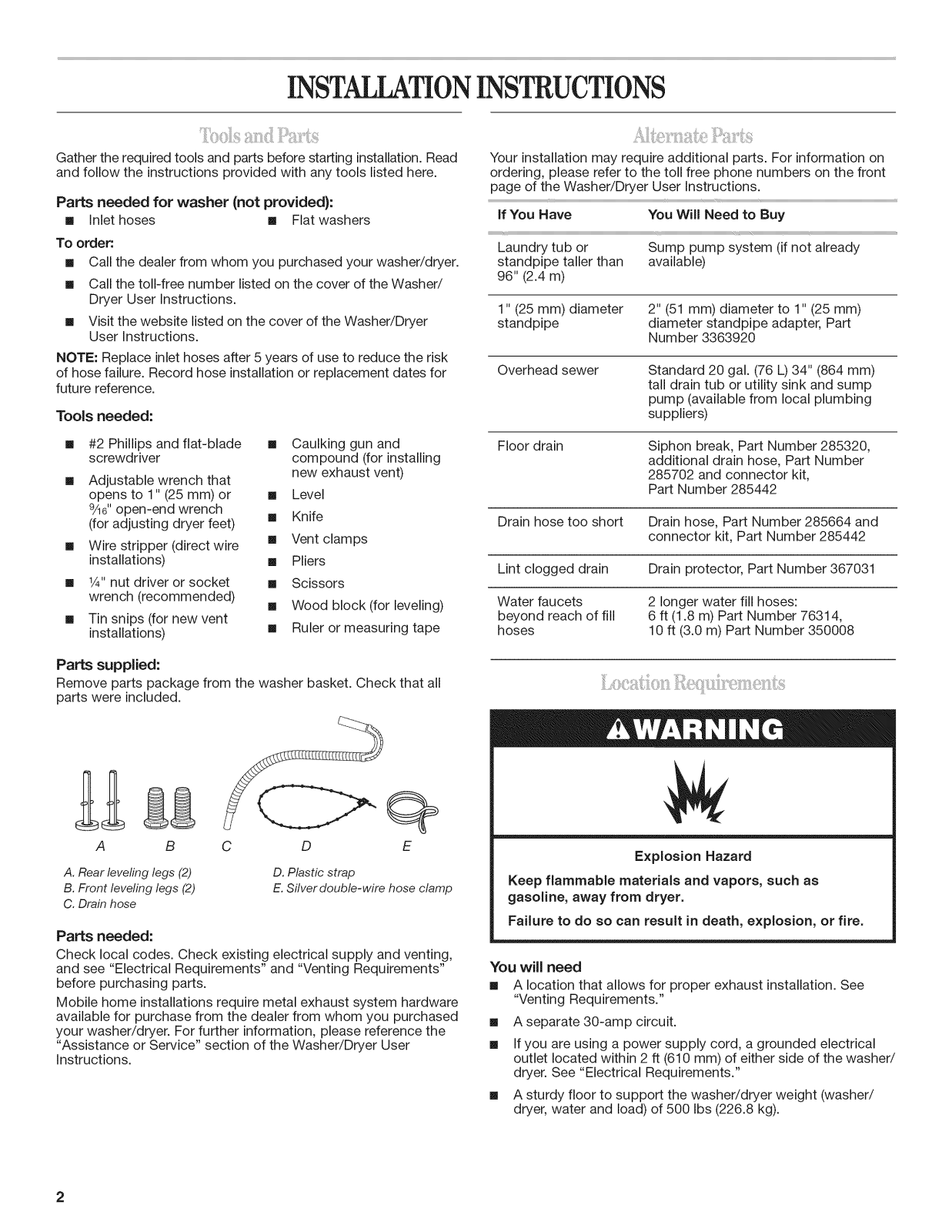

INSTALIATIONINSTRUCTIONS

Gather the required tools and parts before starting installation. Read
and follow the instructions provided with any tools listed here.

Parts needed for washer (not provided):

[] inlet hoses [] Flat washers

To order."

[] Call the dealer from whom you purchased your washer/dryer.
[] Call the toll-free number listed on the cover of the Washer/

Dryer User Instructions.

[] Visit the website listed on the cover of the Washer/Dryer

User Instructions.

NOTE: Replace inlet hoses after 5 years of use to reduce the risk
of hose failure. Record hose installation or replacement dates for

future reference.
Tools needed:

[]

#2 Phillips and flat-blade
screwdriver

[]

Adjustable wrench that
opens to 1" (25 mm) or
%6" open-end wrench

(for adjusting dryer feet)

[]

Wire stripper (direct wire
installations)

1A"nut driver or socket

[]

wrench (recommended)

[]

Tin snips (for new vent
installations)

[] Caulking gun and

compound (for installing
new exhaust vent)

[] Level
[] Knife

[] Vent clamps
[] Pliers

[] Scissors
[] Wood block (for leveling)
[] Ruler or measuring tape

Your installation may require additional parts. For information on
ordering, please refer to the toll free phone numbers on the front
page of the Washer/Dryer User Instructions.

If You Have You Wilt Need to Buy

Laundry tub or
standpipe taller than

Sump pump system (if not already
available)

96" (2.4 m)

1" (25 mm) diameter
standpipe

2" (51 mm) diameter to 1" (25 mm)
diameter standpipe adapter, Part

Number 3363920

Overhead sewer

Standard 20 gal. (76 L) 34" (864 mm)
tall drain tub or utility sink and sump

pump (available from local plumbing
suppliers)

Floor drain

Siphon break, Part Number 285320,
additional drain hose, Part Number
285702 and connector kit,
Part Number 285442

Drain hose too short Drain hose, Part Number 285664 and

connector kit, Part Number 285442

Lint clogged drain Drain protector, Part Number 367031

Water faucets 2 longer water fill hoses:
beyond reach of fill 6 ft (1.8 m) Part Number 76314,
hoses 10 ft (3.0 m) Part Number 350008

Parts supplied:
Remove parts package from the washer basket. Check that all

parts were included.

A B C D E

A. Rear leveling legs (2)
B. Front leveling legs (2)

C. Drain hose

D. Plastic strap
E. Silver double-wire hose clamp

Parts needed:
Check local codes. Check existing electrical supply and venting,

and see "Electrical Requirements" and "Venting Requirements"
before purchasing parts.

Mobile home installations require metal exhaust system hardware
available for purchase from the dealer from whom you purchased
your washer/dryer. For further information, please reference the
"Assistance or Service" section of the Washer/Dryer User

Instructions.

Explosion Hazard

Keep flammable materials and vapors, such as

gaso((ne, away from dryer.

Failure to do so can result in death, explosion, or fire.

You will need
[] A location that allows for proper exhaust installation. See

"Venting Requirements."
[] Aseparate 30-amp circuit.
[] If you are using a power supply cord, a grounded electrical

outlet located within 2 ft (610 ram) of either side of the washer/

dryer. See "Electrical Requirements."
[] A sturdy floor to support the washer/dryer weight (washer/

dryer, water and load) of 500 Ibs (226.8 kg).

2

[]

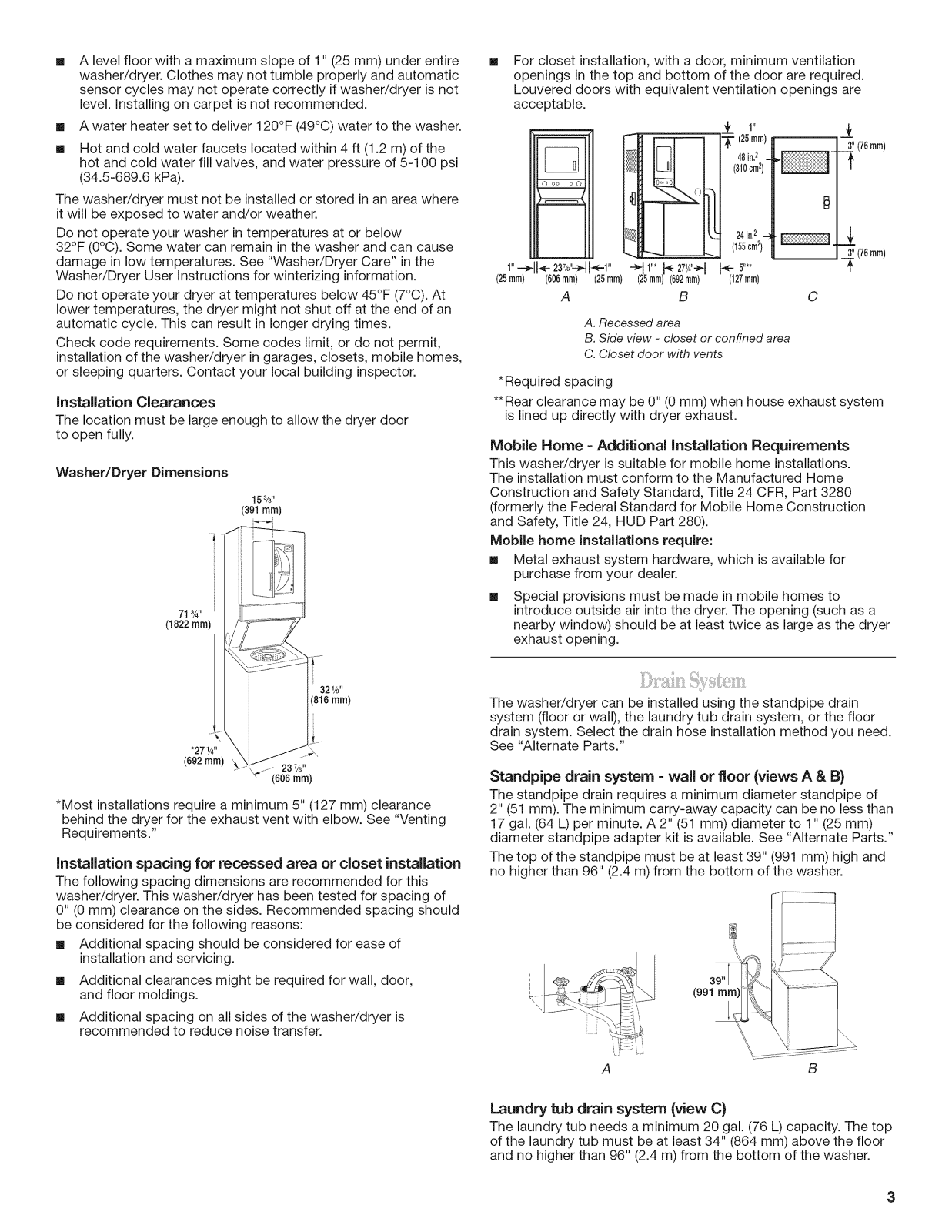

A level floor with a maximum slope of 1" (25 mm) under entire
washer/dryer. Clothes may not tumble properly and automatic

sensor cycles may not operate correctly if washer/dryer is not
level. Installing on carpet is not recommended.

[]

A water heater set to deliver 120°F (49°C) water to the washer.

[]

Hot and cold water faucets located within 4 ft (1.2 m) of the
hot and cold water fill valves, and water pressure of 5-100 psi
(34.5-689.6 kPa).

The washer/dryer must not be installed or stored in an area where
it will be exposed to water and/or weather.

Do not operate your washer in temperatures at or below
32°F (0°C). Some water can remain in the washer and can cause
damage in low temperatures. See "Washer/Dryer Care" in the
Washer/Dryer User Instructions for winterizing information.

Do not operate your dryer at temperatures below 45°F (7°C). At
lower temperatures, the dryer might not shut off at the end of an
automatic cycle. This can result in longer drying times.

Check code requirements. Some codes limit, or do not permit,
installation of the washer/dryer in garages, closets, mobile homes,

or sleeping quarters. Contact your local building inspector.
Installation Clearances

The location must be large enough to allow the dryer door
to open fully.

Washer/Dryer Dimensions

153/8"

(391ram)

713A"

(1622 ram)

For closet installation, with a door, minimum ventilation

openings in the top and bottom of the door are required.

Louvered doors with equivalent ventilation openings are

acceptable.

m

(26ram)

48in,2 .

m

o oo o

1"-_11<-23'J,"_1<--1"_ 1" I_ 27,/,"_

(25mm) (606mm) (25rnm} (26mm) (692mm)

A B

A. Recessed area

B. Side view - closet or confined area

C. Closet door with vents

1310cm2)

24in,2 -

155cm2)

5'*_

(127mm)

._(76 ram)

C

*Required spacing

**Rear clearance may be 0" (0 mm) when house exhaust system

is lined up directly with dryer exhaust.

Mobile Home =Additional installation Requirements
This washer/dryer is suitable for mobile home installations.

The installation must conform to the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280

(formerly the Federal Standard for Mobile Home Construction
and Safety, Title 24, HUD Part 280).

Mobile home installations require:
[] Metal exhaust system hardware, which is available for

purchase from your dealer.

Special provisions must be made in mobile homes to

introduce outside air into the dryer. The opening (such as a

nearby window) should be at least twice as large as the dryer

exhaust opening.

321/8"

316ram)

*271A"

(692 ram) 237/8"

(606 rnrn)

*Most installations require a minimum 5" (127 mm) clearance

behind the dryer for the exhaust vent with elbow. See "Venting
Requirements."

Installation spacing for recessed area or closet installation
The following spacing dimensions are recommended for this

washer/dryer. This washer/dryer has been tested for spacing of
0" (0 mm) clearance on the sides. Recommended spacing should

be considered for the following reasons:
[] Additional spacing should be considered for ease of

installation and servicing.

[] Additional clearances might be required for wall, door,

and floor moldings.

[] Additional spacing on all sides of the washer/dryer is

recommended to reduce noise transfer.

The washer/dryer can be installed using the standpipe drain
system (floor or wall), the laundry tub drain system, or the floor

drain system. Select the drain hose installation method you need.
See "Alternate Parts."

Standpipe drain system = wall or floor (views A & B}
The standpipe drain requires a minimum diameter standpipe of

2" (51 mm). The minimum carry-away capacity can be no less than
17 gal. (64 L) per minute. A 2" (51 mm) diameter to 1" (25 mm)

diameter standpipe adapter kit is available. See "Alternate Parts."
The top of the standpipe must be at least 39" (991 mm) high and

no higher than 96" (2.4 m) from the bottom of the washer.

39"

(991 rnrn)

A B

Laundry tub drain system (view C)
The laundry tub needs a minimum 20 gal. (76 L) capacity. The top

of the laundry tub must be at least 34" (864 mm) above the floor
and no higher than 96" (2.4 m) from the bottom of the washer.

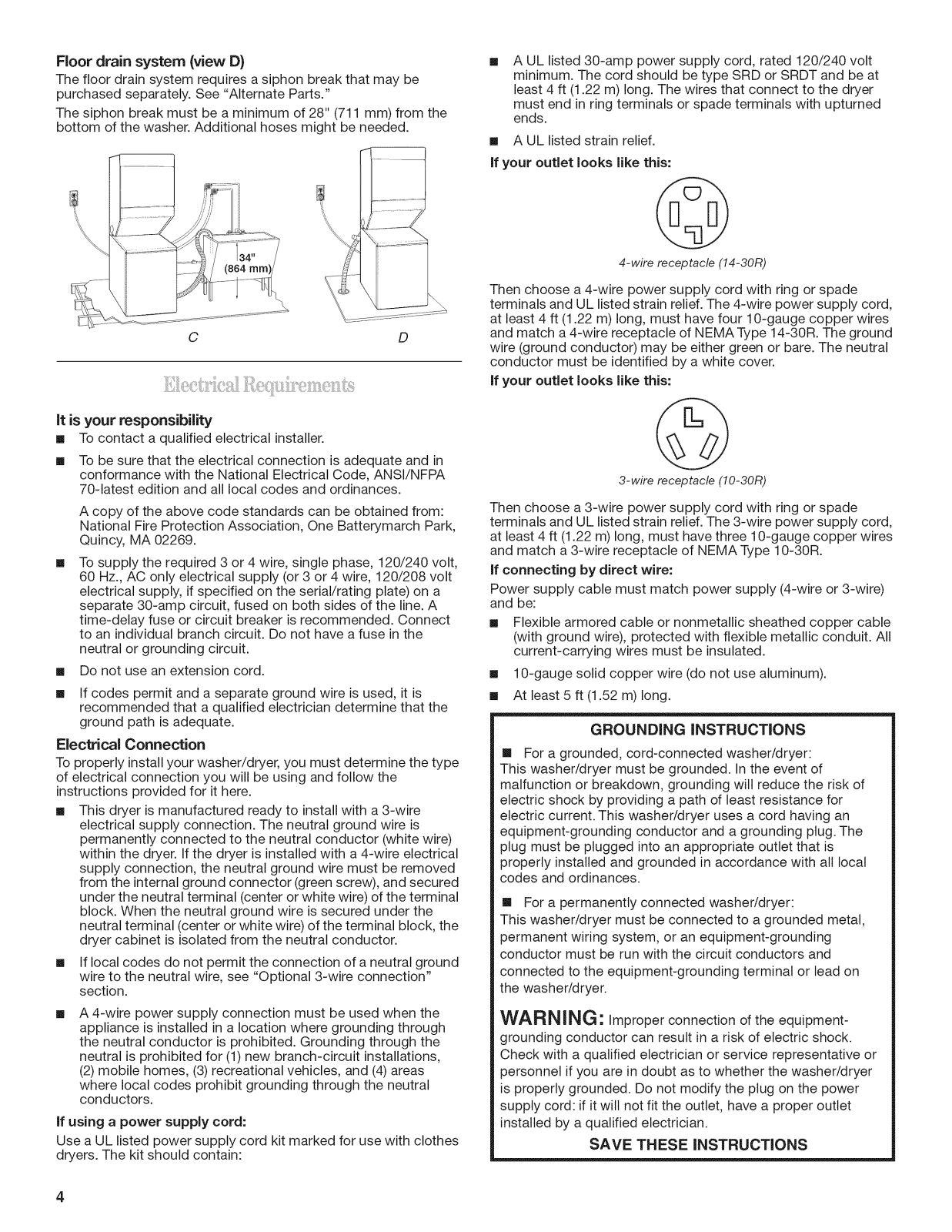

Floordrainsystem(viewD)

The floor drain system requires a siphon break that may be
purchased separately. See "Alternate Parts."

The siphon break must be a minimum of 28" (711 mm) from the
bottom of the washer. Additional hoses might be needed.

C D

it is your responsibility
[] To contact a qualified electrical installer.

[] To be sure that the electrical connection is adequate and in

conformance with the National Electrical Code, ANSl/NFPA
70-latest edition and all local codes and ordinances.

A copy of the above code standards can be obtained from:
National Fire Protection Association, One Batterymarch Park,
Quincy, MA 02269.

[]

To supply the required 3 or 4 wire, single phase, 120/240 volt,
60 Hz., AC only electrical supply (or 3 or 4 wire, 120/208 volt
electrical supply, if specified on the serial/rating plate) on a
separate 30-amp circuit, fused on both sides of the line. A

time-delay fuse or circuit breaker is recommended. Connect
to an individual branch circuit. Do not have a fuse in the

neutral or grounding circuit.

[] Do not use an extension cord.
[] If codes permit and a separate ground wire is used, it is

recommended that a qualified electrician determine that the
ground path is adequate.

Electrical Connection
To properly install your washer/dryer, you must determine the type

of electrical connection you will be using and follow the
instructions provided for it here.

[] This dryer is manufactured ready to install with a 3-wire

electrical supply connection. The neutral ground wire is
permanently connected to the neutral conductor (white wire)
within the dryer. If the dryer is installed with a 4-wire electrical
supply connection, the neutral ground wire must be removed
from the internal ground connector (green screw), and secured

under the neutral terminal (center or white wire) of the terminal
block. When the neutral ground wire is secured under the
neutral terminal (center or white wire) of the terminal block, the
dryer cabinet is isolated from the neutral conductor.

[] If local codes do not permit the connection of a neutral ground

wire to the neutral wire, see "Optional 3-wire connection"
section.

[] A 4-wire power supply connection must be used when the

appliance is installed in a location where grounding through
the neutral conductor is prohibited. Grounding through the
neutral is prohibited for (1) new branch-circuit installations,
(2) mobile homes, (3) recreational vehicles, and (4) areas

where local codes prohibit grounding through the neutral
conductors.

If using a power supply cord:
Use a UL listed power supply cord kit marked for use with clothes

dryers. The kit should contain:

A UL listed 30-amp power supply cord, rated 120/240 volt

minimum. The cord should be type SRD or SRDT and be at

least 4 ft (1.22 m) long. The wires that connect to the dryer

must end in ring terminals or spade terminals with upturned

ends.
[] A UL listed strain relief.

if your outlet looks like this:

4-wire receptacle (14-30R)

Then choose a 4-wire power supply cord with ring or spade
terminals and UL listed strain relief. The 4-wire power supply cord,

at least 4 ft (1.22 m) long, must have four 10-gauge copper wires
and match a 4-wire receptacle of NEMA Type 14-30R. The ground

wire (ground conductor) may be either green or bare. The neutral
conductor must be identified by a white cover.

if your outlet looks like this:

3-wire receptacle (10-30R)

Then choose a 3-wire power supply cord with ring or spade
terminals and UL listed strain relief. The 3-wire power supply cord,
at least 4 ft (1.22 m) long, must have three 10-gauge copper wires
and match a 3-wire receptacle of NEMA Type 10-30R.

if connecting by direct wire:
Power supply cable must match power supply (4-wire or 3-wire)

and be:
[] Flexible armored cable or nonmetallic sheathed copper cable

(with ground wire), protected with flexible metallic conduit. All

current-carrying wires must be insulated.
[] 10-gauge solid copper wire (do not use aluminum).
[] At least 5 ft (1.52 m) long.

GROUNDING INSTRUCTIONS

[] For a grounded, cord-connected washer/dryer:

This washer/dryer must be grounded. In the event of

malfunction or breakdown, grounding wilt reduce the risk of
electric shock by providing a path of least resistance for
electric current. This washer/dryer uses a cord having an
equipment-grounding conductor and a grounding plug. The

plug must be plugged into an appropriate outlet that is

properly installed and grounded in accordance with all local
codes and ordinances.

[] For a permanently connected washer/dryer:

This washer/dryer must be connected to a grounded metal,

permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and

connected to the equipment-grounding terminal or lead on
the washer/dryer.

WARNING" Improper connection of the equipment-

grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative or

personnel if you are in doubt as to whether the washer/dryer

is properly grounded. Do not modify the plug on the power

supply cord: if it wilt not fit the outlet, have a proper outlet

installed by a qualified electrician.

SAVE THESE INSTRUCTIONS

4

i!!:!iiiii,!!!!!!!_:_i':!_t_!i:_'iiii_,_i::!__il;i!i/iiiiiiiiiill,_i:ii¸,_;::i,i,_,__!_!i,:i_;i,_i!i!!_,i:ii__!i:ii0_;::i,i,_,_

Power Supply Cord

Fire Hazard

Use a new UL listed 30 amp power supply cord.
Use a UL listed strain relief.

Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center

terminal (silver).

Ground wire (green or bare wire) must be connected to
green ground connector.

Connect remaining 2 supply wires to remaining
2 terminals (gold).

Securely tighten all electrical connections.
Failure to do so can result in death, fire, or

electrical shock.

Direct Wire

Fire Hazard

Use 10 gauge solid copper wire.
Use a UL listed strain relief.

Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center

terminal (silver).

Ground wire (green or bare wire) must be connected to

green ground connector.

Connect remaining 2 supply wires to remaining

2 terminals (gold).

Securely tighten all electrical connections.
Failure to do so can result in death, fire, or

electrical shock.

1. Disconnect power.

2. Remove the hold-down screw and terminal block cover.

A

C

A. Center silver-colored terminal block screw
B. Hold-down screw

C, Terminal block cover
D, Internal ground conductor screw

3. Install strain relief.
Style 1: Power supply cord strain relief

Remove the screws from a 3/4"(19 mm) UL listed strain relief
(UL marking on strain relief). Put the tabs of the two clamp

sections into the hole below the terminal block opening so
that one tab is pointing up and the other is pointing down, and

hold in place. Tighten strain relief screws just enough to hold
the two clamp sections together.

', .... ;........................................D

A. Strain refief tab pointing up
B. Hole below terminal block opening

C. Clamp section

D. Strain refief tab pointing down
