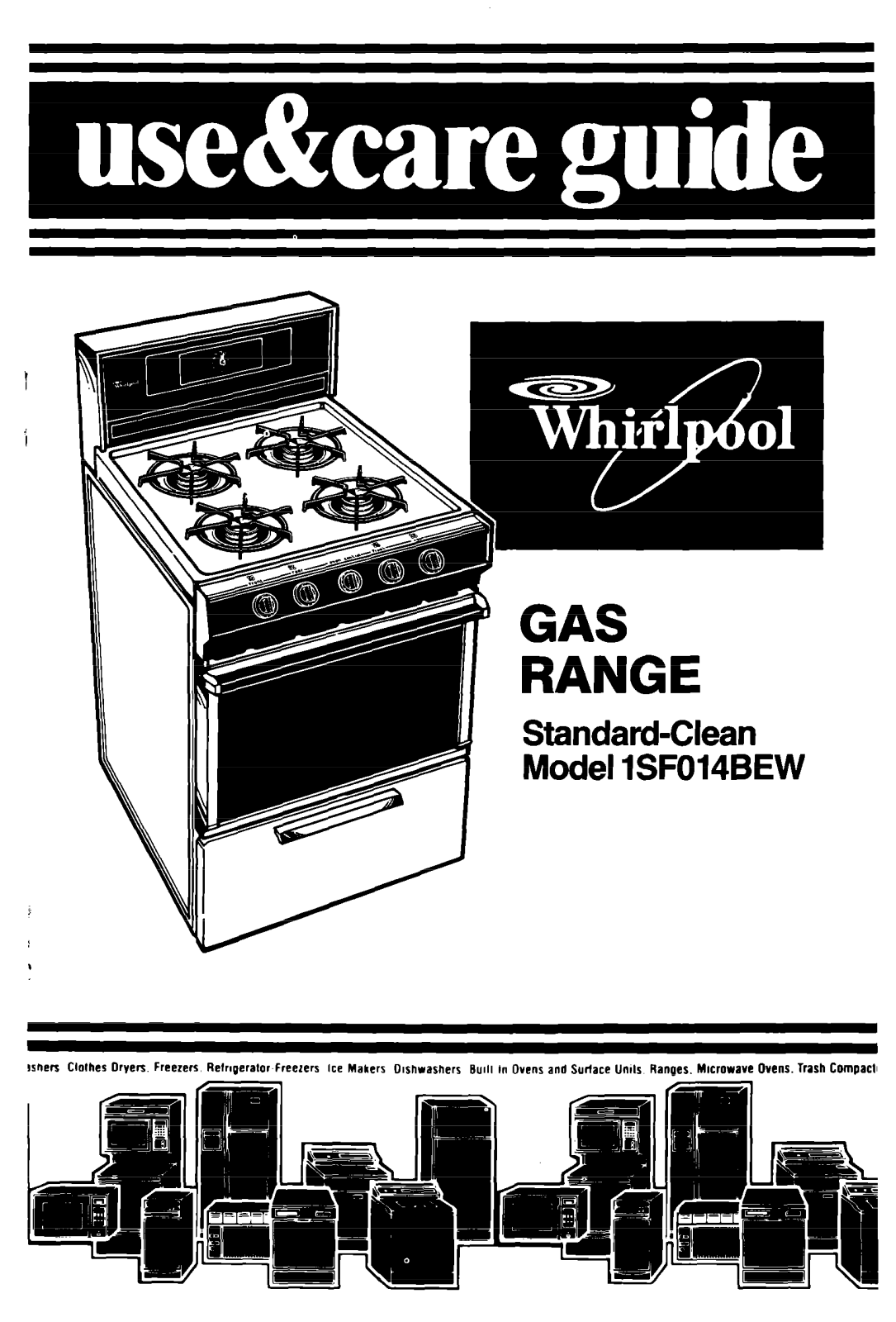

Whirlpool lSF014BEW User Manual
I
I
?ff GAS
--~ --
Standard-Clean
Model lSF014BEW

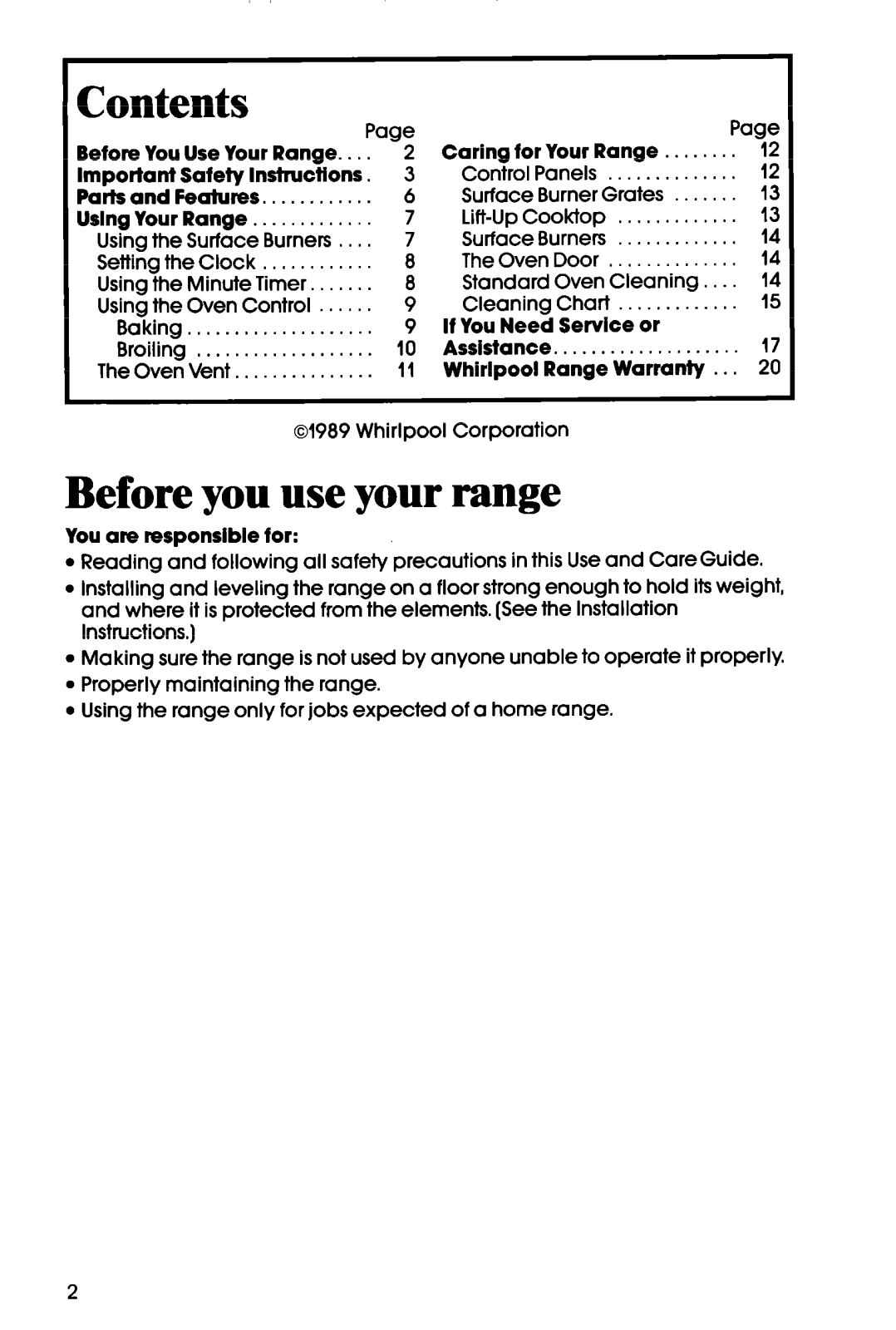

Contents
Page
. 12
. 12
13
. ifi
. 14
14
15
17
. 20
Before You Use Your Range. . . .
Important Safety Instructions.
Parts and Features. . . . . . . . . . . .

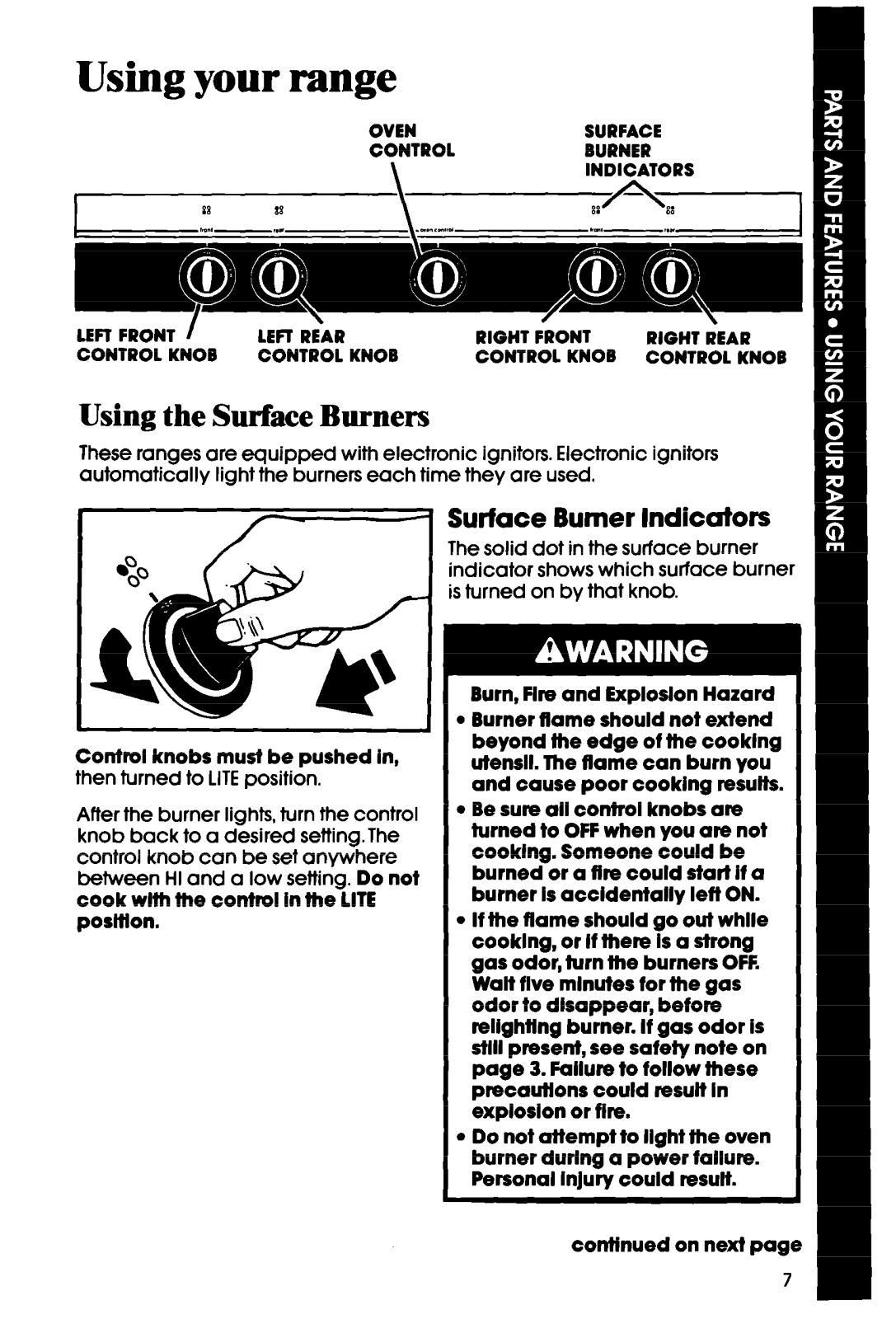

Using Your Range . . . . . . . . .
Using the Surface Burners . . . .

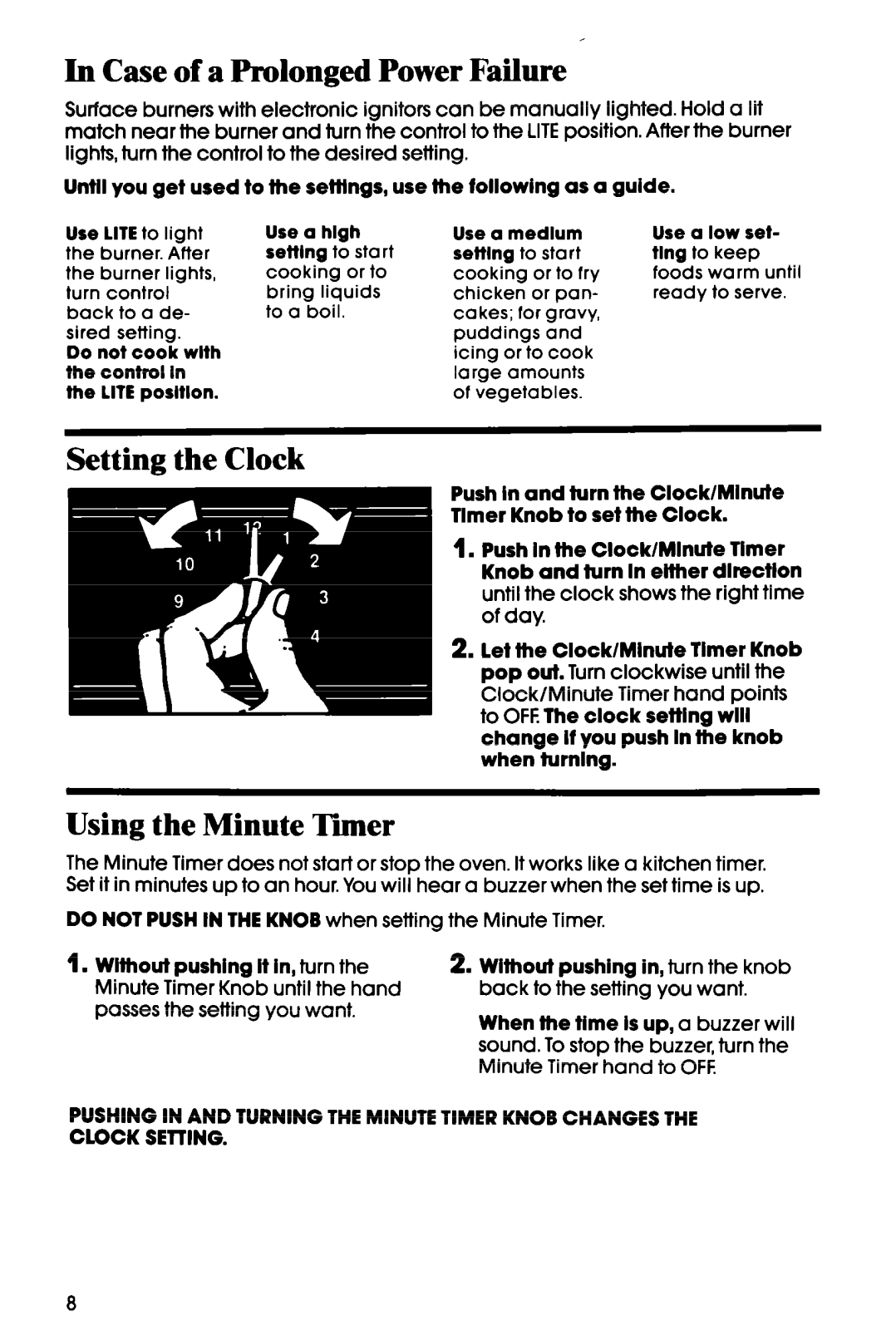

Setting the Clock . . . . . . . . . .
Using the Minute Timer. . . . .

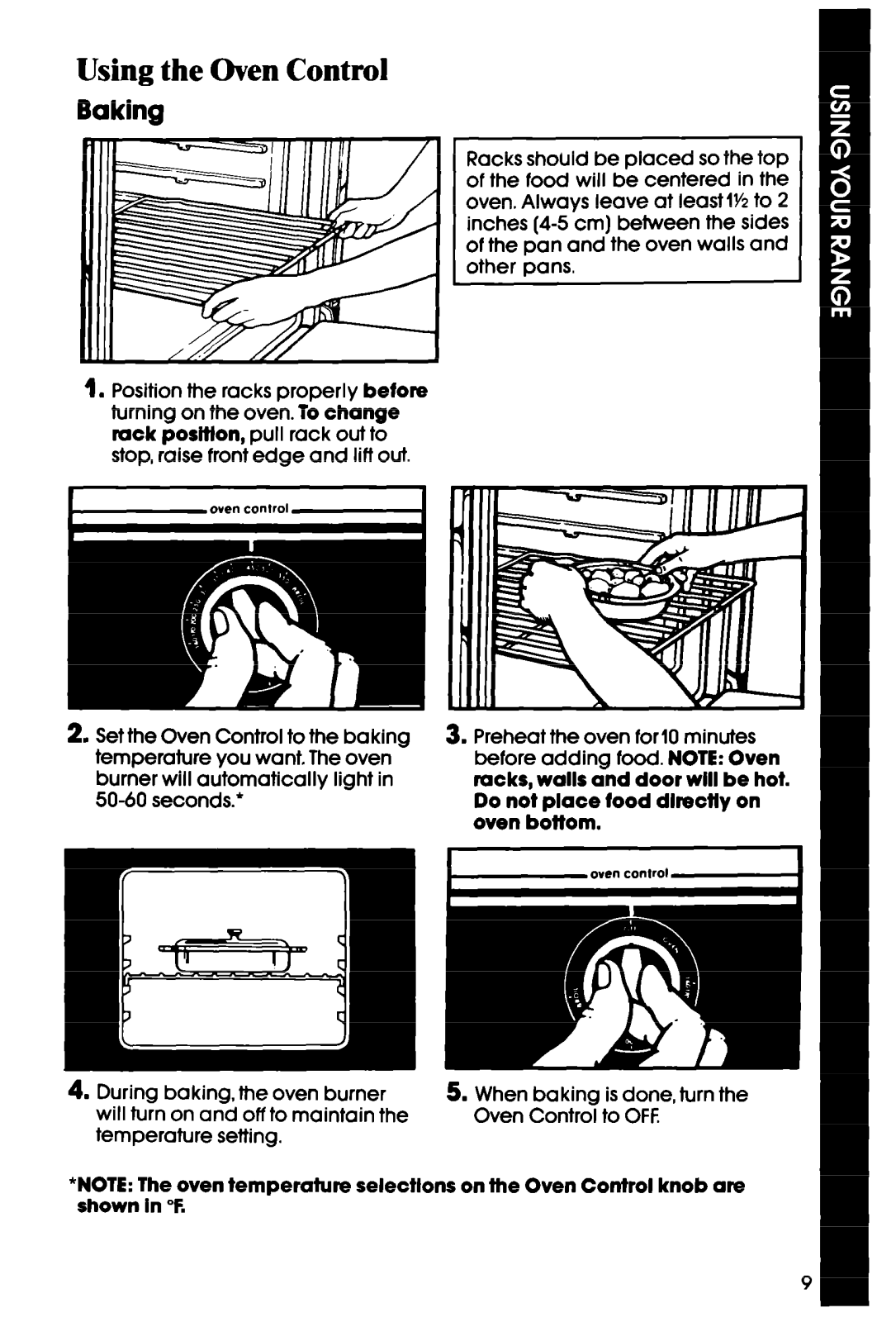

Using the Oven Control . . . .
Baking.. . . . . . . . . . . . . . . . .

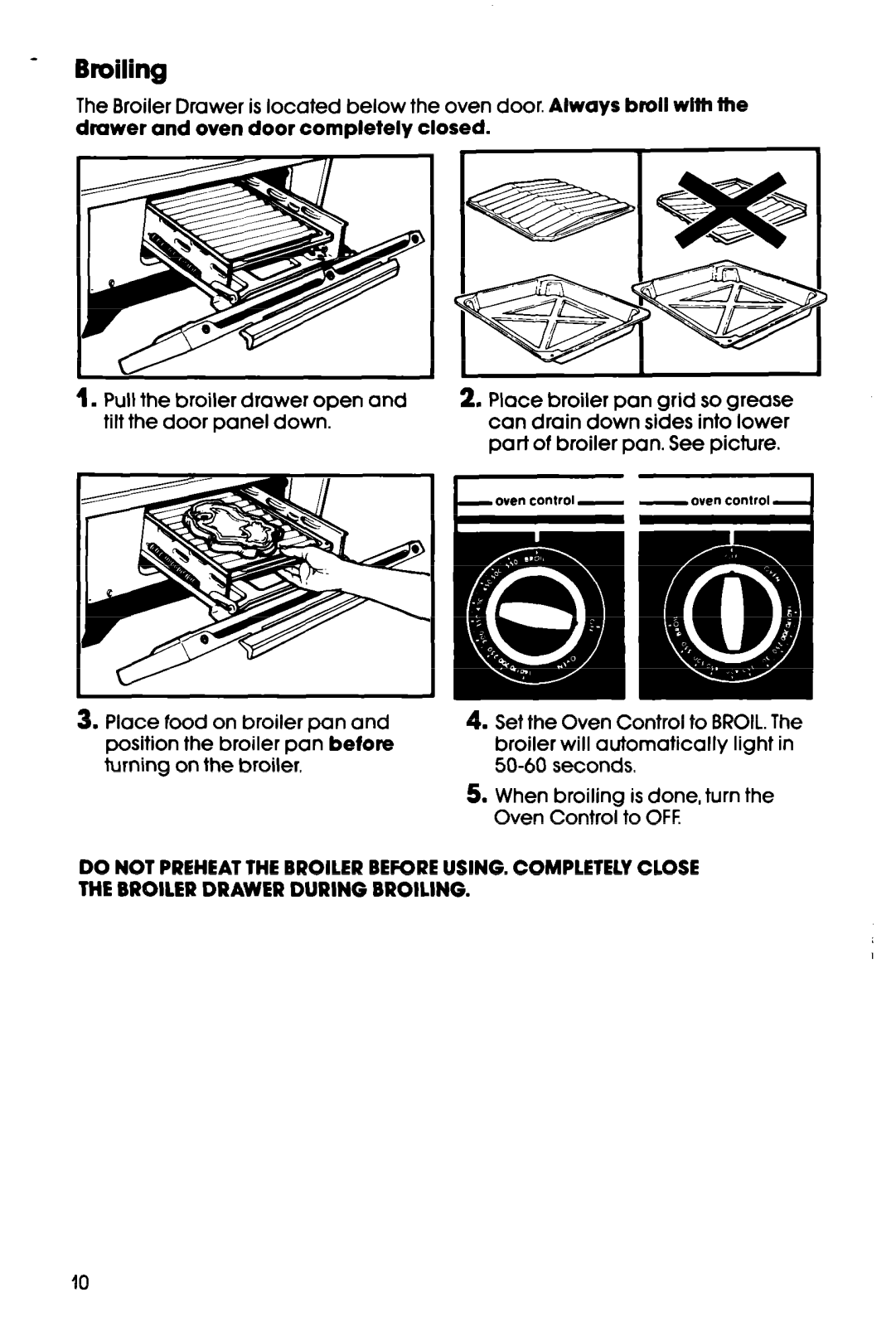

Broiling , . . . . . . . . . . . . . . . . . .

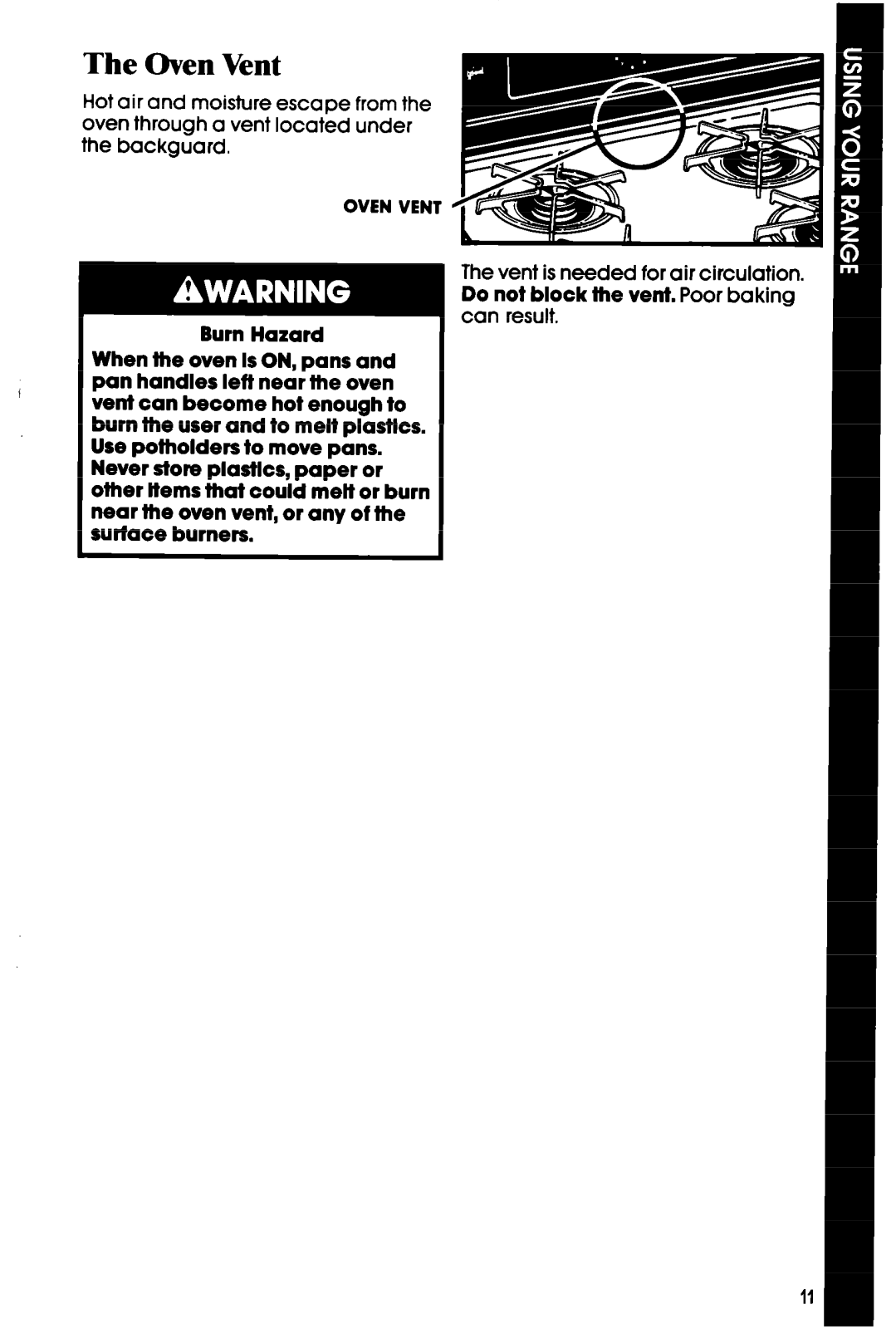

TheOvenVent . . . . . . . . . . . . . . .
01989 Whirlpool Corporation
Page
10
11
Caring for Your Range . . . . . .
2

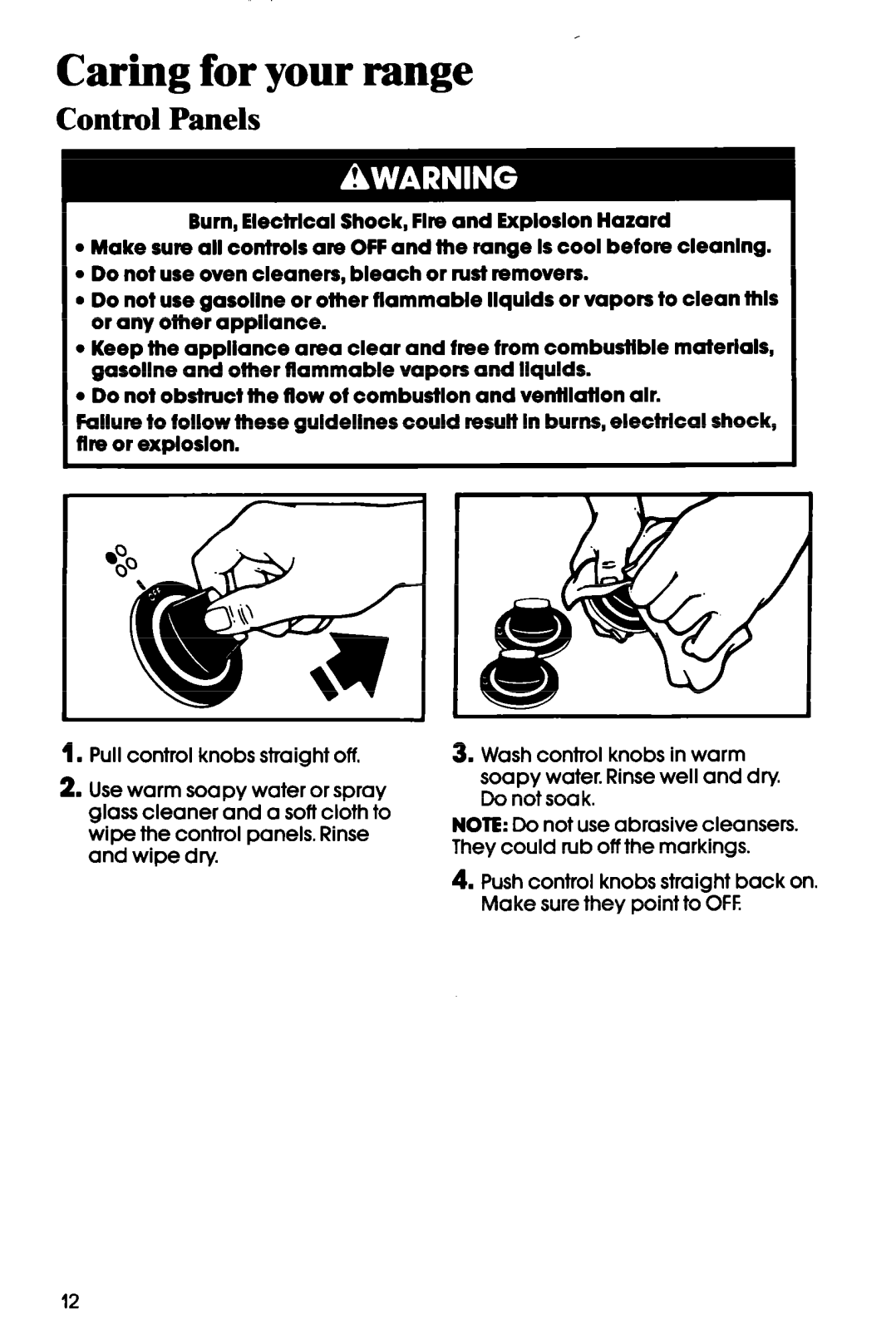

Control Panels . . . . . . . .
3

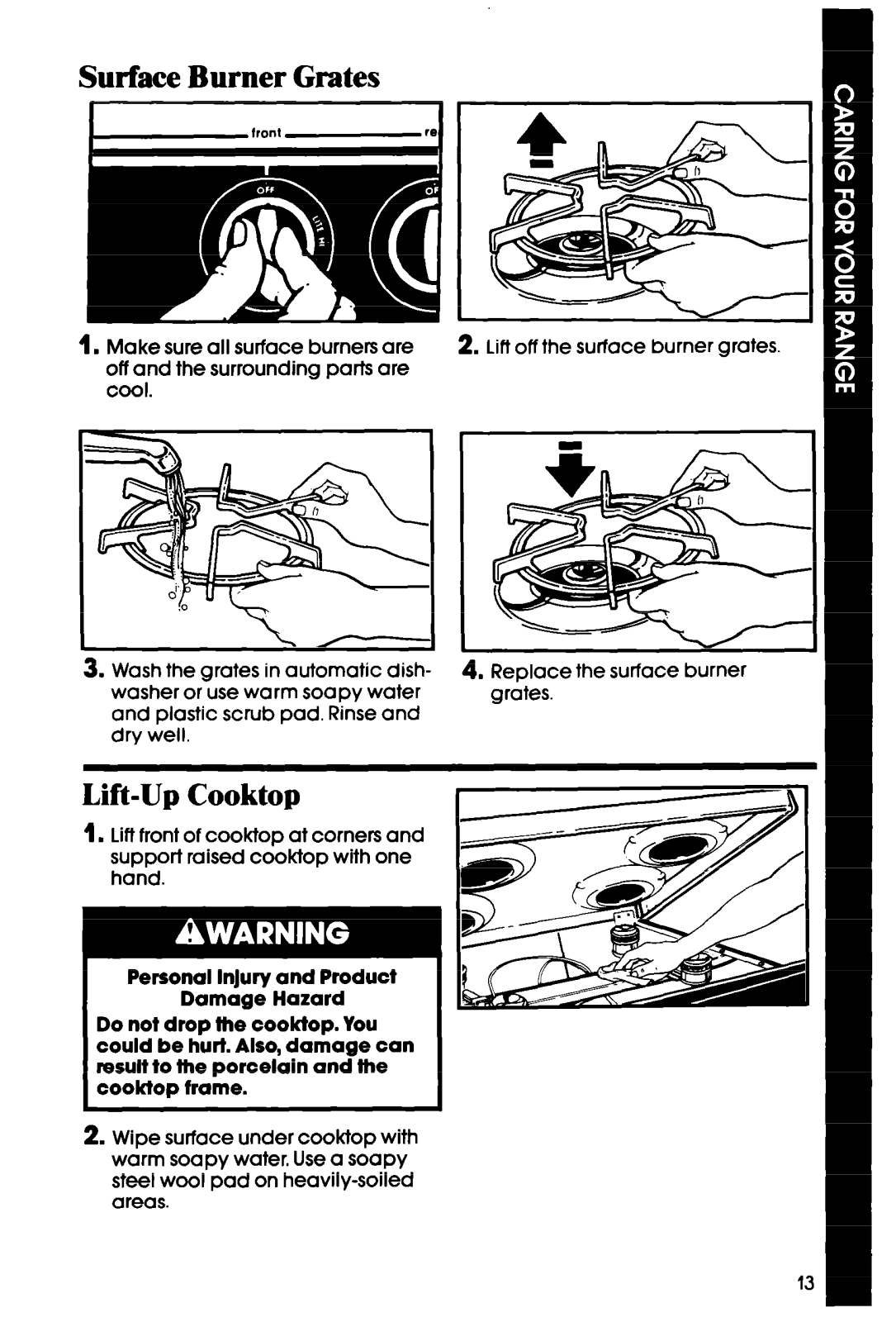

Surface Burner Grates . . .
6
Lift-Up Cook-top . . . . . . . . . . .
7

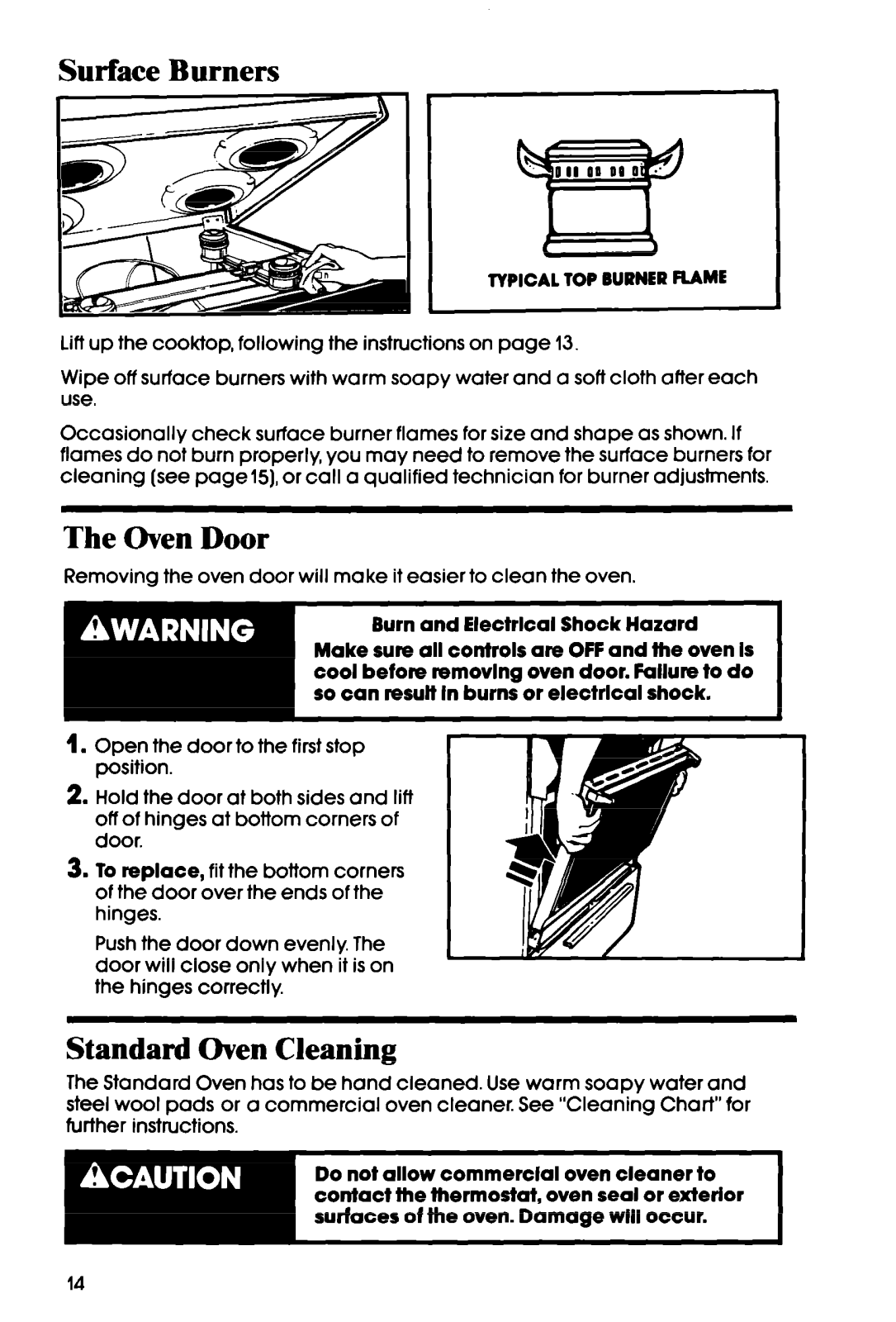

Surface Burners . . . . . . . .
7
The Oven Door . . . .
8
Standard Oven Cleaning. .
B

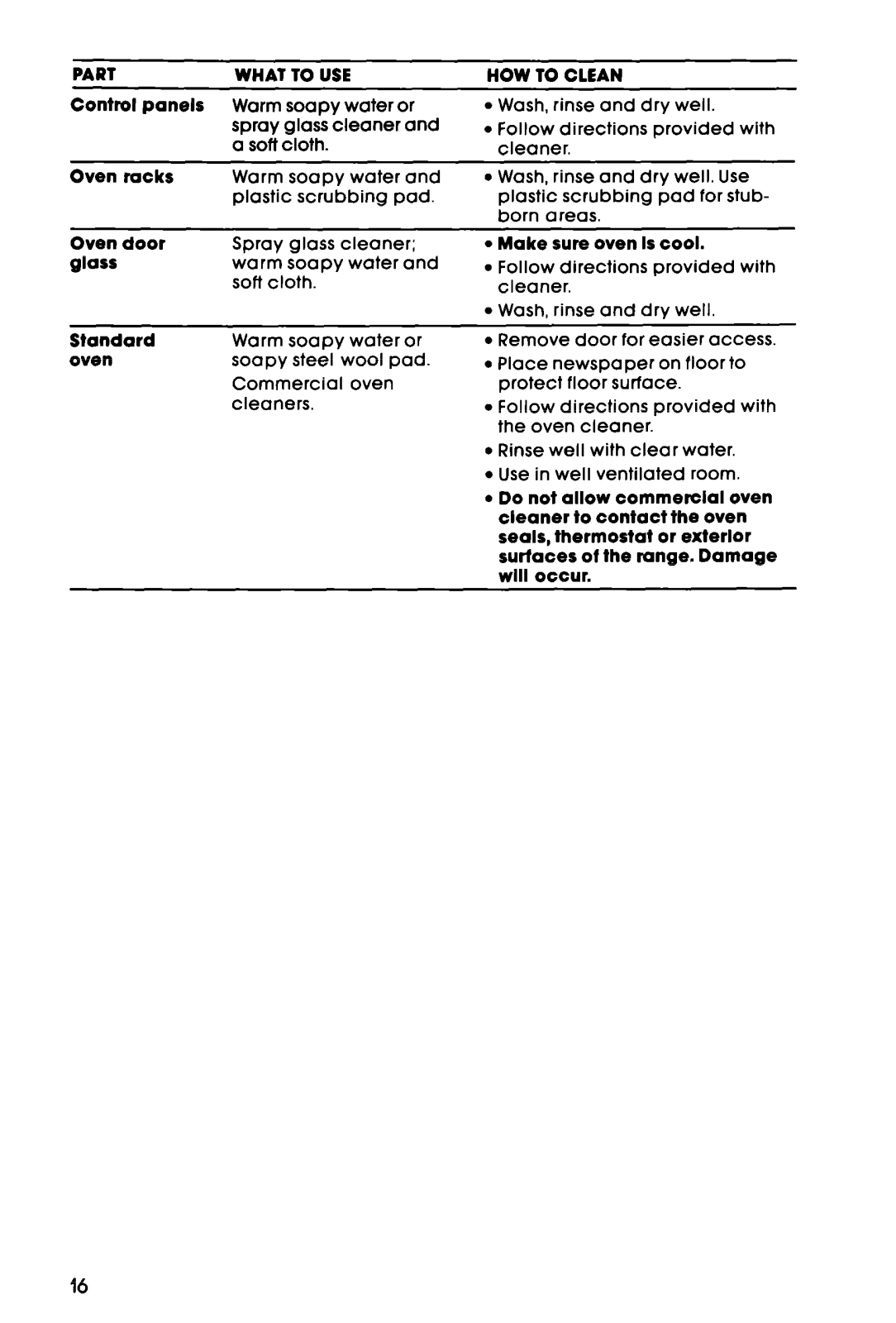

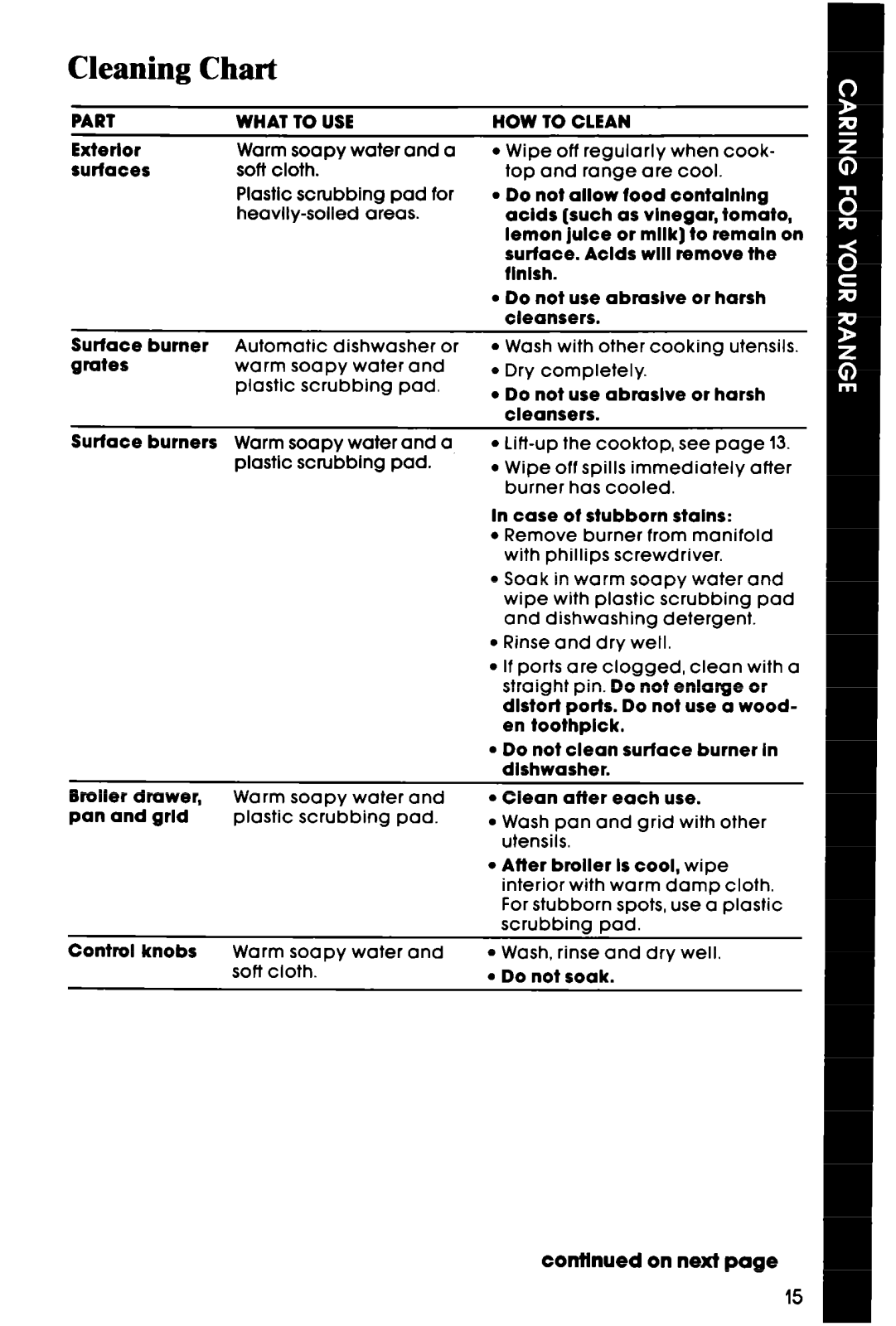

Cleaning Chart . . . . . . .
9

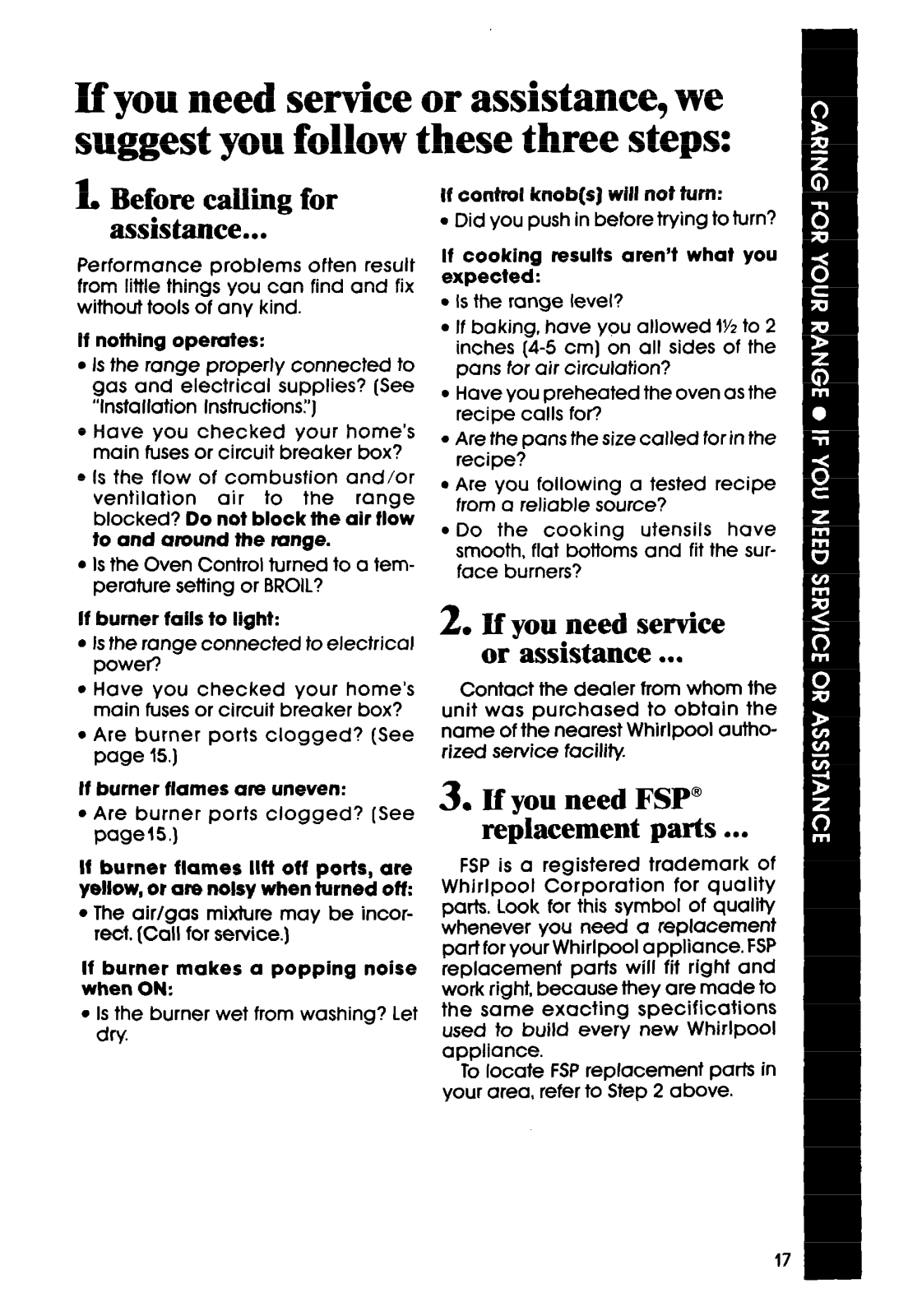

If You Need Service or
9
Assistance. . . . . . . . . . . . . . . . .

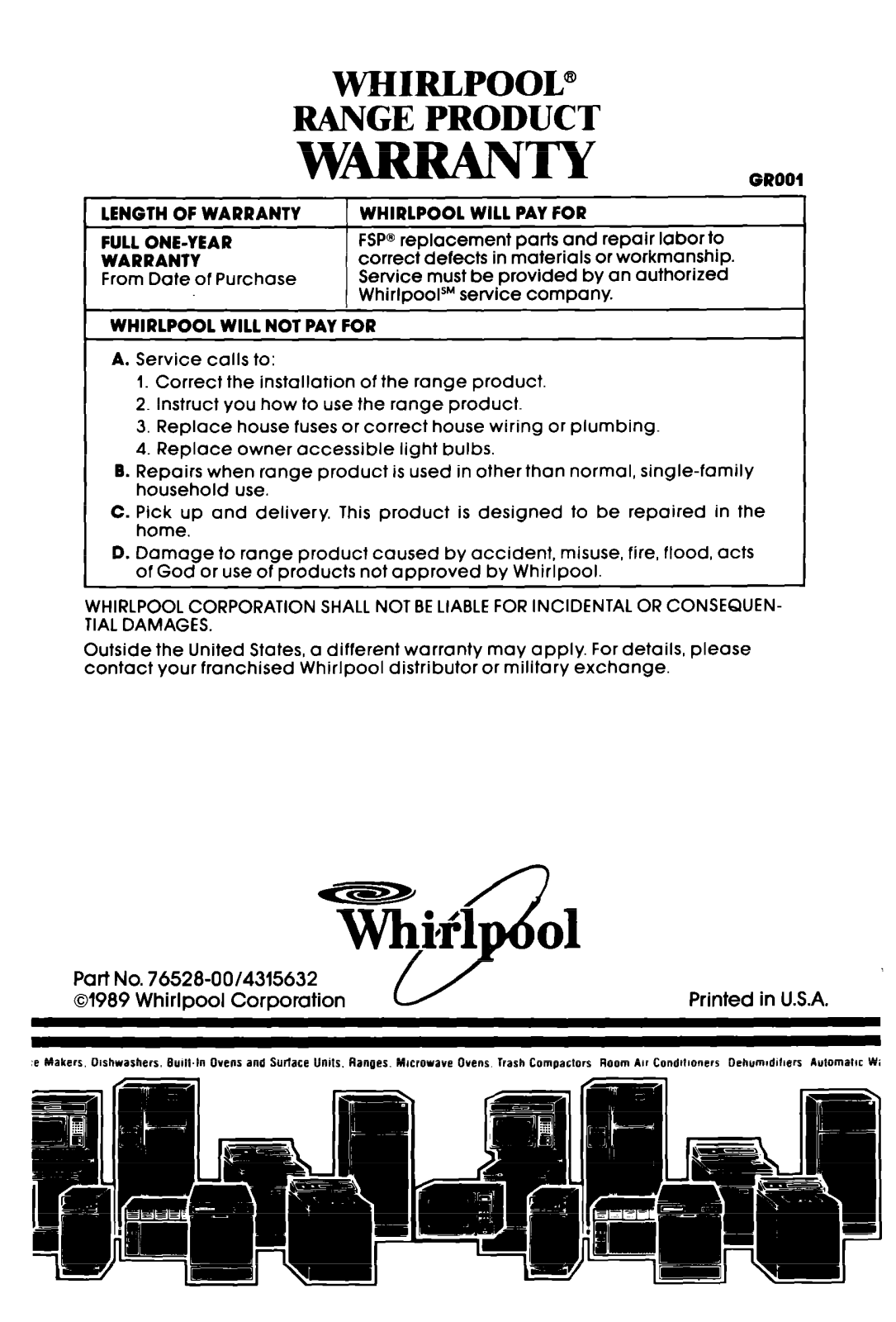

Whirlpool Range Warranty .
Before you use your range
You are responsible for:
l Reading and following all safety precautions in this Use and CareGuide.
l Installing and leveling the range on a floor strong enough to hold its weight,
and where it is protected from the elements. (See the Installation
Instructions.)
l Making sure the range is not used by anyone unable to operate it properly.
l Properly maintaining the range.
l Using the range only for jobs expected of a home range.
2

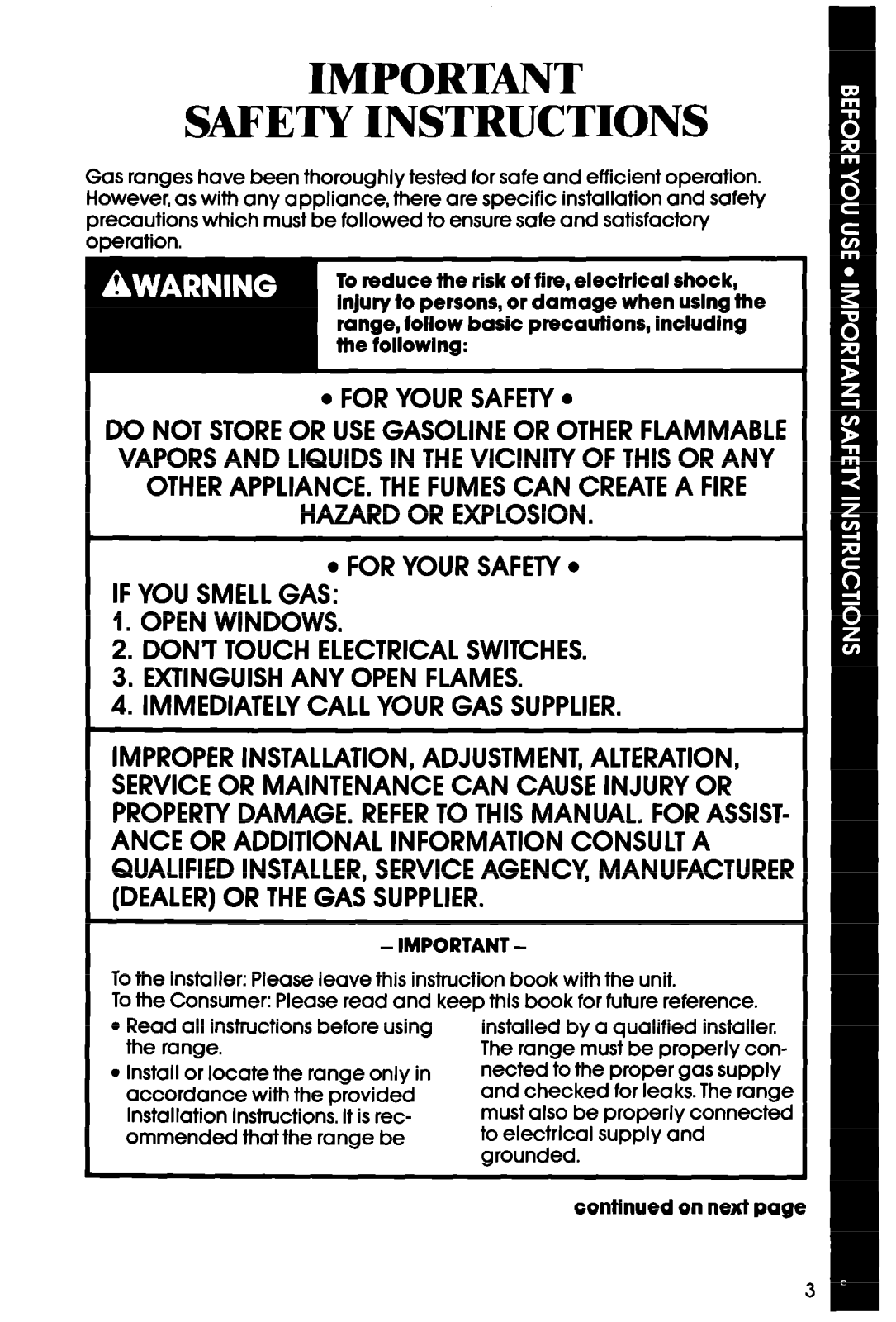

IMPORTANT
SAFETY INSTRUCTIONS
Gas ranges have been thoroughly tested for safe and efficient operation.
However, as with any appliance, there are specific installation and safety
precautions which must be followed to ensure safe and satisfactory
operation.
. FOR YOUR SAFETY
l
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE
VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY
OTHER APPLIANCE. THE FUMES CAN CREATE A FIRE
HAZARD OR EXPLOSION.
l
FOR YOUR SAFETY.
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRICAL SWITCHES.
3. EXTINGUISH ANY OPEN FLAMES.
4. IMMEDIATELY CALL YOUR GAS SUPPLIER.
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN CAUSE INJURY OR
PROPERlY DAMAGE. REFER TO THIS MANUAL. FOR ASSISTANCE OR ADDITIONAL INFORMATION CONSULT A
QUALIFIED INSTALLER, SERVICE AGENCY, MANUFACTURER
(DEALER) OR THE GAS SUPPLIER.
- IMPORTANT -
To the Installer: Please leave this instruction book with the unit.
To the Consumer: Please read and keep this book for future reference.
l
Read all instructions before using
the range.
* Install or locate the range only in
accordance with the provided
Installation Instructions. It is recommended that the range be
installed by a qualified installer.
The range must be properly connetted to the proper gas supply
and checked for leaks. The range
must also be properly connected
to electrical supply and
grounded.
continued on next p

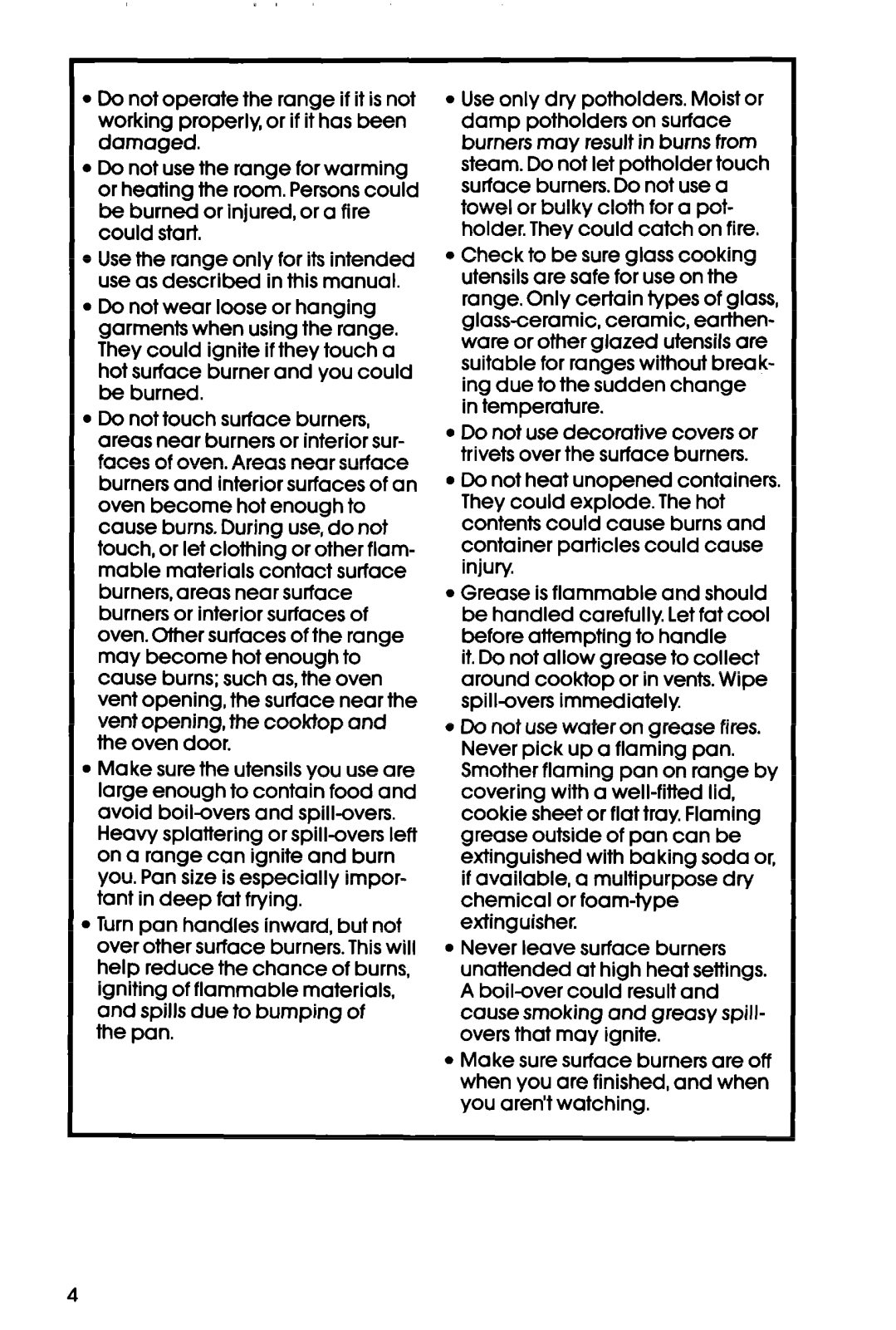

l Do not operate the range if it is not
working properly, or if it has been
damaged.
l Do not use the range for warming
or heating the room. Persons could
be burned or injured, or a fire
could start.
l Use the range only for its intended
use as described in this manual.
l Do not wear loose or hanging
garments when using the range.
They could ignite if they touch a
hot surface burner and you could
be burned.
l Do not touch surface burners,
areas near burners or interior surfaces of oven. Areas near surface
burners and interior surfaces of an
oven become hot enough to
cause burns. During use, do not
touch, or let clothing or other flam-
mable materials contact surface
burners, areas near surface
burners or interior surfaces of
oven. Other surfaces of the range
may become hot enough to
cause burns; such as, the oven
vent opening, the surface near the
vent opening, the cooktop and
the oven door.
l Make sure the utensils you use are
large enough to contain food and
avoid boilovers and spill-avers.
Heavy splattering or spill-avers left
on a range can ignite and burn
you. Pan size is especially important in deep fat frying.
l Turn pan handles inward, but not
over other surface burners. This will
help reduce the chance of burns,
igniting of flammable materials,
and spills due to bumping of
the pan.
l Use only dry potholders. Moist or
damp potholders on surface
burners may result in burns from
steam. Do not let potholder touch
surface burners. Do not use a
towel or bulky cloth for a pot-
holder. They could catch on fire.
l Check to be sure glass cooking
utensils are safe for use on the
range. Only certain types of glass,
glass-ceramic, ceramic, earthenware or other glazed utensils are
suitable for ranges without breaking due to the sudden change
in temperature.
l Do not use decorative covers or
trivets over the surface burners.
l Do not heat unopened containers.
They could explode. The hot
contents could cause burns and
container particles could cause
injury
l Grease is flammable and should
be handled carefully. Let fat cool
before attempting to handle
it. Do not allow grease to collect
around cooktop or in vents. Wipe
spillovers immediately
l Do not use water on grease fires.
Never pick up a flaming pan.
Smother flaming pan on range by
covering with a well-fitted lid,
cookie sheet or flat tray. Flaming
grease outside of pan can be
extinguished with baking soda or,
if available, a multipurpose dry
chemical or foam-type
extinguisher.
l Never leave surface burners
unattended at high heat settings.
A boil-over could result and
cause smoking and greasy spillovers that may ignite.
l Make sure surface burners are off
when you are finished, and when
you aren’t watching.

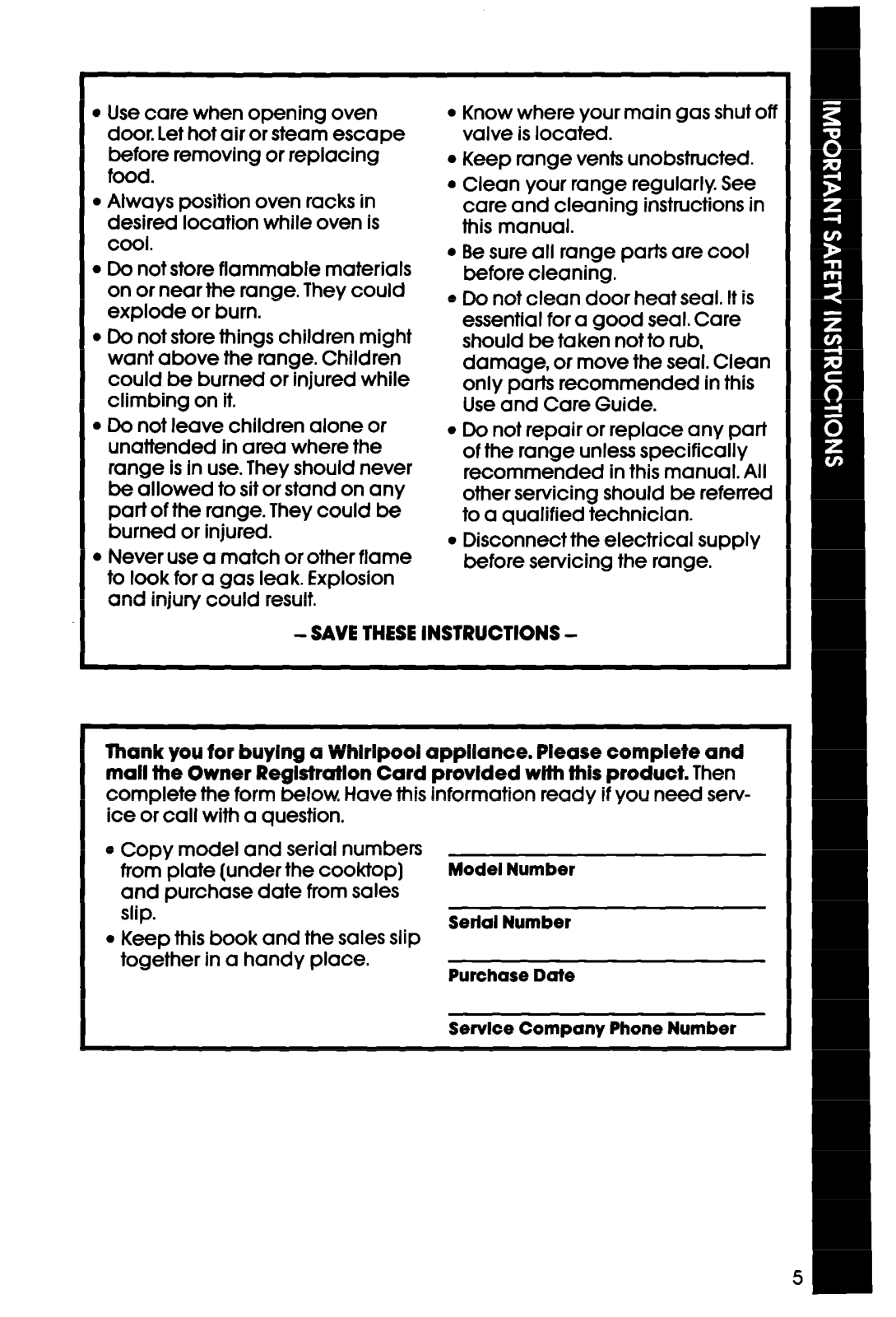

) Use care when opening oven
door. Let hot air or steam escape
before removing or replacing
food.
b Always position oven racks in
desired location while oven is
cool.
m Do not store flammable materials
on or near the range. They could
explode or burn.
m Do not store things children might
want above the range. Children
could be burned or injured while
climbing on it.
m Do not leave children alone or
unattended in area where the
range is in use. They should never
be allowed to sit or stand on any
part of the range. They could be
burned or injured.
B Never use a match or other flame
to look for a gas leak. Explosion
and injury could result.
- SAVE THESE INSTRUCTIONS -
l Know where your main gas shut off
valve is located.
l Keep range vents unobstructed.
l Clean your range regularly. See
care and cleaning instructions in
this manual.
l Be sure all range parts are cool
before cleaning.
l Do not clean door heat seal. It is
essential for a good seal. Care
should be taken not to rub,
damage, or move the seal. Clean
only parts recommended in this
Use and Care Guide.
0 Do not repair or replace any part
of the range unless specifically
recommended in this manual. All
other servicing should be referred
to a qualified technician.
l Disconnect the electrical supply
before servicing the range.
Thank you for buying a Whlrlpool appllanoe. Please complete and
mall the Owner Reglstratlon Card provlded with this product. Then
complete the form below. Have this information ready if you need service or call with a question.
l Copy model and serial numbers
from plate (under the cooktop)
Model Number
and purchase date from sales
slip.
l Keep this book and the sales slip
together in a handy place.
Serial Number
Purchase Date
Servloe Company Phone Number

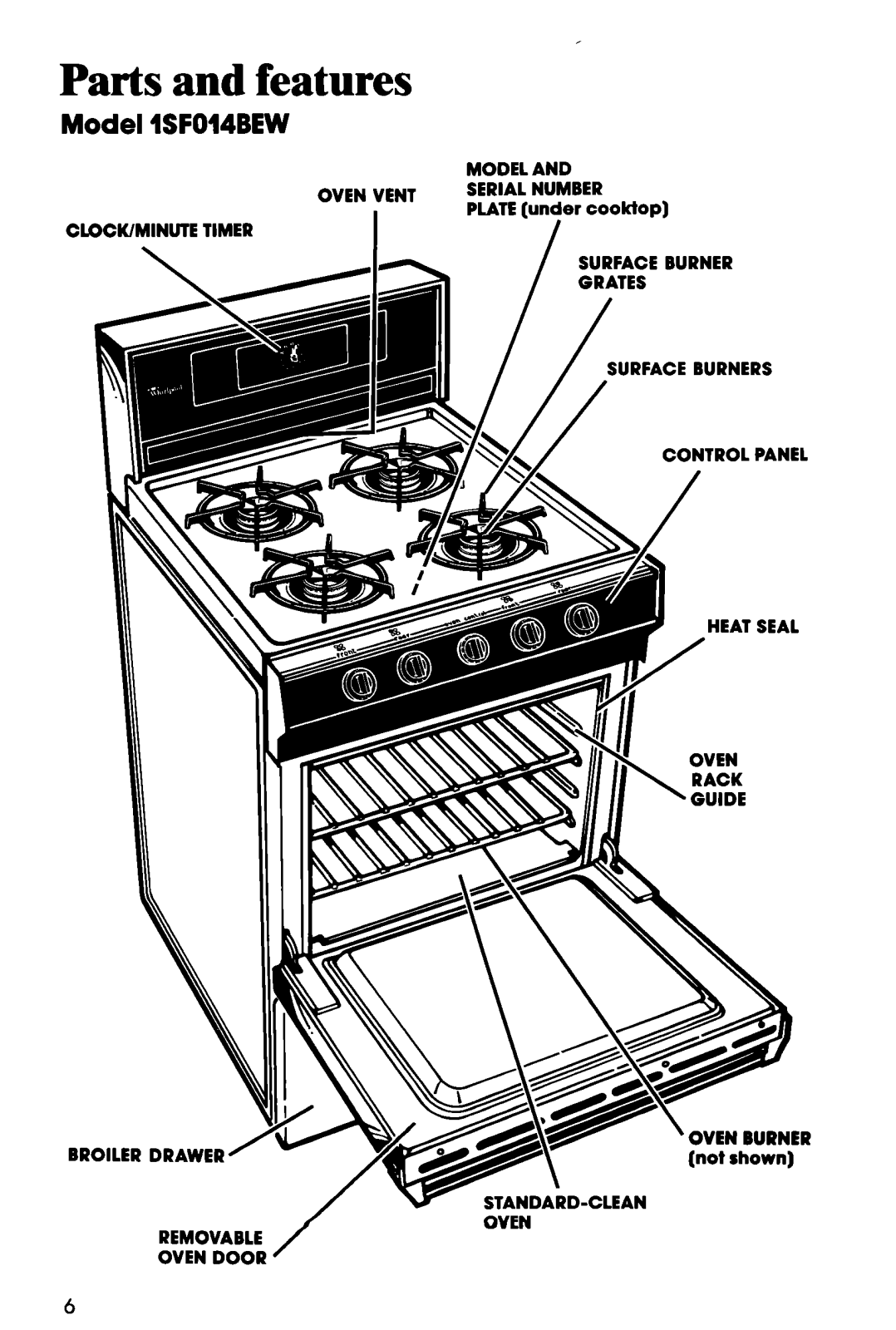

Parts and features
Model lSF014BEW
OVEN VENT
CLOCK/MINUTE TIMER
-I-
MODEL AND
SERIAL NUMBER
PLATE (under cookiop)
SURFACE BURNER
GRATES
I
SURFACE BURNERS
c/
CONTROL PANEL
Y
HEAT SEAL
OVEN
RACK
GUIDE
BR
\
OVEN BURNER
[not shown)
