Whirlpool LPR 962, LPR 960, LPR 964 INSTALLATION

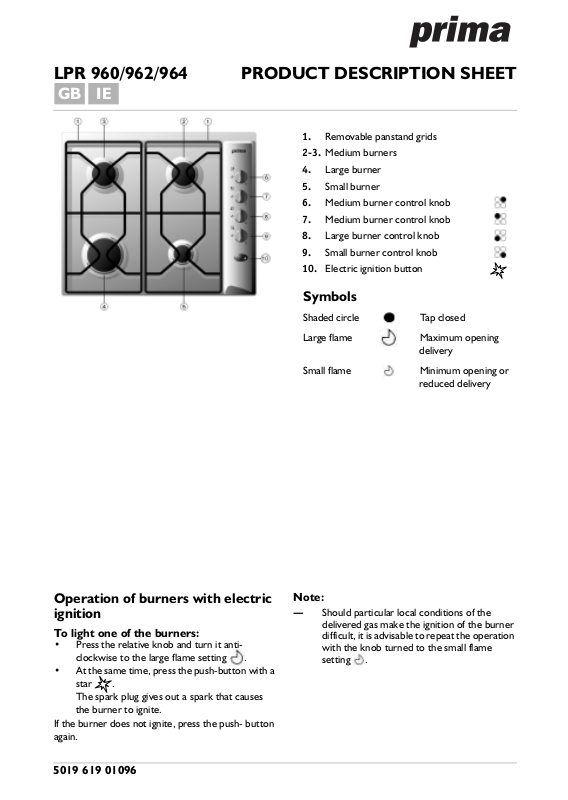

LPR 960/962/964 PRODUCT DESCRIPTION SHEET
GB |
IE |
Operation of burners with electric ignition
To light one of the burners:
•Press the relative knob and turn it anticlockwise to the large flame setting
.
•At the same time, press the push-button with a star .
The spark plug gives out a spark that causes the burner to ignite.
If the burner does not ignite, press the pushbutton again.
1.Removable panstand grids
2-3. Medium burners
4.Large burner
5.Small burner
6. Medium burner control knob
7. Medium burner control knob
8. Large burner control knob
9. Small burner control knob
10. Electric ignition button
Symbols
Shaded circle |
Tap closed |
Large flame |
Maximum opening |
|
delivery |
Small flame |
Minimum opening or |
|
reduced delivery |
Note:
—Should particular local conditions of the delivered gas make the ignition of the burner difficult, it is advisable to repeat the operation
with the knob turned to the small flame setting
.
5019 619 01096
DIMENSIONS OF COOKING HOB AND WORKTOP (mm)
NOTE: In case of installation of a hood above the cooktop, please refer to the hood instructions for the correct distance.
INJECTORS TABLE |
|
|
|
|
|
|
|
|
|
CATEGORY II2H3+ |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Injector |
|
Rated |
|
|
|
|
|
Reduced |
|
|
Gas pressure mbar |
|||
|
|
|
Type of |
|
heat |
|
Rated |
|
heat |
|
|
|
|
|
|
|||
Type of gas used |
|
burner |
marking |
|
capacity |
|
consumption |
|
capacity |
|
|
|
|
|
|
|||
|
|
|
100/mm |
|
|
|
|
min. |
|
rat. |
max. |
|||||||
|
|
|
|
|
kW |
|
|
|
|
|
kW |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NATURAL GAS |
|
large |
Y115 |
|
3.00 |
|
286 l/h |
|
0.60 |
|
|
|
|
|
|
|||
|
medium |
H2 98 |
|
1.65 |
|
157 l/h |
|
0.35 |
|
17 |
|
20 |
25 |
|||||
(Methane) |
G20 |
|
|
|
|
|
|
|||||||||||
|
small |
X72 |
|
1.00 |
|
|
95 l/h |
|
0.30 |
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LIQUID |
|
|
large |
87 |
|
3.00 |
|
218 g/h |
|
0.60 |
|
|
|
|
|
|
||
PETROLEUM GAS |
|
medium |
65 |
|
1.65 |
|
120 g/h |
|
0.35 |
|
20 |
|
28-30 |
35 |
||||
(Cylinder) |
G30 |
|
small |
50 |
|
1.00 |
|
|
73 g/h |
|
0.30 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LIQUID |
|
|
large |
87 |
|
3.00 |
|
214 g/h |
|
0.60 |
|
|
|
|
|
|
||
PETROLEUM GAS |
|
medium |
65 |
|
1.65 |
|
118 g/h |
|
0.35 |
|
25 |
|
37 |
45 |
||||
(Cylinder) |
G31 |
|
small |
50 |
|
1.00 |
|
|
71 g/h |
|
0.30 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
Appliance |
Total rated heat |
|
Total rated |
|
|
Air required |
|
||||||||
Type of gas used |
|
|
|
|
for burning |
|
||||||||||||
|
model |
|
capacity kW |
|
|
consumption |
|
|
|
|||||||||
|
|
|
|
|
|
|
|
m3/h |
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
G20 20 mbar |
|
|
4 gas |
|
7.30 |
|
|
|
695 l/h |
|
|
|
14.6 |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
G30 28-30 mbar |
|
4 gas |
|
7.30 |
|
|
|
531 g/h |
|
|
|
14.6 |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
G31 37 mbar |
|
|
4 gas |
|
7.30 |
|
|
|
521 g/h |
|
|
|
14.6 |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ELECTRIC SUPPLY: 230-240V ~ 50 Hz
