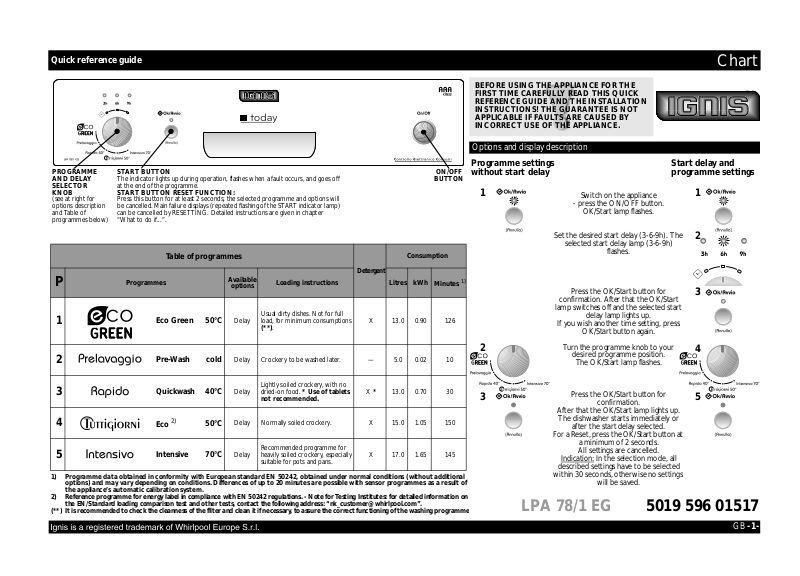

Whirlpool LPA 78/1 EG, LPA 78/1 EG SL PROGRAM CHART

Quick reference guide

Chart

PROGRAMME	START BUTTON							ON/OFF
AND DELAY	The indicator lights up during operation, flashes when a fault occurs, and goes off							BUTTON
SELECTOR	at the end of the programme.
KNOB	START BUTTON RESET FUNCTION:
(see at right for	Press this button for at least 2 seconds; the selected programme and options will
options description	be cancelled. Main failure displays (repeated flashing of the START indicator lamp)
and Table of	can be cancelled by RESETTING. Detailed instructions are given in chapter
programmes below)	“What to do if...”.

			Table of programmes						Consumption
							Detergent
P			Programmes		Available	Loading instructions		Litres	kWh	Minutes	1)
					options
1			Eco Green	50°C		Usual dirty dishes. Not for full
					Delay	load, for minimum consumptions	X	13.0	0.90	126
						(**).
2			Pre-Wash	cold	Delay	Crockery to be washed later.	—	5.0	0.02	10
3			Quickwash	40°C		Lightly soiled crockery, with no
					Delay	dried-on food. * Use of tablets	X *	13.0	0.70	30
						not recommended.
4			Eco 2)	50°C	Delay	Normally soiled crockery.	X	15.0	1.05	150
5			Intensive	70°C		Recommended programme for
					Delay	heavily soiled crockery, especially	X	17.0	1.65	145
						suitable for pots and pans.

1)Programme data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programmes as a result of the appliance’s automatic calibration system.

2)Reference programme for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the EN/Standard loading comparison test and other tests, contact the following address: “[e-mail]”.

(**) It is recommended to check the cleanness of the filter and clean it if necessary, to assure the correct functioning of the washing programme

BEFORE USING THE APPLIANCE FOR THE

FIRST TIME CAREFULLY READ THIS QUICK

REFERENCE GUIDE AND THE INSTALLATION

INSTRUCTIONS! THE GUARANTEE IS NOT

APPLICABLE IF FAULTS ARE CAUSED BY

INCORRECT USE OF THE APPLIANCE.

Options and display description
Programme settings		Start delay and
without start delay		programme settings
1	Switch on the appliance		1
	- press the ON/OFF button.
	OK/Start lamp flashes.
	Set the desired start delay (3-6-9h). The		2
	selected start delay lamp (3-6-9h)
	flashes.
	Press the OK/Start button for		3
	confirmation. After that the OK/Start
	lamp switches off and the selected start
	delay lamp lights up.
	If you wish another time setting, press
	OK/Start button again.
2	Turn the programme knob to your		4
	desired programme position.
	The OK/Start lamp flashes.
3	Press the OK/Start button for		5
	confirmation.
	After that the OK/Start lamp lights up.
	The dishwasher starts immediately or
	after the start delay selected.
For a Reset, press the OK/Start button at
	a minimum of 2 seconds.
	All settings are cancelled.
	Indication: In the selection mode, all
	described settings have to be selected
within 30 seconds, otherwise no settings
	will be saved.
LPA 78/1 EG		5019 596 01517
			GB -1-

How to set detergent type: powder/gel/tablet (if option is available)

First time use

In order to always ensure the best cleaning results, you NEED to set:

DETERGENT type and WATER HARDNESS.

10

4

	S	9
	E
	L
1

3 2

1. Select 3rd programme	2. Press START button	3a. Check your	3b....and set it on your dishwasher	4. Remember to use salt and rinse	5. Switch off and switch on
(see Table of programmes	for 7 seconds	detergent type...	using the START button	aid when needed (as indicated	again to save setting
- page 1)			(as per table below)	below)

Dishwasher models

	Detergent	model without
	types		model with display
		display
	Powder or gel	3h 6h 9h	no symbol	add salt	add rinse aid
	(factory setting)
	Tablet 2 in 1			add salt	rinse aid
	Tablet 3 in 1
				salt	rinse aid
	Tablet All in 1

For models without “detergent type” option, the salt and rinse aid indicators will be lit when tablets are used.

How to set water hardness

Switch on the appliance

-Select the 2nd programme “P2” - consult the table of programmes.

* only before the first wash or if the	-	Press the START button for at least 5 seconds until the START indicator lamp flashes.
water hardness has been changed	-	The water hardness setting is shown on the display (if present) or the START button flashes.

-With each successive touch of the START button the setting increases and when it reaches 7 it returns to 1 again.

-The appliance must be switched off to memorise the new setting.

5

6

7

8

1- salt reservoir

2- rinse aid dispenser

3- detergent dispenser

4- racks system

5,6,7,8- available functions on the panel

9- filters

10spray arms

	1. Ask your water supply company what the water						2. ...enter this value on your		Suggestions for detergent use
	hardness is...						dishwasher
							Dishwasher	Dishwasher
								without	Gel or Powder
	German		French		English	Water	with display:
								display: count	(rinse aid and	Tablets
	degrees °dH		degrees °fH		degrees °eH	hardness	insert value in
								START button	salt)
							the display	led flashes
	0	- 5	0	- 9	0 - 6.3	Soft	1	1x
	6 - 10		10	- 18	7 - 12.6	Medium	2	2x
										if extra salt is
	11	- 15	19	- 27	13.3 - 18.9	Average	3	3x
									go to step 1	needed go to
	16	- 21	28	- 37	19.6 - 25.9	Medium-hard	4	4x
									(see “Daily	step 1
	22	- 28	38	- 50	26.6 - 35	Hard	5	5x	check”)	(see “Daily
										check”)
	29	- 35	51	- 63	35.7 - 44.1	Very hard	6	6x
	36	- 60	64 - 107		44.8 - 74.9	Extremely	7	7x
						hard

Water hardness level is factory set for medium hard water (a number “4” is shown on the display or the START indicator lamp flashes 4 times).

Even if you use tablets which include salt, you must still add salt since such detergents are not effective enough at softening hard water.

GB -2-

Filling the salt reservoir - Dissolve limescale (not necessary if water hardness level is set to “soft”!)

Daily check

1	Visual indicator	Fill the salt	Add salt
	(depending	reservoir with	(never add
			detergent!).
	on model).	water before the
			min. 1.5 kg
	Unscrew cap.	first wash only.
			max. 2 kg

Visual indicator (depending on model). Screw on the cap. Salt residues around cap need to be removed.

	The salt level indicator lamp may remain lit for the duration of several wash cycles. If the	Salt indicator	The indicator lamp on the control panel
		(depending on	lights up when SALT NEEDS TO BE	orange: OK.	clear: NEEDS TO BE ADDED
	water hardness level falls within category (soft), no salt is required.
		the model)	ADDED.

Adding rinse aid (not necessary when you use tablets). How to adjust the rinse aid dosage regulator

	2	Visual	Add rinse aid
			to max.
		indicator B
			line ~100 ml

If required, open the cover (press lever).

The rinse aid dosage can be adjusted to the detergent used. The lower the setting, the less rinse aid is dispensed (factory setting: position 4). Press the lever to open the cover. Using a coin or similar object, turn the arrow to the desired setting. After adjusting the rinse aid setting, shut the cover again.

Rinse aid indicator (depending on model)

	The indicator lamp on the control panel lights up when RINSE AID NEEDS TO BE	dark: OK.	clear: NEEDS TO BE ADDED
	ADDED.

Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.

If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid setting will not improve the situation.

Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend to form excess suds.

Adding detergent - Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations

3	Tablet / gel / powder
	Only fill the
Open the cover A	detergent dispenser
(press lever).	prior to starting a
	wash programme.

Daily use

Use only one tablet per cycle, placed in the detergent dispenser.

GB -3-
