5GB10074.fm Page 15 Wednesday, June 23, 2004 12 :01 PM

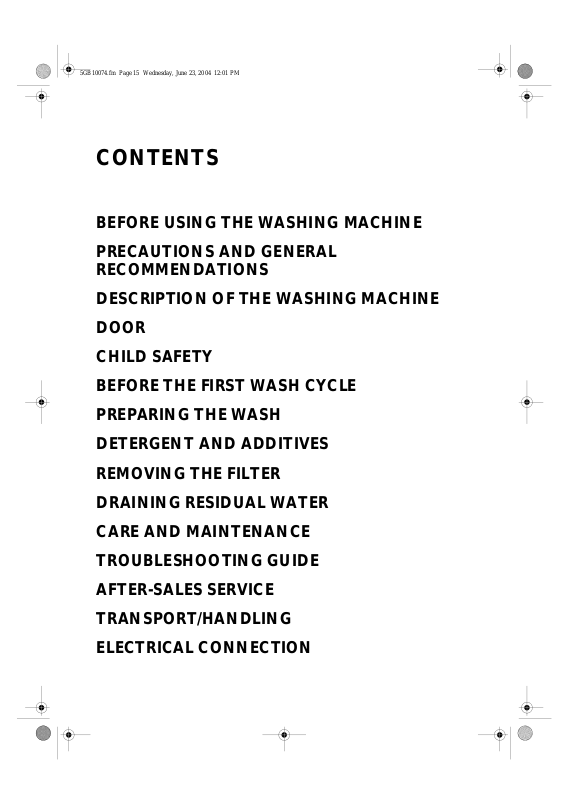

CONTENTS

BEFORE USING THE WASHING MACHINE PRECAUTIONS AND GENERAL

RECOMMENDATIONS DESCRIPTION OF THE WASHING MACHINE DOOR CHILD SAFETY BEFORE THE FIRST WASH CYCLE PREPARING THE WASH DETERGENT AND ADDITIVES REMOVING THE FILTER DRAINING RESIDUAL WATER CARE AND MAINTENANCE TROUBLESHOOTING GUIDE AFTER-SALES SERVICE TRANSPORT/HANDLING ELECTRICAL CONNECTION

Page 2

5GB10074.fm Page 16 Wednesday, June 23, 2004 12 :01 PM

BEFORE USING THE WASHING MACHINE

1. Remove the packaging and check

After unpacking, make sure that the washing

•

machine is undamaged. If in doubt, do not use the washing machine. Contact After-Sales Servic e or your local retailer

Check that the accessories and supplied parts are all

•

present Keep the packing material (plastic bags, polystyrene

•

parts, etc.) out of reach of children, as they are potentially dangerous

2. Remove the transport bolts

The washing machine is fitted with a transport bo lts

•

to avoid any possible damage to the interior during transport. Before using the washing machine, it is imperative that the transport bolts are removed

3. Install the washing machine

Remove the protective foil from the control panel

•

Move the appliance without lifting it by the worktop

•

Install the appliance on a solid and level floor

•

surface, preferably in a corner of the room

Make sure that all four feet are resting firmly on the

•

floor and check that the appliance is perfectly level (use a spirit level)

4. Water inlet

Connect the water supply inlet hose in accordance

•

with regulations of your local water company

Water inlet: Cold water only

•

Tap: 3/4 threaded hose connection

•

Water pressure

•

(flow pressure): 100-1000 kPa (1-10 bar)

6. Electrical connections

Electrical connections must be carried out by a

•

qualified technician in compliance with the manufacturer’s instructions and local safety regulations

Data concerning voltage, consumption and fuses are

•

located on the inside of the appliance door The appliance must be connected to the mains

•

exclusively by means of a socket with an earth connection in accordance with established regulations. The washing machine must be earthed by law. The manufacturer declines all liability for damage to property or injury to persons or animals due to non-compliance with the directions given above

Do not use extension leads or multi sockets

•

Before any maintenance on the washing machine

•

disconnect it from the mains supply Access to the mains plug or to disconnection from

•

mains supply via a double-pole switch must be ensured at all times following the installation

Do not operate the washing machine if it has been

•

damaged during transport. Inform the After-Sales Service

Mains cable replacement is only to be carr ied out by

•

After-Sales Service The washing machine must only be used in the

•

household for the prescribed uses

Minimum housing dimensions:

Width: 600 mm Height: 825 mm Depth: 600 mm

5. Drain hose

Connect the drain hose to the siphon or hook it

•

over the edge of a sink by means of the “U” bend supplied

If the washing machine is connected to a built-in

•

pumping out system, ensure that the latter is equipped with a vent to avoid simultaneous loading and draining of water (siphoning effect)

Page 3

5GB10074.fm Page 17 Wednesday, June 23, 2004 12 :01 PM

PRECAUTIONS AND GENERAL RECOMMENDATIONS

1. Packaging

The packaging is 100% recyclable and is marked

•

with the recycling symbol. Adhere to current local regulations when disposing of packaging material

2. Disposing of packaging and old washing machines

The washing machine is built from reusable

•

materials. It must be disposed of in compliance with current local waste disposal regulations

Before scrapping, remove all detergent residues

•

and cut off the power cable so that the washing machine is made unusable

3. General recommendations

Do not leave the washing machine connected when

•

not in use Turn off the tap

•

Before any cleaning and maintenance switch off the

•

machine or disconnect it from the mains Clean the outside of the washing machine with a

•

damp cloth. Do not use abrasive detergents Never open the door forcibly or use it as a step

•

Children must not be allowed to play with the

•

washing machine or to climb into the drum (see also the following page chapter “Child Safety”)

If necessary, the power cable may be replaced with

•

an identical one obtained from our After-Sales Service. The power cable must only be replaced by a qualified technician

4. EC Declaration of Conformity

This appliance complies with the EC Directives:

73/23/EEC Low Voltage Directive

89/336/EEC EMC Directive

93/68/EEC CE Marking Directive

Page 4

5GB10074.fm Page 18 Wednesday, June 23, 2004 12 :01 PM

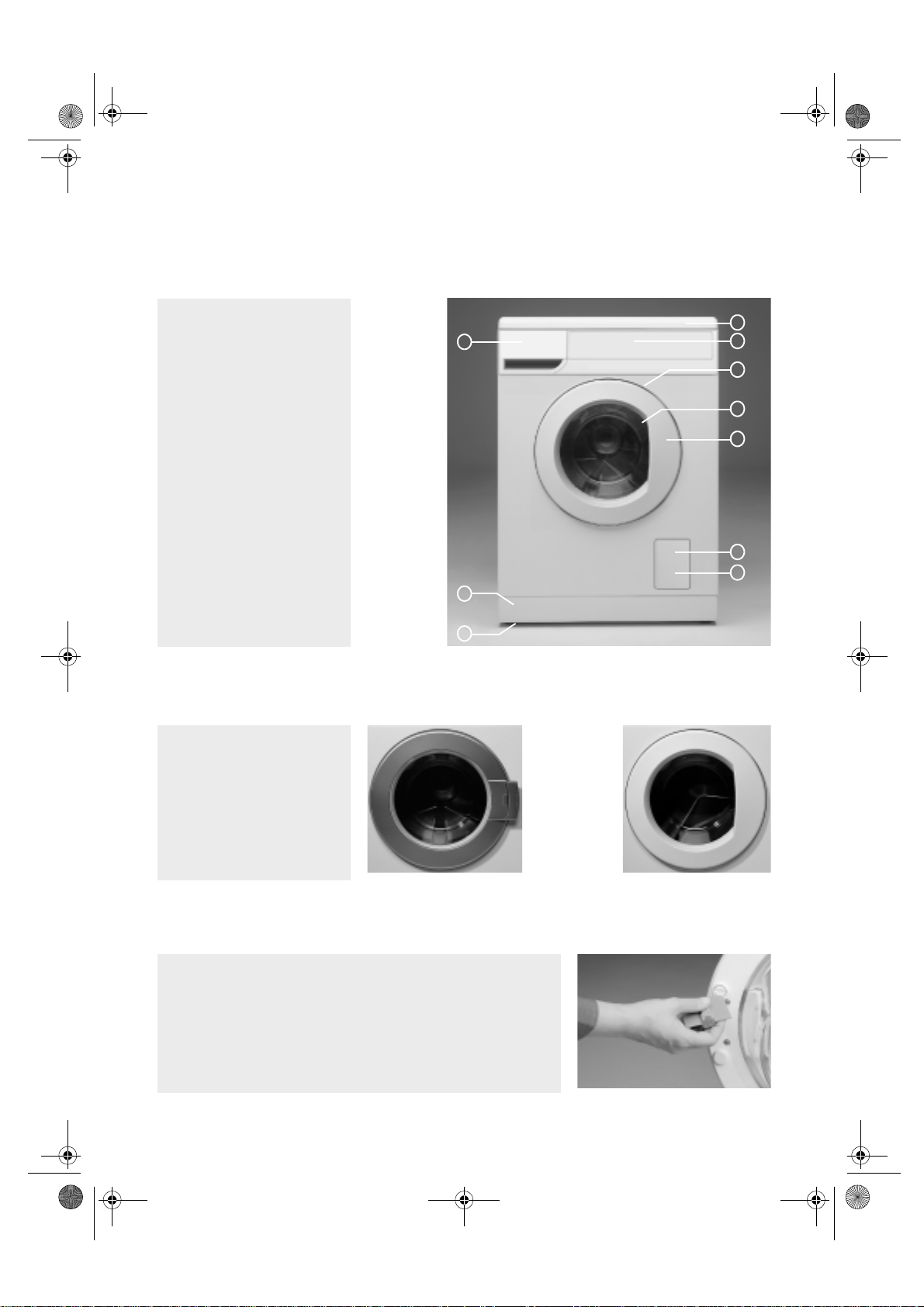

DESCRIPTION OF THE WASHING MACHINE

Worktop

Control panel

Detergent dispenser

After-Service sticker

(inside door) Door

Child safety (inside door)

Compartment door

Filter (inside compartment

door) Plinth

Adjustable feet.

10.

1 2

7 8

DOOR

Pull the handle to open the

double glass door. Close the door with light force, it will lock home audibly.

To open the single glass door

hold the door handle, press the inside handle and pull the door up. Close the door with light force, it will lock home audibly.

CHILD SAFETY

To secure the appliance against improper use turn the plastic screw on the interior of the door. To do this, use the thick rounded corner of the coloured insert from the detergent dispenser or a coin:

Slot vertical: the door will not lock

•

Slot horizontal: the door can be locked again

•

Page 5

5GB10074.fm Page 19 Wednesday, June 23, 2004 12 :01 PM

BEFORE THE FIRST WASH CYCLE

To remove any residual water used in testing by the manufacturer, we recommend that you carry out a short wash cycle without laundry.

Turn on the tap.

Close the door.

Pour a little detergent (about 30 ml) into the detergent compartment .

Select and start a short programme (see quick reference guide).

PREPARING THE WASH

1. Sort the laundry according to...

• Type of fabric / care label symbol

Cottons, mixed fibres, easy care/synthetics, wool, handwashed items

• Colours

Separate coloured and white items. Wash new coloured articles separately

•Size

Laundry items of different sizes distribute themselves better in the drum and optimise the washing and spinning action

• Delicates

Wash small items (e.g. nylon stockings, belts etc.) and items with hooks (e.g. bras) in a washbag or pillow case with a zip fastener. Always remove curtain glides or wash curtains with the glides inside a cotton bag

2. Empty all pockets

Coins, safety pins etc. can damage the laundry, drum and tub

3. Closures

Close zips and hooks and eyes; Tie loose belts or straps together

Stain removal

Blood, milk, eggs etc. are generally removed by the

•

automatic enzyme phase of the programme To remove red wine, coffee, tea, grass and fruit

•

stains etc. add a stain remover to the detergent dispenser chamber

Pre-treat heavily-soiled areas with stain remover if

•

necessary

Dyeing

Only use dyes that are suitable for washing machines

•

Follow the manufacturer’s instructions.

•

Plastic and rubber parts of the washing machine can

•

be stained by dyes

Loading the laundry

Open the door

Unfold the laundry and place it loosely in the drum.

Observe the load sizes given in the Quick Reference Guide

overloading the machine will result in

Note:

unsatisfactory washing results and creased laundry Close the door

Page 6

5GB10074.fm Page 20 Wednesday, June 23, 2004 12 :01 PM

DETERGENT AND ADDITIVES

The choice of detergent depends on:

type of fabric (cottons, easy care/synthetics,

•

delicate items, wool).

Use only specific detergents for washing

Note:

wool colour

•

the wash temperature

•

degree and type of soiling

•

Remarks:

Whitish residues on dark fabrics are caused by insoluble compounds used in modern phosphate-free powder detergents. If this occurs, shake or brus h out th e fabric or use liquid detergents.

Use only detergents and additives specifically produced for domestic washing machines.

When using descaling agents, dyes or bleaches for the pre-wash, make sure that they are suitable for use in domestic washing machines. Descaler could contain components which can attack parts of your washing machine.

Do not use any solvents (e.g. turpentine, benzine). Do not wash fabrics in the machine which have been treated with solvents or flammable liquids.

Dosage

Follow the dosage recommendations on the detergent pack. They depend on:

degree and type of soiling

•

size of wash

•

full load follow the detergent manufacturer’s instructions;

half load: 3/4 the amount used for a full load; Minimum load (about 1 kg): 1/2 the amount used for a full load

water hardness in your area (request information

•

from the water company). Soft water require s less detergent than hard water (refer to wat er hardness table)

Notes:

Too much detergent can result in excess foam formation. The cleaning effect deteriorates. If the washing machine detects too much foam, it may prevent spinning.

Insufficient detergent may result in grey laundry in time and also calcifies the heating system, drum and hoses.

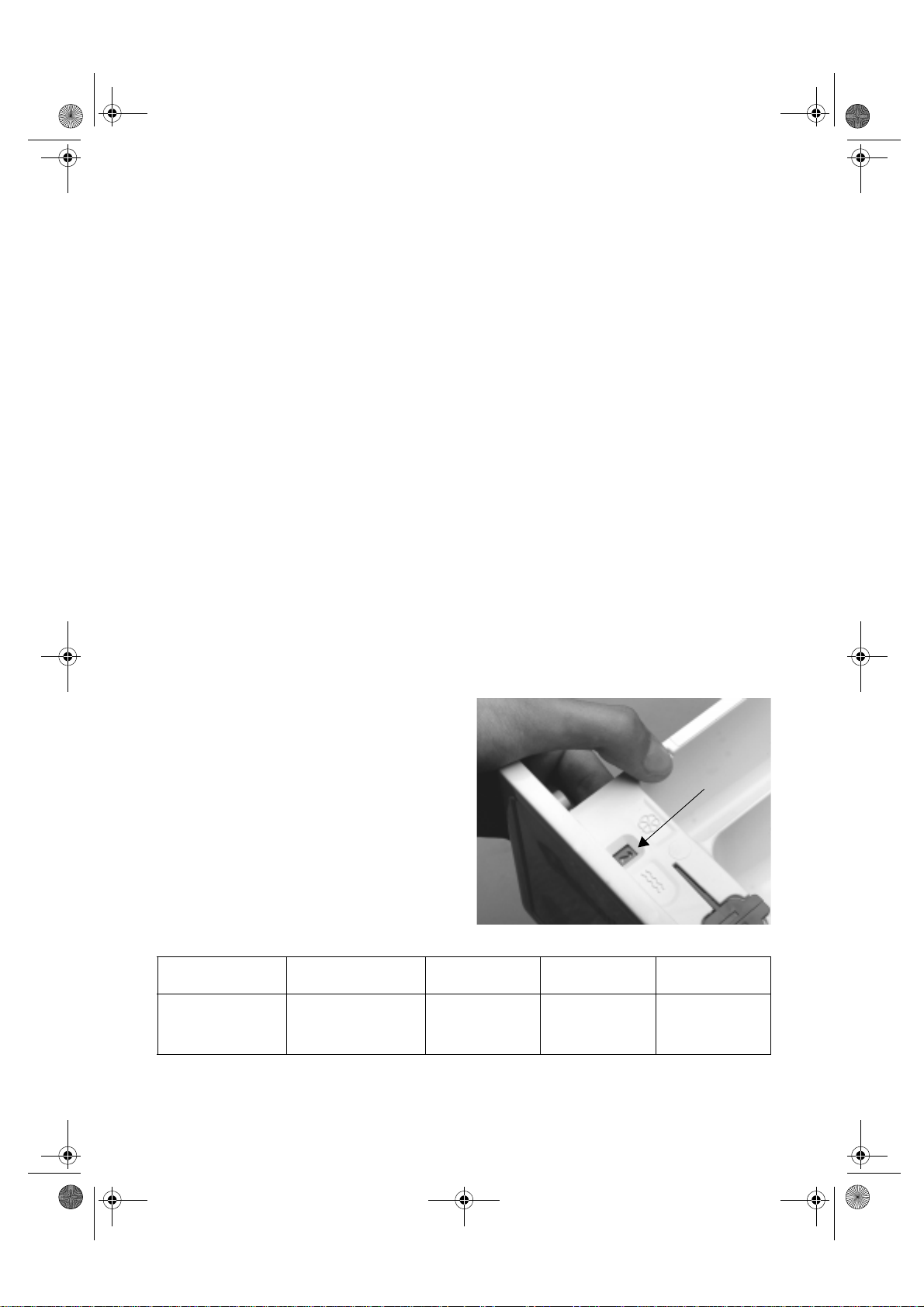

Water Hardness Chart

Water hardness CHARACTERISTICS GERMAN

1 2 3 4

You can set the water hardness level of your household supply (1 to 4) by means of the coloured “pointer” (A) in the detergent dispenser. To do this, move the slider on the bottom of the dispenser to the desired position.

soft

medium

hard

very hard

°dH

0-7

7-14

14-21

over 21

FRENCH

°fH

0-12 12-25 25-37

over 37

ENGLISH

°eH

0-9

9-17

17-26

over 26

Page 7

5GB10074.fm Page 21 Wednesday, June 23, 2004 12 :01 PM

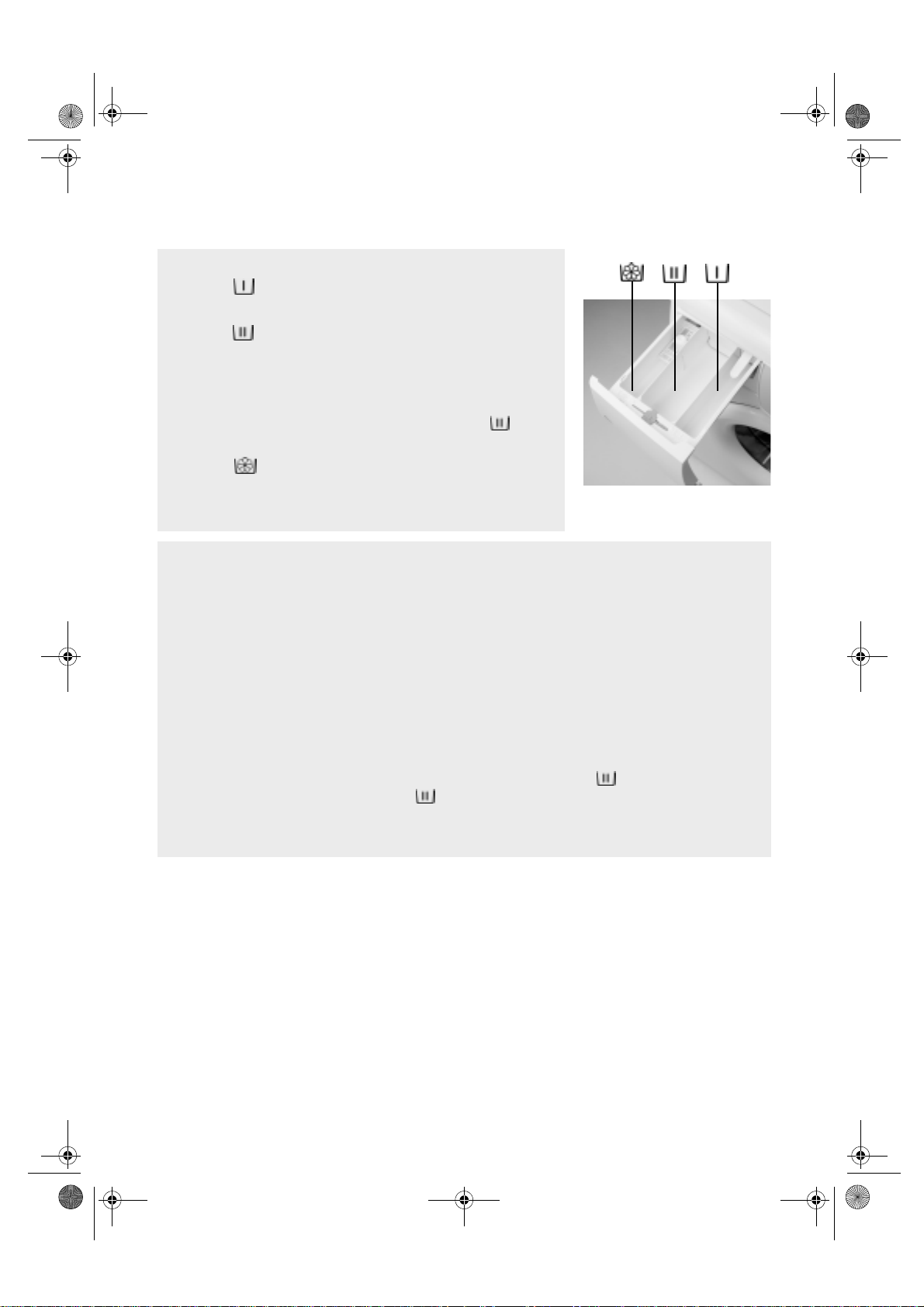

Pouring in the detergents and additives Chamber

Detergent for the prewash

•

Chamber

Detergent for the main wash

•

Stain remover

•

Water softener (water hardness 4)

•

When using liquid detergent, remove the coloured insert from the detergent container and insert it in the first gap in chamber . The scale on the insert makes dosing easier.

Chamber

Fabric Softener

•

Liquid starch

•

Only pour additives in up to the “Max” mark.

Notes:

Keep detergents and additives in a safe, dry place out of the reach of children.

•

Liquid detergents can be used for programmes with prewash. In this case only measure in a powder detergent

•

for the main wash. To prevent dispensing problems when using highly concentrated p owder and liquid detergents, use the special

•

detergent ball or bag supplied with the detergent and place it directly inside the drum. When using descaling agents, bleaches or dyes, make sure that they are suitable for washing machines.

•

Descalers could contain components that can attack parts of your washing machine. Do not use any solvents in the washing machine (e. g. turpentine, benzine).

•

If you use starch powder, proceed as follows:

•

Wash your laundry using the desired wash programme.

Then stir the starch in with water in a beaker.

Select the “Rinse and Spin” programme, reduce the speed to 800 rpm and start the programme.

Pull out the detergent drawer until you can see about 3 cm. of chamber .

Pour the starch solution into chamber while the water is running into the detergent drawer.

If there are starch residues in the detergent drawer when the programme has finished, clean it if necessary

(see “Cleaning and Maintenance”). Take note also of the starch manufacturer's information.

Page 8

5GB10074.fm Page 22 Wednesday, June 23, 2004 12 :01 PM

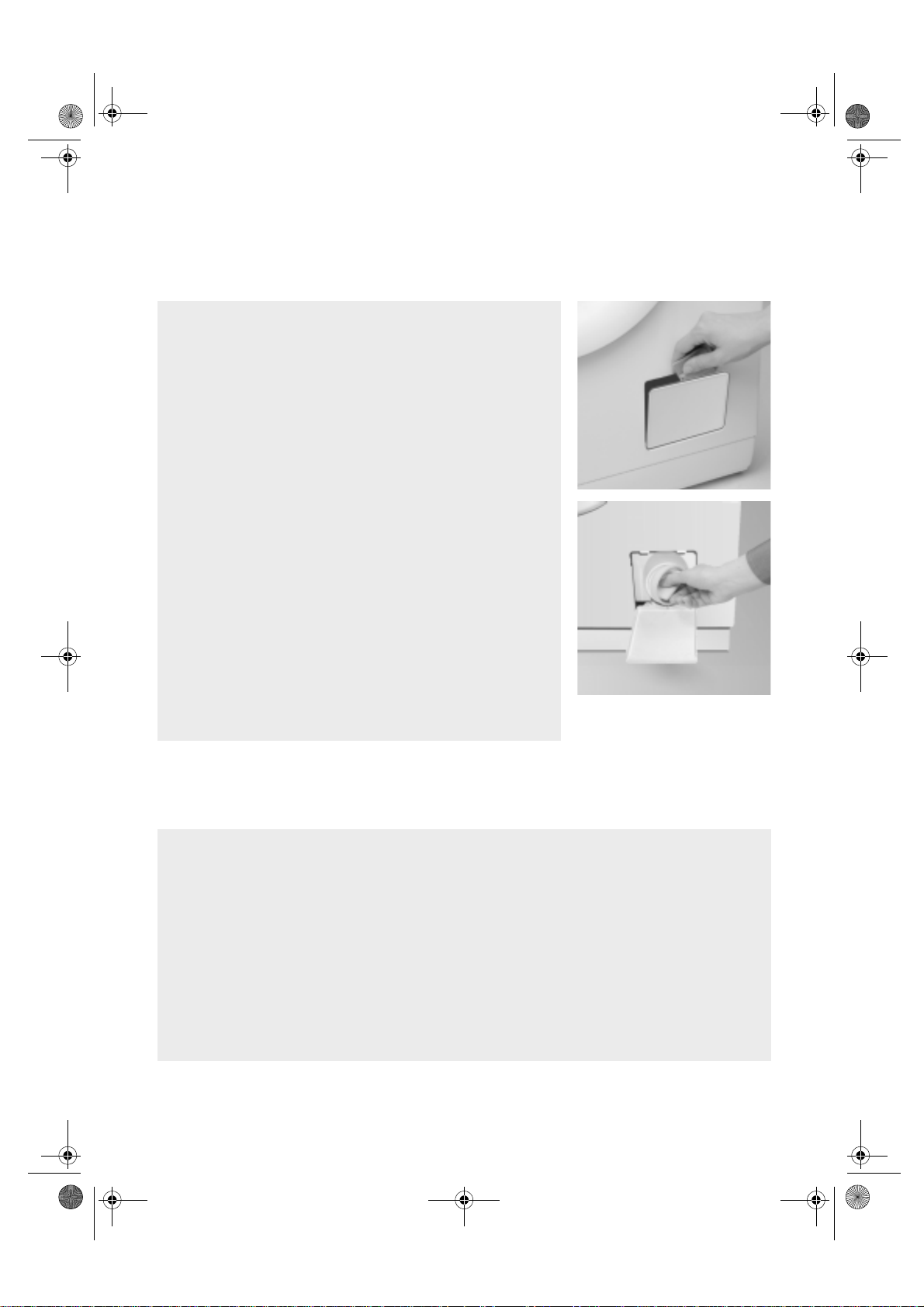

REMOVING THE FILTER

We recommend that you check and clean the filter regularly, at least two or three times a year.

Especially:

When the appliance does not drain or spin properly

•

If the pump is blocked by a foreign body (e.g. buttons, coins or safety

•

pins)

IMPORTANT: make sure the water has had time to cool before draining the appliance.

1. Switch off the appliance and unplug it.

Open the filter cover with the help of the coloured insert from the

detergent container (shape depending on model). Place a container beneath it.

Open the filter but do not withdraw it completely. Slowly turn the

handle anticlockwise until the water drains out. Wait until all the water has drained off.

Now unscrew the filter completely and remove it.

Clean the filter and the filter chamber.

Check that the pump rotor moves freely.

Insert the filter with the guide pin upwards and screw it in clockwise

to the stop (handle horizontal). Pour about 1 litre of water into the detergent drawer to react ivate the Eco

10.

system. Check that the foreign body trap is seated p roperly and tightly in place.

Fold the cover up and lock it.

11.

Reinsert the plug in the socket.

12.

Select a programme and start it.

13.

DRAINING RESIDUAL WATER

Before emptying the residual water, switch the appliance off and unplug it from the mains socket. Open the cover to the foreign body trap. Open the filter cover with the help of the coloured insert from the detergent container. Place a container beneath it.

Open the filter but do not withdraw it completely. Slowly turn the handle anticlockwise until the water drains

out. Wait until all the water has drained off.

Now unscrew the filter completely and remove it.

Tilt the appliance forwards carefully to allow the water to flow out.

Insert the filter with the guide pin upwards and screw it in clockwise to the stop (handle horizontal).

Fold the cover up and lock it.

Before using the washing machine again:

Pour approx. 1 litre of water into the detergent drawer to reactivate the Eco system.

Reinsert the plug in the socket.

Page 9

5GB10074.fm Page 23 Wednesday, June 23, 2004 12 :01 PM

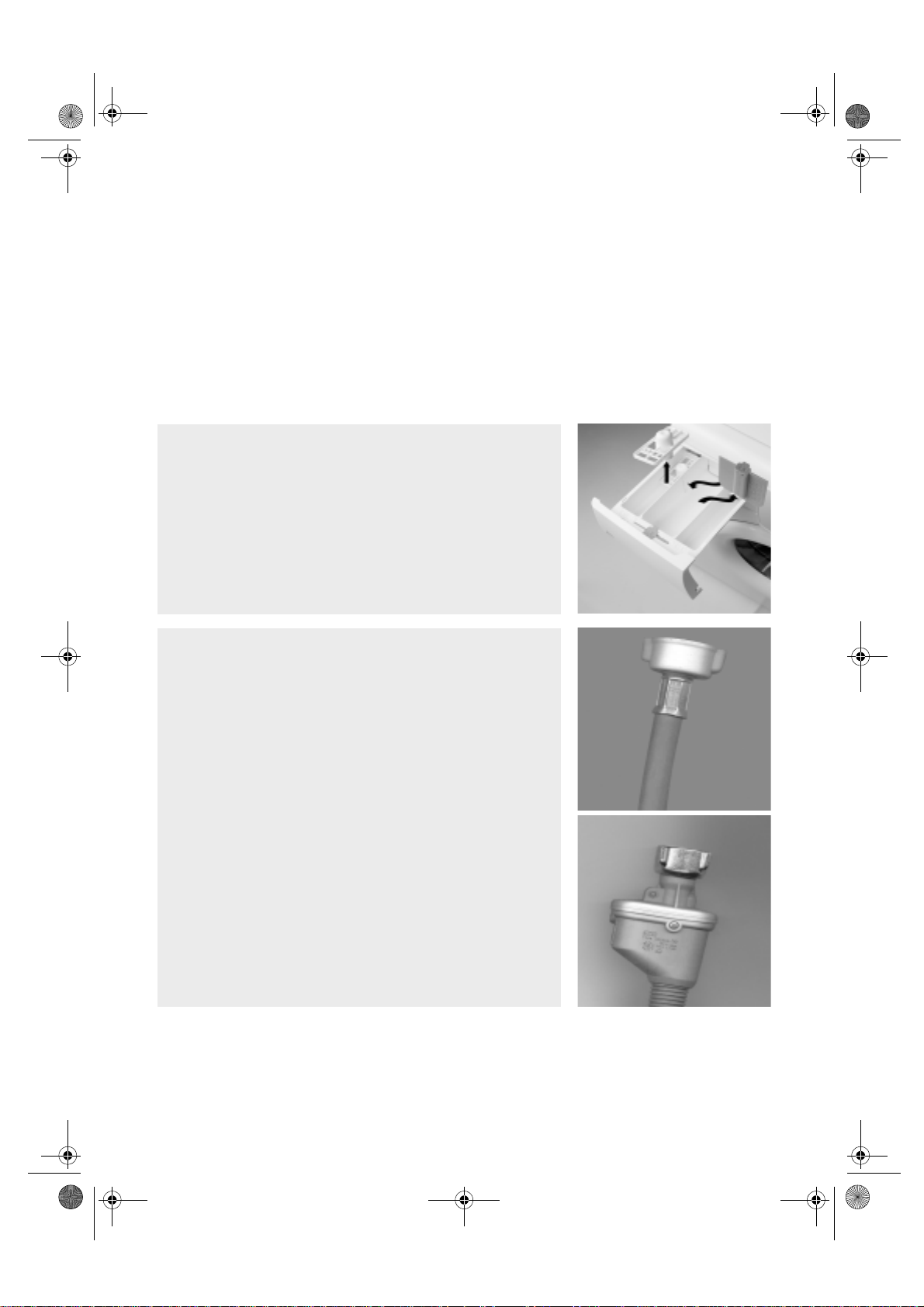

CARE AND MAINTENANCE

Appliance exterior and control panel

Can be washed down with a soft, damp cloth

•

A little neutral cleaner (not abrasive) can be used

•

Dry with a soft cloth

•

Filter

•

Door seal

Clean with a damp cloth when necessary

•

Check the seal folds for foreign bodies periodically

•

Detergent dispenser

Press the release lever in the prewash compartment downward and

remove the drawer. Remove the inserts (the siphon from the softener compartment and

the coloured insert for liquid detergent). Wash all the parts under running water.

Replace the parts and refit the detergent dispenser. Insert the

detergent dispenser in the washing machine.

Mesh Filters in the Water Connection

Check and clean regularly. For washing machines with a straight inlet hose

Turn off the tap and unscrew the water inlet hose from the tap.

Clean the internal mesh filter and screw the water inlet hose back onto

the tap. Now unscrew the inlet hose on the rear of the washing machine.

Pull off the mesh filter from the washing machine connection with

universal pliers and clean it. Refit the mesh filter and screw the inlet hose on again.

Turn on the tap and ensure that the connections are completely water-

tight.

For washing machines with Water Stop hose

Turn off the tap and unscrew the Water Stop hose from the tap.

Clean the internal mesh filter and screw the water inlet hose back onto

the tap. Turn on the tap and ensure that the connection is completely

water-tight.

We recommend that you check and clean the filter regularly, at least two or three times a year see “Removing The Filter”

Page 10

5GB10074.fm Page 24 Wednesday, June 23, 2004 12 :01 PM

TROUBLESHOOTING GUIDE

Depending on the model, your washing machine is equipped with various automatic safety functions. This enables faults to be detected in good time and the safety system can react appropriately. These faults are frequently so minor that they can be removed withi n a few minutes.

The appliance will not start, no lamp lights up.

Check whether:

the mains plug is inserted into the socket

•

the wall socket is functioning correctly (use a table

•

lamp or similar) to test

the washing machine will not start...

to model)...

and the “Start” or “Start/Pause” light

(varies according

(depending on model) flashes

Check whether:

the appliance door is properly closed (child safety)

•

the “Start” or “Start/Pause” button has been

•

pressed

...and the “Start” or “Start/Pause” light (depending on model) goes on

appears here)

(for models with a digital display a dash

Check whether:

a programme has been selected

•

the door is correctly closed

• ...and the “On/Off” lamp goes on (depending on

model).

Check whether:

the appliance door is properly closed (child safety)

•

the tap is turned on (see also “Fault in the water

•

supply/safety hose”) a programme has been selected

• The washing machine stops during the programme

(varies depending on model)

Check whether:

the “Rinse Hold” light flashes, or the “Rinse Hold”

•

button has been pressed; terminate this special option by pressing the button another programme has been selected and the

•

“Start” or “Start/Pause” button (depending on model) is flashing. Reselect the desired programme and press the “Start” or “Start/Pause” button

the door has not been closed before pressing the

•

“Start” or “Start/Pause” button. Open and close the door again and press the “Start” or “Start/Pause” button. the “On/Off” button has been pressed and the light

•

is on the washing machine safety system has been

•

activated (see “Fault Indicators” table)

Detergent and additive product residues in dispenser at end of wash.

Check whether:

the siphon is correctly installed and clean (see

•

“Care And Maintenance”) sufficient water is entering. The mesh filters in the

•

water connection could be blocked (see “Care And Maintenance”)

when using powder detergent beforehand the

•

coloured insert for dosing liquid detergent has been removed from the dispenser

The washing machine vibrates during the spin cycle.

Check whether:

the washing machine is level and standing firmly on

•

all four feet the transport bolts have been removed. Before

•

using the washing machine, it is imperative that the transport bolts are removed

Final spin results are poor.

The washing machine has an unbalance detection and correction system. If individual heavy items are loaded (e.g. a bathmat or bathrobe), this system may reduce the spin speed automatically or even interrupt t he sp in completely if it detects too great an imbalance even after several spin starts, in order to protect the washing machine.

If the laundry is still too wet at the end of the cycle,

•

add smaller articles of laundry and repeat the spin cycle

Excessive foam formation may prevent spinning.

•

Observe correct detergent dosages Check wether spin speed is deselected, no spin

•

speed indication lamp lights up (if existing depending on model)

Fault display table

Luminous display

“Water tap” flash “H” and “F” “Fault in water supply”

“Pump” flash “P” and “F” “Draining fault”

- flash from “F4” to “F16” “Fault in an electrical component”

“Water Stop” flash “A” and “F” “Water Stop fault”

Spin

speed

lights

Digital display

(if fitted)

Fault description

Page 11

5GB10074.fm Page 25 Wednesday, June 23, 2004 12 :01 PM

a.Fault in the water supply

The appliance has no or insufficient water supply. For models with a fault display, the “Water tap” lamp lights up and (depending on model) the spin speed indication lamps flash. For models with no fault display, the washing machine stops in the appropriate programme step.

Switch the appliance off and pull out the mains plug.

Check whether:

• the water tap is fully turned on, and the water supply pressure is sufficient

• the water inlet hose is kinked

• the water connection mesh filters are blocked

(see “Care And Maintenance”/”Mesh Filters in the Water Connection”)

• the water supply hose is frozen up

• the washing machine has a safety hose and the

safety valve is open (red indicator in the safety valve inspection window); In this case replace it with a new safety hose

Reconnect the appliance to the electrical socket. For models with a fault display, reselect the desired programme and start it. For models without a fault display continue the programme by pressing the “On/Off” or the “St art” or the “Start/Pause” button (depending on model) again. If the fault occurs again, please contact After-Sales Service (see “After-Sales Service”).

b.Draining fault

Waste water not pumped out. For models with a fault display the spin speed indication lamps flash and the pump display flashes. If a digital display is fitted, “P

” and “F” are also displayed alternately. For models with no fault display, the washing machine stops in the appropriate programme step.

Switch the appliance off and pull out the mains plug.

Check whether:

• the drain hose is kinked

• the pump or the filter is blocked (see “Removing

The Filter”) IMPORTANT: before draining, make sure that the water has cooled down.

• The water in the drain hose is frozen up Reconnect the appliance to the electrical socket. For models with fault display, select and start the “Drain” cycle. To rinse the laundry, we then recommend a short programme without the addition of detergent. For models without a fault display continue the programme by pressing the “On/Off” button again. If the fault occurs again, please contact After-Sales Service (see “After-Sales Service”).

c.Fault in an electrical component

The appliance stops in the middle of a programme. For models with a fault display, the spin speed indication lamps flash. If a digital display is fitted, “F4 “F16

” are also displayed.

” to

Switch the washing machine off. First of all select and start the “Drain” cycle.

Then select and start the desired programme again. For models with no fault display, the washing machine stops in the appropriate programme step. First switch the washing machine off and on again to continue with the programme. If the fault persists, please contact After-Sales Service (see “After-Sales Service”). d.“Water Stop” fault (if fitted) The “Water Stop” fault may have been triggered by:

1. excess foaming

2. a leak in the washing machine.

In this case the pump is switched on automatically in order to pump the water out. For models with a fault display, the “Water Stop” indication flashes and the spin speed indication lamps flash. If a digital display is fitted, “A

” and “F” are also displayed alternately. For models with no fault display, the washing machine stops in the appropriate programme step.

Switch the appliance off, pull out the mains plug and turn the water tap off.

Tilt the appliance forwards ( with 2 people it is suggested), to allow the collected water to flow out from the bottom of the appliance. Then:

1. Plug in the appliance.

2. Turn the water tap on (if water immediately flows

into the appliance again, without the appliance being started, there is a fault. Turn off the tap and notify After-Sales Service).

3. For models with fault display, select and start the

desired programme again. For models with no fault display, continue the

programme by pressing the “On/Off” button again. If the fault occurs again, please contact After-Sales Service (see “After-Sales Service”).

Page 12

5GB10074.fm Page 26 Wednesday, June 23, 2004 12 :01 PM

AFTER-SALES SERVICE

Before contacting After-Sales Service:

Try to remedy the problem yourself (see

“Troubleshooting Guide”) Restart the programme to check whether the

problem has solved itself If the washing machine continues to function

incorrectly, call After-Sales Service

Specify:

The nature of the problem

•

The washing machine model

•

The service code (number after the word SERVICE)

•

The After-Sales Service sticker is on the inside of the door.

Your full address

•

Your telephone number and area code After-Sales

•

Service numbers and addresses can be found in the guarantee booklet or contact the dealer

TRANSPORT/HANDLING

Never lift the appliance by the worktop when transporting.

Pull out the power plug

Turn off the tap

Remove the water supply and drain hose

Drain residual water from the appliance and hoses (see “Removing The Filter”/“Draining Residual Water”)

Fit the transit bolts (obligatory)

Page 13

5GB10074.fm Page 27 Wednesday, June 23, 2004 12 :01 PM

ELECTRICAL CONNECTION

1) For Great Britain only Warning - this appliance must be earthed Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

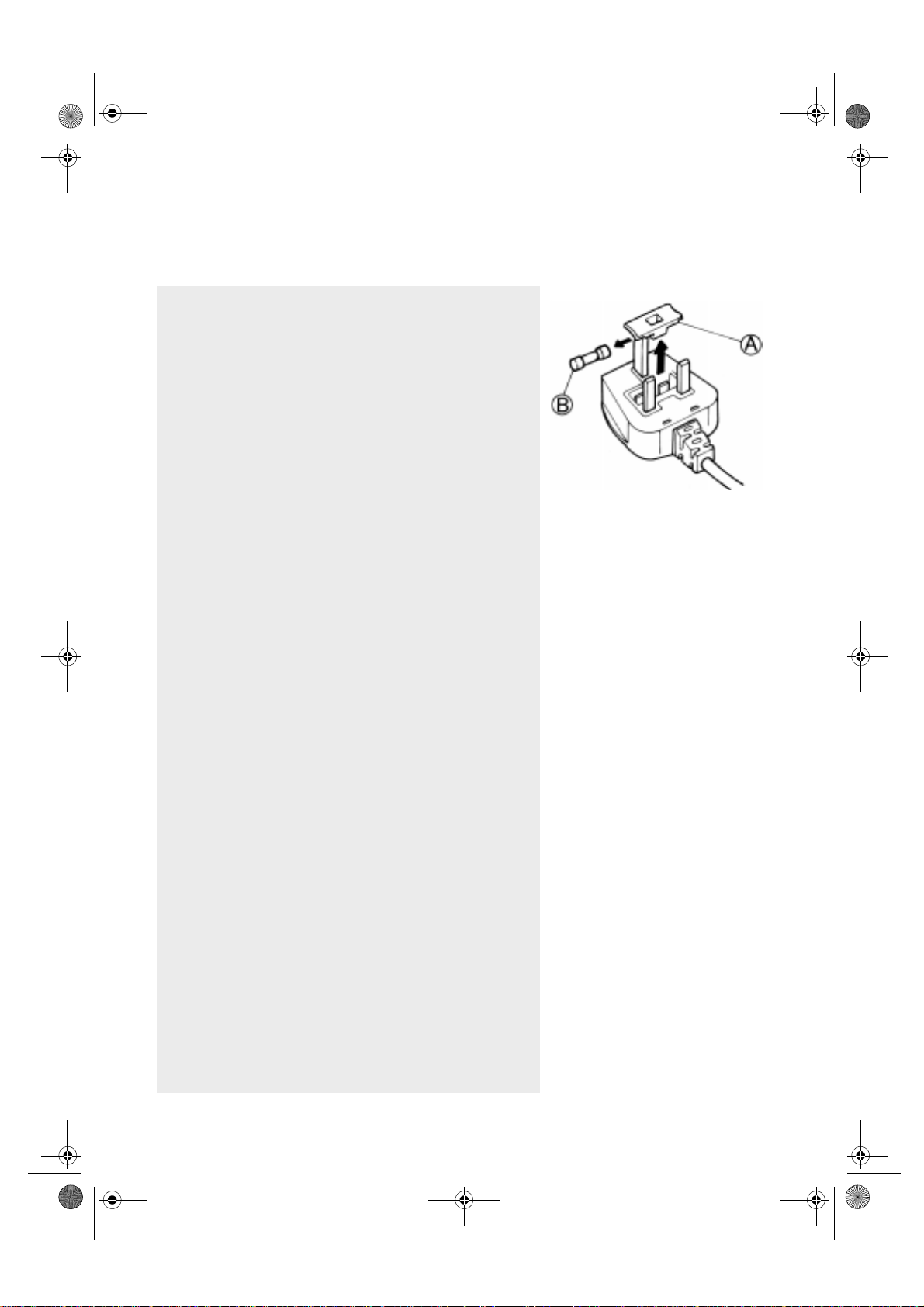

Remove the fuse cover (A) and fuse (B).

Fit replacement 13A fuse into fuse cover.

Refit both into plug.

3. Important:

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted. Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug. Replacement fuse covers are available from your local electrical store.

2) For the Republic of Ireland only

The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type.

3) Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please contact Whirlpool Service for further instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified Whirlpool technician in compliance with the manufactures instructions and current standard safety regulation s.
