LEV4634PQ
Installation Guide
24 pgs1.23 Mb0

Whirlpool LEV4634PQ Installation Guide

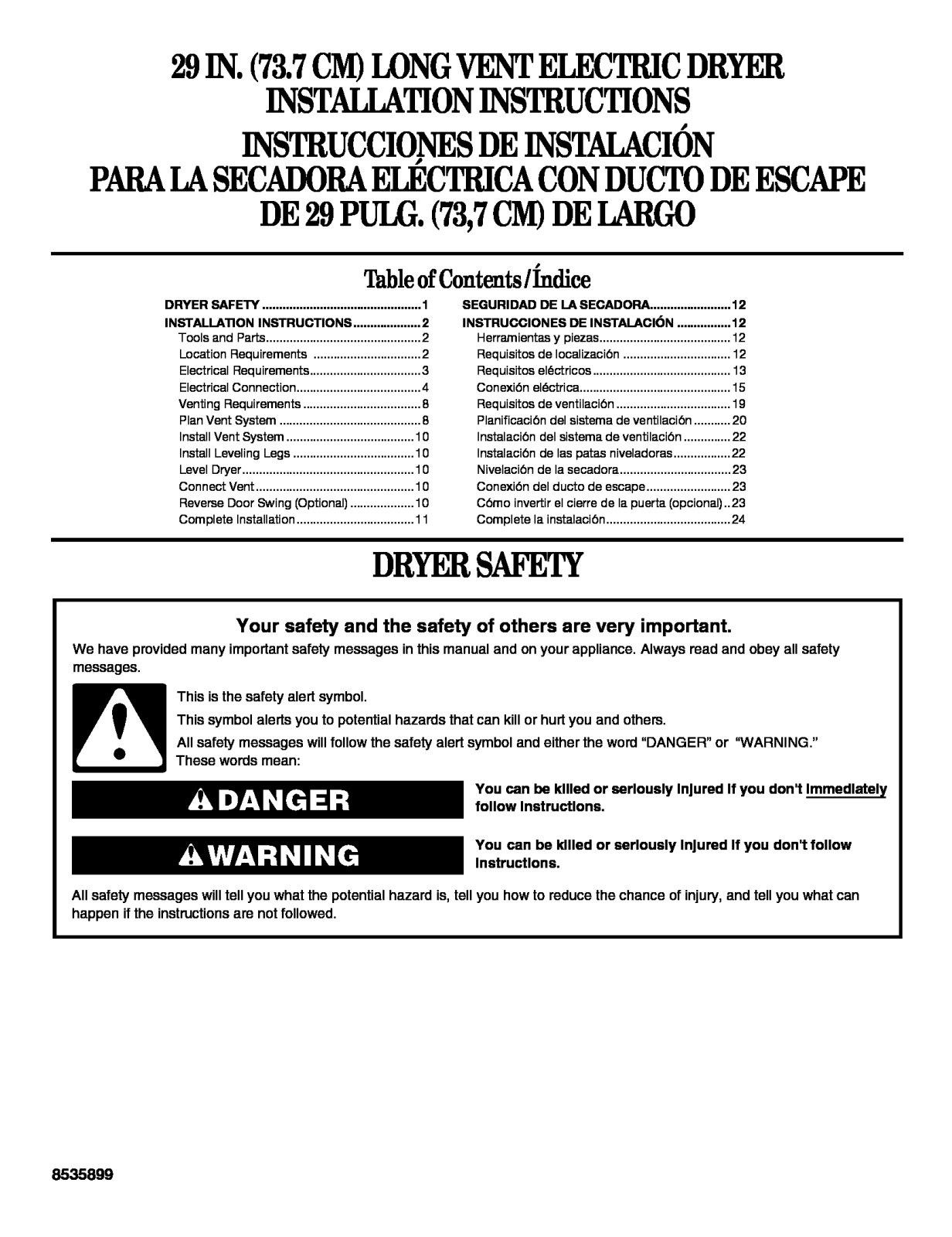

29IN.(73.7CM)LONGVENTELECTRICDRYER
INSTALLATIONINSTRUCTIONS
INSTRUCCIONESDEINSTALACION
PARALASECADORAELECTRICACONDUCTODEESCAPE
DE29PULG.(73,7CM)DELARGO
TableofContents/Indice
DRYER SAFETY ............................................... 1
INSTALLA'nON INSTRUCTIONS .................... 2
Tools and Parts.............................................. 2
Venting Requirements ................................... 8
Install Vent System ...................................... 10
Install Leveling Legs .................................... 10
Level Dryer................................................... 10
Connect Vent ............................................... 10
Reverse Door Swing (Optional) ................... 10
Complete Installation ................................... 11
SEGURIDAD DE LA SECADORA ........................ 12
INSTRUCCIONES DE INSTAI.ACION ................ 12
Herramientas y piezas ....................................... 12
Requisitos de Iocalizaci6n ................................ 12
Requisitos el_ctricos ......................................... 13
Conexi6n el_ctrica ............................................. 15
Requisitos de ventilaci6n .................................. lg
Planificacibn del sistema de ventilacibn ........... 20
Instalaci6n del sistema de ventilacibn .............. 22
Instalaci6n de las paras nivelaqoras................. 22
Nivelaci6n de la secadora ................................. 23
Conexi6n qel qucto de escape ......................... 23
Cbmo invertir el cierre de la puerta (opcional)..23
Complete la instalacibn..................................... 24
DRYERSAFETY
Your safety and the safety of others are very important.
We haveprovidedmanyimportantsaretymessages inthismanualand onyourappliance.Alwaysread andobeyallsafety messages.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurtyou and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or serlousty Injured If you don't Immediately follow Instructions.
You can be killed or seriously Injured If you don't follow Instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance or injury, and tell you what can
happen if the instructions are not followed.
8535899

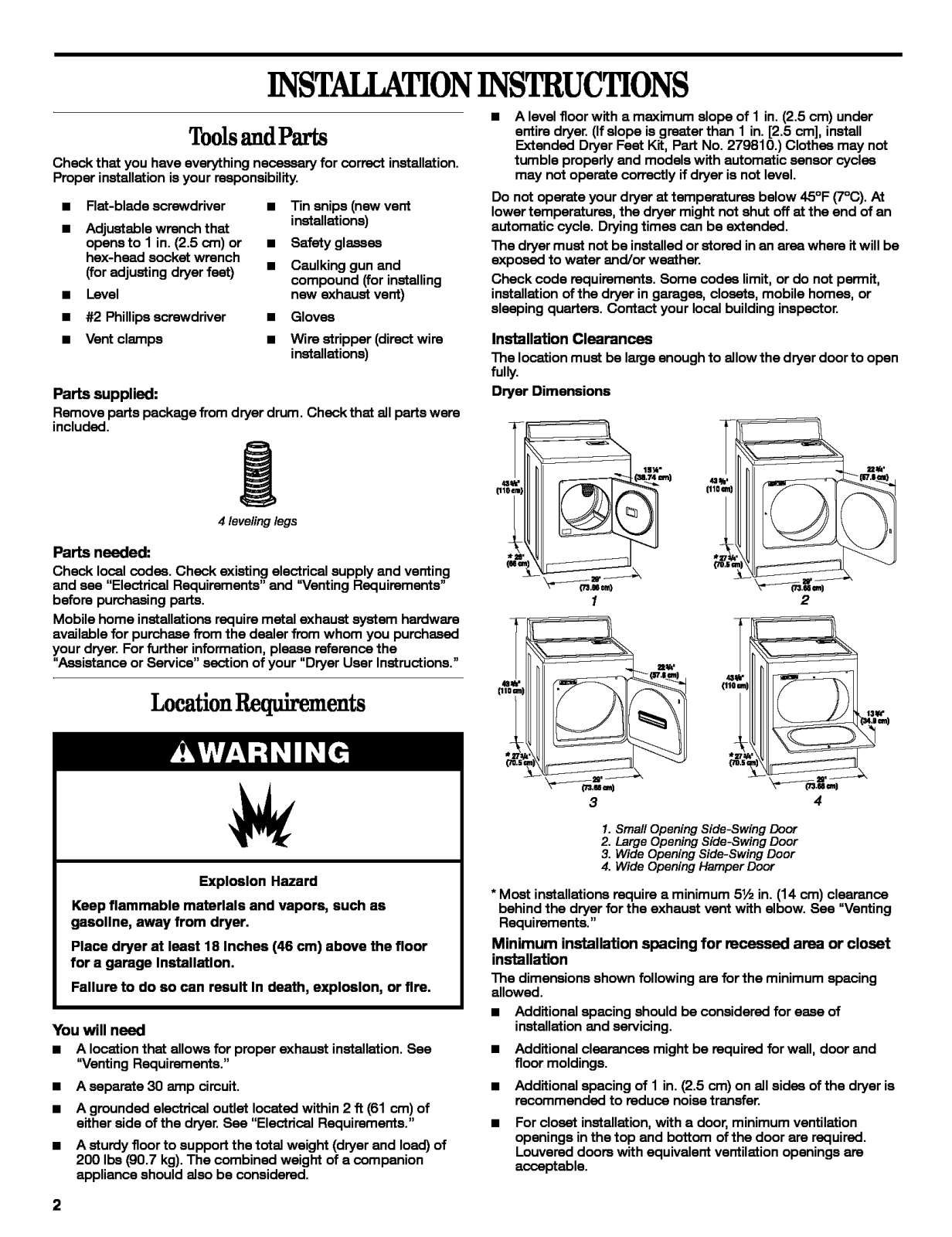

INSTALLATIONINSTRUCTIONS
ToolsandParts
Check that you have everything necessary for correct installation.
Paper installation isyour responsibility.
m Flat-blade screwdriver m Tin snips (new vent = Adjustable wrench that installations)
openstol in.(2.5cm) or = Safetyglaasas hex-head socket wrench
(for adjusting dryer feet) m Caulking gun and
a Level new exhaust vent)
m #2 Phillipsscrewdriver m Gloves m Vent clamps m Wire stripper (direct wire
Parts supplied: Remove parts package from dryer drum. Check that all parts were
included.
4 leveling legs
compound (for installing
installations)
= A level floor with a maximum slope of 1 in.(2.5 cm) under
entire dryer. (If slope is greater than 1 in. [2.5 cm], install
Extended Dryer Feet Kit, Part No. 279810.) Clothes may not
tumble properly and models with automatic sensor cycles may not operate correctly if dryer is not level.
Do not operate your dryer at temperatures below 4,5°F(7°(3). At
lower temperatures, the dryer might not shut off at the end of an automatic cycle. Dryingtimes can be extended.
The dryer must not be installed or stored inan aras where it will be exposed to water and/or weather.
Check code requirements. Some codas limit, or do not permit, installation of the dryer in garages, closets, mobile homes, or
sleeping quarters. Contact your local building inspector.

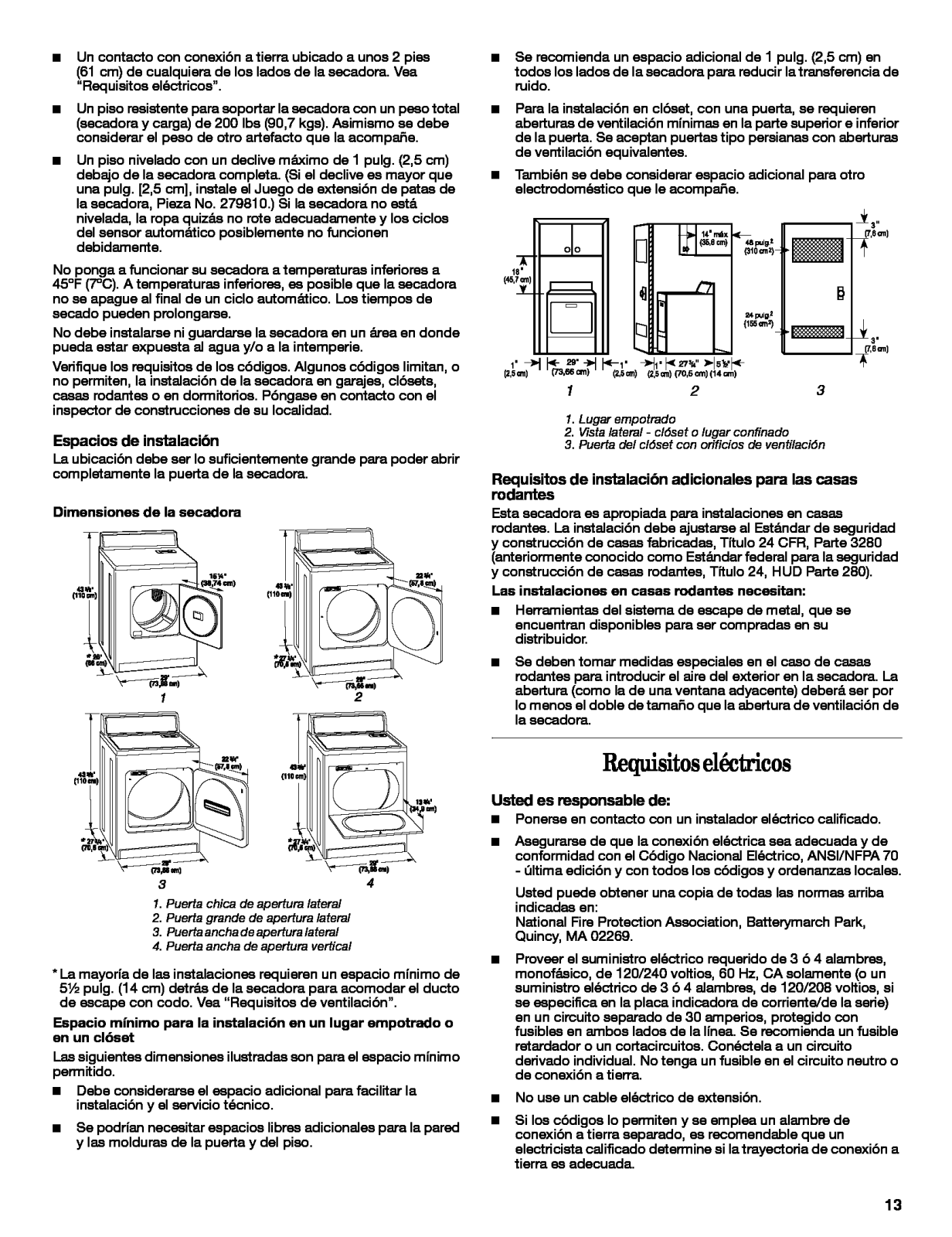

Installation Clearances
The location must be large enough to allow the dryer door to open fully.
Dryer Dimensions
Parts needed:
Check local codas. Check existing electrical supply and venting and see "Electrical Requirements" and "Venting Requirements" before purchasing parts.
Mobile home installations require metal exhaust system hardware
available for purchase from the dealer from whom you purchased your dryer. For further information, please reference the
"Assistance orService" section of your "Dryer User Instructions."
LocationRequirements
Explosion Hazard
Keep flammable materials and vapors, such as
geaollne, away from dryer. Place dryer at least 18 Inches (46 cm) above the floor
for a garage Installation, Fallura to do so can result In death, explosion, or flra,
You will need a A location that allows for proper exhaust installation. See
"Venting Requirements."
m A separate 30 amp circuit. m A grounded electrical outlet located within 2 ft (61 cm) of
either side of the dryer. See "Electrical Requirements."
m A sturdy floor to support the total weight (dryer and load) of
200 Ibs (90.7 kg). The combined weight of a companion appliance should also be considered.
2
01am)
(_.m=d
/
(/_.M ca)
3
1. Small Opening Side-Swing Door
2. Large Opening Side-Swing Door 3, Wide Opening Side-Swing Door 4, Wide Opening Hamper Door
* Most installations require a minimum 5½ in. (14 cm) clearance
behind the dryer for the exhaust vent with elbow. See "Venting Requirements."
Minimum installation spacing for receased area or closet installation
The dimensions shown following are for the minimum spacing allowed.
= Additional spacing should be considered for ease of
installation and servicing.
a
Additional clearances might be required for wall, door and floor moldings.
a
Additional spacing of 1 in. (215 cm) on all sides of the dryer is recommended to reduce noise transfer.
a
For closet installation, with a door, minimum ventilation
openings inthe top and bottom of the door are required.
Louvered doors with equivalent ventilation openings are
acceptable.
4
2
Companion appliance spacing should also be considered.
(310cmz) ,
15"m= 48in =
_ln=
m
(2scm) (25_) (705cm)04 om)
1 2
1.Recessed area
2. Side view - closet or confined area
3. Closet door with vents

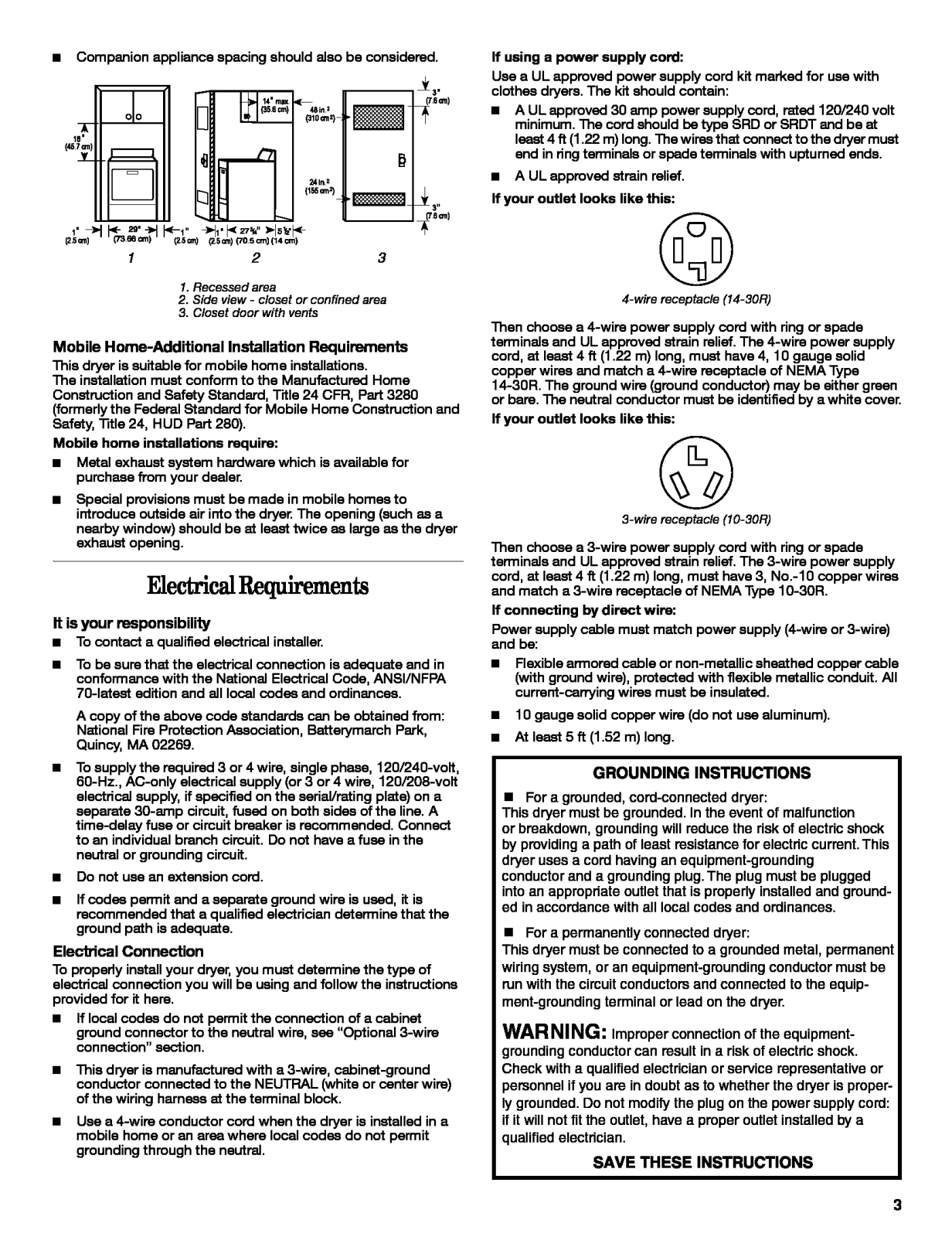

Mobile Home-Additional Installation Requirements
This dryer is suitable for mobile home installations, The installation must conform to the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety, "ntis24, HUD Part 280),
Mobile home installations require:
• Metal exhaust system hardware which is available for
purchase from your dealer, Special provisions must be made in mobile homes to
intmduca outside air into the dryeE The opening (such as a nearby window) should be at least twice as large as the dryer exhaust opening,
3
(76m}
FAeetri qulrements
It isyour responsibility
• Tocontacta qualifiedelectricalinstaller,
• To be sure that the electrical connection is adequate and in
conformance with the National Electrical Code, ANSI/NFPA 70-1ateat edition and all local codas and ordinances,
A copy of the above code standards can be obtained from:
National Fire Protection Association, Batterymarch Park,
Quincy, MA 02269.
• To supply the required 3 or 4 wire, single phase, 120/240-volt,
60-Hz., AC-only electrical supply (or 3 or 4 wire, 120/208-volt electrical supply, if specified on the sarial/rating plats) on a
separate 30-amp circuit, fused on both sides ofthe line. A time-dalay fuse or circuit breaker is recommended. Connect
to an individual branch circuit. Do nat have afuse in the neutral or grounding circuit.
• Do not use an extension cord.
• If codas permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that the ground path is adequate.
Electrical Connection
To propsdy install your dryer, you must determine the type of slsatdcal connection you will be using and follow the instructions
provided for it here,
• If local codas do nat permit the connection of a cabinet ground connector to the neutral wire, see "Optional 3-wire
connection" section,
• This dryer is manufactured with a 3-wire, cabinat-ground conductor connected to the NEUTRAL (white or canter wire)
of the wiring harness at the terminal block,
• Use a 4-wire conductor cord when the dryer is installed in a mobile home or an area where local codas do not permit grounding through the neutral.
If using a power supply cord: Use a UL approved power supply cord kit marked for use with
clothes dryers. The kit should contain:
• A UL approved 30 amp power supply cord, rated 120/240 volt minimum. The cord should be type SRD or SRDT and be at least 4ft (1.22 m) long. The wires that connect to the dryer must
end in dng terminals or spade terminals with upturned ends.
• A UL approved strain relief.
If your outlet looks like this:
©
4-wire receptacle (14-30R)
Then choose a 4-wire power supply cord with ring or spade
terminals and UL approved strain relief. The 4-wire power supply cord, at least 4 ft (1.22 m) long, must have 4, 10 gauge solid
copper wires and match a 4-wire receptacle of NEMA Type
14-30R. The ground wire (ground conductor) may be either green
or bare. The neutral conductor must be identified by a white cover.
If your outlet looks like this:
©
3-wire receptacle (10-30R)
Then choose a 3-wire power supply cord with ring or spade
terminals and UL approved strain relief. The 3-wire power supply cord, at least 4 R (1.22 m) long, must have 3, No.-10 copper wires and match a 3-wire receptacle of NEMA Type 10-30R.
If connecting by direct wire: Power supply cable must match power supply (4-wire or 3-wire)
and be:
• Flexible armored cable or non-matallic sheathed copper cable
(with ground wire), protected with flexible metallic conduit. All current-carrying wires must be insulated.
• 10 gauge solid copper wire (do not use aluminum).
• At least 5 ft (1.52 m) long.
GROUNDING INSTRUCTIONS
m For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction
or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electdc current. This dryer uses a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and ground-
ed in accordance with all local codes and ordinances.
m For a permanently connected dryer: This dryer must be connected to a grounded metal, permanent wiring system, or an equipment-greunding conductor must be run with the circuit conductors and connected to the equip-
ment-grounding terminal or lead on the dryer.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk ofelectdc shock, Check with a qualified electrician or service representative or personnel if you are in doubt as to whether the dryer is proper- ly grounded, Do not modify the plug on the power supply cord: if it will not fitthe outlet, have a proper outlet installed by a qualified electdcian,
SAVE THESE INSTRUCTIONS

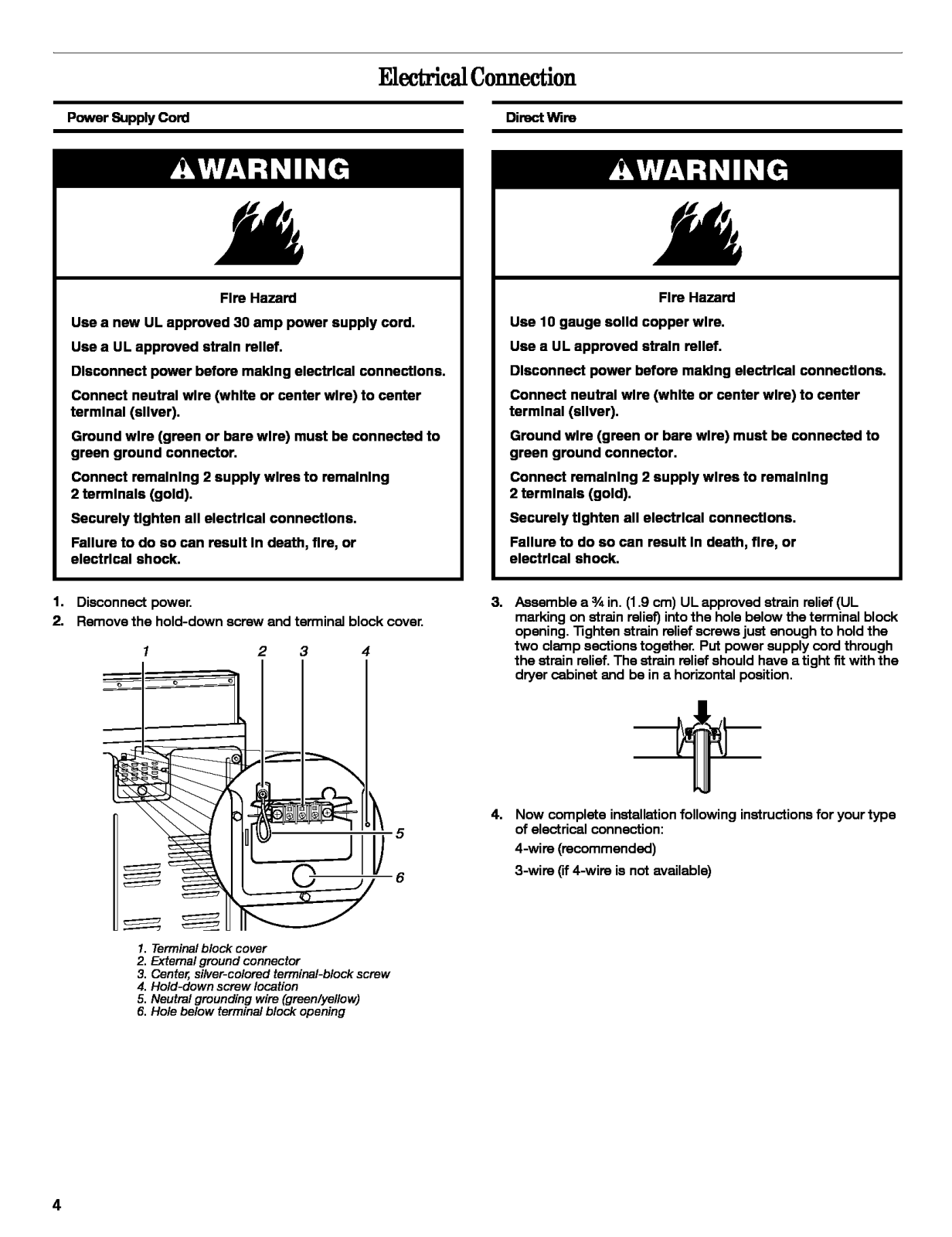

ElectricalConnection
PowerSupplyCord
Fire Hazard
Use a new UL approved 30 amp power supply cord. Use a UL approved strain relief.
Disconnect power before making electrical connections. Connect neutral wire (white or center wire) to center
terminal (sliver). Ground wire (green or bare wire) must be connected to
green ground connector. Connect remaining 2 supply wires to remaining
2 terminals (gold). Securely tighten all electrical connections.
Failure to do so can result In death, fire, or electrical shock.
Direct Wire
Fire Hazard
Use 10 gauge solid copper wire. Use a UL approved strain relief.
Disconnect power before making electrical connections. Connect neutral wire (white or center wire) to center
terminal (sliver). Ground wire (green or bare wire) must be connected to
green ground connector. Connect remaining 2 supply wires to remaining
2 terminals (gold). Securely tighten all electrical connections.
Failure to do so can result In death, fire, or electrical shock.
1. Disconnect powen
2. Remove the hold-down screw and terminal block coven
2 3 4
5
6
1. Terminal block cover
2. E_temal ground connector
3. Center, silver-colored terminal-block screw
4. Hold-down screw location
5. Neutral grounding wire (green/yallow)
6. Hole below terminal block opening
3.
Assemble a ¾ in. (1.9 cm) UL approved strain relief (UL marking on strain relief) intothe hole below the terminal block
opening. "nghtan strain relief screws just enough to hold the two clamp sections together. Put power supply cord through
the strain relief. The strain reliefshould have a tight fit with the dryer cabinet and be in a horizontal position.
4.
Now complete installation following instructions for your type
of electrical connection: 4-wire (recommended)
3-wire (if 4-wire is not available)
4

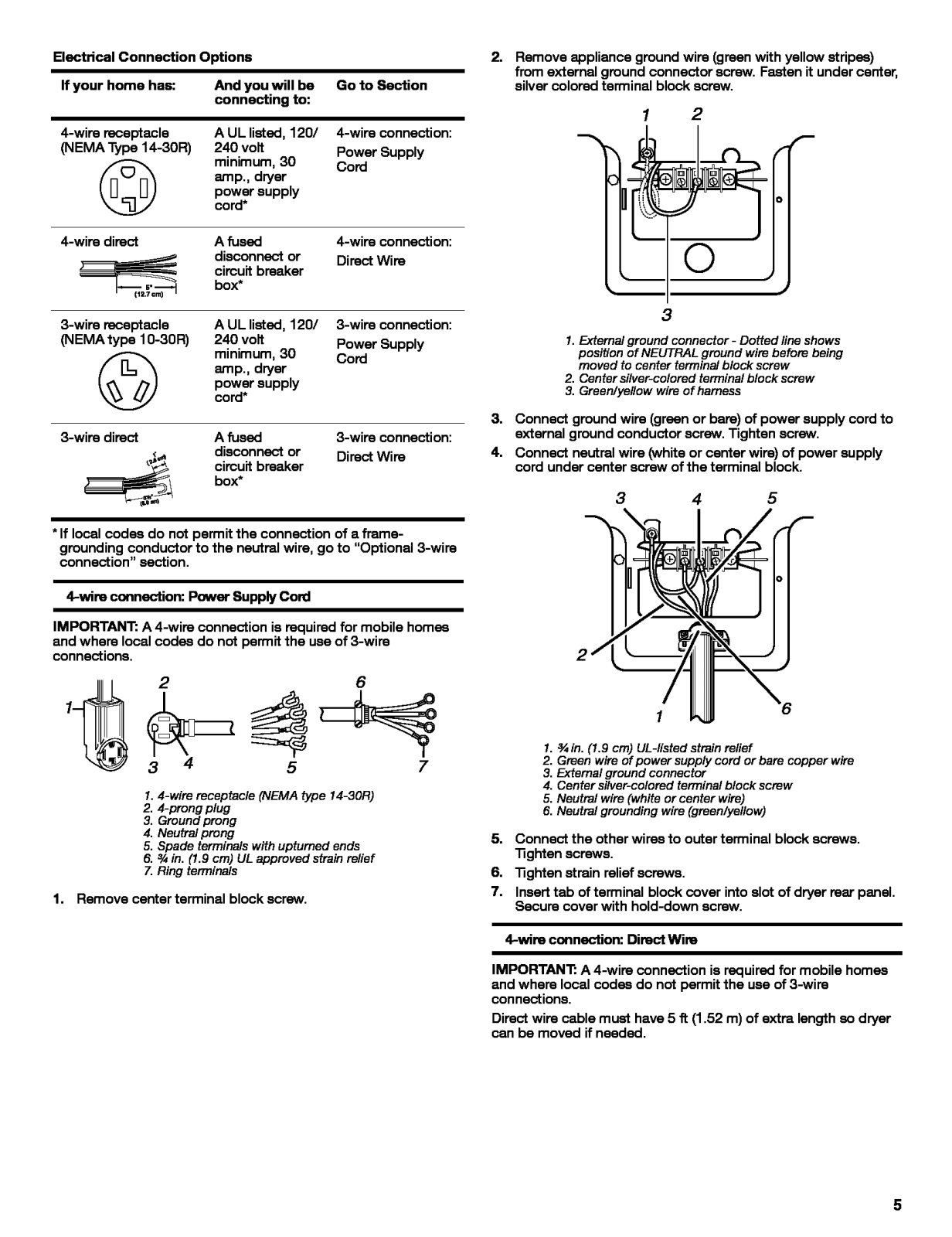

Electrical Connection Options
If your home has: And you will be Go to Section
4-wire receptacle A UL listed, 1201 4-wire connection: (NEMA Type 14-30R) 240 volt Power Supply
(_ minimum, 30 Cord
4-wire direct A fused 4-wire connection:
connecting to:
amp,, dryer power supply
cord*
disconnect or Direct Wire circuit breaker
box*
2. Remove appliance ground wire (green with yellow stripes)
from external ground connector screw. Fasten it under center, silver colored terminal block screw.
1
2
©
3-wire receptacle A UL listed, 120/ 3-wire connection: (NEMA type 10-30R) 240 volt Power Supply
amp., dryer
(_ minimum, 30 Cord
3-wire direct A fused 3-wire connection:
_'_ box*Circuitbreaker
* If local codes do not permit the connection of a frame-
grounding conductor to the neutral wire, go to "Optional 3-wire connection" section.
4-wire connection: Power Supply Cord
IMPORTANT: A 4-wire connection is required for mobile homes
and where local codes do not permit the use of 3-wire connections.
2
power supply cord*
disconnect or Direct Wire
6
5 7
1.4-wire receptacle (NEMA type 14-30R)
2. 4-prong plug
3. Ground prong
4. Neutral prong
5. Spade terminals with upturned ends
6. _ in. (1.9 cm) UL approved strain relief
7. Ring terminals
1. Remove center terminal block screw.
3
1. External ground connector- Dotted line shows position of NEUTRAL ground wire before being
moved to center terminaJblock screw
2. Center silver-colored terminal block screw
3. Green/yellow wire of harness
3. Connect ground wire (green or bare) of power supply cord to external ground conductor screw. Tighten screw.
4. Connect neutral wire (white or center wire) of power supply cord under center screw of the terminal block.
3 4 5
TT .
II
2 1
1.¾ in. (1.9 cm) UL-listad strain relief
2. Green wire of power supply cord or bare copper wire
3, E_temal ground connector 4, Center silver-cotared terminal block screw
5, Neutral wire (white or center wire) 6, Neutral grounding wire (green/yellow)
5. Connect the other wires to outer terminal block screws. "nghtanscrews.
6. "nghtan strain relief screws.
7. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw.
4-wire connection: Direct Wire
IMPORTANT: A 4-wire connection is required for mobile homes
and where local codes do not permit the use of 3-wire
connections.
Direct wire cable must have 5 fc(1.52 m) of extra length so dryer
can be moved if needed.

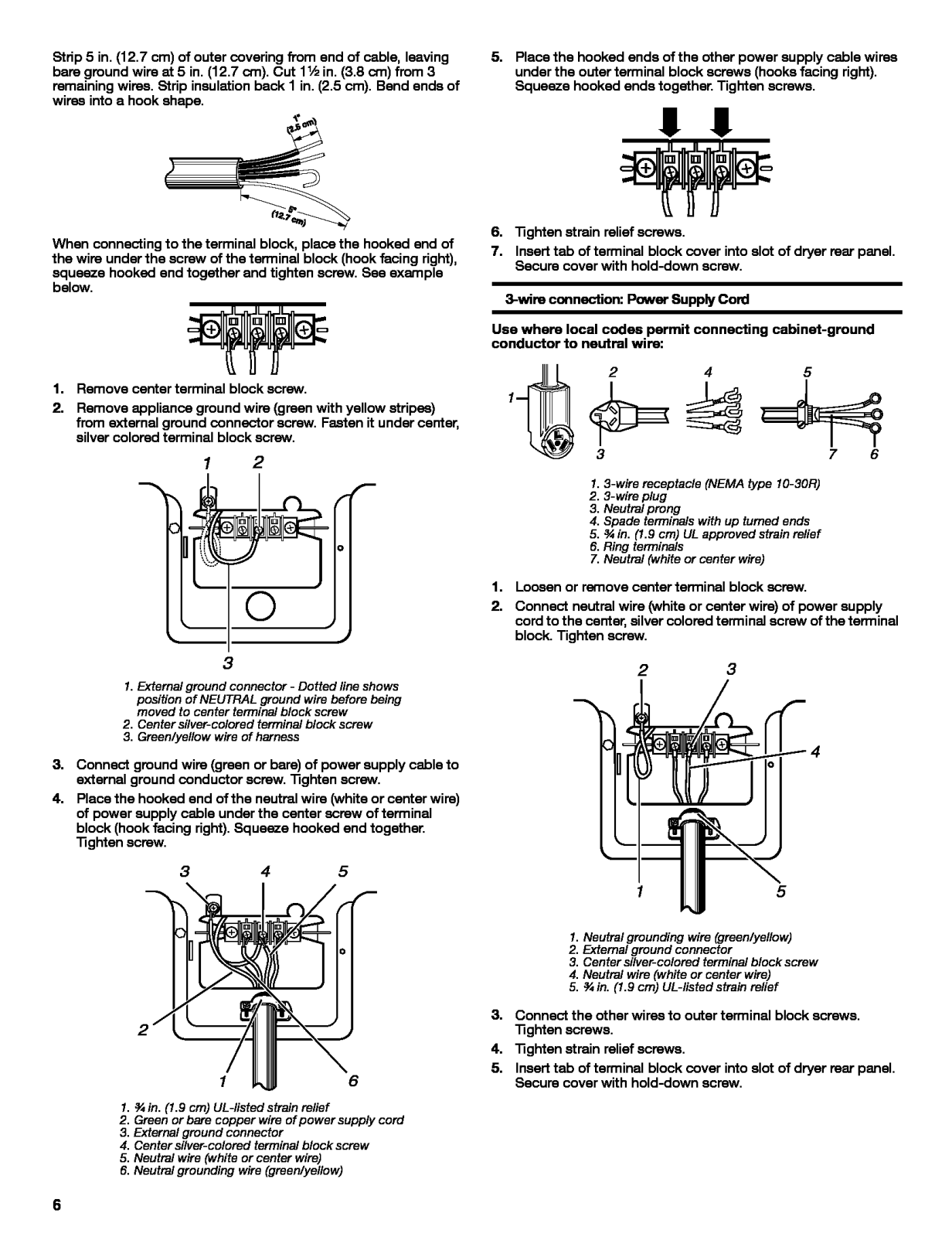

Strip5in.(12.7cm)ofoutercoveringfromend of cable, leaving
bare ground wire at 5 in. (12.7 cm). Cut 11_in. (3.8 cm) from 3 remaining wires. Strip insulation back 1 in. (2.5 cm). Bend ends of
wires into a hook shape.
5. Place the hooked ends of the ether power supply cable wires under the outer terminal block screws (hooks facing right). Squeeze hooked ends together. Tighten screws.
I I
When connecting to the terminal block, place the hooked end of the wire under the screw of the terminal block (hook facing right), squeeze hooked end together and tighten screw. See example
below.
1,
Remove center terminal block screw.
2.
Remove appliance ground wire (grean with yellow stripes)
from external ground connector screw. Fasten it under center, silver colored terminal block screw.
1
2
3
1. E_temal ground connector - Dotted line shows position of NEUTRAL ground wire before being
moved to center terminal block screw
2. Center silver-calored terminal block screw
3. Green/yallow wire of harness
3,
Connect ground wire (green or bare) of power supply cable to external ground conductor screw. "nghtanscrew.
4.
Place the hooked end of the neutral wire (white or center wire)
of power supply cable under the center screw of terminal block (hook facing right). Squeeze hooked end together. "13ghtenscrew.
6. "13ghtenetrain relief screws.
7. Insert tab of terminal block cover into slot of dryer rear panel.
Secure cover with hold-down screw.
3-wire connection: Power Supply Cord
Use where local codes permit connecting cabinet-ground
conductor to neutral wire:
3 7 6
1.3-wire receptacle (NEMA type 10-30R)
2. 3-wire plug
3. Neutral prong
4. Spade terminals with up turned ends
5. _ in. (1.9 cm) UL approved strain relief
6. Ring terminals
7. Neutral (white or center wire)
1. Loosen or remove center terminal block screw.
2. Connect neutral wire (white or center wire) of power supply
cord to the center, silver colored terminal screw of the terminal block. Tighten screw.
2 3
3
0
2 -/
• /
1. _ in. (1.9 cm) UL-listed strain relief
2. Green or bare copper wire of power suppty cord
3. External ground connector
4. Center silver-colored terminal block screw
5. Neutral wire (white or center wire)
6. Neutral grounding wire (gteen/yal/ow)
I I ¢
1
4 5
1. Neutral grounding wire (green/yellow)
2. External ground connector
3. Center si/ver-co/ored terminal b/ock screw
4. Neutral wire (white or center wire)
5. _ in. (1.9 cm) UL-/isted straln relief
3. Connect the other wires to outer terminal block screws.
_ghten screws.
4. _ghten strain relief screws.
5. Insert tab of terminal block cover into slot of dryer rear panel.
Secure cover with hold-down screw.
6

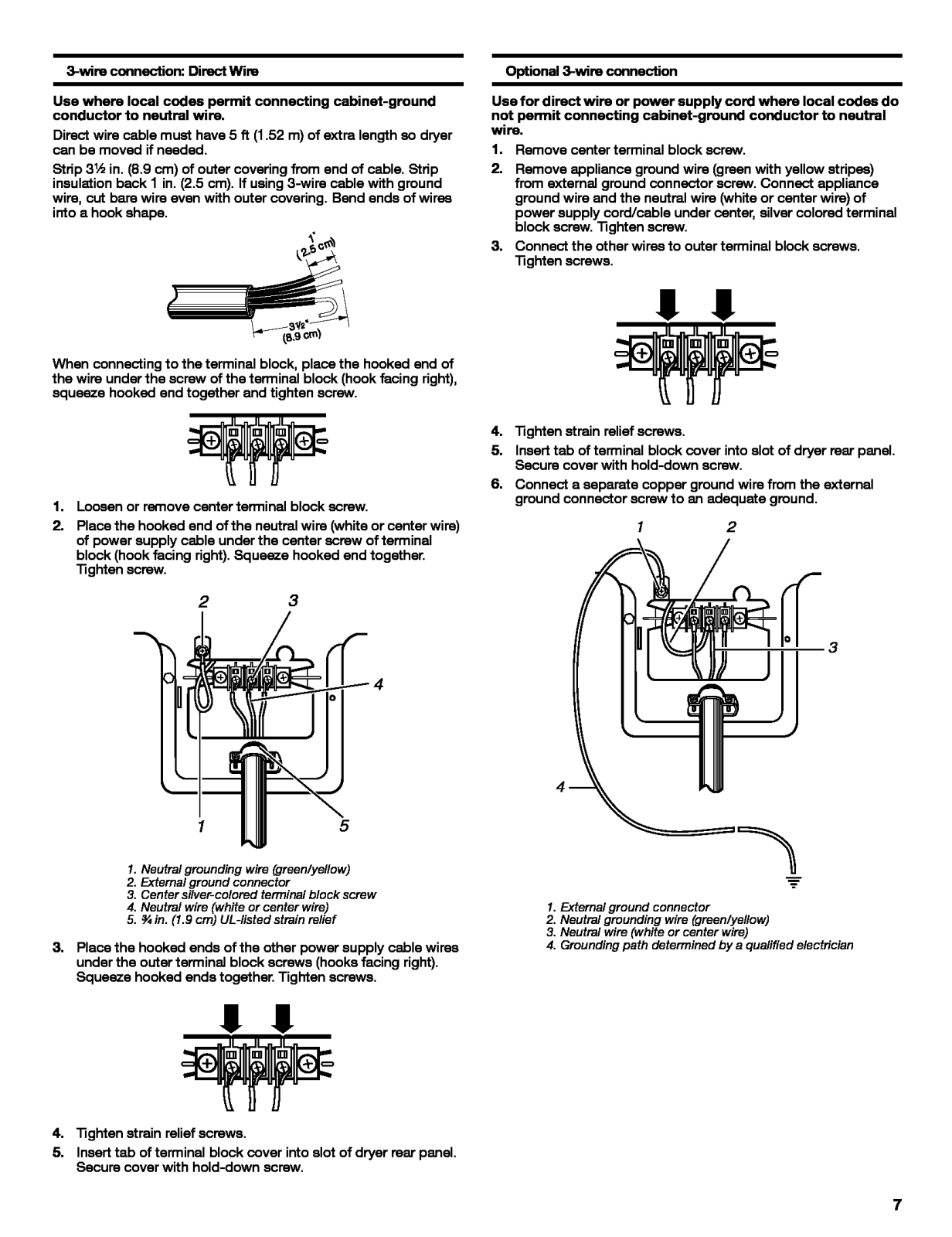

3-wire connection: Direct Wire Optional 3-wire connection
Use where local codes permit connecting cabinet-ground
conductor to neutral wire.
Direct wire cable must have 5 ft (1.52 m) of extra length so dryer
can be moved if needed. Strip 31,_in. (8.9 cm) of outer covering from end of cable. Strip
insulation back 1 in. (2.5 cm). If using 3-wira cable with ground wire, cut bare wire even with outer covering. Bend ends of wires
into a hook shape.
When connecting to the terminal block, place the hooked end of the wire under the screw of the terminal block (hook facing right),
squeeze hooked end together and tighten screw.
1.
Loosen or remove center terminal block screw.
2.
Place the hooked end of the neutral wire (white or center wire)
of power supply cable under the center screw of terminal block (hook facing right). Squeeze hooked end together. "13ghtenscrew.

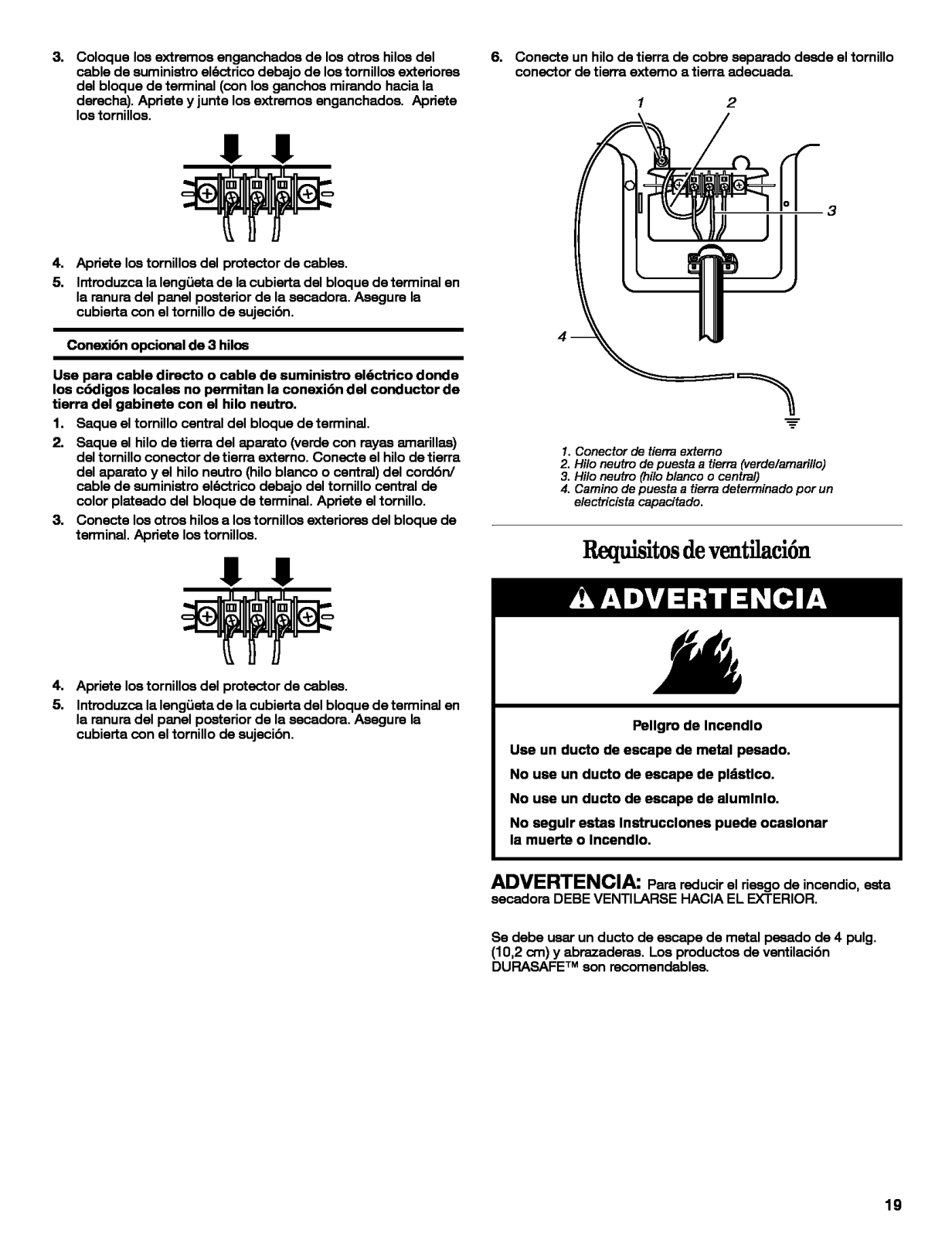

Usa for direct wire or power supply cord where local codes do
not permit connecting cabinet-ground conductor to neutral wire.
1. Remove center terminal block screw.
2. Remove appliance ground wire (green with yellow stripes)
from external ground connector screw. Connect appliance ground wire and the neutral wire (white or center wire) of
power supply cord/cable under canter, silver colored terminal block screw. "nghtanscrew.
3. Connect the other wires to outer terminal block screws. "nghtenscrews.
I I
4. "nghten strain relief screws.
5. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw.
6. Connect a separate copper ground wire from the external ground connector screw to an adequate ground.
1 2
2 3
I
1 5
1. Neutral grounding wire (green/yallow)
2. E_temal ground connector
3. Center allver-colored terminal block screw
4. Neutral wire (white or center wire)
5. _ in. (1.9 cm) UL-/isted strain relief
3.
Place the hooked ends of the other power supply cable wires
under the outer terminal block screws (hooks facing right). Squeeze hooked ends together. Tighten screws.
I I
3
1. External ground connector
2. Neutral grounding wire (green/yallow)
3. Neutral wire (white or center wire)
4. Grounding path determined by a qualified electrician
4. "nghten strain relief screws.
5. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw.
7

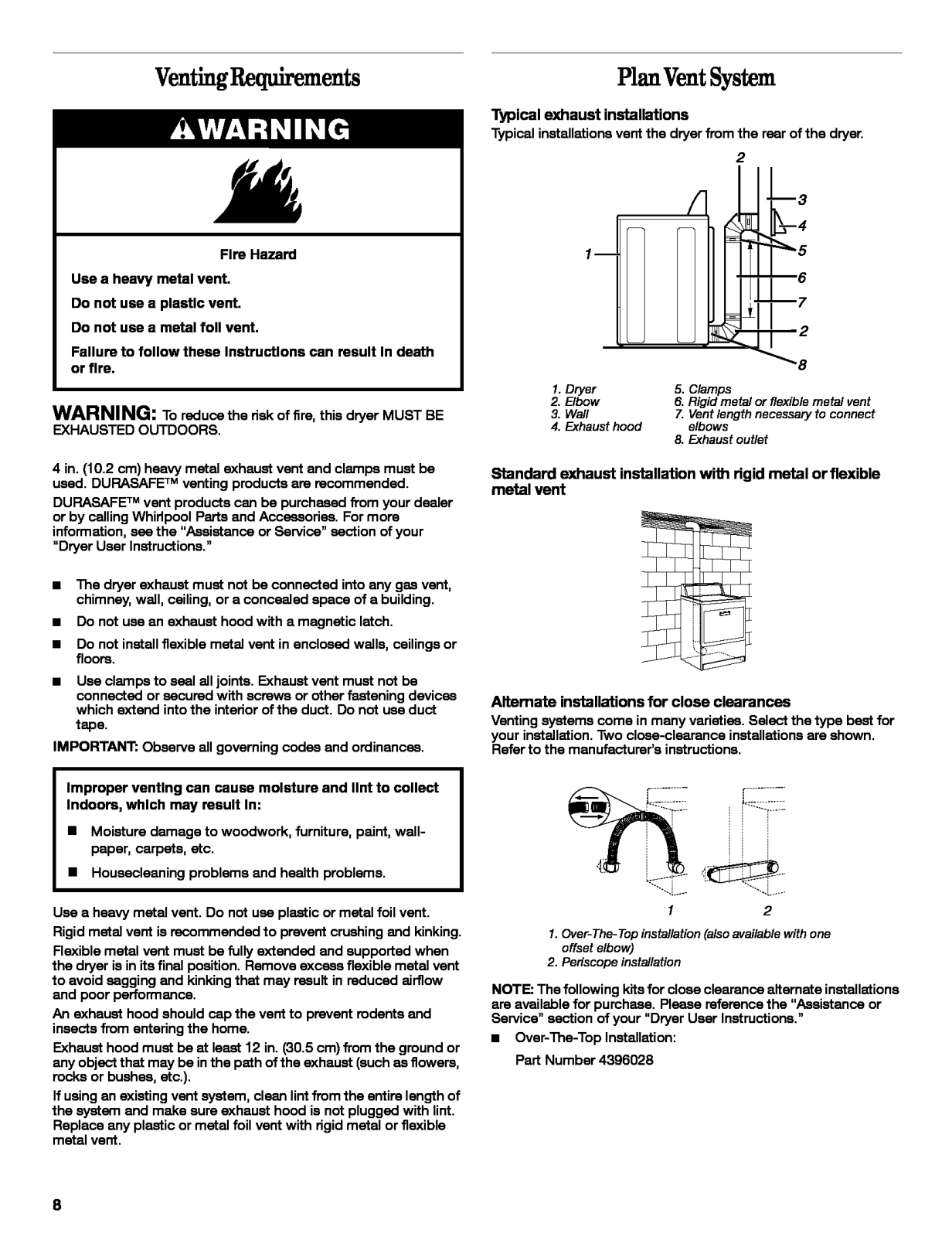

VentingRequirements PlanVentSystem
Typical exhaust installations Typicalinstallationsventthe dryerfromthe rearofthe dryer,
2
Fire Hazard
Use a heavy metal vent. Do not use a plaatlc vent.
Do not use a metal foil vent. Failure to follow these Inatructlone can result In death
or fire.
WARNING: To reduce the risk of fire, this dryer MUST BE
EXHAUSTED OUTDOORS.
4 in. (10.2 cm) heavy metal exhaust vent and clamps must be used. DURASAFE TM venting products are recommended.
DURASAFETM vent products can be purchased from your dealer
or by calling Whirlpool Parts and Accessories. For more information, see the "Assistance or Service" section of your
"Dryer User Instructions."
• The dryer exhaust must net be connected into any gas vent, chimney, wail, ceiling, or a concealed space of a building.
• Do not use an exhaust hood with a magnetic latch.
• Do not installflexible metal vent in enclosed wails, ceilings or
floors.
Usa clamps to easl ail joints. Exhaust vent must net be
connected or secured with screws or ether fastening devices which extend into the interior of the duct. Do net use duct
tape.
IMPORTANT: Observe all governing codas and ordinances.
1 m
1. Dryer 5. Clamps
2. Elbow 6. Rigid metal or flexible metal vent
3. Wail 7. Vent length necessary to connect
4. Exhaust hood elbows
8. Exhaust outlet
Standard exhaust installation with rigid metal or flexible
metal vent
Altemate installations for close clearances Venting systems come in many varieties. Select the type best for
your inetailation. Two close-clearance installations are shown.
Referto the manufacturer's instructions.
Improper venting can cause moisture and lint to collect Indoors, which may result In:
• Moisture damage to woodwork, furniture, paint, wail- paper, carpets, etc.
• Housecleaning problems and health problems.
Use a heavy metal vent. Do net use plastic or metal foil vent. Rigid metai vent is recommended to prevent crushing and kinking.
Flexible metal vent must be fully extended and supported when the dryer is in its final position. Remove excess flexible metal vent to avoid sagging and kinking that may result in reduced airflow and poor performance.
An exhaust hood should cap the vent to prevent rodents and insects from entering the home.
Exhaust hood must be at least 12 in. (30.5 cm) from the ground or any object that may be inthe path of the exhaust (such as flowers,
rocks or bushes, etc.).
If using an existing vent system, clean lintfrom the entire length of the system and make sure exhaust hood is not plugged with lint.
Replace any plastic or metal foil vent with rigid metal or flexible metal vent.
8
1 2
1. Over- The- Top installation (also available with one offset elbow)
2. Periscope instailation
NOTE: The following kits for close clearance alternate installations are available for purchase. Please reference the "Assistance or Service" section of your "Dryer User Instructions."
• Over-The-Top Installation:
Part Number 4396028
Loading...
+ 16 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
