Page 1

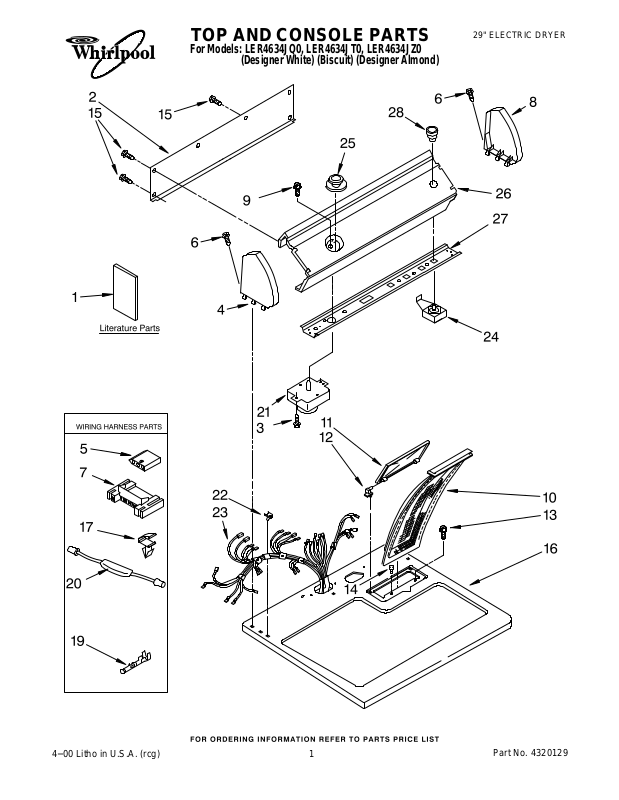

TOP AND CONSOLE PARTS
29" ELECTRIC DRYER
For Models: LER4634JQ0, LER4634JT0, LER4634JZ0
(Designer White) (Biscuit) (Designer Almond)
4−00 Litho in U.S.A. (rcg)
1
Part No. 4320129
Page 2
TOP AND CONSOLE PARTS
For Models: LER4634JQ0, LER4634JT0, LER4634JZ0
(Designer White) (Biscuit) (Designer Almond)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT8314832
LIT3397618
LIT3406688
Use And care Guide
Installation
Instructions
Wiring Diagram
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
LIT677818
2 8274261 Panel, Rear
3 3390646 Screw,
4 Cap, End (L.H.)
8271365 White
8271366 Almond
8271368 Biscuit
5 3936144 Connector
Dryer
Console
8−18 x 5/16
Illus. Part
No. No. DESCRIPTION
6 388326 Screw, Console
7 3395683 Housing, Connector
(Motor)
8 Cap, End (R.H.)
8271359 White
8271360 Almond
8271362 Biscuit
9 3400859 Screw, Grounding
10 339392 Screen, Lint
11 Cover, Lint Screen
8283378 White
8283379 Almond
8283380 Biscuit
12 3978605 Hinge, R.H.
3978606 Hinge, L.H.
13 688983 Screw, 8−18 x 5/8
14 297535 Bumper, Lint Lid
15 693995 Screw, Hex Head
16 Top
8271390 White
8271391 Almond
8271392 Biscuit
17 3394427 Clip, Harness
Illus. Part
No. No. DESCRIPTION
19 94614 Terminal
20 3401076 Resistor Assembly
21 3976584 Timer, 60 Hz.
22 357213 Nut, Push−In (2)
23 3394290 Harness, Wiring
24 3395382 Switch,
Push−To−Start
25 Timer Knob
Assembly
8312687 White
8312688 Almond
8271404 Biscuit
26 8271418 Bracket, Control
27 Panel, Control
3977815 White
3977836 Almond
3977816 Biscuit
28 Knob, Push
To Start
8271341 White
8271342 Almond
8271349 Biscuit
OPTIONAL PARTS (NOT INCLUDED)
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
72107 Almond
4392899 Biscuit
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350956 Almond
4392901 Biscuit
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
978883 Almond (Uncut)
4392900 Biscuit (Uncut)
2
4320129
Page 3

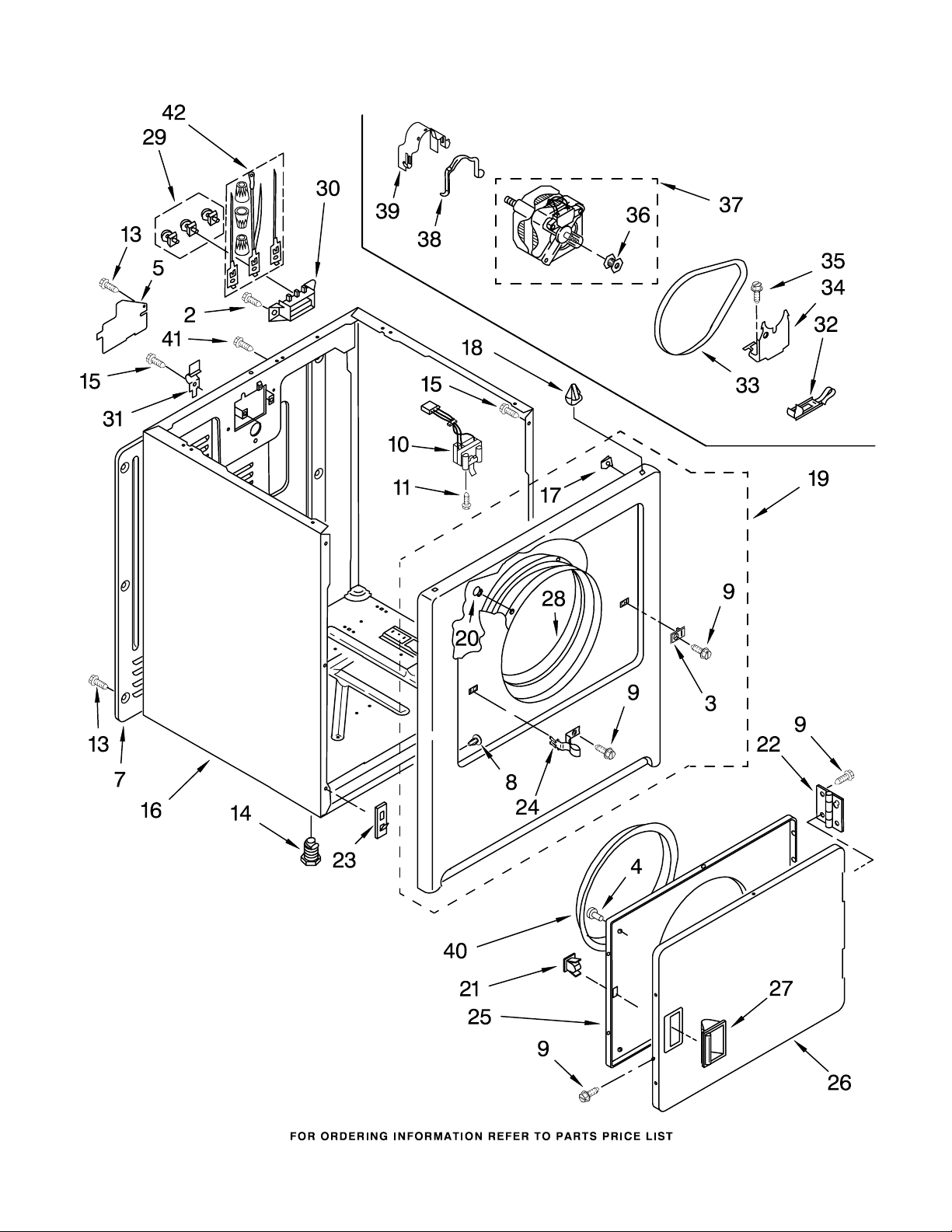

CABINET PARTS
For Models: LER4634JQ0, LER4634JT0, LER4634JZ0
(Designer White) (Biscuit) (Designer Almond)
4320129
3
Page 4
CABINET PARTS
For Models: LER4634JQ0, LER4634JT0, LER4634JZ0
(Designer White) (Biscuit) (Designer Almond)
Illus. Part
No. No. DESCRIPTION
2 3393008 Screw, 10−16 x 1/2
3 Plug, Strike
Hole
3403630 White
3403631 Almond
3403632 Biscuit
4 238614 Bumper
5 3396795 Cover, Terminal
Block
7 3396807 Panel, Rear
8 Plug, Hinge
Hole (4)
3404413 White
3404414 Almond
3404415 Biscuit
9 342055 Screw, 8−18 x 1/2
10 3406104 Door Switch
Assembly
11 697773 Screw,
6−20 x 7/8 (2)
13 693995 Screw, Rear Panel
Mounting
14 3392100 Foot, Dryer
279810 Foot − Optional
(Extended Length
Package Of 2)
(Not Included)
15 343641 Screw,
10−16 x 1/2
Illus. Part
No. No. DESCRIPTION
16 Cabinet
(Includes Illus.
Nos. 5, 7, 16,
29, 41 & 57)
3399580 White
3399581 Almond
3399596 Biscuit
17 98234 Clip, Ground
18 690363 Lock, Front
Top (2)
19 Front Panel
Assembly
3403571 White
3403572 Almond
3403576 Biscuit
20 685203 Clip, Felt Pad
21 690081 Catch, Door
22 3405514 Hinge & Pin
Assembly
23 3394083 Clip, Front
Panel (2)
24 3403431 Strike, Door
25 3403371 Door, Rear
26 Door Front
3403361 White
3403362 Almond
3403363 Biscuit
Illus. Part
No. No. DESCRIPTION
27 Handle, Door
3405184 White
3405185 Almond
3405189 Biscuit
28 349464 Seal & Bearing
Assembly
29 279393 Terminal Block
Kit For
Terminal Block
30 3397659 Block, Terminal
31 238088 Hinge, Top (2)
32 3394332 Idler & Pulley
Assembly
33 8066065 Belt, Drive
34 348780 Base, Motor
35 3400500 Bolt,
5/16−18 x 3/4
36 3394341 Pulley, 60 Hz.
37 3976707 Motor Assembly
60 Hz.
38 660658 Clamp, Motor
39 3404162 Clamp, Motor
(W/Shield)
40 3405245 Seal, Door
41 697776 Screw, 10−32 x 1/2
(External Ground)
42 279318 Terminal, Tinned
& Brass (3)
(Includes Illus. 40)
4
4320129
Page 5

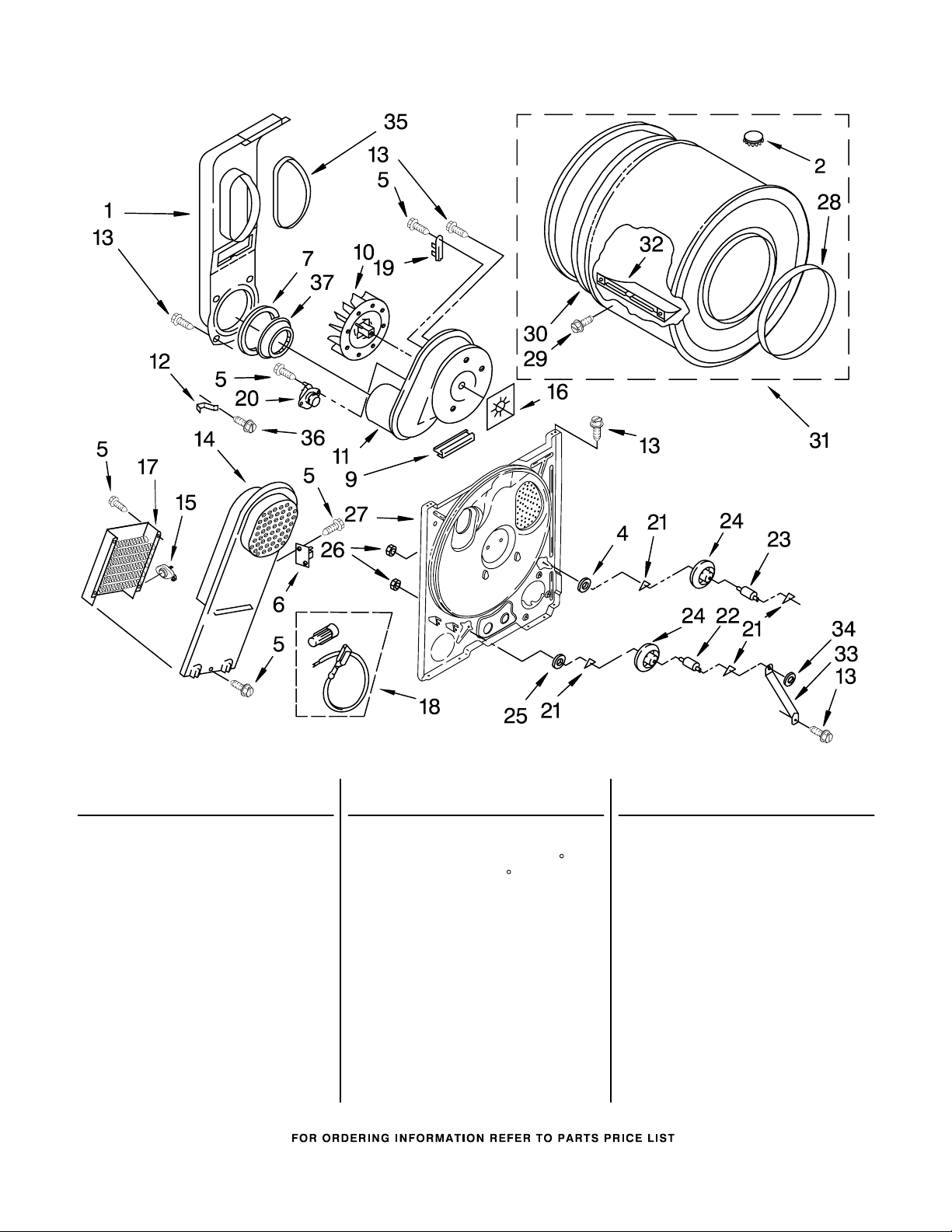

BULKHEAD PARTS
For Models: LER4634JQ0, LER4634JT0, LER4634JZ0
(Designer White) (Biscuit) (Designer Almond)
Illus. Part
No. No. DESCRIPTION
1 694283 Lint Chute Assembly
2 3977358 Hole Plug
4 3388703 Washer, Support
5 90767 Screw, 8 x 3/8
6 3977393 Thermal Cut−Off
(Hi−Limit
Thermostat Illus.
No.15 Included)
7 347139 Seal, Lint
Chute
9 3392247 Pad, Blower
Housing
10 694089 Wheel, Blower
11 3405016 Housing, Blower
12 3398161 Clip
13 343641 Screw, 10−16 x 1/2
14 3397566 Box, Heater
4320129
Illus. Part
No. No. DESCRIPTION
15 3399693 Thermostat,
High Limit 250
(121.1
16 3394196 Seal, Blower
Shaft
17 3403585 Element, Heater
(For 240 Volt
Installation)
18 279457 Wire Kit (For
Heater Element
Wiring Harness
Repair)
19 3392519 Fuse, Thermal
20 3387134 Thermostat,
Internal−Bias
21 690997 Ring, Tri
22 3399506 Shaft, L.H.
C) (60 Hz.)
5
Illus. Part
No. No. DESCRIPTION
23 3399507 Shaft, R.H.
F
24 3397588 Roller, Support
25 348197 Washer, Support
26 3359452 Nut, 3/8−16
27 3397264 Bulkhead
28 3394509 Ring, Bearing
29 97787 Screw, 11−16 x 7/8
30 8066085 Seal, Rear Drum
31 3396777 Drum Assembly
32 342847 Baffle, Drum
33 3976435 Bracket, Support
34 90296 Clip
35 339956 Seal
36 489463 Screw
37 696302 Shield, Exhaust
