Page 1

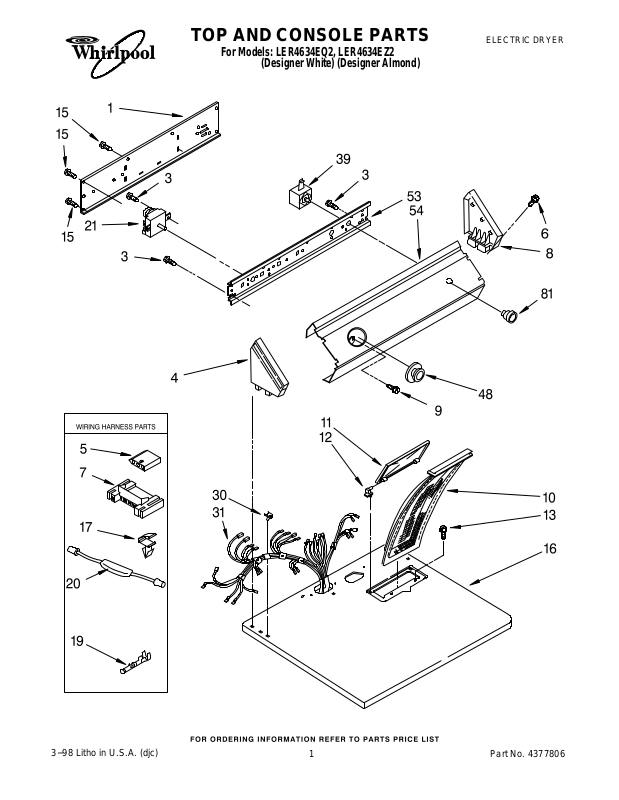

TOP AND CONSOLE PARTS
For Models: LER4634EQ2, LER4634EZ2
(Designer White) (Designer Almond)
ELECTRIC DRYER
3−98 Litho in U.S.A. (djc)
1
Part No. 4377806
Page 2
TOP AND CONSOLE PARTS
For Models: LER4634EQ2, LER4634EZ2
(Designer White) (Designer Almond)
Illus. Part
No. No. DESCRIPTION
1 3397545 Panel, Rear
Console
3 3390646 Screw,
8−18 x 5/16
4 Cap, End (L.H.)
3358528 White
3358529 Almond
5 3936144 Connector
6 388326 Screw, Console
7 3395683 Housing, Connector
(Motor)
8 Cap, End (R.H.)
3358513 White
3358514 Almond
9 3400859 Screw, Grounding
10 339392 Screen, Lint
LITERATURE AND OPTIONAL PARTS
Illus. Part
No. No. DESCRIPTION
11 Cover, Lint Screen
688150 White
689310 Almond
12 339229 Hinge, R.H.
339230 Hinge, L.H.
13 688983 Screw, 8−18 x 5/8
15 693995 Screw, Hex Head
16 Top
3396022 White
3396023 Almond
17 3394427 Clip, Harness
19 94614 Terminal
20 3401076 Resistor Assembly
21 3976569 Timer, 60 Hz.
30 357213 Nut, Push−In (2)
Illus. Part
No. No. DESCRIPTION
31 3394290 Harness, Wiring
39 3395382 Switch,
Push−To−Start
48 Timer Knob
Assembly
3406143 White
3406144 Almond
53 8054298 Bracket, Control
54 Panel, Control
3976748 White
3976749 Almond
81 Knob, Push
To Start
3406133 White
3406134 Almond
Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS
LIT3406071
LIT3397618
LIT3406688
Use & Care Guide
Instructions,
Installation
Label, Wiring
Diagram
Illus. Part
No. No. DESCRIPTION
OPTIONAL PARTS NOT INCLUDED
PAINT, TOUCH−UP (1/2oz.)
72017 White
72107 Almond
PAINT, PRESSURIZED SPRAY
(13 oz.)
350930 White
350956 Almond
350938 Primer, Gray
Illus. Part
No. No. DESCRIPTION
PAINT, BULK (1 qt.)
799344 White (Uncut)
978883 Almond (Uncut)
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
LIT677818
Dryer
2
4377806
Page 3

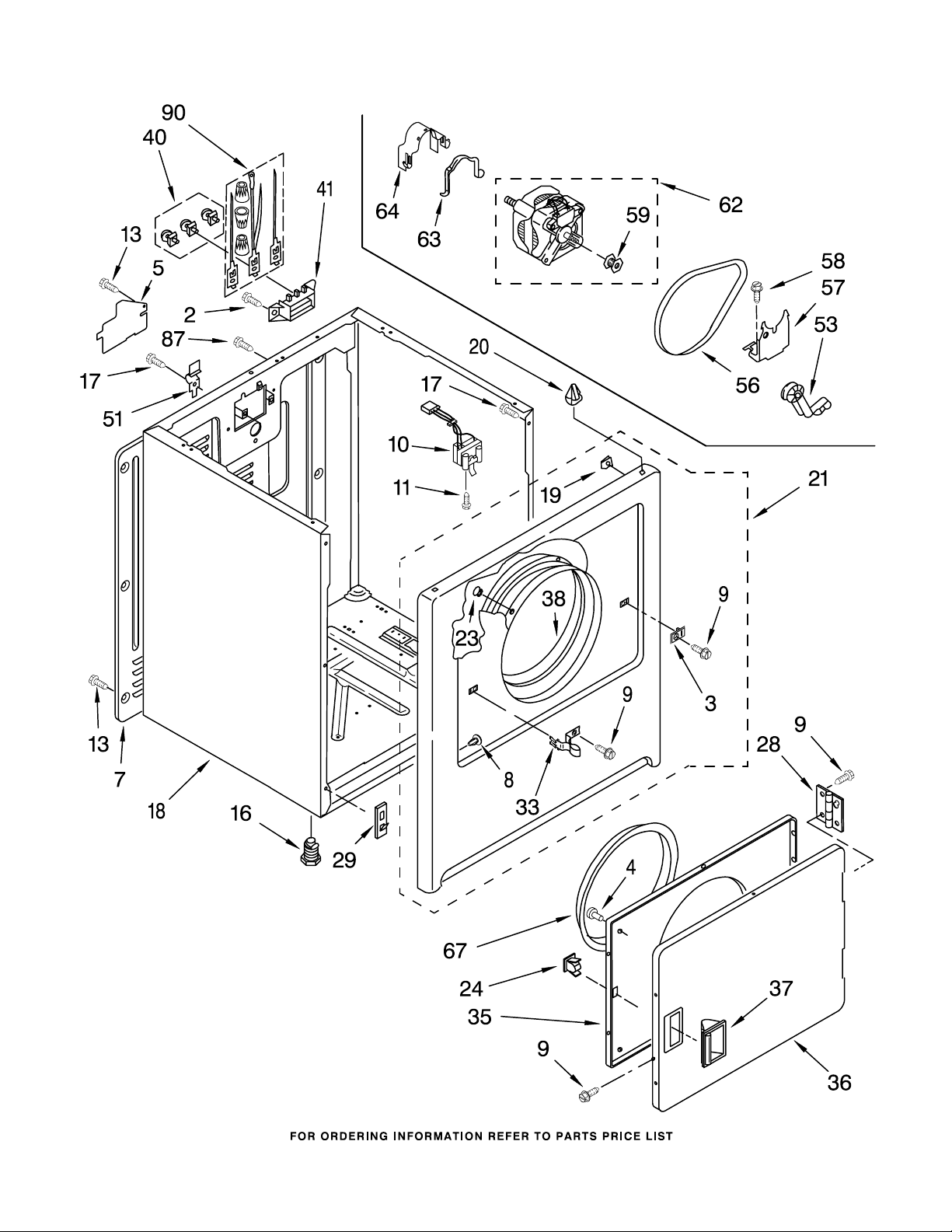

CABINET PARTS
For Models: LER4634EQ2, LER4634EZ2
(Designer White) (Designer Almond)
4377806
3
Page 4
CABINET PARTS
For Models: LER4634EQ2, LER4634EZ2
(Designer White) (Designer Almond)
Illus. Part
No. No. DESCRIPTION
2 3393008 Screw, 10−16 x 1/2
3 Plug, Strike
Hole
3403630 White
3403631 Almond
4 238614 Bumper
5 3396795 Cover, Terminal
Block
7 3396807 Panel, Rear
8 Plug, Hinge
Hole (4)
3404413 White
3404414 Almond
9 342055 Screw, 8−18 x 1/2
10 3406104 Door Switch
Assembly
11 697773 Screw,
6−20 x 7/8 (2)
13 693995 Screw, Rear Panel
Mounting
16 3392100 Foot, Dryer
279810 Foot − Optional
(Extended Length
Package Of 2)
(Not Included)
17 343641 Screw,
10−16 x 1/2
Illus. Part
No. No. DESCRIPTION
18 Cabinet
(Includes Illus.
Nos. 5, 7, 16,
29, 41 & 57)
3399580 White
3399581 Almond
19 98234 Clip, Ground
20 690363 Lock, Front
Top (2)
21 Front Panel
Assembly
3403571 White
3403572 Almond
23 685203 Clip, Felt Pad
24 690081 Catch, Door
28 3405514 Hinge & Pin
Assembly
29 3394083 Clip, Front
Panel (2)
33 3403431 Strike, Door
35 3403371 Door, Rear
36 Door Front
3403361 White
3403362 Almond
37 Handle, Door
3405184 White
3405185 Almond
Illus. Part
No. No. DESCRIPTION
38 349464 Seal & Bearing
Assembly
40 279393 Terminal Block
Kit For
Terminal Block
41 3397659 Block, Terminal
51 238088 Hinge, Top (2)
53 691366 Idler & Pulley
Assembly
56 660996 Belt, Drive
57 348780 Base, Motor
58 3400500 Bolt,
5/16−18 x 3/4
59 3401143 Pulley, 60 Hz.
62 3395652 Motor Assembly
60 Hz.
63 660658 Clamp, Motor
64 3404162 Clamp, Motor
(W/Shield)
67 3405245 Seal, Door
87 697776 Screw, 10−32 x 1/2
(External Ground)
90 279318 Terminal, Tinned
& Brass (3)
(Includes Illus. 40)
4
4377806
Page 5

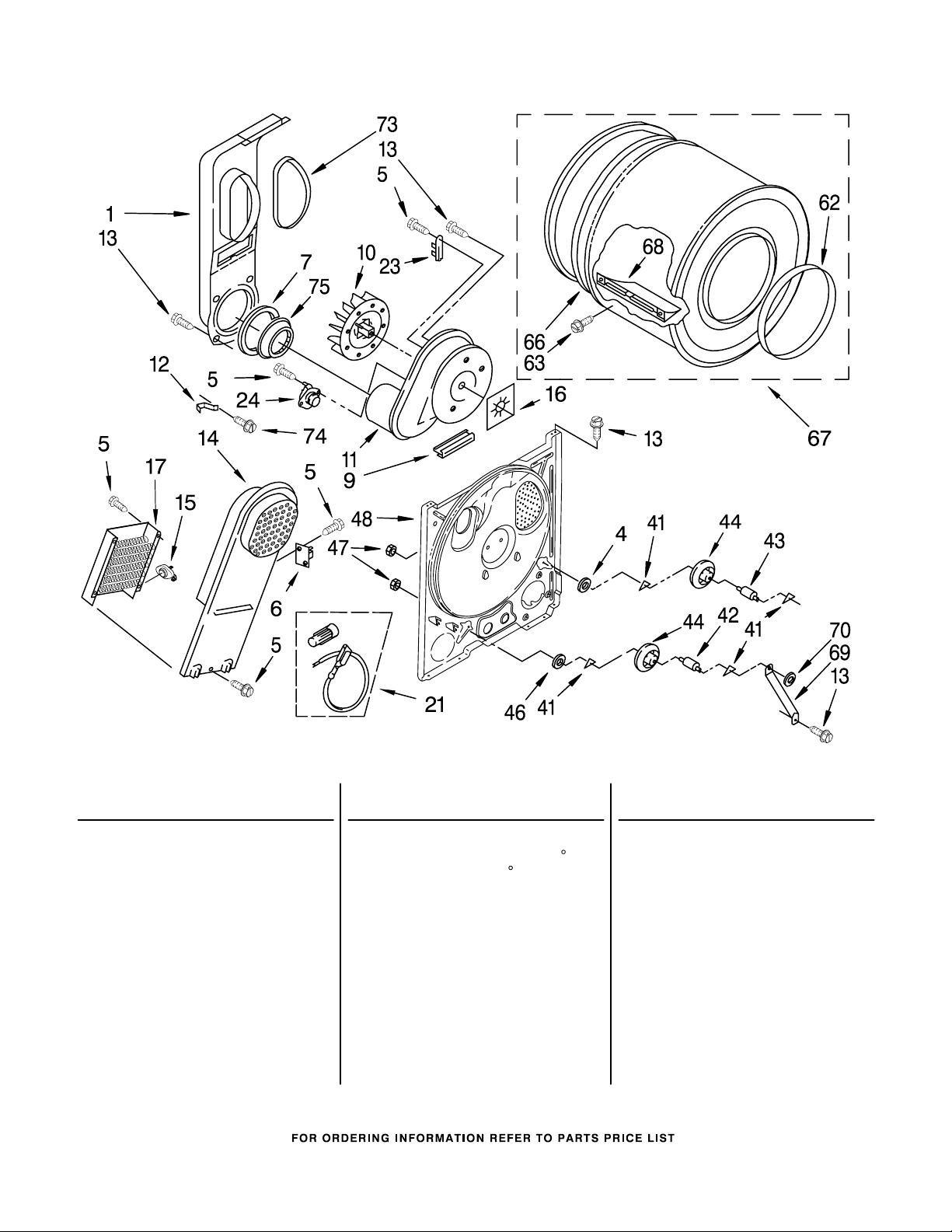

BULKHEAD PARTS
For Models: LER4634EQ2, LER4634EZ2
(Designer White) (Designer Almond)
Illus. Part
No. No. DESCRIPTION
1 694283 Lint Chute Assembly
4 3388703 Washer, Support
5 90767 Screw, 8 x 3/8
6 3399848 Thermal Cut−Off
(Hi−Limit
Thermostat Illus.
No.15 Included)
7 347139 Seal, Lint
Chute
9 3392247 Pad, Blower
Housing
10 694089 Wheel, Blower
11 3405016 Housing, Blower
12 3398161 Clip
13 343641 Screw, 10−16 x 1/2
14 3397566 Box, Heater
4377806
Illus. Part
No. No. DESCRIPTION
15 3399693 Thermostat,
High Limit 250
(121.1
16 3394196 Seal, Blower
Shaft
17 3403585 Element, Heater
(For 240 Volt
Installation)
21 279457 Wire Kit (For
Heater Element
Repair)
23 3392519 Fuse, Thermal
24 3387134 Thermostat,
Internal−Bias
41 690997 Ring, Tri
C) (60 Hz.)
Wiring Harness
5
Illus. Part
No. No. DESCRIPTION
F
42 3399506 Shaft, L.H.
43 3399507 Shaft, R.H.
44 3397588 Roller, Support
46 348197 Washer, Support
47 3359452 Nut, 3/8−16
48 3397264 Bulkhead
62 3394509 Ring, Bearing
63 97787 Screw, 11−16 x 7/8
66 337449 Seal, Rear Drum
67 3396777 Drum Assembly
68 342847 Baffle, Drum
69 3976435 Bracket, Support
70 90296 Clip
73 339956 Seal
74 489463 Screw
75 696302 Shield, Exhaust
