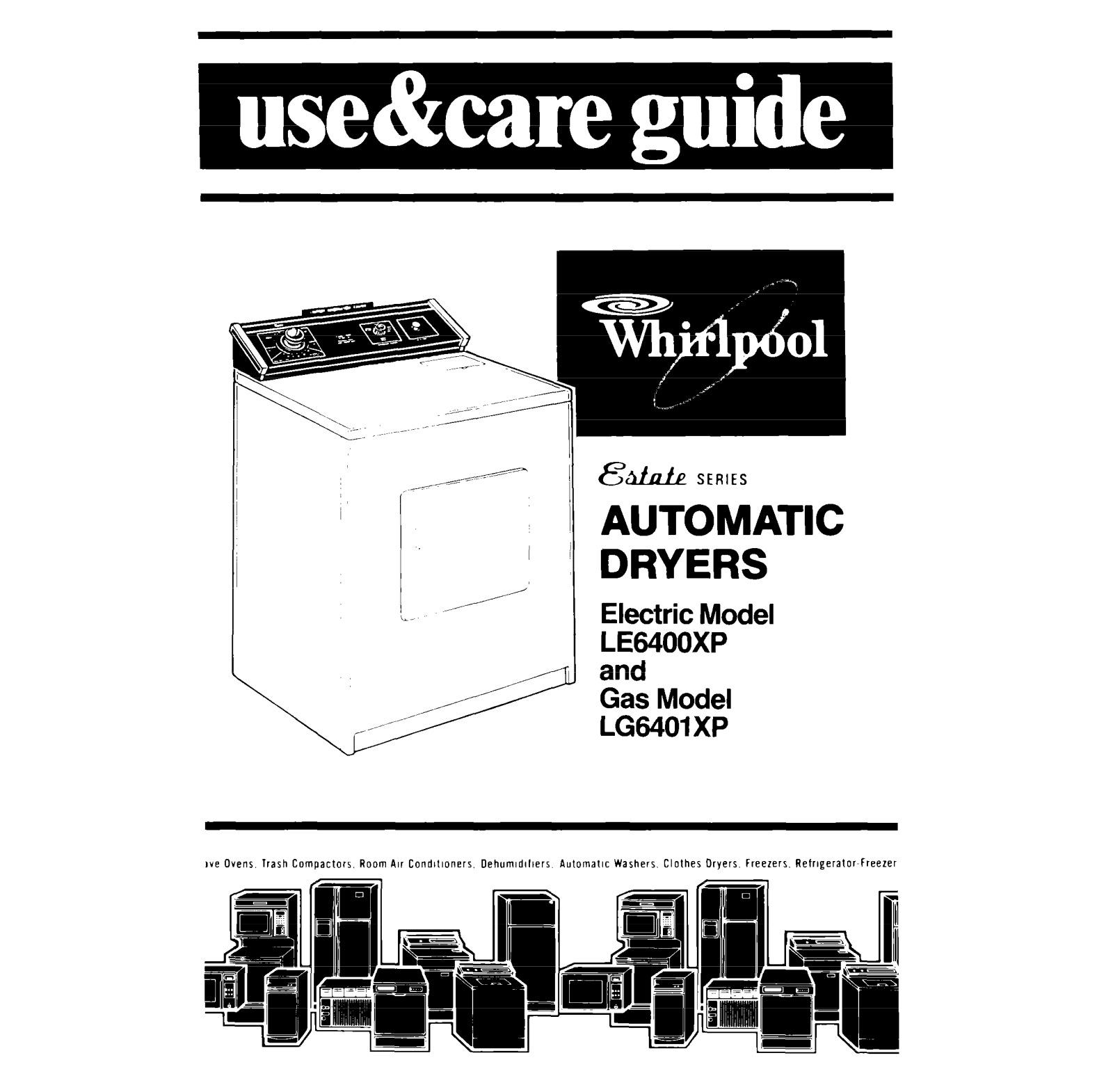

&&!!.& SERIES
AUTOMATIC
DRYERS
Electric Model
LE6400XP
and
Gas Model
LG6401XP
Eve Ovens Trash Compactors. Room AII Condllloners. Oehumldlllers Aulomallc Washers Clothes Dryers Freezers. Aetrlgerator~Freezer

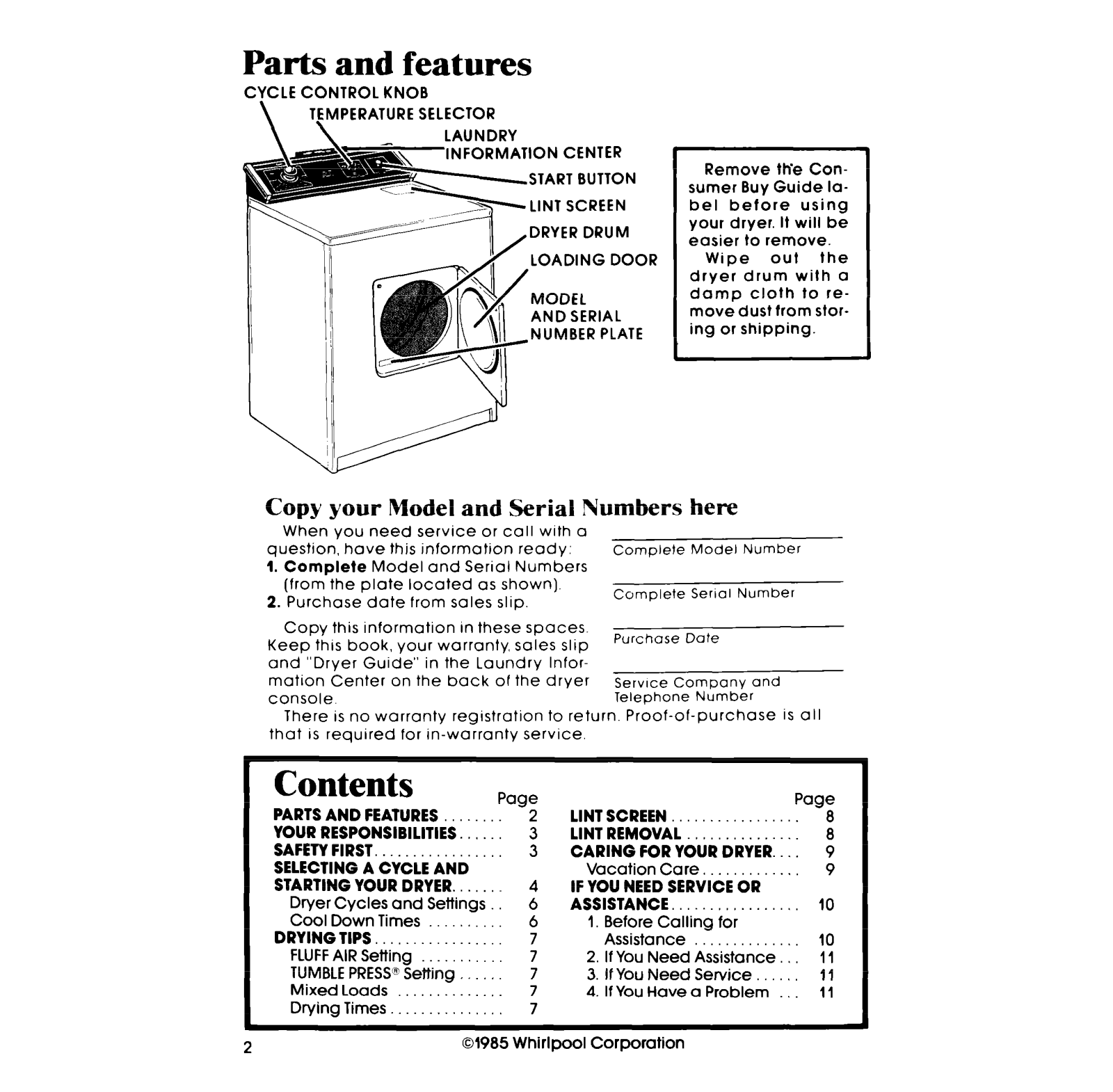

Parts and features
CYCLE CONTROL KNOB
-INFORMATION CENTER
ah
l.n”I.Yn I
START BUTTON
LINT SCREEN
DRYER DRUM
LOADING DOOR
MODEL
AND SERIAL
NUMBER PLATE
Remove th’e Consumer Buy Guide label before using
your dryer. It will be
easier to remove.
Wipe out the
dryer drum with a
damp cloth to remove dust from storing or shipping.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
1. Complete Model and Serial Numbers
(from the plate located as shown).
2. Purchase date from sales slip.
Copy this information In these spaces.
Keep this book, your warranty, sales slip
and “Dryer Guide” in the Laundry Information Center on the back of the dryer
console
There is no warranty registration to return. Proof-of-purchase is all
that is required for in-warranty service.
Complete Model Number
Complete Serial
Purchase Dote
Service Company and
Telephone
Number
Number
Contents
PARTS AND FEATURES
YOUR RESPONSIBILITIES.
SAFETY FIRST.

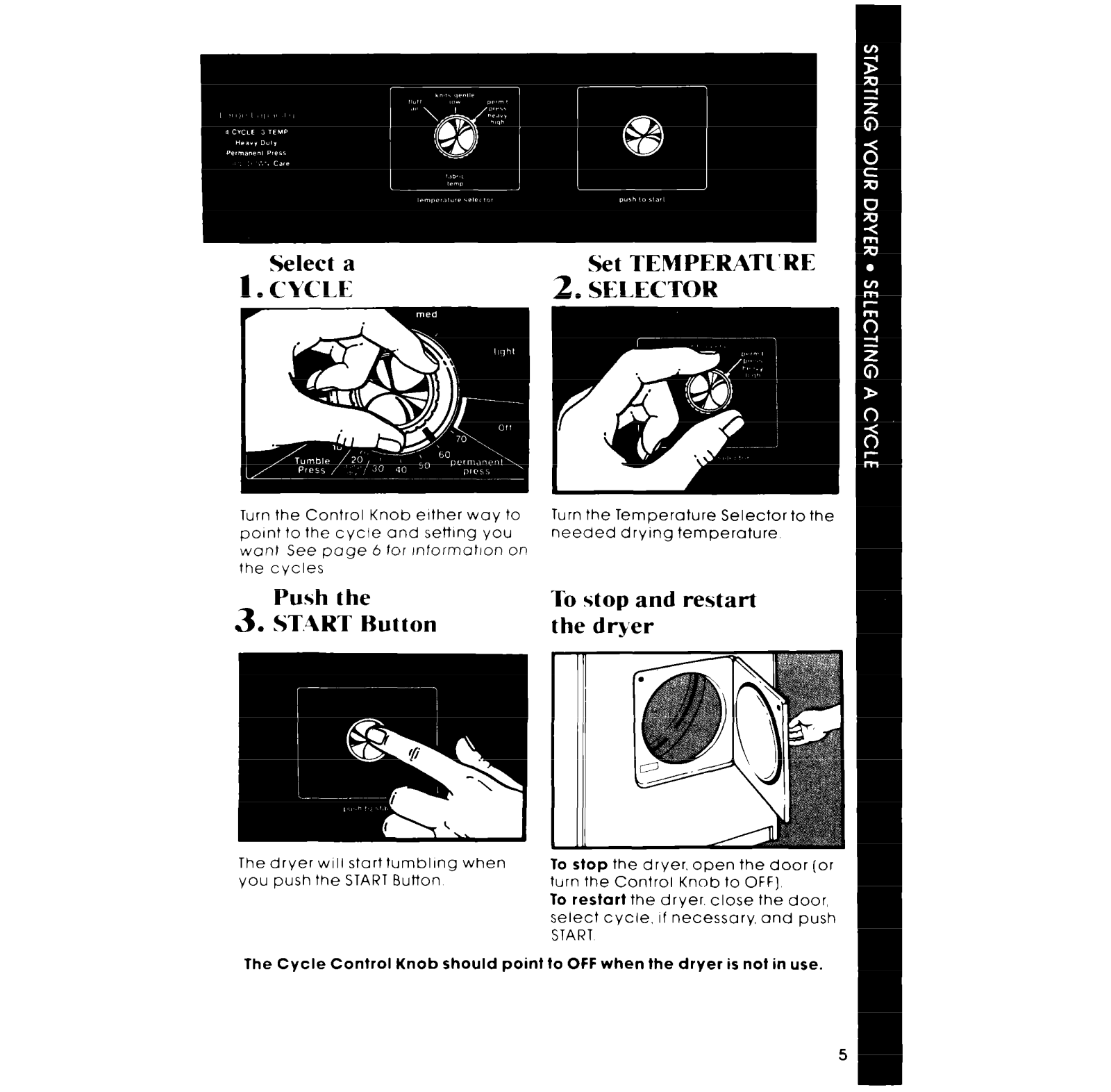

SELECTING A CYCLE AND
STARTING YOUR DRYER..

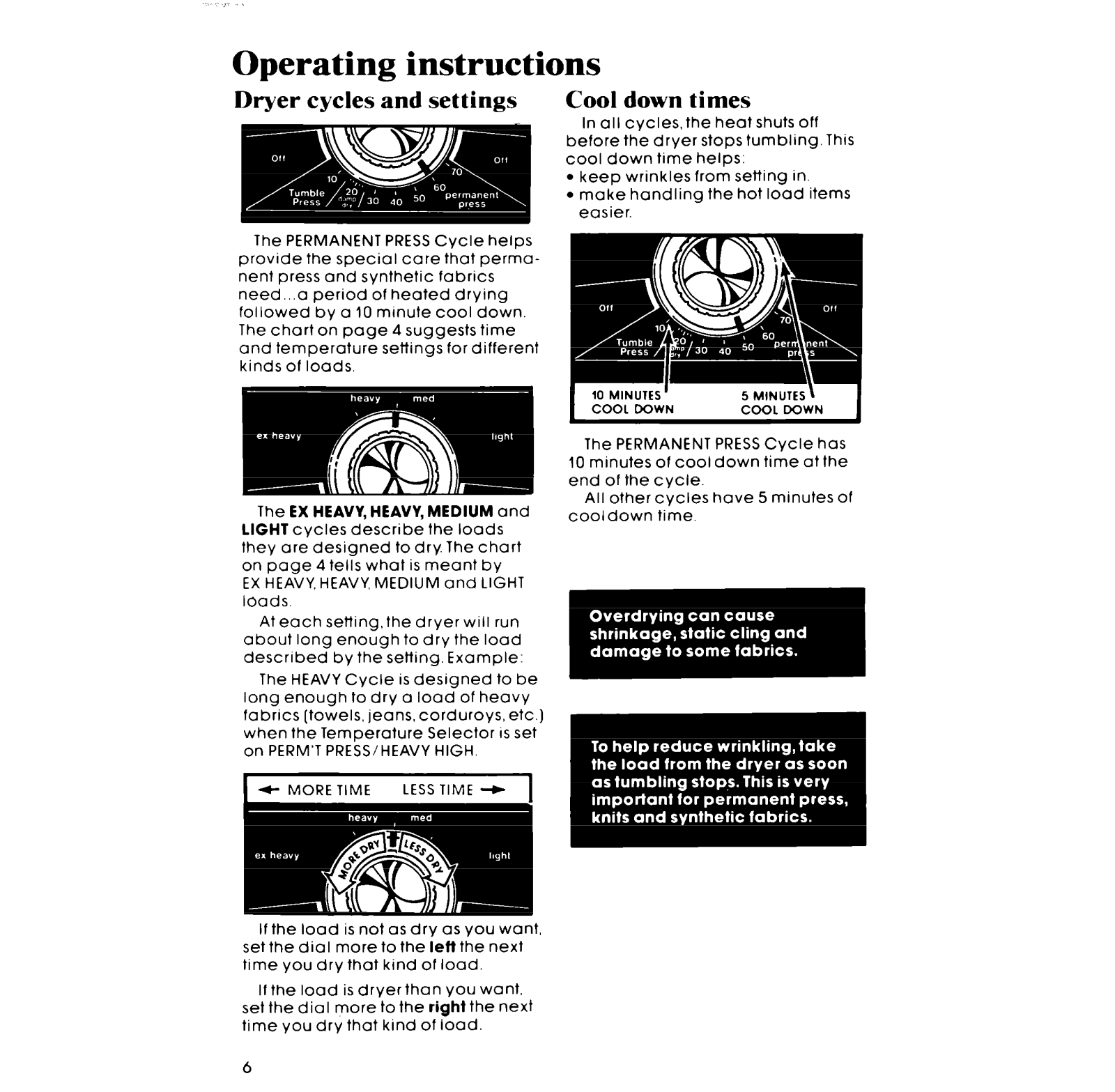

Dryer Cycles and Settings
Cool Down Times

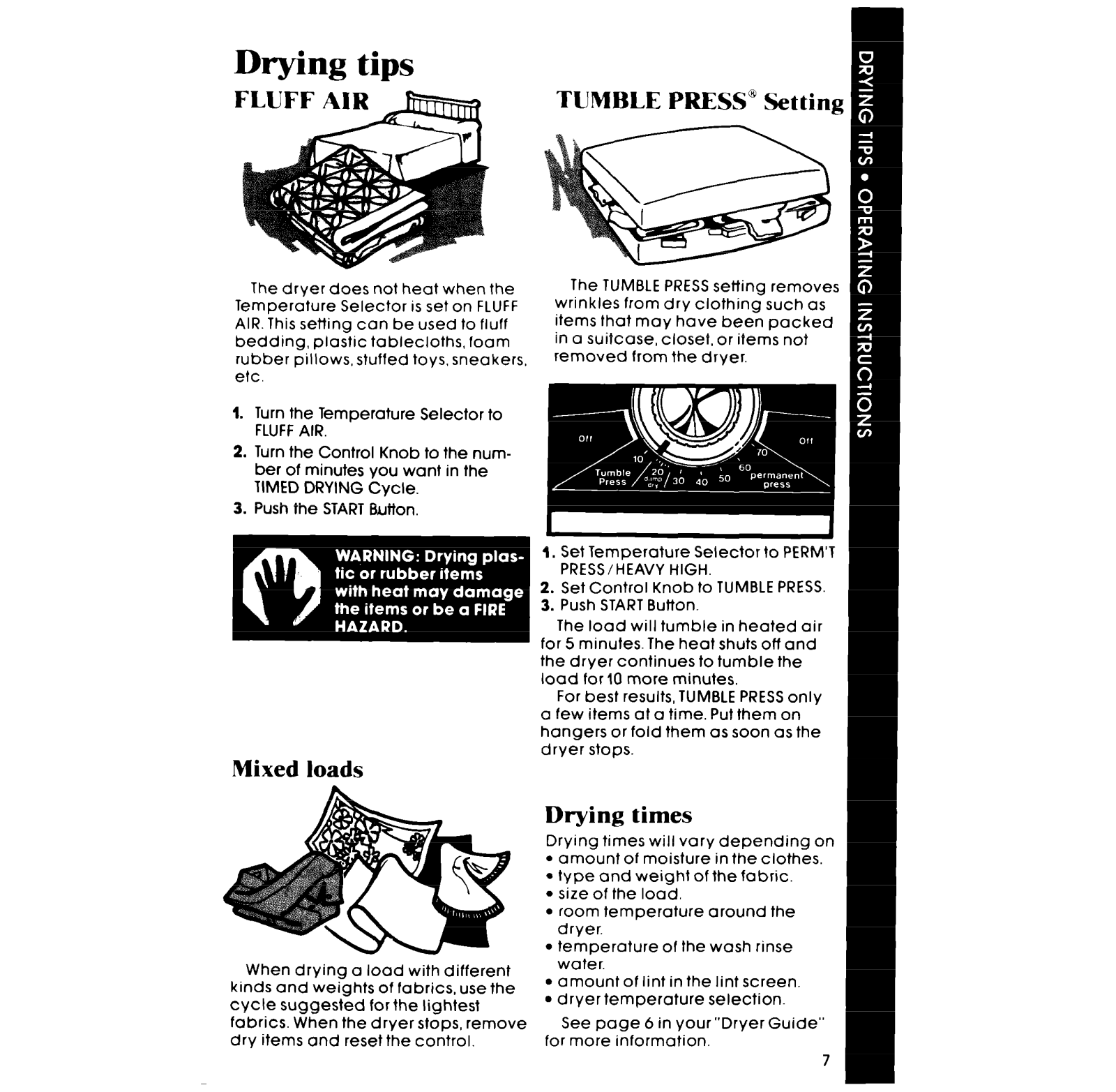

DRYING TIPS
FLUFF AIR Setting
TUMBLE PRESS@ Setting
Mixed Loads
Drying Times.
2
Page

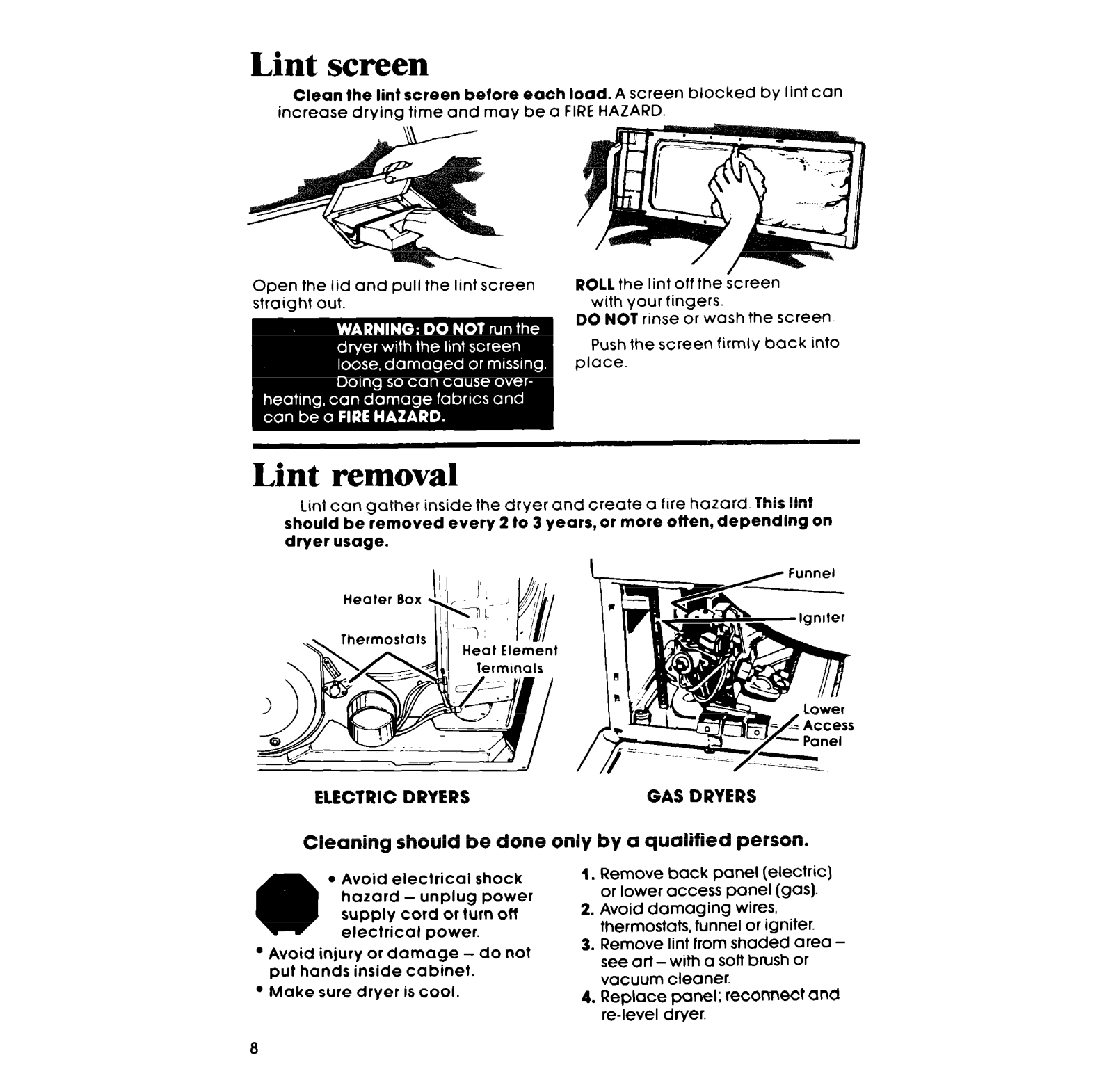

LINT SCREEN
LINT REMOVAL

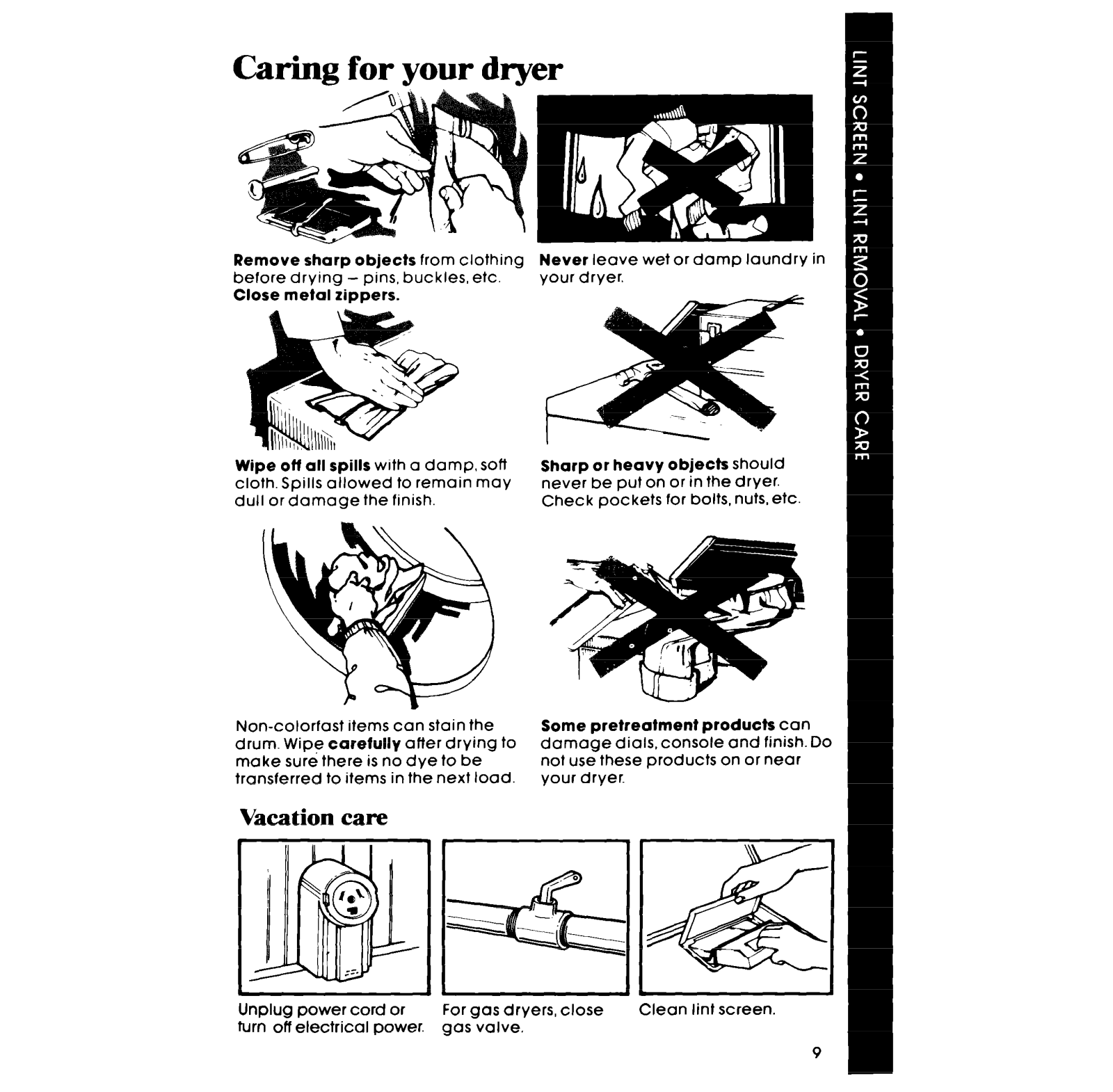

CARING FOR YOUR DRYER..
Vacation Care.

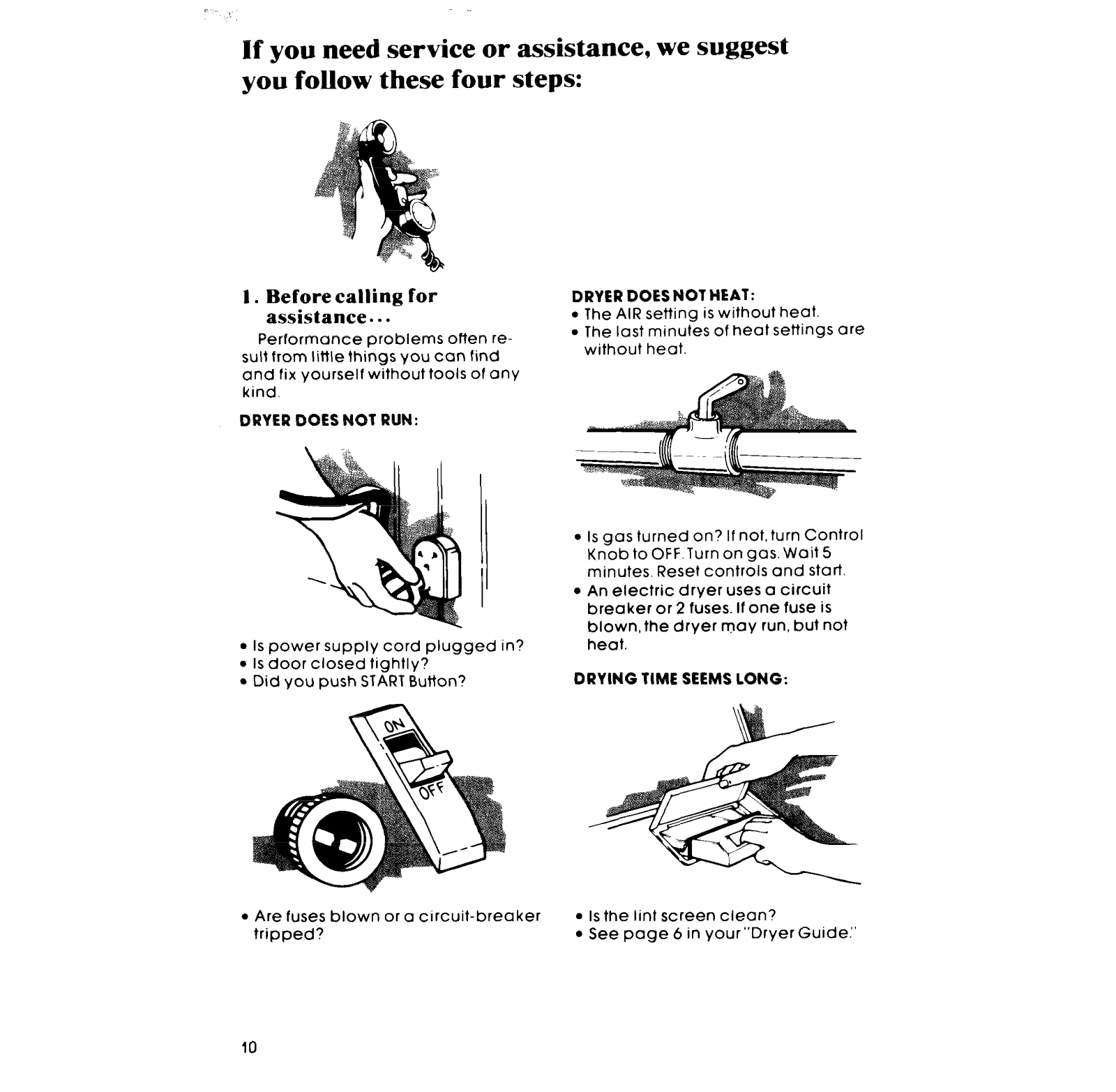

IF YOU NEED SERVICE OR
ASSISTANCE.
I. Before Calling for
Assistance

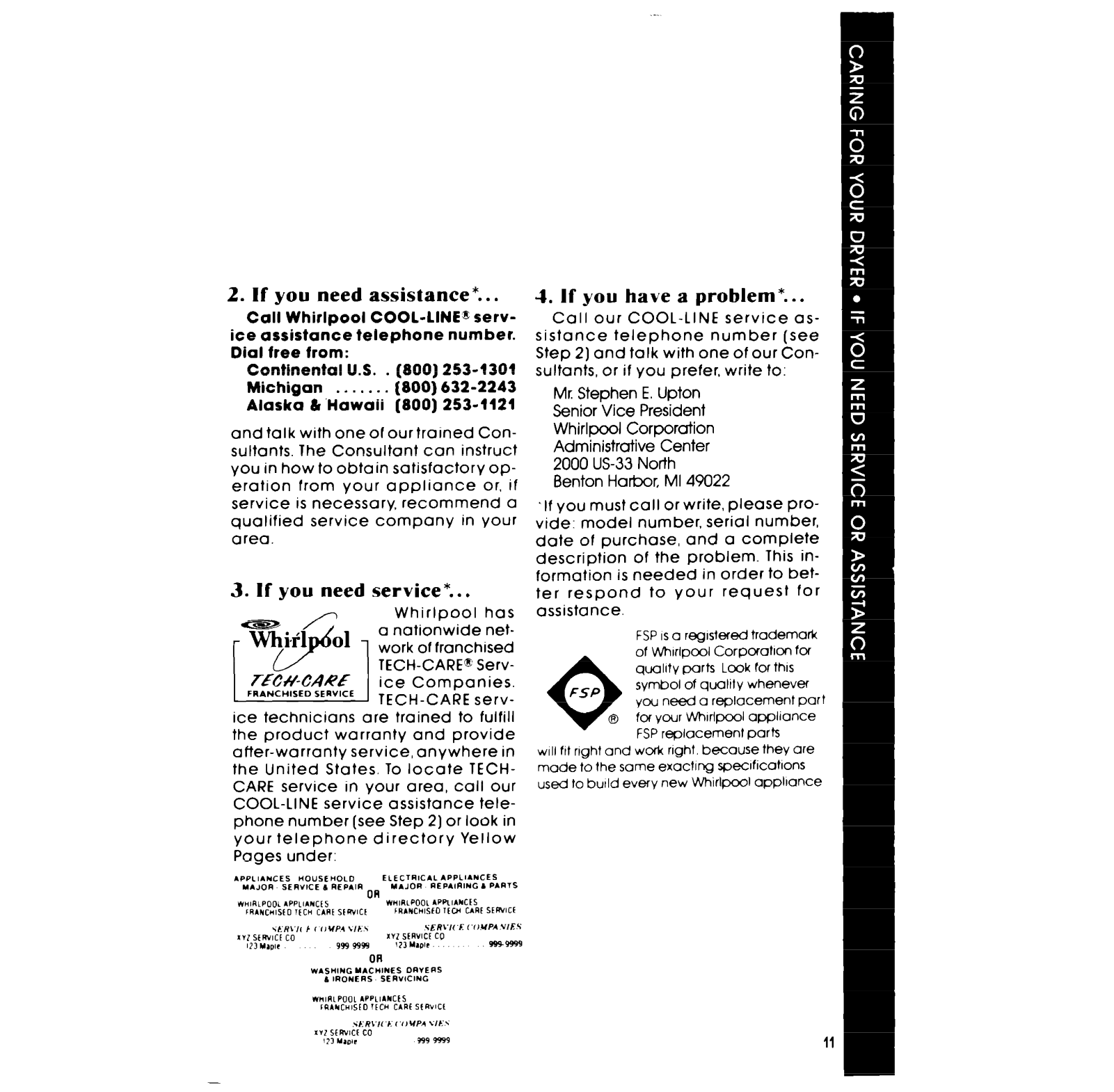

2. If You Need Assistance
3. If You Need Service
4. If You Have a Problem
01985 Whirlpool Corporation
Page
8
t
9
10
10
11
11
11

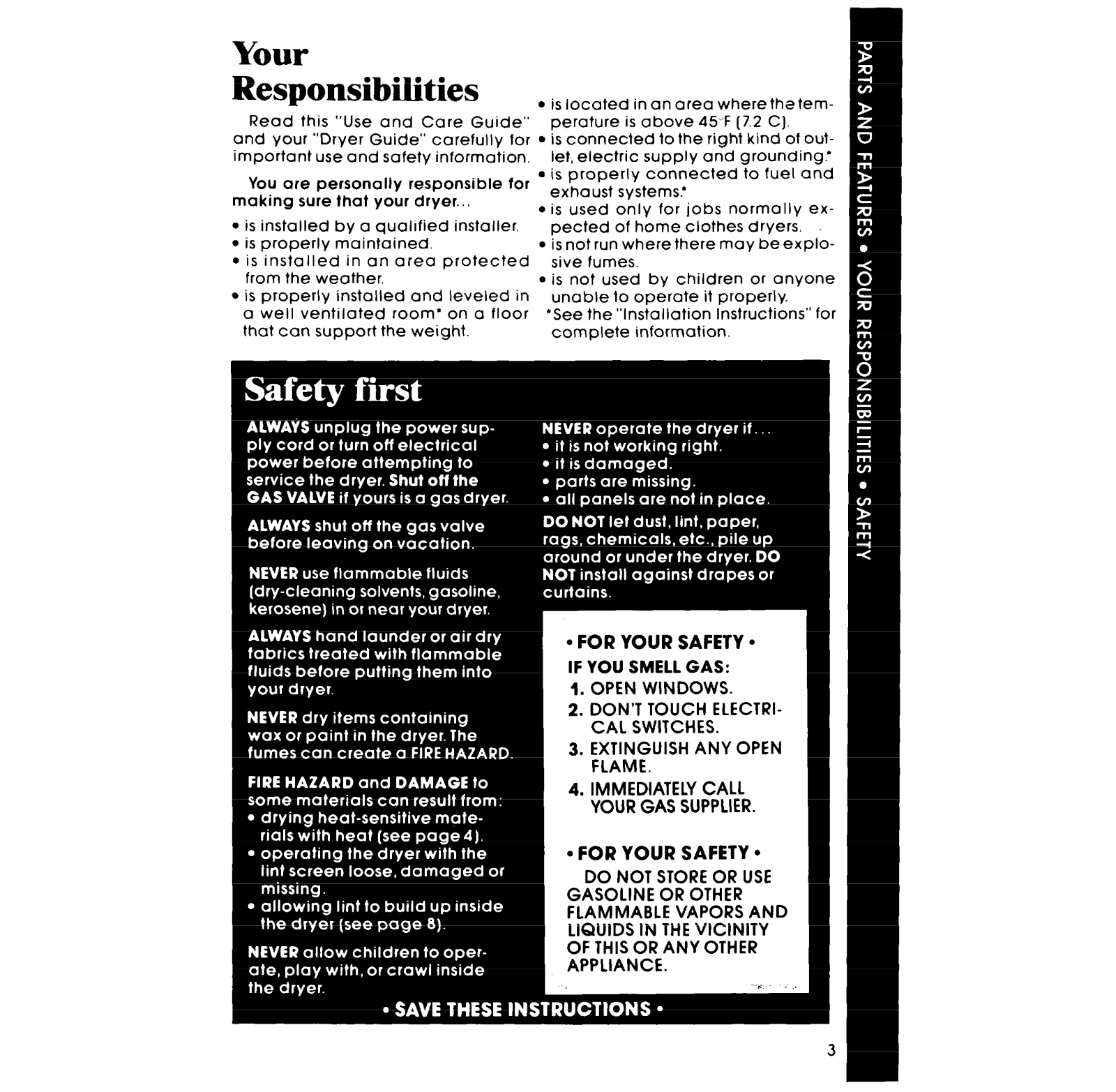

Your
Responsibij
lities
l
is located in an area where the tem-
Read this “Use and Care Guide” perature is above 45°F (7.2 C].
and your “Dryer Guide” carefully for l is connected lo the right kind of outimportant use and safety information.
You are personally responsible for
making sure that your dryer...
l
is installed by a qualrfied installer.
l
is properly maintained.
l
is installed in an area protected
from the weather.
l
is properly installed and leveled in
a well ventilated room’ on a floor
that can support the weight.
let, electric supply and grounding.’
l
is properly connected to fuel and
exhaust systemsT
l
is used only for jobs normally expetted of home clothes dryers.
l
is not run where there may be explosive fumes.
l
is not used by children or anyone
unable to operate it properly.
‘See the “Installation Instructions” for
complete information.
l
FOR YOUR SAFETY
l
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRICAL SWITCHES.
3. EXTINGUISH ANY OPEN
FLAME.
4. IMMEDIATELY CALL
YOUR GAS SUPPLIER.
l
FOR YOUR SAFETY
l
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY
OF THIS OR ANY OTHER
APPLIANCE.

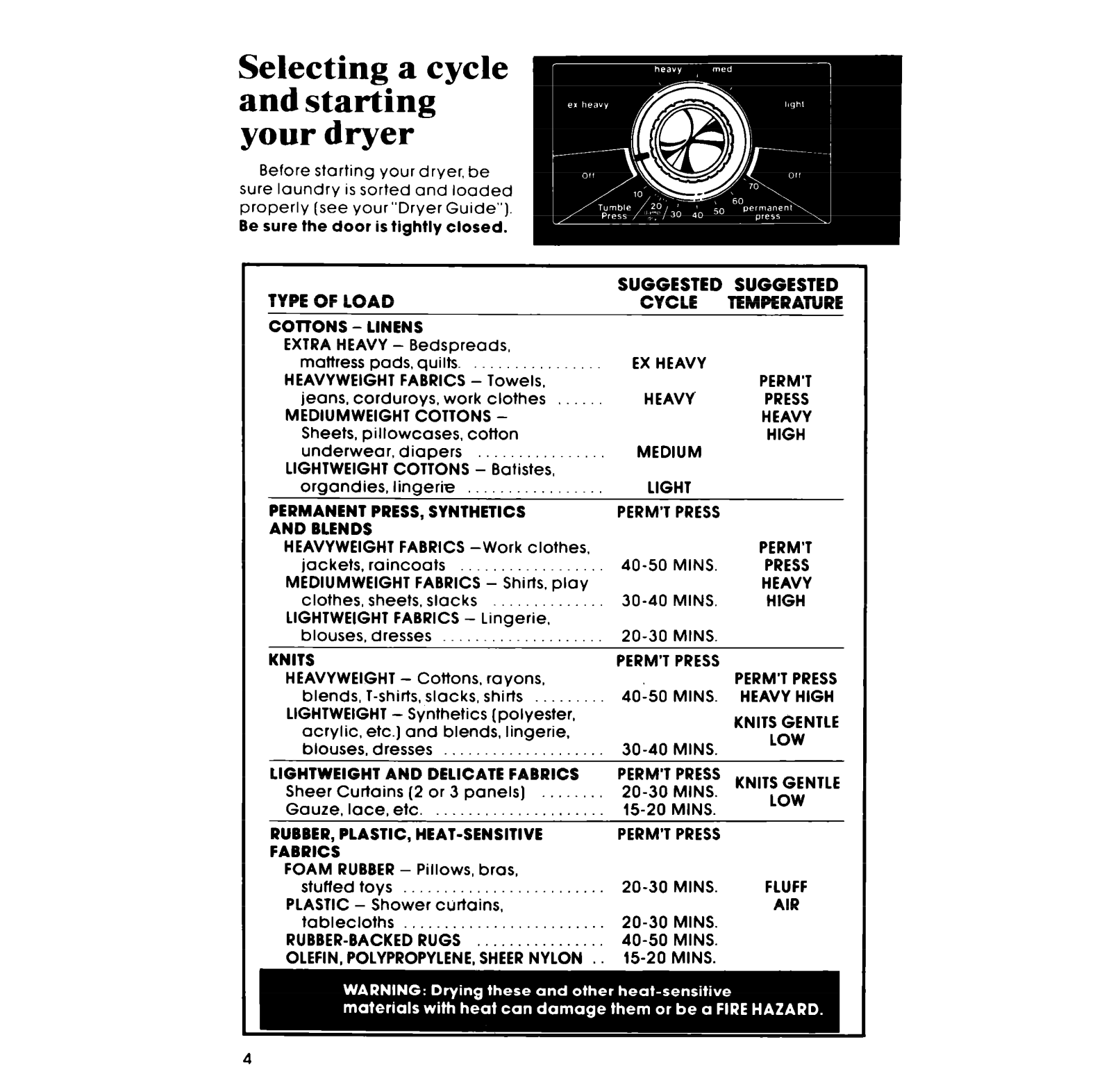

TYPE OF LOAD
COTTONS - LINENS
EXTRA HEAVY - Bedspreads,
mattress pads, quilts.
HEAVYWEIGHT FABRICS - Towels,
jeans. corduroys. work clothes
MEDIUMWEIGHT COTTONS -
Sheets, pillowcases, cotton
underwear, diapers
LIGHTWEIGHT COTTONS - Batistes,
organdies, lingerie
PERMANENT PRESS, SYNTHETICS
AND BLENDS
HEAVVWEIGHT FABRICS -Work clothes,
jackets, raincoats
MEDIUMWEIGHT FABRICS - Shirts, play
clothes, sheet&slacks
LIGHTWEIGHT FABRICS - Lingerie,
blouses, dresses _.
KNITS
HEAVYWEIGHT - Cottons, rayons.
blends, T-shirts, slacks, shirts
LIGHTWEIGHT - Synthetics (polyester,
acrylic. etc.] and blends, lingerie,
blouses, dresses
LIGHTWEIGHT AND DELICATE FABRICS
Sheer Curtains (2 or 3 panels]
Gauze, lace, etc.
RUBBER, PLASTIC, HEAT-SENSITIVE
FABRICS
FOAM RUBBER - Pillows, bras,
stutted toys
PLASTIC - Shower curtains,
tablecloths . . . . . . . . . . . . . . .
RUBBER-BACKED RUGS
OLEFIN. POLYPROPYLENE. SHEER
. .
. .
NYLON
SUGGESTED SUGGESTED
CYCLE TEMPERATURE
EX HEAVY
HEAVY PRESS
MEDIUM
LIGHT
PERM’T PRESS
PO-50 MINS.
30-40 MINS. HIGH
20-30 MINS.
PERM’T PRESS
4OkO MINS.
30-40 MINS.
PERM’T PRESS KNITS GENTLE
20-30 MINS.
1520 MINS.
PERM’T PRESS
20-30 MINS.
20-30 MINS.
40-50 MINS.
15-20 MINS.
PERM’T
HEAVY
HIGH
PERMIT
PRESS
HEAVY
PERM’T PRESS
HEAVY HIGH
KNITS GENTLE
LOW
LOW
FLUFF
AIR
