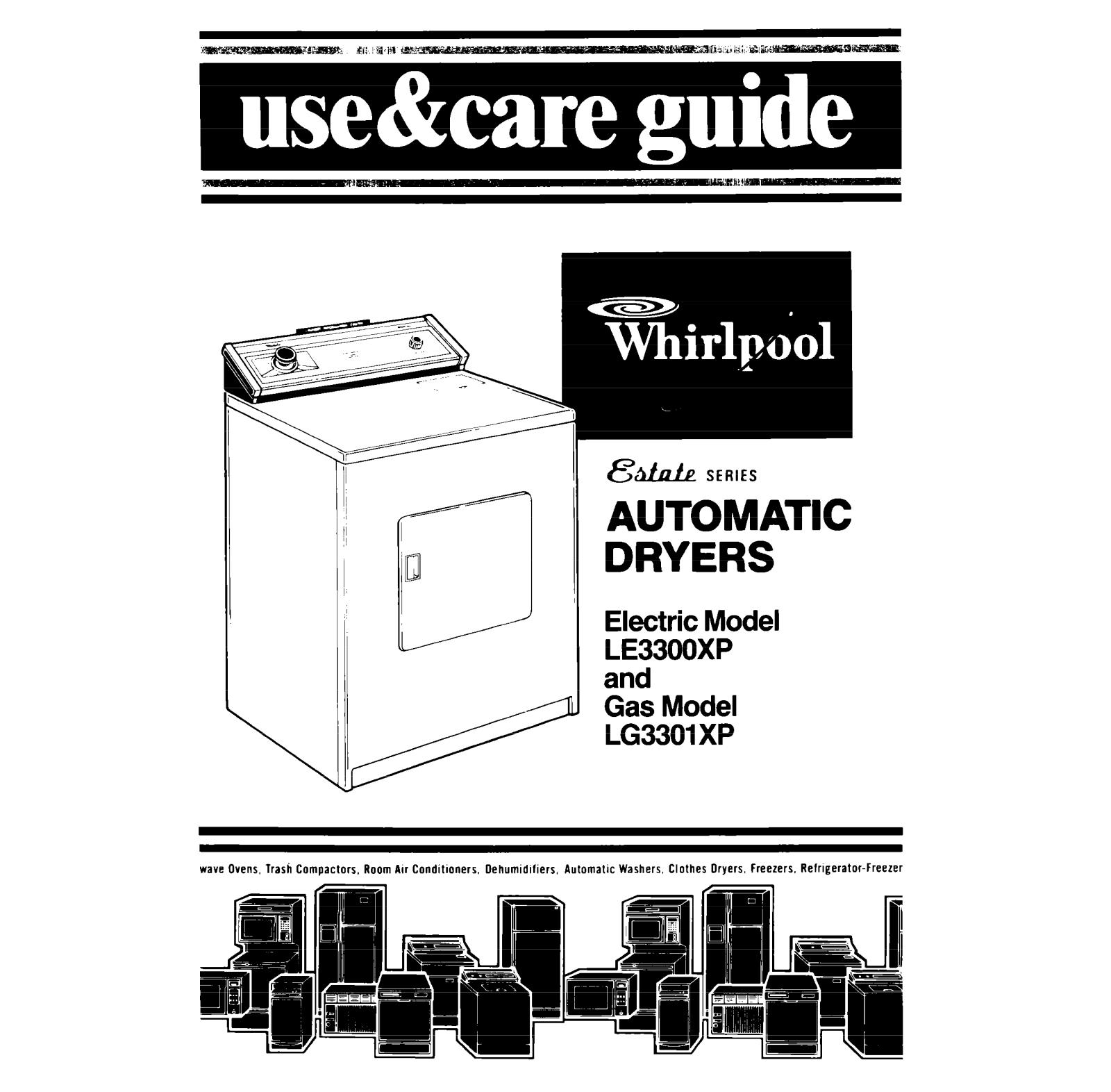

Whirlpool LE3300XP User Manual

&hh!L’ SERIES

AUTOMATIC

DRYERS

Electric Model

LE3300XP
and
Gas Model

LG3301 XP

wave Ovens, Trash Compactors, Room Au Conditioners. Oehumidlfiers, Automallc Washers, Clothes Oryers, Freezers, Refrl%erator-Freezer

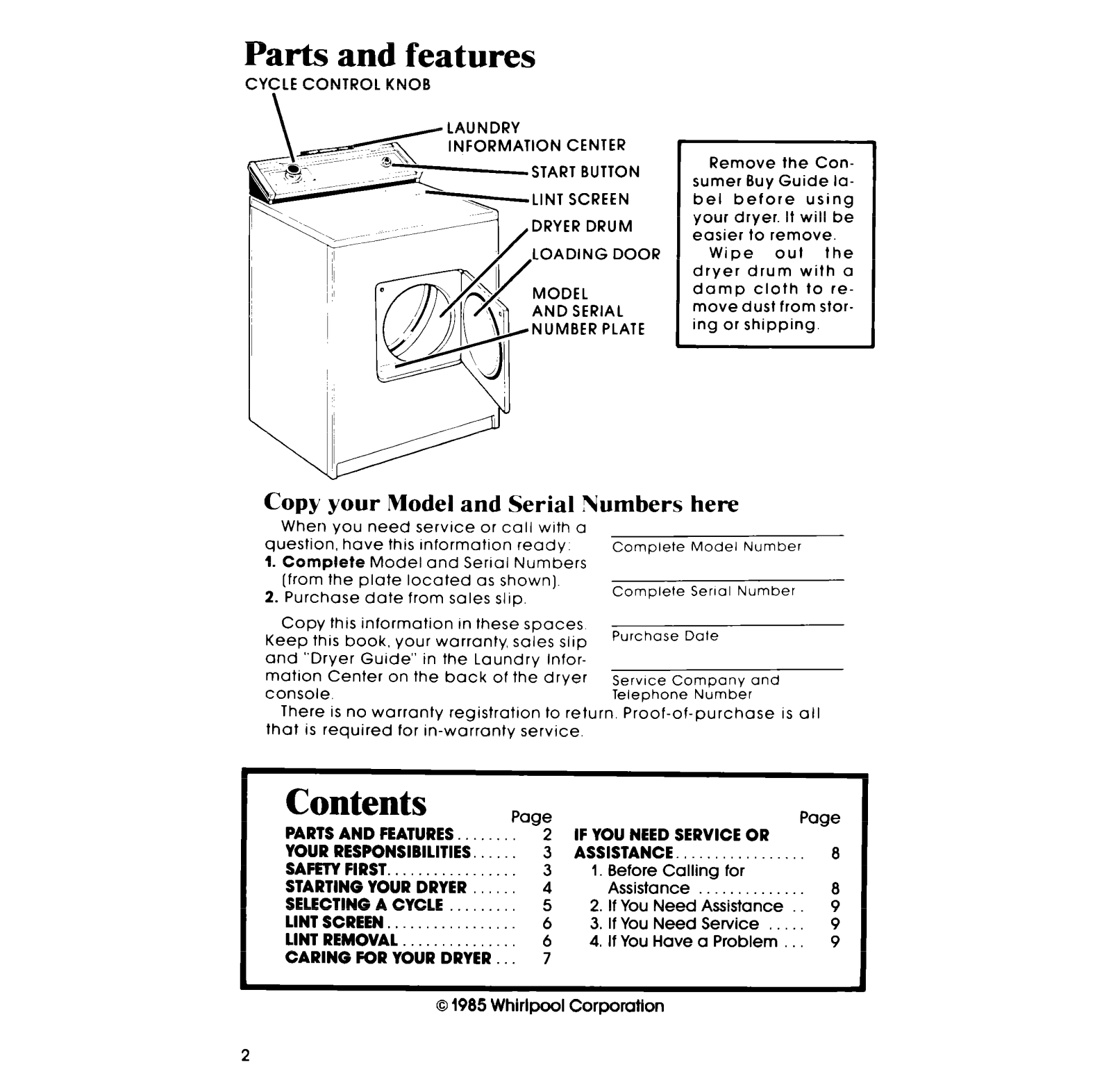

Parts and features

CYCLE CONTROL KNOB

\

INFORMATION CENTER

START BUTTON
LINT SCREEN
DRYER DRUM

-LOADING DOOR

MODEL
AND SERIAL
NUMBER PLATE

Remove the Con­sumer Buy Guide la­bel before using
your dryer. It will be
easier to remove.

Wipe oul the
dryer drum with a
damp cloth to re­move dust from stor­ing or shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this Information ready.

1. Complete Model and Serial Numbers
(from the plate located as shown).

2. Purchase date from sales slip.

Copy this information In these spaces
Keep this book, your warranty, sales slip
and “Dryer Guide” in the Laundry Infor­mation Center on the back of the dryer

console.

There is no warranty registration to return. Proof-of-purchase is all
that is required for in-warranty service.

Complete Model Number

Complete Senol Number

Purchase Date

Serwce Company and
Telephone Number

Contents

PARTS AND FEATURES..
YOUR RESPONSIBILITIES.
SAFETY FIRST..
STARTING YOUR DRYER

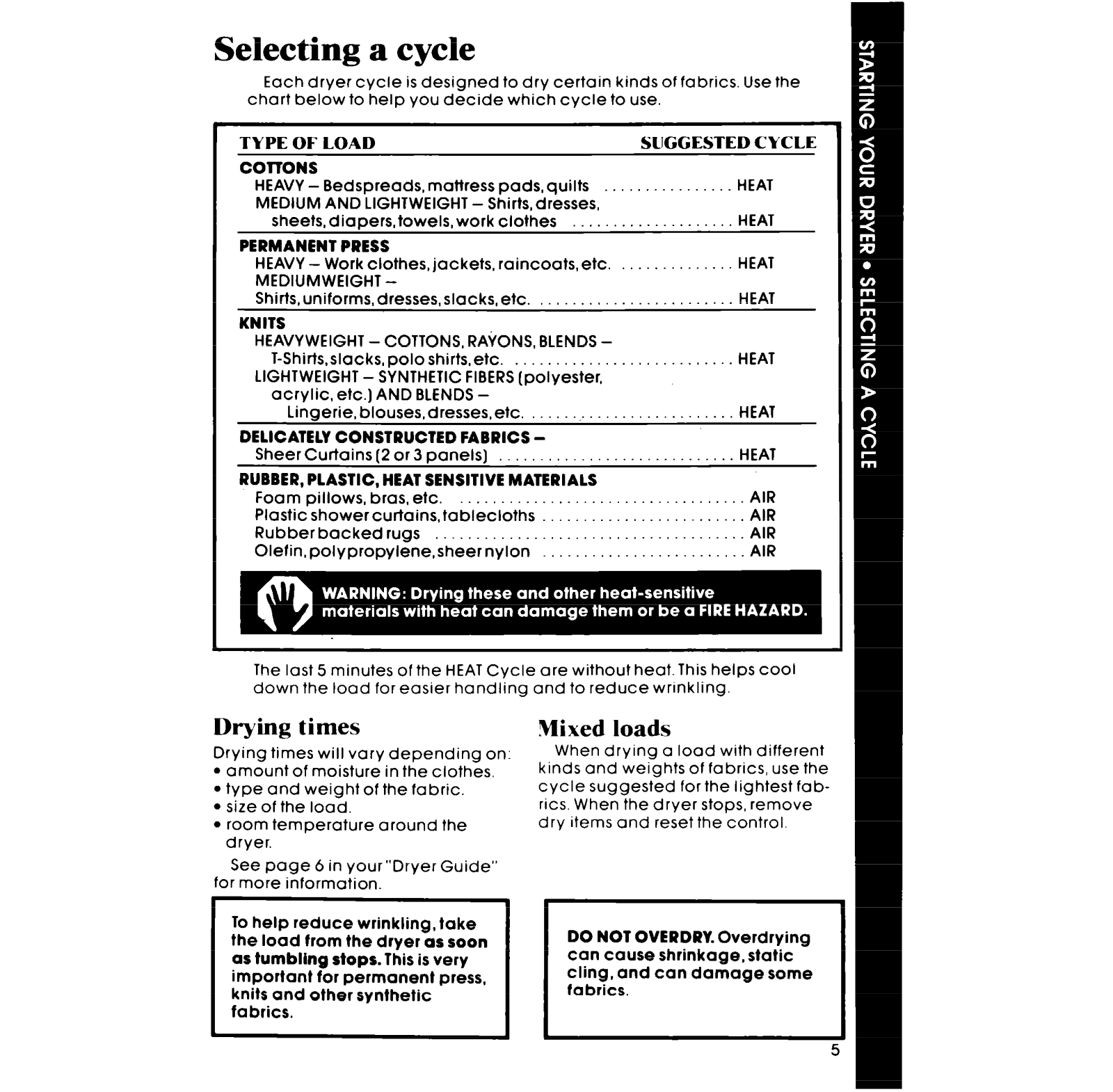

SELECTING A CYCLE

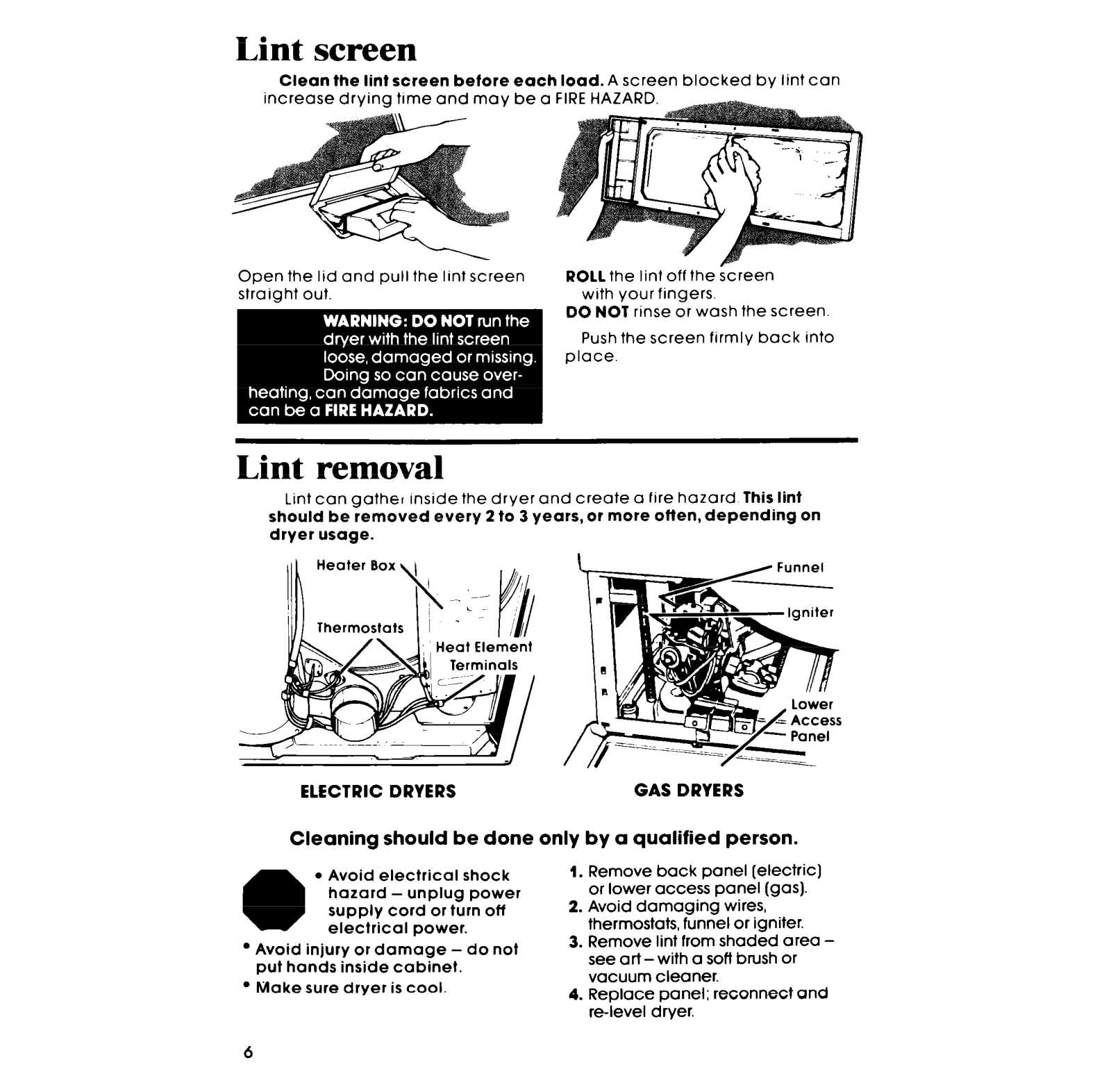

LINT SCREEN. .
LINT REMOVAL .

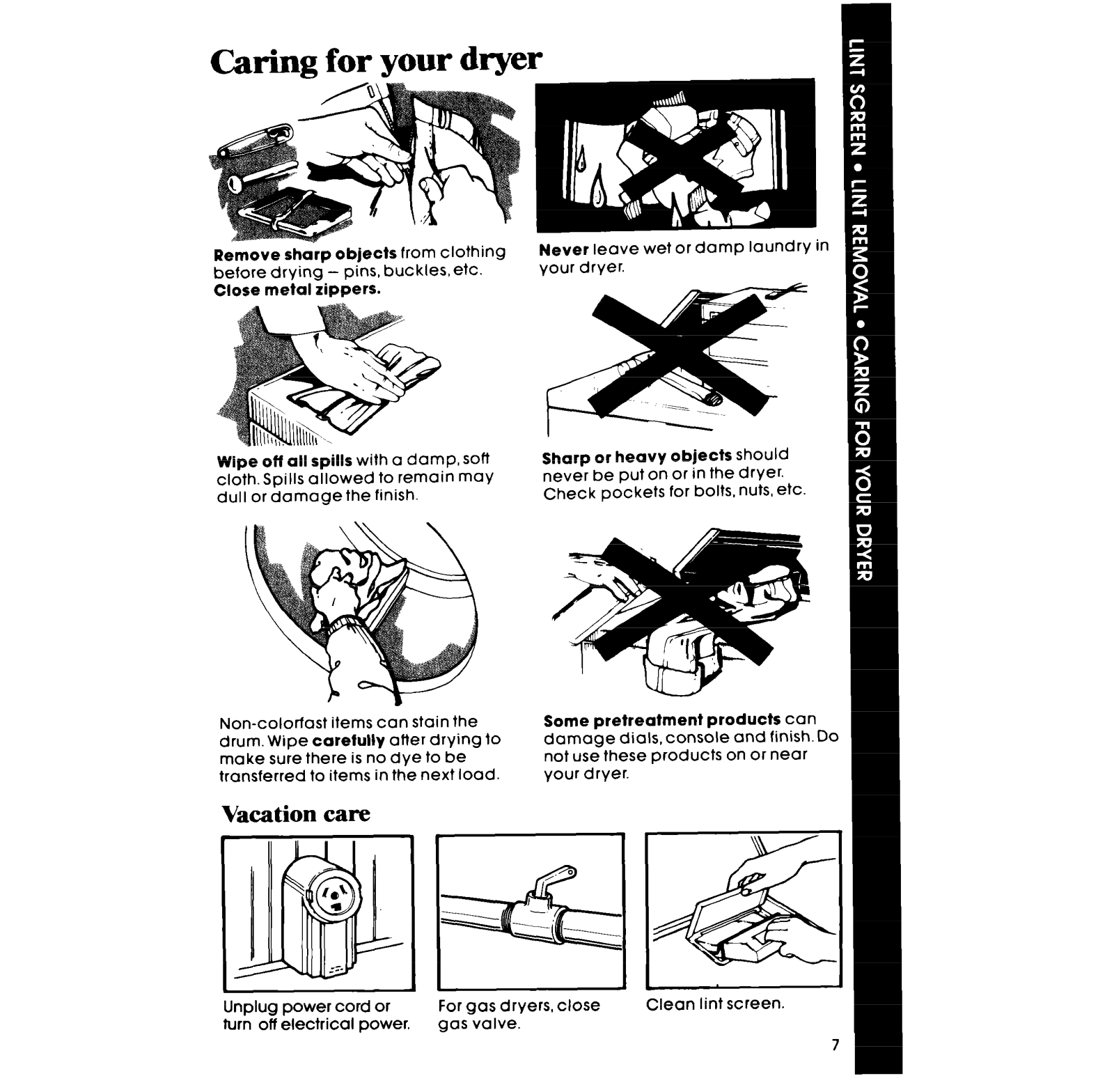

CARING FOR YOUR DRYER

2

Page

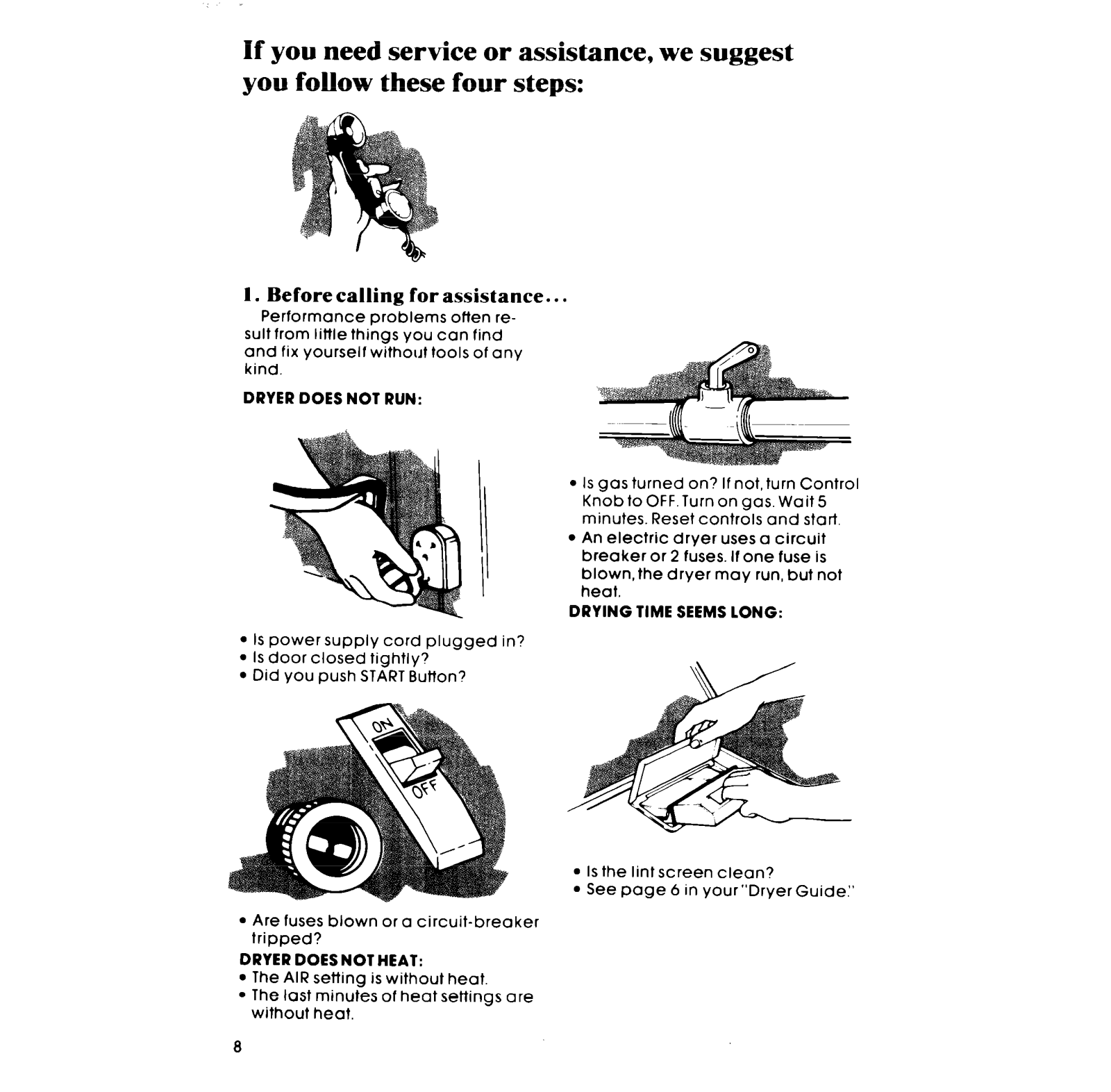

2 IF YOU NEED SERVICE OR
3 ASSISTANCE..
3 1. Before Calling for
4
5
6
6
7

0 1985 Whirlpool Corporation

Assistance .

2. If You Need Assistance

3. If You Need Service

4. If You Have a Problem

Page

8
0

9
9
9

I

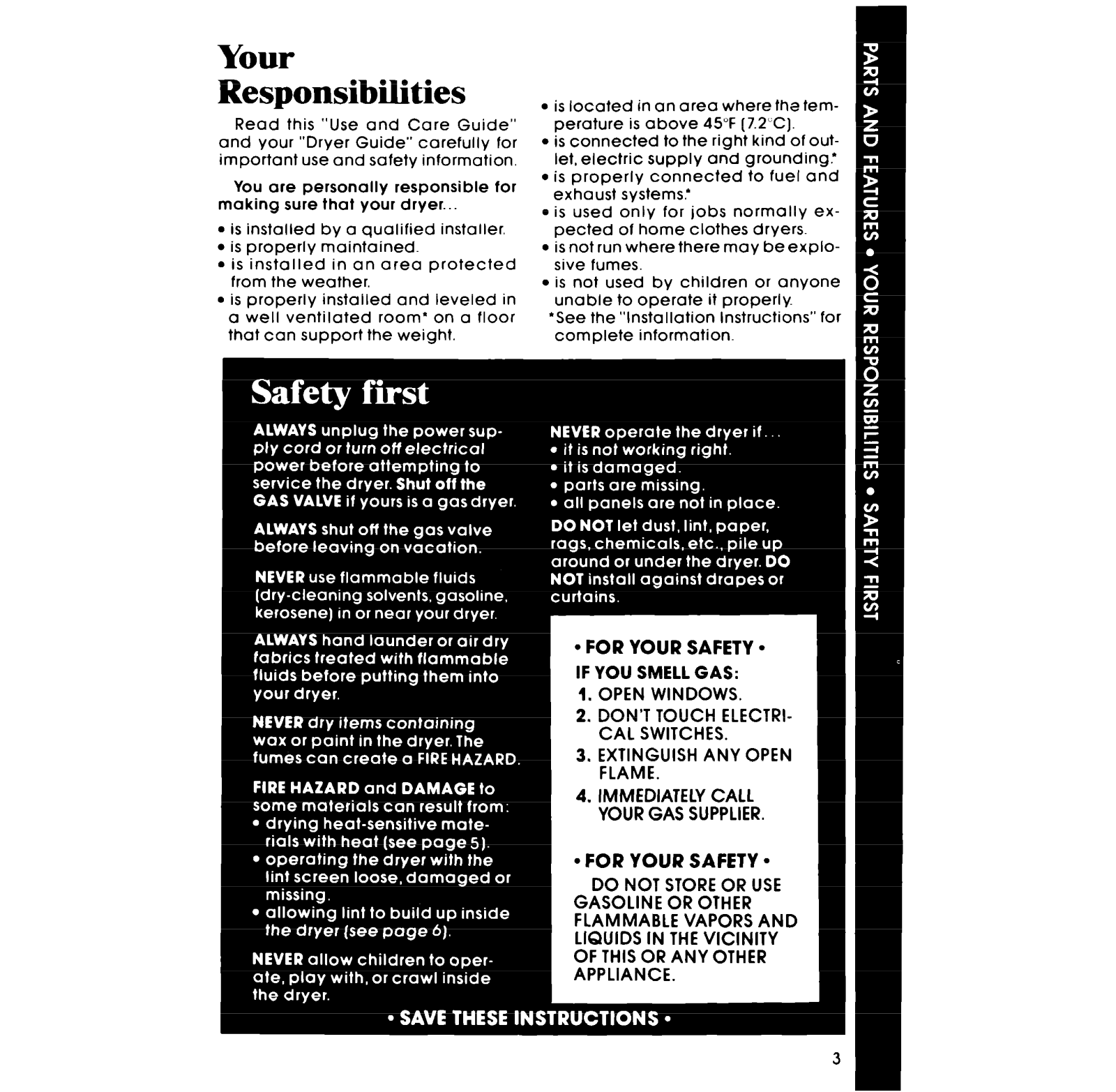

Your Responsibilities

Read this “Use and Care Guide”
and your “Dryer Guide” carefully for
important use and safety information.

You are personally responsible for

making sure that your dryer..

l

is installed by a qualified installer.

l

is properly maintained.

l

is installed in an area protected
from the weather.

l

is properly installed and leveled in

a well ventilated room* on a floor

l

is located in an area where the fem­perature is above 45°F [ 7.2”C).

l

is connected to the right kind of ouf­let. electric supply and grounding.*

l

is properly connected to fuel and
exhaust systems.’

l

is used only for jobs normally ex­pected of home clothes dryers.

l

is not run where there may be explo­sive fumes.

l

is not used by children or anyone
unable to operate if properly.

*See the “Installation Instructions” for

l

FOR YOUR SAFETY

l

IF YOU SMELL GAS:

1. OPEN WINDOWS.

2. DON’T TOUCH ELECTRI­CAL SWITCHES.

3. EXTINGUISH ANY OPEN
FLAME.

4. IMMEDIATELY CALL
YOUR GAS SUPPLIER.

. FOR YOUR SAFETY

l

DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY
OF THIS OR ANY OTHER
APPLIANCE.

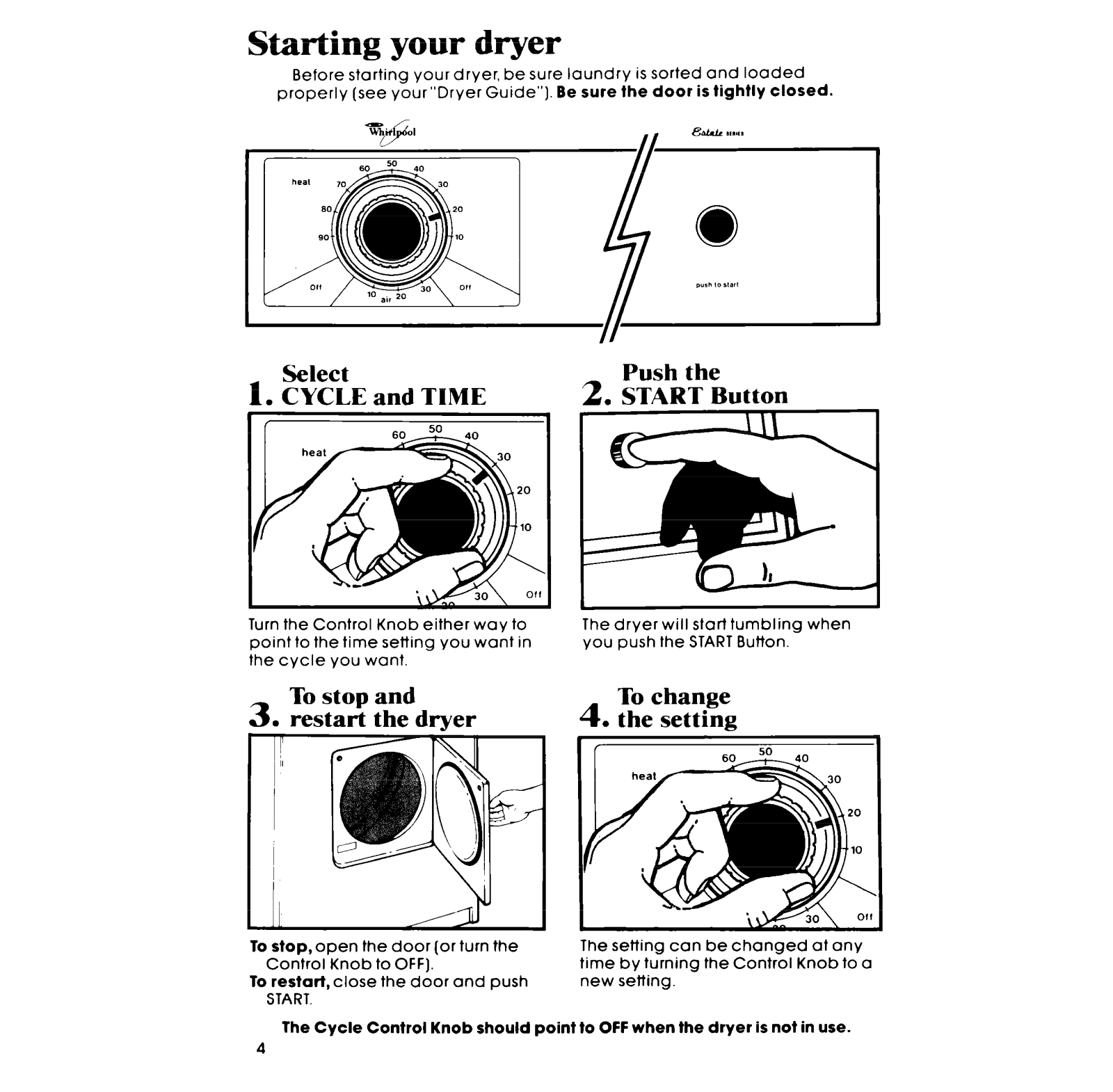

Starting your dryer

Before starting your dryer, be sure laundry is sorted and loaded

properly (see your”Dryer Guide”]. Be sure the door is tightly closed.

.!!a& IE”JCl

Turn the Control Knob either way to

point to the time setting you want in

the cycle you want.

To stop and

3

. restart the drver

Y

The dryer will start tumbling when
you push the START Button.

To change

4. the setting

I r

I Ii.

To stop, open the door (or turn the

Control Knob to OFF).

To restart, close the door and push

START.

The Cycle Control Knob should point to OFF when the dryer is not in use.

4

The setting can be changed at any
time by turning the Control Knob to a
new setting.
