Whirlpool LE3000XP, LG30OIXP User Manual
lave
AUTOMATIC
I
DRYERS
IIJ
Electric Model
;_---I
Ovens.
lrash Compactors. Room Air Conditioners. Dehumidifiers. Aulomalx Washers, Clothes Dryers. Freezers. Refrigerator-Freeze1
LE3000XP
and
Gas Model
LG30OIXP

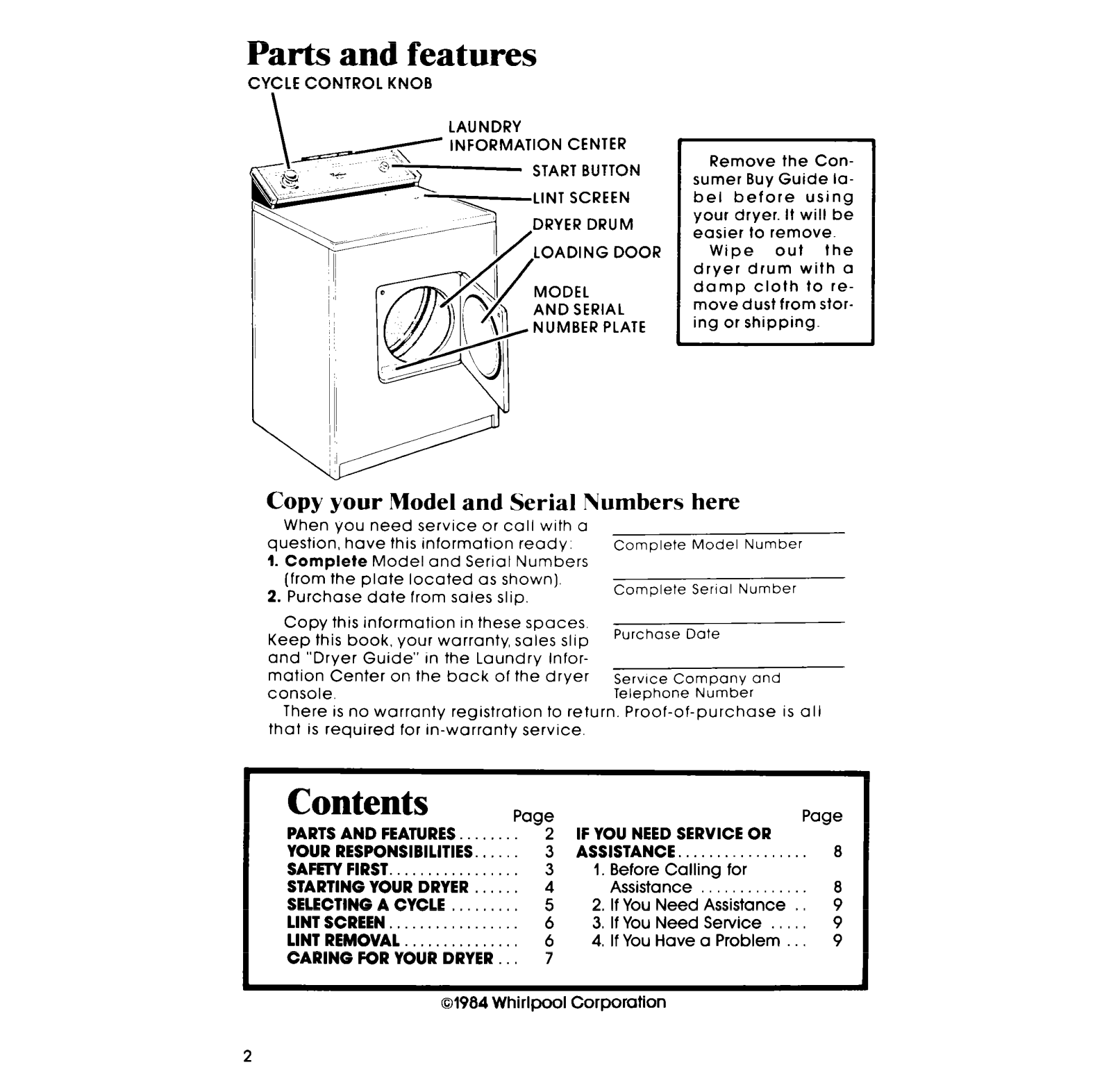

Parts and features
CYCLE CONTROL KNOB
LAUNDRY
INFORMATION CENTER
START BUTTON
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready.
1. Complete Model and Serial
(from the plate located as shown).
2. Purchase date from sales slip.
Copy this information in these spaces.
Keep this book, your warranty, sales slip
and “Dryer Guide” rn the Laundry Information Center on the back of the dryer
console.
There is no warranty registration to return. Proof-of-purchase is all
that is required for in-warranty service.
Numbers
Complete Model Number
Complete Serial Number
Purchase Date
Serwce Company and
Telephone Number
Remove the Consumer Buy Guide label before using
your dryer. It will be
easier to remove.
Wipe out
dryer drum with a
damp cloth to remove dust from storing or shipping.
the
Contents
PARTS AND FEATURES.. . .
YOUR RESPONSIBILITIES. . .
SAFETY FIRST. . . . . . . . . . .
STARTING YOUR DRYER . . . .

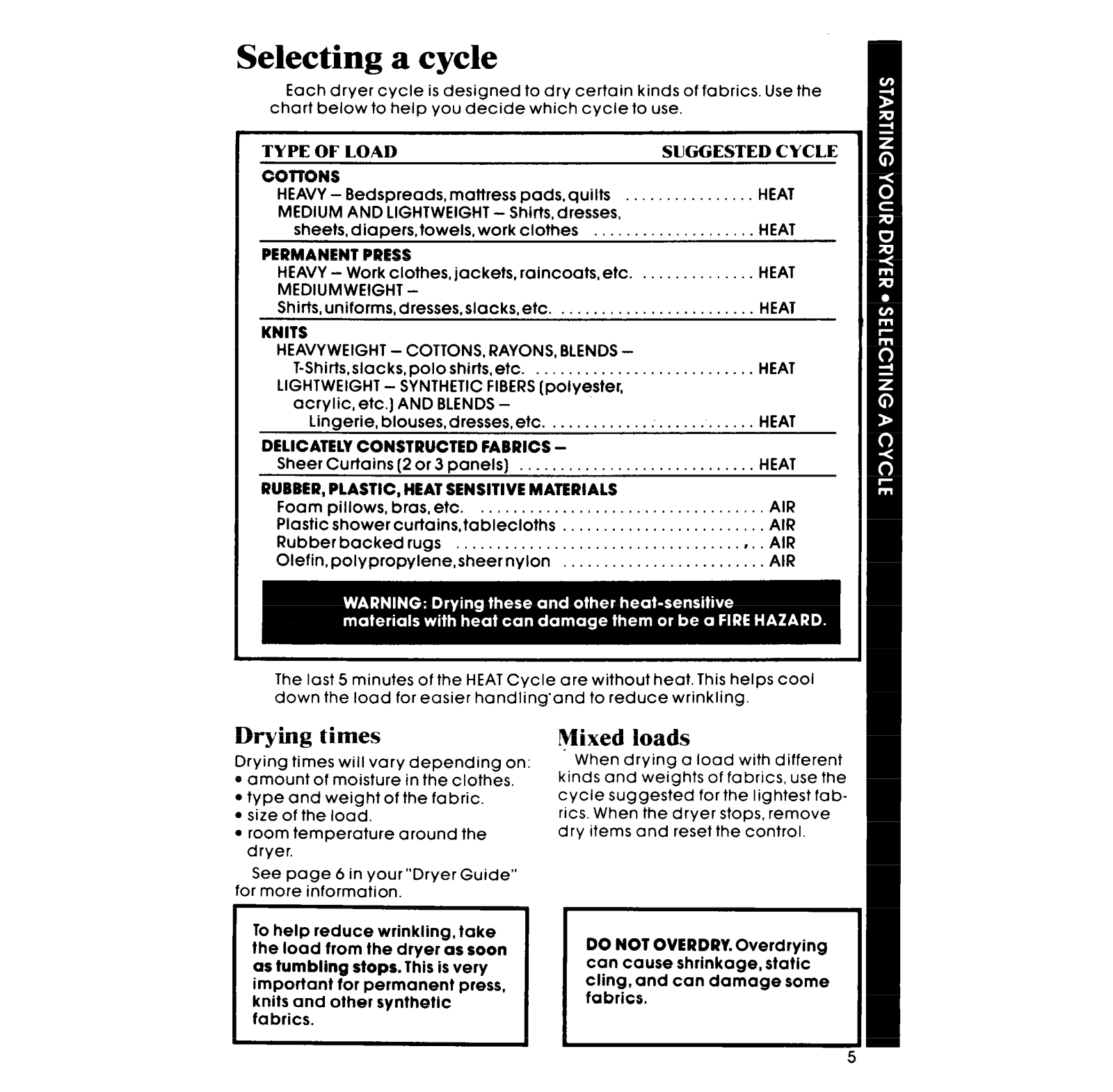

SELECTING A CYCLE . . . . . . .

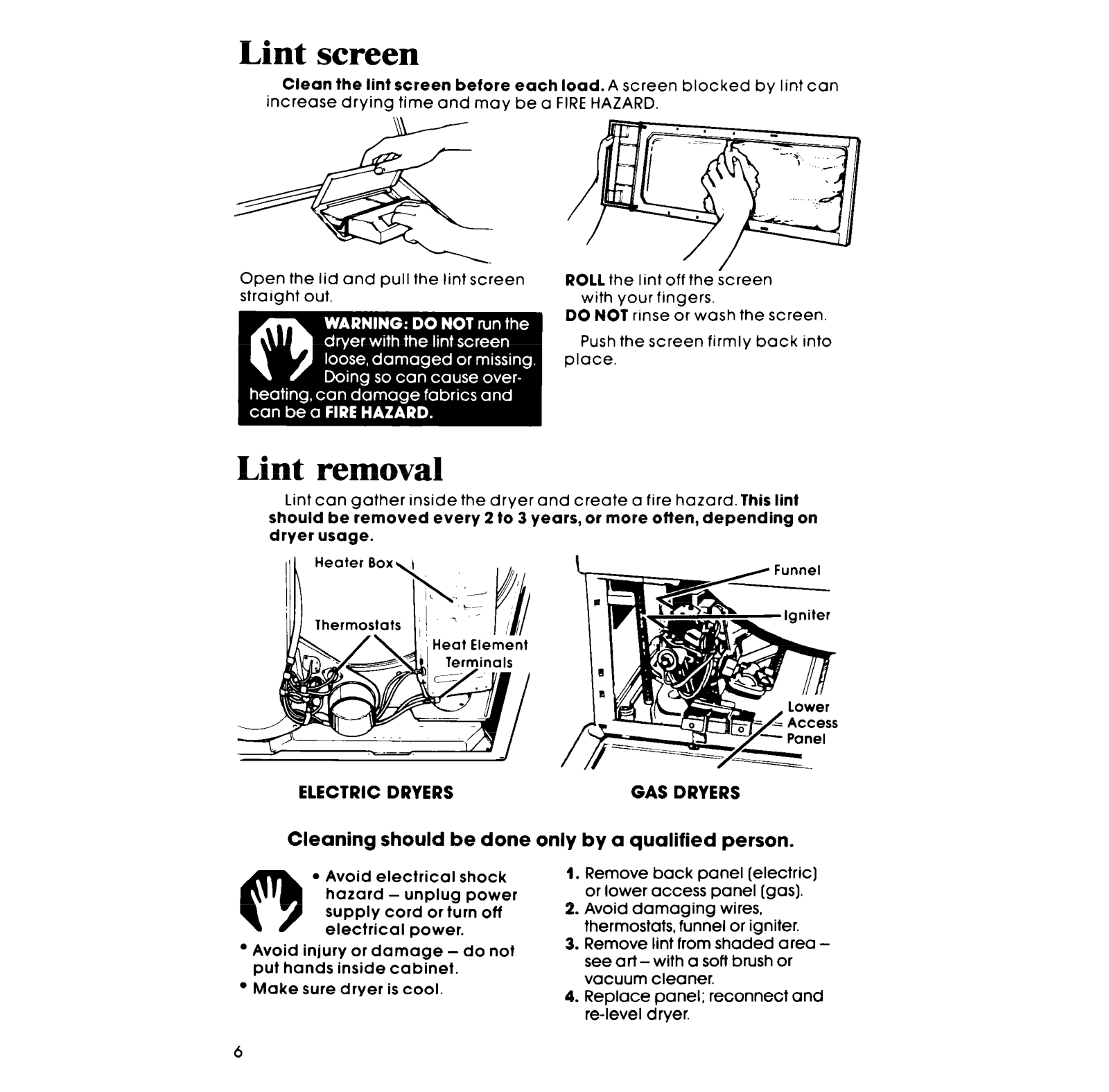

LINT SCREEN. . . . . . .
LINT REMOVAL . . . . . . . . . . . . .

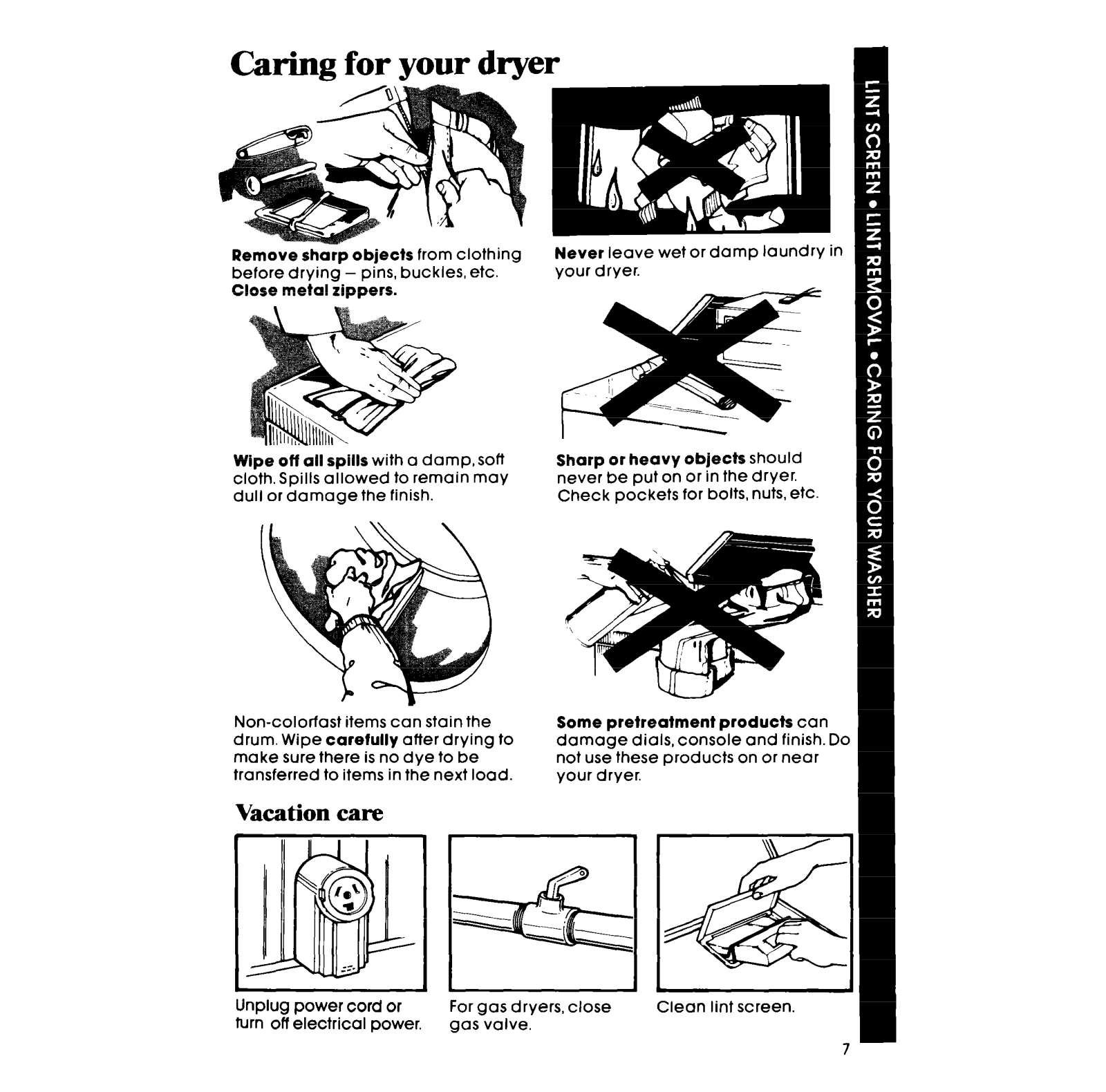

CARING FOR YOUR DRYER
1
2
Paae
-2

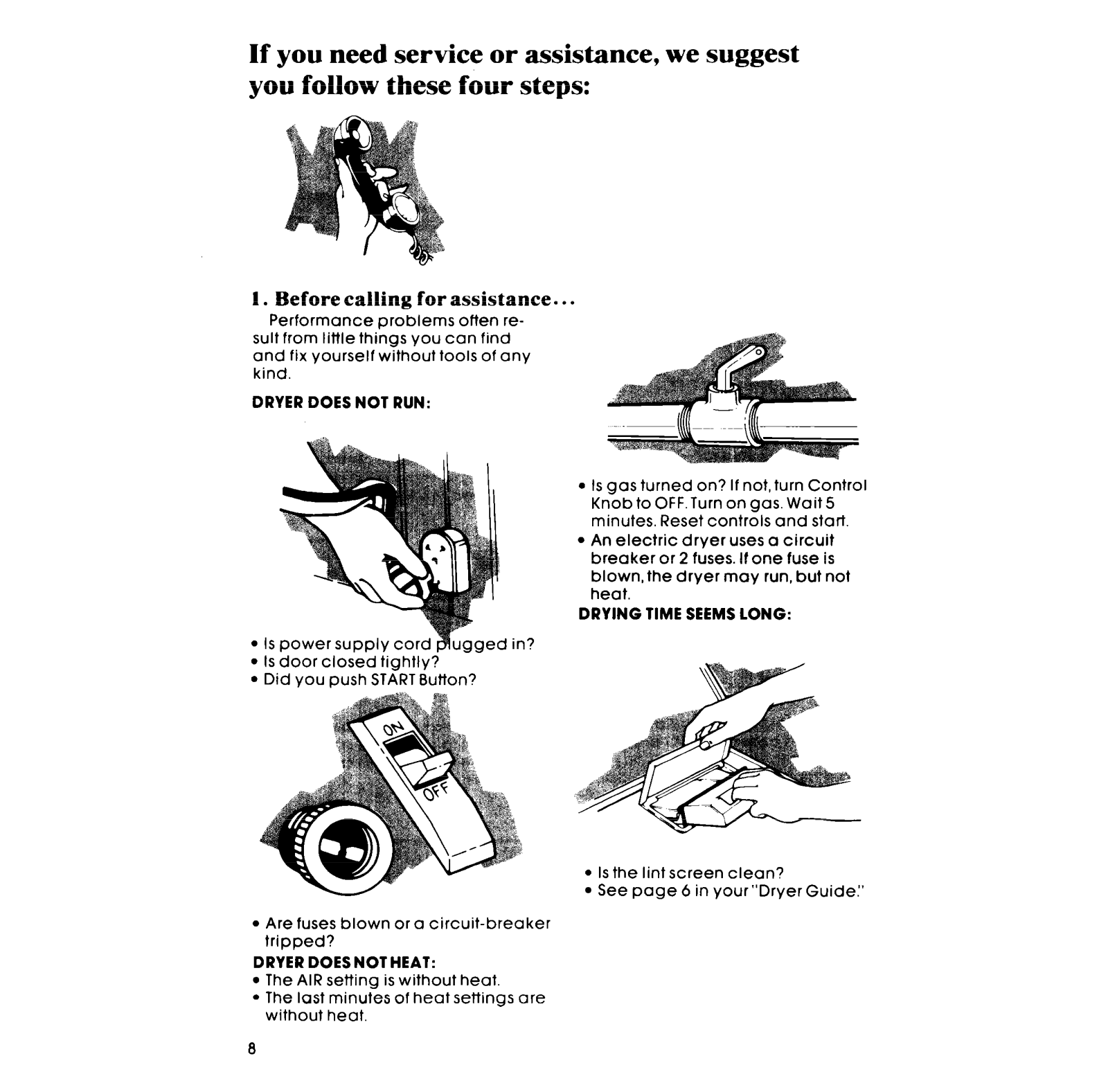

IF YOU NEED SERVICE OR
ASSISTANCE. . . . . . . . . .
3
3
1. Before Calling for
Assistance

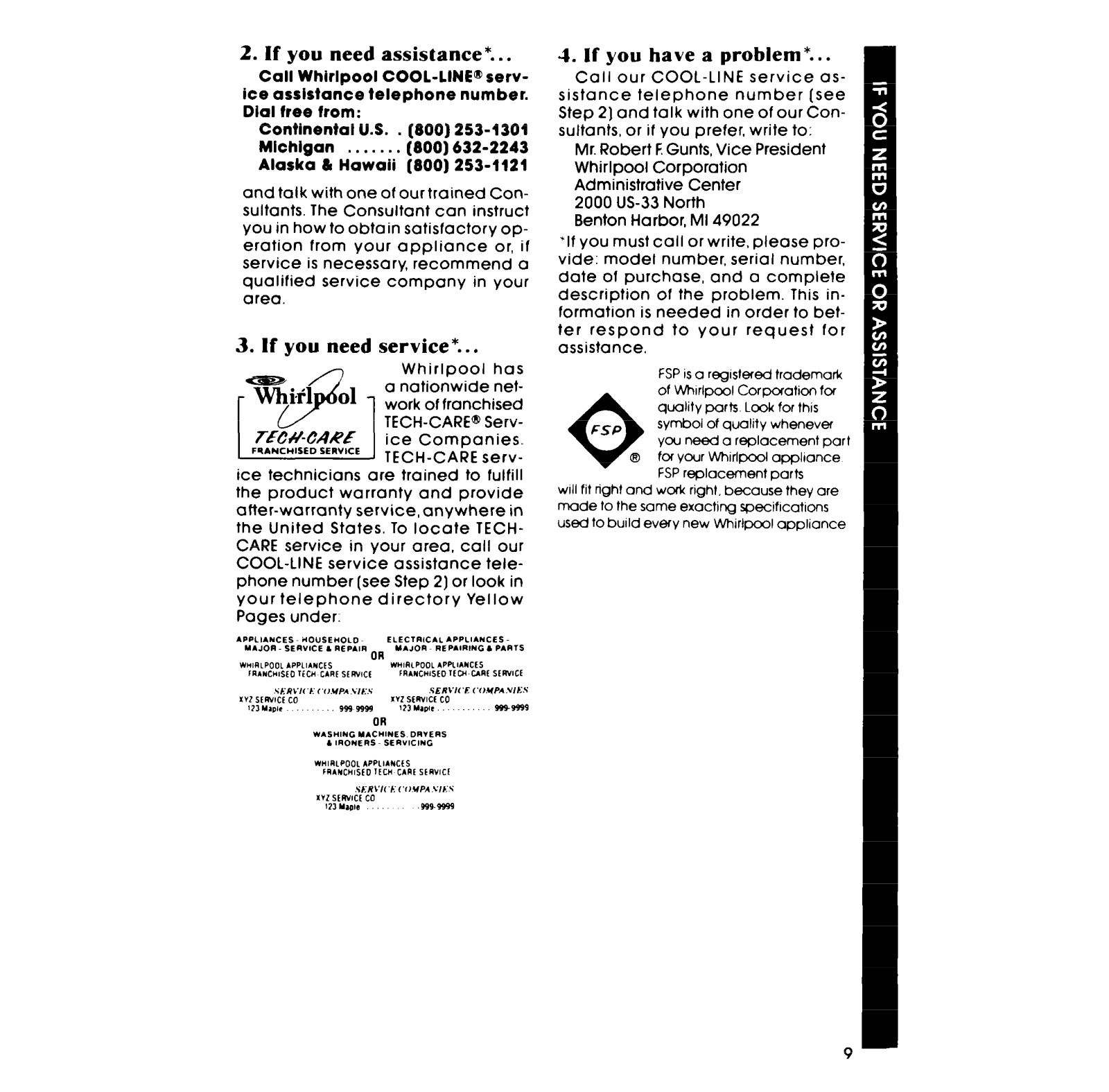

2. If You Need Assistance
1
3. If You Need Service .
6
4. If You Have a Problem
6
7
01984 Whirlpool Corporation
Page
. B
i
9
9

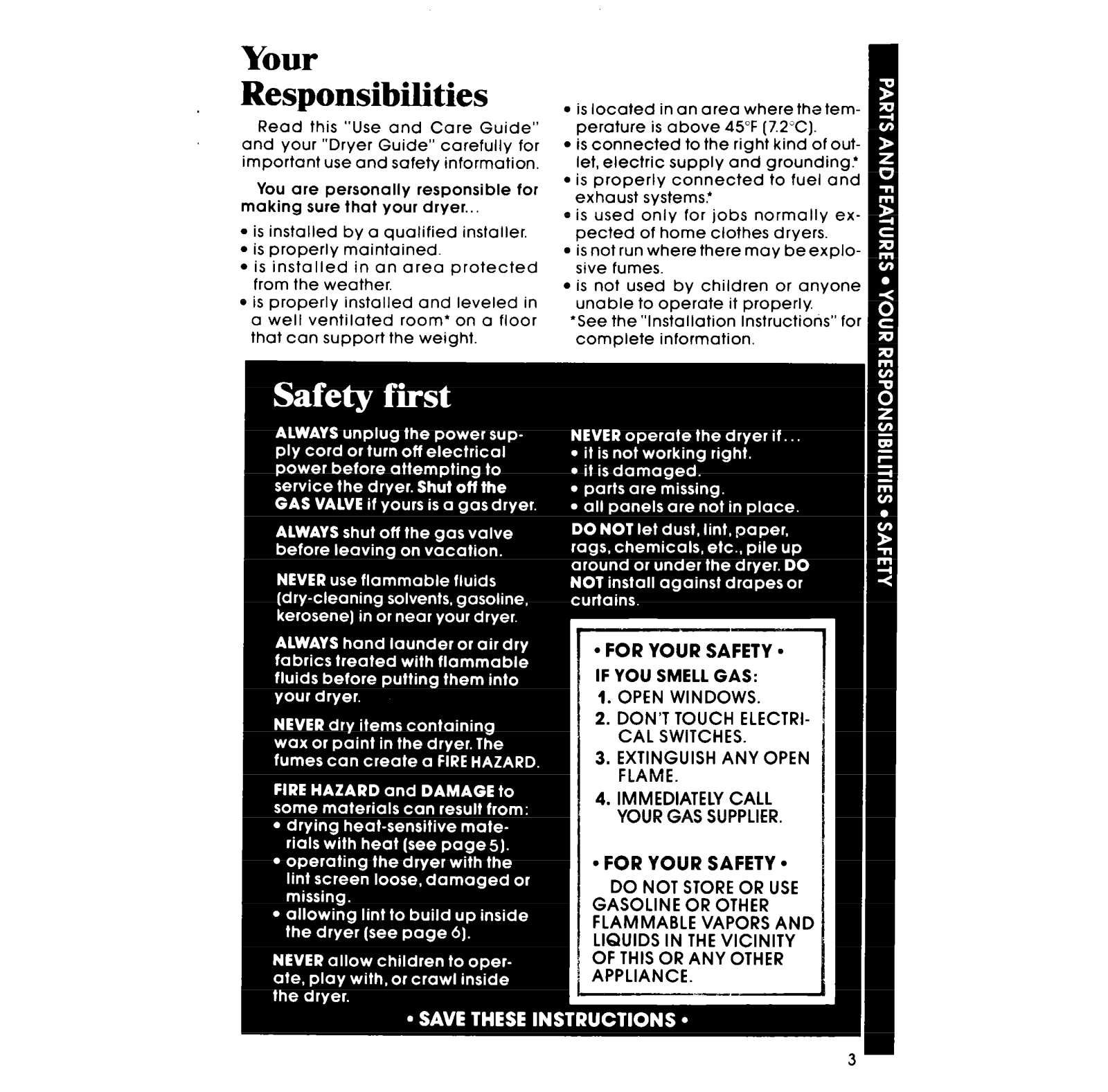

Your Responsibilities
Read this “Use and Care Guide”
and your “Dryer Guide” carefully for
important use and safety information.
You are personally responsible for
making sure that your dryer...
l
is installed by a qualified installer.
l
is properly maintained.
l
is installed in an area protected
from the weather.
l
is properly installed and leveled in
a well ventilated room’ on a floor
that can support the
weight.
l
is located in an area where the temperature is above 45°F (7.2”C).
l
is connected to the right kind of outlet, electric supply and grounding.*
l
is properly connected to fuel and
exhaust systems.’
l
is used only for jobs normally expected of home clothes dryers.
l
is not run where there may be explo-
sive fumes.
l
is not used by children or anyone
unable to operate it properly.
‘See the “Installation Instructions” for
complete information.
l
FOR YOUR SAFETY 9
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRICAL SWITCHES.
3. EXTINGUISH ANY OPEN
FLAME.
4. IMMEDIATELY CALL
YOUR GAS SUPPLIER.
l
FOR YOUR SAFETY
l
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY
OF THIS OR ANY OTHER
APPLIANCE.
--

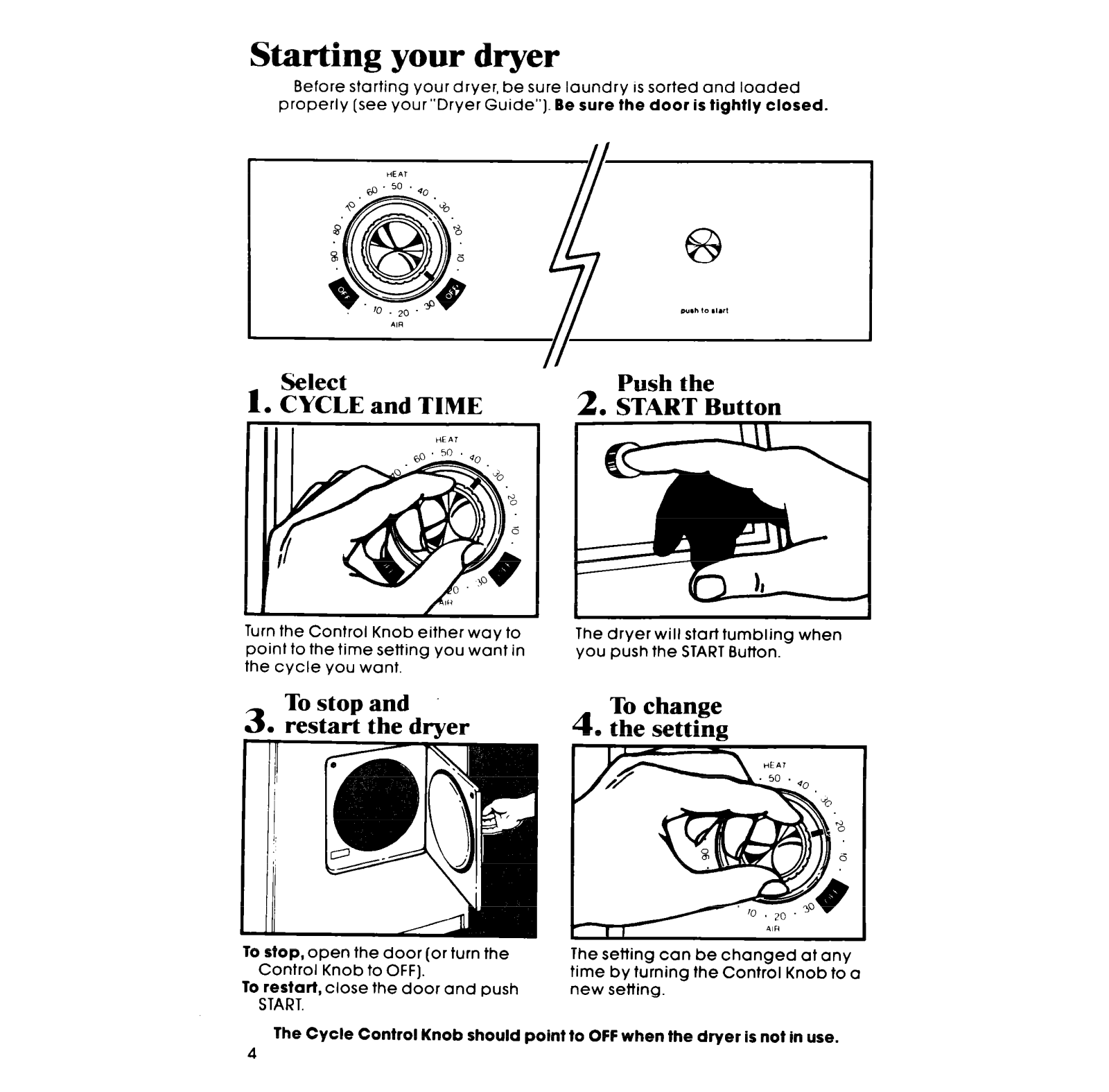

Starting your dryer
Before starting your dryer, be sure laundry IS sorted and loaded
properly [see your”Dryer Guide”]. Be sure the door is tightly closed.
1. ?&?l!E and TIME
Turn the Control Knob either way to
point to the time setting you want in
the cycle you want.
To stop and
3. restart the dryer
2.
RZ!!hegutton
The dryer will start tumbling when
you push the START Button.
To change
4. the setting
To stop, open the door (or turn the
Control Knob to OFF].
To restart, close the door and push
START.
The Cycle Control Knob should point to OFF when the dryer is not in use.
4
The setting can be changed at any
time by turning the Control Knob to a
new setting.
