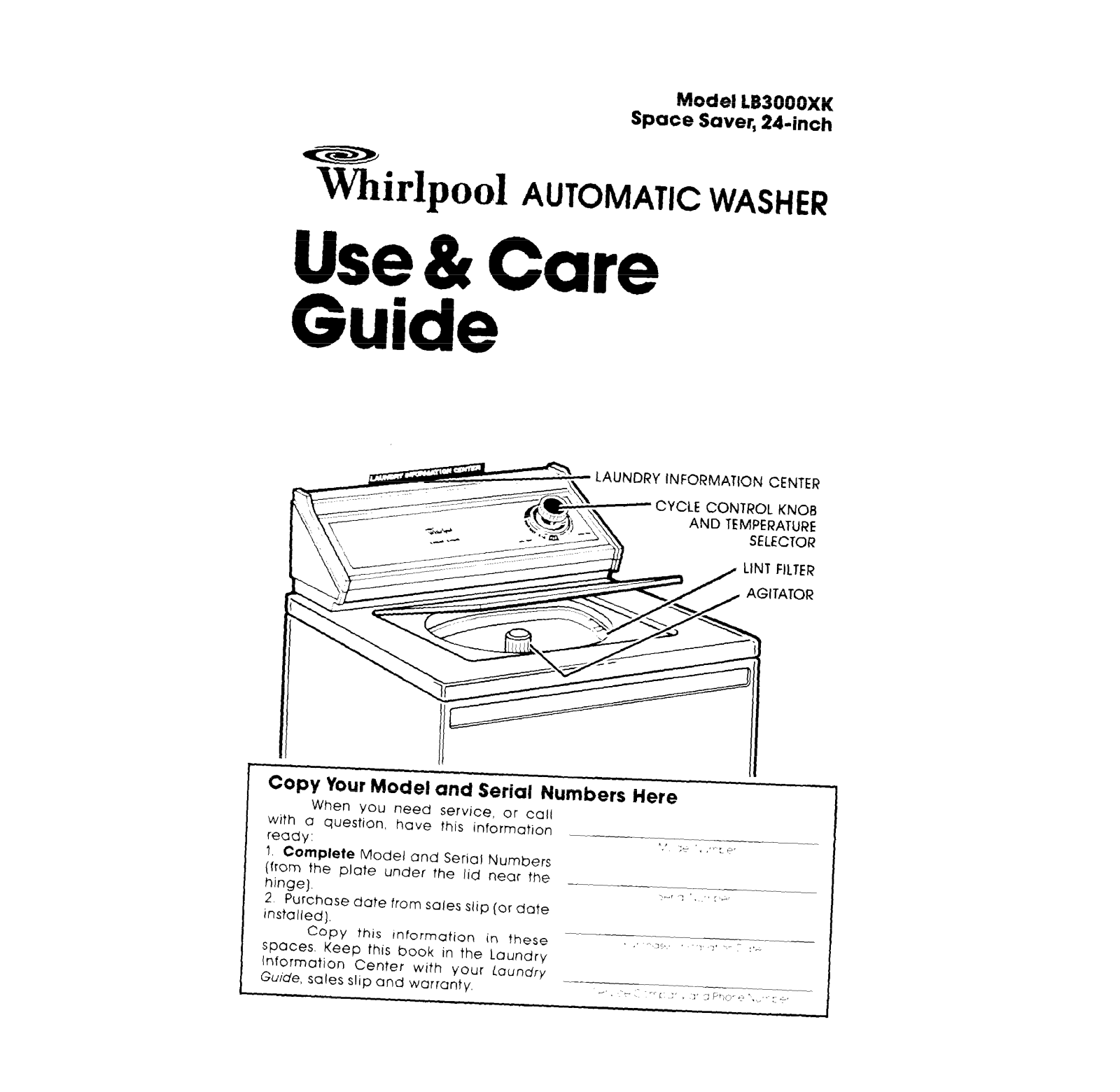

Whirlpool LB3000XK User Manual
Model LB3000XK
Space Saver, 241inch
whirlpool
AUTOMATIC WASHER
Use& Care
Guide
Copy
with a
ready:
1. Complete Model and Serial Numbers
(from the plate under the lid near the
hinge).
2
installed).
spaces. Keep this book in the Loun(
information Center with your laun,
Guide, sales slip and warrantv.
Your Model and Serial Numbers Here
When YOU need service, or call
question, have this information
Purchase date from sales slip (or date
Copy this rnformation

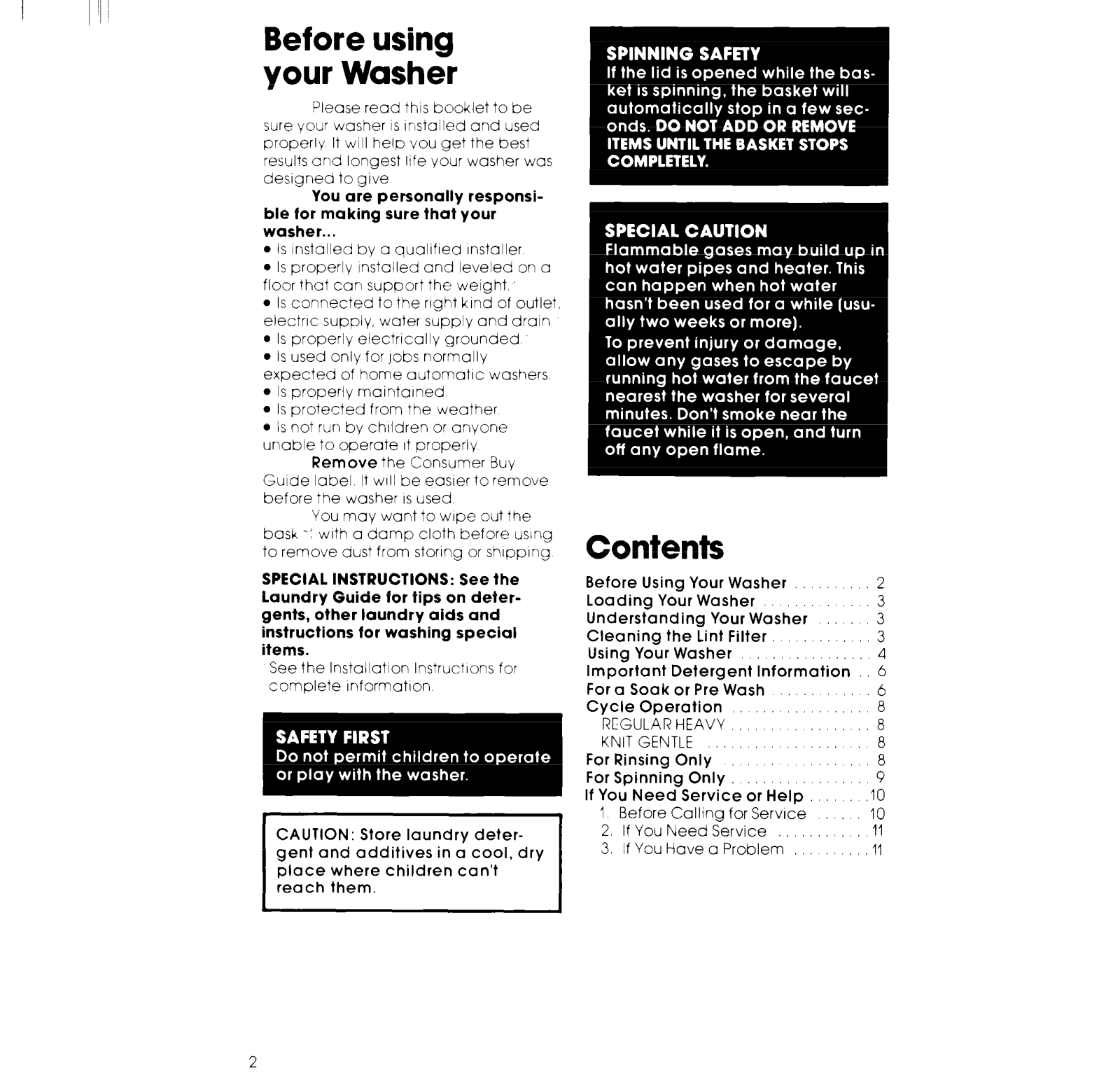

Before using
your Washer
Please read this booklet to be
sure your washer IS Installed and used
properly It WIII help vou get the best
results ond longest life your washer was
deslgned to give
You are personally responsible for making sure that Your
washer.. .
l
Is installed by a quaIlfled Installer
l
Is properly installed and leveled on a
floor that can support the weight
l
Is connected to the right kind of outlet,
electric supply, water supply and drain
l
Is properly electrically grounded
l
Is used only for jobs normally
expected of home outomotlc washers
l
Is properly maintained
l
Is protected from the weather
l
Is not run by children or anyone
unable to operate It properly
Remove
Guide label It WIII be easier to remove
before the washer IS used
You may want to wipe out the
bask -: with a damp cloth before using
to remove dust from storing or shlpplng
SPECIAL INSTRUCTIONS: See the
laundry Guide for tips on detergents, other laundry aids and
instructions for washing special
items.
See the Installation InstructIons for
complete information
r
CAUTION: Store laundry detergent and additives in a cool, dry
place where children can’t
reach them.
the Consumer Buy
Contents
Before Using Your Washer
Loading Your Washer
Understanding Your Washer
Cleaning the Lint Filter.
Using Your Washer

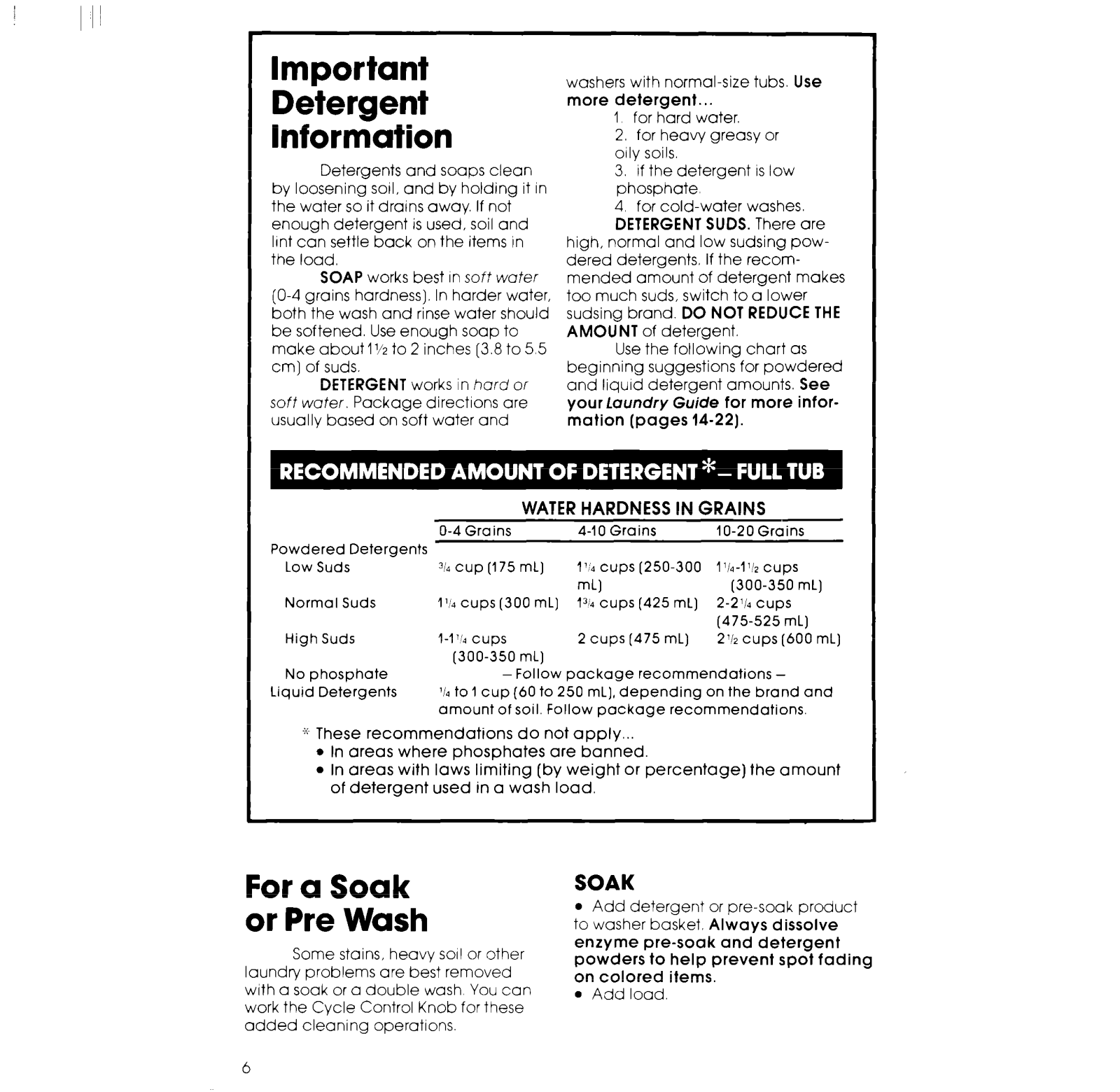

Important Detergent Information

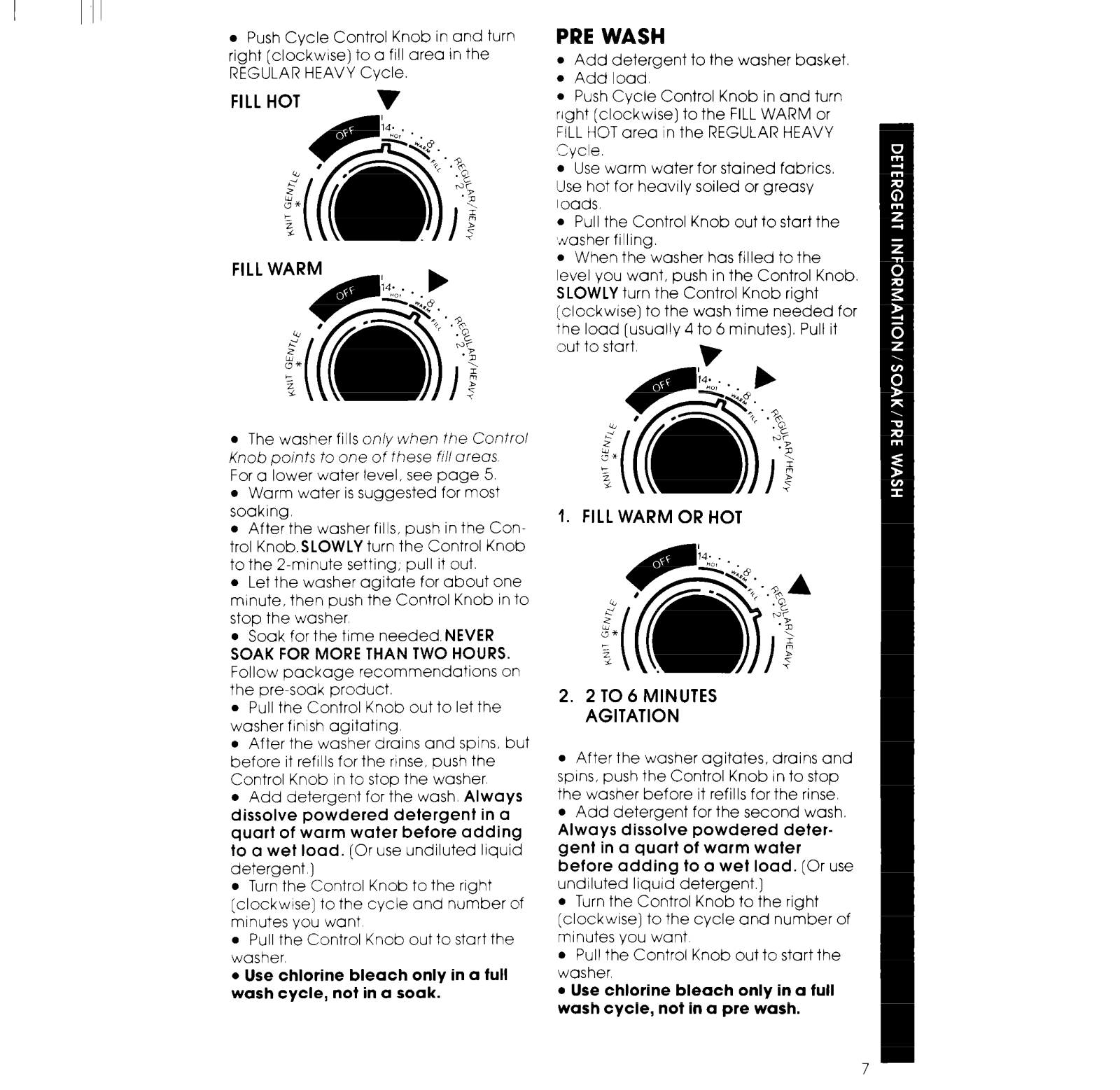

For a Soak or Pre Wash

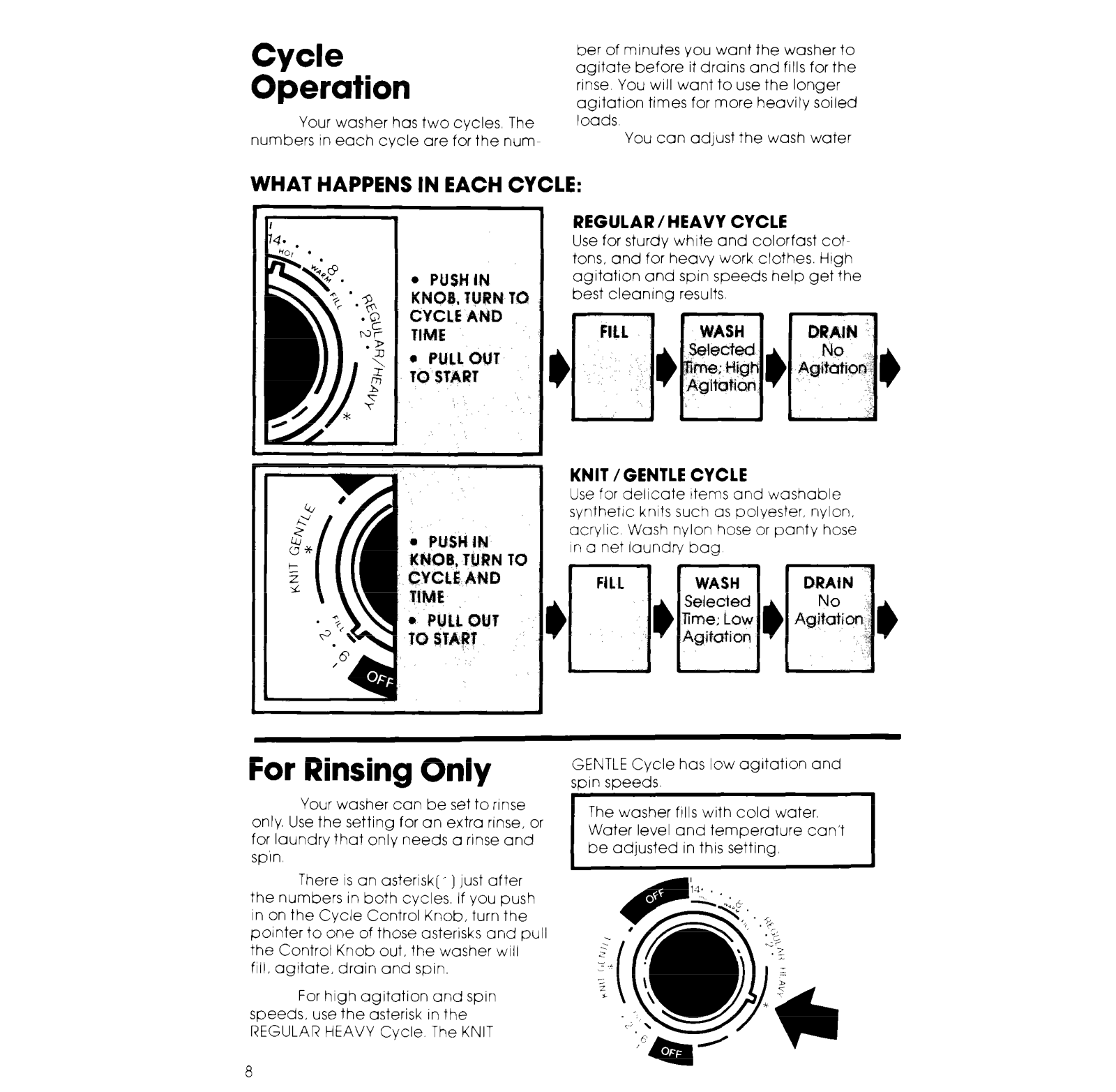

Cycle Operation
REGULARHEAVY
KNIT GENTLE :
For Rinsing Only

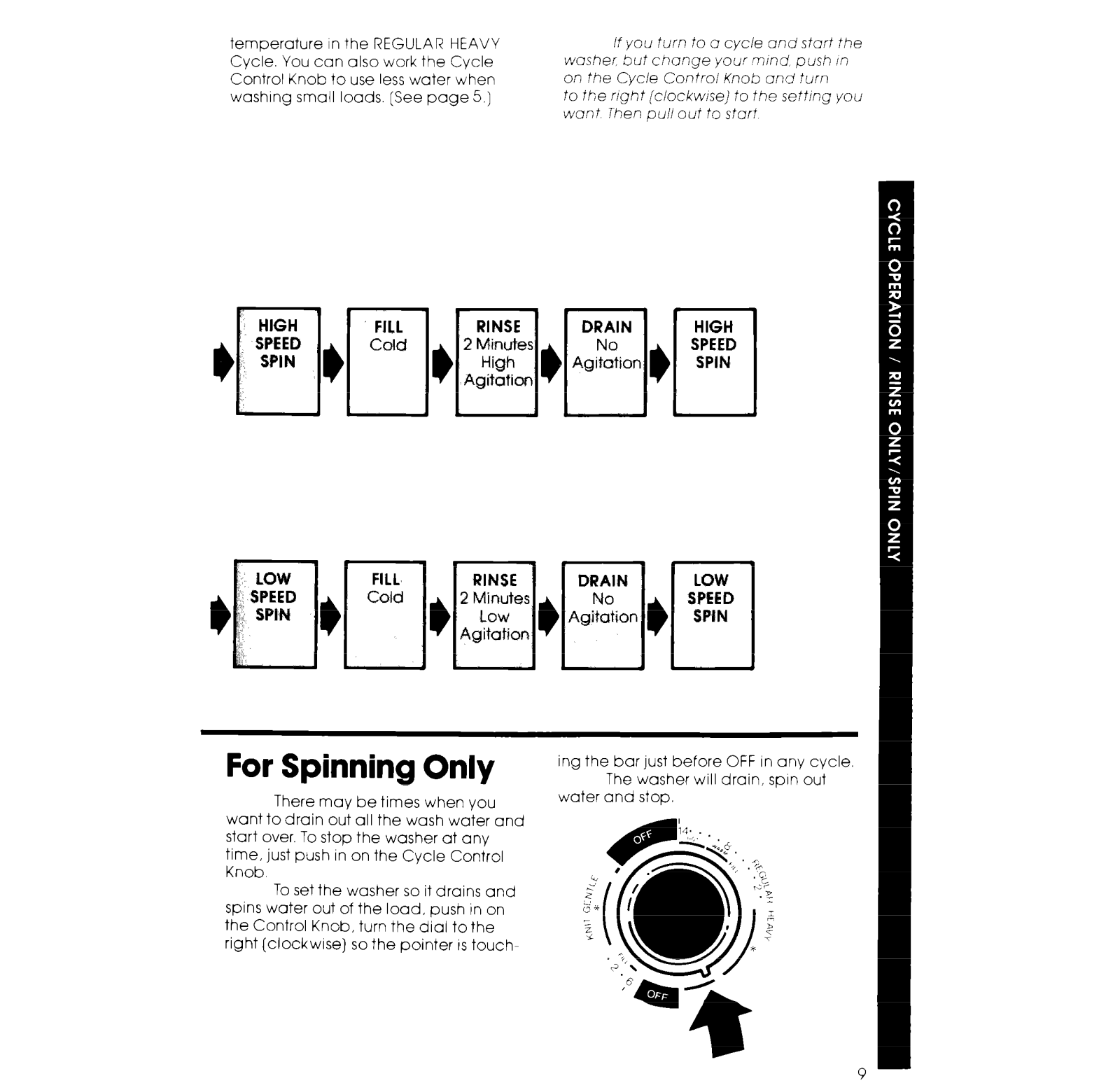

For Spinning Only

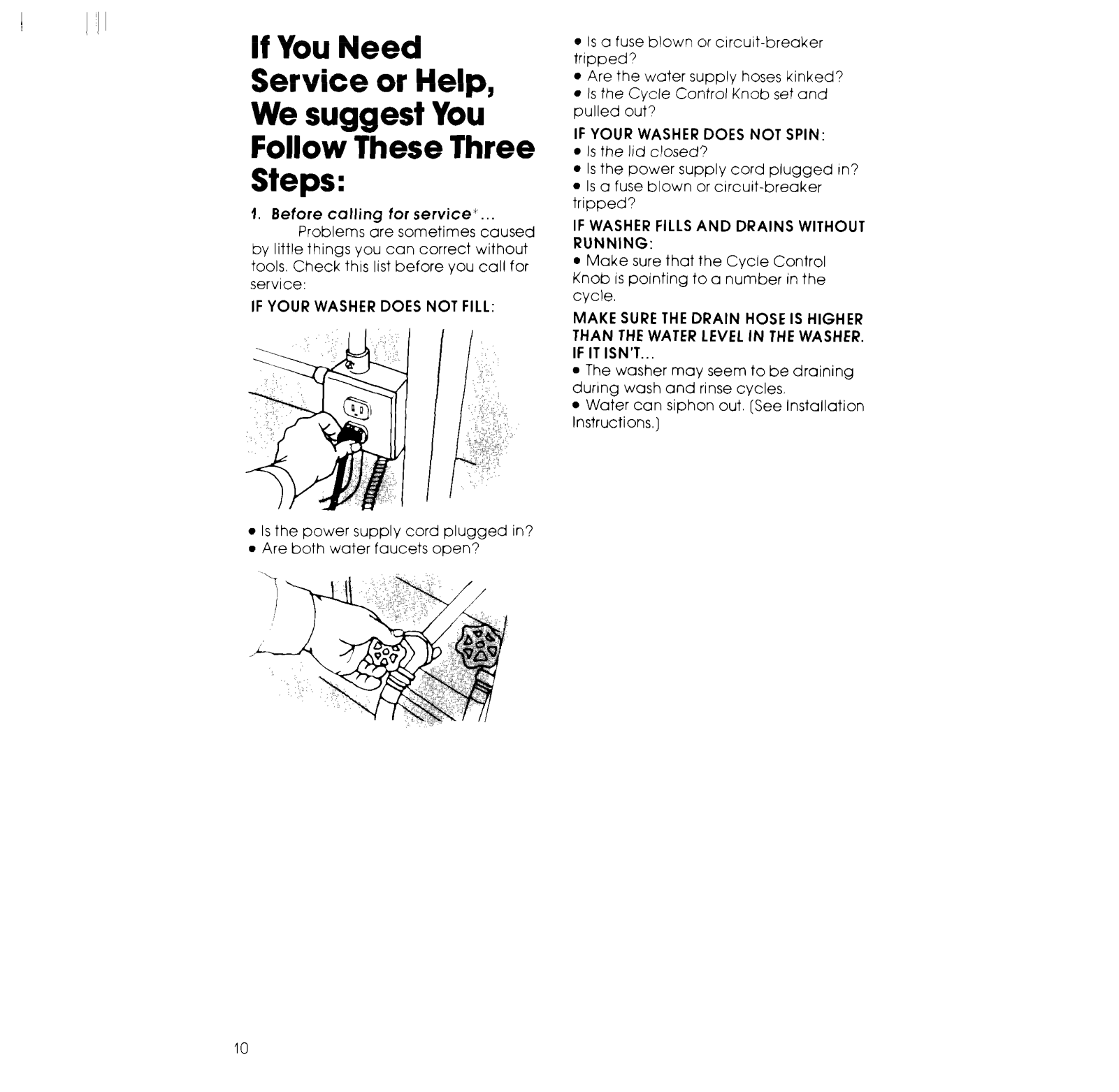

If You Need Service or Help
1 Before Calling for Servrce
1
2.

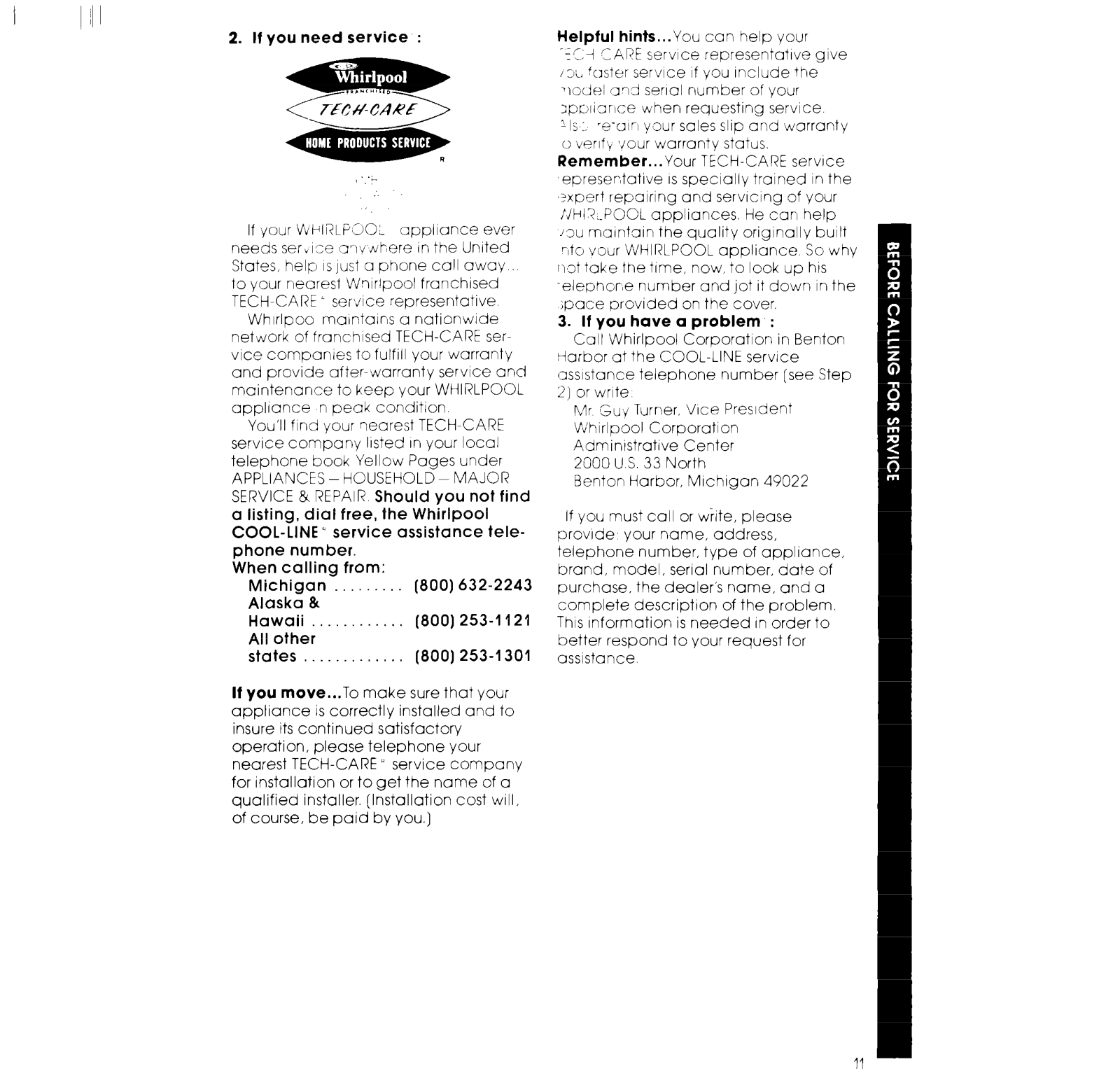

If You Need Service
3. If You Have a Problem
2
3
3
3
4
.6
.6
a
8
a
8
9
.I0
10
11
11

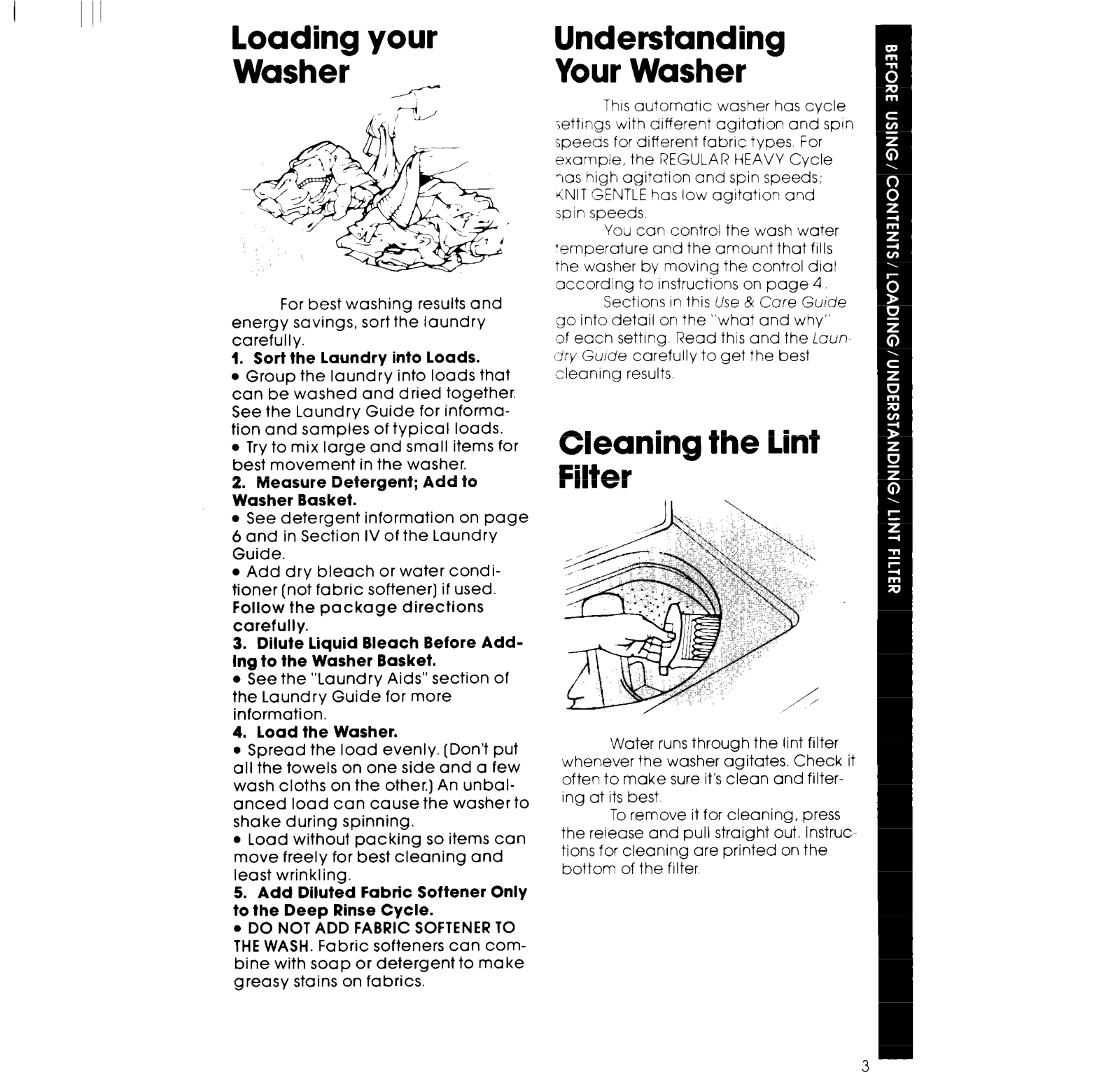

loading your
Understanding
Washer
For best washing results and
energy savings, sort the laundry
carefully.
1. Sort the Laundry into loads.
l
Group the laundry into loads that
can be washed and dried together.
See the Laundry Guide for information and samples of typical loads.
l
Try to mix large and small items for
best movement in the washer.
2. Measure Detergent; Add to
Washer Basket.
l
See detergent information on page
6 and in Section IV of the Laundry
Guide.
l
Add dry bleach or water conditioner (not fabric softener) if used.
Follow the package directions
carefully.
3. Dilute liquid Bleach Before AddIng to the Washer Basket.
l
See the “Laundry Aids” section of
the Laundry Guide for more
information.
4. load the Washer.
l
Spread the load evenly. [Don’t put
all the towels on one side and a few
wash cloths on the other.) An unbalanced load can cause the washer to
shake during spinning.
l
Load without packing so items can
move freely for best cleaning and
least wrinkling.
5. Add Diluted Fabric Softener Only
to the Deep Rinse Cycle.
. DO NOT ADD FABRIC SOFTENER TO
THE WASH. Fabric softeners can com-
bine with soap or detergent to make
greasy stains on fabrics.
---
Your Washer
This automatic washer has cycle
jettlngs with different agltatlon and spin
speeds for different fabric types For
example, the REGULAR HEAVY Cycle
70s high agitation and spin speeds;
<NIT GENTLE has low agltatlon and
spin speeds
You can control the wash water
‘emperature and the amount that fills
the washer by moving the control dial
according to instructions on page 4
Sections
go into detail on the “what and why”
of each setting Read this and the Launl-iry Guide carefully to get the best
,zleaning results.
in
this Use & Care Guide
Cleaning the Lint Filter
Water runs through the lint filter
whenever the washer agitates. Check it
often to make sure it’s clean
Ing at its best
To remove it for cleaning, press
the release and pull straight out. lnstructions for cleaning are printed on the
bottom of the filter
and filter-

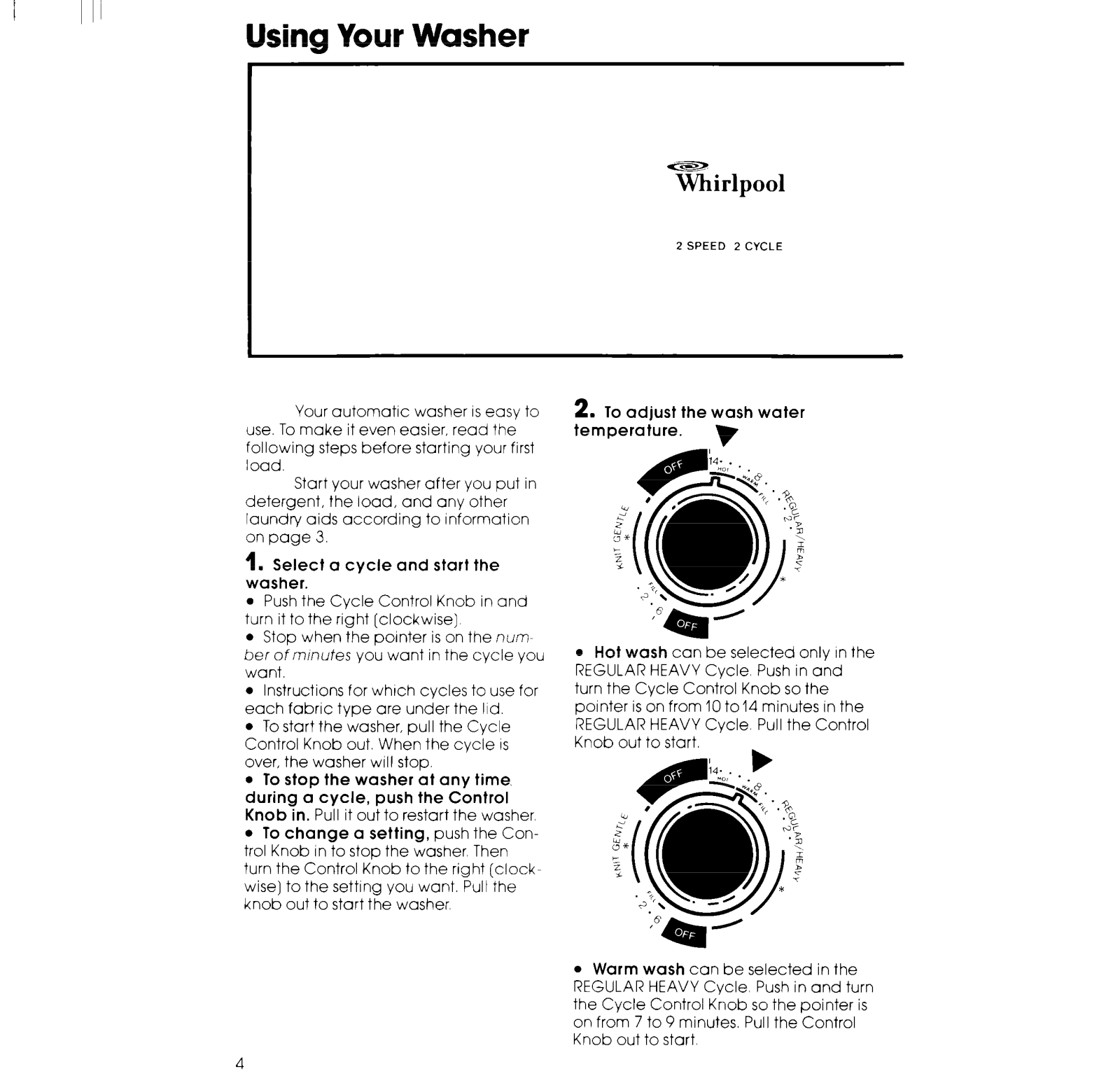

Using Your Washer
-zYeize
Whirlpool
ZSPEED ZCYCLE
Your automatic washer
use.
To make it even easier, read the
IS easy to
following steps before starting your first
load.
Start your washer after you put in
detergent, the loud, and any other
laundry aids according to Information
on page 3.
1.
Select a cycle and start the
washer.
l
Push the Cycle Control Knob in and
turn it to the right [clockwise]
l
Stop when the pointer is on the number of minutes you want in the cycle you
want.
l
Instructions for which cycles to use for
each fabric type are under the lid.
l
To start the washer, pull the Cycle
Control Knob out. When the cycle IS
over, the washer WIII stop.
l
To stop the washer at any time.
during a cycle, push the Control
Knob in.
l
trol Knob in to stop the washer Then
turn the Control Knob to the right (clockwise] to the setting you want. Pull the
knob out to start the washer
Pull it out to restart the washer
To change Q setting,
push the Con-
2. To adjust the wash water
temperature. )
l
Hot wash
REGULAR HEAVY Cycle Push in and
turn the Cycle Control Knob so the
pointer is on from 10 to14 minutes in the
REGULAR HEAVY Cycle Pull the Control
Knob out to start.
can be selected only in the
l
Warm wash
can
be selected in the
REGULAR HEAVY Cycle Push in and turn
the Cycle Control Knob so the pointer is
on from 7 to 9 minutes. Pull the Control
Knob out to start
4
