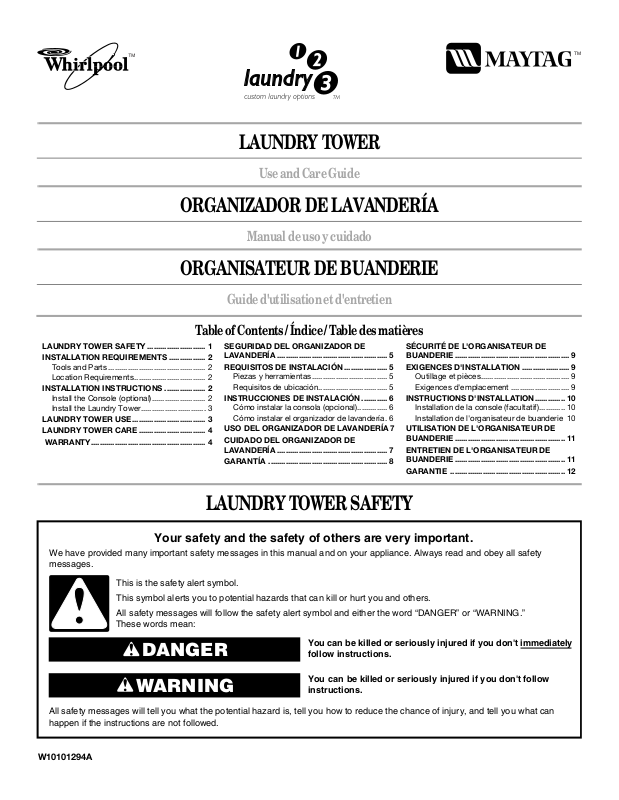

Laundry Tower
ORGANIZADOR DE LAVANDERÍA
ORGANISATEUR DE BUANDERIE
Table of Contents / Índice / Table des matières
LAUNDRY TOWER SAFETY ........................... 1
INSTALLATION REQUIREMENTS ................. 2
Tools and Parts ............................................. 2
Location Requirements................................. 2
INSTALLATION INSTRUCTIONS ................... 2
Install the Console (optional)......................... 2
Install the Laundry Tower.............................. 3
LAUNDRY TOWER USE.................................. 3
LAUNDRY TOWER CARE ............................... 4
WARRANTY..................................................... 4
LAUNDRY TOWER
Use and Care Guide
Manual de uso y cuidado
Guide d'utilisation et d'entretien
SEGURIDAD DEL ORGANIZADOR DE
LAVANDERÍA ................................................... 5
REQUISITOS DE INSTALACIÓN .................... 5
Piezas y herramientas................................... 5
Requisitos de ubicación................................ 5
INSTRUCCIONES DE INSTALACIÓN ............ 6
Cómo instalar la consola (opcional).............. 6
Cómo instalar el organizador de lavandería . 6
USO DEL ORGANIZADOR DE LAVANDERÍA7
CUIDADO DEL ORGANIZADOR DE
LAVANDERÍA ................................................... 7
GARANTÍA ....................................................... 8
TM
SÉCURITÉ DE L'ORGANISATEUR DE
BUANDERIE ..................................................... 9
EXIGENCES D'INSTALLATION ...................... 9
Outillage et pièces......................................... 9
Exigences d'emplacement ........................... 9
INSTRUCTIONS D'INSTALLATION.............. 10
Installation de la console (facultatif)............ 10
Installation de l'organisateur de buanderie 10
UTILISATION DE L'ORGANISATEUR DE
BUANDERIE ................................................... 11
ENTRETIEN DE L'ORGANISATEUR DE
BUANDERIE ................................................... 11
GARANTIE ..................................................... 12
LAUNDRY TOWER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don't immediately
DANGER
WARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
W10101294A
follow instructions.
can be killed or seriously injured if you don't
You
instructions.
follow
INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Too ls Re qui red
■ When you are installing your laundry tower between or next to
your washer and dryer, a spacing of 1" (2.5 cm) on the sides of
the laundry tower is recommended to reduce noise transfer.
■ Additional spacing should be considered for ease of
installation and servicing.

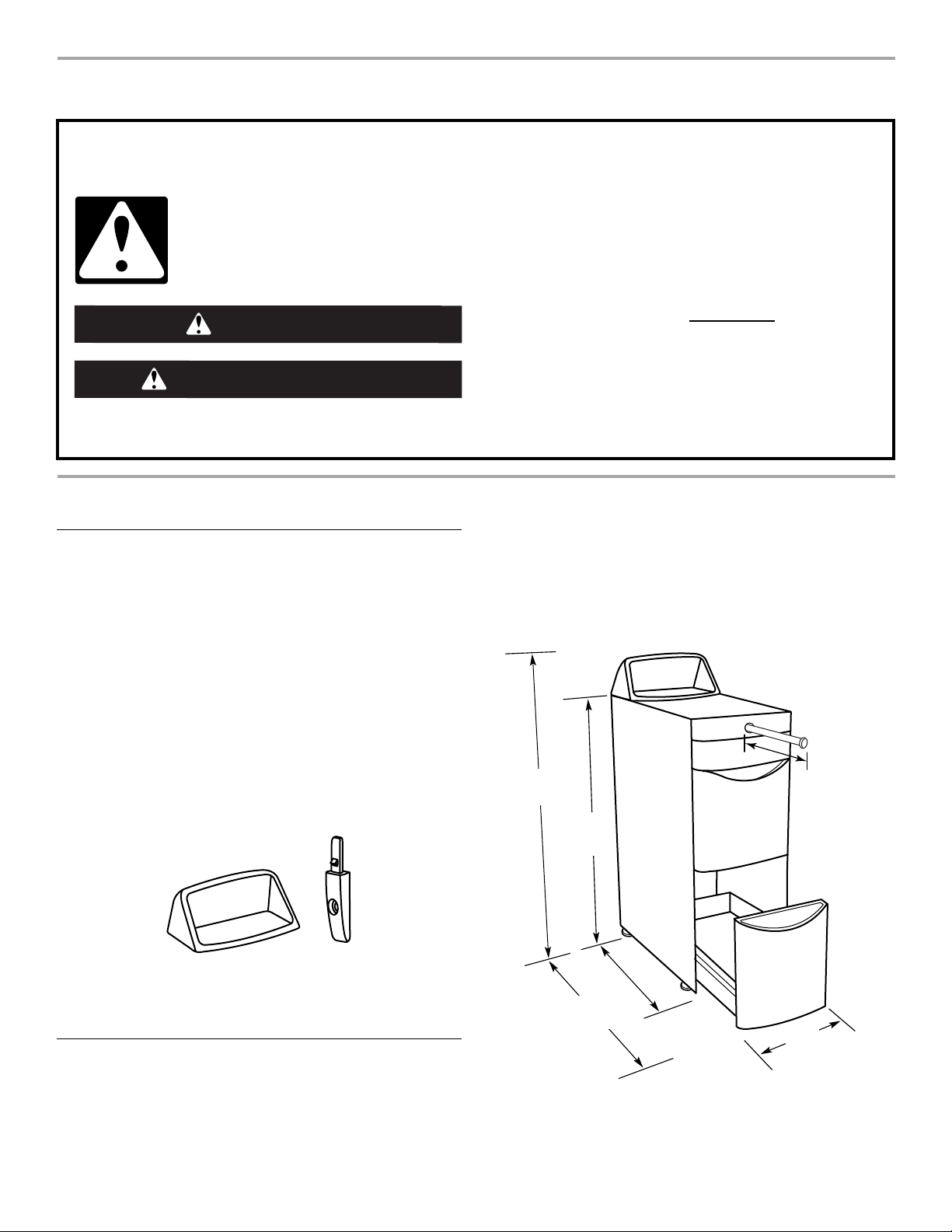

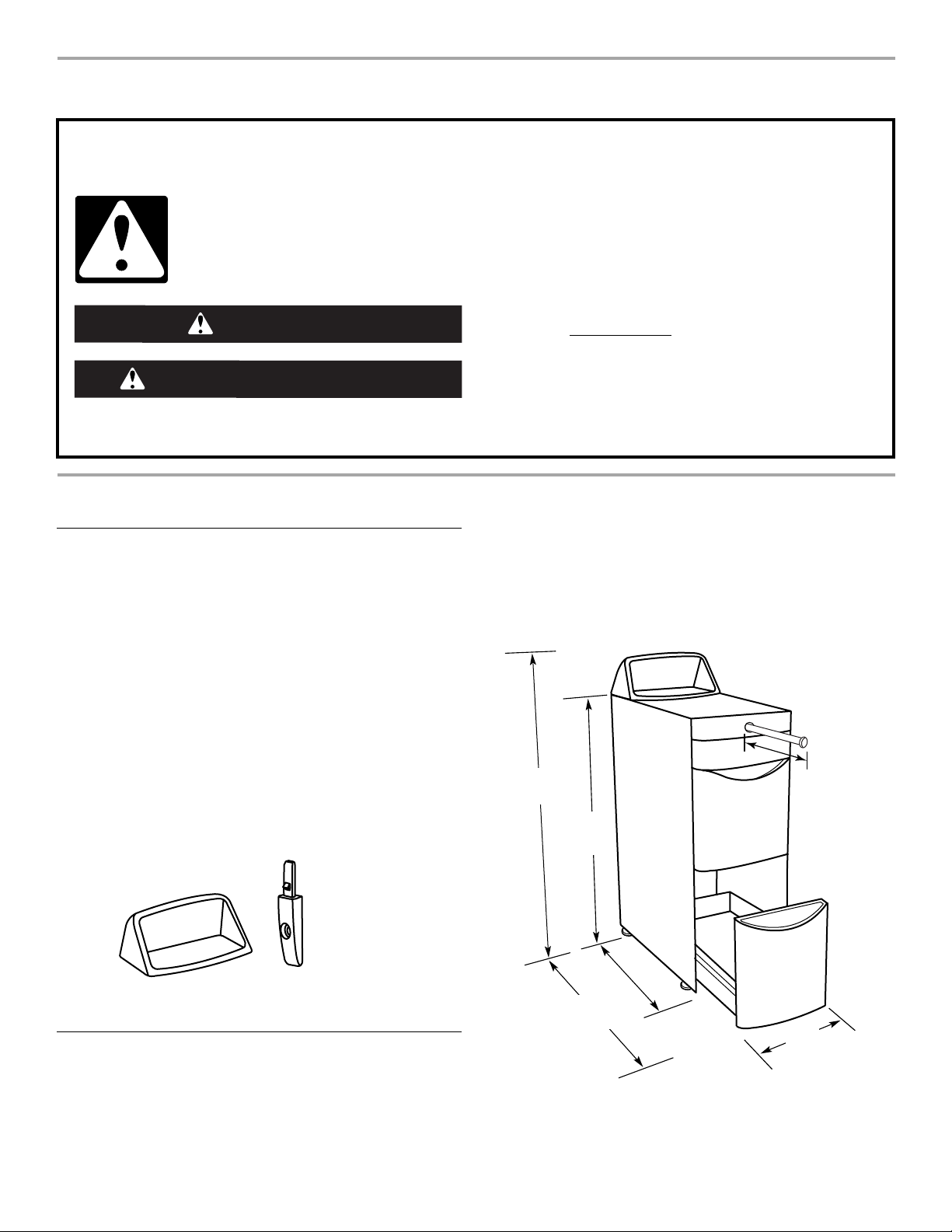

Laundry Tower Dimensions
■ Phillips screwdriver
■ ⁹⁄₁₆" (14 mm) open-end
■ Level
■ Measuring tape
wrench (for leveling leg
locknuts)
Parts Supplied
■ Console
■ Screws (2)
■ Brackets (2)
A
A. Console
B. Bracket
B
Location Requirements
Your laundry tower can be installed freestanding or between your
washer and dryer. Proper installation is your responsibility.
Installation Clearances
■ The location must be large enough to allow the drawers to be
fully opened.
10"
40 ⁷⁄₈"*
(103.8 cm)
36" - 38"
(91.4 -
96.5 cm)
43 ¹⁄₂"
(110.4 cm)
†
25 ³⁄₄"**
(65.4 cm)
(25.4 cm)
13 ¹⁄₂"
(34.3 cm)
*Includes leveling feet
**Includes drawer front
†
Adjust the leveling feet to match the height of your washer and
dryer.
INSTALLATION INSTRUCTIONS

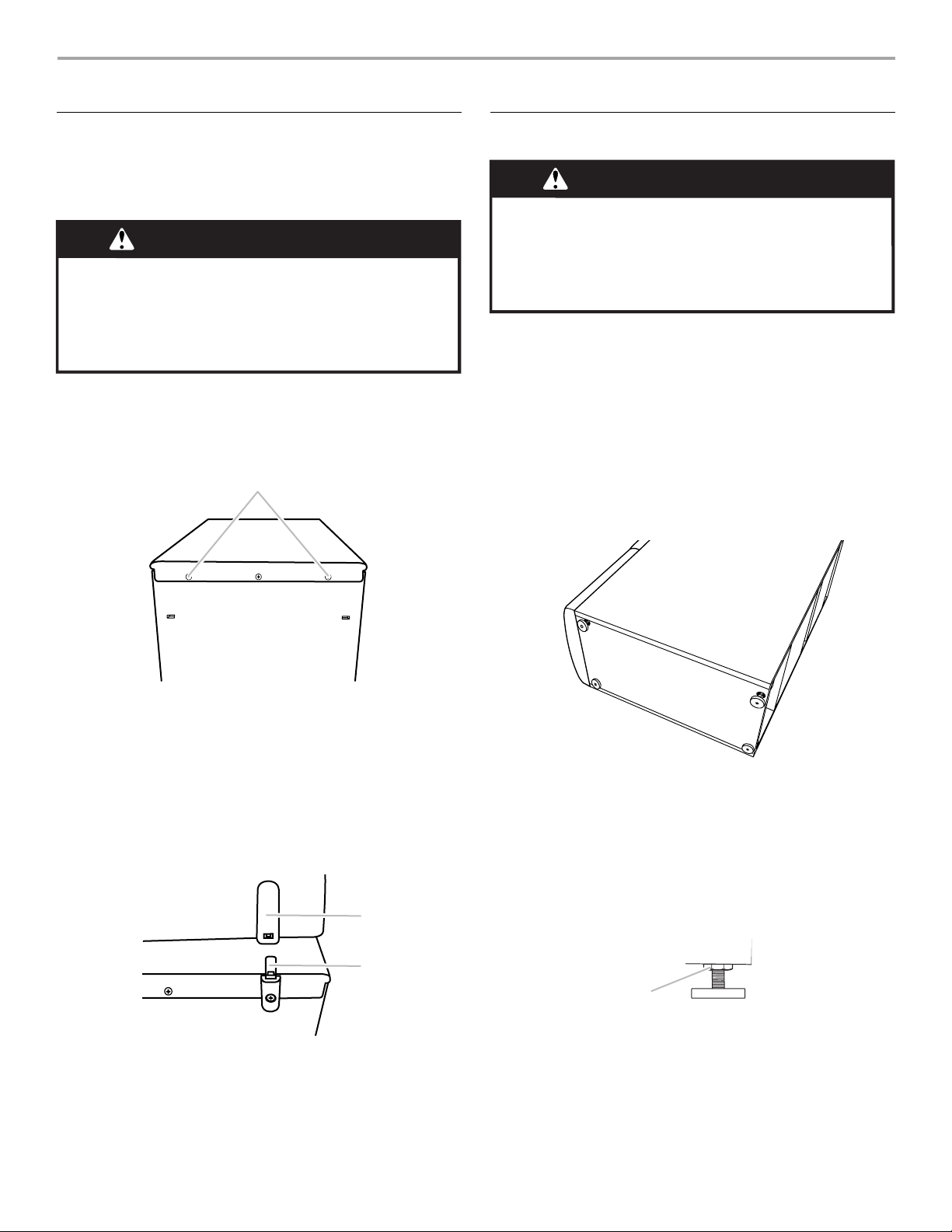

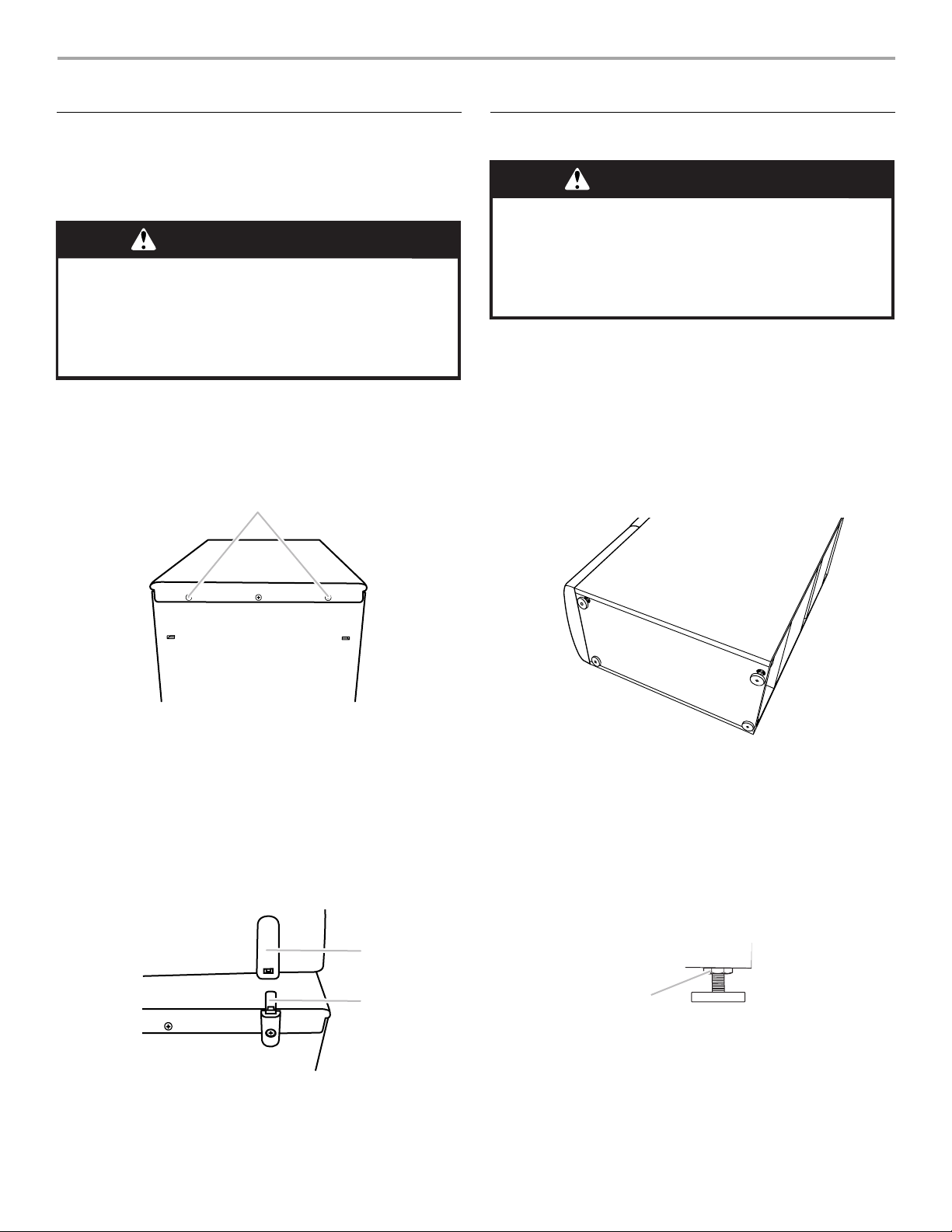

Install the Console (optional)
The console is an optional feature of your laundry tower. It allows
you to match the style of your laundry tower to that of a toploading washer, and it provides additional storage space.
WARNING
Excessive Weight Hazard
Use two or more people to move and install
laundry tower.
Failure to do so can result in back or other injury.
1. Situate the laundry tower near its final location. Open the
drawers to remove any contents stored inside.
2
2. Using a Phillips screwdriver, remove the 2 outside screws
from the back of the laundry tower top panel and discard
them.
A
A. Outside screws
3. Attach the brackets to the back of the laundry tower using the
A
B
screws (provided). Align the brackets so that the latch is
pointing up.
4. Attach the console to the laundry tower. Align the locators on
the console with the brackets and push down until the latches
snap into place and the magnets on the bottom of the console
attach to the top panel.
NOTE: Once installed, the console can be removed only by
removing the 2 console screws.
A. Locator
B. Latch
Install the Laundry Tower
WARNING
7. Once the laundry tower is at the appropriate height and is
level, use a ⁹⁄₁₆" (14 mm) open-end wrench to securely tighten
all four locknuts against the laundry tower.
A
A. Locknut
8. Using two or more people, slide the laundry tower into its final
location and confirm height and levelness.

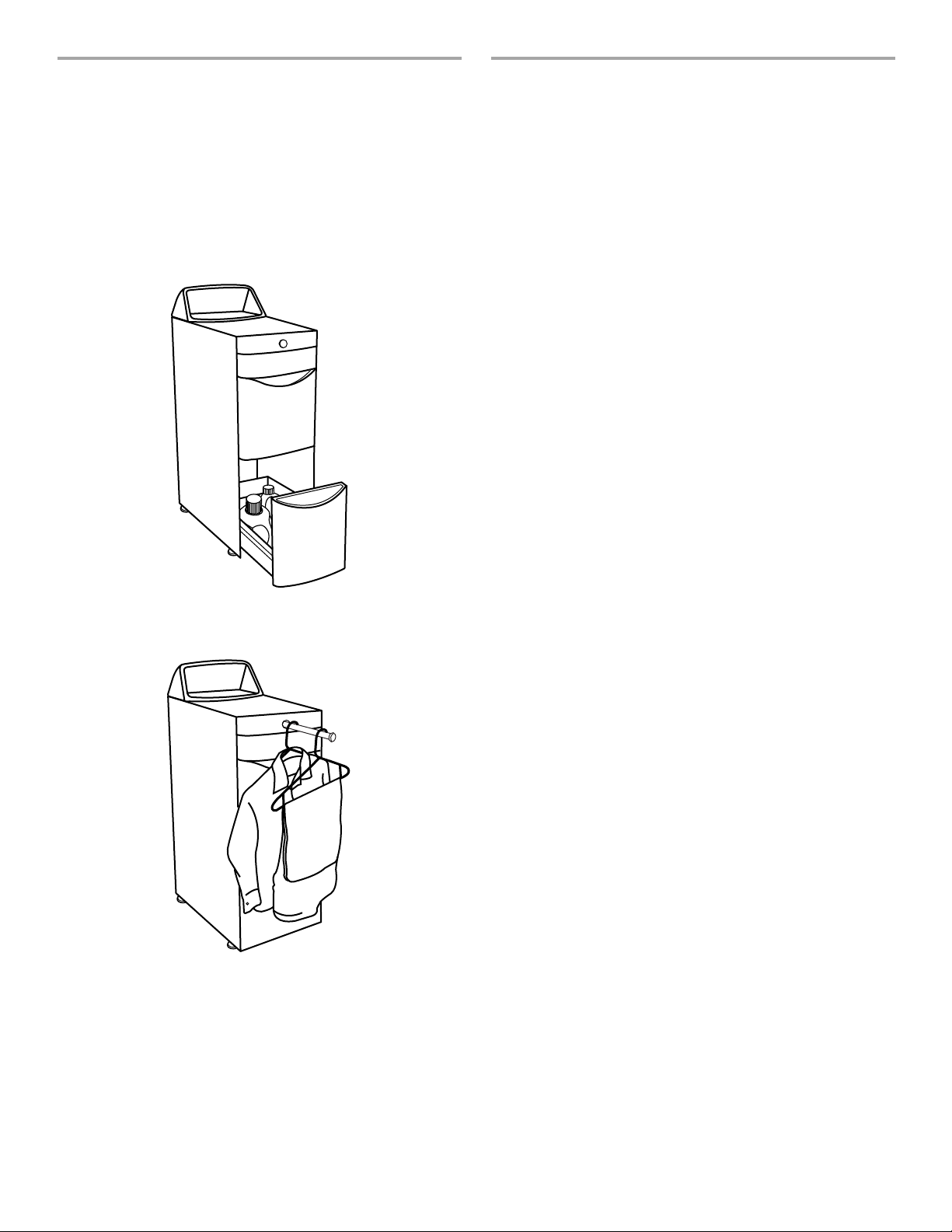

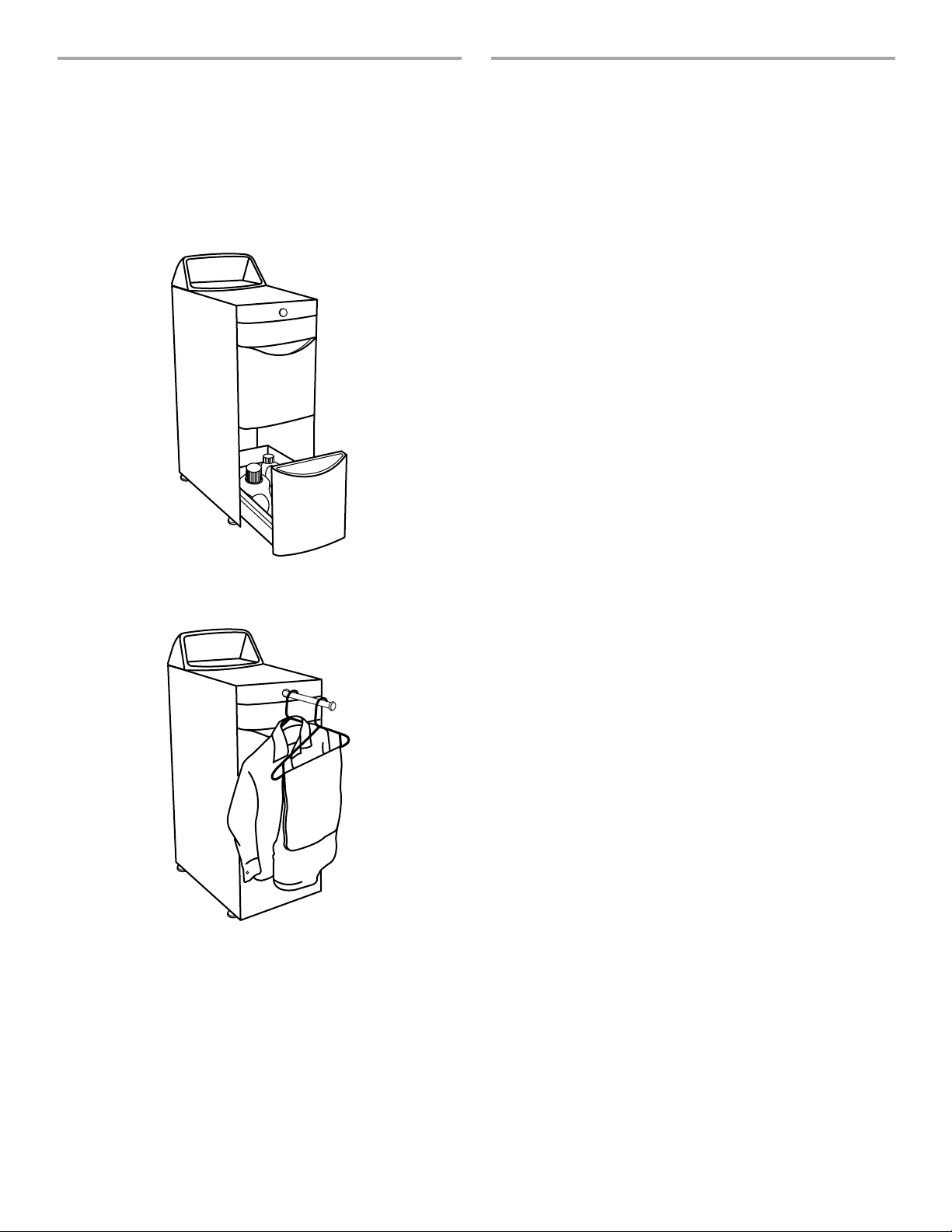

LAUNDRY TOWER USE
Your laundry tower has several uses.
■ The top drawer and console provide storage and organization
for small items.
■ The bottom drawers provide convenient storage space for
large items such as detergent bottles.
Excessive Weight Hazard
Use two or more people to move and install
laundry tower.
Failure to do so can result in back or other injury.
1. Situate the laundry tower near its final location. Open the
drawers to remove any contents stored inside.
2. To determine how far to extend the leveling feet, measure the
height of the washer and/or dryer you are installing the laundry
tower next to or between.
NOTE: Refer to the laundry tower dimensions in “Location
Requirements.”
3. Place a piece of cardboard on the floor and, using two or more
people, lay the laundry tower on its side.
■ The retractable hanging rod may be used to hang several
clothing items. To open or close the hanging rod, push it in
until you hear it click.
4. Turn all four feet out to the dimension determined in Step 2.
5. Using two or more people, return the laundry tower to the
upright position.
6. Check the laundry tower height and levelness and adjust the
feet as needed.
3
LAUNDRY TOWER CARE
To clean the interior and exterior:
■ Use a soft damp cloth or sponge to wipe up any spills.
Occasionally wipe the surfaces of your laundry tower to help
keep it looking new.
■ Use mild soap and water; do not use abrasive products.
NOTE: Do not lift the front of the console off the laundry tower
without first removing the console screws.
WHIRLPOOL CORPORATION LAUNDRY PRODUCT WARRANTY
ONE YEAR LIMITED WARRANTY
For one year from the date of purchase, when this product is operated and maintained according to instructions attached to or
furnished with the product, Whirlpool or Whirlpool Canada (hereafter “Whirlpool”) will pay for factory specified replacement parts and
repair labor to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company.
ITEMS WHIRLPOOL WILL NOT PAY FOR
1. Service calls to correct the installation of your product, to instruct you how to use your product, to replace or repair house fuses or
to correct house wiring or plumbing.
2. Repairs when your product is used for other than normal, single-family household use.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in
accordance with electrical or plumbing codes, or use of products not approved by Whirlpool.
4. Replacement parts or repair labor costs for units operated outside the United States or Canada.
5. Pickup and delivery. This product is designed to be repaired in the home.
6. Repairs to parts or systems resulting from unauthorized modifications made to the product.
7. Expenses for travel and transportation for product service in remote locations.
8. The removal and reinstallation of your product if it is installed in an inaccessible location or is not installed in accordance with
published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED
HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. WHIRLPOOL SHALL NOT BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE
TO PROVINCE.
Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if
another warranty applies. If you need service, in the U.S.A., call 1-800-422-1230. In Canada, call 1-800-807-6777. 6/06
Keep this book and your sales slip together for future
reference. You must provide proof of purchase or installation
date for in-warranty service.
Write down the following information about your major product to
better help you obtain assistance or service if you ever need it.
You will need to know your complete model number and serial
number. You can find this information on the model and serial
number label located on the product.
Dealer name____________________________________________________
Address ________________________________________________________
Phone number __________________________________________________
Model number __________________________________________________
Serial number __________________________________________________
Purchase date __________________________________________________
