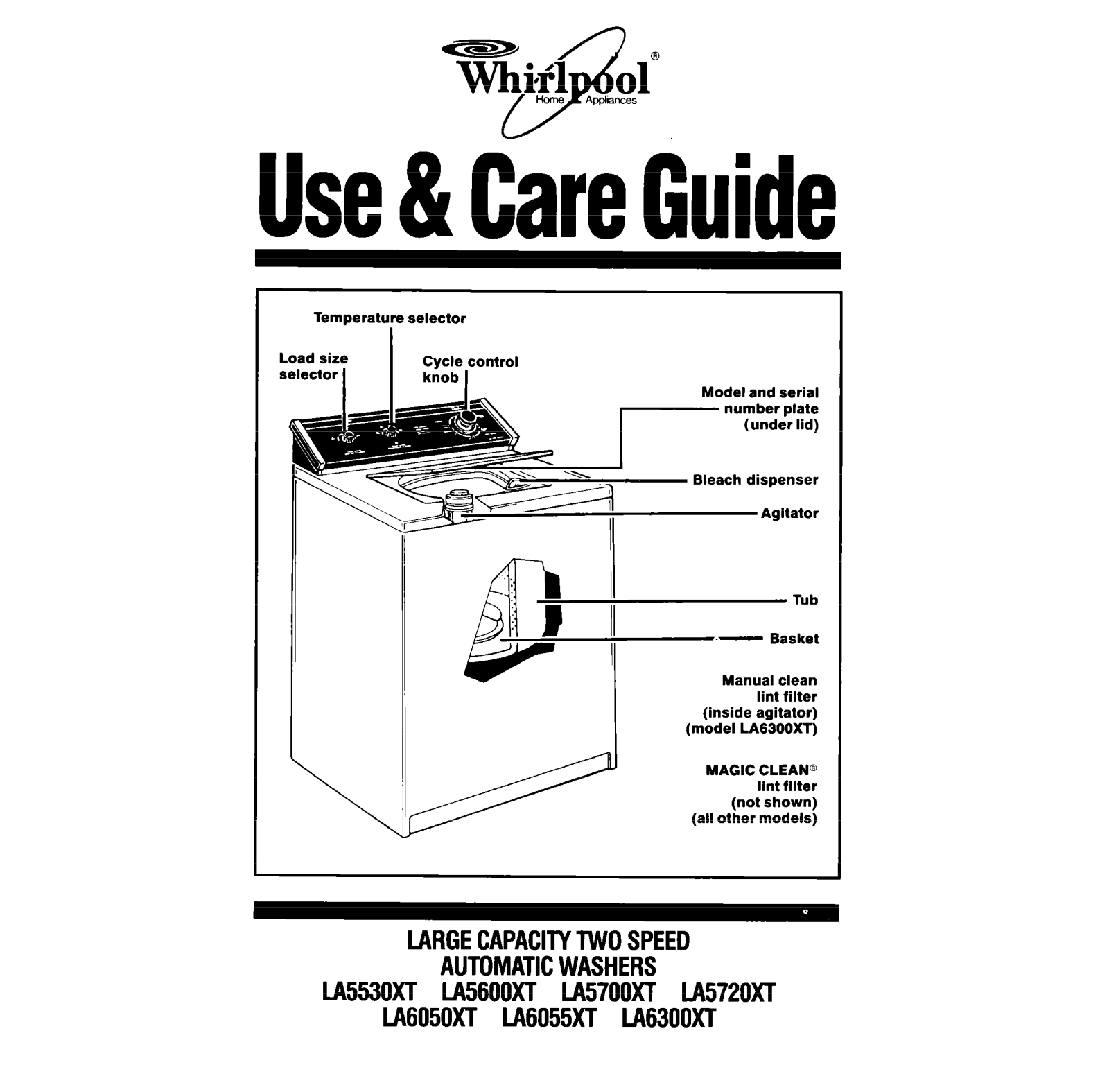

Whirlpool LA6055XT, lA56OOXT, LA57OOXT, LA572OXT User Manual
Temperature selector
Model and serial
Bleach dispenser
.- Basket
Manual clean
lint filter
(inside agitator)
(model LA6300XT)
MAGIC CLEAN”
lint filter
(not shown)
(all other models)
LARGE CAPACITY TWO SPEED
LAWOXT
LA605OXT LA6055XT LA63OOXT
AUTOMATIC WASHERS
lA56OOXT LA57OOXT LA572OXT

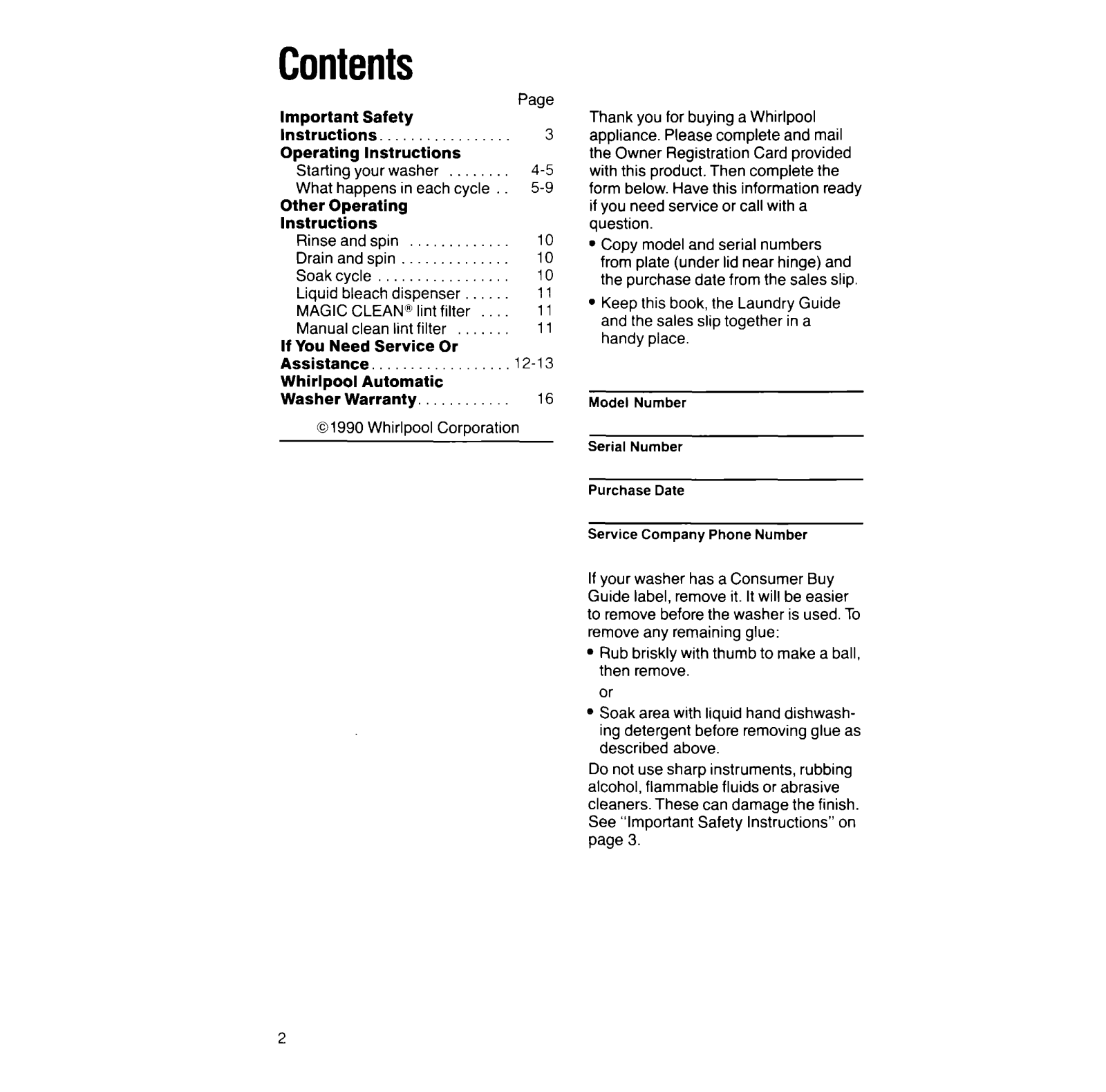

Contents
Important Safety
Instructions
Operating Instructions
Starting your washer
What happens in each cycle
Other Operating
Instructions

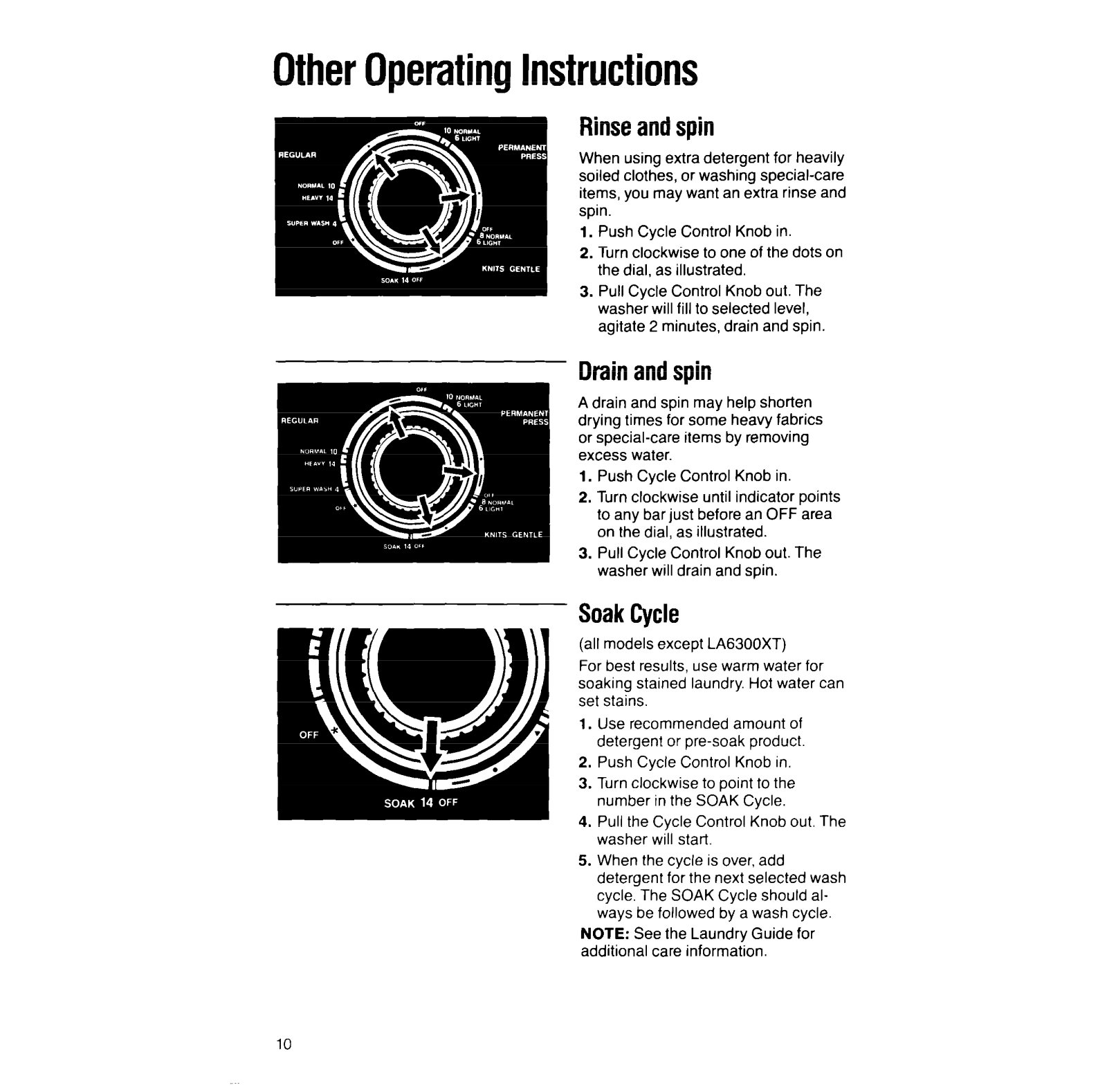

Rinse and spin
Drain and spin

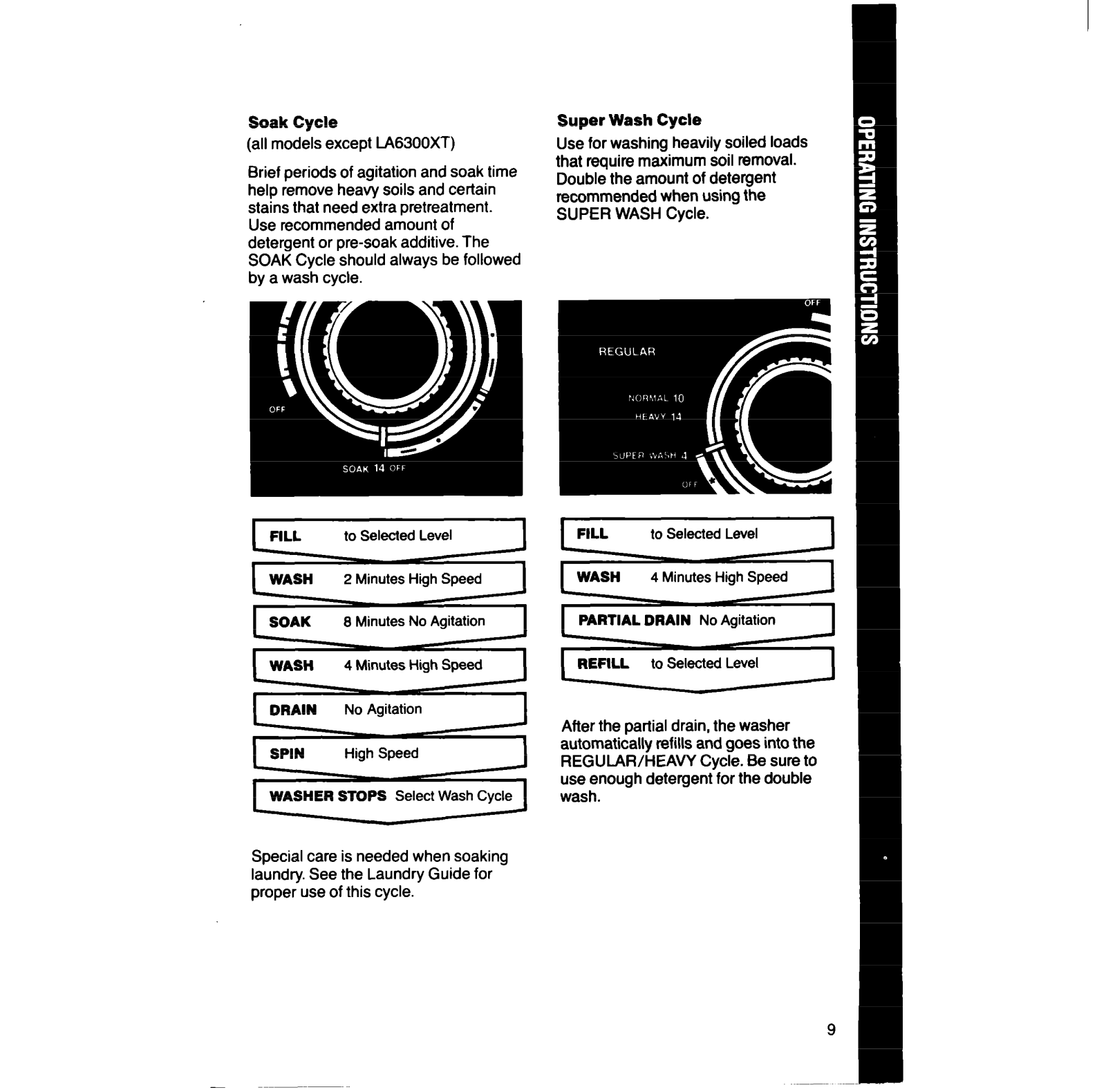

Soak cycle

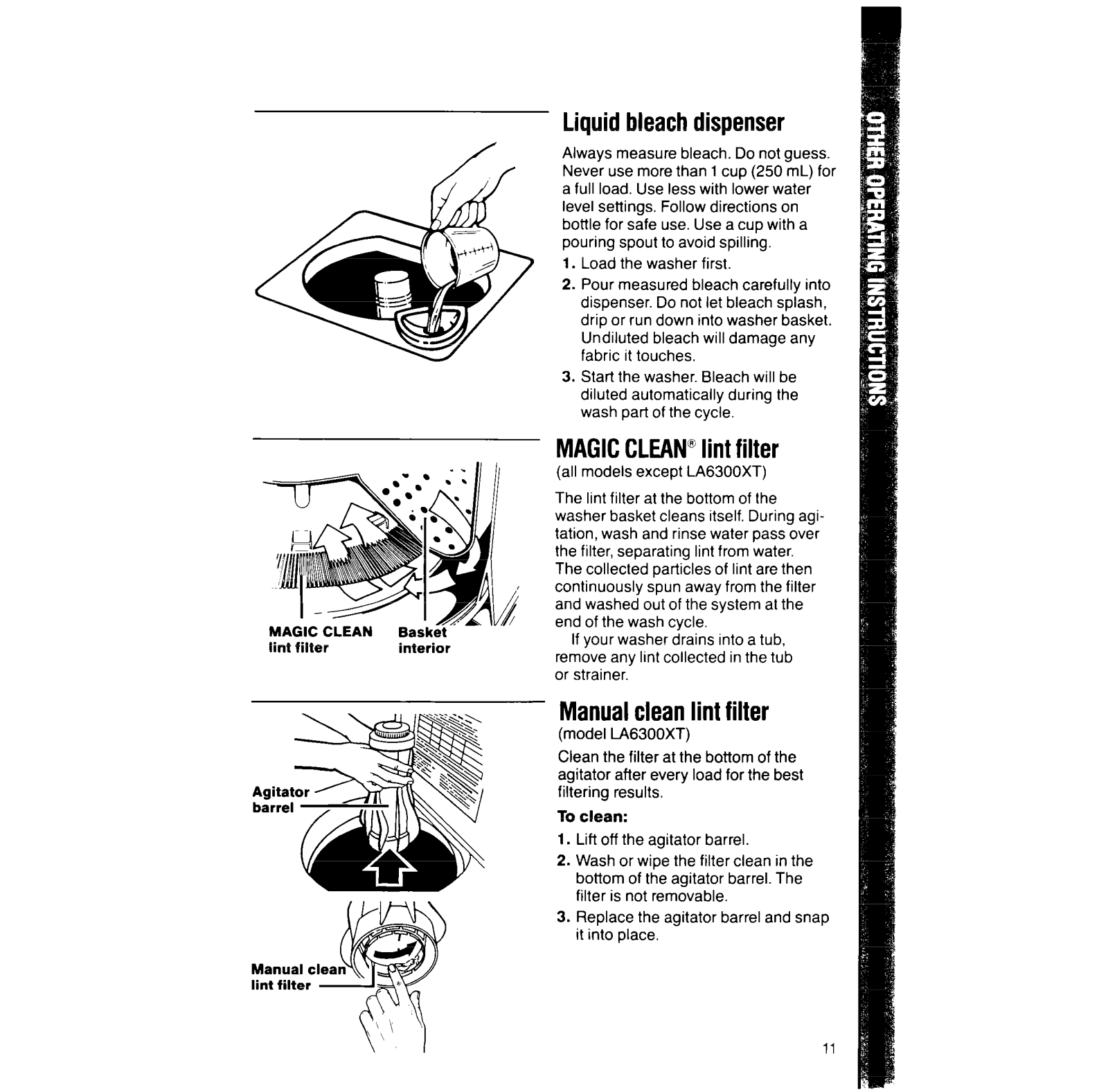

Liquid bleach dispenser
MAGIC CLEAN@ lint filter
Manual clean lint filter

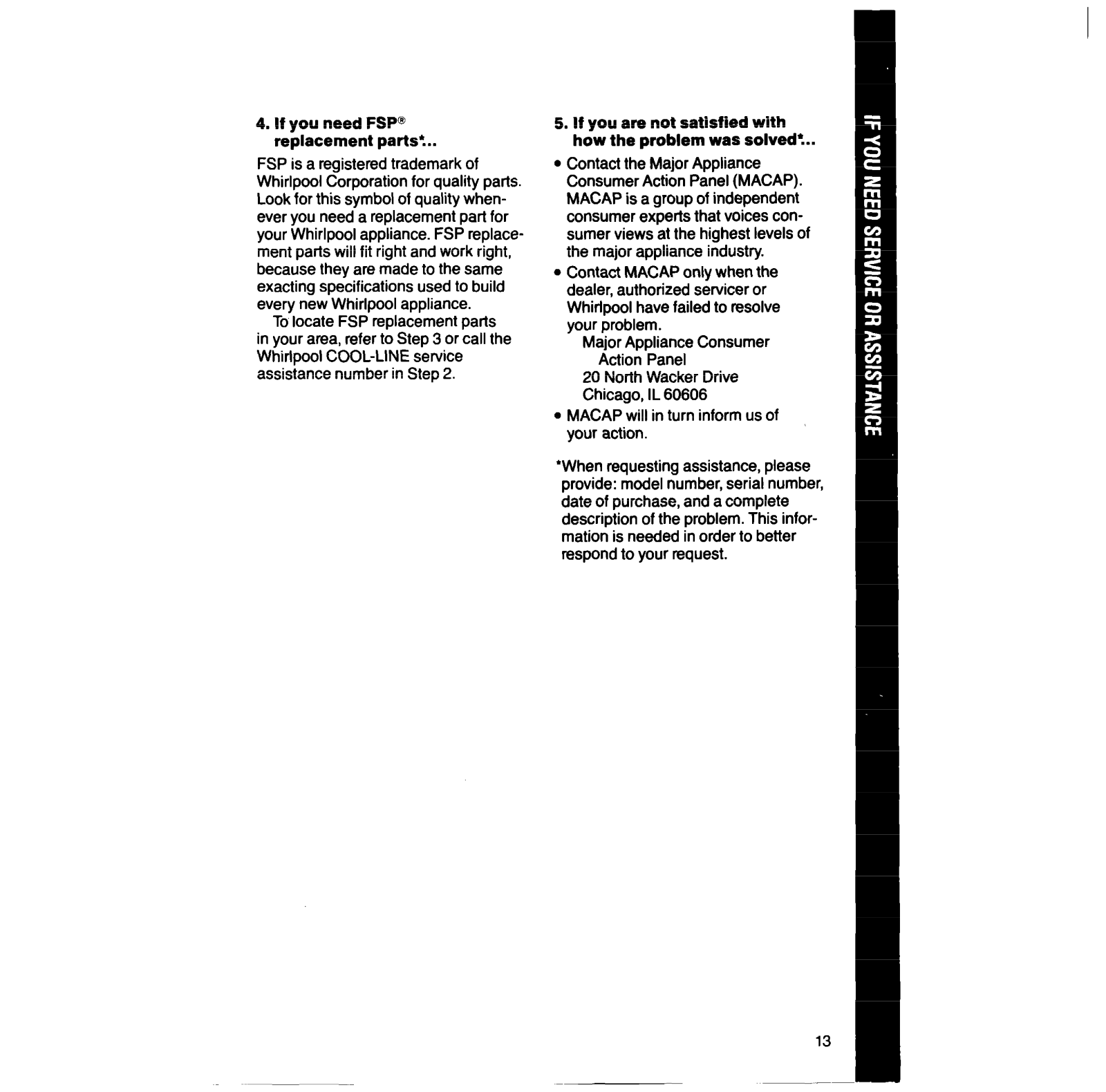

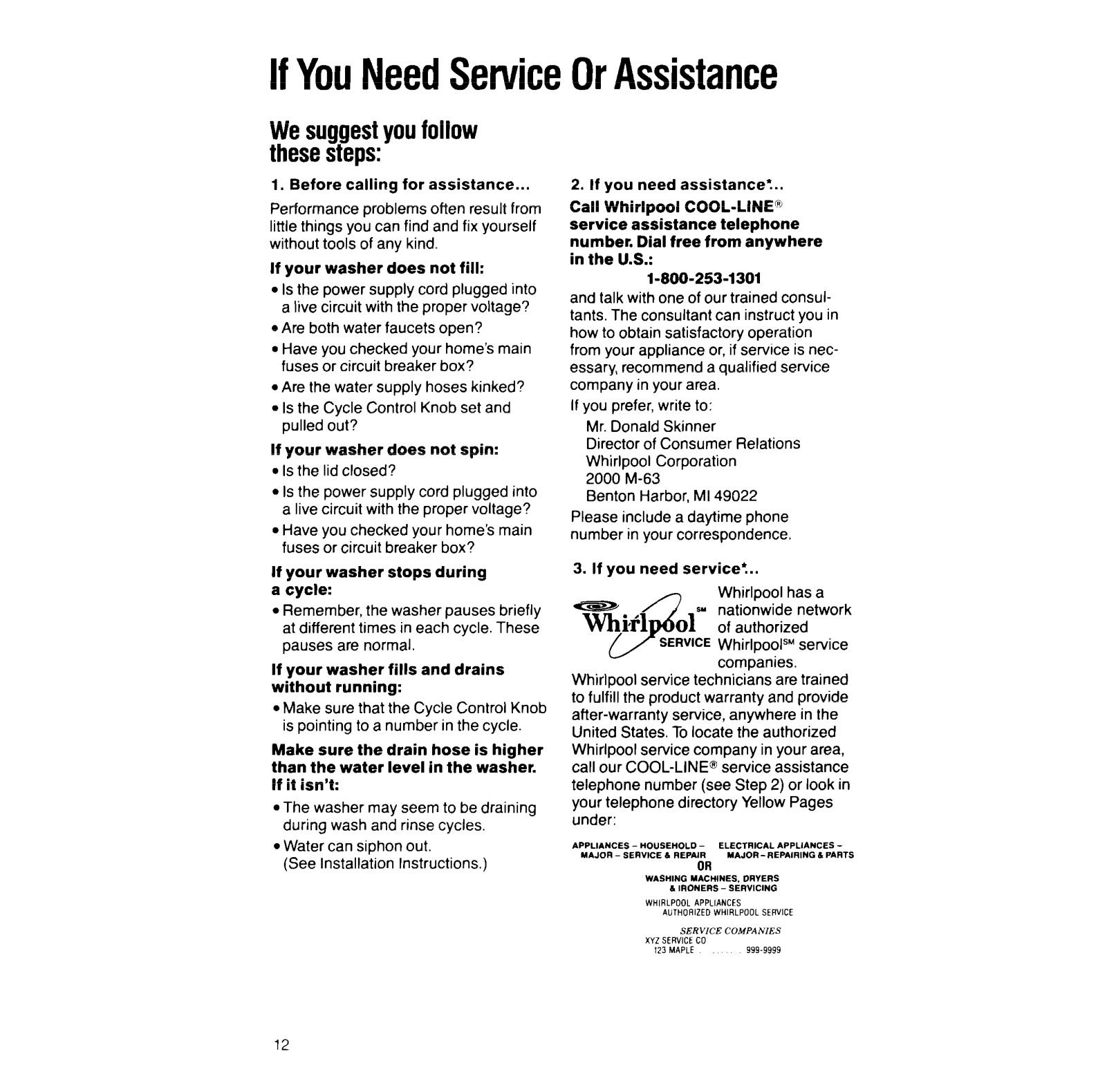

If You Need Service Or
Assistance.

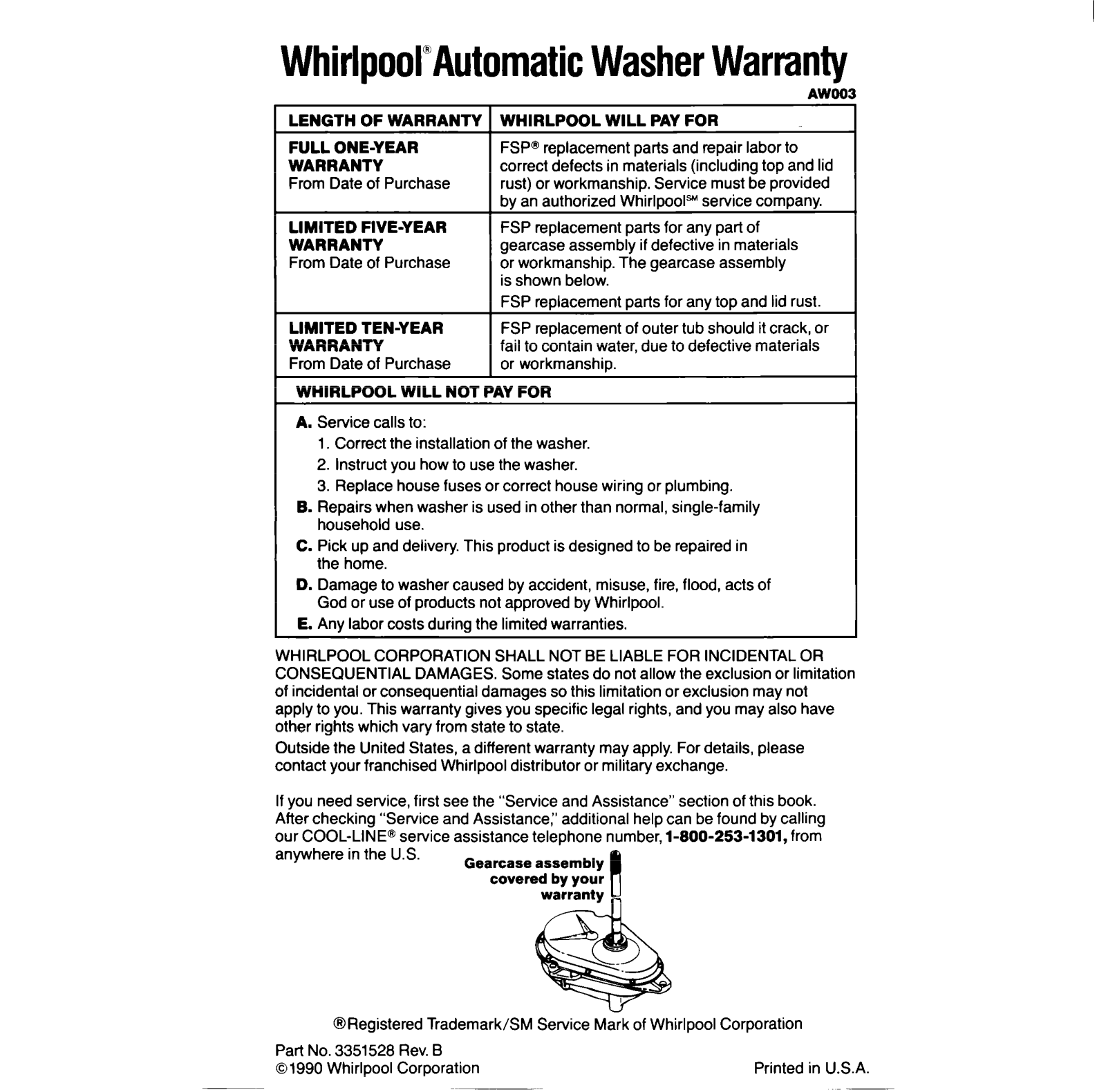

Whirlpool Automatic
Washer Warranty.
01990 WhirlDool Corooration
Page
4-5
5-9
10
10
10
11
11
11
12-13
16
Thank you for buying a Whirlpool
3
appliance. Please complete and mail
the Owner Registration Card provided
with this product. Then complete the
form below. Have this information ready
if you need service or call with a
question.
. Copy model and serial numbers
from plate (under lid near hinge) and
the purchase date from the sales slip.
l
Keep this book, the Laundry Guide
and the sales slip together in a
handy place.
Model Number
Serial Number
Purchase Date
Service Company Phone Number
If your washer has a Consumer Buy
Guide label, remove it. It will be easier
to remove before the washer is used. To
remove any remaining glue:
l
Rub briskly with thumb to make a ball,
then remove.
or
l
Soak area with liquid hand dishwashing detergent before removing glue as
described above.
Do not use sharp instruments, rubbing
alcohol, flammable fluids or abrasive
cleaners. These can damage the finish.
See “Important Safety Instructions” on
page 3.

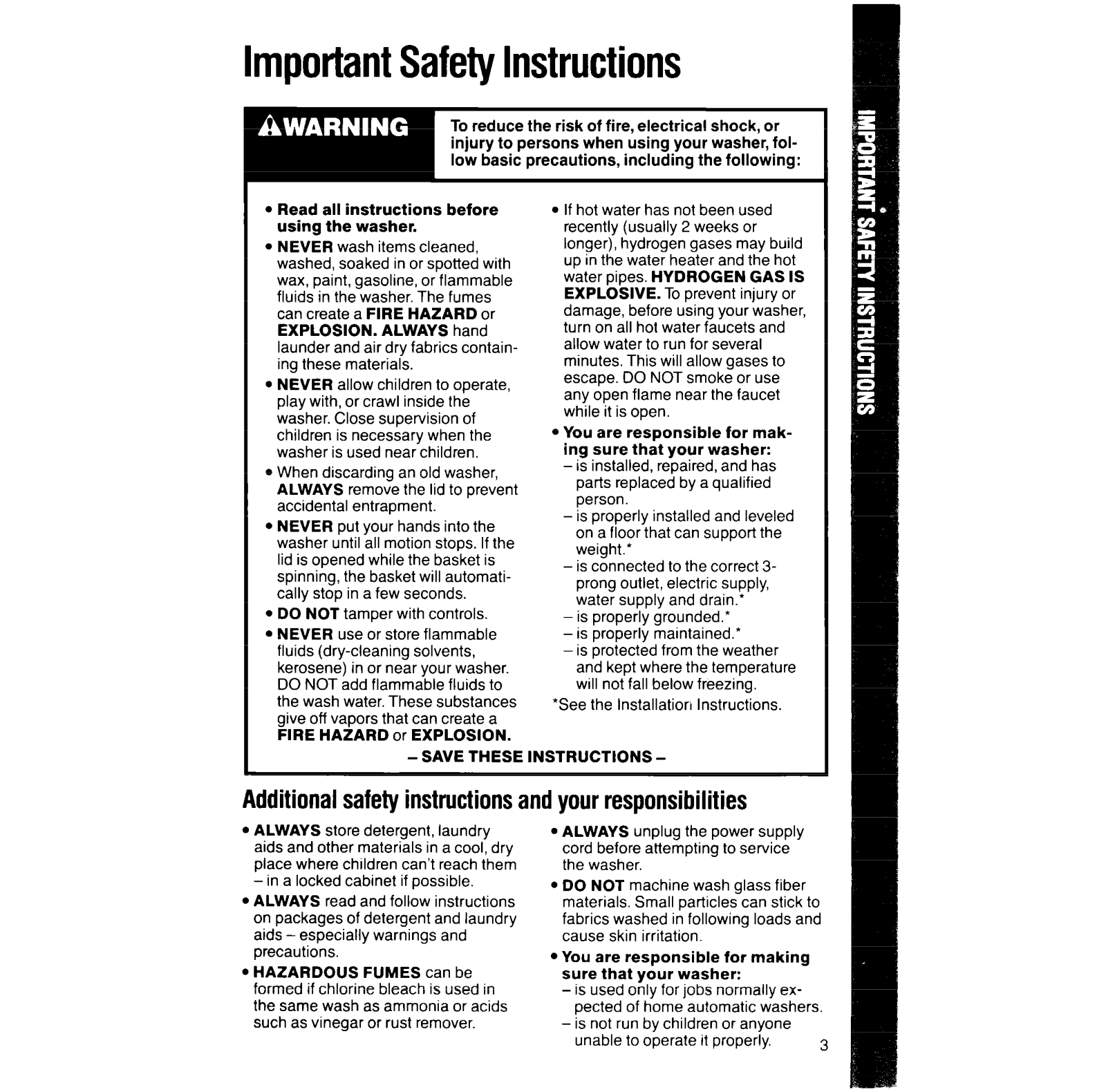

Important Safety Instructions
To reduce the risk of fire, electrical shock, or
injury to persons when using your washer, follow basic precautions, including the following:
l
l
Read all instructions before
using the washer. recently (usually 2 weeks or
l
NEVER wash items cleaned,
washed, soaked in or spotted with
wax, paint, gasoline, or flammable
fluids in the washer. The fumes
can create a FIRE HAZARD or
EXPLOSION. ALWAYS hand
launder and air dry fabrics containing these materials.
l
NEVER allow children to operate,
play with, or crawl inside the
washer. Close supervision of
children is necessary when the
washer is used near children.
l
When discarding an old washer,
ALWAYS remove the lid to prevent
accidental entrapment.
l
NEVER put your hands into the
washer until all motion stops. If the
lid is opened while the basket is
spinning, the basket will automatitally stop in a few seconds.
l
DO NOT tamper with controls.
l
NEVER use or store flammable
fluids (dry-cleaning solvents,
kerosene) in or near your washer.
DO NOT add flammable fluids to
the wash water. These substances
give off vapors that can create a
FIRE HAZARD or EXPLOSION.
- SAVE THESE INSTRUCTIONS -
If hot water has not been used
longer), hydrogen gases may build
up in the water heater and the hot
water pipes. HYDROGEN GAS IS
EXPLOSIVE. To prevent injury or
damage, before using your washer,
turn on all hot water faucets and
allow water to run for several
minutes. This will allow gases to
escape. DO NOT smoke or use
any open flame near the faucet
while it is open.
l
You are responsible for making sure that your washer:
- is installed, repaired, and has
parts replaced by a qualified
person.
- is properly installed and leveled
on a floor that can support the
weight.’
- is connected to the correct 3-
prong outlet, electric supply,
water supply and drain.*
- is properly grounded.*
- is properly maintained.*
-
is protected from the weather
and kept where the temperature
will not fall below freezing.
*See the lnstallatiori Instructions.
Additional safety instructions and your responsibilities
l
ALWAYS store detergent, laundry
aids and other materials in a cool, dry
place where children can’t reach them
- in a locked cabinet if possible.
_. _-.-..- .
l
ALWAYS read and tallow Instructions
on packages of detergent and laundry
aids - especially warnings and
precautions.
l
HAZARDOUS FUMES can be
formed if chlorine bleach is used in
the same wash as ammonia or acids
such as vinegar or rust remover.
l
ALWAYS unplug the power supply
cord before attempting to service
the washer.
l
DO NOT machine wash glass fiber
materials. Small particles can stick to
fabrics washed in following loads and
cause skin irritation.
l
You are responsible for making
sure that your washer:
- is used only for jobs normally expected of home automatic washers.
-
is not run by children or anyone
unable to operate it properly.
3

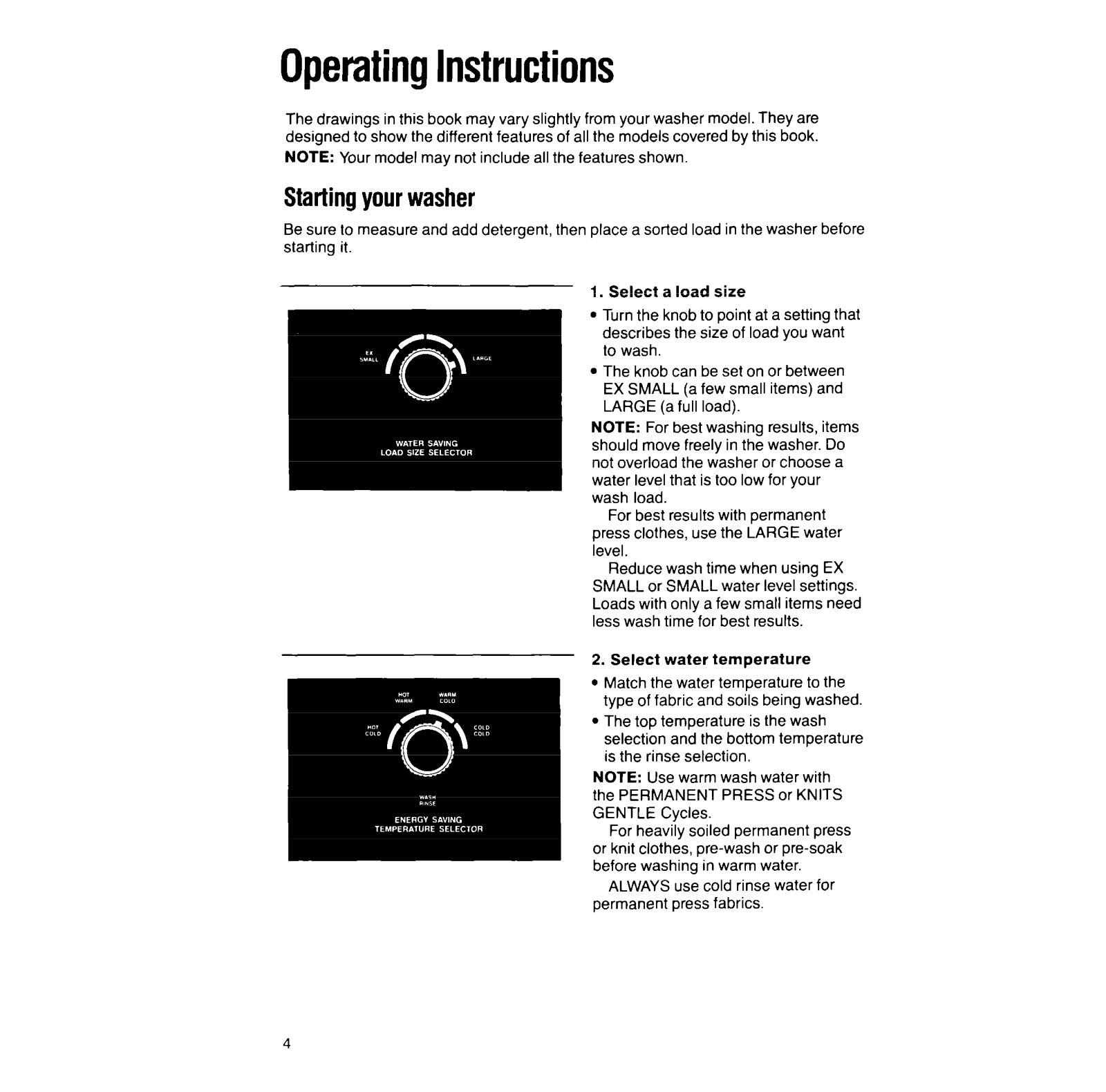

Operating Instructions
The drawings in this book may vary slightly from your washer model. They are
designed to show the different features of all the models covered by this book.
NOTE: Your model may not include all the features shown.
Starting your washer
Be sure lo measure and add detergent, then place a sorted load in the washer before
starting it.
1. Select a load size
l
Turn the knob to point at a setting that
describes the size of load you want
to wash.
l
The knob can be set on or between
EX SMALL (a few small items) and
LARGE (a full load).
NOTE: For best washing results, items
should move freely in the washer. Do
not overload the washer or choose a
water level that is too low for your
wash load.
For best results with permanent
press clothes, use the LARGE water
level.
Reduce wash time when using EX
SMALL or SMALL water level settings.
Loads with only a few small items need
less wash time for best results.
2. Select water temperature
l
Match the water temperature to the
type of fabric and soils being washed.
l
The top temperature is the wash
selection and the bottom temperature
is the rinse selection.
NOTE: Use warm wash water with
the PERMANENT PRESS or KNITS
GENTLE Cycles.
For heavily soiled permanent press
or knit clothes, pre-wash or pre-soak
before washing in warm water.
ALWAYS use cold rinse Water for
permanent press fabrics.

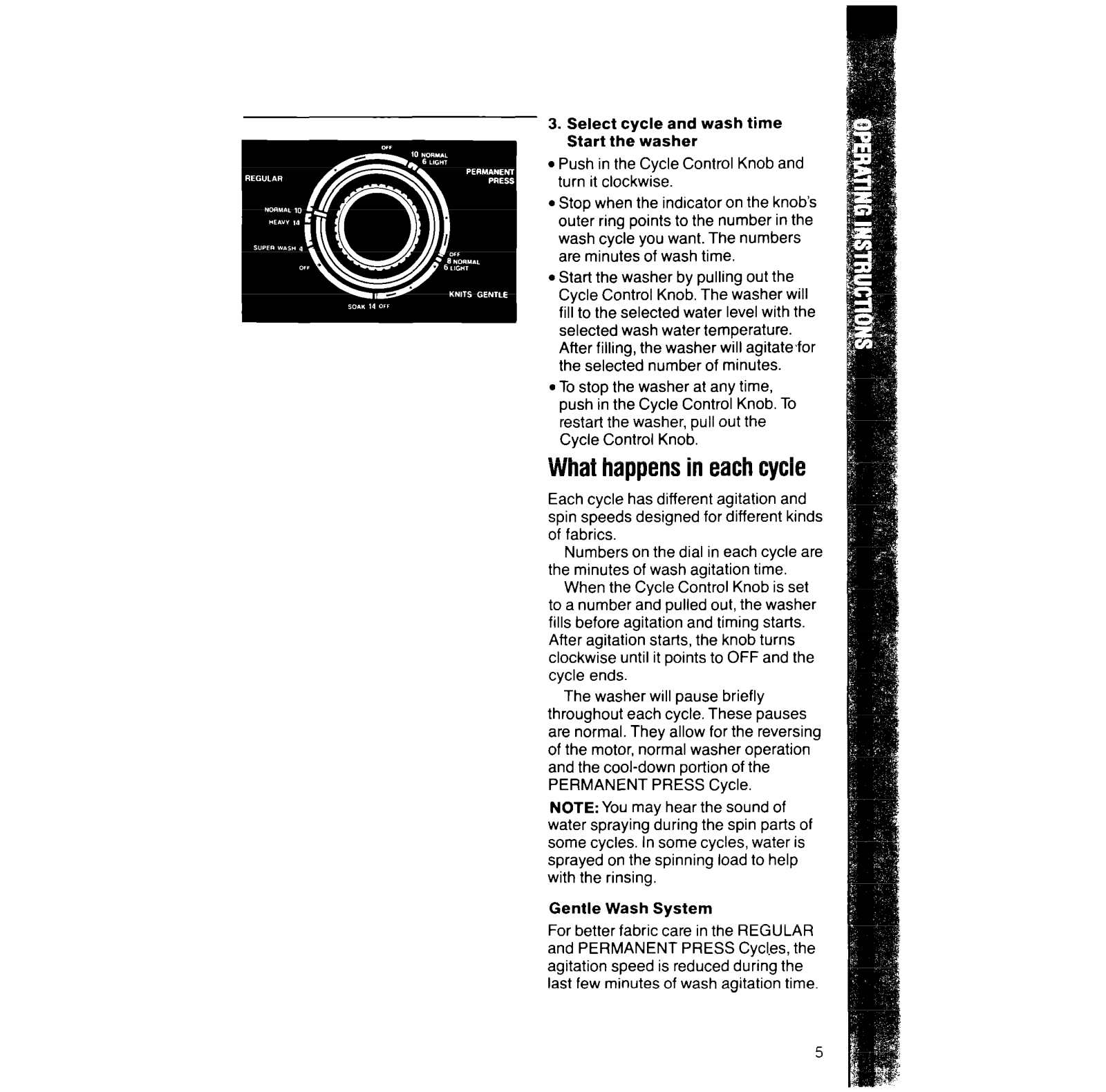

3. Select cycle and wash time
Start the washer
l
Push in the Cycle Control Knob and
turn it clockwise.
l
Stop when the indicator on the knob’s
outer ring points to the number in the
wash cycle you want. The numbers
are minutes of wash time.
l
Start the washer by pulling out the
Cycle Control Knob. The washer will
fill to the selected water level with the
selected wash water temperature.
After filling, the washer will agitate,for
the selected number of minutes.
l
To stop the washer at any time,
push in the Cycle Control Knob. To
restart the washer, pull out the
Cycle Control Knob.

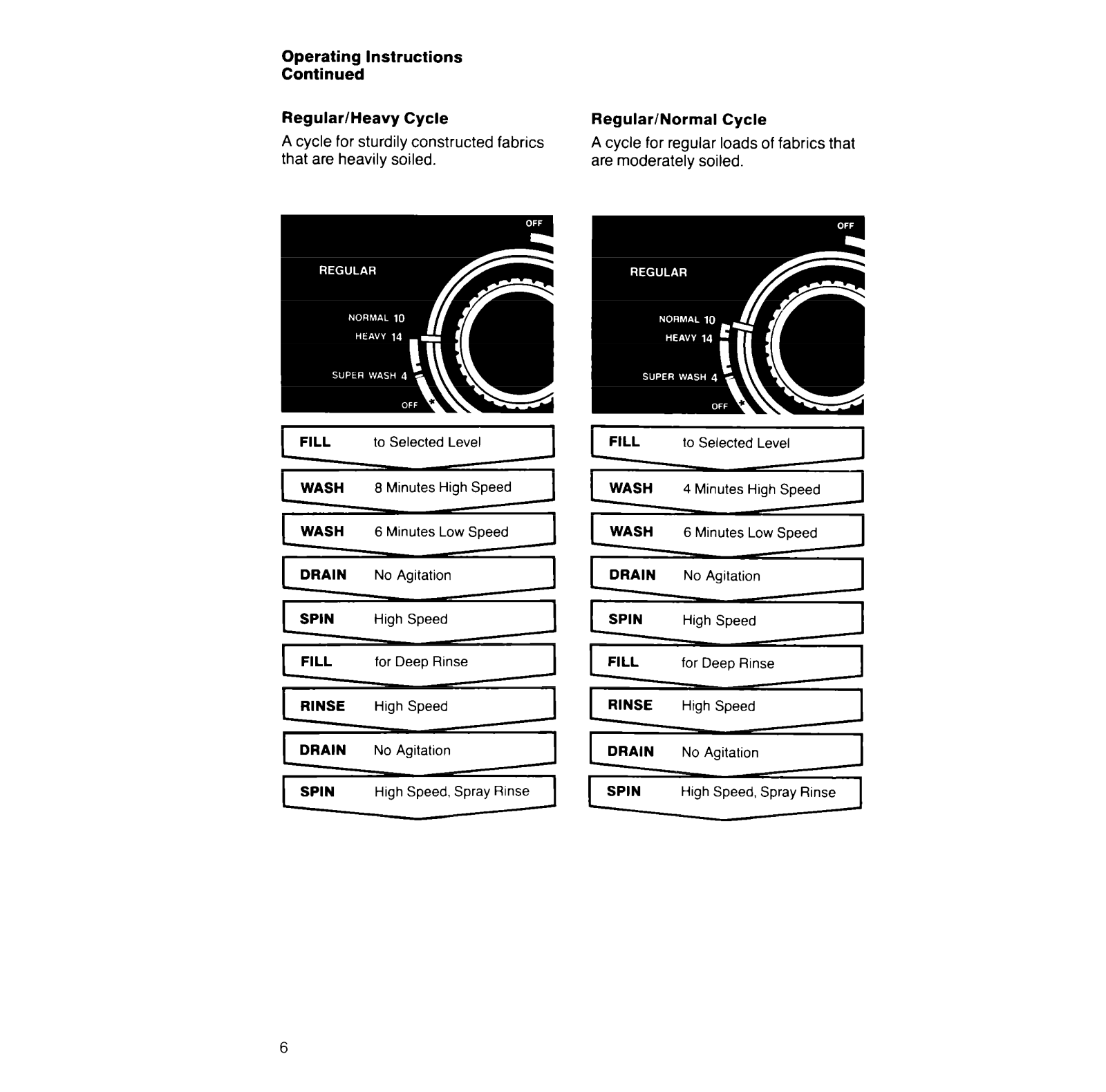

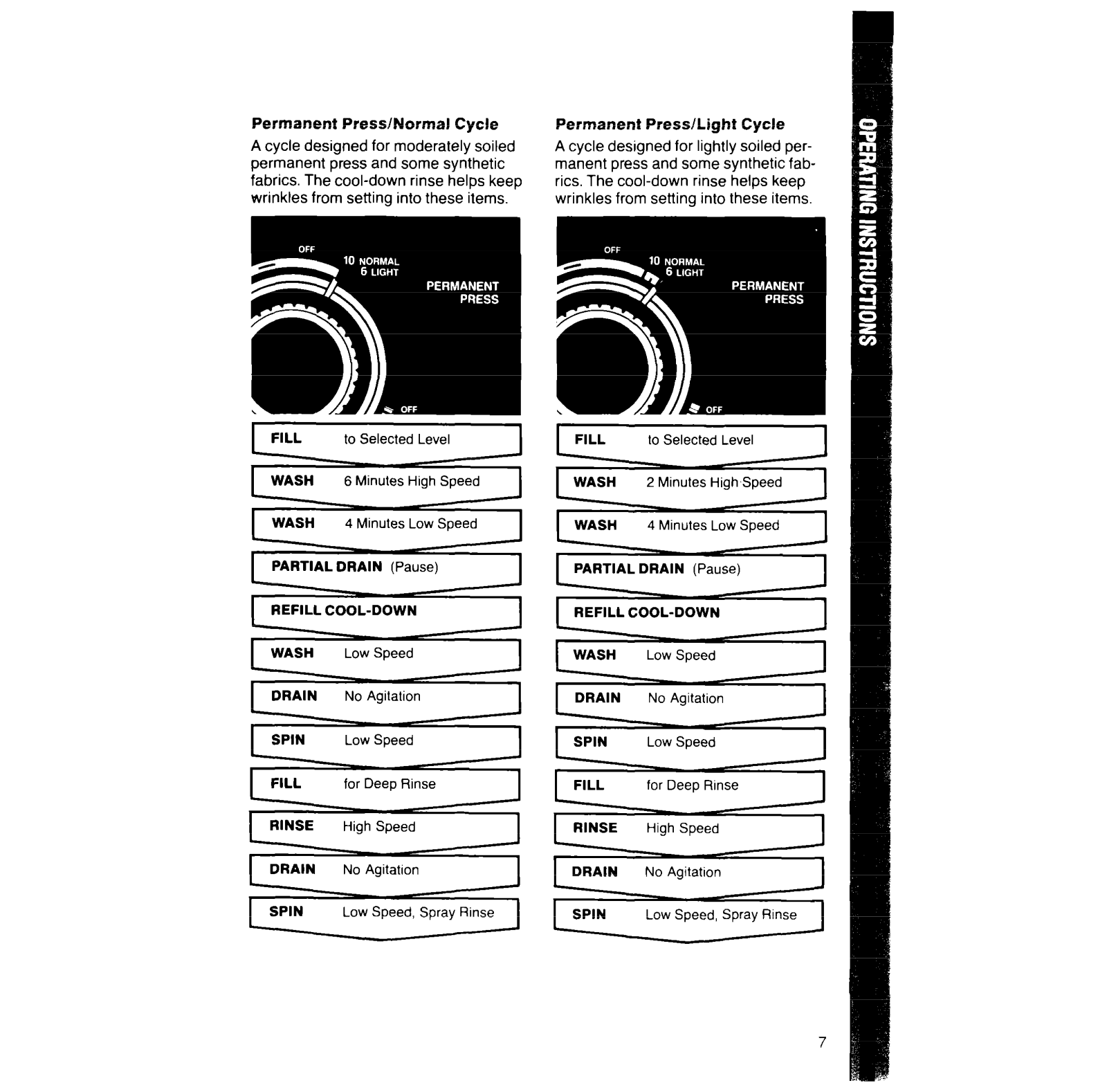

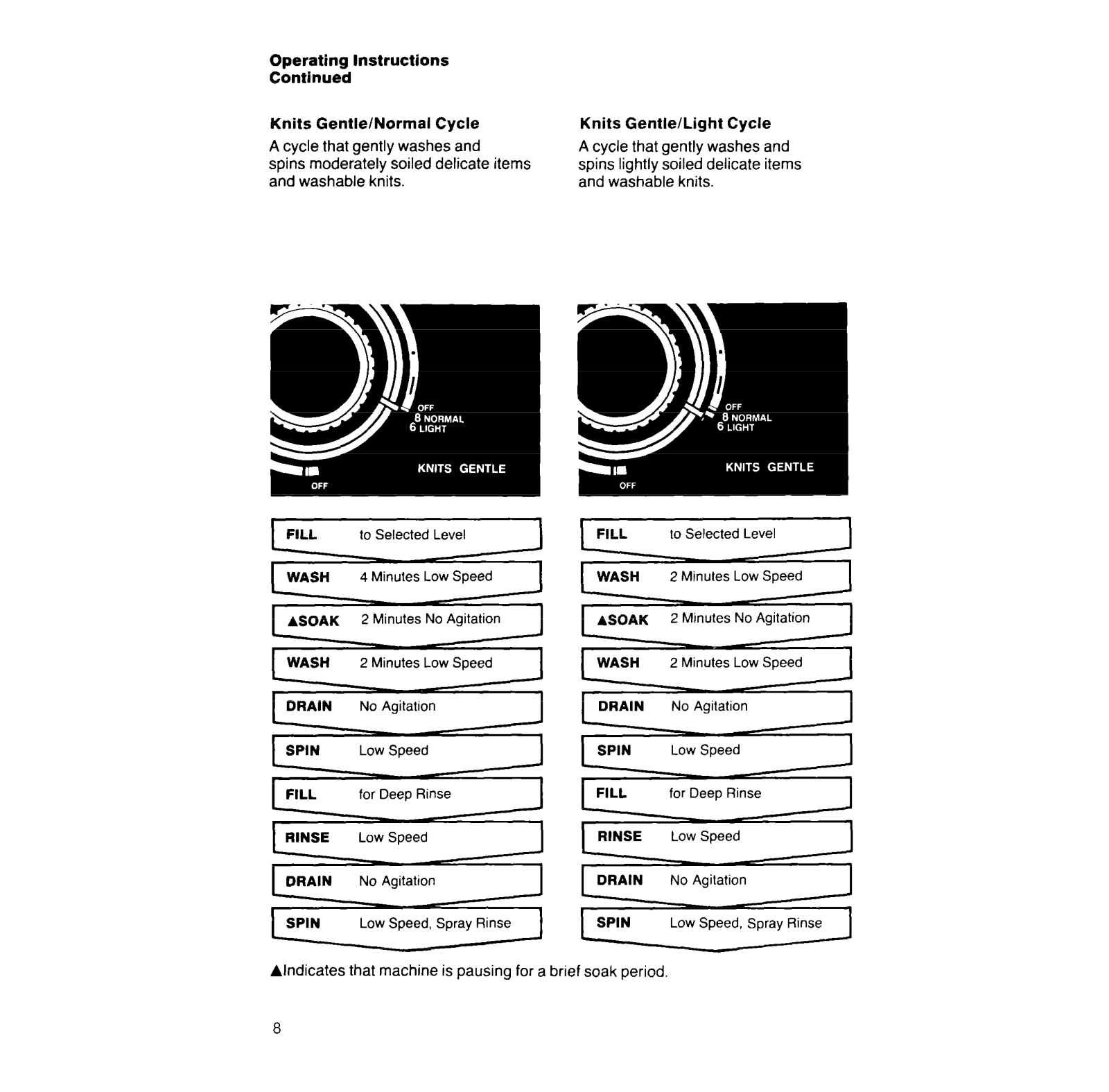

What happens in each cycle
Each cycle has different agitation and
spin speeds designed for different kinds
of fabrics.
Numbers on the dial in each cycle are
the minutes of wash agitation time.
When the Cycle Control Knob is set
to a number and pulled out, the washer
fills before agitation and timing starts.
After agitation starts, the knob turns
clockwise until it points to OFF and the
cycle ends.
The washer will pause briefly
throughout each cycle. These pauses
are normal. They allow for the reversing
of the motor, normal washer operation
and the cool-down portion of the
PERMANENT PRESS Cycle.
NOTE: You may hear the sound of
water spraying during the spin parts of
some cycles. In some cycles, water is
sprayed on the spinning load to help
with the rinsing.
Gentle Wash System
For better fabric care in the REGULAR
and PERMANENT PRESS Cyc!es, the
agitation speed is reduced during the
last few minutes of wash agitation time.
5
