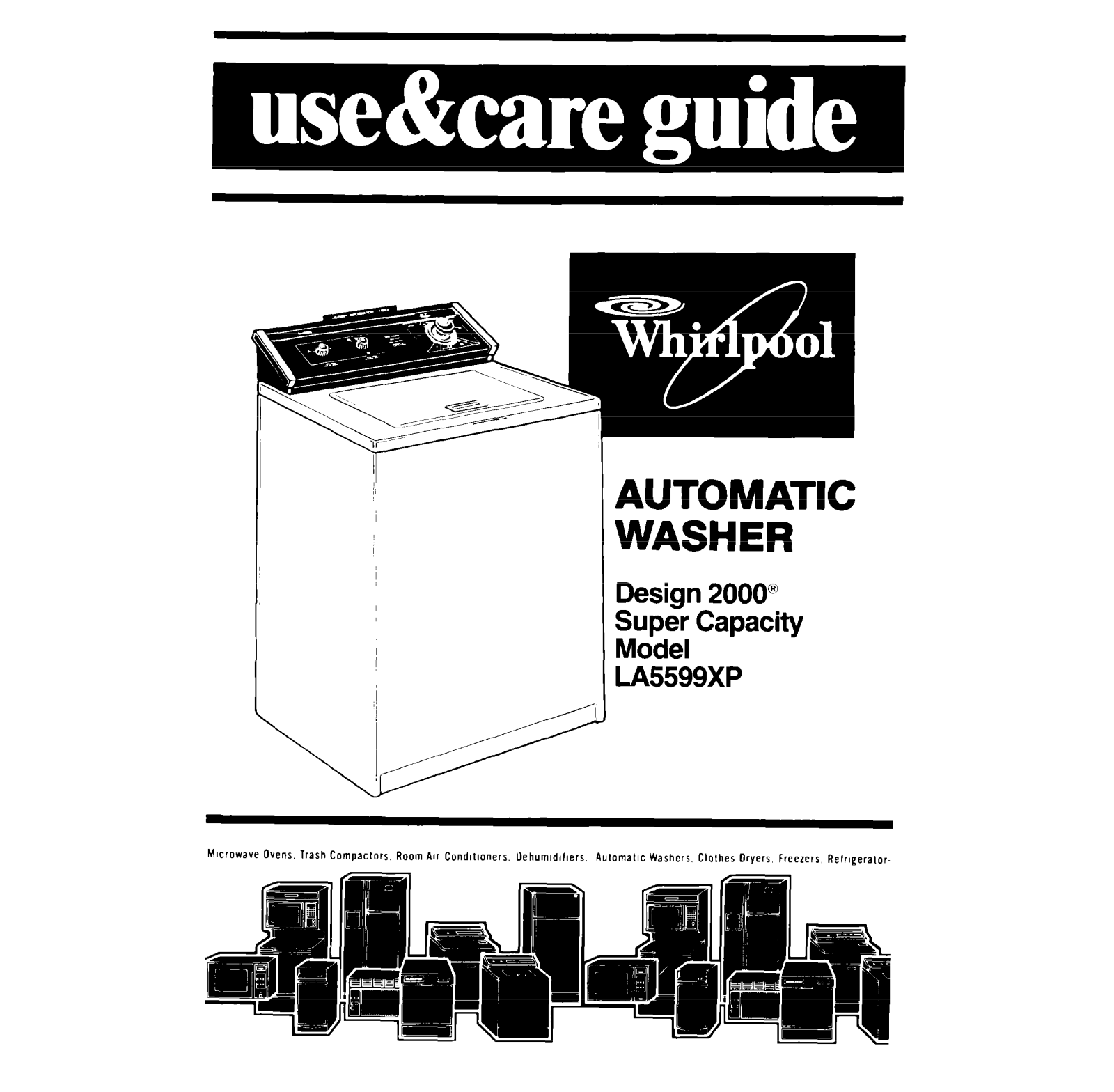

Whirlpool LA5599XP User Manual
AUTOMATIC
WASHER
Design 2000@
Suopee; Capacity
LA5599XP
s
Microwave Ovens. Trash Compactors. Room Air Condllloners. Uehum~d~l~ers. Aulomallc Washers. Clolhes Dryers Freezers Relngeralor

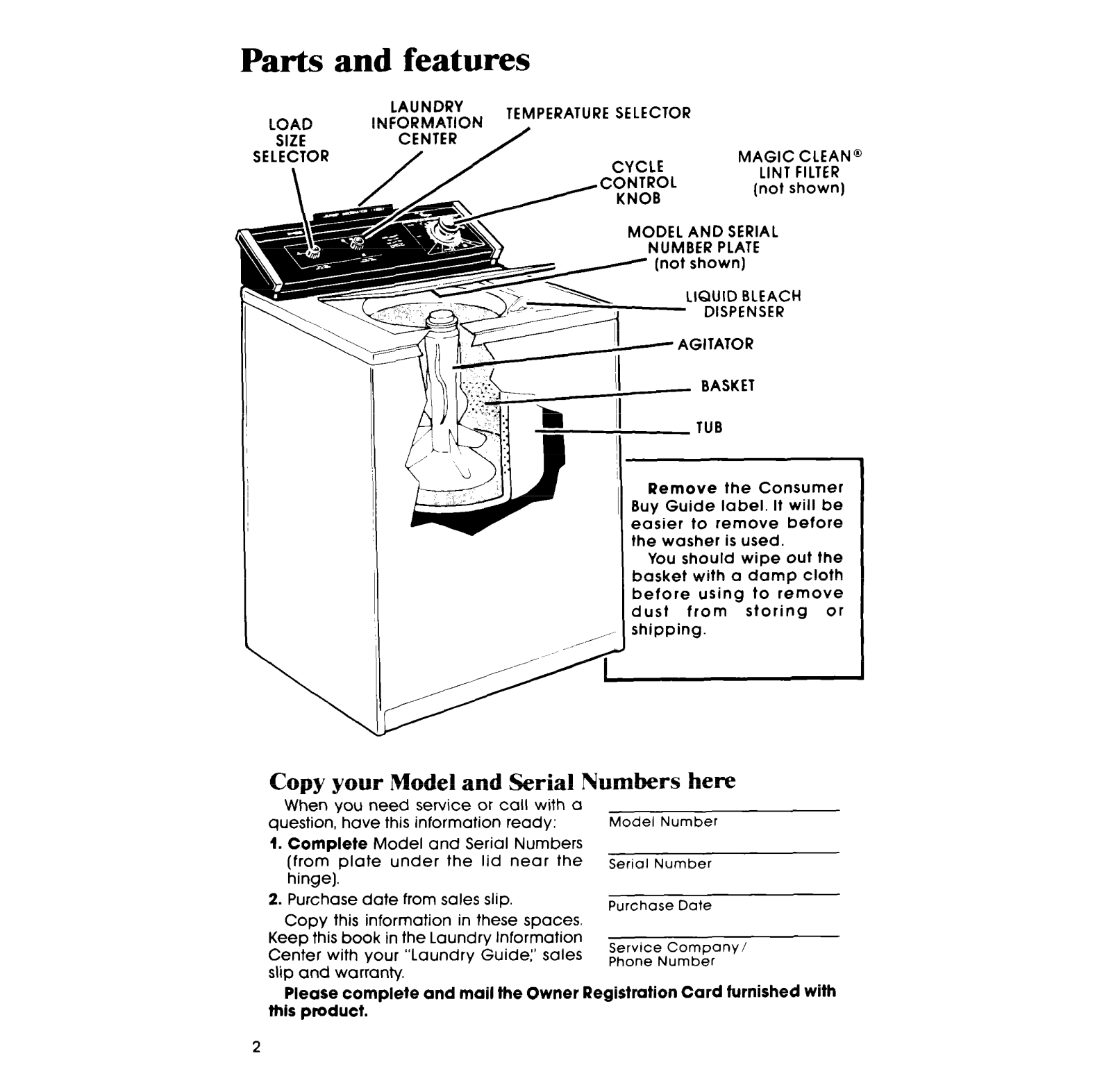

Parts and features
JNDRY
LAI
. .--_
TEMPERATURE SELECTOR
SE!FR Ty,CEiL
an-iv I
/A /
MAGIC CLEAN@
LINT FILTER
(not shown)
MODEL AND SERIAL
NUMBER PLATE
(not shown)
LIQUID BLEACH
DISPENSER
AGITATOR
- BASKET
- TUB
Remove the Consumer
Buy Guide label. It will be
easier to remove before
the washer is used.
You should wipe out the
basket with a damp cloth
before using to remove
dust from storing or
shipping.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
1. Complete Model and Serial Numbers
(from plate under the lid near the
hinge).
2. Purchase date from sales slip.
Copy this information in these spaces.
Keep this book in the Laundry Information
Center with your “Laundry Guide:’ sales
slip and warranty
Please complete and mail the Owner Registration Card furnished with
this product.
2
Model Number
Serial Number
Purchase Date
Service Company/
Phone Number

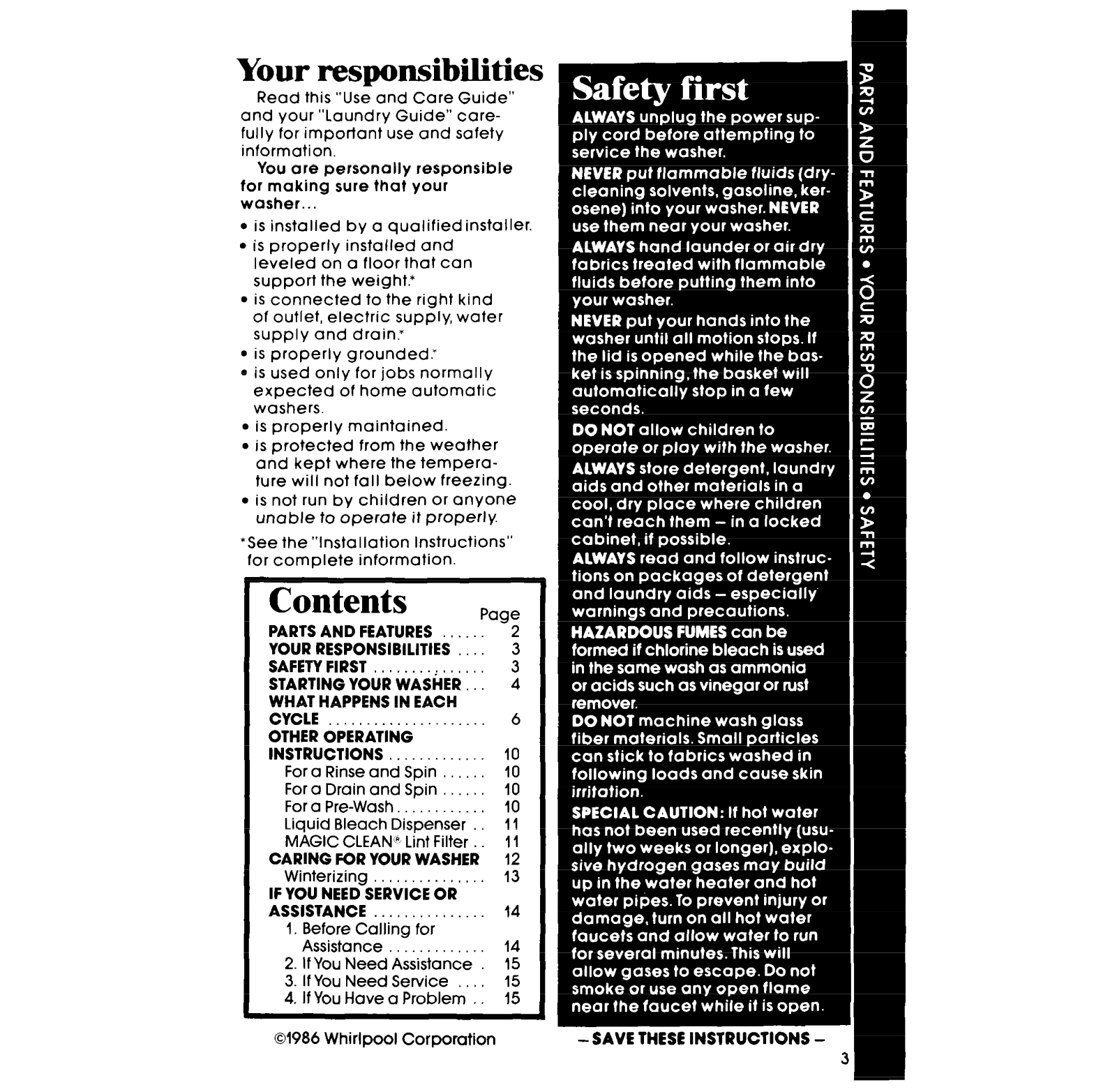

Your responsibilities
Read this “Use and Care Guide”
and your “Laundry Guide” carefully for important use and safety
information.
You are personally responsible
for making sure that your
washer...
l
is installed by a qualifiedinstaller.
l
is properly installed and
leveled on a floor that can
support the weight.*
l
is connected to the right kind
of outlet, electric supply, water
supply and drain:
l
is properly grounded.*
l
is used only for jobs normally
expected of home automatic
washers.
l
is properly maintained.
l
is protected from the weather
and kept where the temperature will not fall below freezing.
l
is not run by children or anyone
unable to operate it properly.
*See the “Installation Instructions”
for complete information.
Contents
Page
PARTS AND FEATURES . 2
YOUR RESPONSIBILITIES 3
SAFETY FIRST : 3
STARTING YOUR WASHER, 4

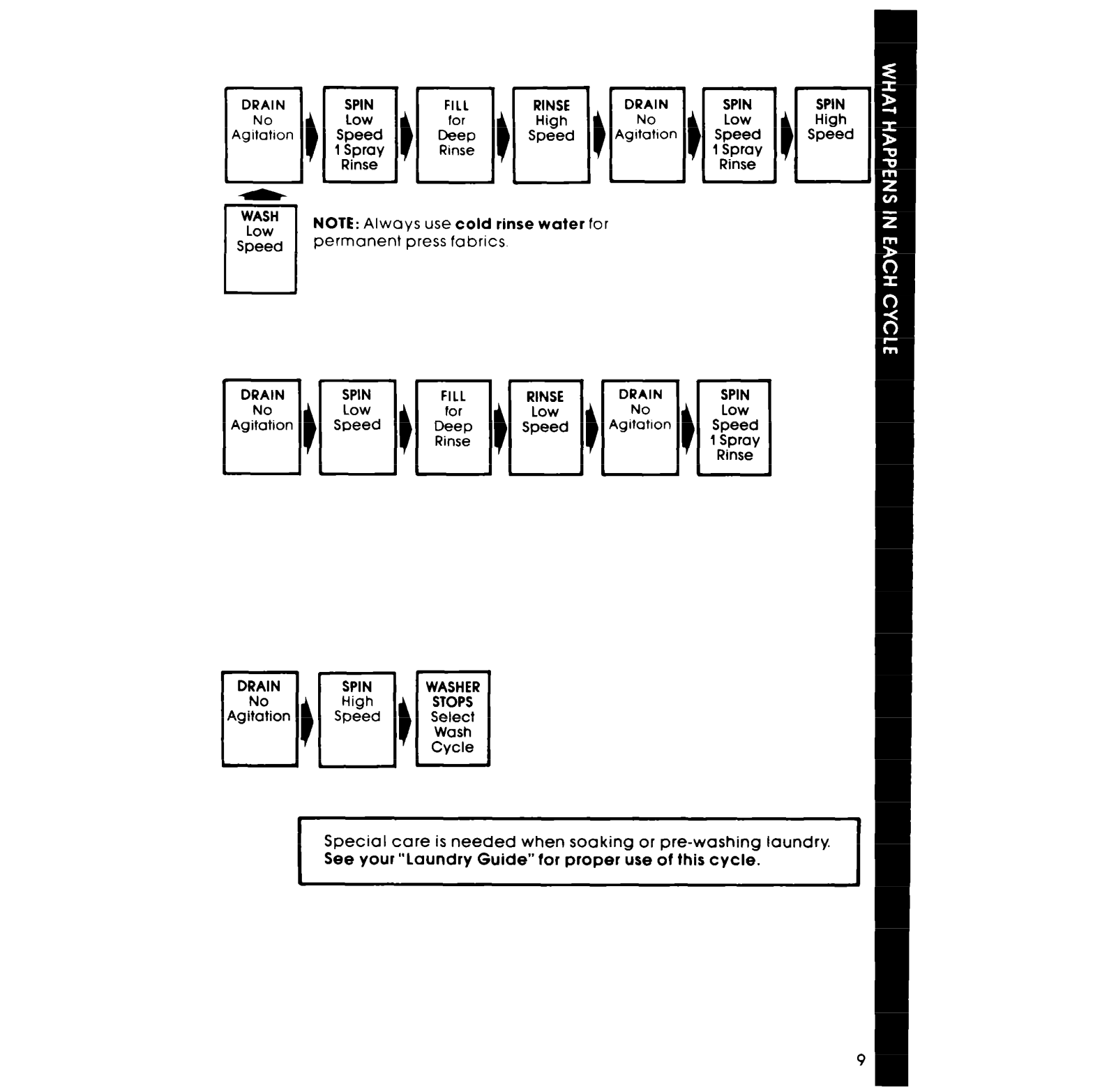

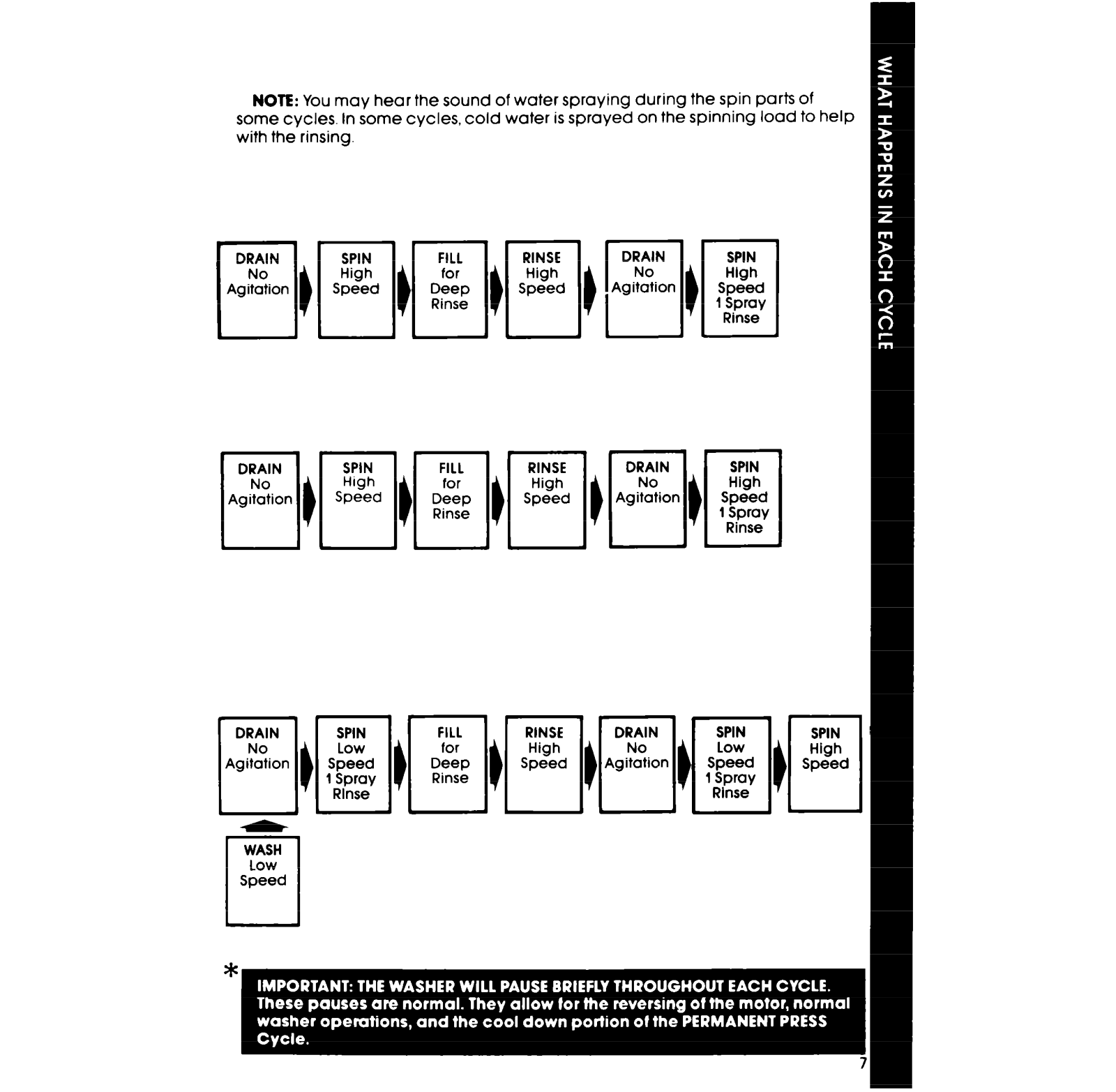

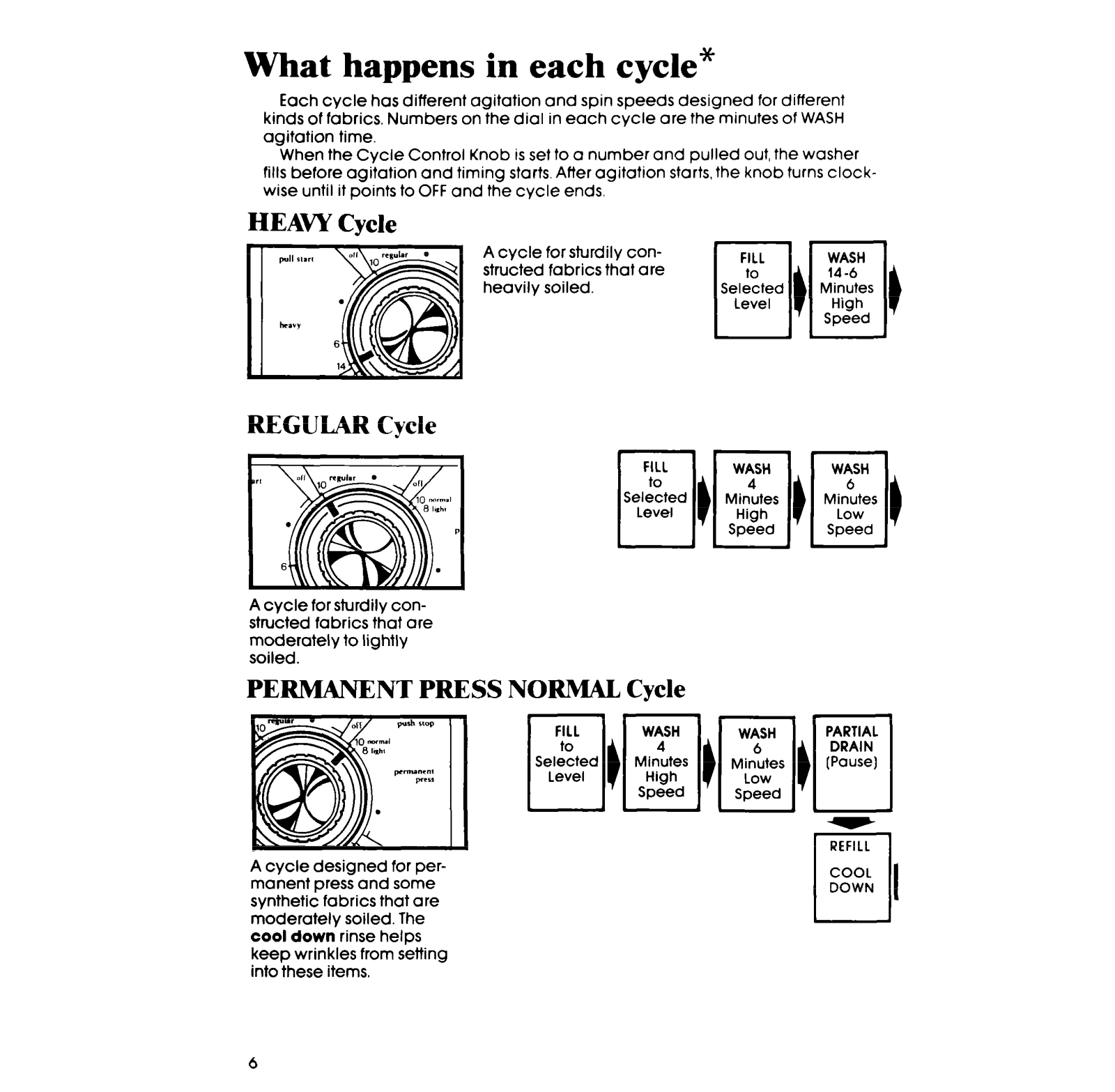

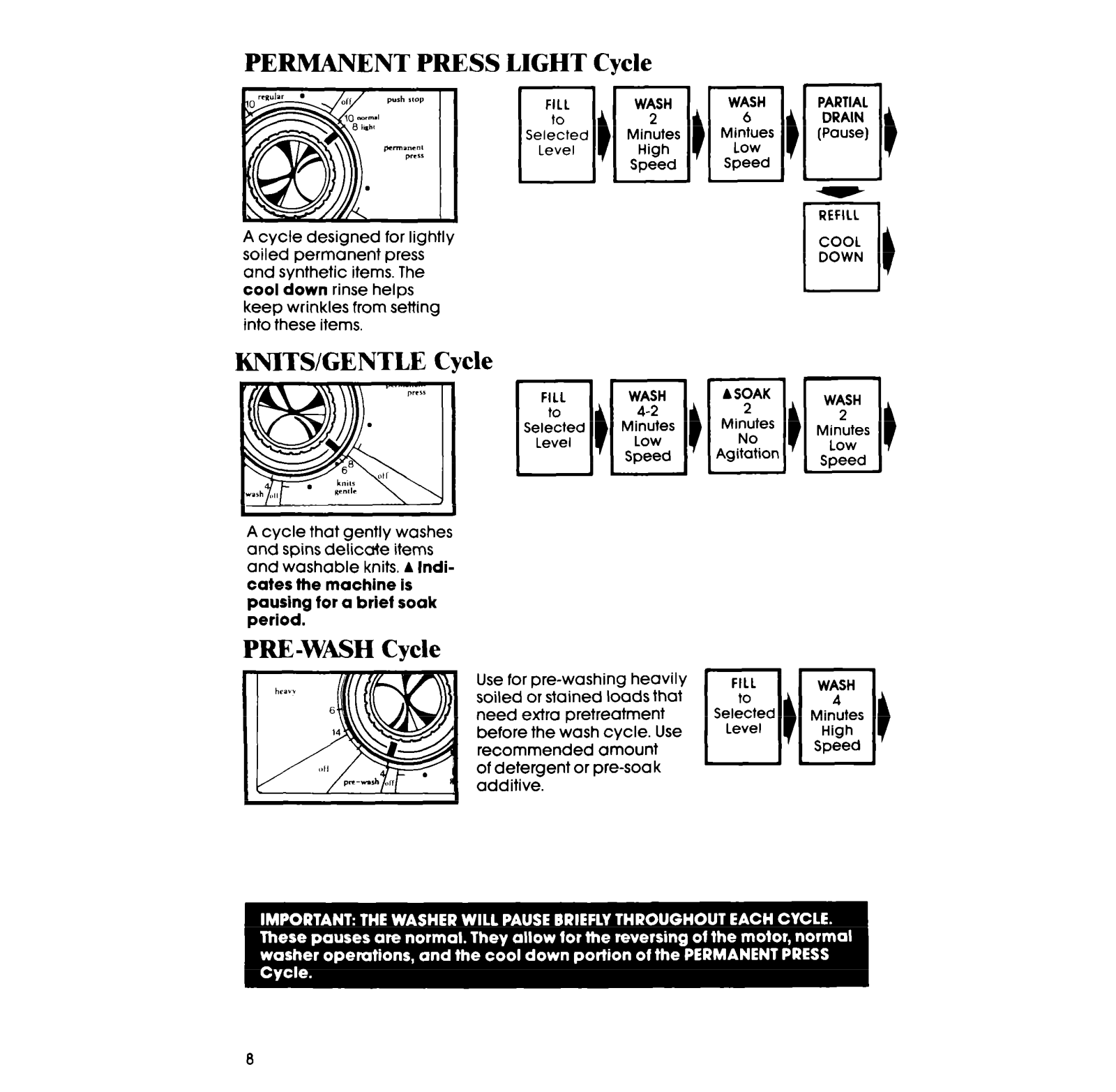

WHAT HAPPENS IN EACH
CYCLE . 6

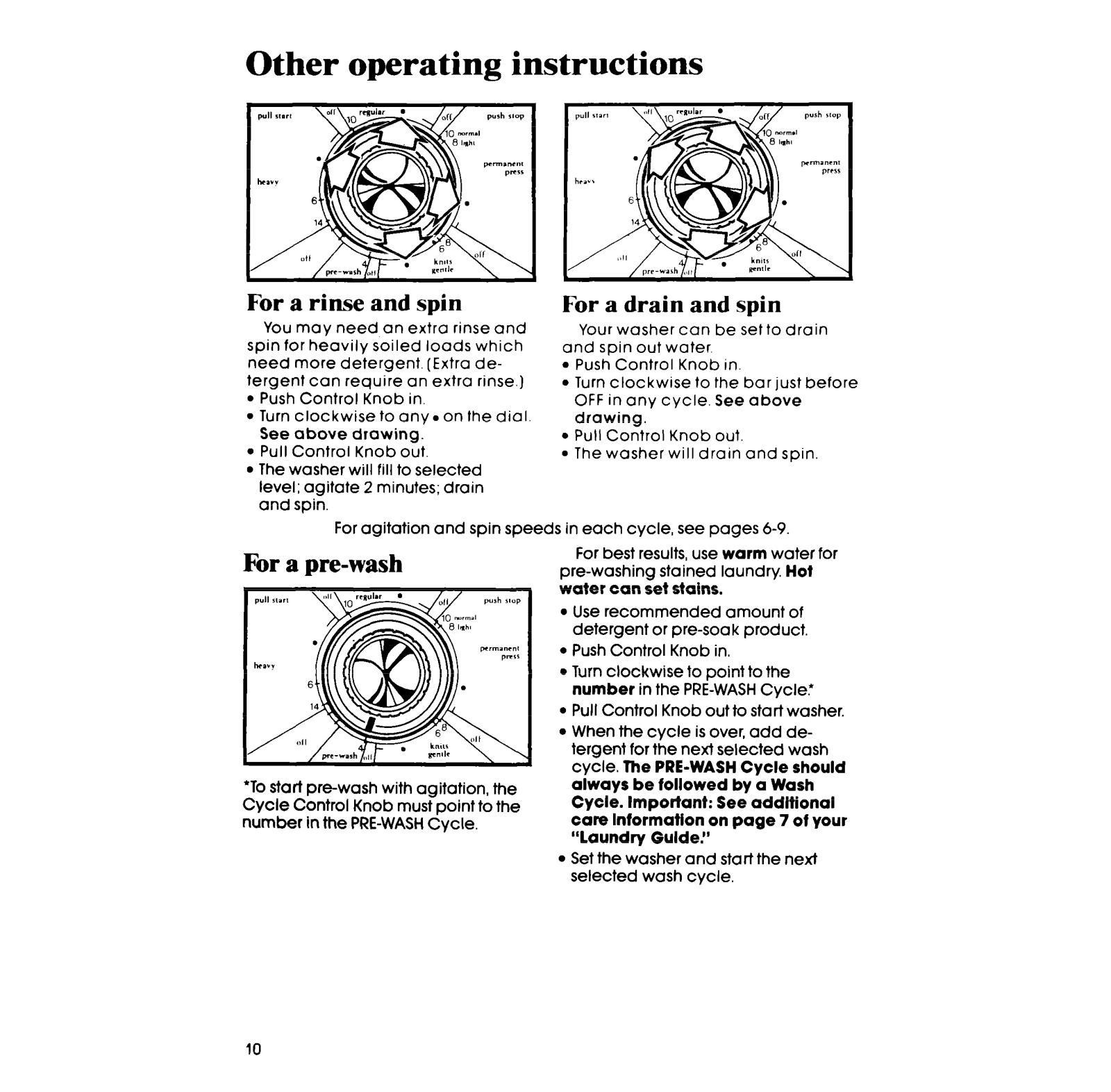

OTHER OPERATING
INSTRUCTIONS , 10
For a Rinse and Spin 10
For a Drain and Spin 10
For a Pre-Wash 10

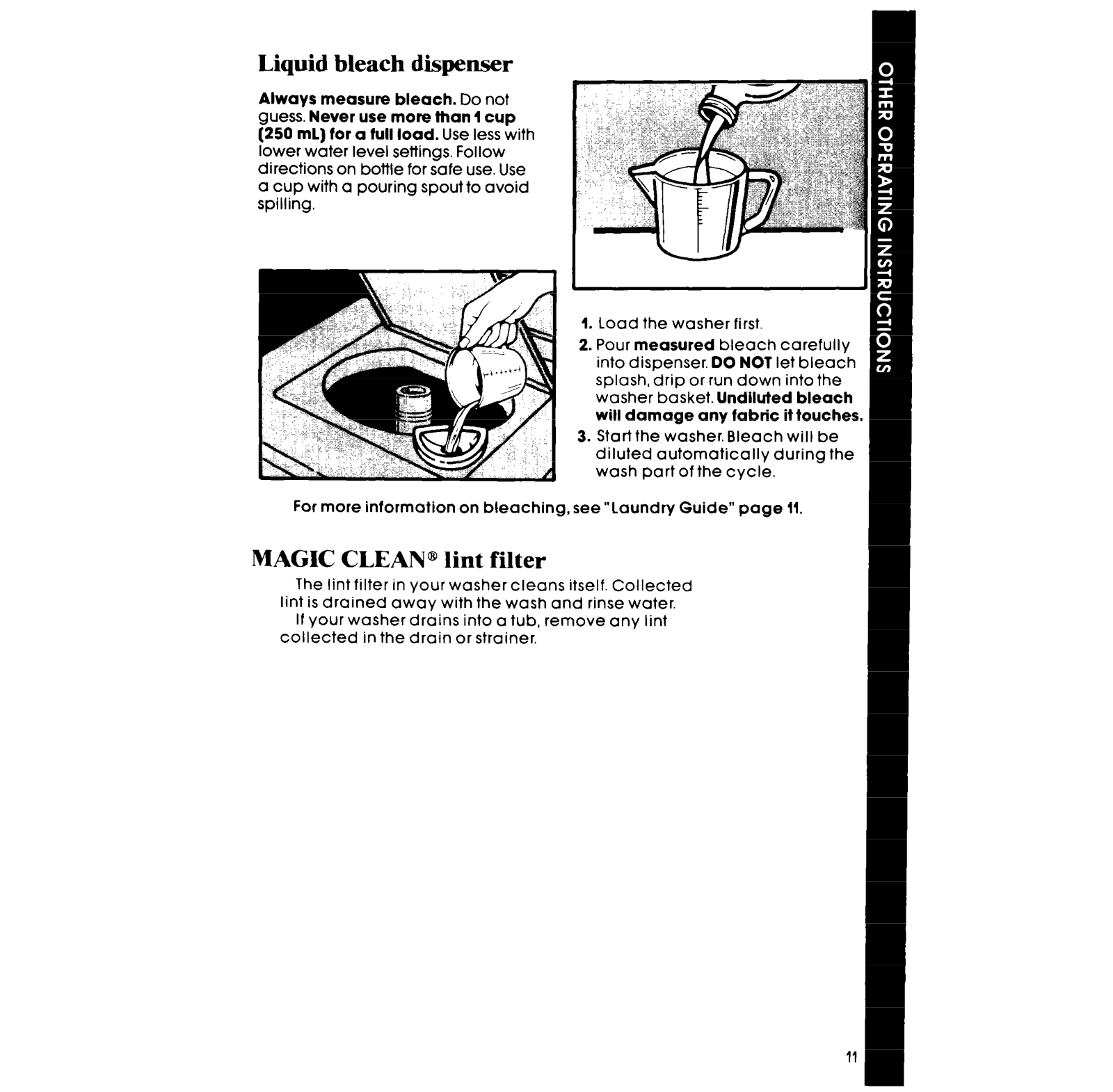

Liquid Bleach Dispenser 11
MAGIC CLEAN@ Lint Filter 11

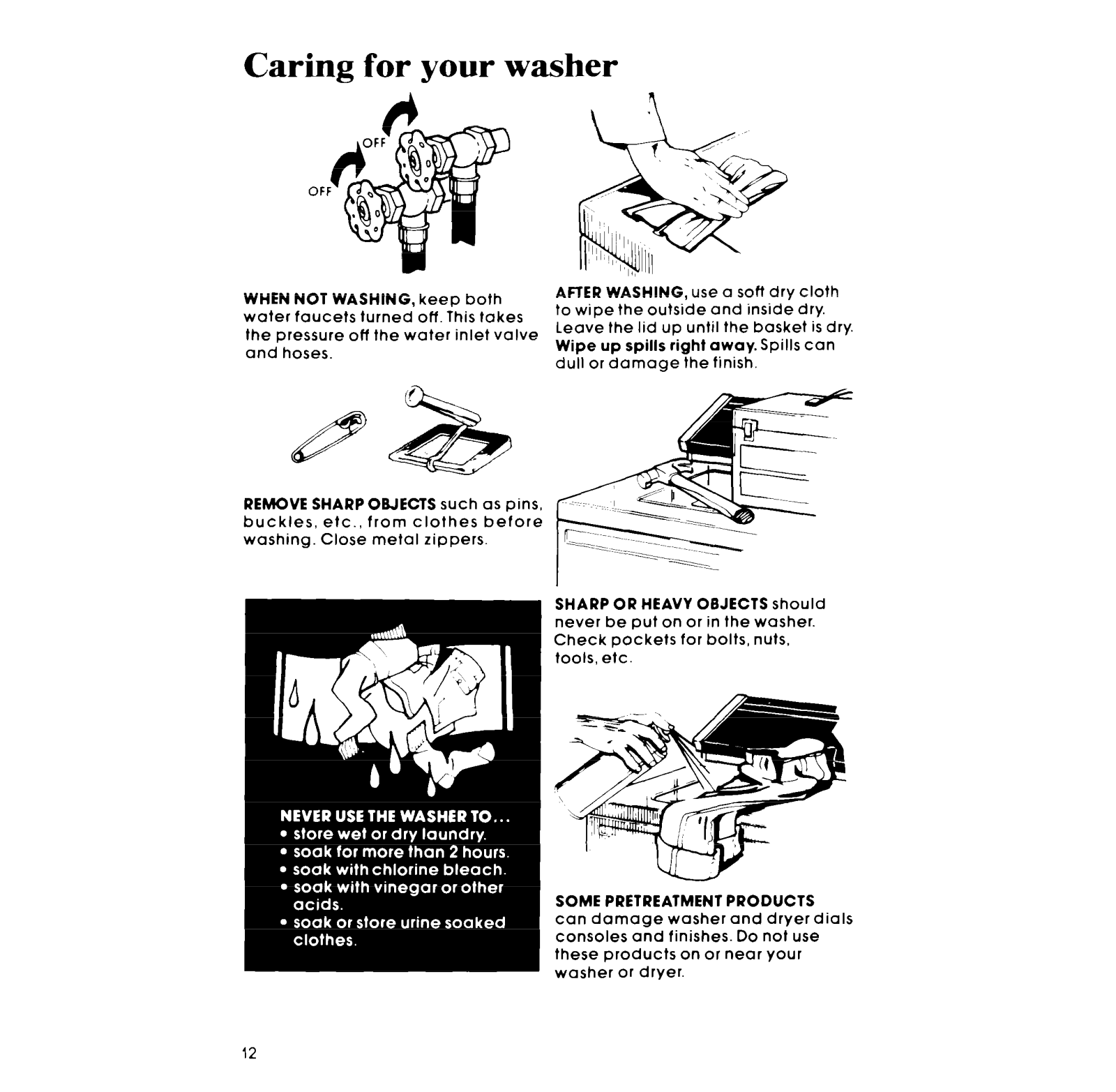

CARING K)R YOUR WASHER 12

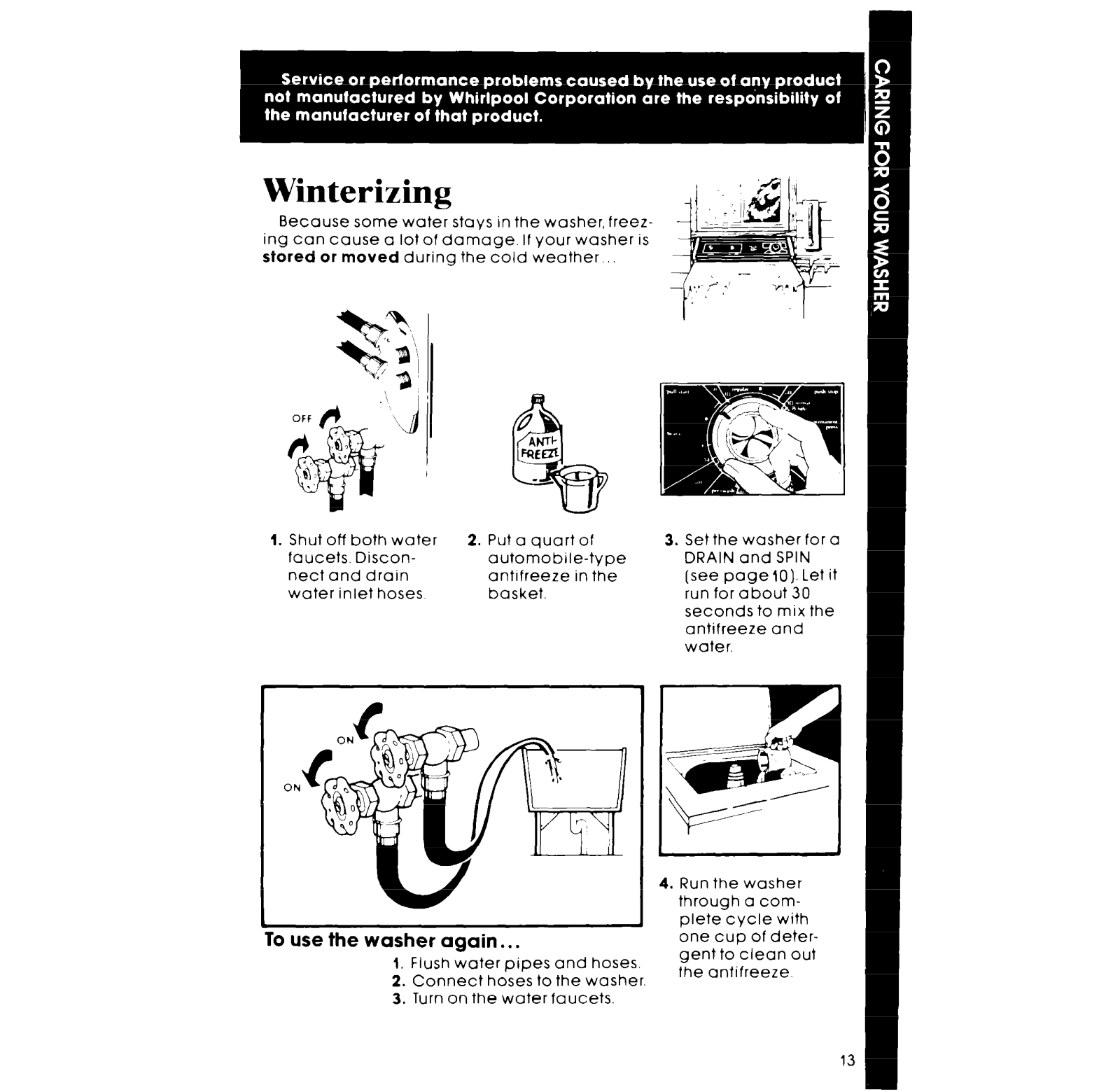

Winterizing 13

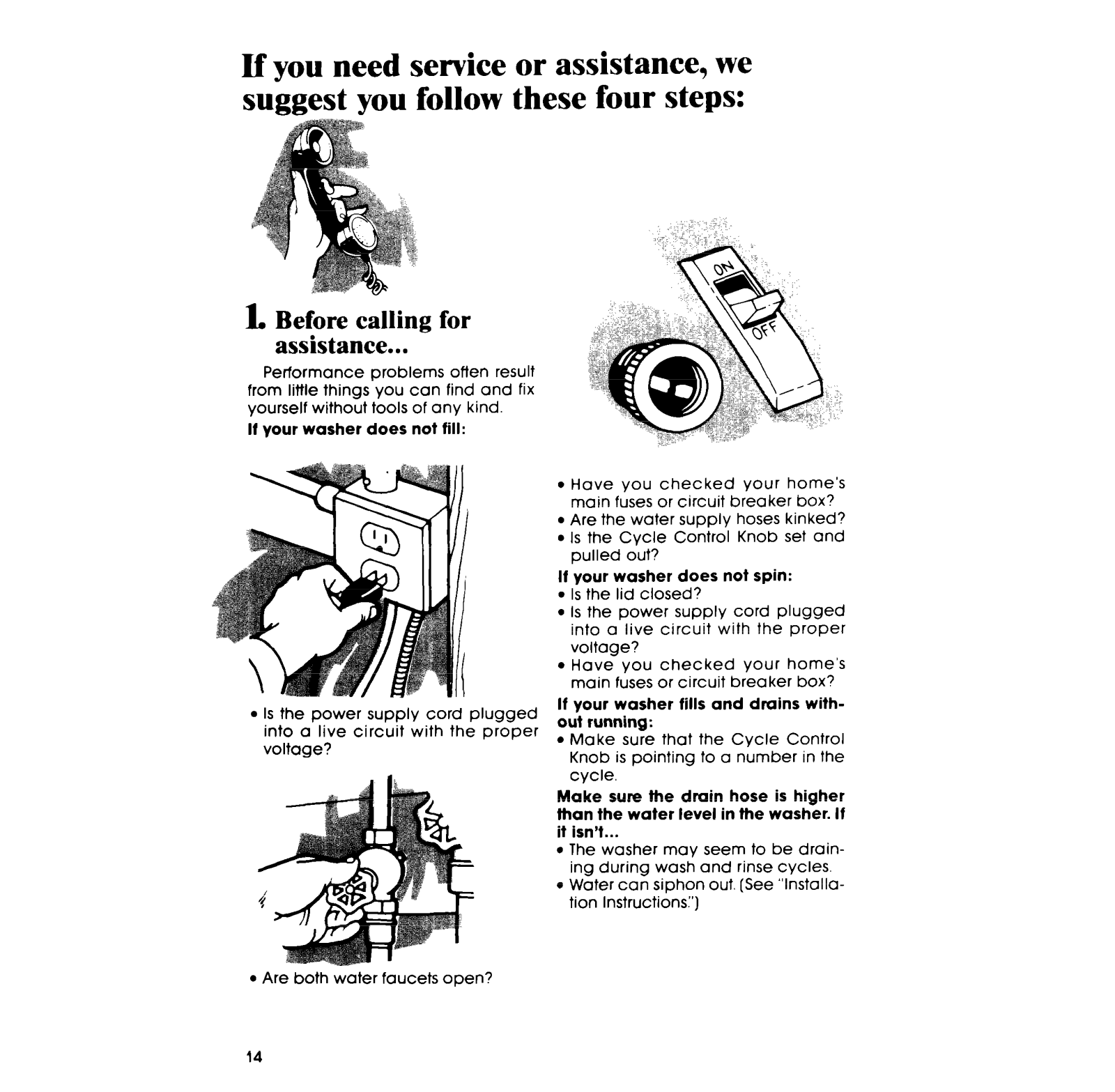

IF YOU NEED SERVICE OR
ASSISTANCE 14
I. Before Calling for
Assistance 14

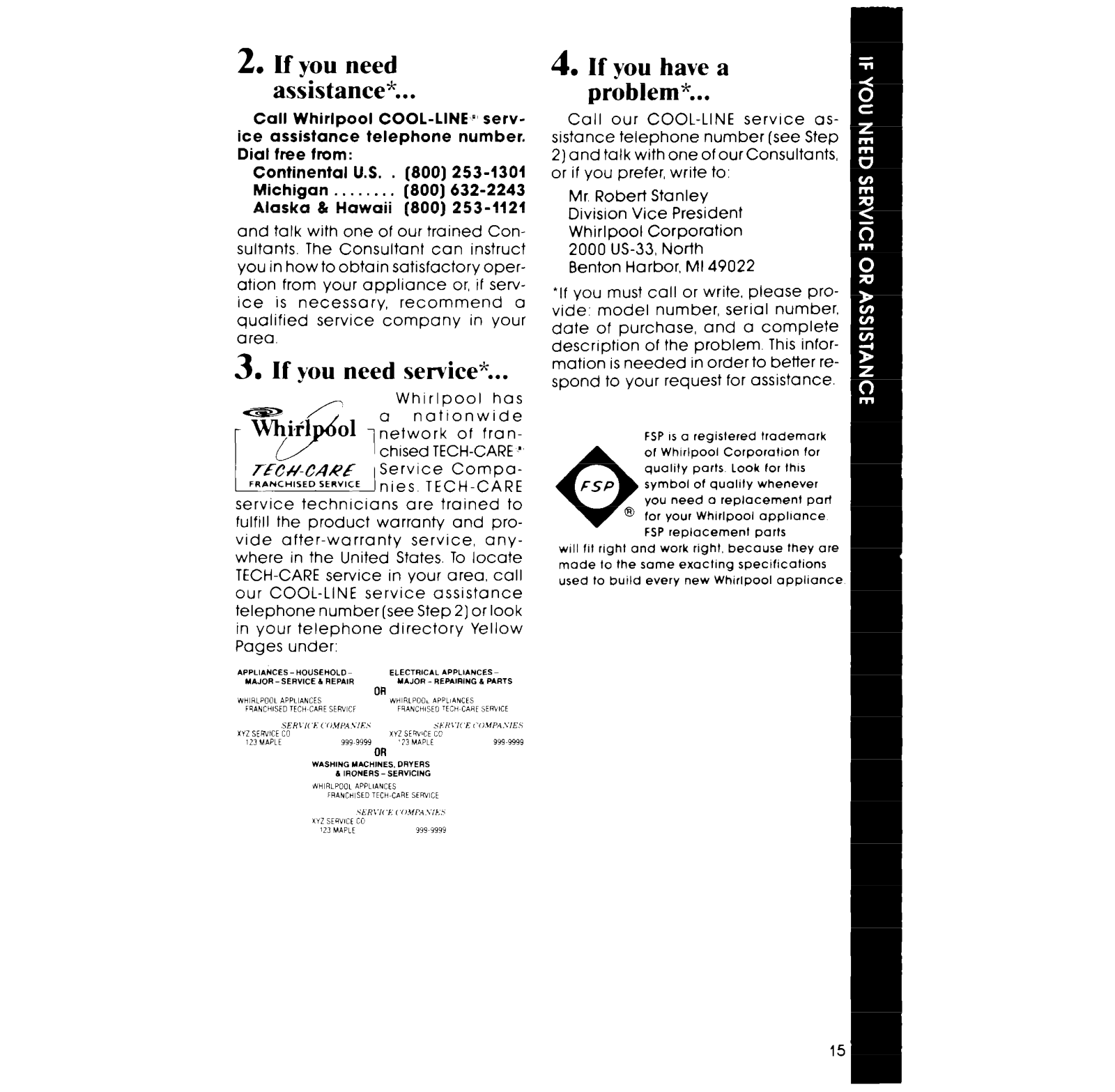

2. If You Need Assistance 15
3. If You Need Service 15
4. If You Have a Problem 15
01966 Whirlpool Corporation

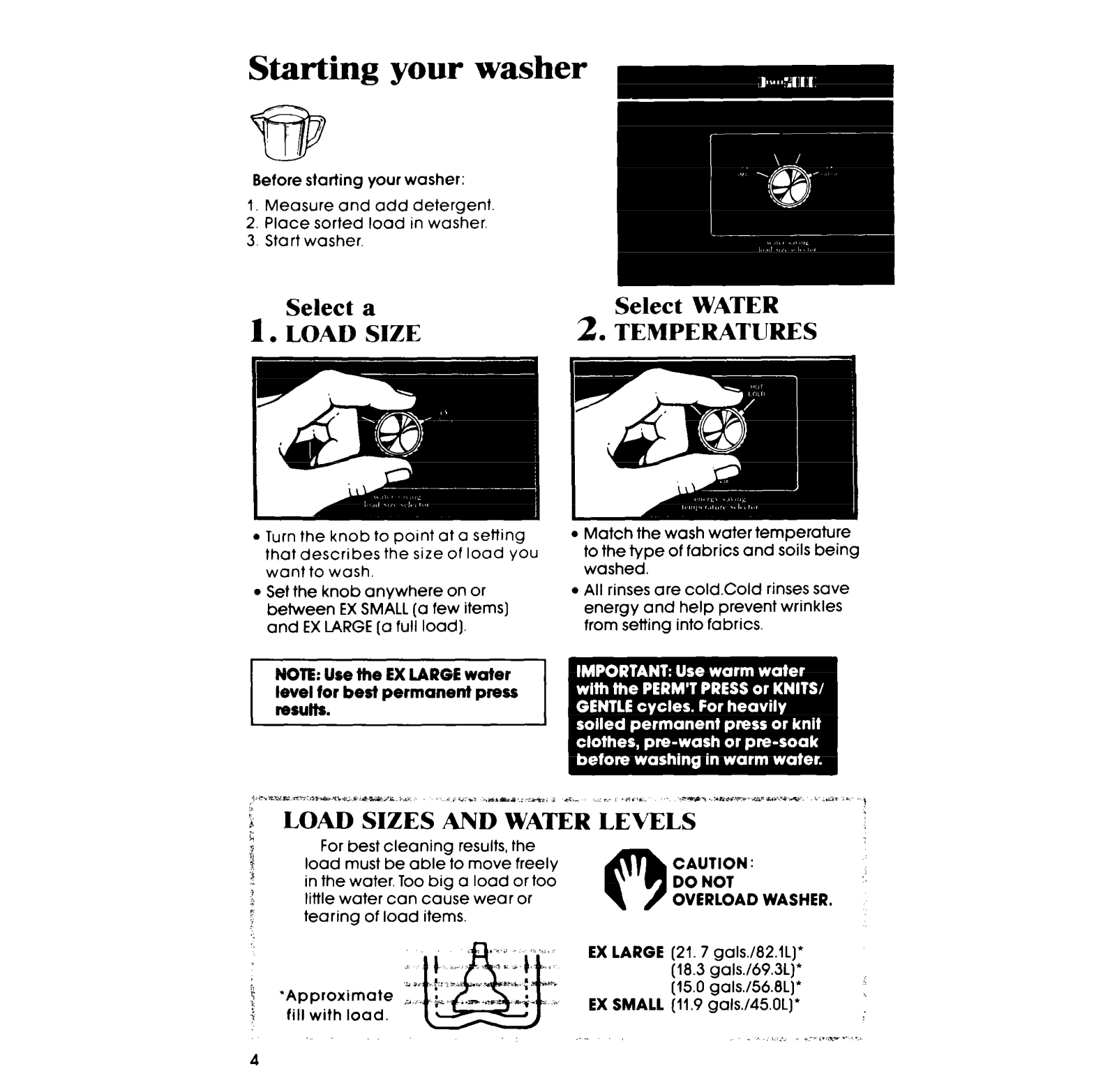

Before starting your washer:
1. Measure and add detergent
2. Place sorted load in washer.
3. Start washer.
Select a
1. LOAD SIZE
l
Turn the knob to point at a setting
that describes the size of load you
want to wash.
l
Set the knob anywhere on or
between EX SMALL (a few items]
and EX LARGE (a full load].
NOTE: Use the EX LARGE water
level for best permanent press
results.
i.h4CWliL C’;--tw*,r(*gJ.*.l.%a/~ i.w
LOAD SIZES AND WATER LEVELS
>
:
3
?
r
For best cleaning results, the
load must be able to move freely
in the water. Too big a load or too
little water can cause wear or
tearing of load items.
-- 4 EU’.I -,b%J*il~:-n.w,, ,/ a_-
2.
l
Match the wash water temperature
to the type of fabrics and soils being
washed.
l
All rinses are coldCold rinses save
energy and help prevent wrinkles
from setting into fabrics.
_. ,- 1 .d+.fi’L ; +--we?. *@2see-r-a%=ll)iY-~-~ i ..cw ,11 >
Select WATER
TEMPERATURES
CAUTION :
DO NOT
OVERLOAD WASHER.
h
* ‘Approximate
i
fill with load.
EX LARGE (21. 7 gals./B2.1L)*
(18.3 gals./69.3L)*
(15.0 gals./56.8L)* 1
EX SMALL (11.9 gals./45OL)*

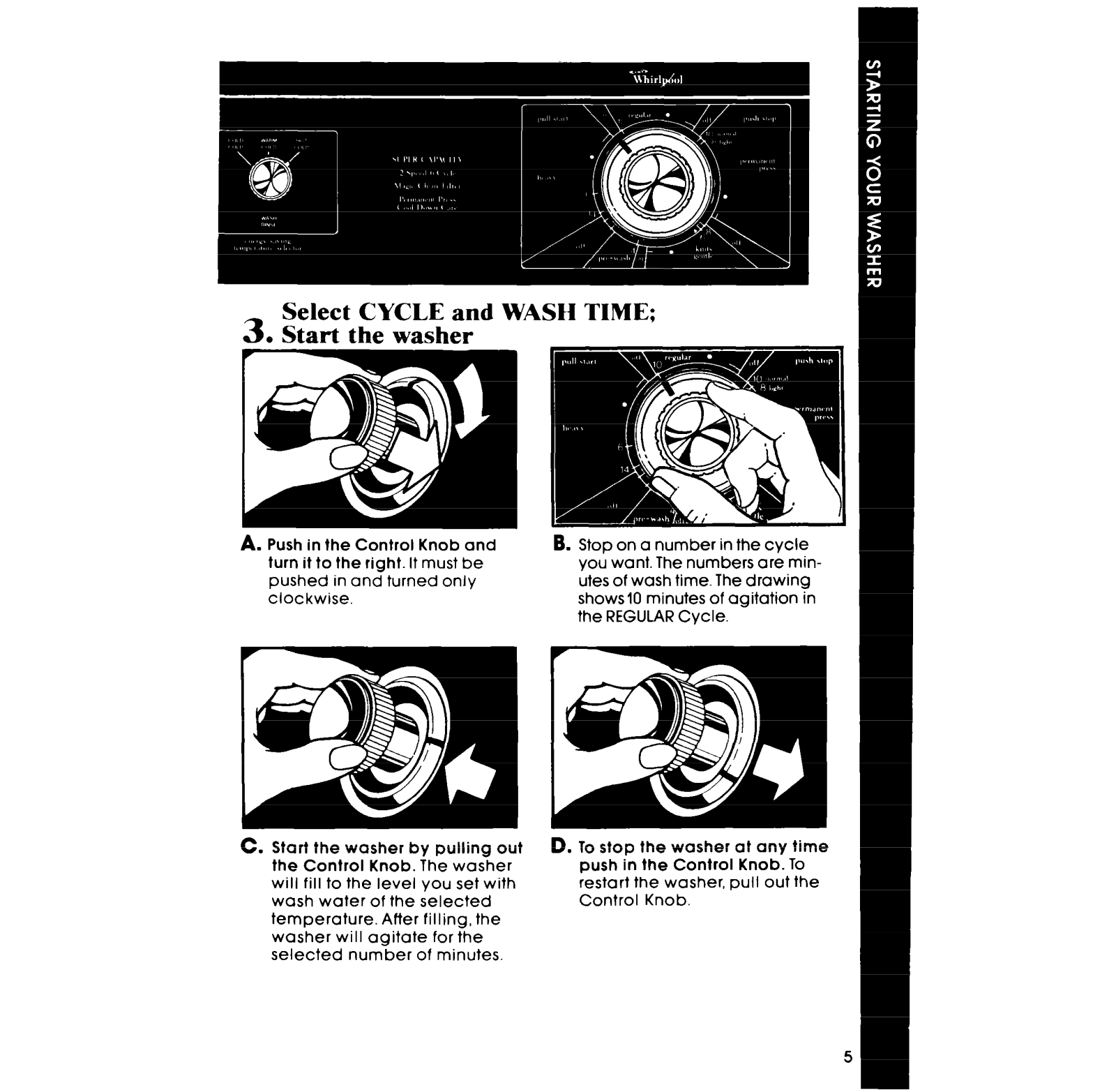

3. Start the washer
A.
Push in the Control Knob and
turn it to the right. It must be
pushed in and turned only
clockwise.
C. Start the washer by pulling out
the Control Knob. The washer
will fill to the level you set with
wash water of the selected
temperature. After filling, the
washer will agitate for the
selected number of minutes.
B.
Stop on a number in the cycle
you want. The numbers are minutes of wash time. The drawing
shows10 minutes of agitation in
the REGULAR Cycle.
D.
To stop the washer at any time
push in the Control Knob. To
restart the washer, pull out the
Control Knob.
