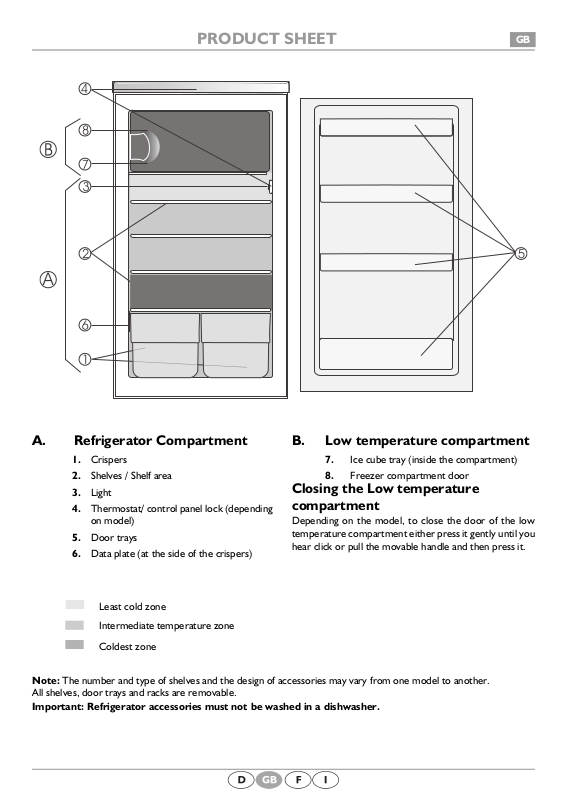

PRODUCT SHEET
GB
D F NL E P GR
DK
S N FIN
I
GB
A. Refrigerator Compartment
1.
Crispers
2.
Shelves / Shelf area
3.
Light
4.
Thermostat/ control panel lock (depending
on model)
5.
Door trays
6.
Data plate (at the side of the crispers)
B. Low temperature compartment
7.
Ice cube tray (inside the compartment)
8.
Freezer compartment door
Closing the Low temperature
compartment
Depending on the model, to close the door of the low
temperature compartment either press it gently until you
hear click or pull the movable handle and then press it.
Least cold zone
Intermediate temperature zone
Coldest zone
Note:
The number and type of shelves and the design of accessories may vary from one model to another.
All shelves, door trays and racks are removable.
Important: Refrigerator accessories must not be washed in a dishwasher.
5019 637 33100
Printed in Italy 03/04
D F NL E P GR
DK
S N FIN
I
GB
Control panel
1.
Thermostat knob (depending on model)
Thermostat set to
0/Off:
refrigeration compartment switched off.
Thermostat set to
1-min: minimum
refrigeration.
Thermostat set to
7-max: maximum
refrigeration.
The recommended thermostat setting is 3-4/med.
The refrigerator can operate at ambient temperatures between +16°C and +32°C.
Note:
Ambient air temperature, the frequency of door opening and the position of the appliance can affect the internal
temperatures of the refrigerator. These factors must be taken into account when setting the thermostat.
Light
- how to replace the bulb
Before replacing the bulb, remove the power plug from the mains socket. Next:
1 - Hold the diffuser as shown and squeeze it slightly.
2 - Slide it towards the rear of the appliance
3 - Unscrew the light bulb as illustrated in the picture.
Printed in Poland
5019 602 33090
