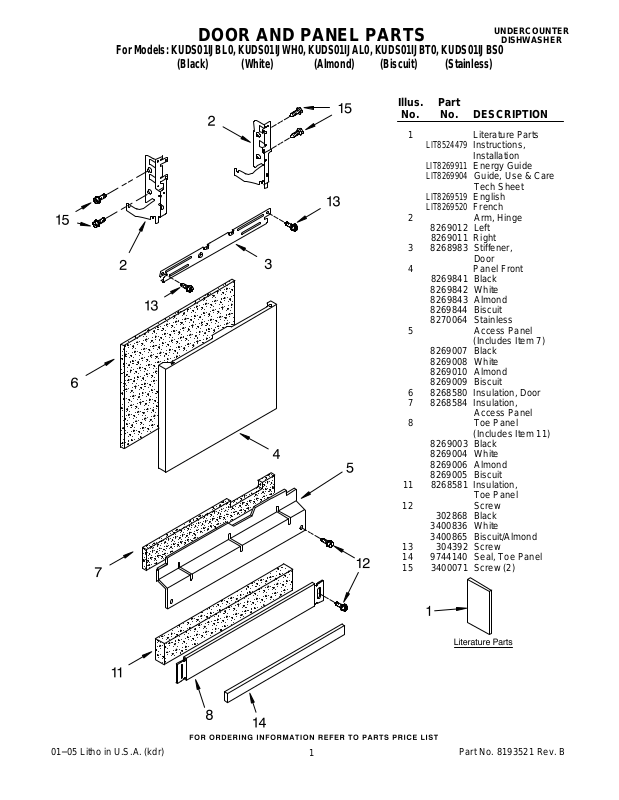

DOOR AND PANEL PARTS
UNDERCOUNTER
DISHWASHER
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT8524479
LIT8269911
LIT8269904
LIT8269519
LIT8269520
2 Arm, Hinge
8269012 Left
8269011 Right
3 8268983 Stiffener,
4 Panel Front
8269841 Black
8269842 White
8269843 Almond
8269844 Biscuit
8270064 Stainless
5 Access Panel
8269007 Black
8269008 White
8269010 Almond
8269009 Biscuit
6 8268580 Insulation, Door
7 8268584 Insulation,
8 Toe Panel
8269003 Black
8269004 White
8269006 Almond
8269005 Biscuit
11 8268581 Insulation,
12 Screw
302868 Black
3400836 White
3400865 Biscuit/Almond
13 304392 Screw
14 9744140 Seal, Toe Panel
15 3400071 Screw (2)
Instructions,
Installation
Energy Guide
Guide, Use & Care
Tech Sheet
English
French
Door
(Includes Item 7)
Access Panel
(Includes Item 11)
Toe Panel
01−05 Litho in U.S.A. (kdr) Part No. 8193521 Rev. B
1
Page 2
CONTROL PANEL PARTS
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Console Asm.
includes Active
Overlay & Insert
8269136 Black
8269138 White
8269139 Almond
8269140 Biscuit
4 8268540 Spring, Handle
Illus. Part
No. No. DESCRIPTION
5 8524471 Actuator, Latch
6 8269213 Fuse, Thermal
Electronic
7 8269206 Display, Dual
Digit
8 3369051 Screw (6)
2
Illus. Part
No. No. DESCRIPTION
9 Handle, Latch
8269117 Black
8269167 White
8269169 Almond
8269168 Biscuit
10 8524476 Bolt, Latch
11 8528172 Control,
Electronic
12 8269209 Switch, Door
14 8268547 Shield
15 3400409 Screw
8193521
Page 3
DOOR AND LATCH PARTS
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3 8269108 Inner Door
Mastic Assembly
(Also Order
Item 6)
4 8269266 Inlet, Air
5 8269251 Vent Assembly
(Also Order
6 8269259 Gasket, Vent
8193521
Illus. Part
No. No. DESCRIPTION
7 8269260 Deflector, Vent
(Also Order
Item 6)
8 8269996 Dispenser,
Assembly
(Also Order
Item 11)
9 8269258 Seal, Front
10 8269190 Dispenser,
Wiring Harness
11 8269189 Sensor, Rinse Aid
3
Illus. Part
No. No. DESCRIPTION
12 8269191 Wiring Harness
Main
13 8281154 Screw (6)
14 8269143 Seal,
Console/door
15 8269743 Bracket,
Dispenser
16 8268541 Shield,
Dispenser
17 8268933 Seal, Splash
Guard
Page 4

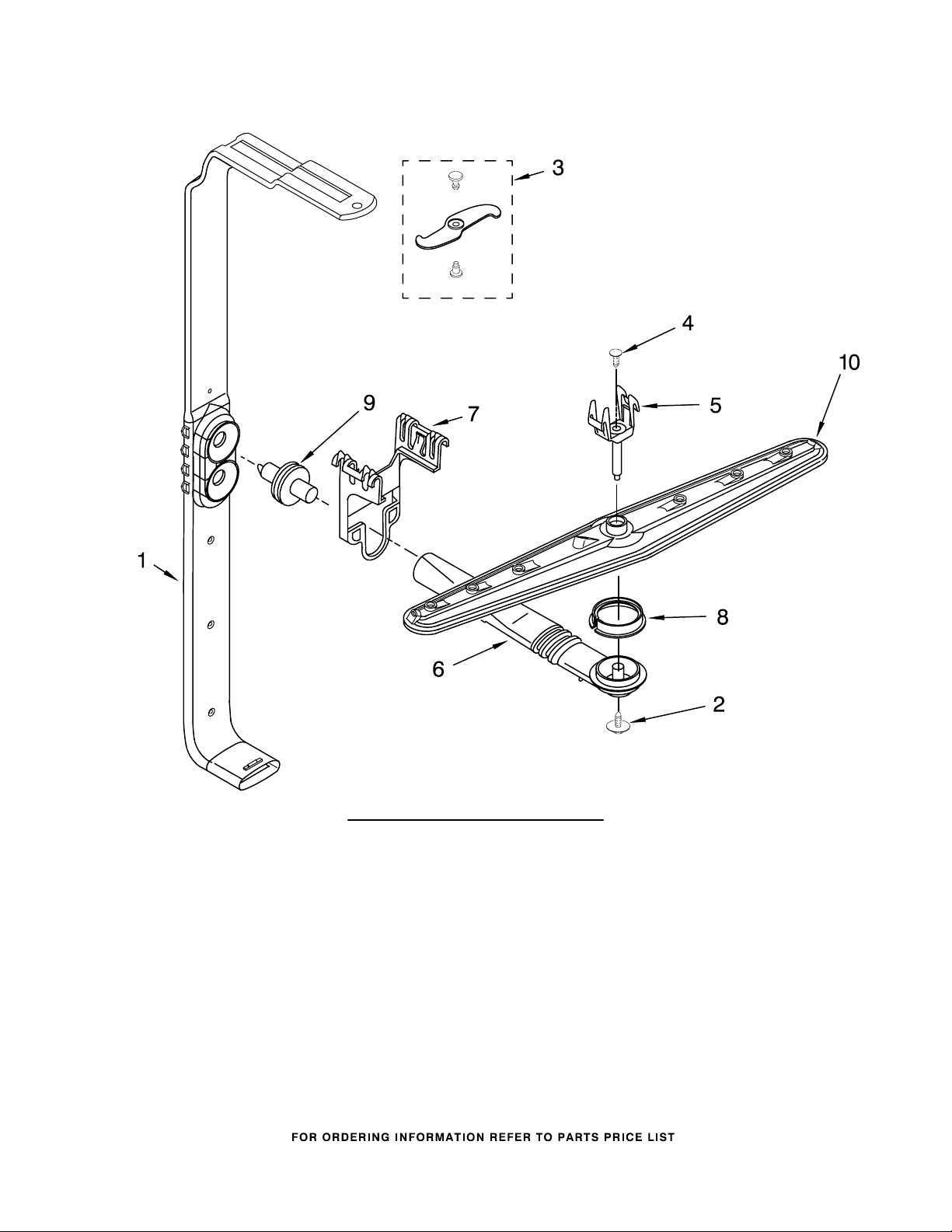

LOWER WASHARM AND STRAINER PARTS
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8268300 Wash Arm Assembly
2 8268343 Cap, Internal
Rear Feed
3 8268340 Seal, Sprayarm
4 8268342 Hub, Lower
Sprayarm
4
8193521
Page 5
HEATER PARTS
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
8193521
Illus. Part
No. No. DESCRIPTION
1 8194200 Heater Element
Assembly
(Also Includes
Item 2 and
Electronic
Control)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
5 3400931 Retainer, Spring
If heater element is
NOTE:
removed, it must be replaced.
5
Page 6

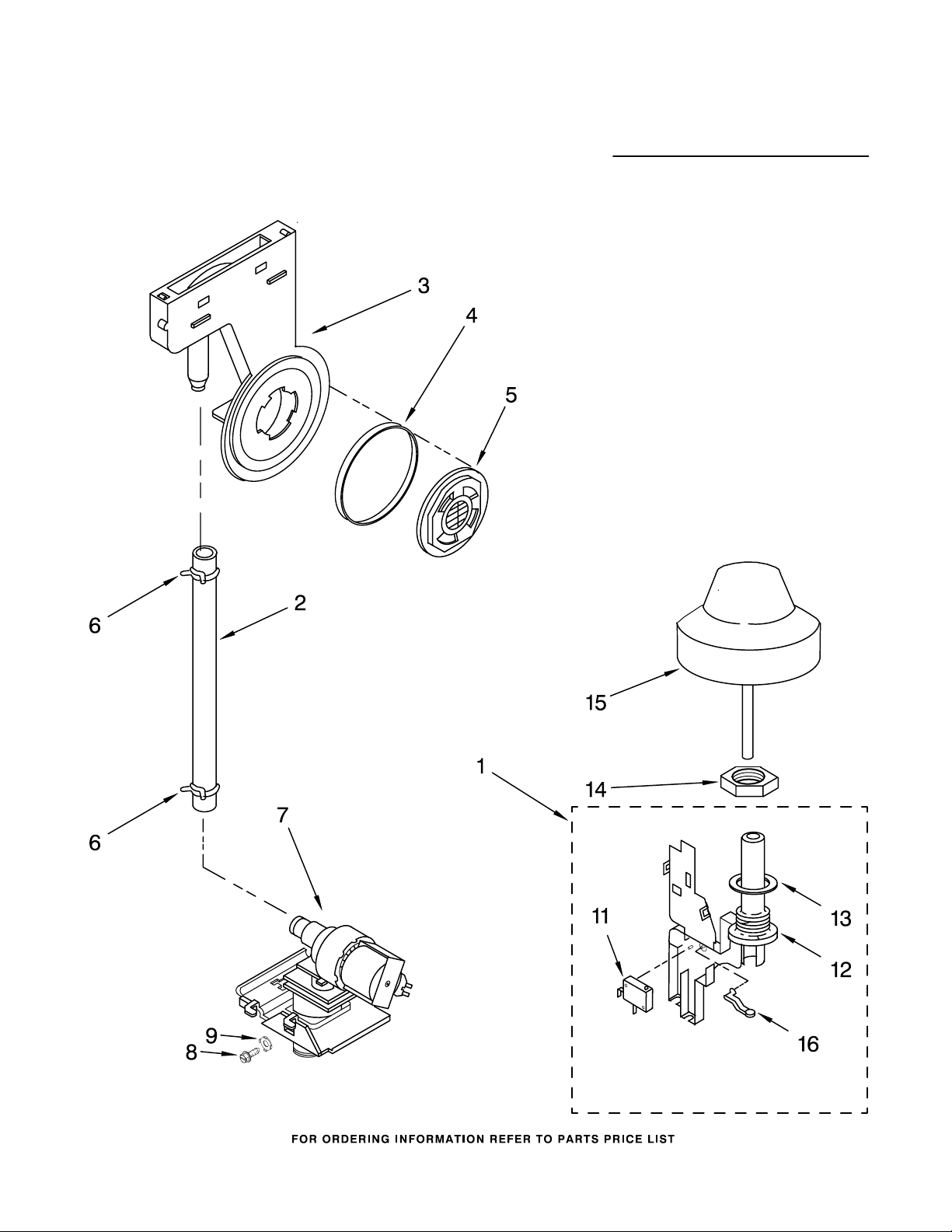

FILL AND OVERFILL PARTS
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8268889 Control, Overfil
Assembly
2 8269242 Hose, Inlet
3 8269240 Water Inlet
Assembly
(Includes
Items 4 & 5)
4 8269241 Gasket
5 8269268 Bezel, Inlet
6 301958 Clamp, Hose
7 8268572 Fill Valve
Assembly
8 3400014 Screw
9 3378128 Washer
11 8268909 Switch, Overfill
Control
12 8268891 Standpipe,
Overfill
13 4161670 Gasket, Flat
14 9741998 Nut, Standpipe
15 8268895 Float & Retainer
Assembly
16 8268892 Lever, Overflow
Switch
6
8193521
Page 7

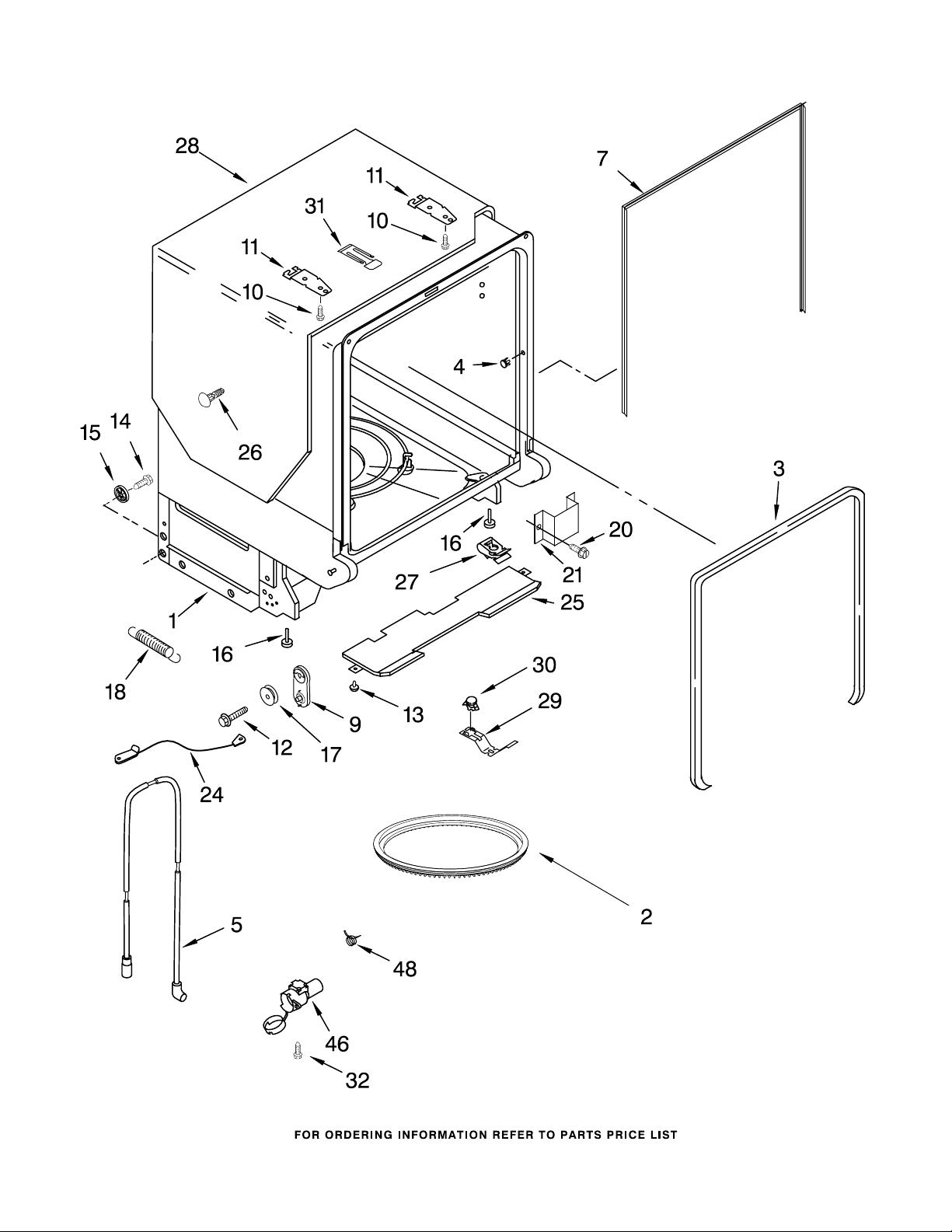

TUB AND FRAME PARTS
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
8193521
7
Page 8
TUB AND FRAME PARTS
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8269105 Tub Assembly
(Also Order
Item 2)
2 8268395 Seal, Sump
3 8268888 Door Seal
4 8270119 Plug Tub (2)
5 8269112 Drain Loop
With Check Valve
7 8269110 Seal, Cabinet
9 8270021 Mount, Door
Balance
10 3367670 Screw
11 8269145 Bracket,
Undercounter
12 3400074 Screw (2)
13 3400924 Retainer, Push−in
14 3370389 Screw (2)
15 8268977 Wheel Leg
16 3374849 Leveler, Leg
17 8524474 Wheel, door
Balance
18 8270020 Spring, Door
Balance
20 3400892 Screw
21 8268991 Cover, Terminal
Box
24 8270022 Link, Door
Balance
25 8268587 Insulator, Sound
26 304666 Retainer, Push (2)
27 8269016 Clip, Grounding
28 8268585 Shield, Sound
Tub
29 9742648 Bracket,
Thermostat
30 661566 Thermostat
31 8269111 Strike, Latch
32 9741232 Screw
46 8268477 Switch, Pressure
48 356138 Clamp, Hose (1)
8
8193521
Page 9

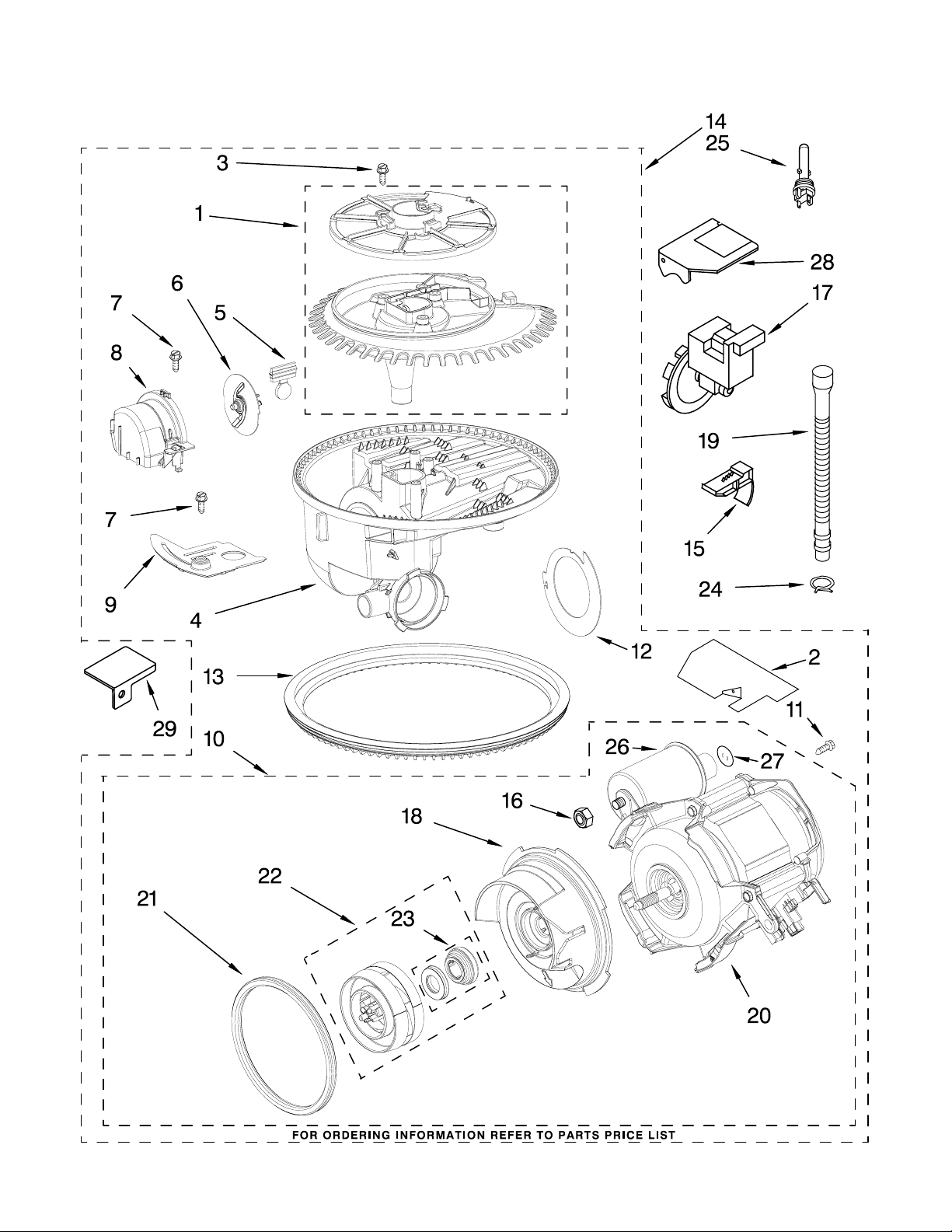

PUMP AND MOTOR PARTS
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
8193521
9
Page 10
PUMP AND MOTOR PARTS
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8268429 Accumulator Assy
2 8268529 Shield, Motor
3 3400069 Screw
4 8268382 Sump
5 8268389 Check Valve, Sump
6 8268383 Chopper Assembly
7 9741232 Screw
8 8268390 Protector, Inlet
9 8268427 Protector, Foreign
10 8268407 Motor Assembly
11 3400217 Screw
12 8268391 Screen, Separation
13 8268395 Seal, Sump
14 8268422 Sump & Motor
Assembly
15 8268432 Tab, Sump
16 3400921 Nut
17 8268411 Pump, Drain
18 8268405 Volute, Back
(Also Order
Item 23)
19 8269144 Hose, Drain
20 8268408 Motor And
Capacitor
21 8268397 Seal, Volute
22 8268398 Impeller Kit
23 8268403 Face Seal Assembly
24 356138 Clamp, Hose
25 8269208 Thermister
26 8269507 Capacitor
27 8269512 Shield, Capacitor
28 8269449 Shield, Drain
Pump
29 8269501 Shield, Pressure
Switch
10
8193521
Page 11
UPPER RACK AND TRACK PARTS
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
8193521
11
Page 12

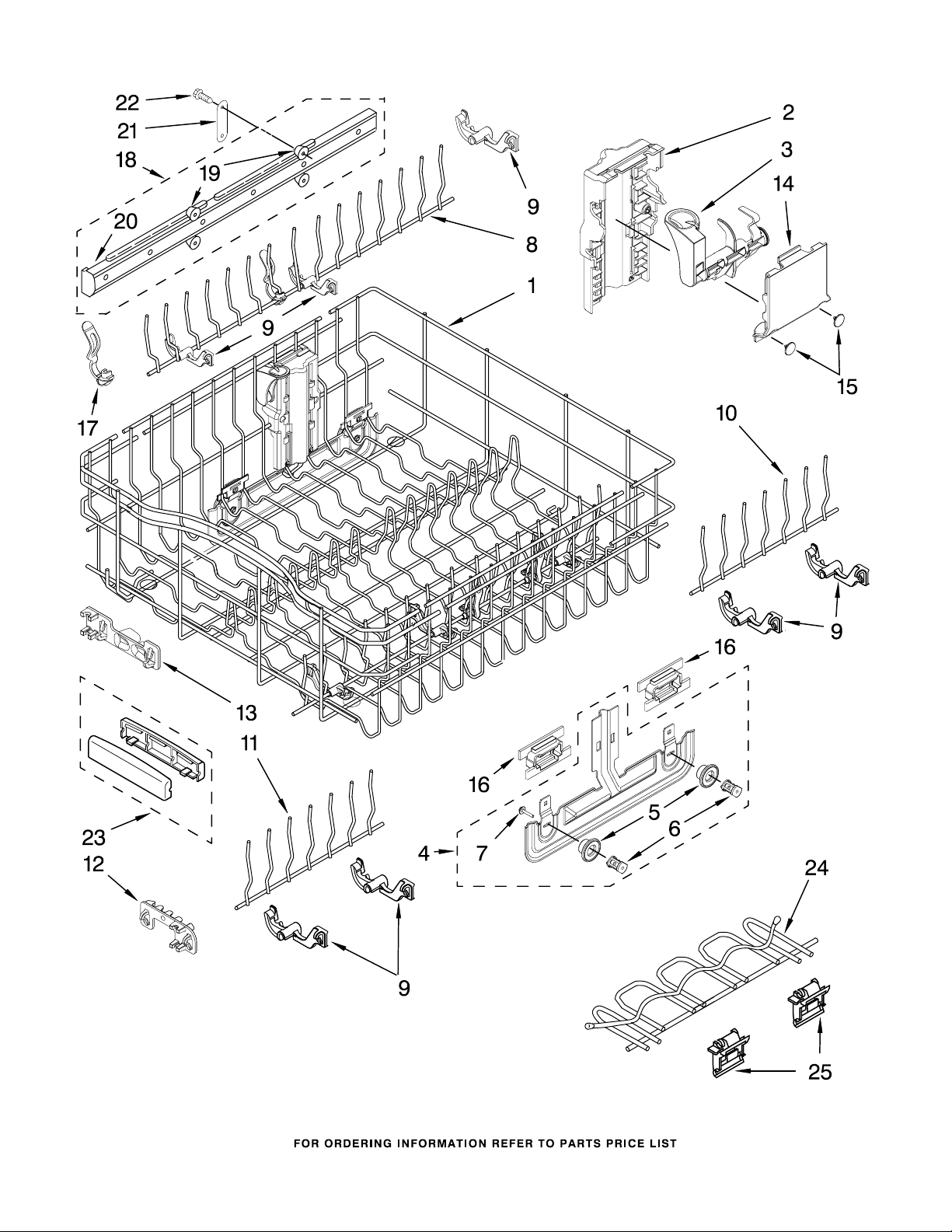

UPPER RACK AND TRACK PARTS
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8268799 Dishrack, Upper
(Also Order
Item 15)
2 8268735 Housing, Adjuster
(Also Order
Item 15)
3 Actuator, Adjuster
(Also Order
Item 15)
8268649 Right Hand
8268701 Left Hand
4 8268653 Adjuster Assembly
(Also Order
Item 15)
5 8270138 Wheel
6 8268703 Axel, Adjuster
7 8281156 Screw
8 8268800 Tine Row
9 8268739 Clip, Pivot
10 8268801 Tine Row, Rear
11 8268802 Tine Row, Front
12 8268740 Positioner, Dual
13 8268741 Positioner, Multi
14 8268736 Cover, Adjuster
(Also Order
Item 15)
15 3400922 Retainer
16 8268738 Positioner, Arm
17 8268742 Clip, No−Flip
18 8270130 Track, Assembly
(Also Order
Item 21)
19 8270137 Mount, Track
(Also Order
Item 21)
20 8270136 Stop, Track
21 9743002 Gasket, Bracket
Mounting
22 3400072 Screw (8)
23 8269714 Handle,
Dishrack
24 661643 Cupshelf
25 8270025 Clip, Cupshelf
12
8193521
Page 13
UPPER WASH AND RINSE PARTS
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
8193521
Illus. Part
No. No. DESCRIPTION
1 8268359 Feed Tube
Assembly
(Also Includes
Item 3)
2 3400031 Screw
3 8268298 Sprayarm, 3rd
Level
4 3400920 Cover, Screw
5 8268354 Mount
6 8268356 Manifold
7 8268349 Hanger
8 8268433 Seal, Sprayarm
9 8268350 Probe, Manifold
10 8268351 Sprayarm
13
Page 14

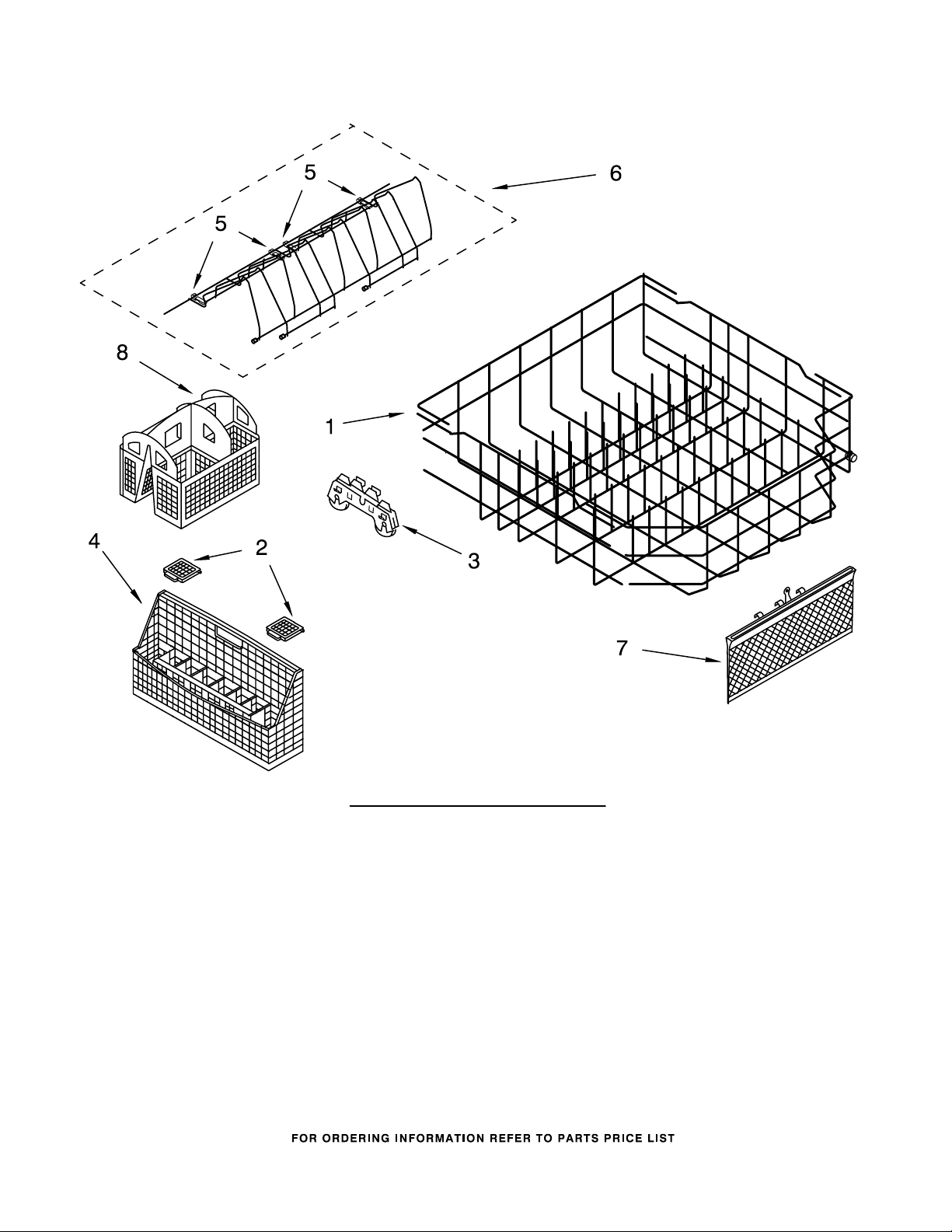

LOWER RACK PARTS
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8268805 Lower Rack
Assembly
(Includes Item 3)
2 8268749 Cover Basket
Silverware
3 8268713 Wheel & Transport
Assembly
4 8268747 Basket,
Silverware
5 8268493 Clip−Base,
Plate Holder
6 661641 Holder, Plate
7 8270096 Basket−Small
Items
8 8268693 Caddie−Utensil
14
8193521
Page 15
MISCELLANEOUS PARTS
For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0
(Black) (White) (Almond) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION

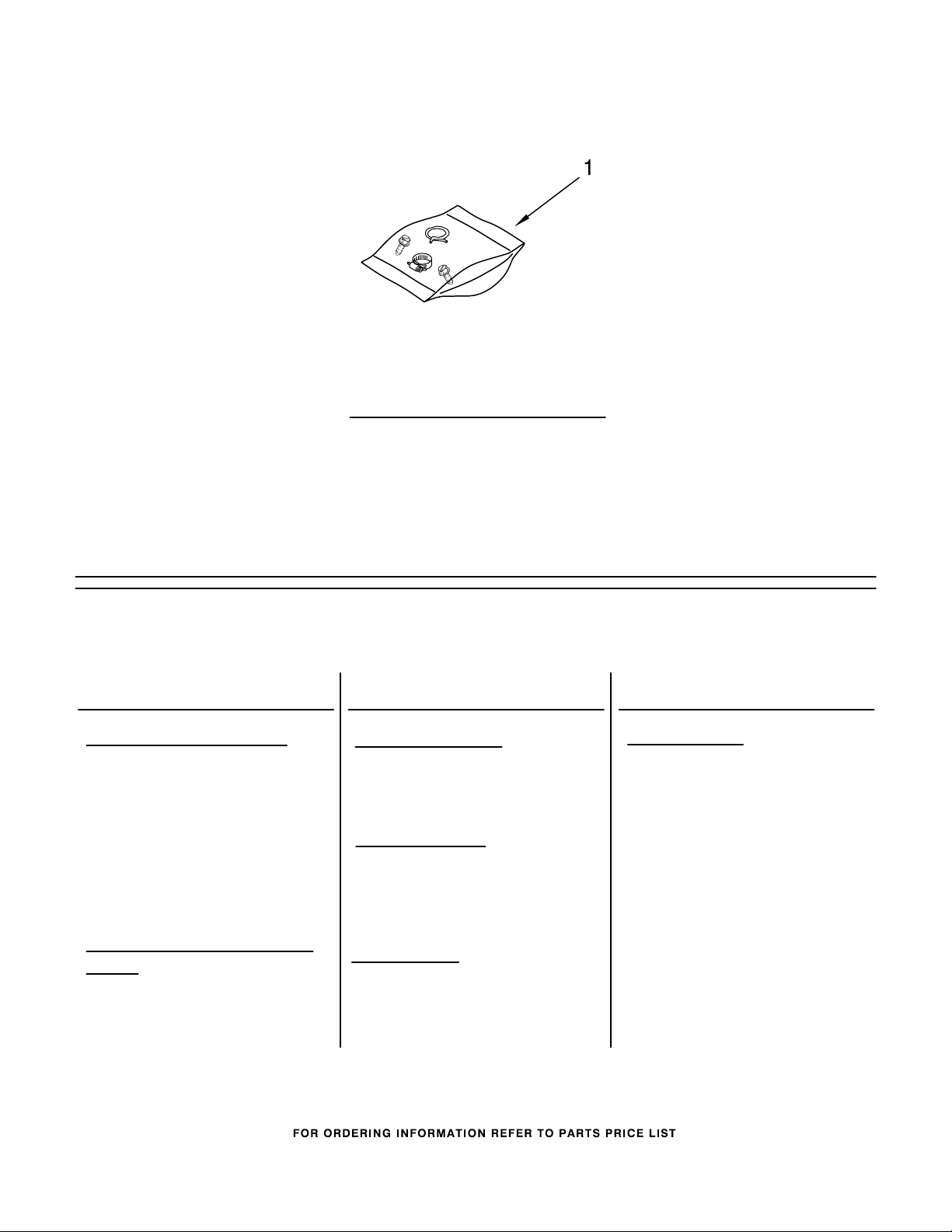

1 8269297 Miscellanous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
OPTIONAL PARTS (NOT INCLUDED)
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
72107 Almond
72032 Black
4392899 Biscuit
Grip
8171571 Cobalt Blue
8171651 Hunter Green
8171652 Empire Red
8171653 Majestic Yellow
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350956 Almond
285006 Superior Black
4392901 Biscuit
Illus. Part
No. No. DESCRIPTION
PAINT, BULK (1 qt.)
799344 White (Uncut)
978883 Almond (Uncut)
4392900 Biscuit
POWER CORD KIT
4317824 Power Cord Kit
(Includes Power
Cord & Misc.
Hardware)
ANTI−TIP KIT
8171477 Floor Mount Kit
Illus. Part
No. No. DESCRIPTION
ACCESSORIES
SIDE PANEL KITS
8171656 White
8171657 Black
8171658 Biscuit
8171659 Stainless Steel
Custom Panel Kits
8171555 Black
8171556 White
8171557 Biscuit
8171558 Graphite
Color Panel Kits
8171574 Cobalt Blue
8171575 Hunter Green
8171576 Empire Red
8171577 Majestic Yellow
8193521
15
