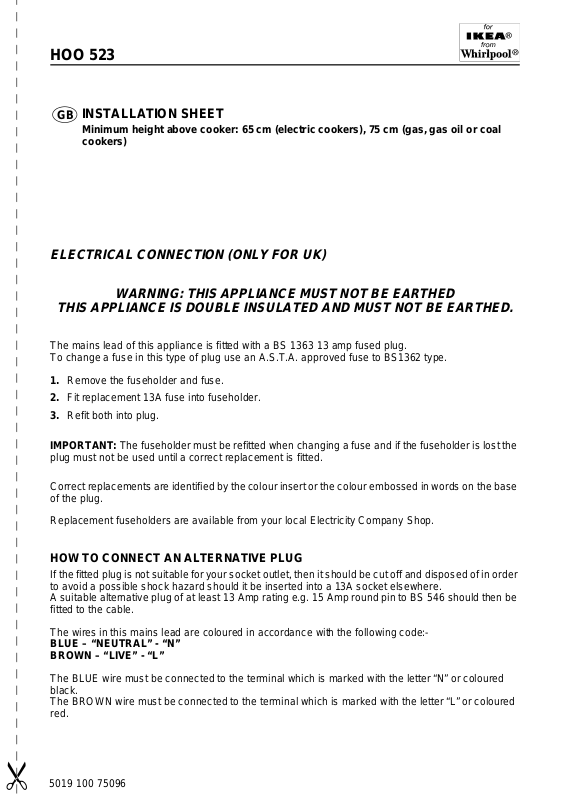

Page 1
HOO 523
INSTALLATION SHEET
GB
Minimum height above cooker: 65 cm (electric cookers), 75 cm (gas, gas oil or coal
cookers)
ELECTRICAL CONNECTION (ONLY FOR UK)
WARNING: THIS APPLIANCE MUST NOT BE EARTHED
THIS APPLIANCE IS DOUBLE INSULATED AND MUST NOT BE EARTHED.
The mains lead of this appliance is fitted with a BS 1363 13 amp fused plug.
To change a fuse in this type of plug use an A.S.T.A. approved fuse to BS1362 type.
1.
Remove the fuseholder and fuse.
2.
Fit replacement 13A fuse into fuseholder.
3.
Refit both into plug.
IMPORTANT:
plug must not be used until a correct replacement is fitted.
Correct replacements are identified by the colour insert or the colour embossed in words on the base
of the plug.
Replacement fuseholders are available from your local Electricity Company Shop.
The fuseholder must be refitted when changing a fuse and if the fuseholder is lost the
HOW TO CONNECT AN ALTERNATIVE PLUG
If the fitted plug is not suitable for your socket outlet, then it should be cut off and disposed of in order
to avoid a possible shock hazard should it be inserted into a 13A socket elsewhere.
A suitable alternative plug of at least 13 Amp rating e.g. 15 Amp round pin to BS 546 should then be
fitted to the cable.
The wires in this mains lead are coloured in accordance with the following code:-
BLUE – “NEUTRAL” - “N”
BROWN – “LIVE” - “L”
The BLUE wire must be connected to the terminal which is marked with the letter “N” or coloured
black.
The BROWN wire must be connected to the terminal which is marked with the letter “L” or coloured
red.
5019 100 75096
Page 2
HOO 523
Decorative panel
5019 100 75096

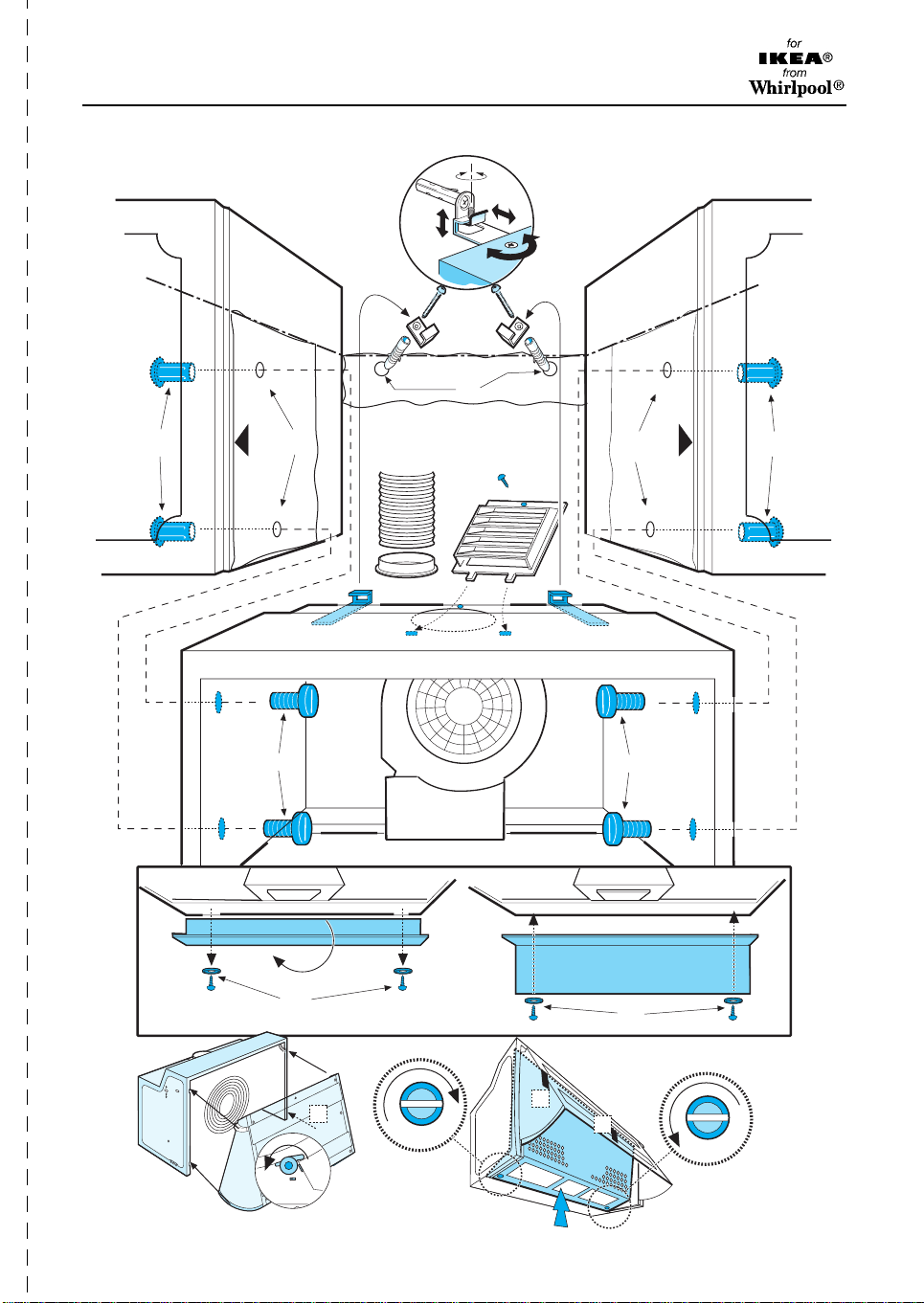

Page 3
HOO 523
18
16
17
9
17
Ø8mm
23A
A
Ø6mm
10
C B
Ø6mm
19
15
15
13
14
17
Ø8mm
12
23F
F
17
19
11
Ø6mm
16
Ø6mm
5019 100 75096
25
24
180°
21
20
24
25
29
4
26
28
27
22
28
29
Page 4
HOO 523
O123
OI
O123
OI
f

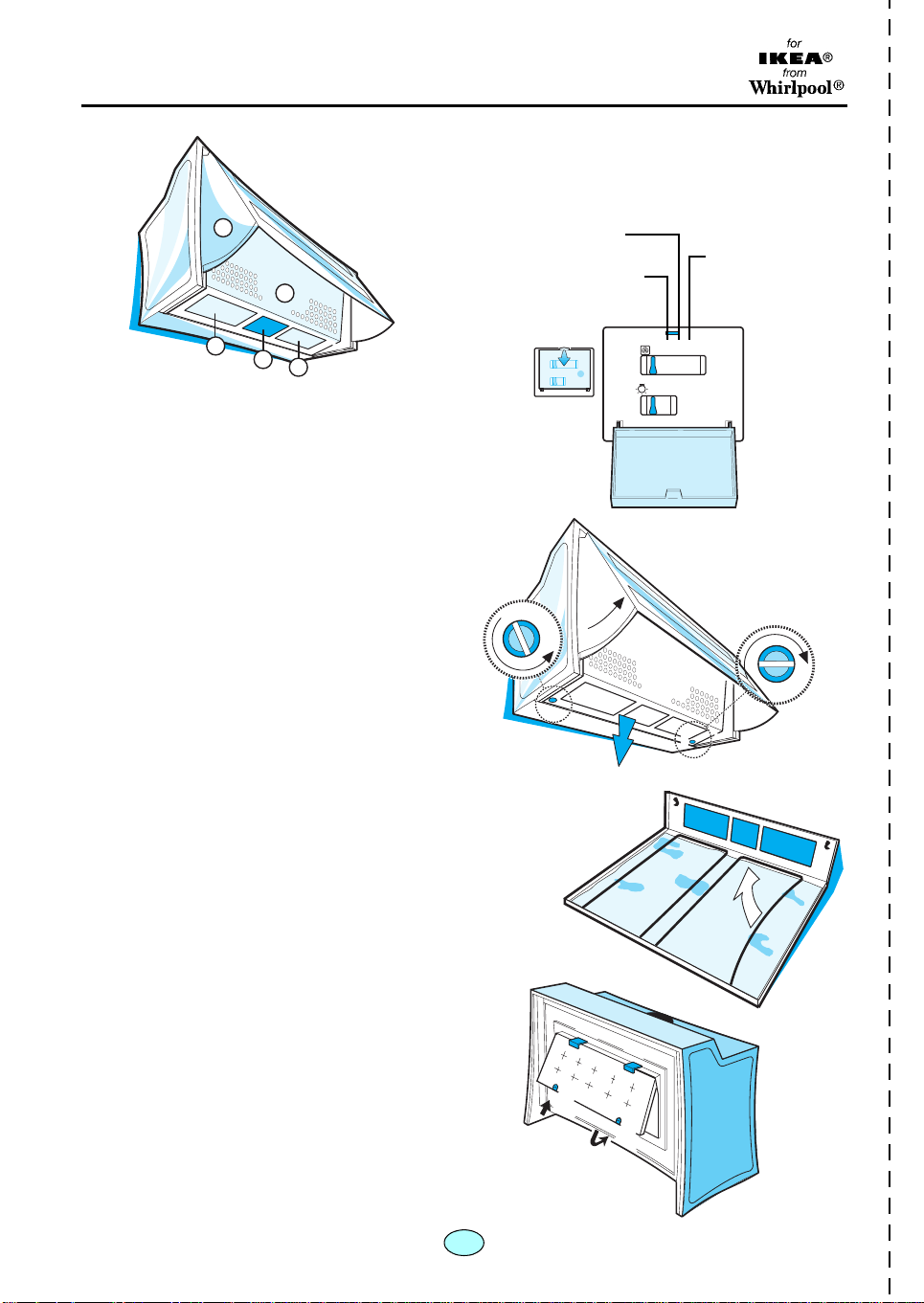

PRODUCT DESCRIPTION SHEET
CONTROL PANEL
A.
Light switch.
B.
Speed selector.
4
3
1.
Control panel.
2.
Grease filter (inside the extractor grille).
3.
Lighting unit.
4.
Pull-out Steam deflector (extractable).
2
1
3
REMOVING AND SUBSTITUTING OR
CLEANING THE GREASE FILTER
1.
Unplug the appliance or switch off the mains
power supply.
2.
Pull out the steam deflector.
3.
Open the extractor grille.
4.
Remove the grease filter fixing device.
5.
Remove the dirty grease filter.
6.
After substituting or cleaning the grease filter
(depending on model) remount in reverse
order, making sure the entire extraction
surface is covered.
MOUNTING OR REPLACING THE
CARBON FILTER
1.
Unplug the appliance or switch off the mains
power supply.
2.
Pull out the steam deflector.
3.
Open the extractor grille.
4.
If the carbon filter is mounted and needs
substituting, press the buttons (d) on the filter
and fit a new filter.
5.
If the filter is not mounted:
c.
Fit the carbon filter into the upper clips.
d.
Fix securely using the lower clips.
6.
Remount the extractor grille.
REPLACING BULBS
1.
Unplug the appliance or switch off the mains
power supply.
2.
Pull out the steam deflector.
3.
Open the extractor grille.
4.
Remove the burnt-out bulb.
Use 40W max (E14) bulbs only.
5.
Remount the extractor grille.
5019 100 75096
medium amount o
steam and fumes
small amount of
steam and fumes
b
b
GB
d
c
large amount of
steam and fumes
B
A
a
b
c
b
c
d
