Whirlpool HD F10 S INSTALLATION

LUFTIG

BF570

GB

ENGLISH 4

ENGLISH 4

Contents

Safety information 4
Product description 7
Control panel 7
Cleaning and maintenance 8
What to do if ... 10

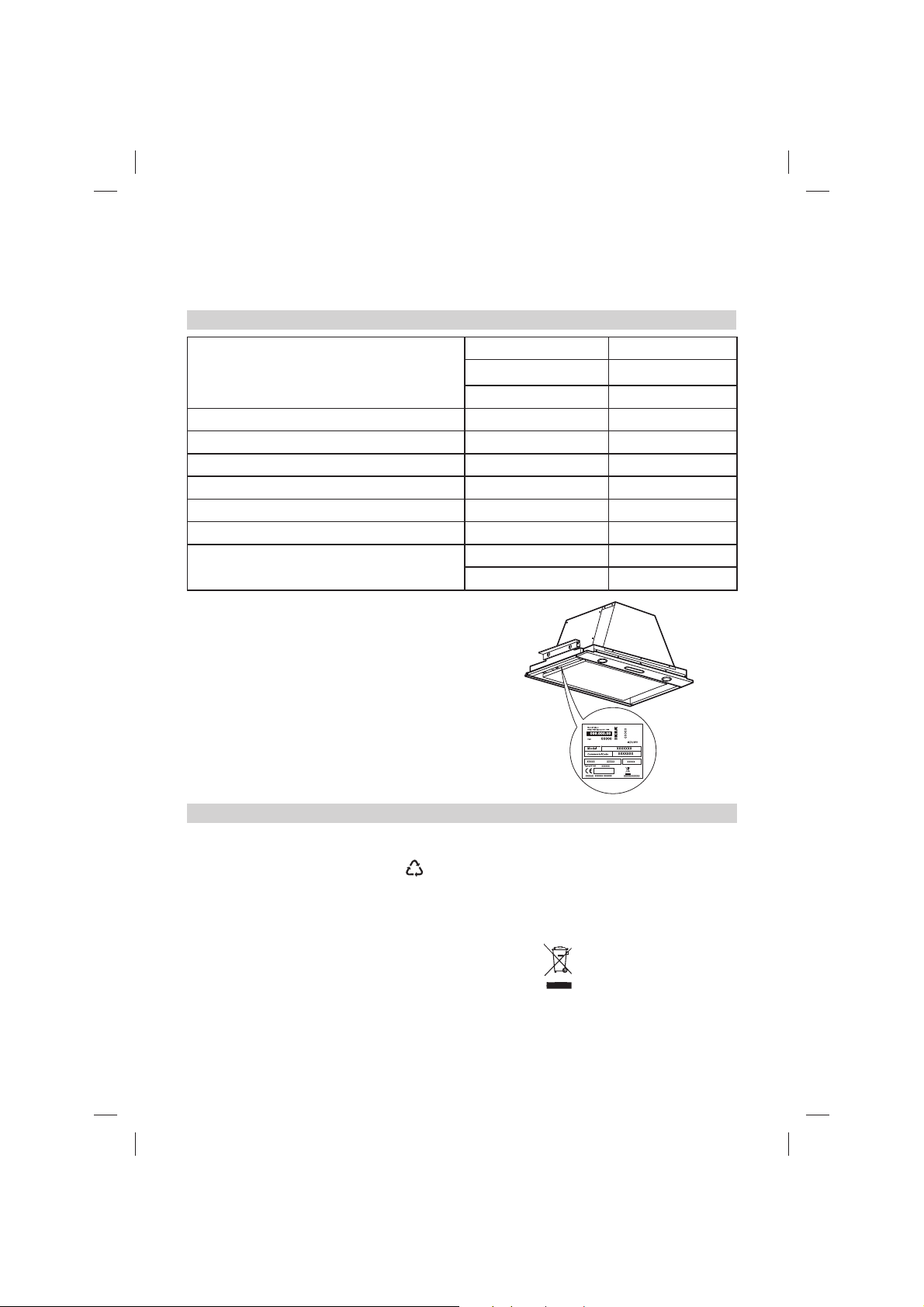

Technical data 11
Environmental concerns 11

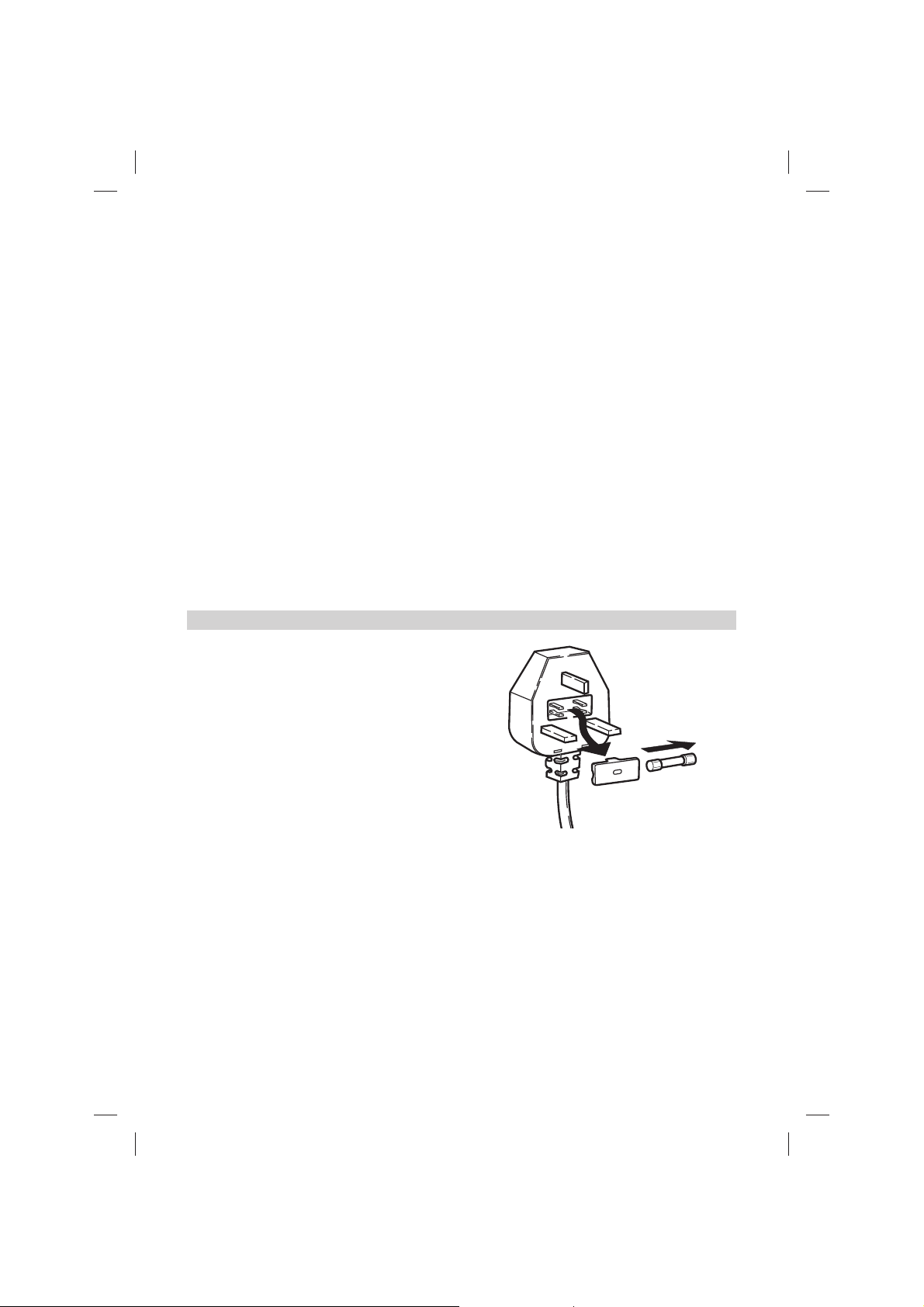

Electrical connection for
Great Britain and Ireland only 12
IKEA GUARANTEE 13

Safety Information

Before fi rst use

Your safety and that of others is paramount.
Remove cardboard protection pieces,
protective fi lm and adhesive labels from
accessories.
Check the appliance for any transport
damage.
To avoid any damage do not place any
weights on the appliance. Do not expose
the appliance to atmospheric agents.
This manual and the appliance itself provide
important safety warnings, to be read and
observed at all times.

This is the attention symbol, pertaining

to safety, which alerts users to potential
risks to themselves and others.
All safety warnings are preceded by the
attention symbol and the following terms:

DANGER: indicates a hazardous

situation which, if not avoided, will
cause serious injury.

WARNING: Indicates a hazardous

situation which, if not avoided, could
cause serious injury.
All safety warnings give specifi c details
of the potential danger/warning present
and indicate how to reduce risk of injury,
damage and electric shock resulting from
improper use of the appliance. Carefully
observe the following instructions.

Precautions and general
recommendations

• The electrical installation and the

electrical connection must be carried
out by a qualifi ed technician according
to the manufacturer’s instructions and

in compliance with the local safety
regulations. Do not repair or replace any
part of the appliance unless specifi cally
stated in the user manual.

• The appliance must be disconnected
from the power supply before carrying
out any installation work.

• Earthing of the appliance is compulsory.
(required only for class I).

• The power cable must be long enough
for connecting the appliance, once
fi tted in its housing, to the power supply
socket.

• Do not pull the power supply cable in
order to unplug the appliance.

• The electrical components must not be
accessible to the user after installation.

• Do not touch the appliance with any wet
part of the body and do not operate it
when barefoot.

• The appliance is not intended for use
by persons (including children) with any
physical, sensory or mental impairment,
or without experience and knowledge
of the appliance, unless supervised or
previously instructed in its use by those
responsible for their safety.

• Do not repair or replace any part of the
appliance unless specifi cally indicated
in the manual. All other maintenance
services must be carried out by a
specialised technician.

• Children must be supervised to ensure
they do not play with the appliance.

• When drilling through the wall pay
attention not to damage electric
connections and/or pipes.

ENGLISH 5

• Air vents must always discharge to the
outside.

• The manufacturer rejects all
responsibilities for any damage caused
by improper use or wrong settings.

• Appropriate maintenance and cleaning
ensure the good working order and
the best performance of the appliance.
Regularly clean all stubborn surface dirt
to avoid grease build up. Remove and
clean or change the fi lter regularly.

• Never fl ame cook food (fl ambé) under
the appliance. Using free fl ames might
cause fi re.

• Failure to observe the instructions for
cleaning the hood and replacing the
fi lters may result in a fi re.

• Exhaust air must not be vented through
a fl ue used for removal of fumes
produced by gas combustion appliances
or other combustible materials, but must
have a separate outlet. All national
regulations governing extraction of
fumes must be observed.

• There shall be adequate ventilation if
the hood is being used at the same time
as other appliances using gas or other
combustible materials. The negative
pressure of the room must not exceed 4
Pa (4x 10-5 bars). For this reason ensure
that the room is well ventilated.

• Do not leave frying pans unattended
when frying, as the frying oil may catch
fi re.

• Before touching the light bulbs, ensure
that they are cold.

• Do not use or leave the hood without
the light bulb correctly fi tted, as this may
cause electric shock.

• The hood is not a work surface, therefore
do not place any objects on top of it or
overload it.

• During all installation and maintenance
operations wear appropriate working
gloves.

• This appliance is not suitable for outdoor
use.

• When the hob is in use, accessible parts
of the hood may become hot.

Installation and connection

After unpacking the appliance, check for
any transport damage. In the event of
problems, contact the After-sales Service.
To prevent any damage, only remove
the appliance from its polystyrene foam
packaging at the time of installation.

Preparing for installation

WARNING: this is a heavy product; the

hood should only be lifted and
installed by two or more people.
Before installation also check the minimum
distances stated in the manual of the cooker.
If the installation instructions for the cooker
specify a greater distance between cooker
and hood, this distance must be observed.

Electrical connection

Make sure the power voltage specifi ed on
the appliance rating plate is the same as
the mains voltage.
This information can be found on the inside
of the hood, under the grease fi lter.
Power cable replacement (type H05
VV-F) must be carried out by a qualifi ed
electrician. Contact an authorized service
centre.
If the hood is fi tted with an electric plug,
connect the plug to a socket complying with
current regulations, located in an accessible
place.
If no plug is fi tted (direct wiring to the
mains), or if the socket is not located in an
accessible place, a qualifi ed electrician
should install a standardised double pole
power switch that will enable complete
isolation from the mains in case of category
III overvoltage conditions, in accordance
with wiring rules.

ENGLISH 6

Use

The hood has been designed to be installed
and used either as a “Exhausted model”, or
as a “Recirculation model”.

Exhausted model (see symbol
installation booklet)

Cooking steam is sucked and channelled
outside the house through a discharge duct
(not supplied), fi tted to the hood steam
outlet.
Ensure that the discharge duct is correctly
fi tted to the air outlet, unit using an
appropriate connection system.
Important: If already installed, remove the
charcoal fi lter/s.

Recirculation model (see symbol
installation booklet)

The air is fi ltered through one or more the
charcoal fi lters, and then resent into room.
Important: Ensure appropriate air
circulation around the hood.
Important: If the hood is supplied without

in

in

charcoal fi lters, these must be ordered and
fi tted before the hood can be used.
The hood should be installed away from
particularly dirty areas, windows, doors and
heat sources.
The hood is sold with all necessary
components for installation on most types of
walls or ceilings. However, ask a qualifi ed
technician to check that the items supplied
are suitable for the type of wall/ceiling.

Keep this booklet for future consultation.

ENGLISH 7

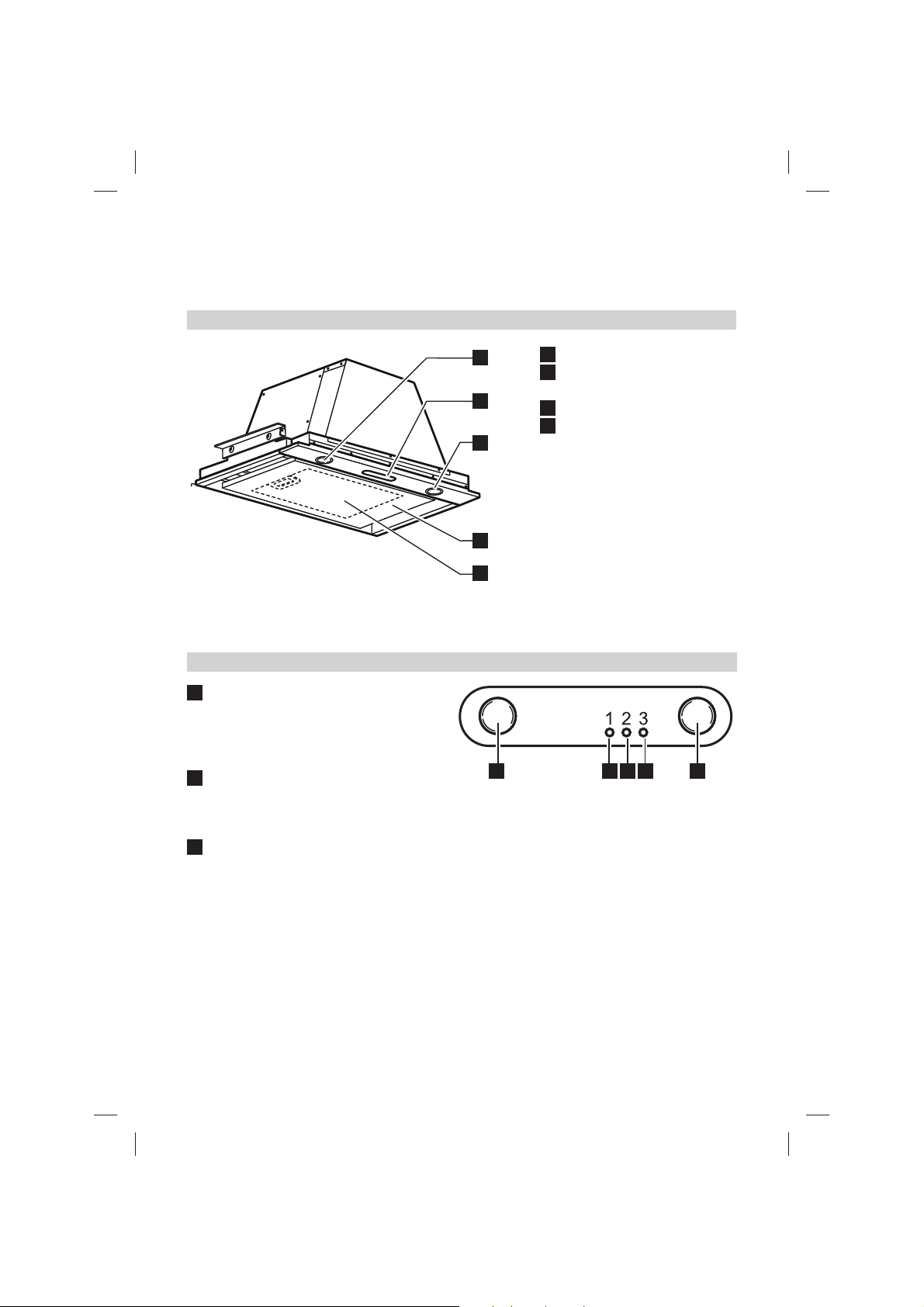

Product description

1

3

1

3

4

2

Control Panel.

2

Grease fi lter (above the

perimeter suction fi lter)

3

Halogen bulbs

4

Perimeter suction panel

Control panel

A

ON/OFF light key

Press briefl y to switch the lights on and

off.

Press and hold down to adjust the light

intensity.

B

Motor ON/OFF key and speed selection

(suction power)

Note: Press the button for 2 seconds to

switch the hood off:

C

Selected speed LED

A BC C C

ENGLISH 8

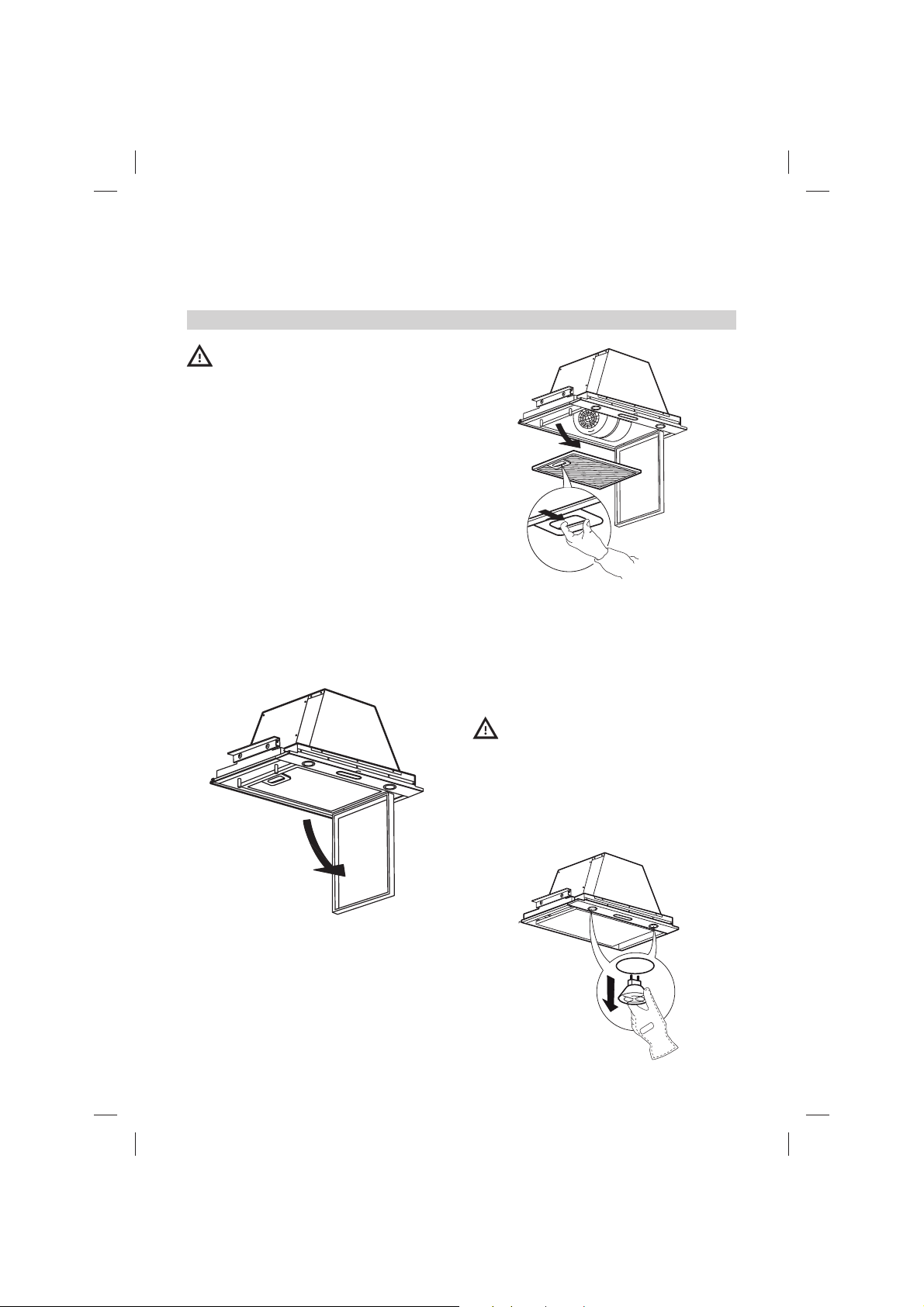

Cleaning and maintenance

WARNING: - Use safety gloves.

- Disconnect the appliance from the

power supply.

Perimeter suction panel

The suction panel must be cleaned with the
same frequency as the grease fi lter. Use a
damp cloth and a soft liquid detergent.
Do not use products containing abrasives.
DO NOT USE ALCOHOL
The panel normally covers the grease fi lters,
and must therefore be opened each time
access to the grease fi lters and the inside
of the hood is required (e.g. to replace the
carbon fi lters).
Opening: Pull the panel (LEFT SIDE)
downwards.
Closing: The panels must be fi xed to the
appropriate pins on the surface of the hood.
WARNING: Always check that the panel is
fi tted properly.

If washed in the dishwasher, the grease
fi lter surface may become matt. This will not
cause any reduction of performance.
To remove the fi lter pull out the handle.
After the fi lter has been washed and dried,
replace following the inverse procedure.

Replacing the halogen lamps

WARNING: - Only use 12V 20W 30°

Ø35 12V GU4 halogen lamps.

1. Disconnect the hood from the electric

power supply.

2. Use a small screwdriver to remove the

lamp by pushing its edges upwards.

3. Remove the faulty light bulb and replace

with a new one.

To clean the grease fi lter

The fi lter traps all cooking grease particles.
The metal grease fi lter has unlimited
duration. It should be washed at least once
a month, either by hand, or by placing it in
the dishwasher (use a short cycle and low
temperature).

ENGLISH 9

Charcoal fi lter maintenance

The charcoal fi lter traps unpleasant cooking
smells.
Replace the charcoal fi lter every 4 months.

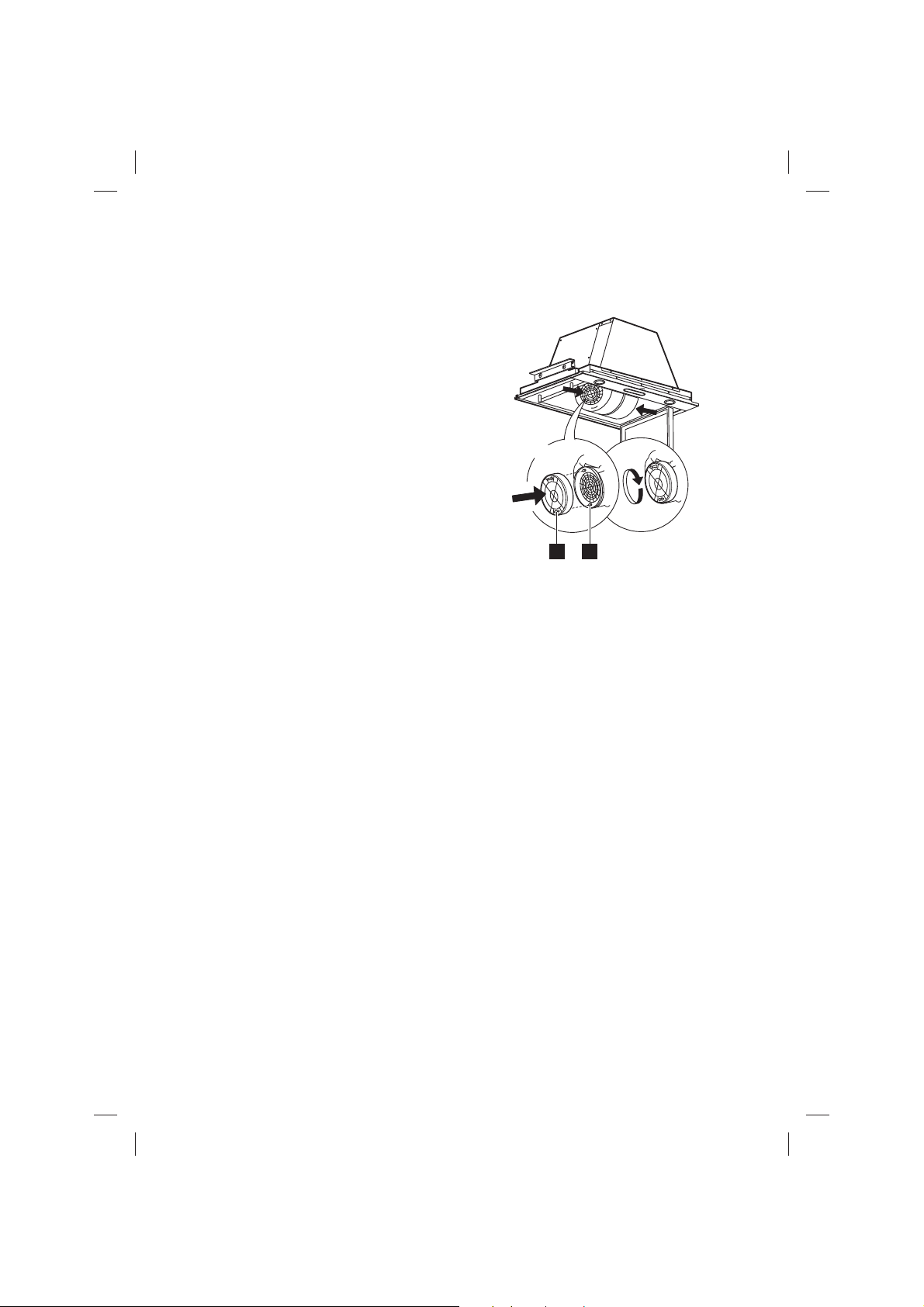

Fitting or replacing the charcoal fi lter

1. Disconnect the hood from the electric
power supply.

2. Remove the grease fi lters.

3. Fit the fi lters covering the motors.
Check that the R pins on the conveyor
correspond with the S holes.

Turn the fi lters to lock them to the pins.
To remove the fi lters follow the inverse
procedure.
Replace the grease fi lters.

2x

S

S R

ENGLISH 10

What to do if ...

Problem Possible cause Solution

The appliance does not work There is no mains

elctrical power

The appliance is not
connected to the
electrical supply

The hood’s suction level is not
enough

The light does not work The light bulb is broken Check the light bulb and

The suction speed is too
low

The fi lters are dirty Check that the fi lters are clean

The air vents are
obstructed

The light bulb is not
correctly fi tted

Check for the presence of
mains electrical power.
Turn off the appliance and
restart it to see if the faults
persists.

Check if the appliance is
connected to the electrical
supply.
Turn off the appliance and
restart it to see if the faults
persists.

Check the suction speed and
adjust as necessary

If not, clean the fi lters in the
dishwasher.

Check the air vents for any
obstructions and remove as
necessary.

replace it if necessary.
Check that the light bulb has

been correctly fi tted.
If not, fi t the light bulb in right
way.

Before contacting the After-sales service:

Switch the appliance on again to see if the
problem has disappeared. If not, switch it
off again and repeat the operation after an
hour.
If your appliance still does not work
properly after carrying out the checks listed
in the troubleshooting guide and switching
the appliance on again, contact the After­sales service, clearly explaining the problem
and specifying:

• the type of fault;

• the model;

• the type and serial number of the
appliance (given on the rating plate);

• the Service number (the number after the
word SERVICE on the rating plate inside
the appliance).

ENGLISH 11

Technical data

Dimensions - Internal (mm) Width 561

Height 358

Depth 354

3

Airfl ow max - Exhaust (m
Noise max - Exhaust (dBa) 65
Airfl ow max - Recirculating (m
Noise max - Recirculating (dBa) 67
Total Power (W) 220
Lamps 2x 20W
Installation minimun height dimensions (cm) gas or combi cookers 65

The technical information are situated in
the rating plate on the internal side of the
appliance and in the energy label.

/h) 573

3

/h) 369

electric cookers 50

Environmental concerns

Disposal of packing
The packing material is 100% recyclable
and is marked with the recycle symbol . The
various parts of the packing must therefore
be disposed of responsibly and in full
compliance with local authority regulations
governing waste disposal.

Scrapping the product

- This appliance is marked in compliance
with European Directive 2002/96/EC,
Waste Electrical and Electronic Equipment
(WEEE).

- By ensuring this product is disposed
of correctly, you will help prevent
potential negative consequences for
the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product.

The symbol
accompanying documentation indicates that
it should not be treated as domestic waste but
must be taken to an appropriate collection
centre for the recycling of electrical and
electronic equipment.

on the product or on the

ENGLISH 12

Scrapping of household appliances

• This appliance is manufactured with
recyclable or reusable materials. Dispose
of it in accordance with local waste
disposal regulations. Before scrapping, cut
off the power supply cable.

• For further information on the treatment,
recovery and recycling of household
electrical appliances, contact your
competent local authority, the collection
service for household waste or the store
where you purchased the appliance.

Declaration of conformity

• This appliance is manufactured in
compliance with Regulation (CE) No.
1935/2004.

n

• This appliance has been designed,
manufactured and marketed in compliance
with:

- safety objectives of the “Low Voltage”
Directive 2006/95/CE (which replaces
73/23/CEE and subsequent amendments);

- the protection requirements of Directive
“EMC” 2004/108/EC.

Electrical safety of the appliance can only
be guaranteed if it is correctly connected to
an approved earthing system.

Electrical connection for Great Britain and Ireland only

Warning - this appliance must be earthed
Fuse replacement

If the mains lead of this appliance is fi tted
with a BS 1363A 13amp fused plug, to
change a fuse in this type of plug use an
A.S.T.A. approved fuse to BS 1362 type and
proceed as follows:

1. Remove the fuse cover (A) and fuse (B).

2. Fit replacement 13A fuse into fuse cover.

3. Refi t both into plug.
Important:

The fuse cover must be refi tted when
changing a fuse and if the fuse cover is lost
the plug must not be used until a correct
replacement is fi tted.
Correct replacement are identifi ed by the
colour insert or the colour embossed in
words on the base of the plug.
Replacement fuse covers are available from
your local electrical store.

For the Republic of Ireland only

The information given in respect of Great
Britain will frequently apply, but a third type
of plug and socket is also used, the 2-pin,
side earth type.

Socket outlet / plug (valid for both
countries)

If the fi tted plug is not suitable for your
socket outlet, please contact After-sales
Service for further instruction. Please do
not attempt to change plug yourself. This
procedure needs to be carried out by a
qualifi ed technician in compliance with
the manufactures instructions and current
standard safety regulations.

ENGLISH 13

IKEA GUARANTEE

How long is the IKEA guarantee valid?

This guarantee is valid for fi ve (5) years
from the original date of purchase of your
appliance at IKEA, unless the appliance is
named LAGAN in which case two (2) years of
guarantee apply. The original sales receipt,
is required as proof of purchase. If service
work is carried out under guarantee, this
will not extend the guarantee period for the
appliance.

Which appliances are not covered by the
IKEA fi ve (5) years guarantee?

The range of appliances named LAGAN and
all appliances purchased in IKEA before 1st of
August 2007.

Who will execute the service?

IKEA service provider will provide the
service through its own service operations or
authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance,
which have been caused by faulty construction
or material faults from the date of purchase
from IKEA. This guarantee applies to domestic
use only. The exceptions are specifi ed under
the headline “What is not covered under this
guarantee?” Within the guarantee period,
the costs to remedy the fault e.g. repairs,
parts, labour and travel will be covered,
provided that the appliance is accessible for
repair without special expenditure. On these
conditions the EU guidelines (Nr. 99/44/
EG) and the respective local regulations
are applicable. Replaced parts become the
property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed service provider will examine
the product and decide, at its sole discretion,
if it is covered under this guarantee. If
considered covered, IKEA Service Provider
or its authorized service partner through its
own service operations, will then, at its sole
discretion, either repair the defective product
or replace it with the same or a comparable
product.

What is not covered under this guarantee?

• Normal wear and tear.

• Deliberate or negligent damage, damage

caused by failure to observe operating
instructions, incorrect installation or by
connection to the wrong voltage, damage
caused by chemical or electrochemical
reaction, rust, corrosion or water damage
including but not limited to damage
caused by excessive lime in the water
supply, damage caused by abnormal
environmental conditions.

• Consumable parts including batteries and

lamps.

• Non-functional and decorative parts which

do not affect normal use of the appliance,
including any scratches and possible color
differences.

• Accidental damage caused by foreign

objects or substances and cleaning or
unblocking of fi lters, drainage systems or
soap drawers.

• Damage to the following parts: ceramic

glass, accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been
caused by production faults.

• Cases where no fault could be found during

a technician’s visit.

• Repairs not carried out by our appointed

service providers and/or an authorized
service contractual partner or where non­original parts have been used.

• Repairs caused by installation which is

faulty or not according to specifi cation.

• The use of the appliance in a non-domestic

environment i.e. professional use.

• Transportation damages. If a customer

transports the product to his home or
another address, IKEA is not liable for any
damage that may occur during transport.
However, if IKEA delivers the product to the
customer’s delivery address, then damage
to the product that occurs during this
delivery will be covered by IKEA.

ENGLISH 14

• Cost for carrying out the initial installation of
the IKEA appliance.
However, if an IKEA appointed Service
Provider or its authorized service partner
repairs or replaces the appliance under
the terms of this guarantee, the appointed
Service Provider or its authorized service
partner will reinstall the repaired appliance
or install the replacement, if necessary. This
does not apply within Ireland, customer
should contact the local IKEA dedicated
after sales line or the appointed Service
Provider for further information.

These restrictions do not apply to fault-free
work carried out by a qualifi ed specialist
using our original parts in order to adapt the
appliance to the technical safety specifi cations
of another EU country.

How country law applies

The IKEA guarantee gives you specifi c legal
rights, which cover or exceed all the local legal
demands.
However these conditions do not limit in any
way consumer rights described in the local
legislation.

Area of validity

For appliances which are purchased in one EU
country and taken to another EU country, the
services will be provided in the framework of
the guarantee conditions normal in the new
country.
An obligation to carry out services in the
framework of the guarantee exists only if
the appliance complies and is installed in
accordance with:

- the technical specifi cations of the country in
which the guarantee claim is made;

- the Assembly Instructions and User Manual
Safety Information.

The dedicated AFTER SALES for IKEA
appliances

Please don’t hesitate to contact IKEA
appointed After Sales Service Provider to:

• make a service request under this
guarantee;

• ask for clarifi cations on installation of the
IKEA appliance in the dedicated IKEA
kitchen furniture;

• ask for clarifi cation on functions of IKEA
appliances.

To ensure that we provide you with the best
assistance, please read carefully the Assembly
Instructions and/or the User Manual before
contacting us.

How to reach us if you need our service

Please refer to the last
page of this manual for the
full list of IKEA appointed
After Sales Service Provider
and relative national phone
numbers.

In order to provide you a quicker

service, we recommend to use the
specifi c phone numbers listed on this
manual. Always refer to the numbers
listed in the booklet of the specifi c
appliance you need an assistance for.
Please also always refer to the IKEA
article number (8 digit code) and 12
digit service number placed on the
rating plate of your appliance.

SAVE THE SALES RECEIPT!

It is your proof of purchase and required
for the guarantee to apply. The sales
receipt also reports the IKEA name and
article number (8 digit code) for each of
the appliances you have purchased.

Do you need extra help?

For any additional questions not related
to After Sales of your appliances please
contact your nearest IKEA store call centre.
We recommend you read the appliance
documentation carefully before contacting us.

15

BELGIË - BELGIQUE - BELGIEN

Telefoon/Numéro de téléphone/Telefon-Nummer: 026200311
Tarief/Tarif/Tarif: Lokaal tarief/Prix d’un appel local/Ortstarif
Openingstijd: Maandag - Vrijdag 8.00 - 20.00
Heures d’ouverture: Lundi - Vendredi 8.00 - 20.00
Öffnungszeiten: Montag - Freitag 8.00 - 20.00

ČESKÁ REPUBLIKA

Telefonní číslo: 225376400
Sazba: Místní sazba
Pracovní doba: Pondělí - Pátek 8.00 - 20.00

DANMARK

Telefonnummer: 70150909
Takst: Lokal takst
Åbningstid: Mandag - fredag 9.00 - 21.00
Lørdag 9.00 - 18.00

DEUTSCHLAND

Telefon-Nummer: 06929993602
Tarif: Ortstarif
Öffnungszeiten: Montag - Freitag 8.00 - 20.00

ΕΛΛΑΔΑ

Τηλεφωνικός αριθμός: 2109696497
Χρέωση: Τοπική χρέωση
Ώρες λειτουργίας: Δευτέρα - Παρασκευή 8.00 - 20.00

ESPAÑA

Teléfono: 913754126
Tarifa: Tarifa local
Horario: Lunes - Viernes 8.00 - 20.00
(España Continental)

FRANCE

Numéro de téléphone: 0170480513
Tarif: Prix d’un appel local
Heures d’ouverture: Lundi - Vendredi 9.00 - 21.00

ÍSLAND

Símanúmer: 5852409
Kostnaður við símtal: Almennt mínútuverð
Opnunartími: Mánudaga - Föstudaga 9.00 - 17.00

ITALIA

Telefono: 0238591334
Tariffa: Tariffa locale
Orari d’apertura: Lunedì - Venerdì 8.00 - 20.00

MAGYARORSZÁG

Telefon szám: (06-1)-3285308
Tarifa: Helyi tarifa
Nyitvatartási idő: Hétfőtől Péntekig 8.00 - 20.00

NEDERLAND

Telefoon: 09002354532
en/of 0900 BEL IKEA
Tarief: Lokaal tarief € 0,10 p/min
Openingstijd: Maandag t/m - Vrijdag 9.00 - 21.00
Zaterdag 9.00 - 20.00
Zondag 9.00 - 18.00

(Åbent udvalgte søndage, se IKEA.dk)

NORGE

Telefon nummer: 23500112
Takst: Lokal takst
Åpningstider: Mandag - fredag 8.00 - 20.00
ÖSTERREICH
Telefon-Nummer: 013602771461
Tarif: Ortstarif
Öffnungszeiten: Montag - Freitag 8.00 - 20.00

POLSKA

Numer telefonu: 225844203
Stawka: Koszt połączenia według taryfy
operatora
Godziny otwarcia: Poniedziałek - Piątek 8.00-20.00

PORTUGAL

Telefone: 213164011
Tarifa: Tarifa local
Horário: Segunda - Sexta 9.00 - 21.00

REPUBLIC OF IRELAND

Phone number: 016590276
Rate: Local rate
Opening hours: Monday - Friday 8.00 - 20.00

РОССИЯ

Телефонный номер: 84957059426
Стоимость звонка: Местная стоимость звонка
Время работы: Понедельник - Пятница 8.00 - 20.00
(Московское время)

SCHWEIZ - SUISSE - SVIZZERA

Telefon-Nummer/Numéro de téléphone/Telefono: 0225675345
Tarif/Tarif/Tariffa: Ortstarif/Prix d’un appel local/Tariffa locale
Öffnungszeiten: Montag - Freitag 8.00 - 20.00
Heures d’ouverture: Lundi - Vendredi 8.00 - 20.00
Orario d’apertura: Lunedì - Venerdì 8.00 - 20.00

SLOVENSKO

Telefónne číslo: [phone]
Cena za hovor: Cena za miestny hovor
Pracovná doba: Pondelok až piatok 8.00 - 20.00

SUOMI

Puhelinnumero: 0981710374
Hinta: Yksikköhinta
Aukioloaika: Maanantaista perjantaihin 8.00 - 20.00

SVERIGE

Telefon nummer: 0775-700 500
Taxa: Lokal samtal
Öppet tider: Måndag - Fredag 8.30 - 20.00
Lördag - Söndag 9.30 - 18.00

UNITED KINGDOM

Phone number: 02076601517
Rate: Local rate
Opening hours: Monday - Friday 9.00 - 21.00

5019 618 33191

© Inter IKEA Systems B.V. 2011 AA-511553-1
