Page 1

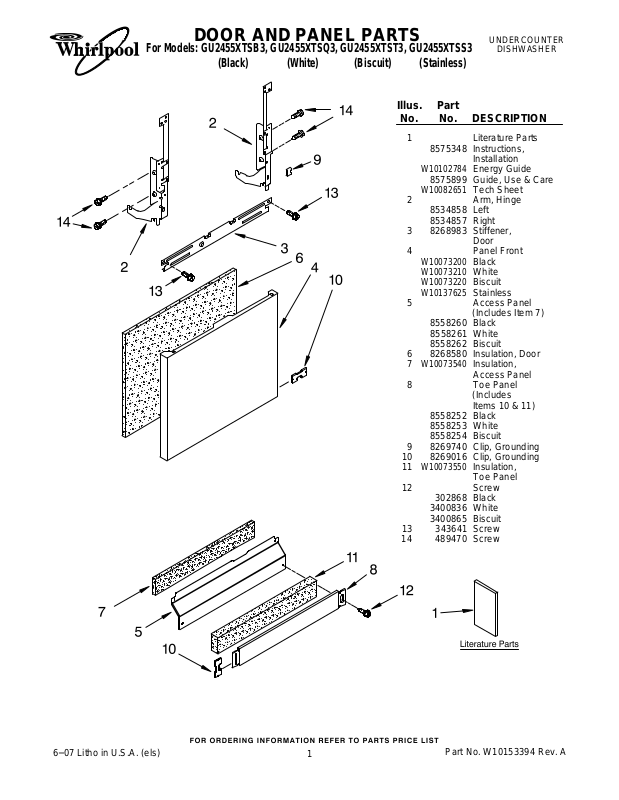

DOOR AND PANEL PARTS
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
UNDERCOUNTER
DISHWASHER
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8575348 Instructions,
Installation
W10102784
8575899 Guide, Use & Care
W10082651
2 Arm, Hinge
8534858 Left
8534857 Right
3 8268983 Stiffener,
4 Panel Front
W10073200
W10073210
W10073220
W10137625
5 Access Panel
8558260 Black
8558261 White
8558262 Biscuit
6 8268580 Insulation, Door
W10073540
7
8 Toe Panel
8558252 Black
8558253 White
8558254 Biscuit
9 8269740 Clip, Grounding
10 8269016 Clip, Grounding
W10073550
11
12 Screw
302868 Black
3400836 White
3400865 Biscuit
13 343641 Screw
14 489470 Screw
Energy Guide
Tech Sheet
Door
Black
White
Biscuit
Stainless
(Includes Item 7)
Insulation,
Access Panel
(Includes
Items 10 & 11)
Insulation,
Toe Panel
6−07 Litho in U.S.A. (els)
1
Part No. W10153394 Rev. A
Page 2
CONTROL PANEL PARTS
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Console Asm.
includes Active
Overlay & Insert
W10142856
W10142857
W10142858
2 8546546 Clip, BI−Metal
3 3400412 Screw
Black
White
Biscuit
Illus. Part
No. No. DESCRIPTION
W10056090
4
5 8524471 Actuator, Latch
6 661663 BI−Metal
7 8269206 Display, Dual
8 3369051 Screw (6)
Cover Control
Shield Assembly
Light
2
Illus. Part
No. No. DESCRIPTION
9 Handle, Latch
8575331 Black
8575332 White
8575333 Biscuit
10 8524476 Bolt, Latch
W10084142
11
12 8269209 Switch, Door
Control,
Electronic
W10153394
Page 3
DOOR AND LATCH PARTS
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8575895 Inner Door
(Also Order
Item 4)
3 8542603 Vent Assembly
(Also Order
Item 4)
4 8269259 Gasket, Vent
W10153394
Illus. Part
No. No. DESCRIPTION
5 8575892 Deflector, Vent
(Also Order
Item 4)
6 8565815 Dispenser,
Assembly
(Includes Item 13)
7 8269258 Seal, Front
3
Illus. Part
No. No. DESCRIPTION
8 8573175 Wiring Harness
Main
9 8281154 Screw
10 8269296 Seal,
Console/door
11 8535637 Bracket, Dispenser
12 8531865 Shield, Dispenser
13 8558307 Cap, Rinse Aid
Page 4
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
LOWER WASHARM PARTS
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8268333 Wash Arm Assembly
2 8268343 Cap, Internal
Rear Feed
(Also Order
Item 3)
3 8268340 Seal, Sprayarm
4 8268342 Hub, Lower
Sprayarm
(Also Order
Item 3)
4
W10153394
Page 5
HEATER PARTS
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
W10153394
Illus. Part
No. No. DESCRIPTION
1 8563007 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 8269262 Bracket,
Heater Support
If heater element is
NOTE:
removed, it must be replaced.
5
Page 6

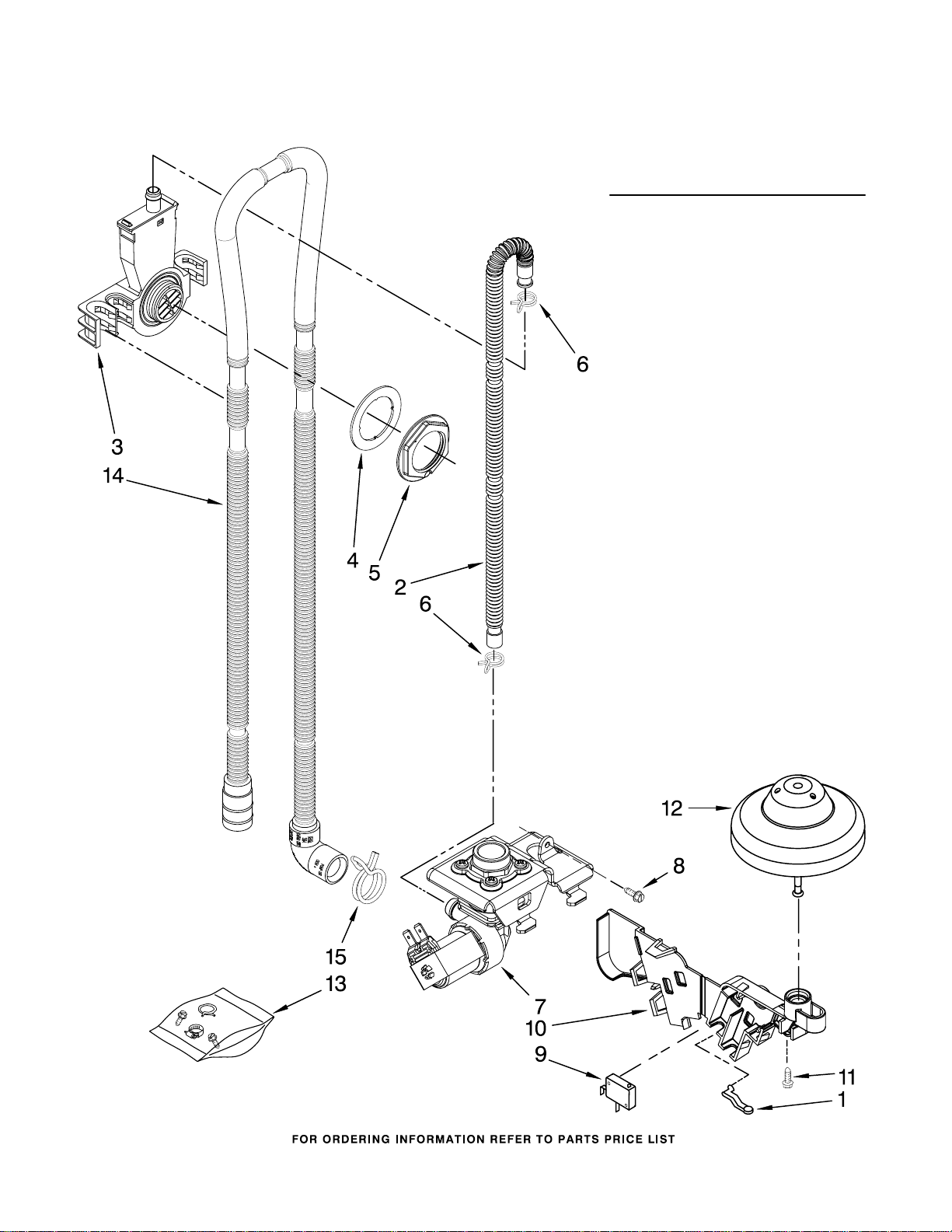

FILL AND OVERFILL PARTS
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overflow
Switch
2 8531412 Hose, Inlet
3 8531325 Water Inlet
Assembly
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8563405 Fill Valve
Assembly
8 304392 Screw
9 8268909 Switch, Overfill
Control
10 8545881 Standpipe,
Overfill
11 304231 Screw
12 8268895 Float & Retainer
Assembly
13 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
14 8531022 Drain Loop
with Check Valve
15 356138 Clamp, Hose
6
W10153394
Page 7
TUB AND FRAME PARTS
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
W10153394
7
Page 8

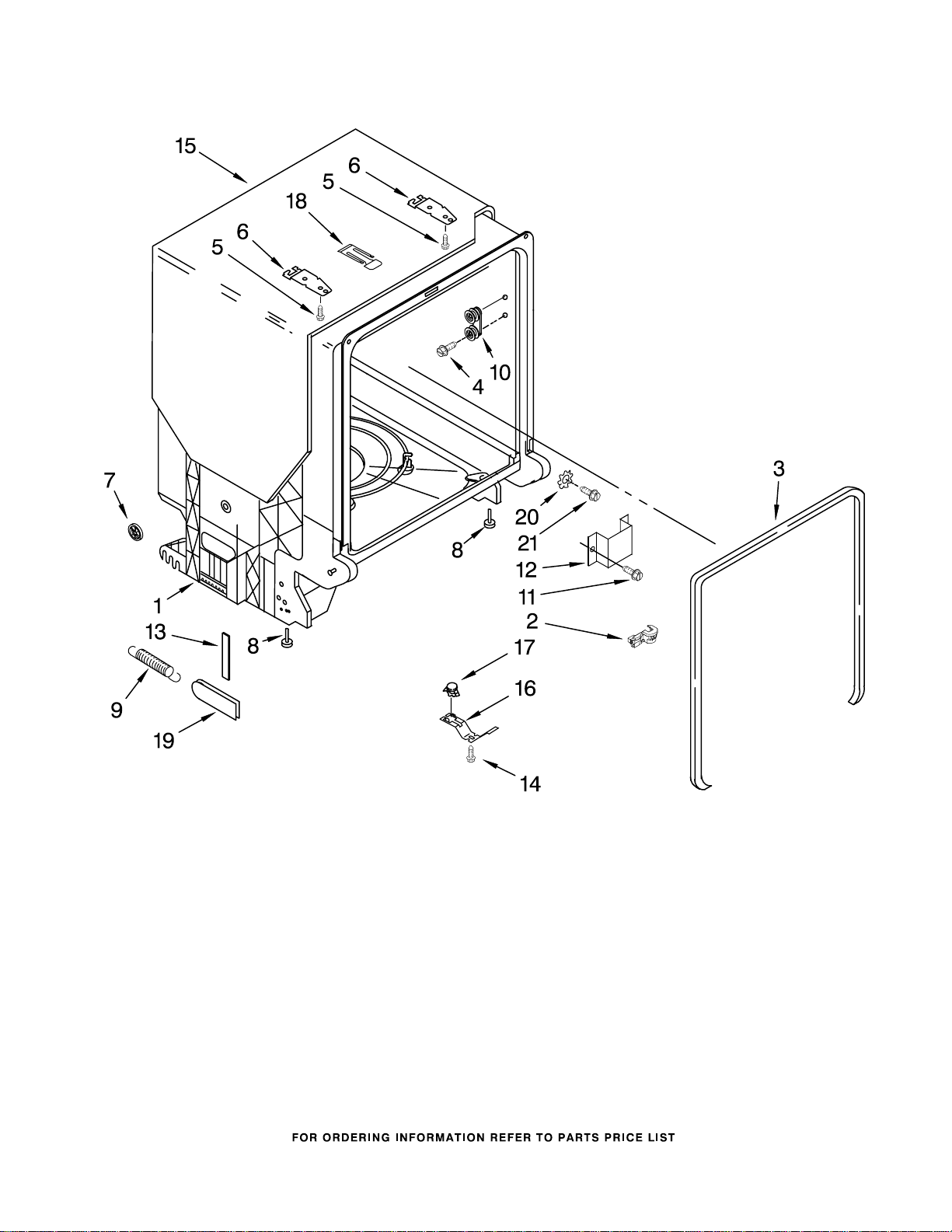

TUB AND FRAME PARTS
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8575978 Tub Assembly
2 8573061 Strain Relief
3 8268888 Door Seal
4 8533836 Screw (8)
5 3400850 Screw
6 8269145 Bracket,
Undercounter
7 8269831 Wheel Leg
8 8524584 Leveler, Leg
9 8524473 Spring, Door
Balance
10 8575897 Wheel & Mount
Assembly
11 3400892 Screw
12 8268991 Cover, Terminal
Box
13 8268961 Pad, Friction
14 304231 Screw
15 8573241 Shield, Sound
Tub
16 3378595 Bracket,
Thermostat
17 661566 Thermostat
18 8580309 Strike, Latch
19 8268990 Bushing, Door
Spring
20 3378128 Washer
21 3400014 Screw
8
W10153394
Page 9
PUMP AND MOTOR PARTS
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
W10153394
9
Page 10

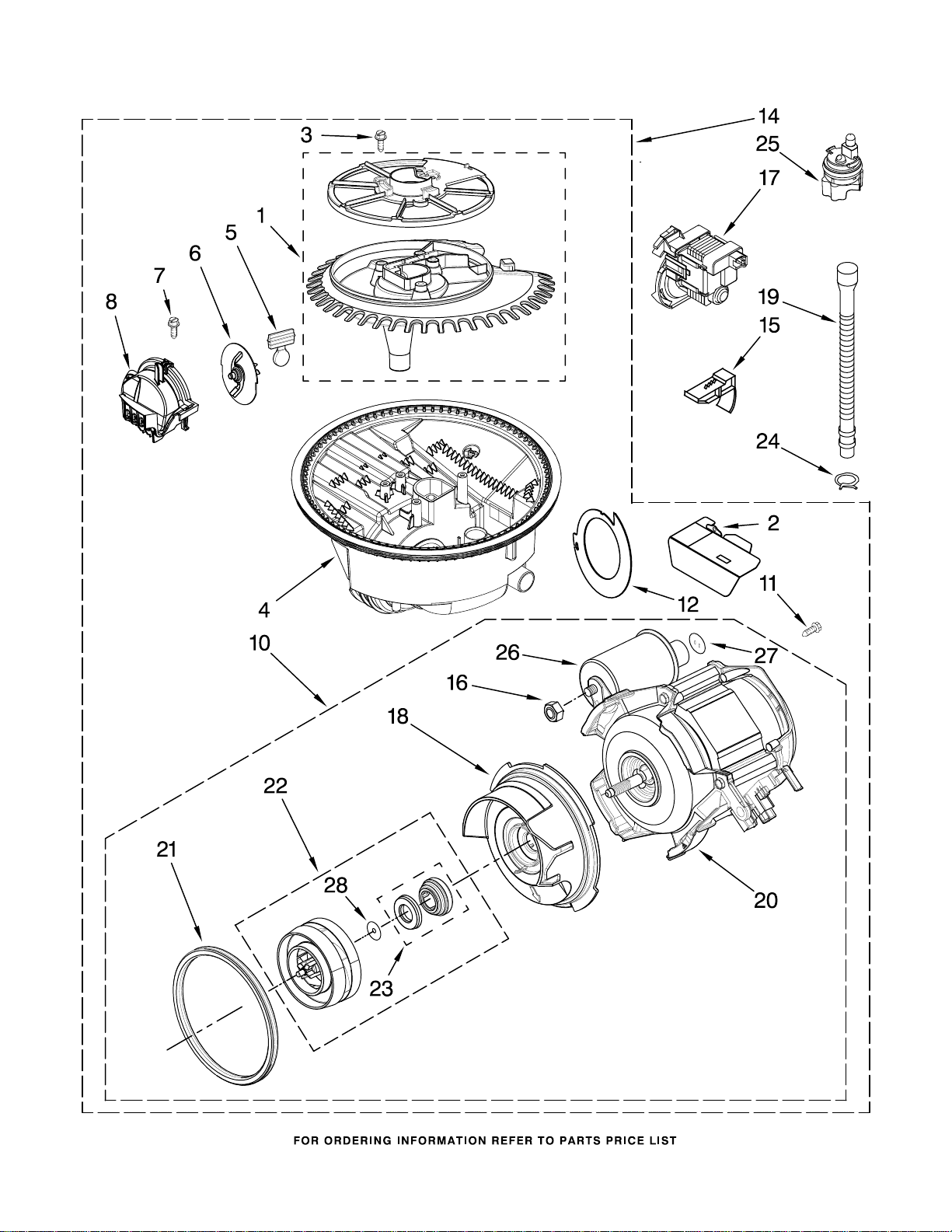

PUMP AND MOTOR PARTS
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6 8268383 Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
10 8534942 Motor Assembly
11 3400217 Screw
12 8268391 Screen, Separation
14 8572615 Sump & Motor
Assembly
15 8269524 Tab, Sump
16 8533949 Nut
17 661662 Pump, Drain
18 8531019 Volute, Back
(Also Order
Item 23)
19 8269144 Hose, Drain
20 8534941 Motor
21 8268397 Seal, Volute
22 8531017 Impeller Kit
23 8268403 Face Seal Assembly
24 356138 Clamp, Hose
W10082647
25
26 8269507 Capacitor
27 8534946 Shield,
28 8531018 Washer
Optical Water
Indicator
Capacitor
10
W10153394
Page 11
UPPER RACK AND TRACK PARTS
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
W10153394
11
Page 12

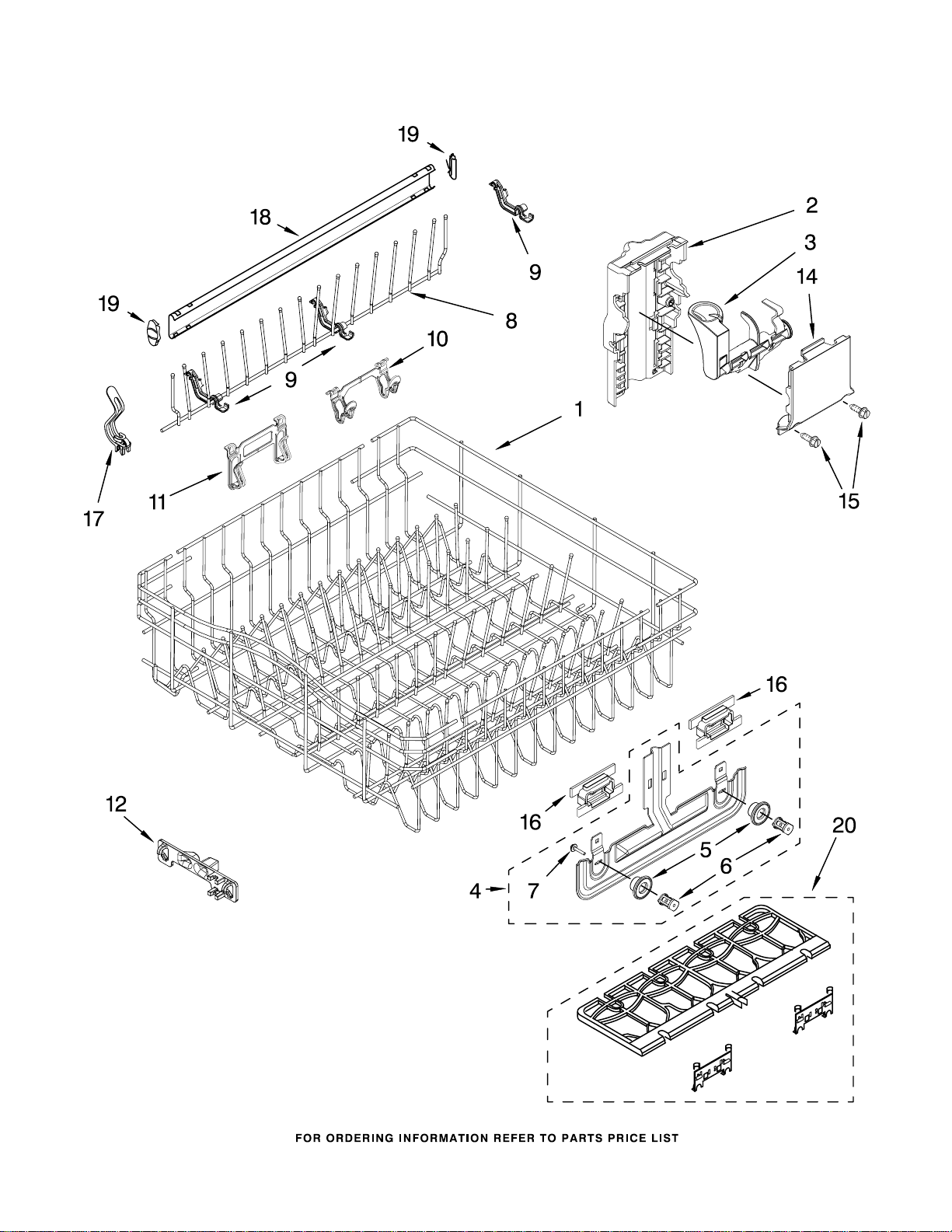

UPPER RACK AND TRACK PARTS
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8539235 Dishrack, Upper
2 8531344 Housing, Adjuster
3 Actuator, Adjuster
8539122 Right
8539121 Left
4 8268654 Adjuster Assembly
5 3385088 Wheel
6 8268703 Axel, Adjuster
7 8281156 Screw
8 9744566 Tine Row
9 8539190 Clip, Pivot
10 8562049 Clip, Side Utensil
11 8562056 Clip, Side
(Light Items)
12 8539119 Positioner, Dual
14 8531346 Cover, Adjuster
15 9741232 Screw
16 8268738 Positioner, Arm
17 8539113 Clip, No−Flip
18 3385089 Track, Rack
19 8565925 Stop, Track
W10082810
20
Cupshelf, Assembly
12
W10153394
Page 13

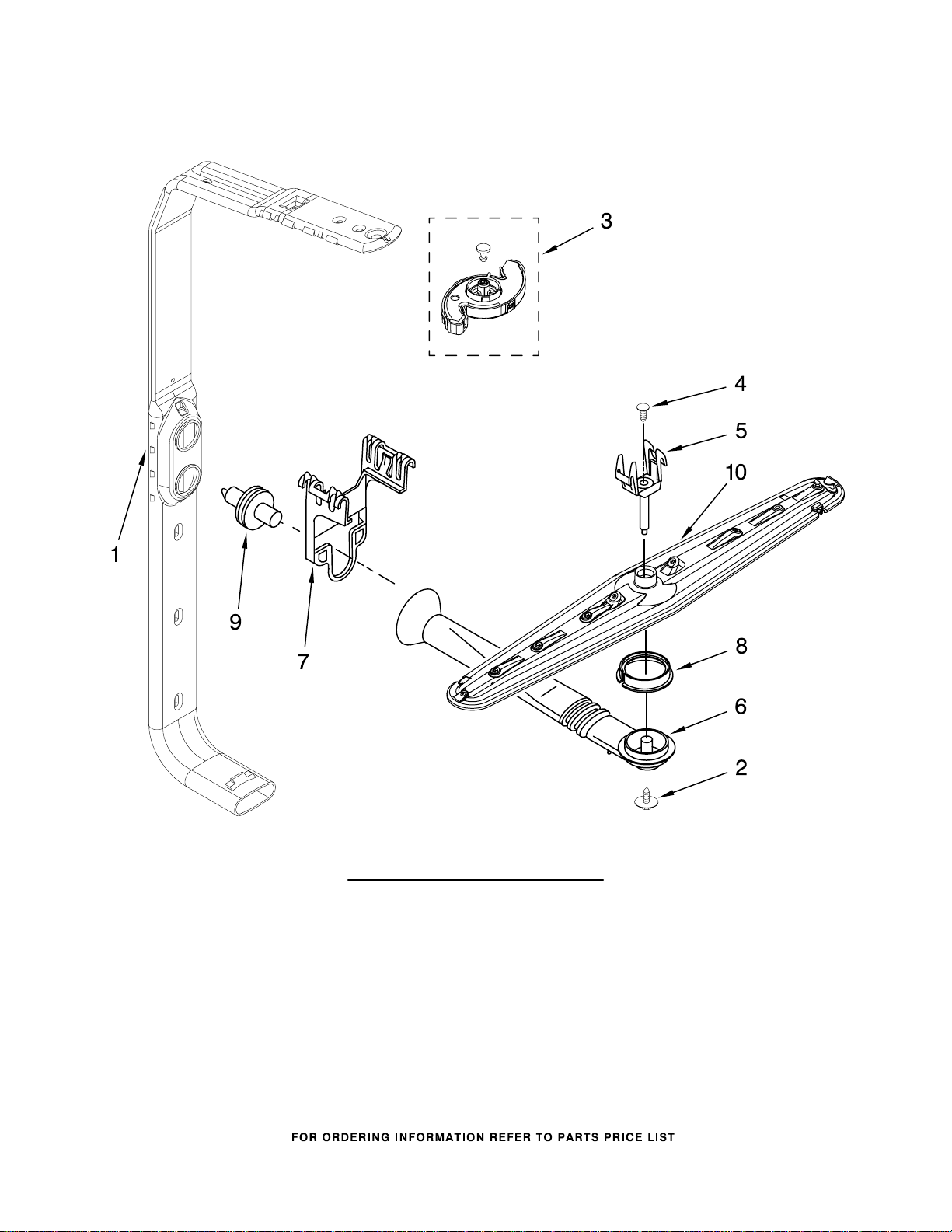

UPPER WASH AND RINSE PARTS
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
W10153394
Illus. Part
No. No. DESCRIPTION
1 8559850 Feed Tube
Assembly
(Also Includes
Item 3)
2 8533889 Screw
3 8557720 Spinner, 3rd
Level Wash
4 3400920 Cover, Screw
5 8268354 Mount
6 8268356 Manifold
7 8268349 Hanger
8 8268433 Seal, Sprayarm
9 8268350 Probe
10 8561746 Sprayarm
13
Page 14

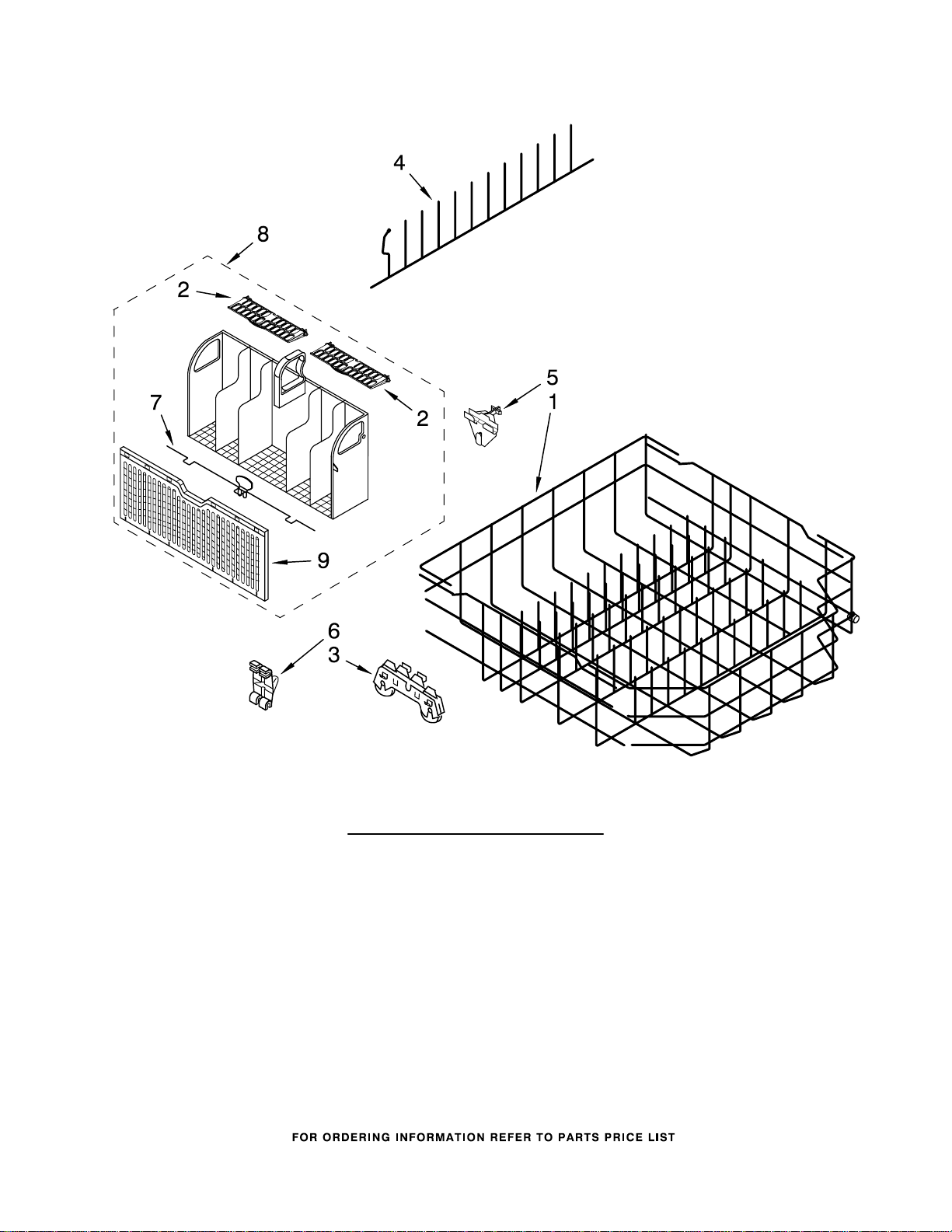

LOWER RACK PARTS
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8561749 Lower Rack
Assembly
(Includes Item 3)
2 8535078 Lid, Small
Items
3 8268713 Wheel & Transport
Assembly
4 8562068 Tine Row
5 8562058 Clip, Silverware
Basket
6 8539124 Retainer, Tine Row
7 8539118 Latch Assembly
8 8562061 Silverware, Basket
Assembly
9 8562060 Door, Silverware
Basket
14
W10153394
Page 15
OPTIONAL PARTS (NOT INCLUDED)
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
ACCESSORIES
Side Panel Kits
8171656 White
8171657 Black
8171658 Biscuit
8171659 Stainless Steel
Custom Panel & Trim Kit
4396199 Black
4396200 White
4396201 Biscuit
Moisture Barrier Kit
4396277 Kit
Drain Hose
3385556 12 Ft.
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
72032 Black
4392899 Biscuit
4396603 Meteorite
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
285006 Superior Black
4392901 Biscuit
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit
Illus. Part
No. No. DESCRIPTION
POWER CORD KIT
4317824 Power Cord Kit
(Includes Power
Cord & Misc.
Hardware)
ANTI−TIP KIT
4396194 Floor Mount Kit
DISHRACK REPAIR
Tip Tine Repair Kit
(Enough for Two
Complete Dishracks)
4396838 White
4396840 Grey
Vinyl Touch−Up (4 oz.)
676453 White
676455 Grey
W10153394
15
