Page 1
GB
GU 150 ES

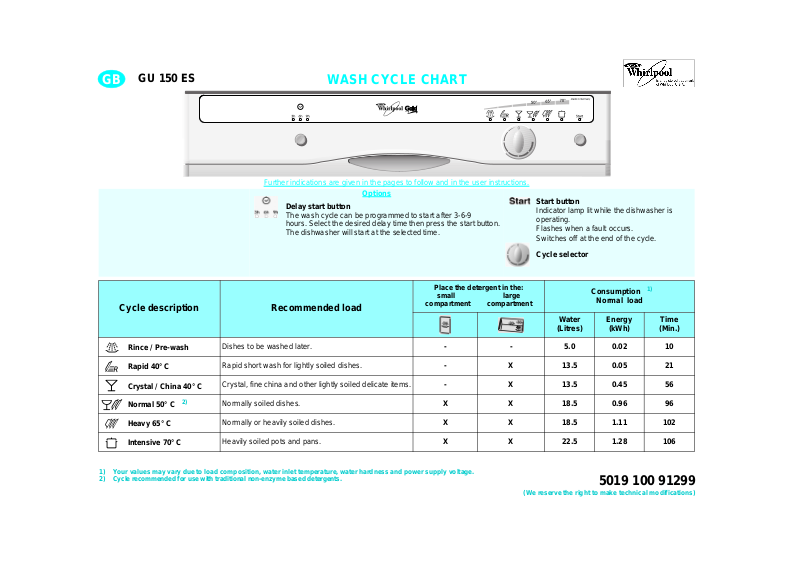

WASH CYCLE CHART
Further indications are given in the pages to follow and in the user instructions.
Options
Delay start button
The wash cycle can be programmed to start after 3-6-9
hours. Select the desired delay time then press the start button.
The dishwasher will start at the selected time.
Start button
Indicator lamp lit while the dishwasher is
operating.
Flashes when a fault occurs.
Switches off at the end of the cycle.
Cycle selector
Place the detergent in the:
small large
Cycle description Recommended load
Rince / Pre-wash
Rapid 40° C
Crystal / China 40° C
Normal 50° C
Heavy 65° C
Intensive 70° C
1) Your values may vary due to load compo sition , water in let temperatu re, water h ardnes s and pow er supp ly volt age.
2) Cycle recommended for use with traditional non-enzyme based detergents.
2)
Dishes to be washed later.
Rapid short wash for lightly soiled dishes.
Crystal, fine china and other lightly soiled delicate items.
Normally soiled dishes.
Normally or heavily soiled dishes.
Heavily soiled pots and pans.
compartment compartment
--5.00.0210
- X 13.5 0.05 21
- X 13.5 0.45 56
X X 18.5 0.96 96
X X 18.5 1.11 102
X X 22.5 1.28 106
1)
Time
(Min.)
Water
(Litres)
Consumption
Normal load
Energy
(kWh)
5019 100 91299
(We reserve the right to make technical modifications)
Page 2
A
A
C
How to use the dishwasher
1. After loading the dishwasher, cl ose the
door properly. Ensure that the water
supply is turned on.
2. The dishwasher switches on
automatically as soon as the cycle
selector knob is turned.
cycle indicator lamps will switch on.
3. Turn the selector knob to select the
desired cycle.
indicator lamp lights up.
select options (if supplied).
4. Press the Start button to start the
selected cycle.
lamp will light up.
programmed data cannot be altered by
turning the cycle selector knob.
once the Start button has been
Note:
pressed, the dishwasher memorises
the last cycle selected. This inform ation
remains in the memory even during
interruption of the power supp ly.
To change the cycle selected, press
the Start button and hold it
depressed for about 5 seconds.
The Start indicator lamp will switch
off. Select a new cycle and press
the Start button.
if the dishwasher is switched off
Note:
during a wash cycle, when switched on
again it will resume the wash cycle from
where it was interrupted.
Only open the dishwasher door if
strictly necessary during a wash cycle
and exercise maximum caution.
Escaping steam may be extremely
hot.
5. To indicate the end of the cycle, the
Start indicator lamp switches off and
the End indicator lamp (if fitted)
lights up
The corresponding
The Start indicator
(for about 30 min.)
One of the
If required,
Once set, the
.
6. Once the start indicator lamp has
switched off, turn the cycle selector
knob to the zero position to switch off
the dishwasher.
indicator lights will switch off
7. Open the door slowly (beware of hot
steam). Unload the lower rack before
the upper one.
At this time, all the
.
Upper rack
Rack height adjustment:
(The dishwasher is delivered with the upper
rack in the top position).
The rack height can also be changed
when loaded.
Upper and lower rack
• To lower: pull out the
handles and gently lower the rack.
• To raise: pull up the
until the rack clicks into place.
• The rack must be level on both
sides.
Cup holders:
• Down: cups and long-stemmed
glasses.
•
Up: plates.
Glass holder:
side
two
side handles
two
Lower rack
Plate holder tines:
•(A) may be lowered to increase
available space.
Cutlery basket:
• The cutlery basket (C) can be
removed to increase available
space when necessary.
C
Please read the user instructions carefully.
Page 3
Tips and advice
• Arrange dishes so that items do not
touch each other. Arrange large dishes
in the lower rack and smaller ones in
the upper rack.
• Load cups at an angle to facilitate
water drainage.
• Generally speaking, place cutlery in the
basket with the handles positioned
downwards, but ensure that any sharp
knives and forks that might cause
injury are placed in the basket with the
handles positioned upwards.
• Make sure the water jet can reach all
loaded items and that the spray arms
turn freely.
Important
• Fill the detergent dispensers as
required and check the rinse aid level.
• Do not use the appliance for items not
suitable for washing in a dishwasher, for
example: wooden items, aluminium,
plastic utensils, tin, hand-decorated
dishes (unglazed), silver cutlery.
• Do not put liquid fat in the dishwasher
(e.g. oil used for frying) or candle wax.
• If a fault occurs or if you wish to change
the current cycle, press and hold the
"start" button for about 5 seconds until
the start indicator light switches off.
• Before starting a wash cycle, make
sure that the spray arms can turn freely
and are not impeded by dishes or
cutlery.
• Only switch off the dishwasher once the
“Start” indicator lamp has switched off.
If the dishwasher is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted without having to start it
again.
If a fault occurs, before contacting our
After-Sales Service, make the following
checks to try and remedy the problem:
The dishwasher is not working:
• Is the plug properly inserted in the wall
socket?
• Is there a power failure?
• Is the dishwasher switched on?
• Has the Start button been pressed?
• Has the delayed start timer been set (if
fitted)?
• Is the water supply tap on?
• Is the flow of water obstructed by
impurities? If so, close the water supply
tap, detach the water hose and clean the
filter. Then re-connect the water hose t o
the tap and open the water tap once
again.
• Are the filters clogged? (See “Care and
Maintenance” chapter in the user
instructions).
• Is the door closed properly?
• Is a fault indicated?
(The Start indicator light flashes).
Start the cycle again from the beginning:
press and hold the Start button for about
5 seconds, until the Start indicator light
switches off.
Select a new cycle and
press the Start button.
Troubleshooting Guide
Dishes still dirty after washin g:
• Were the dishes loaded properly?
• Dishes must be loaded facing
downwards; this is important, especially
for large dishes.
• The water jets must spray the entire
surface of all items.
• Make sure that dishes and cutlery are
arranged properly.
• Have you selected the correct cycle?
• Did you use too much or too little
detergent? (The use of poor quality
detergents may result in less effective
washing).
• Are the filters clogged or incorrectly
assembled? (See “Care and Maintenance”
chapter in the user instructions).
• Are the spray arms blocked or the nozzles
clogged? (See “Care and Maintenan ce”
chapter in the user instructions).
• Is the lower spray arm correctly fitted?
Marked dishes:
• Was too little detergent used? (See
“Filling the detergent dispenser” in the
user instructions).
Marked glasses and cutlery:
• Was too much rinse aid used? (See
“Filling the rinse aid dispenser” in the user
instructions).
AFTER-SALES
SERVICE
If after carrying out the above checks
the malfunction persists or appears
again, turn the appliance off and turn
off the water supply tap, then call
our After-Sales Service (see guarantee).
Please specify:
• The nature of the fault.
• The appliance type and model.
Your full address and telephone
•
number.
Please read the user instructions carefully.
Page 4
Dishwasher loading instructions
UPPER RACK
LOWER RACK
Depending on the model, rack features may vary (see “Upper and lower rack” description).
