Whirlpool GSXS 7425 PROGRAM CHART

Before using the dishwasher, read the

installation and maintenance instructions carefully!

5019 496 01096

GSXS 7425

1) Program data obtained in conformity with European standard EN 50242. Values may vary in relation to usage, e.g. different

loads, options, different sensor settings (only with sensor programmes), different water supply temperatures, as well as water

hardness and power supply voltage.

2) Reference programme for energy label in compliance with EN 50242. - Important information for Test Laboratories:

for

detailed information on the EN/Standard loading comparison test and other tests, contact the following address:

“nk_customer@whirlpool.com”.

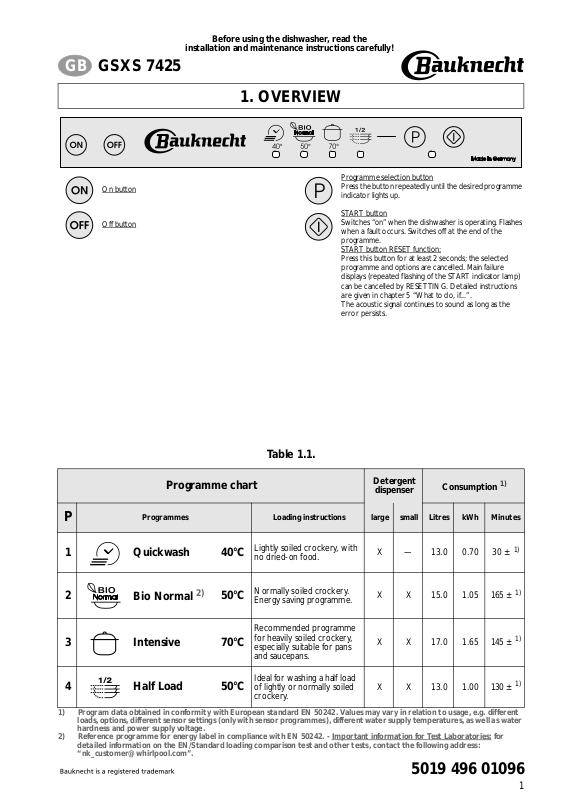

1. OVERVIEW

On button

Off button

Programme selection button

Press the button repeatedly until the desired programme

indicator lights up.

START button

Switches “on” when the dishwasher is operating. Flashes

when a fault occurs. Switches off at the end of the

programme.

START button RESET function:

Press this button for at least 2 seconds; the selected

programme and options are cancelled. Main failure

displays (repeated flashing of the START indicator lamp)

can be cancelled by RESETTING. Detailed instructions

are given in chapter 5 “What to do, if...”.

The acoustic signal continues to sound as long as the

error persists.

Table 1.1.

Programme chart

Detergent

dispenser

Consumption

Programmes Loading instructions large small Litres kWh Minutes

1 Quickwash 40°C

Lightly soiled crockery, with

no dried-on food.

X — 13.0 0.70 30 ±

Bio Normal

50°C

Normally soiled crockery.

Energy saving programme.

X X 15.0 1.05 165 ±

3 Intensive 70°C

Recommended programme

for heavily soiled crockery,

especially suitable for pans

and saucepans.

X X 17.0 1.65 145 ±

4 Half Load 50°C

Ideal for washing a half load

of lightly or normally soiled

crockery.

X X 13.0 1.00 130 ±

2. QUICK REFERENCE GUIDE

Detailed instructions are given in the following pages, see also chapter “5. What to do if...”

1. Switch on the

appliance

Open the dishwasher door.

Press the

button.

2. Select a programme

Press the button or to bring up the desired programme on the display.

Select options, if available.

3. Select the type of

detergent

The detergent selection procedure varies depending on the dishwasher model.

Chapter “1. Overview” provides instructions for selecting detergent type.

4. Fill in the detergent

4a. Powder/gel/tabs

Fill the detergent dispenser compartments in

accordance with the wash programme selected.

Large compartment

for every wash cycle, additional

small compartment

for programmes with pre-wash

(see table 1.1.).

4b. Combined action detergents (2 in 1/3 in 1/... etc.)

Place the detergent in compartment

, as per the

manufacturer's recommendations.

5. Check the rinse aid

level

6. Check the salt level

Depending on the model:

7. Load the racks

Make sure that the spray arms can turn freely and are not impeded by crockery

or cutlery in the racks.

Detailed instructions on loading the racks are given in chapter “3. How to use

the appliance”, under “How to load the racks”.

8. Start the appliance

Press the START button.

9. Turn on the water

tap and close the

dishwasher door

When the door is closed the dishwasher

starts automatically.

Wash cycle

If the appliance is switched off during a

wash cycle, when switched on again it will

resume the cycle from where it was

interrupted. Care must be taken when

opening the door, as steam will escape!

10.End of programme

At the end of the programme an acoustic signal will sound.

The START indicator lamp switches off.

11.Open the door,

switch off the

appliance

Press the

OFF

button. All the indicator lamps switch off.

12. Turn off the water

tap, unload the racks

Unload the appliance, starting from the lower rack in order to avoid any

residual drips of water falling onto crockery below.

ACB

Visual indicator in dispenser

dark

➯

sufficient rinse aid present,

clear

➯

add rinse aid (approx. 150 ml).

The indicator lamp on the control panel lights up when rinse aid

needs to be added. Not all models are equipped with such an

indicator.

window in salt reservoir cap on bottom of appliance inside

orange

➯

when sufficient salt is present,

clear

➯

when salt needs to be added.

The indicator lamp on the control panel lights up when salt needs

to be added. Even once salt has been added, the indicator lamp

only switches off after several wash cycles!

Change the programme in progress:

- Press the START button for

about 2 sec., until the START

indicator lamp switches off.

- Close the door.

- (Water drains for up to 60 seconds).

- Open the door.

- Select a new programme.

- Press the START button.

3. HOW TO USE THE APPLIANCE

PROGRAMME SELECTION

Press the button or to bring up the desired programme on the display. The appliance must be switched

on. If required, select options (if supplied). The corresponding indicator lamp switches on. Appropriate

programmes and relative available options are detailed in table 1.1 on page 1.

Programme times stated in the table were obtained under normal conditions and may vary

depending on conditions. Differences of up to 20 minutes are possible with sensor programmes

as a result of the appliance's automatic calibration system.

HOW TO FILL THE DETERGENT DISPENSER

Only fill the detergent dispenser prior to starting a wash programme.

Only

use detergents

specially recommended for dishwashers, observing the manufacturer's recommended dosage.

Observe the manufacturer's safety warnings!

Open the detergent dispenser compartments by pushing the left button (button

) of the dispenser.

a. Powder/gel/tabs

Fill the detergent dispenser compartments in accordance with the wash programme selected (table 1.1).

Programmes without pre-wash:

pour the entire recommended dosage into compartment

Programmes with pre-wash:

pour 2/3 of the recommended dosage into the large compartment

and 1/3 into the small compartment

Dishwasher tabs should be placed, according to the

manufacturer's recommendations, in compartment

If the “Half load” option is selected, detergent dosage should be

reduced by approximately 1/3.

b. Combined action detergents (2 in 1/3 in 1/... etc.)

Combined action detergents should be placed, according to the

manufacturer's recommendations, in compartment

Firmly close and press the detergent compartment lid shut after filling.

Detergents with rinse aid incorporated may be effective only with longer programmes. In the

case of shorter programmes, detergent residue may be a problem (if necessary, use powder

detergent). Detergents with rinse aid incorporated tend to form excess suds.

The guarantee is not applicable if faults are caused by the use of these products.

HOW TO CHECK/FILL/ADJUST RINSE AID

Not necessary when using a combined action detergent.

a. How to check the rinse aid level

Check the visual indicator

on the rinse aid dispenser: dark = sufficient rinse aid, clear = add rinse aid.

In the case of appliances with an electric indicator on the

control panel, the rinse aid indicator lamp lights up red

when rinse aid needs to be added.

b. How to fill the rinse aid dispenser

Open the rinse aid dispenser by pressing the right button

(button

) of the dispenser.

Fill the dispenser with rinse aid up to the “max” line

(approx. 150 ml).

Shut the lid again.

Only use rinse aids recommended for use in domestic dishwashers.

Immediately

wipe away

any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault

function of the appliance.

button

Large

compartment

Small

compartment

button

Indicator

max
