Whirlpool GSXP 7517/1 PROGRAM CHART
Before using the dishwasher, read the
installation and maintenance instructions carefully!
GSXP 7517
GB

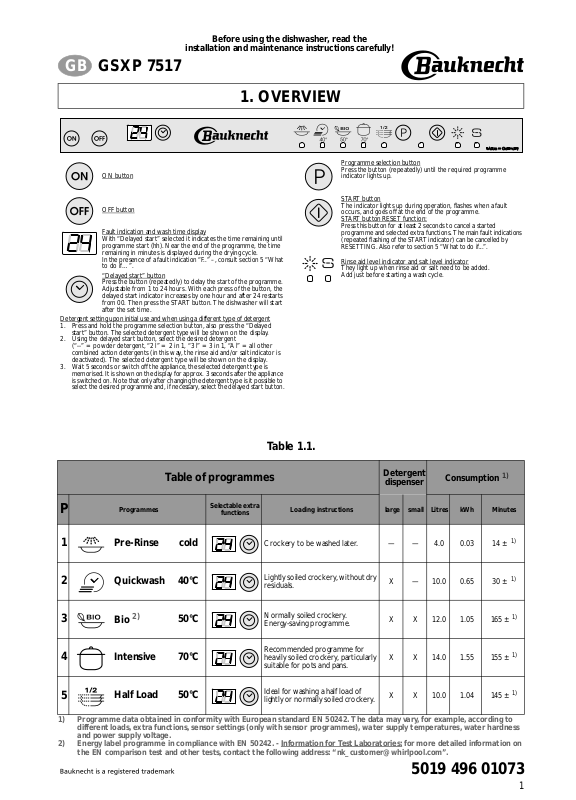

1. OVERVIEW
ON button
OFF button
Fault indication and wash time display
With “Delayed start” selected it indicates the time remaining until
programme start (hh). Near the end of the programme, the time
remaining in minutes is displayed during the drying cycle.
In the presence of a fault indication “F..” –, consult section 5 “What
to do if…”.
“Delayed start” button
Press the button (repeatedly) to delay the start of the programme.
Adjustable from 1 to 24 hours. With each press of the button, the
delayed start indicator increases by one hour and after 24 restarts
from 00. Then press the START button. The dishwasher will start
Detergent setting upon initial use and when using a different type of detergent
1. Press and hold the programme selection button, also press the “Delayed
2. Using the delayed start button, select the desired detergent
3. Wait 5 seconds or switch off the appliance, the selected detergent type is
after the set time.
start” button. The selected detergent type will be shown on the display.
(“--” = powder detergent, “2 l” = 2 in 1, “3 l” = 3 in 1, “A l” = all other
combined action detergents (in this way, the rinse aid and/or salt indicator is
deactivated). The selected detergent type will be shown on the display.
memorised. It is shown on the display for approx. 3 seconds after the appliance
is switched on. Note that only after changing the detergent type is it possible to
select the desired programme and, if necessary, select the delayed start button.
Programme selection button
Press the button (repeatedly) until the required programme
indicator lights up.
START button
The indicator lights up during operation, flashes when a fault
occurs, and goes off at the end of the programme.
START button RESET function:
Press this button for at least 2 seconds to cancel a started
programme and selected extra functions. The main fault indications
(repeated flashing of the START indicator) ca n be canc elled by
RESETTING. Also refer to section 5 “What to do if...”.
Rinse aid level indicator and salt level indicator
They light up when rinse aid or salt need to be added.
Add just before starting a wash cycle.
Table 1.1.
Table of programmes
50°C
Selectable extra
functions
Loading instructions large small Litres kWh Minutes
Crockery to be washed later . — — 4.0 0.03 14 ±
Lightly soiled crockery, without dry
residuals.
Normally soiled crockery.
Energy-saving programme.
Recommended programme for
heavily soiled crockery, particularly
suitable for pots and pans.
Ideal for washing a half load of
lightly or normally soiled crockery .
P
1
2
3
4
5
1) Programme data obtained in conformity with European standard EN 50242. The data may vary, for example, according to
different loads, extra functions, sensor settings (only with sensor programmes), water supply temperatures, water hardness
and power supply voltage.
2) Energy label programme in compliance with EN 50242. - Information for Test Laboratories:
the EN comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
Programmes
Pre-Rinse cold
Quickwash 40°C
2)
Bio
Intensive 70°C
Half Load 50°C
Detergent
dispenser
X — 10.0 0.65 30 ±
X X 12.0 1.05 165±
X X 14.0 1.55 155±
X X 10.0 1.04 145±
for more detailed information on
Consumption
1)
5019 496 01073
1)
1)
1)
1)
1)
1
2. QUICK REFERENCE GUIDE
Detailed instructions are given in the following pages, see also chapter “5. What to do if...”
1. Switch on the
appliance
2. Select a programme
3. Select the type of
detergent
4. Fill in the detergent
5. Check the rinse aid
level
6. Check the salt level
Open the dishwasher door.
Press the ON button.
Press the button or to bring up the desired programme on the display.
Select options, if available.
The detergent selection procedure varies depending on the dishwasher model.
Chapter “1. Overview” provides instructions for selecting detergent type.
4a. Powder/gel/tabs
Fill the detergent dispenser compartments in
accordance with the wash programme selected.
Large compartment A for every wash cycle, additional
small compartment B for programmes with pre-wash
(see table 1.1.).
4b. Combined action detergents (2 in 1/3 in 1/... etc.)
Place the detergent in compartment A or in the cutlery
basket, as per the manufacturer's recommendations.
Visual indicator in dispenser
dark
clear
The indicator lamp on the control panel lights up when rinse aid
needs to be added. Not all models are equipped with such an
indicator.
Depending on the model:
window in salt reservoir cap on bottom of appliance inside
orange
clear
The indicator lamp on the control panel lights up when salt needs
to be added. Even once salt has been added, the indicator lamp
only switches off after several wash cycles!
➯
➯
➯
➯
sufficient rinse aid present,
add rinse aid (approx. 100 ml).
when sufficient salt is present,
when salt needs to be added.
C
ACB
7. Load the racks
8. Start the appliance
9. Turn on the water
tap and close the
dishwasher door
Wash cycle
10.End of programme
11.Open the door,
switch off the
appliance
12. Turn off the water
tap, unload the racks
2
Make sure that the spray arms can turn freely and are not impeded by crockery
or cutlery in the racks.
Detailed instructions on loading the racks are given in chapter “3. How to use
the appliance”, under “How to load the racks”.
Press the START button.
Change the programme in progress:
When the door is closed the dishwasher
starts automatically.
If the appliance is switched off during a
wash cycle, when switched on again it will
resume the cycle from where it was
interrupted. Care must be taken when
opening the door, as steam will escape!
At the end of the programme an acoustic signal will sound.
The START indicator lamp switches off.
Press the
Unload the appliance, starting from the lower rack in order to avoid any
residual drips of water falling onto crockery below.
button. All the indicator lamps switch off.
OFF
- Press the START button for
about 2 sec., until the START
indicator lamp switches off.
- Close the door.
- (Water drains for up to 60 seconds).
- Open the door.
- Select a new programme.
- Press the START button.
3. HOW TO USE THE APPLIANCE
PROGRAMME SELECTION
Press the button or to bring up the desired programme on the display. The appliance must be switched
on. If required, select options (if supplied). The corresponding indicator lamp switches on. Appropriate
programmes and relative available options are detailed in table 1.1 on page 1.
Programme times stated in the table were obtained under normal conditions and may vary
depending on conditions. Differences of up to 20 minutes are possible with sensor programmes
as a result of the appliance's automatic calibration system.
HOW TO FILL THE DETERGENT DISPENSER
Only fill the detergent dispenser prior to starting a wash programme.
specially recommended for dishwashers, observing the manufacturer's recommended dosage.
Observe the manufacturer's safety warnings!
Open the detergent dispenser compartments by pushing the left lever (lever 1) of the dispenser.
a. Powder/gel/tabs
Fill the detergent dispenser compartments in accordance with the wash programme selected (table 1.1).
Programmes without pre-wash:
pour the entire recommended dosage into compartment A.
Programmes with pre-wash:
pour 2/3 of the recommended dosage into the large compartment
and 1/3 into the small compartment B.
A
Dishwasher tabs should be placed, according to the
manufacturer's recommendations, in compartment A or in the
cutlery basket.
If the “Half load” option is selected, detergent dosage should be
reduced by approximately 1/3.
b. Combined action detergents (2 in 1/3 in 1/... etc.)
Combined action detergents should be placed, according to the
manufacturer's recommendations, in compartment A or in the
cutlery basket.
Firmly press the detergent compartment lid shut after filling.
Detergents with rinse aid incorporated may be effective only with longer programmes. In the
case of shorter programmes, detergent residue may be a problem (if necessary, use powder
detergent). Detergents with rinse aid incorporated tend to form excess suds.
The guarantee is not applicable if faults are caused by the use of these products.
Lever
1
compartment
use detergents
Only
Large
compartment
A
Small
B
HOW TO CHECK/FILL/ADJUST RINSE AID
Not necessary when using a combined action detergent.
a. How to check the rinse aid level
Check the visual indicator C on the rinse aid dispenser: dark = sufficient rinse aid, clear = add rinse aid.
In the case of appliances with an electric indicator on the
control panel, the rinse aid indicator lamp lights up red
when rinse aid needs to be added.
b. How to fill the rinse aid dispenser
Open the rinse aid dispenser by pressing the right lever
(lever 2) of the dispenser.
Fill the dispenser with rinse aid up to the “max” line
(approx. 100 ml).
Shut the lid again.
Only use rinse aids recommended for use in domestic dishwashers.
any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault
function of the appliance.
Lever
2
Immediately
Indicator
max
wipe away
C
3
