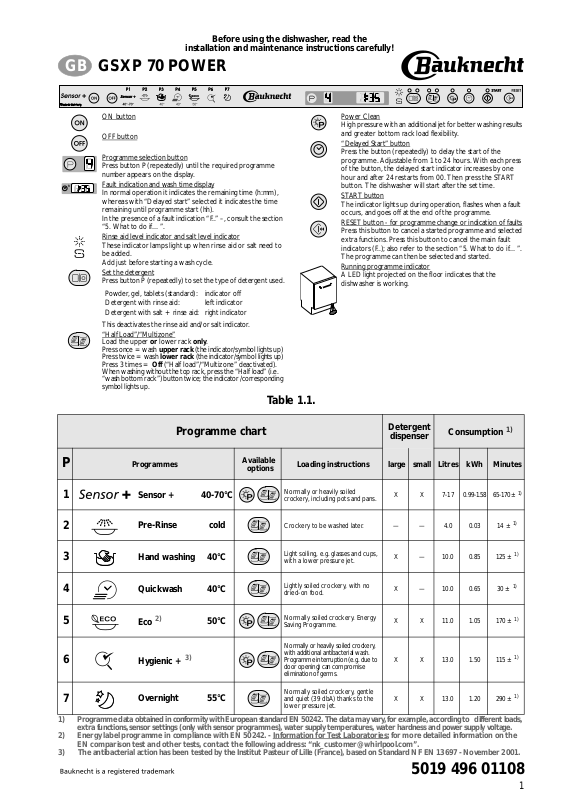

Whirlpool GSXP 70/2 POWER PROGRAM CHART

GSXP 70 POWER

Before using the dishwasher, read the

installation and maintenance instructions carefully!

ON button

OFF button

Programme selection button Press button P (repeatedly) until the required programme number appears on the display. Fault indication and wash time display In normal operation it indicates the remaining time (h:mm), whereas with “Delayed start” selected it indicates the time remaining until programme start (hh). In the presence of a fault indication “F..” –, consult the section “5. What to do if…”.

Rinse aid level indicator and salt level indicator These indicator lamps light up when rinse aid or salt need to be added. Add just before starting a wash cycle.

Set the detergent Press button P (repeatedly) to set the type of detergent used.

Powder, gel, tablets (standard): indicator off Detergent with rinse aid: left indicator Detergent with salt + rinse aid: right indicator

This deactivates the rinse aid and/or salt indicator. “Half Load”/“Multizone”

Load the upper or lower rack Press once = wash Press twice = wash Press 3 times = When washing without the top rack, press the “Half load” (i.e. “wash bottom rack”) button twice; the indicator /corresponding symbol lights up.

upper rack

lower rack

(“Half load”/“Multizone” deactivated).

Off

only

(the indicator/symbol lights up)

Table 1.1.

Programme chart

Power Clean High pressure with an additional jet for better washing results and greater bottom rack load flexibility. “Delayed Start” button Press the button (repeatedly) to delay the start of the programme. Adjustable from 1 to 24 hours. With each press of the button, the delayed start indicator increases by one hour and after 24 restarts from 00. Then press the START button. The dishwasher will start after the set time. START button The indicator lights up during operation, flashes when a fault occurs, and goes off at the end of the programme. RESET button - for programme change or indication of faults Press this button to cancel a started programme and selected extra functions. Press this button to cancel the main fault indicators (F..); also refer to the section “5. What to do if…”. The programme can then be selected and started. Running programme indicator A LED light projected on the floor indicates that the dishwasher is working.

Detergent

dispenser

Consumption

1) Programme data obtained in conformity with European standard EN 50242. The data may vary , for example, according to different loads, extra functions, sensor settings (only with sensor programmes), water supply temperatures, water hardness and power supply voltage.

2) Energy label programme in compliance with EN 50242. - Information for Test Laboratories: EN comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.

3) The antibacterial action has been tested by the Institut Pasteur of Lille (France), based on Standard NF EN 13697 - November 2001.

Programmes

Sensor + 40-70°C

Pre-Rinse cold

Hand washing 40°C

Quickwash 40°C

Eco

Hygienic +

50°C

Overnight 55°C

Available

options

Loading instructions large small Litres kWh Minutes

Normally or heavily soiled crockery, including pots and pans.

Crockery to be washed later. — — 4.0 0.03 14 ±

Light soiling, e.g. glasses and cups, with a lower pressure jet.

Lightly soiled crockery, with no dried-on food.

Normally soiled crockery. Energy Saving Programme.

Normally or heavily soiled crockery, with additional antibacterial wash. Programme interruption (e.g. due to door opening) can compromise elimination of germs.

Normally soiled crockery, gentle and quiet (39 dbA) thanks to the lower pressure jet.

X X 7-17 0.99-1.58 65-1 70±

X — 10.0 0.85 125 ±

X — 10.0 0.65 30 ±

X X 11.0 1.05 170 ±

X X 13.0 1.50 115 ±

X X 13.0 1.20 290 ±

for more detailed information on the

5019 496 01108

2. QUICK REFERENCE GUIDE

Detailed instructions are given in the following pages, see also chapter “5. What to do if...”

1. Switch on the appliance

2. Select a programme

3. Select the type of detergent

4. Fill in the detergent

5. Check the rinse aid level

6. Check the salt level

Open the dishwasher door. Press the ON button.

Press the button or to bring up the desired programme on the display. Select options, if available.

The detergent selection procedure varies depending on the dishwasher model. Chapter “1. Overview” provides instructions for selecting detergent type.

4a. Powder/gel/tabs Fill the detergent dispenser compartments in accordance with the wash programme selected. Large compartment A for every wash cycle, additional small compartment B for programmes with pre-wash (see table 1.1.). 4b. Combined action detergents (2 in 1/3 in 1/... etc.) Place the detergent in compartment A, as per the manufacturer's recommendations.

Visual indicator in dispenser dark clear The indicator lamp on the control panel lights up when rinse aid needs to be added. Not all models are equipped with such an indicator.

Depending on the model:

window in salt reservoir cap on bottom of appliance inside orange clear The indicator lamp on the control panel lights up when salt needs to be added. Even once salt has been added, the indicator lamp only switches off after several wash cycles!

➯ ➯

sufficient rinse aid present, add rinse aid (approx. 150 ml).

when sufficient salt is present, when salt needs to be added.

ACB

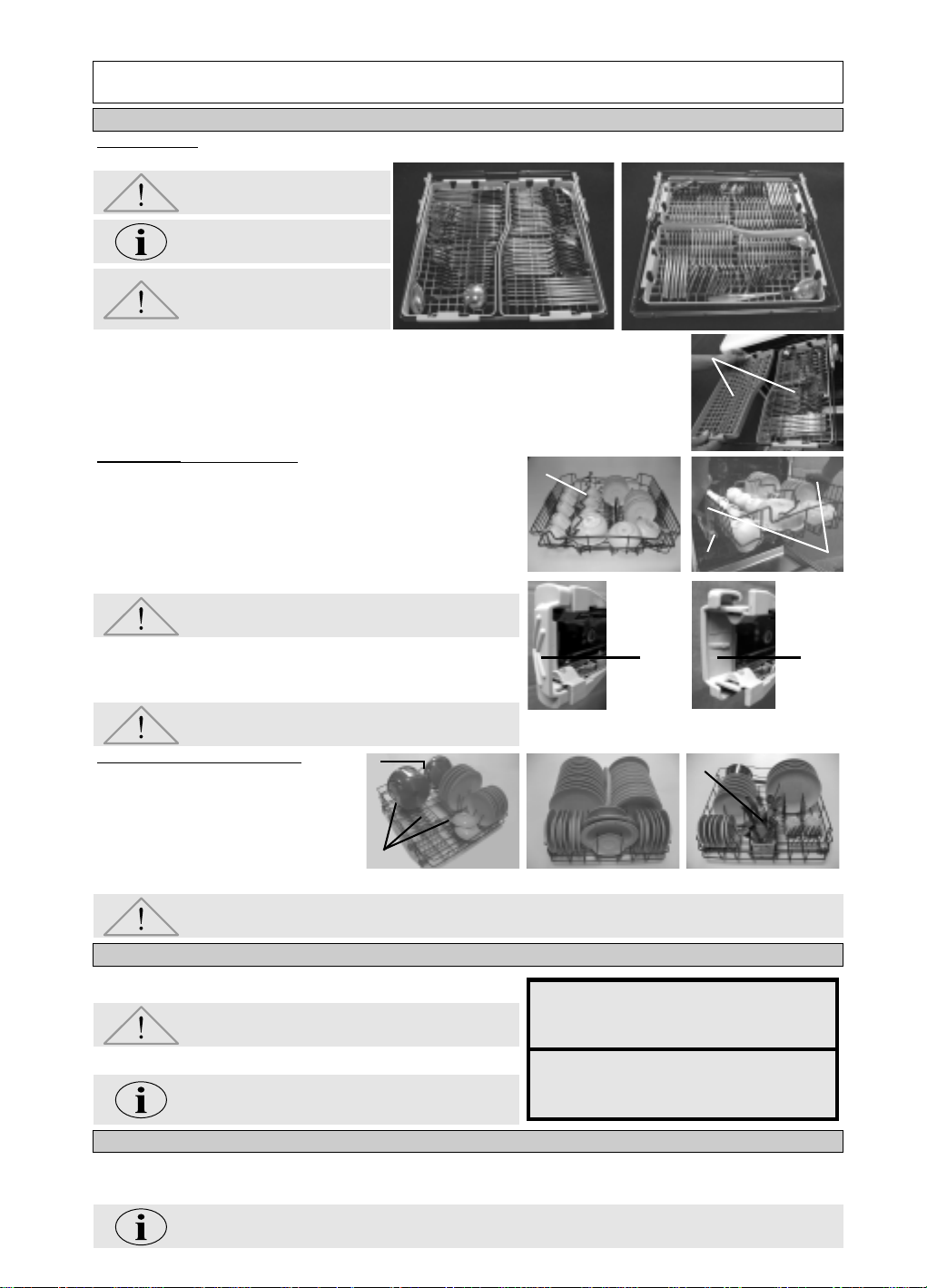

7. Load the racks

8. Start the appliance

9. Turn on the water tap and close the dishwasher door

Wash cycle

10.End of programme

11.Open the door, switch off the appliance

12. Turn off the water tap, unload the racks

Make sure that the spray arms can turn freely and are not impeded by crockery or cutlery in the racks. Detailed instructions on loading the racks are given in chapter “3. How to use the appliance”, under “How to load the racks”.

Press the START button.

Change the programme in

When the door is closed the dishwasher starts automatically.

If the appliance is switched off during a wash cycle, when switched on again it will resume the cycle from where it was interrupted. Care must be taken when opening the door, as steam will escape!

At the end of the programme an acoustic signal will sound. The START indicator lamp switches off.

Press the

Unload the appliance, starting from the lower rack in order to avoid any residual drips of water falling onto crockery below.

button. All the indicator lamps switch off.

OFF

progress:

- Press the RESET button.

- Close the door.

- (Water drains for up to 60 seconds).

- Open the door.

- Select a new programme.

- Press the START button.

3. HOW TO USE THE APPLIANCE

PROGRAMME SELECTION

Press the button or to bring up the desired programme on the display. The appliance must be switched on. If required, select options (if supplied). The corresponding indicator lamp switches on. Appropriate programmes and relative available options are detailed in table 1.1 on page 1.

Programme times stated in the table were obtained under normal conditions and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programmes as a result of the appliance's automatic calibration system.

HOW TO FILL THE DETERGENT DISPENSER

Only fill the detergent dispenser prior to starting a wash programme. specially recommended for dishwashers, observing the manufacturer's recommended dosage. Observe the manufacturer's safety warnings!

Open the detergent dispenser compartments by pushing the left button (button 1) of the dispenser. a. Powder/gel/tabs

Fill the detergent dispenser compartments in accordance with the wash programme selected (table 1.1). Programmes without pre-wash: pour the entire recommended dosage into compartment A. Programmes with pre-wash: pour 2/3 of the recommended dosage into the large compartment

and 1/3 into the small compartment B.

Dishwasher tabs should be placed, according to the manufacturer's recommendations, in compartment A.

If the “Half load” option is selected, detergent dosage should be reduced by approximately 1/3.

b. Combined action detergents (2 in 1/3 in 1/... etc.)

Combined action detergents should be placed, according to the manufacturer's recommendations, in compartment A.

Firmly close and press the detergent compartment lid shut after filling.

Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend to form excess suds.

The guarantee is not applicable if faults are caused by the use of these products.

Large

compartment

use detergents

Only

button

compartment

Small

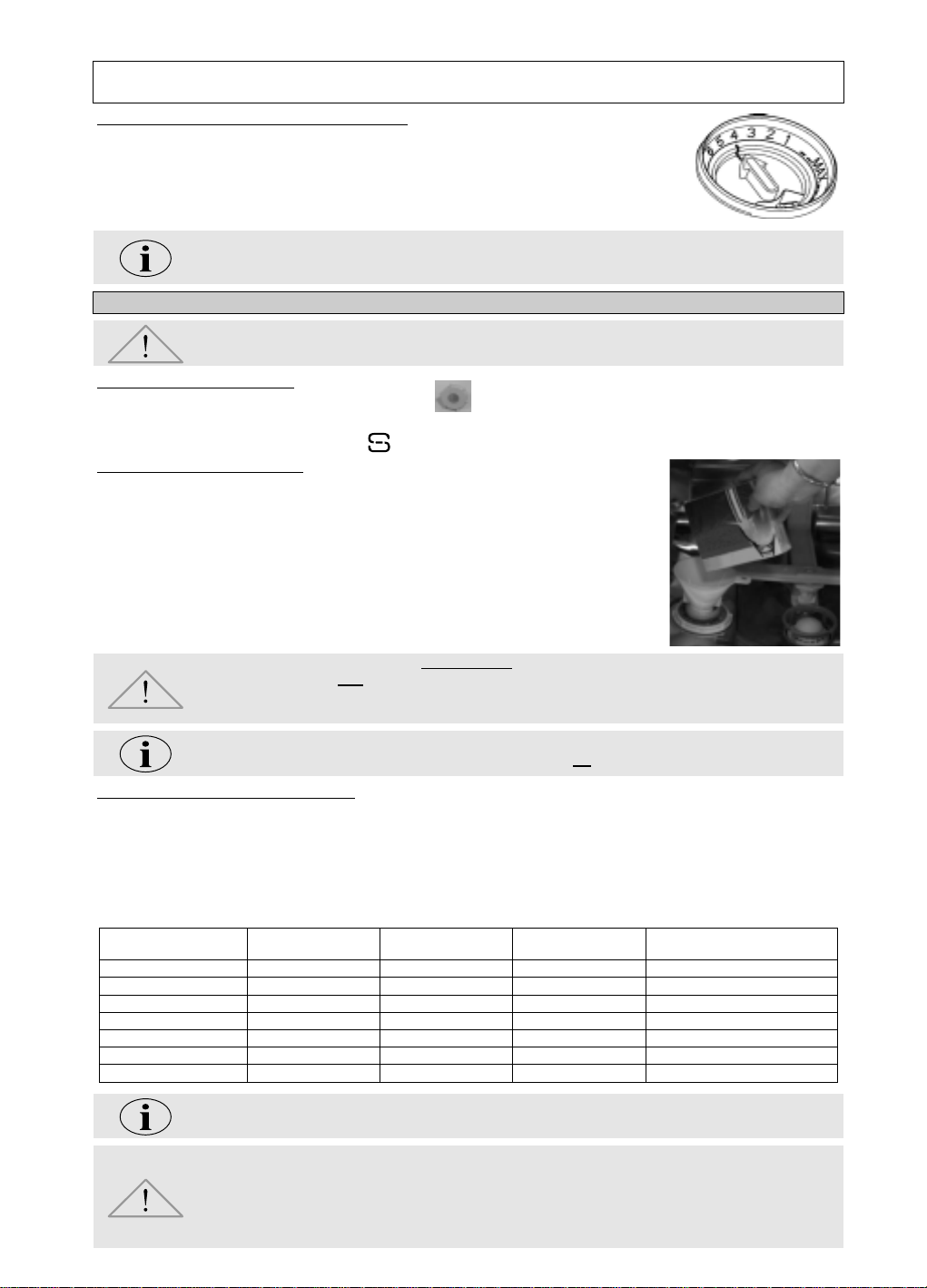

HOW TO CHECK/FILL/ADJUST RINSE AID

Not necessary when using a combined action detergent.

a. How to check the rinse aid level

Check the visual indicator C on the rinse aid dispenser: dark = sufficient rinse aid, clear = add rinse aid. In the case of appliances with an electric indicator on the control panel, the rinse aid indicator lamp lights up red when rinse aid needs to be added.

b. How to fill the rinse aid dispenser

Open the rinse aid dispenser by pressing the right button (button 2) of the dispenser.

Fill the dispenser with rinse aid up to the “max” line (approx. 150 ml).

Shut the lid again.

Only use rinse aids recommended for use in domestic dishwashers. any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.

Immediately

wipe away

Indicator

max

button
