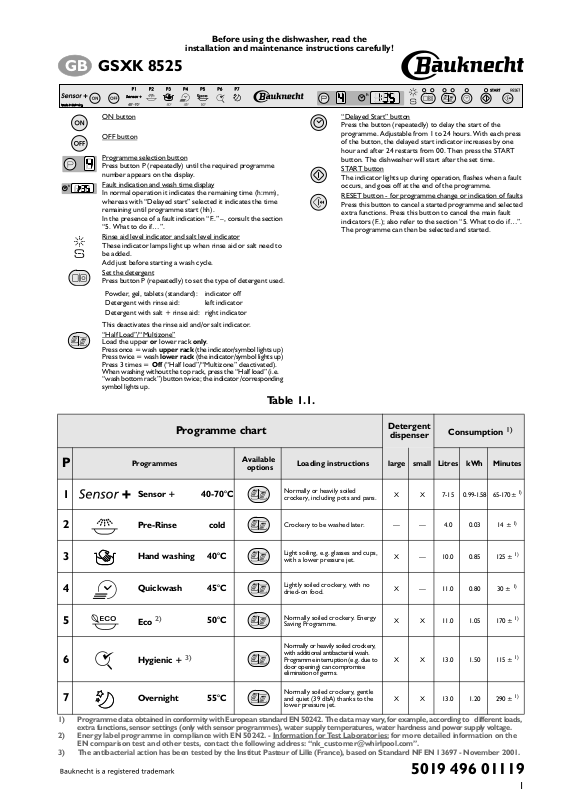

Before using the dishwasher, read the installation and maintenance instructions carefully!
GB GSXK 8525
ON button
OFF button
Programme selection button
Press button P (repeatedly) until the required programme number appears on the display.
Fault indication and wash time display
In normal operation it indicates the remaining time (h:mm), whereas with “Delayed start” selected it indicates the time remaining until programme start (hh).
In the presence of a fault indication “F..” –, consult the section “5. What to do if…”.
Rinse aid level indicator and salt level indicator
These indicator lamps light up when rinse aid or salt need to be added.
Add just before starting a wash cycle. Set the detergent
Press button P (repeatedly) to set the type of detergent used.
Powder, gel, tablets (standard): indicator off
Detergent with rinse aid: |
left indicator |
Detergent with salt + rinse aid: right indicator
This deactivates the rinse aid and/or salt indicator.
“Half Load”/“Multizone”
Load the upper or lower rack only.
Press once = wash upper rack (the indicator/symbol lights up) Press twice = wash lower rack (the indicator/symbol lights up) Press 3 times = Off (“Half load”/“Multizone” deactivated).
When washing without the top rack, press the “Half load” (i.e. “wash bottom rack”) button twice; the indicator /corresponding symbol lights up.
Table 1.1.
“Delayed Start” button
Press the button (repeatedly) to delay the start of the programme. Adjustable from 1 to 24 hours. With each press of the button, the delayed start indicator increases by one hour and after 24 restarts from 00. Then press the START button. The dishwasher will start after the set time.
START button
The indicator lights up during operation, flashes when a fault occurs, and goes off at the end of the programme.
RESET button - for programme change or indication of faults Press this button to cancel a started programme and selected extra functions. Press this button to cancel the main fault indicators (F..); also refer to the section “5. What to do if…”. The programme can then be selected and started.
|
Programme chart |
|
Detergent |
Consumption 1) |
|
|
||||||
|
|
dispenser |
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
P |
Programmes |
|
Available |
Loading instructions |
large |
small |
Litres |
kWh |
Minutes |
|||
|
options |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
Sensor + |
40-70°C |
|
|
Normally or heavily soiled |
X |
X |
7-15 |
0.99-1.58 |
65-170 ± |
1) |
|
|
|
|||||||||||
|
|
crockery, including pots and pans. |
|
|||||||||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
Pre-Rinse |
cold |
|
|
Crockery to be washed later. |
— |
— |
4.0 |
0.03 |
14 ± 1) |
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
Hand washing |
40°C |
|
|
Light soiling, e.g. glasses and cups, |
X |
— |
10.0 |
0.85 |
125 ± |
1) |
|
|
|
|||||||||||
|
|
with a lower pressure jet. |
|
|
||||||||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
Quickwash |
45°C |
|
|
Lightly soiled crockery, with no |
X |
— |
11.0 |
0.80 |
30 ± |
1) |
|
|
|
|
||||||||||
|
|
dried-on food. |
|
|
||||||||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
Eco 2) |
50°C |
|
|
Normally soiled crockery. Energy |
X |
X |
11.0 |
1.05 |
170 ± |
1) |
|
|
|
|||||||||||
|
|
Saving Programme. |
|
|
||||||||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Normally or heavily soiled crockery, |
|
|
|
|
|
|
|
6 |
Hygienic + 3) |
|
|
|
with additional antibacterial wash. |
|
|
|
|
115 ± 1) |
||
|
|
|
Programme interruption (e.g. due to |
X |
X |
13.0 |
1.50 |
|||||
|
|
|
|
|
door opening) can compromise |
|
|
|
|
|
|
|
|
|
|
|
|
elimination of germs. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
Overnight |
55°C |
|
|
Normally soiled crockery, gentle |
|
|
|
|
290 ± 1) |
||
|
|
and quiet (39 dbA) thanks to the |
X |
X |
13.0 |
1.20 |
||||||
|
|
|
|
|
lower pressure jet. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
1) |
Programme data obtained in conformity with European standard EN 50242. The data may vary, for example, according to different loads, |
|||||||||||
|
extra functions, sensor settings (only with sensor programmes), water supply temperatures, water hardness and power supply voltage. |
|
|
2)Energy label programme in compliance with EN 50242. - Information for Test Laboratories: for more detailed information on the EN comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
3)The antibacterial action has been tested by the Institut Pasteur of Lille (France), based on Standard NF EN 13697 - November 2001.
5019 496 01119
1
