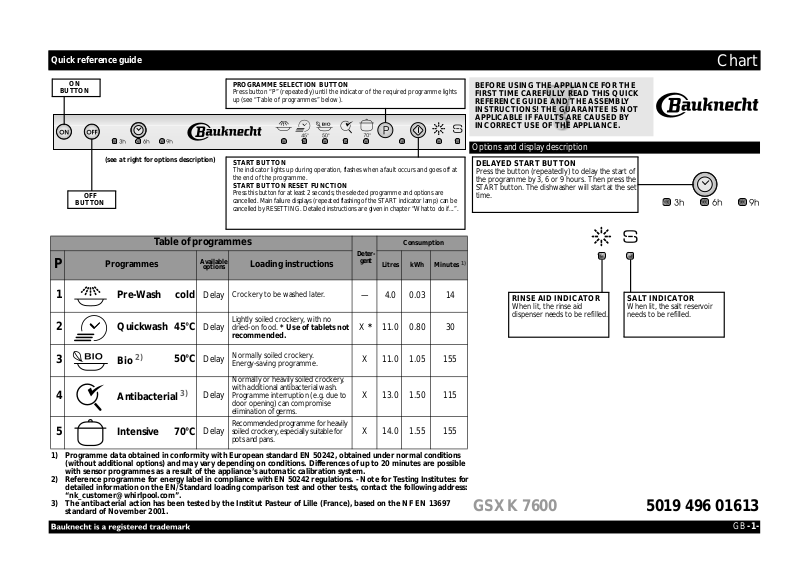

Whirlpool GSXK 7600 PROGRAM CHART

Quick reference guide

Chart

BUTTON

(see at right for options description)

OFF

BUTTON

Table of programmes

1) Programme data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programmes as a result of the appliance’s automatic calibration system.

2) Reference programme for energy label in complian ce with EN 50242 regul ations. - No te for Testing Institutes: fo detailed information on the EN/Standard loading comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.

3) The antibacterial action has been tested by the Institut Pasteur of Lille (France), based on the NF EN 13697 standard of November 2001.

Programmes

Pre-Wash cold

Quickwash 45°C

Bio

Antibacterial

Intensive 70°C

50°C

PROGRAMME SELECTION BUTTON

Press button “P” (repeatedly) until the indicator of the required programme lights up (see “Table of programmes” below).

START BUTTON

The indicator lights up during operation, flashes when a fault occurs and goes off at the end of the programme.

START BUTTON RESET FUNCTION

Press this button for at least 2 seconds; the selected programme and options are cancelled. Main failure displays (repeated flashing of the START indicator lamp) can be cancelled by RESETTING. Detailed instructions are given in chapter “What to do if...”.

Deter-

Available

options

Delay

Loading instructions

Crockery to be washed later .

Lightly soiled crockery, with no dried-on food. * Use of tablets not

recommended.

Normally soiled crockery. Energy-saving programme.

Normally or heavily soiled crockery, with additional antibacterial wash. Programme interruption (e.g. due to door opening) can compromise elimination of germs.

Recommended programme for heavily soiled crockery, especi ally suitable for pots and pans.

gent

Litres kWh

— 4.0 0.03 14

X*11.0 0.80 30

X 11.0 1.05 155

X 13.0 1.50 115

X 14.0 1.55 155

Consumption

Minutes

BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY READ THIS QUICK REFERENCE GUIDE AND THE ASSEMBLY INSTRUCTIONS! THE GUARANTEE IS NOT APPLICABLE IF FAULTS ARE CAUSED BY INCORRECT USE OF THE APPLIANCE.

Options and display description

DELAYED START BUTTON

Press the button (repeatedly) to delay the start of the programme by 3, 6 or 9 hours. Then press the START button. The dishwasher will start at the set time.

RINSE AID INDICATOR

When lit, the rinse aid dispenser needs to be refilled.

SALT INDICATOR

When lit, the salt reservoir needs to be refilled.

5019 496 01613GSXK 7600

-1-

How to set detergent type: powder/gel/tablet (if option is available)

First time use

In order to always ensure the best cleaning results, you NEED to set: DETERGENT type and WATER HARDNESS.

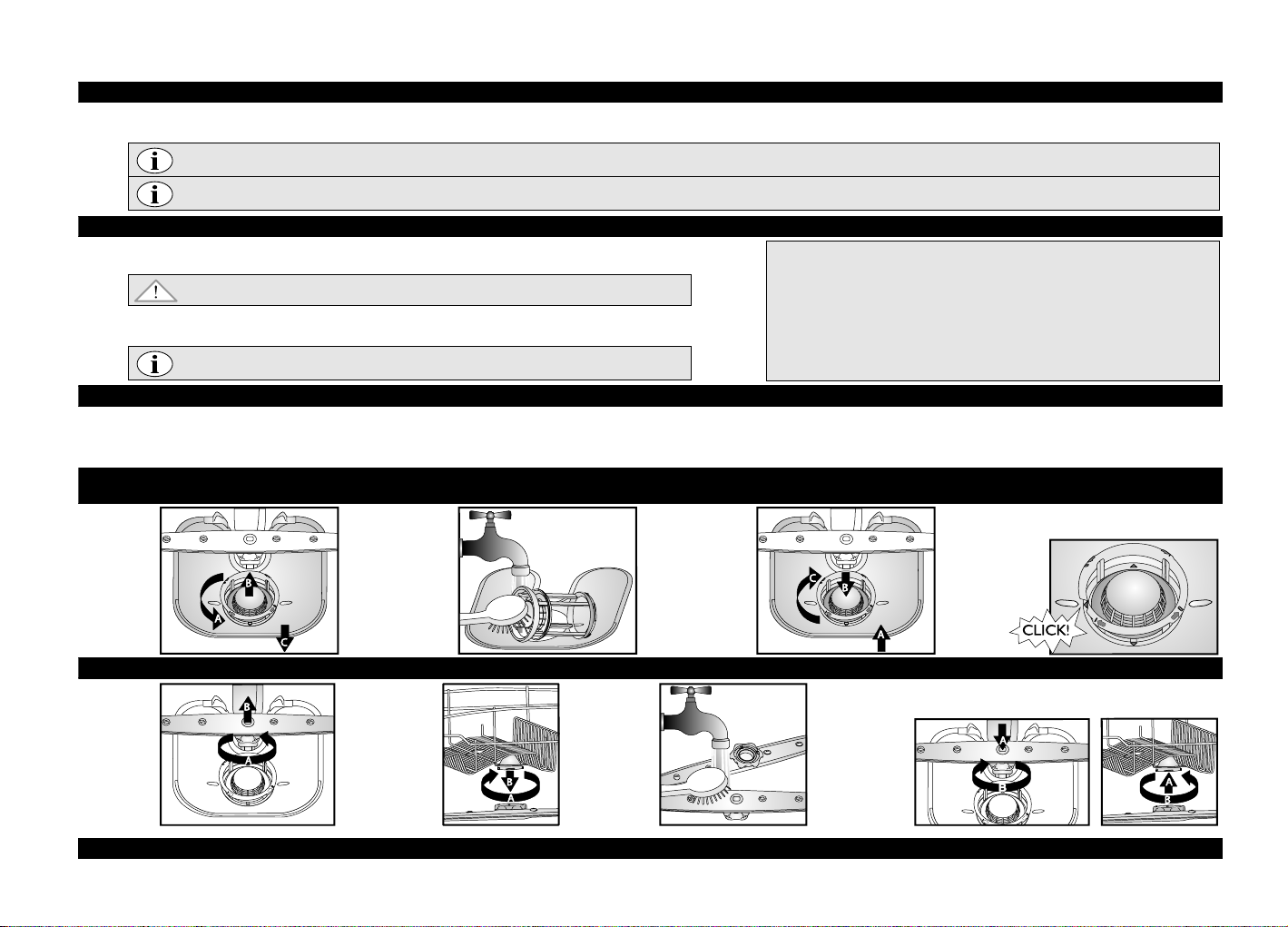

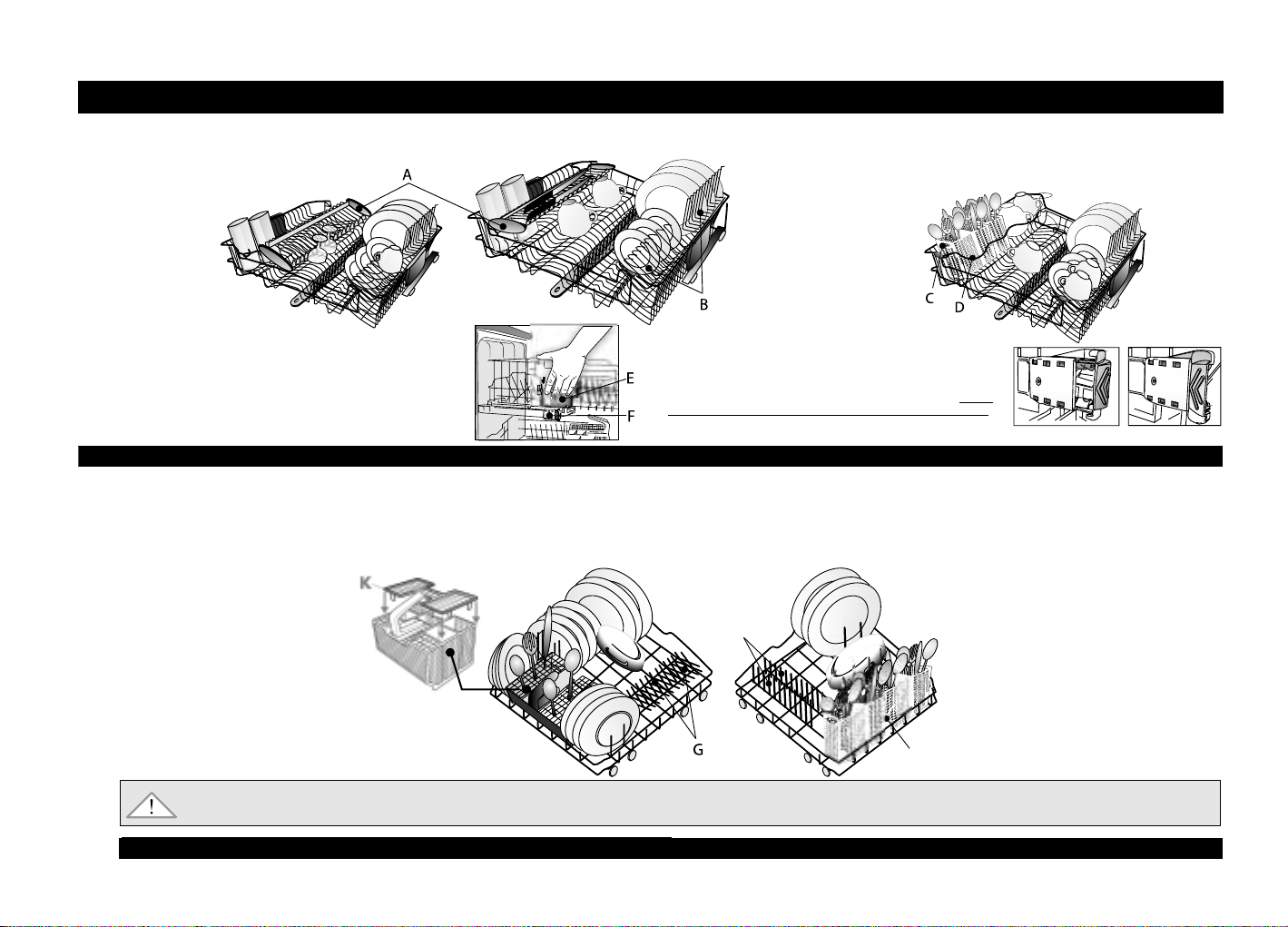

1- salt reservoir 2- rinse aid dispenser 3- detergent dispenser 4- racks system 5,6,7,8- available functions on the panel 9- filters 10- spray arms

Select 3rd programme (see Table of programmes

- page 1)

Press START button for 7 seconds

3a.

Check your detergent type...

Detergent

types

Powder or gel

(factory setting)

Tablet 2 in 1

Tablet 3 in 1

Tablet All in 1

For models without “detergent type” option, the salt and rinse aid indicators will be lit when tablets are used.

How to set water hardness

Switch on the appliance

before the first wash

only

water hardness has been changed

Ask your water supply company what the

German

degrees °dH

0 - 5 0 - 9 0 - 6.3 Soft 1 1x

6 - 10 10 - 18 7 - 12.6 Medium 2 2x 11 - 15 19 - 27 13.3 - 18.9 Average 3 3x 16 - 21 28 - 37 19.6 - 25.9 Medium-hard 4 4x 22 - 28 38 - 50 26.6 - 35 Hard 5 5x 29 - 35 51 - 63 35.7 - 44.1 Very hard 6 6x

36 - 60 64 - 107 44.8 - 74.9

French

degrees °fH

or if the

degrees °eH

English

- Select the 2nd programme “P2” - consult the table of programmes.

- Press the START button for at least 5 seconds until the START indicator lamp flashes.

- The water hardness setting is shown on the display (if present) or the START button flashes.

- With each successive touch of the START button the setting increases and when it reaches 7 it returns to 1 again.

- The appliance must be switched off to memorise the new setting.

water hardness

is...2....enter this value on your

dishwasher

Water

hardness

Extremely

hard

Dishwasher

with display:

insert value in

the display

7 7x

3b.

...and set it on your dishwasher

using the START button

(as per table below)

Dishwasher models

model without

display

3h 6h 9h

Dishwasher

without

display: count

START button

led flashes

model with display

Suggestions for detergent use

Gel or Powder

(rinse aid and

salt)

go to step 1

(see “Daily

check”)

Remember to use salt and rinse aid when needed (as indicated below)

no symbol add salt add rinse aid

add salt

salt

Tablets

rinse aid

Water hardness level is factory set for medium hard water (a number “4” is shown on the display or the START indicator lamp flashes 4 times).

if extra salt is needed go to

step 1

(see “Daily

check”)

Even if you use tablets which include salt, you must still add salt since such detergents are not effective enough at softening hard water.

Switch off and switch on again to save setting

-2-

Filling the salt reservoir -

Dissolve limescale (not necessary if water hardness level is set to “soft”!)

Daily check

The salt level indicator lamp may remain lit for the duration of several wash cycles. If the water hardness level falls within category (soft),

Adding rinse aid

(not necessary when you use tablets). How to adjust the rinse aid dosage regulator

Rinse aid indicator (depending on model)

Only use rinse aids recommended for use in domestic dishwashers. If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly d ry : incr e a s e the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid

setting will not improve the situation. Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend

to form excess suds.

Adding detergent -

Visual indicator (depending on model). Unscrew cap.

Visual indicator

If required, open the cover B (press right button).

salt is required.

The indicator lamp on the control panel lights up when RINSE AID NEEDS TO BE ADDED.

Immediately

Fill the salt reservoir with water before the first wash only.

Salt indicator

(depending on

the model)

Add rinse aid to the max. line ~150 ml

wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.

The indicator lamp on the control panel lights up when SALT NEEDS TO BE ADDED.

Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations

Tablet / gel / powder

Use only one tablet per one

Open the cover A (press left button).

Only fill the detergent dispenser prior to starting a wash programme.

cycle, only placed in detergent dispenser.

All types of tablets can be used, but for 2 in 1 type adding of salt is mandatory.

Add salt

(never add detergent!). min. 1.5 kg

max. 2 kg

orange: OK. clear: NEEDS TO BE ADDED

The rinse aid dosage can be adjusted to the detergent used. The lower the setting, the less rinse aid is dispensed (factory setting: position 4). Press the button to open the cover B. Using a coin or similar object, turn the arrow to the desired setting. After adjusting the rinse aid setting, shut the cover again.

dark: OK. clear: NEEDS TO BE ADDED

By pressing dedicated ribs shut the cover.

Visual indicator (depending on model). Screw on the cap. Salt residues around cap need to be removed.

Daily use

-3-
