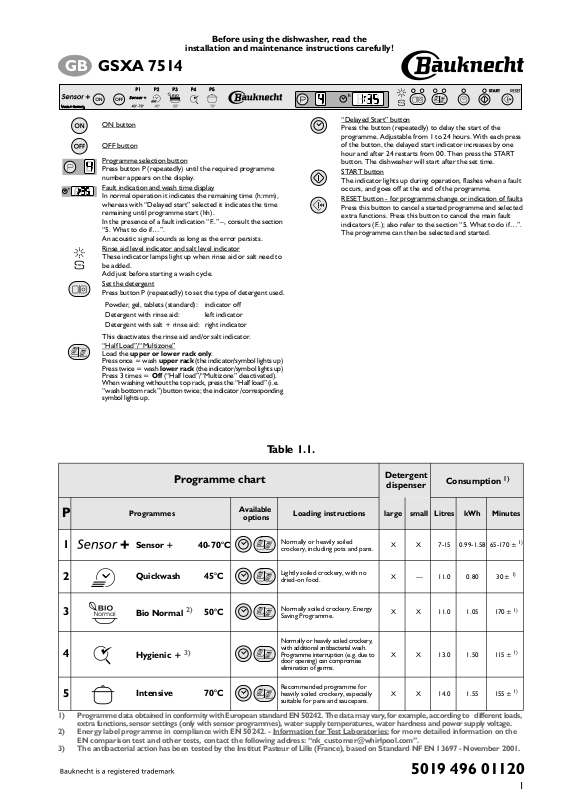

Whirlpool GSXA 7514 TR PROGRAM CHART
GSXA 7514
GB
Before using the dishwasher, read the
installation and maintenance instructions carefully!
ON button
OFF button
Programme selection button
Press button P (repeatedly) until the required programme
number appears on the display.
Fault indication and wash time display
In normal operation it indicates the remaining time (h:mm),
whereas with “Delayed start” selected it indicates the time
remaining until programme start (hh).
In the presence of a fault indication “F..” –, consult the section
“5. What to do if…”.
An acoustic signal sounds as long as the error persists.
Rinse aid level indicator and salt level indicator
These indicator lamps light up when rinse aid or salt need to
be added.
Add just before starting a wash cycle.
Set the detergent
Press button P (repeatedly) to set the type of detergent used.
Powder, gel, tablets (standard): indicator off
Detergent with rinse aid: left indicator
Detergent with salt + rinse aid: right indicator
This deactivates the rinse aid and/or salt indicator.
“Half Load”/“Multizone”
Load the
upper or lower rack only
Press once = wash
Press twice = wash
Press 3 times =
When washing without the top rack, press the “Half load” (i.e.
“wash bottom rack”) button twice; the indicator /corresponding
symbol lights up.
upper rack
lower rack
(“Half load”/“Multizone” deactivated).
Off
.
(the indicator/symbol lights up)
(the indicator/symbol lights up)
“Delayed Start” button
Press the button (repeatedly) to delay the start of the
programme. Adjustable from 1 to 24 hours. With each press
of the button, the delayed start indicator increases by one
hour and after 24 restarts from 00. Then press the START
button. The dishwasher will start after the set time.
START button
The indicator lights up during operation, flashes when a fault
occurs, and goes off at the end of the programme.
RESET button - for programme change or indication of faults
Press this button to cancel a started programme and selected
extra functions. Press this button to cancel the main fault
indicators (F..); also refer to the section “5. What to do if…”.
The programme can then be selected and started.
Table 1.1.
Programme chart
P
1
2
3
4
5
1) Programme data obtained in conformity with European standard EN 50242. The data may vary, for example, according to different loads,
extra functions, sensor settings (only with sensor programmes), water supply temperatures, water hardness and power supply voltage.
2) Energy label programme in compliance with EN 50242. - Information for Test Laboratories:
EN comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
3) The antibacterial action has been tested by the Institut Pasteur of Lille (France), based on Standard NF EN 13697 - November 2001.
Programmes
Sensor + 40-70°C
Quickwash 45°C
2)
Bio Normal
Hygienic +
50°C
3)
Intensive 70°C
Available
options
Loading instructions large small Litres kWh Minutes
Normally or heavily soiled
crockery, including pots and pans.
Lightly soiled crockery, with no
dried-on food.
Normally soiled crockery. Energy
Saving Programme.
Normally or heavily soiled crockery,
with additional antibacterial wash.
Programme interruption (e.g. due to
door opening) can compromise
elimination of germs.
Recommended programme for
heavily soiled crockery, especially
suitable for pans and saucepans.
Detergent
dispenser
X X 7-15 0.99-1.58 65-170 ±
X — 11.0 0.80 30 ±
X X 11.0 1.05 170 ±
X X 13.0 1.50 115 ±
X X 14.0 1.55 155 ±
for more detailed information on the
Consumption
1)
1)
1)
1)
1)
5019 496 01120
1)
1
